PY3FWG114PWIRELESS FIREWALL

M-10177-01 M-10177-01 Version 1.0 July 2003 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P ii M-10177-01 © 2003 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution 1.FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 2.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. EN 55 022 Declaration of Conformance This is to certify that the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). M-10177-01 iii Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. M-10177-01 iv Contentsv M-10177-01 Contents Chapter 1 About This Manual Audience, Conventions, Scope ......................................................................................1-1 Features of the HTML Version of this Manual ................................................................1-2 How to Print this Manual .................................................................................................1-3 Chapter 2 Introduction Key Features of the FWG114P .......................................................................................2-1 802.11g and 802.11b Wireless Networking ..............................................................2-2 A Powerful, True Firewall with Content Filtering ......................................................2-2 Security ....................................................................................................................2-3 Autosensing Ethernet Connections with Auto Uplink ...............................................2-3 Extensive Protocol Support ......................................................................................2-3 Easy Installation and Management ..........................................................................2-4 Maintenance and Support .........................................…

Text truncated - open the document above for the full version.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P Troubleshooting9-3 M-10177-01 Troubleshooting the Web Configuration Interface If you are unable to access the router’s Web Configuration interface from a PC on your local network, check the following: •Check the Ethernet connection between the PC and the router as described in the previous section. •Make sure your PC’s IP address is on the same subnet as the router. If you are using the recommended addressing scheme, your PC’s address should be in the range of 192.168.0.2 to 192.168.0.254. Refer to “Verifying TCP/IP Properties” on page 3-5 or “Verifying TCP/IP Properties (Macintosh)” on page 3-8 to find your PC’s IP address. Follow the instructions in Chapter 4 to configure your PC. Note: If your PC’s IP address is shown as 169.254.x.x: Recent versions of Windows and MacOS will generate and assign an IP address if the computer cannot reach a DHCP server. These auto-generated addresses are in the range of 169.254.x.x. If your IP address is in this range, check the connection from the PC to the router and reboot your PC. •If your router’s IP address has been changed and you don’t know the current IP address, clear the router’s configuration to factory defaults. This will set the router’s IP address to 192.168.0.1. This procedure is explained in “Restoring the Default Configuration and Password” on page 7-7. •Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet Explorer, click Refresh to be sure the Java applet is loaded. •Try quitting the browser and launching it again. •Make sure you are using the correct login information. The factory default login name is admin and the password is password. Make sure that CAPS LOCK is off when entering this information. If the router does not save changes you have made in the Web Configuration Interface, check the following: •When entering configuration settings, be sure to click the APPLY button before moving to another menu or tab, or your changes are lost. •Click the Refresh or Reload button in the Web browser. The changes may have occurred, but the Web browser may be caching the old configuration. Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P 9-4Troubleshooting M-10177-01 Troubleshooting the ISP Connection If your router is unable to access the Internet, you should first determine whether the router is able to obtain a WAN IP address from the ISP. Unless you have been assigned a static IP address, your router must request an IP address from the ISP. You can determine whether the request was successful using the Web Configuration Manager. To check the WAN IP address: 1.Launch your browser and select an external site such as www.netgear.com 2.Access the Main Menu of the router’s configuration at http://192.168.0.1 3.Under the Maintenance heading, select Router Status 4.Check that an IP address is shown for the WAN Port If 0.0.0.0 is shown, your router has not obtained an IP address from your ISP. If your router is unable to obtain an IP address from the ISP, you may need to force your broadband modem to recognize your new router by performing the following procedure: 1.Turn off power to the broadband modem. 2.Turn off power to your router. 3.Wait five minutes and reapply power to the broadband modem. 4.When the modem’s LEDs indicate that it has reacquired sync with the ISP, reapply power to your router. If your router is still unable to obtain an IP address from the ISP, the problem may be one of the following: •Your ISP may require a login program. Ask your ISP whether they require PPP over Ethernet (PPPoE) or some other type of login. •If your ISP requires a login, you may have incorrectly set the login name and password. •Your ISP may check for your PC's host name. Assign the PC Host Name of your ISP account as the Account Name in the Basic Settings menu. •Your ISP only allows one Ethernet MAC address to connect to Internet, and may check for your PC’s MAC address. In this case: Inform your ISP that you have bought a new network device, and ask them to use the router’s MAC address. Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P Troubleshooting9-5 M-10177-01 OR Configure your router to spoof your PC’s MAC address. This can be done in the Basic Settings menu. Refer to “Manually Configuring Your Internet Connection” on page 3-11. If your router can obtain an IP address, but your PC is unable to load any web pages from the Internet: •Your PC may not recognize any DNS server addresses. A DNS server is a host on the Internet that translates Internet names (such as www addresses) to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS servers for your use. If you entered a DNS address during the router’s configuration, reboot your PC and verify the DNS address as described in “Verifying TCP/IP Properties” on page 3-5. Alternatively, you may configure your PC manually with DNS addresses, as explained in your operating system documentation. •Your PC may not have the router configured as its TCP/IP gateway. If your PC obtains its information from the router by DHCP, reboot the PC and verify the gateway address as described in “Verifying TCP/IP Properties” on page 3-5. Troubleshooting a TCP/IP Network Using a Ping Utility Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP network is made very easy by using the ping utility in your PC or workstation. Testing the LAN Path to Your Router You can ping the router from your PC to verify that the LAN path to your router is set up correctly. To ping the router from a PC running Windows 95 or later: 1.From the Windows toolbar, click on the Start button and select Run. 2.In the field provided, type Ping followed by the IP address of the router, as…

Text truncated - open the document above for the full version.

Instructions for the installation of Detachable Antenna with the FWG114P 1. Introduction This information provides guidelines to permit you to install the NETGEAR detachable antennas with the FWG114P 11g wireless router and antenna cable and be compliant with the FCC regulations. FWG114P provides 15dBm maximum transmit power plus antenna gain. The maximum equivalent isotropic radiated power limit is 1W ERP. When installing the detachable antennas listed below, the installer has to be sure the limits won’t be exceeded. If so, attenuation in the form of antenna cable is added between the FWG114P wireless node and the antenna. It is not allowed to let the end user do whatever they want. Anyone tries to use non- Netgear dedicated accessory may have violated the regulation and voided the right to use. If they use Netgear's antenna accessories, they are all well prepared. The cables and connectors are matched. Disclaimer: Use of any antenna requires careful planning and extra consideration to comply with emissions and health standards and regulations. It is recommended that a qualified professional installer service is consulted for site survey and proper installation. Antenna installation must comply with the maximum level authorized by each country. 2. NETGEAR Antenna Cable Attenuation at 2.4- 2.5 GHz NETGEAR Cable Type Length Typical Attenuation at 2.4 - 2.5 GHz ACC-10314-01 1.5 m 1.1 dB ACC-10314-02 3 m 2.0 dB ACC-10314-03 5 m 3.2 dB ACC-10314-04 10 m 6.1 dB ACC-10314-05 30 m 18.0 dB 3. Installation Procedure for the Wireless Node, Antenna Cable, and Antenna 1. In the table below, identify the NETGEAR detachable antenna to be used with the FWG114P, e.g. the ANT24D18. 2. Read the required NETGEAR Antenna cable to be used, e.g. ACC-10314-05 30m cable (with ANT24D18). In some cases, no cable is required. Therefore in this situation, the user is free to use a NETGEAR cable from 1.5m to 30m or no cable at all. 3. Connect the selected antenna cable to the FWG114P wireless Node and to the antenna Antenna list: Mandatory antenna cable to be used with each antenna and FWG114P NETGEAR Antenna Manufacturer P/N Antenna Type Antenna max. Gain Theoretical EIRP without cable MINIMUM Cable Attenuation needed NET Ante cabl MINI LEN ANT24P2 TBC* JOYMAX IW-144 Omnidirection al 2dBi 17 dBm EIRP 0 dB 0 m ANT24P3 TBC* ANTENNIQUES MCS-003A Omnidirection al 3dBi 18 dBm EIRP 0 dB 0 m ANT24P4 TBC* JOYMAX IW- 152RS Omnidirection al 4dBi 19 dBm EIRP 0 dB 0 m ANT24S4 TBC* SENAO NAS- T0405(N) Omnidirection al Triband Stand 4dBi 19 dBm EIRP 0 dB 0 m ANT24P5 TBC* ANTENNIQUES MCS-004 Omnidirection al 5dBi 20 dBm EIRP 0 dB 0 m ANT24S5 TBC* SENAO NAS- 2405(N) Omnidirection al Stand 5dBi 20 dBm EIRP 0 dB 0 m ANT24P7 TBC* ANTENNIQUES MCS-004A Omnidirection al 7dBi 22 dBm EIRP 2 dB 3 m ANT24P93 TBC* SENAO SAG- T0909 Omnidirection al triband 9dBi 24 dBm EIRP 4 dB 10 m ANT24P9 TBC* SENAO SAG-2409 Omnidirection al Antenna 9dBi 24 dBm EIRP 4 dB 10 m ANT24P12 TBC* SENAO SAG-2412 Omnidirection al Antenna 12dBi 27 dBm EIRP 7 dB 30 m ANT24P123 TBC* SENAO SAG- T1112 Omnidirection al triband Antenna 12dBi 27 dBm EIRP 7 dB 30 m ANT24O5 SENAO NAP- 2405(N) Ceiling Antenna 5dBi 20 dBm EIRP 0 dB 0 m ANT24D12 TBC* SENAO SAP-2412 Patch Antenna 12dBi 27 dBm EIRP 7 dB 30 m ANT24D18 SENAO NAP- 2418(N) Patch Antenna 18dBi 33 dBm EIRP 13 dB 30 m * NETGEAR part number to be confirmed 4. Calculation of cable length typical attenuation when maximum power is different Reference to FCC Part 15.247(b)(4): If transmitting antennas of directional gain greater than 6 dBi are used, the peak output power from the intentional radiator shall be reduced below the stated values of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Disclaimer: NETGEAR assumes no responsibility in case of intentional or unintentional violation of the maximum allowable EIRP/ERP in a particular country, miscalculation of the attenuation, faulty non- NETGEAR wireless node, or bad connection from antenna to wireless node.

FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, hereby, declare that we do not provide any user manual, control or software to allow user to operate outside the USA frequency band for the product, FCC ID: PY3FWG114P. Applicant: Netgear Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA TEL: 1-408-907-8000 FAX: 1-408-907-8097

Netgear Inc.. Aug.2.2003 Federal Communications Commission Authorization and Evaluation Division FCC IDPY3FWG114P Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block Diagram, 2. Schematic Diagram, The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Applicant: Netgear Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA TEL: 1-408-907-8000 FAX: 1-408-907-8097

FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: I, hereby, declare that the following EMI suppression components on the EUT, FCC ID: PY3FWG114P, will be added or layout on the mass production products. 1. Add a core on RF cable. Applicant: Netgear Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA TEL: 1-408-907-8000 FAX: 1-408-907-8097

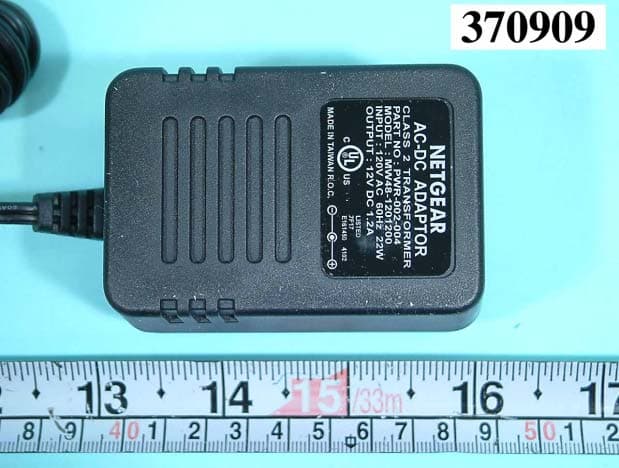

FCC ID: PY3FWG114P Number 1 FRONT SIDE OF EUT FCC ID: PY3FWG114P Number 2 REAR SIDE OF EUT FCC ID: PY3FWG114P Number 3 CLOSER LOOK OF REAR INTERFACE PORT FCC ID: PY3FWG114P Number 4 FRONT SIDE OF EUT FCC ID: PY3FWG114P Number 5 REAR SIDE OF EUT FCC ID: PY3FWG114P Number 6 FRONT SIDE OF EUT FCC ID: PY3FWG114P Number 7 DIOPLE ANTENNA (5dBi) FCC ID: PY3FWG114P Number 8 CEILING ANTENNA (5dBi) FCC ID: PY3FWG114P Number 9 CEILING ANTENNA (5dBi) FCC ID: PY3FWG114P Number 10 PATCH ANTENNA (18dBi) FCC ID: PY3FWG114P Number 11 PATCH ANTENNA (18dBi) FCC ID: PY3FWG114P Number 12 DIOPLE ANTENNA (12dBi) FCC ID: PY3FWG114P Number 13 ANTENNA CABLE

FCC ID: PY3FWG114P Label Location

46.5 mm 75 mm THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATIONS IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: PY3FWG114P Serial No.: Server name: Made in Taiwan Scale 1:1

FCC ID: PY3FWG114P Number 1 MECHANICAL CONSTRUCTION 1 FCC ID: PY3FWG114P Number 2 MECHANICAL CONSTRUCTION FCC ID: PY3FWG114P Number 3 MECHANICAL CONSTRUCTION FCC ID: PY3FWG114P Number 4 FRONT SIDE OF MAIN BOARD FCC ID: PY3FWG114P Number 5 REAR SIDE OF MAIN BOARD FCC ID: PY3FWG114P Number 6 MECHANICAL CONSTRUCTION FCC ID: PY3FWG114P Number 7 MECHANICAL CONSTRUCTION FCC ID: PY3FWG114P Number 8 FRONT SIDE OF MODULE BOARD FCC ID: PY3FWG114P Number 9 REAR SIDE OF MODULE BOARD

AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. TEL: +886-37-580-777 FAX: +886-37-580-799 http://www.abocom.com FCC ID: PY3FWG114P / WG2K4 MAC + BASEBAND Circuit : 1. Mac+B.B, U1(TNETW1130): The 288-terminal TNETW1130 is a single-chip wireless local-area network (WLAN) medium-access controller (MAC) and baseband processor that combines high performance and functionality. TNETW1130 host-adapter system that features a 32-bit, 33-MHz, PCI/mini PCI/CardBus host interface, the TNETW1130 chip with eCPU, external memory, and a 2.4-GHz radio. 2. Power part, U6: Regulator transfers D3.3V to A2.85V, supplying transceiver power, Q2 : transistor, it results in 1.35V voltage dropout, producing 1.5V,and provides PLL circuit power .U8 : Regulator transfers D3.3V to A1.8V, supplying U1 analog power. U7: Regulator transfers D3.3V to D1.5V, supplying U1 core. 3. Crystal Frequency, U5+Y1: sleep clock ( 32.768KHz ) will be turn on when system is in doze mode. U9+X1 : 40MHz is always turn on except doze mode, providing U1 and U10 as system clock. RF PART Circuit: 1.Tranceiver, U10(RC2422B): The RC2422 is a fully integrated IQ transceiver specifically for use in 802.11 b/g applications. The RC2422 is designed to perform the IQ conversion at 374MHz IF as well as provide an RFLO and control logic to the RFFE (Radio Frequency Front End). The RC2422 also has an internal IQ DC offset calibration function for the receive IQ interface. The RC2422 incorporates all of the system blocks from the modem to the RFFE except for the IF filtering and the reference crystal. The ASIC uniquely incorporates an internal PLL reference oscillator where only a crystal is needed, and also provides a clock output for base-band/MAC ASICs. 2. Power Amplifier, U11(RC2326): The RC2326 is a fully integrated Dual Mode Radio Frequency Front End (RFFE) designed specifically for use in 802.11 b/g applications. The RC2326 is designed to perform RF up and down conversions in the unlicensed ISM band. Combined with the Radia RC2422 IF/IQ Transceiver/Synthesizer. The ASIC includes the LNA, PA, mixer, bias circuitry, RX gain control, transmit coupler detector, and T/R switches. High integration and internal RF matching enhances performance and greatly reduce external part count. The only external components needed (other than simple passives) for operation are RF filters and external low power DC switching FETs. AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. TEL: +886-37-580-777 FAX: +886-37-580-799 http://www.abocom.com 3.Filter, FL3: SAW filter Center Frequency, f0 : 374MHZ Minimum Insertion Loss : - 8.5 dB 3 dB Bandwidth : 20.5 dB Relative Attenuation (4) 309 - 352 MHz : 50 dB 352 - 357.5 MHz : 50 dB 390.5 - 392 MHz : 45 dB 392 - 396 MHz : 40 dB 396 - 439 MHz : 42 dB 439 - 454 MHz : 45 dB FL1, FL2 : BandPass Filter Fc 2450MHz Pass Band2400~2500MHz Insertion Loss1.2dB Max. VSWR 2.0 Max ATT. : 25 dB. 4. TX/RX Switch, U12: Tx : U12.6 (CTRLA=L) RFÆ RF2 RX: Antenna diversity Insertion Loss = 0.5 dB Isolation = 22 dB AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. TEL: +886-37-580-777 FAX: +886-37-580-799 http://www.abocom.com Function Theorem: WG2K4 is a CardBus interface to Wireless Adapter. The frequency range is from 2400 ~2500 MHz. It combines B/G mode—11b mode of CCK modulation technology to producing 11Mbps data rate, and 11g mode of OFDM modulation technology to producing 54 Mbps date. At TX mode: all of digital signals will be modulated on U1 (MAC+B.B), delivering I/Q signals to transceiver. Transceiver will up-converter its frequency to 374 MHz (IF LO) and to RF frequency (2.4G), using heterodyne structure. The RF signals will be sent to P.A.(U11)—to amplify its power—delivering through antenna. At RX mode : vice versa.

FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 1 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 1.1. 6dB Bandwidth Plot1Mode 1(Channel 1) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 2 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot2 Mode 1(Channel 6) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 3 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot3 Mode 1(Channel 11) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 4 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot1Mode 2(Channel 1) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 5 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot2 Mode 2(Channel 6) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 6 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot3 Mode 2(Channel 11) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 7 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 1.2. Power Spectral Density Plot1Mode 1(Channel 1): FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 8 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot2 Mode 1(Channel 6): FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 9 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot3 Mode 1(Channel 11): FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 10 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot1Mode 2(Channel 1): FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 11 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot2 Mode 2(Channel 6): FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 12 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot3 Mode 2(Channel 11): FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 13 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 1.3. Band Edges Measurement Plot1 Mode 1(Channel 1) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 14 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot2 Mode 1(Channel 11) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 15 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot1 Mode 2(Channel 1) FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : 16 of 16 FAX : 886-2-2696-2255 Issued Date : Aug. 22, 2003 Plot2 Mode 2(Channel 11)

FCC TEST REPORT Report No. : F370909 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Broadband Prosafe 802.11g Wireless Firewall With Print Server Model No. : FWG114P FCC ID. : PY3FWG114P Filing Type : Certification Applicant : Netgear Inc. 4500 Great America Parkway, Santa Clara, CA 95054 USA ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F370909 SPORTON International Inc. FCC ID. : PY3FWG114P TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Oct. 22, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................5 2.3. Connection Diagram of Test System ................................................................................................................…
