PY3WAG311Netgear 802.11 a/g Wireless PCI Adapter

M-10148-01 Version v1.0 June 2003 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Installation Guide for the NETGEAR 54 Mbps Wireless PCI Adapter WAG311 ii Technical Support Please refer to the support information card that shipped with your product. By registering your product at www.netgear.com/register , we can provide you with faster expert technical support and timely notices of product and software upgrades. NETGEAR, INC. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card. E-mail: [email protected] Web site: www.netgear.com This manual is written for the WAG311 Wireless PCI Adapter according to these specifications.: Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. ©2003 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or Table 0-1.Manual Specifications Product VersionNETGEAR 54 Mbps Wireless PCI Adapter WAG311 Firmware Version Number? Manual Part NumberM-10148-01 Manual Publication DateJune 2003, Full Manual Note: Product updates are available on the NETGEAR, Inc. web site at http:// www.netgear.com/support/main.asp. Documentation updates are available on the NETGEAR, Inc. web site at http://www.netgear.com/docs. Beta iii other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved. Certificate of the Manufacturer/Importer It is hereby certified that the Model WG311 Wireless PCI Adapter has been suppressed in accordance with the conditions set out in the BMPT- AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. VCCI Statement This equipment is in the Class B category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals FCC Guidelines for Human Exposure In order to comply with RF exposure limits established in the ANSI C95.1 standards, the user is advised to maintain a distance of at least 1 inch (2.5 cm) from the antenna of this device while it is in use. FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference 2.This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement NETGEAR 54 Mbps Wireless PCI Adapter WAG311 FOR HOME OR OFFICE USE Tested to Comply with FCC Standards FCC ID: PY3WAG311 Beta iv This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and receiver •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio/TV technician for help Export Restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. Europe - EU Declaration of Conformity This device complies with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC. Compliance to essential test suites is met per standards: R&TTE Harmonized StandardDescription LVD specification EN 60950 EN 60950,ed. (1992), incl A1(1993), A2(1993), A3(1995) and A4(1997) Safety of information technology equipment, including electrical business equipment. Meets R&TTE directive art. 3.1.a of essential requirements on protection of the health and safety of the user. Beta v Canadian Department of Communications Radio Interference Regulati…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 22, 2003 RE: NETGEAR, Inc. FCC ID: PY3WAG311 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The conducted powerline photographs appears to show copper tape around the card brackets and the back of the PC. Please explain as the PC used for testing should be an unmodified off the shelf unit. Use of copper tape should not be used during final EMC testing in an off the shelf host device. 2) The power meter used for testing on page 44 of the test report utilizes a VBW = 5 MHz. The FCC has recently had concerns with power measurements using this type of meter on signals with a bandwidth > VBW. Please provide new power measurements using a signal substitution methods with a signal generator and Oscilloscope and also adjust the RF exposure information as necessary. 3) The RF exposure exhibit uses the incorrect power measurements for 5745 and 5805 MHz. Please correct. 4) The delta on page 60 appears to be (0.79 - -47.52) 48.31 dB and the average power measured on page 30 for the fundamental appears to be 100.1 dBuV/m. If this is correct, please adjust the Note (2) calculations on page 58 as appropriate. 5) One of the 10520 MHz measurements on page 78 is incorrectly marked as a restricted band. Please correct. 6) The plot on page 120 and 121 do not appear to measure to the higher emissions shown in the restricted bands. Please provide new plots that measure to the highest signal in the restricted band. 7) This device is not considered to be compliant with 15.407(d). This requires the device to contain an integral antenna. Note that connectors are only allowed if they are located behind a shield or other components so the end user does not have any access to the connector. 8) This device does not appear to be compliant with 15.407(d) which requires the device to contain an integral antenna. Note that connectors are only allowed if they are located behind a shield or other components so the end user does not have any access to this connector. 9) Page 3 of 77 in the users manual shows a 2.5 cm distance. Note that this device should be classified as a mobile device. Mobile devices are required to stipulate a 20 cm user to antenna distance. Please adjust the manual. 10) The users manual is missing the prohibition against co-location. Please update the users manual. 11) This device operates in the lower UNII band. However the users manual is missing the information required by 15.407(e) restricting its use to indoor use only. Please adjust the users manual. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. z Page 2July 22, 2003 Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 August 7, 2003 RE: NETGEAR, Inc. FCC ID: PY3WAG311 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The test report was corrected for the conducted photograph issue, however the test configuration photograph still needs correction. Please provide updated test configuration photographs. 2) At least 2 antenna connectors are noted from the photographs of the device (on the PCI board and on the mini-PCI board) Please explain if ALL connectors will be soldered and permanently connected in the final product OR if a shield will be placed over this portion of the device so the user does not have access underneath the shield. Note that the users manual and previous products appear to show a shield over a portion of the device. Please confirm which method(s) will be used. If a shield will be used, please provide an additional external photograph that shows this. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Hi, Thank you for your comments on this applicaion! The following items are our replies for your comments: 2) Done! We revised the file "TestRep-1-revised", and upload on ATCB server again. 3) Done! We revised the file "RF Exposure", and upload on ATCB server again. 4) Done! We revised the file "TestRep-2-revised", and upload on ATCB server again. 5) Done! We revised the file "TestRep-2-revised", and upload on ATCB server again. 7) & 8) The antenna connectors will be weld to the board as an end product. 9) &10) & 11) Done! We revised the file "UserMan-revised", and upload on ATCB server again. (See attached file: Comments.pdf) Thanks! Best Regards, Amanda Chu / ¦¶ªÚ½Ë(Embedded image moved to file: pic04827.gif) ~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 ext. 1737 FAX: 03-5935342 ~~~~~~~~~~~~~~~~~~~~~~~~~ =big5BQ29tbWVudHMucGRm=.pdf pic04827.gif Subject: FW: PY3WAG311 comments To: [email protected], [email protected] Cc: [email protected], [email protected], [email protected], [email protected] 8/5/2003file://C:\DOCUME~1\TIMOTH~1.JOH\LOCALS~1\Temp\eud1B.htm

Hi, Thank you for your comments on this applicaion! The following items are our replies for your comments: 1) & 6) Done! We revised the file "TestRep-3-revised", and upload on ATCB server again. Thanks! Best Regards, Amanda Chu / ¦¶ªÚ½Ë(Embedded image moved to file: pic16232.gif) ~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 ext. 1737 FAX: 03-5935342 ~~~~~~~~~~~~~~~~~~~~~~~~~ ----- Âà§eªÌ Amanda Chu/ADT ©ó 2003/07/30 05:59 PM ----- Amanda Chu(¦¶ªÚ ½Ë/·s¦Ë»{ÃҥӽР¦¬¥ó¤H¡G [email protected], [email protected] ³¡) °Æ¥»§Û°e¡G Alan Lane/ADT@ADT, Bruce Shiau/ADT@ADT, Eric Lin/ADT@ADT, JT Chen/ADT@ADT 2003/07/29 06:07 ¥D¦®¡G FW: PY3WAG311 comments PM Hi, Thank you for your comments on this applicaion! The following items are our replies for your comments: 2) Done! We revised the file "TestRep-1-revised", and upload on ATCB server again. 3) Done! We revised the file "RF Exposure", and upload on ATCB server Subject: FW: PY3WAG311 comments To: [email protected], [email protected], [email protected] Cc: [email protected], [email protected], [email protected], [email protected] Page 1 of 2In 8/5/2003Printed for "Timothy R. Johnson" <[email protected]> again. 4) Done! We revised the file "TestRep-2-revised", and upload on ATCB server again. 5) Done! We revised the file "TestRep-2-revised", and upload on ATCB server again. 7) & 8) The antenna connectors will be weld to the board as an end product. 9) &10) & 11) Done! We revised the file "UserMan-revised", and upload on ATCB server again. (See attached file: Comments.pdf) Thanks! Best Regards, Amanda Chu / ¦¶ªÚ½Ë(Embedded image moved to file: pic19669.gif) ~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 ext. 1737 FAX: 03-5935342 ~~~~~~~~~~~~~~~~~~~~~~~~~ pic16232.gif =big5BQ29tbWVudHMucGRm=2.pdf pic19669.gif Page 2 of 2In 8/5/2003Printed for "Timothy R. Johnson" <[email protected]>

Hi, Thank you for your comments on this applicaion! The following items are our replies for your comments: 1) Done! We revised the file "test report -1", and upload on ATCB server again. 2) Done! We revised the file "external EUT photo", and upload on ATCB server again. Thanks! Best Regards, Amanda Chu / ¦¶ªÚ½Ë(Embedded image moved to file: pic22929.gif) ~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 ext. 1737 FAX: 03-5935342 ~~~~~~~~~~~~~~~~~~~~~~~~~ "Timothy R. Johnson" ¦¬¥ó¤H¡G [email protected], [email protected] <tjohnson@America °Æ¥»§Û°e¡G [email protected] nTCB.com> ¥D¦®¡G Review of NETGEAR, FCC ID: PY3WAG311 after recent uploads 2003/08/07 12:35 PM Eric/Amanda, Attached are comments regarding review of this application. These should be relatively simple to resolve. Please provide information as soon as possible. Subject: Review of NETGEAR, FCC ID: PY3WAG311 after recent uploads To: [email protected] Cc: [email protected], [email protected], [email protected], [email protected] Page 1 of 2NETGEAR PY3WAG311 8/28/2003Printed for "Timothy R. Johnson" <[email protected]> Thank You, Timothy R. Johnson NARTE Certified EMC Engineer No. EMC-002205-NE email: [email protected] alternate email: [email protected] (See attached file: ATCB Comments_080603.pdf) pic22929.gif =big5BQVRDQiBDb21tZW50c18wODA2MDMucGRm=.pdf Page 2 of 2NETGEAR PY3WAG311 8/28/2003Printed for "Timothy R. Johnson" <[email protected]>

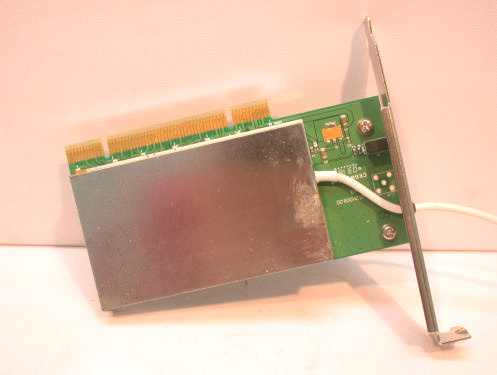

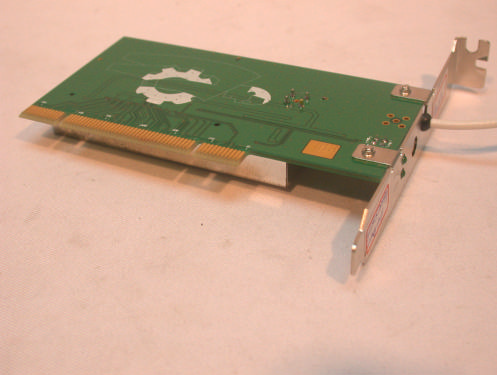

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

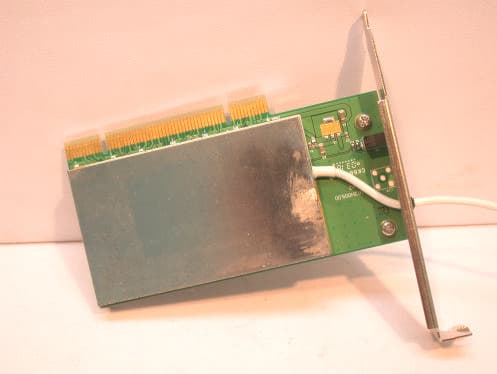

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: PY3WAG311 ADT No.920522H01 Technical Description The transmitter of the EUT is powered by host equipment. The antenna is Dipole Antenna with MCX connector. This device is a Netgear 802.11a/g Wireless PCI Adapter operates in both the 5GHz and 2.4GHz bands. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: PY3WAG311 ADT No.: 920522H011 RF EXPOSURE REPORT REPORT NO.: RF920522H01 MODEL NO.: WAG311 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: PY3WAG311 ADT No.: 920522H012 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PY3WAG311 ADT No.: 920522H013 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 6. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PY3WAG311 ADT No.: 920522H014 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.58(numeric) for 5.25GHz, 2.5dBi or 1.78(numeric) for 5.75GHz and 2.2dBi or 1.66(numeric) for 2.45GHz. 7.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.480.11721.0 6243729.380.00971.0 11246226.660.00811.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241297.720.03231.0 6243774.470.02461.0 11246242.860.01411.0 FCC ID: PY3WAG311 ADT No.: 920522H015 For 802.11a (5GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518039.720.01251.0 4524044.670.01411.0 5526043.450.01371.0 8532044.460.01401.0 9574542.170.01491.0 12580547.530.01681.0

FCC ID: PY3WAG311 Report No.: RF920522H011Issued: Jul. 09, 2003 ADT No.: 920522H01 FCC TEST REPORT REPORT NO.: RF920522H01 MODEL NO.: WAG311 RECEIVED: Mar. 22, 2003 TESTED: Jun. 06 to Jul. 03, 2003 APPLICANT: NETGEAR, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 125 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: PY3WAG311 Report No.: RF920522H012Issued: Jul. 09, 2003 ADT No.: 920522H01 Table of Contents 1.CERTIFICATION............................................................................................................5 2.SUMMARY OF TEST RESULTS.....................................................................................6 3.GENERAL INFORMATION.............................................................................................8 3.1GENERAL DESCRIPTION OF EUT................................................................................8 3.2DESCRIPTION OF TEST MODES................................................................................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................................11 3.4DESCRIPTION OF SUPPORT UNITS...........................................................................12 4.TEST TYPES AND RESULTS (For Part 802.11b)...........................................................14 4.1CONDUCTED EMISSION MEASUREMENT..................................................................14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................................14 4.1.2TEST INSTRUMENTS..................................................................................................14 4.1.3TEST PROCEDURES..................................................................................................15 4.1.4DEVIATION FROM TEST STANDARD..........................................................................15 4.1.5TEST SETUP...............................................................................................................16 4.1.6EUT OPERATING CONDITIONS..................................................................................16 4.1.7TEST RESULTS...........................................................................................................17 4.2Radiated Emission Measurement..................................................................................23 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................................23 4.2.2TEST INSTRUMENTS..................................................................................................24 4.2.3TEST PROCEDURES..................................................................................................25 4.2.4DEVIATION FROM TEST STANDARD..........................................................................25 4.2.5TEST SETUP...............................................................................................................26 4.2.6EUT OPERATING CONDITIONS..................................................................................26 4.2.7TEST RESULTS...........................................................................................................27 4.36dB BANDWIDTH MEASUREMENT.............................................................................34 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................................34 4.3.2TEST INSTRUMENTS..................................................................................................34 4.3.3TEST PROCEDURE....................................................................................................35 4.3.4DEVIATION FROM TEST STANDARD..........................................................................35 4.3.5TEST SETUP...............................................................................................................35 4.3.6EUT OPERATING CONDITIONS..................................................................................35 4.3.7TEST RESULTS (A).....................................................................................................36 4.3.8TEST RESULTS (B).....................................................................................................40 4.4MAXIMUM PEAK OUTPUT POWER.............................................................................44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.................................44 4.4.2INSTRUMENTS...........................................................................................................44 4.4.3TEST PROCEDURES..................................................................................................45 4.4.4TEST SETUP...............................................................................................................45 4.4.5EUT OPERATING CONDITIONS..................................................................................45 4.4.6TEST RESULTS (A).....................................................................................................46 4.4.7TEST RESULTS (B).....................................................................................................46 FCC ID: PY3WAG311 Report No.: RF920522H013Issued: Jul. 09, 2003 ADT No.: 920522H01 4.5POWER SPECTRAL DENSITY MEASUREMENT..........................................................47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.........................................47 4.5.2TEST INSTRUMENTS..................…

Text truncated - open the document above for the full version.

FCC ID: PY3WAG311 Report No.: RF920522H0151Issued: Jul. 09, 2003 ADT No.: 920522H01 CH6 FCC ID: PY3WAG311 Report No.: RF920522H0152Issued: Jul. 09, 2003 ADT No.: 920522H01 CH11 FCC ID: PY3WAG311 Report No.: RF920522H0153Issued: Jul. 09, 2003 ADT No.: 920522H01 4.5.8 TEST RESULTS(B) EUT Netgear 802.11a/g Wireless PCI Adapter MODEL WAG311 INPUT POWER (SYSTEM) 120Vac, 60Hz ENVIRONMENTAL CONDITIONS 27deg. C, 56RH, 976 hPa TESTED BY Tony Chen CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 kHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-10.188PASS 62437-12.928PASS 112462-14.578PASS FCC ID: PY3WAG311 Report No.: RF920522H0154Issued: Jul. 09, 2003 ADT No.: 920522H01 CH1 FCC ID: PY3WAG311 Report No.: RF920522H0155Issued: Jul. 09, 2003 ADT No.: 920522H01 CH6 FCC ID: PY3WAG311 Report No.: RF920522H0156Issued: Jul. 09, 2003 ADT No.: 920522H01 CH11 FCC ID: PY3WAG311 Report No.: RF920522H0157Issued: Jul. 09, 2003 ADT No.: 920522H01 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: PY3WAG311 Report No.: RF920522H0158Issued: Jul. 09, 2003 ADT No.: 920522H01 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS (A) The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE (1): The band edge emission plot on the following first page shows 49.07dB delta between carrier maximum power and local maximum emission in restrict band (2.3458GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 100.8dBuV/m, so the maximum field strength in restrict band is 100.8-49.07=51.73dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 48.31 dB delta between carrier …

Text truncated - open the document above for the full version.
