PY3WG111V254 Mbps Wireless USB Adapter

Netgear Incorporated

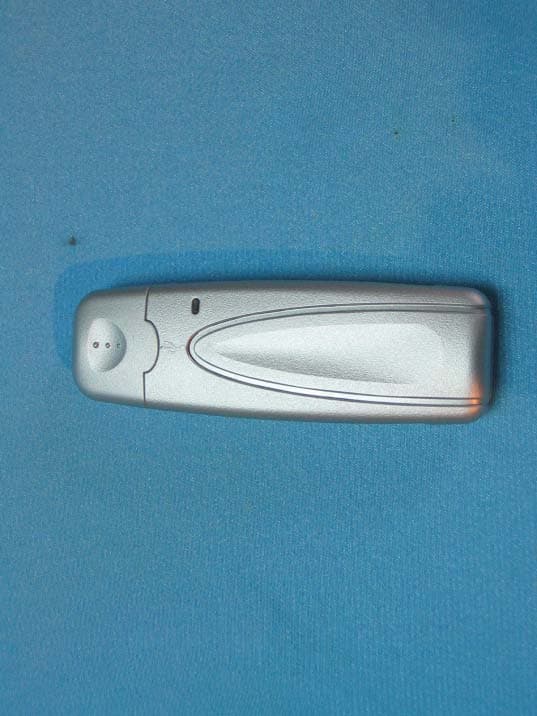

54 Mbps Wireless USB Adapter - FCC ID PY3WG111V2 - Netgear Incorporated
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 03, 2004
Application Purpose
Original Equipment
Date of Application
Jun 03, 2004
Equipment Note
54 Mbps Wireless USB Adapter
Frequency Range
2412.00000000 - 2462.00000000
Company
Netgear Incorporated
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗
↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

202-10026-01 202-10026-01 Version v1.0 February 2004 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA User Manual for the NETGEAR 54 Mbps Wireless USB 2.0 Adapter WG111 ii 202-10026-01 Technical Support Please refer to the support information card that shipped with your product. By registering your product at www.netgear.com/register , we can provide you with faster expert technical support and timely notices of product and software upgrades. NETGEAR, INC. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card. E-mail: [email protected] Web site: www.netgear.com Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. ©2003 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved . February 2004 Certificate of the Manufacturer/Importer It is hereby certified that the Model WG111 wireless USB adapter has been suppressed in accordance with the conditions set out in the BMPT- AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. VCCI Statement This equipment is in the Class B category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing 202-10026-01 iii Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals FCC Guidelines for Human Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter." Declaration Of Conformity We NETGEAR, Inc., 4500 Great America Parkway, Santa Clara, CA 95054, declare under our sole responsibility that the model WG111 Cardbus Card Wireless Adapter complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: •This device may not cause harmful interference, and •This device must accept any interference received, including interference that may cause undesired operation. Regulatory Compliance Information This section includes user requirements for operating this product in accordance with National laws for usage of radio spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result in unlawful operation and adverse action against the end-user by the applicable National regulatory authority. NOTE:This product's firmware limits operation to only the channels allowed in a particular Region or Country. Therefore, all options described in this user's guide may not be available in your version of the product. FCC Requirements for Operation in the United States Radio Frequency Interference Warnings & Instructions This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following methods: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and the receiver •Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected 202-10026-01 iv •Consult the dealer or an experienced radio/TV technician for help. Modifications made to the product, unless expressly approved byNETGEAR, Inc., could void the user's right to operate the equipment. Export Restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. Europe - EU Declaration of Conformity This product is certified for Switzerland and all EU countries. Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Unio…

Text truncated - open the document above for the full version.

Cover Letter(s)

NETGEAR Incorporated 4500 Great America Parkway Santa Clara, CA 95054 U.S.A. Attestation FCC ID :PY3WG111V2 Product :54 Mpbs Wireless USB 2.0 Adapter Model :WG111v2 Statements: We don’t provide with any controls or software to allow operation outside the USA frequency band for all future applications when we sell this product in USA. Sincerely, Signature: (Name / Date)

Cover Letter(s)

NETGEAR Inc. 4500 Great America Parkway Santa Clara, CA95054 U.S.A. Confidentiality Request FCC ID :PY3WG111V2 Product :54 Mpbs Wireless USB 2.0 Adapter Model :WG111v2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below. Schematics / Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application And all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: (Name / Date)

Cover Letter(s)

NETGEAR Incorporated. 4500 Great America Parkway Santa Clara, CA 95054 Power of Attorney (to be written on company-paper) We, the undersigned, hereby authorise Ecom Sertech Corp. Rm.258, Bldg.17, No.195, Sec.4, Chung Hsing Rd.,Chutung,Hsinchu,Taiwan,R.O.C. to apply for the FCC ID: PY3WG111V2 of the following radio equipment: 54 Mpbs Wireless USB 2.0 Adapter WG111v2 (Name of product, type or model) on behalf of the manufacturer / authorised representative of the manufacturer − Address: NETGEAR Incorporated. 4500 Great America Parkway Santa Clara, CA 95054 to the Spectrum Management Authorities of the EC- Member States and those non- EC- Member States who have adopted the Directive 1999/5/ EC (With this letter the undersigned does not appoint Ecom Sertech Corp. to act as authorized representative of the manufacturer. Ecom Sertech Corp. does not assume any responsibilities or liabilities placed on the manufacturer according to the Directive 1999/5/EC.) − Point of contact: Shelly Fan (Name, telephone and fax number) Taiwan,2004.5.27 (Place, date of issue) (Name and title in block letters)

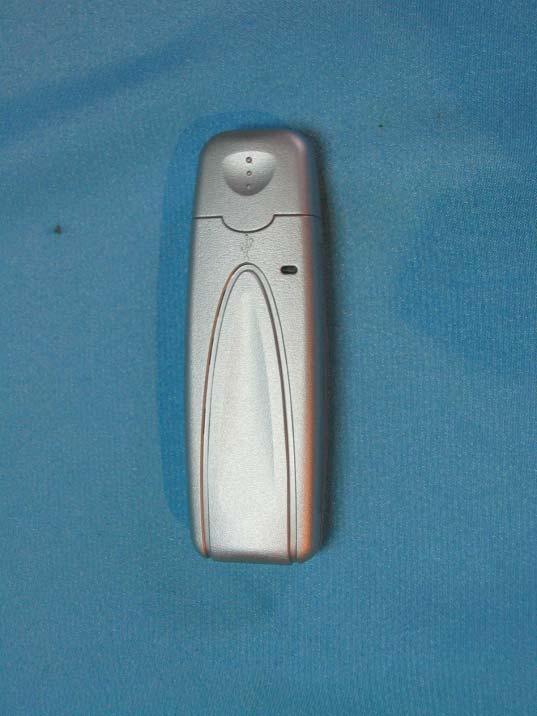

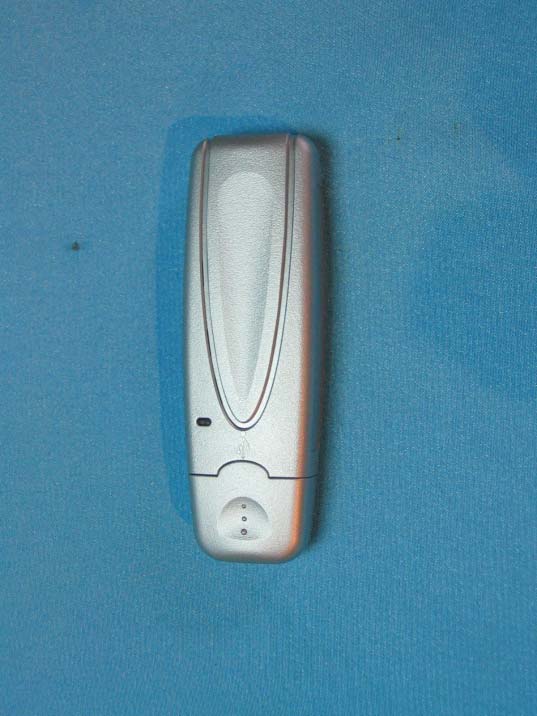

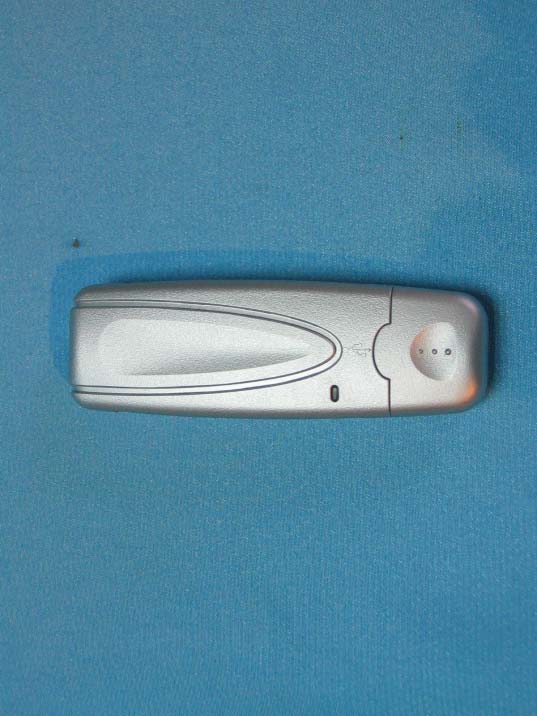

External Photos

Company: NETGEAR Incorporated. Page : 1 of 4 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 2 of 4 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 3 of 4 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 4 of 4 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2

ID Label/Location Info

Company: NETGEAR Incorporated. Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 54 Mpbs Wireless USB 2.0 Adapter FCC IDPY3WG111V2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Internal Photos

Company: NETGEAR Incorporated. Page : 1 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 2 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 3 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 4 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 5 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 6 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 7 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 8 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2 Company: NETGEAR Incorporated. Page : 9 of 9 Product: 54 Mpbs Wireless USB 2.0 Adapter Model: WG111v2

Operational Description

Antenna Specification Model No : XG-703a printed dipole Antenna NO Items Specifications 1 Antenna shape Printed dipole 2 RF frequency band 2.4 ~2.5 GHz 3 Power Handling 1 w 4 Impedance 50 5 SWR 2.4~2.5 GHz ANT < 2.0 6 Polarization Linearity 7 2.45 GHz Ant Gain (HOR.) 2.45 GHz Ant Gain (VER.) 1.09 dBi (peak), -3.61 dBi(Avg.) XYE 2.45 G 0.07 dBi (peak), -3.64 dBi(Avg.) YZH 2.45 G 8 Antenna directivity Azimuth: Quasi-Omni-directional Elevation: Quasi-Omni-directional 9 Operating Temperature -20~ +65

Operational Description

Description of Operation EUT is a 54 Mpbs Wireless USB 2.0 Adapterwith 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on DIPOLE provided diversity function to improve the receiving function. This 54 Mpbs Wireless USB 2.0 Adapter is an IEEE 802.11b&g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) or Orthogonal Frequency Division Multiplex (OFDM) radio transmission, the 54 Mpbs Wireless USB 2.0 Adapter transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b&g network.

RF Exposure Info

Report No. : ES/2004/50005 Page : 1 of 39 TEST REPORT Equipment Under Test : 54 Mbps Wireless USB 2.0 Adapter Model No. : WG111v2 FCC ID : PY3WG111V2 Applicant : NETGEAR Incorporated. Address of Applicant : 4500 Great America Parkway Santa Clara,CA 95054 Date of Receipt : 2004.05.21 Date of Test(s) : 2004.05.24-2004.05.25 Date of Issue : 2004.05.25 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2004.05.25 Approved by : Robert Chang Date : 2004.05.25 Report No. : ES/2004/50005 Page : 2 of 39 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Test Environment 4 1.5 Operation description 4 1.6 Evaluation procedures 4 1.7 The SAR Measurement System 5 1.8 System Components 7 1.9 SAR System Verification 8 1.10 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 9 1.11 Test Standards and Limits 10 2. Instruments List 12 3. Summary of Results 13 4. Measurements 14 802.11b Configuration 1 4.1.1 Vertical position, lowest channel 14 4.1.2 Vertical position, middle channel 15 4.1.3 Vertical position, highest channel 16 Configuration 2 4.1.4 Horizontal position, lowest channel 17 4.1.5 Horizontal position, middle channel 18 4.1.6 Horizontal position, highest channel 19 802.11g Configuration 1 4.2.1 Vertical position, lowest channel 20 4.2.2 Vertical position, middle channel 21 4.2.3 Vertical position, highest channel 22 Configuration 2 4.2.4 Horizontal position, lowest channel 23 4.2.5 Horizontal position, middle channel 24 4.2.6 Horizontal position, highest channel 25 4.3 System Performance Validation 26 APPENDIX 1. Photographs of Test Setup 27 2. Photographs of EUT 31 3. Probe Calibration certificate 33 4. Uncertainty Analysis 37 5. Phantom description 38 6. System Validation from Original equipment supplier 39 Report No. : ES/2004/50005 Page : 3 of 39 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Applicant : NETGEAR Incorporated. Address : 4500 Great America Parkway Santa Clara,CA 95054 1.3 Description of EUT(s) Equipment Type 54 Mbps Wireless USB 2.0 Adapter Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID PY3WG111V2 Serial No. Pre-Production Model(s) WG111v2 Modulation Direct Sequence Spread Spectrum (DSSS) 802.11b Mode 802.11g Mode RF Conducted Output Power (Peak) 17.71 dBm (2412MHz) 17.75 dBm (2437MHz) 17.77 dBm (2462MHz) 16.85 dBm (2412MHz) 16.87 dBm (2437MHz) 16.91 dBm (2462MHz) Max. SAR Measured 1.3 W/kg Antenna Type Printed Report No. : ES/2004/50005 Page : 4 of 39 Antenna Gain 1.09 dBi Power Supply From USB slot 5V Host Laptop PC(s) Tested IBM ThinkPad T30 (S/N: 99AMZM5) 1.4 Test Environment Ambient temperature : 22.8° C Tissue Simulating Liquid : 21.4° C Relative Humidity : 64 % 1.5 Operation Configuration The EUT is USB Adaptor, which is installed inside a Notebook. Since the Notebook is placed on the top of the leg, when it operates, it is to be defined as a portable device. SAR measurement is mandatory. In order to measure SAR value, we used continuous transmission mode. The test set up mode was prepared by manufacturer. Value of Crest Factor = 1 was used for SAR testing according to the nature of the EUT. The test configuration tested at the low, middle and high frequency channels (2412MHz,2437MHz and 2462MHz).By using the program subordinated in the computer, and change into the written channel, and then set in highest power. Finally, we will test it by dividing into 2 ways. Conf iguration 1: Vertical of the PC at 90° and at a distance of 1.5 cm from the base of the phantom, and the antenna tip upward.(Fig.3 & Fig.4 & Fig.5) Configuration 2: Bottom of the PC is paralleled and at a distance of 0.0 cm from the base of the phantom, but 0.3 cm Spacing between EUT & Planar Phantom.(Fig.6 & Fig.7 & Fig.8) NOTE: 1. Please reference “APPENDIX 1” for the photos of test configuration. 2. All test Configuration have been complied with the body worn configuration. 3. The Notebook has been installed the controlling software that could control the EUT transmitted channel and power. But that software is just for test software, not for normal user. 1.6 EVALUATION PROCEDURES The evaluation was performed with the following procedure: (1). Measurement of the SAR value at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. Report No. : ES/2004/50005 Page : 5 of 39 (2). The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the head or EUT and the horizontal grid spacing was 15 mm x 15 mm. Based on these data, the area of the maximum absorption was determined by splint interpolation. (3). Around this point, a volume of 30 mm x 30 mm x 30 mm was assessed by measuring 7 x7 x 7 points. On the basis…

Text truncated - open the document above for the full version.

Test Report

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID :PY3WG111V2 Report No.:EC04-05-012FRF Page 1 of 63 RF TEST REPORT Product Name : 54 Mbps Wireless USB 2.0 Adapter Model Number : WG111v2 Applicant : NETGEAR Inc. Address : 4500 Great America Parkway Santa Clara,CA 95054 Received Date : May 26, 2004 Tested Date : May 12~21, 2004 Notes : 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID :PY3WG111V2 Report No.:EC04-05-012FRF Page 2 of 63 Test Report Certification Product Name : 54 Mbps Wireless USB 2.0 Adapter Model Number : WG111v2 Applicant : NETGEAR Inc. Measurement Standard : FCC 47 C.F.R. Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID :PY3WG111V2 Report No.:EC04-05-012FRF Page 3 of 63 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION ................................................................................................... 5 1.1 General Statement ...............................................................................................................................5 1.2 General Description of EUT & Power ................................................................................................5 1.3 Description of Test Modes ..................................................................................................................6 1.4 Description of Peripherals...................................................................................................................6 1.5 EUT & Peripherals Setup Diagram.....................................................................................................6 1.6 EUT Operating Condition ...................................................................................................................7 1.7 Description of Test Site.......................................................................................................................7 1.8 Summary of Test Results ....................................................................................................................8 2. CONDUCTED POWERLINE TEST....................................................................................... 9 2.1 Test Equipments..................................................................................................................................9 2.2 Test Setup............................................................................................................................................9 2.3 Conducted Power Line Emission Limit ..............................................................................................10 2.4 Test Procedure.....................................................................................................................................10 2.5 Uncertainty of Conducted Emission ...................................................................................................10 2.6 Conducted RF Voltage Measurement .................................................................................................11-14 2.7 Photos of Conduction Test ..................................................................................................................15 3. RADIATED EMISSION TEST ................................................................................................ 16 3.1 Test Equipments..................................................................................................................................16 3.2 Test Setup............................................................................................................................................16 3.3 Radiation Limit ...................................................................................................................................17 3.4 Test Procedures ...................................................................................................................................18 3.5 Uncertainty of Radiated Emission ......................................................................................................18 3.6 Radiated RF Noise Measurement........................................................................................................19-44 3.7 Photos of Open Site.............................................................................................................................45-46 4. 6dB BANDWIDTH MEASUREMENT ................................................................................... 47 4.1 Test Equipments..................................................................................................................................47 4.2 Test Setup..................................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WG111V2 Report No.EC04-05-012FRF Page 1 of 3 Photos of Conduction Test Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WG111V2 Report No.EC04-05-012FRF Page 2 of 3 Photos of Open Site Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WG111V2 Report No.EC04-05-012FRF Page 3 of 3

Contact Information

Applicant

David Kay
[email protected]4088903160Fax: 4089078097

Technical Contact

Ecom Sertech Corp.Yi Shan Tsai
[email protected]886 3 591 2067

Rm. 258, Bldg. 17, 195-4 · Chutung, HsinChu · Taiwan

Non-Technical Contact

NETGEAR Inc.Shally Fan
[email protected]+886 3 5777364

Test Firm

Compliance Certification Services Inc.Paul Liau
[email protected]886-3-5915994Fax: 886-3-5825720

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz59.84 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The device has been tested for body-worn SAR compliance with a separation distance of 0.3 cm. The highest reported SAR value is body-worn: 1.3 W/kg. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
