PY3WG311TV3108 Mbps Wireless PCI Adapter

202-10070-01 Version v3.0 December 2004 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Installation Guide for the NETGEAR 108 Mbps Wireless PCI Adapter WG311T ii Technical Support Please refer to the support information card that shipped with your product. By registering your product at www.netgear.com/register , we can provide you with faster expert technical support and timely notices of product and software upgrades. NETGEAR, INC. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card. E-mail: [email protected] Web site: www.netgear.com Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. ©2004 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved . December 2004 Certificate of the Manufacturer/Importer It is hereby certified that the Model WG311T Wireless PCI Adapter has been suppressed in accordance with the conditions set out in the BMPT- AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the iii notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals FCC Guidelines for Human Exposure In order to comply with RF exposure limits established in the ANSI C95.1 standards, the user is advised to maintain a distance of at least 1 inch (2.5 cm) from the antenna of this device while it is in use. FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference 2.This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. NETGEAR 108 Mbps Wireless PCI Adapter WG311T FOR HOME OR OFFICE USE Tested to Comply with FCC Standards FCC ID: PY3WG311TV3 iv If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and receiver •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio/TV technician for help Export Restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. Canadian Department of Communications Radio Interference Regulations This digital apparatus (Model WG311T Wireless PCI Adapter) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. Canada ID: 4054A-WG311TV3 Contentsv Contents Chapter 1 Introduction About the NETGEAR 108 Mbps Wireless PCI Adapter WG311T ...................................1-1 Key Features and Related NETGEAR Products ............................................................1-1 What’s in the Box? ..........................................................................................................1-2 A Road Map for ‘How to Get There From Here’ .............................................................1-3 Chapter 2 Basic Setup What You Will Need Before You Begin ...........................................................................2-1 Verify System Requirements ....................................................................................2-1 Observe Location and Range Guidelines ................................................................2-2 Two Basic Operating Modes ...........................................................................................2-2 WG311T Default Wireless Configuration Settings ..........................................................2-3 Basic Installation Instructions .........................................................................................2-4 For Windows XP Users Installing a WG311T ............…

Text truncated - open the document above for the full version.

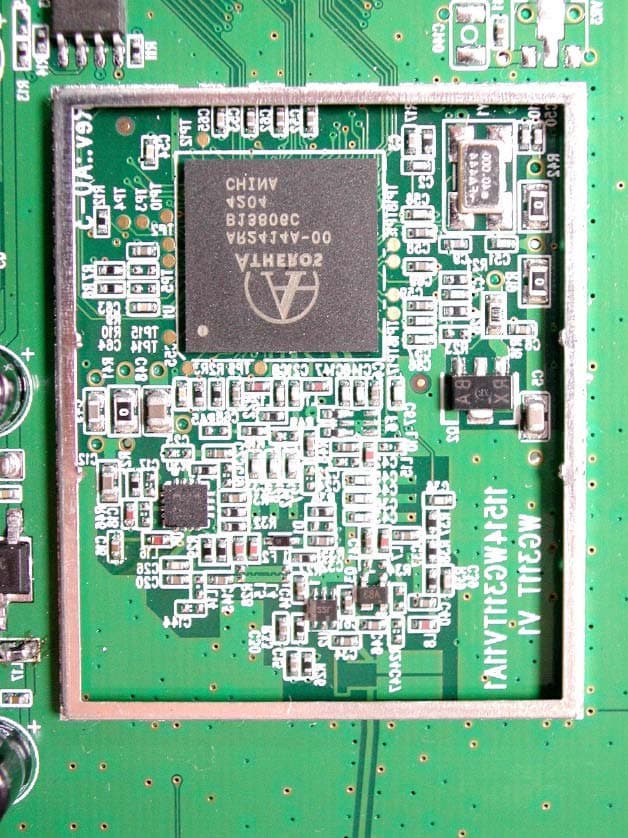

External Photos of108 Mbps Wireless PCI Card 1/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of108 Mbps Wireless PCI Card 2/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of108 Mbps Wireless PCI Card 3/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of108 Mbps Wireless PCI Card 4/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location information -------------------------------------------------- 1/2 Applicant: NETGEAR, I NC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Format: LABEL Sample and Location information -------------------------------------------------- 2/2 Applicant: NETGEAR, I NC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position:

External Photos of108 Mbps Wireless PCI Card 1/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of108 Mbps Wireless PCI Card 2/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of108 Mbps Wireless PCI Card 3/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of108 Mbps Wireless PCI Card 4/4 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Measurement of Maximum Permissible Exposure 1/3 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Measurement of Maximum Permissible Exposure 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT FCC ID : PY3WG311TV3 Product name : 108 Mbps Wireless PCI Adapter Model name : WG311T Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channels Modulation Skill : DBPSK, DQPSK, CCK, OFDM Power Type : Powered by PCI of client’s device Measurement of Maximum Permissible Exposure 2/3 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /066.0 )20(4 514.129.220 4 cmmW R PG S= × == ππ Estimated safe separation: cm xPG R152.5 4 514.129.220 4 === ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 5.152 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (1.80 / 10) = 1.51356 Measurement of Maximum Permissible Exposure 3/3 Applicant: NETGEAR, INC. FCC ID: PY3WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix Antenna Specification

Test Report -------------------------------------------------------------------------------------1/60 Report No.: N1015416, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless LAN PCI Card Applicant:NETGEAR, Inc. EUT:108 Mbps Wireless PCI Adapter Model:WG311T FCC ID:PY3WG311TV3 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------------2/60 Report No.: N1015416, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and SubpartC Section 15.247. Applicant:NETGEAR, Inc. Applicant address:4500 Great America Parkway, Santa Clara, CA 9054 USA Product Name:108 Mbps Wireless PCI Adapter Model Name:WG311T FCC ID:PY3WG311TV3 Report No.:N1015416 Test Date:December 14, 2004 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------------3/60 Report No.: N1015416, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) for the following equipment: Product name:108Mbps Wireless PCI Adapter Model name:WG311T Trade name:NETGEAR Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : N1015416 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name:Company name: CAMEO COMMUNICATIONS, INC.NETGEAR INC. Computer address:Computer address: 6F, No.22, Chung Shin Rd., Hsi-Chih, Taipei 221, Taiwan 4500 Great America Parkway, Santa Clara, CA 95054, USA ZIP / Postal codeZIP / Postal code 22195054 Contact person:Contact person: Jason ChangChuck Olson Title:Title: Wireless Comm. R&D Dept ManagerVice President of Engineering Internet e-mail address:Internet e-mail address: [email protected] Tel / Fax:Tel / Fax: 886-2-26499800 / 886-2-264999841-408-907-8000 / 1-408-907-8097 Test Report -------------------------------------------------------------------------------------4/60 Report No.: N1015416, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL..................................................................................................................... 6 1.1Introduction............................................................................................................ 6 1.2Description of EUT ................................................................................................ 6 1.3Test method ............................................................................................................ 6 1.4Description of Support Equipment ......................................................................... 7 1.5Configuration of System Under Test ...................................................................... 10 1.6Verify the Frequency and Channel ......................................................................... 12 1.7Test Procedure ...................................................................................................... 13 1.8Location of the Test Site ........................................................................................ 13 1.9General Test Condition......................................................................................... 13 II.Section 15.101(a) : Equipment Authorization of Unintentional Radiators................. 14 III.Section 15.203 : Antenna Requirement......................................................................... 15 IV.Section 15.207 : Power Line Conducted Emissions for AC Powered Units.............. 16 4.1Test Condition & Setup......................................................................................... 16 4.2List of Test Instruments......................................................................................... 17 4.3Test Result of Conducted Emissions ..................................................................... 18 RX mode ................................................................................................................. 18 IEEE 802.11b ........................................................................................................... 19 IEEE 802.11g ........................................................................................................... 21 Super 802.11g.…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/2 Applicant: NETGEAR, I NC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 Applicant: NETGEAR, I NC. FCC ID: PY3WG311TV3 IC: 4054A-WG311TV3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: Front View of the Test Configuration Rear View of the Test Configuration
