PY3WG311V354 Mbps WIRELESS PCI ADAPTER

Version v3 March 2005 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for the NETGEAR802.11g Wireless PCI Adapter WG311v3 ii Technical Support Please refer to the support information card that shipped with your product. By registering your product at http://www.netgear.com/register, we can provide you with faster expert technical support and timely notices of product and software upgrades. NETGEAR, INC. Support Information Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card. E-mail: [email protected] Web site: www.netgear.com Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. © 2005 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved . March 2005 Certificate of the Manufacturer/Importer It is hereby certified that the Model WG311 Wireless PCI Adapter has been suppressed in accordance with the conditions set out in the BMPT- AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. VCCI Statement This equipment is in the Class B category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. March 2005 iii FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals FCC Guidelines for Human Exposure In order to comply with RF exposure limits established in the ANSI C95.1 standards, the user is advised to maintain a distance of at least 20 cm from the antenna of this device while it is in use. FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference 2.This device must accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and receiver •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio/TV technician for help Export Restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license. FOR HOME OR OFFICE USE Tested to Comply with FCC Standards FCC ID: PY3WG311V3 NETGEAR 802.11g Wireless PCI Adapter WG311v3 March 2005 iv Canadian Department of Communications Radio Interference  Regulations This digital apparatus (Model WG311v3 Wireless PCI Adapter) does not exceed the Class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. Canada ID: 4054A-WG311V3 Product and Publication Details Model Number:WG311v3 Publication Date:March 2005 Product Family:wireless access point Product Name:NETGEAR802.11gWireless PCI Adapter WG311v3 Hom e or Business Product:Home Language:English Publication Part Number: 202-10091-01 Contentsv Contents Chapter 1  Introduction About the WG311v3 Wireless PCI Adapter ....................................................................1-1 Key Features and Related NETGEAR Products ............................................................1-1 What’s in the Box? ..........................................................................................................1-2 A Road Map for ‘How to Get There From Here’ .............................................................1-3 Chapter 2  Ba…

Text truncated - open the document above for the full version.

4500 Great America Parkway Santa Clara, CA 95054 Phone: 408-907-8000 Fax: 408-907-8097 www.netgear.com Request for Confidentiality Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: PY3WG311V3 Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Schematics z Part List z Block diagram z Operational description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: z External Photos z Internal Photos z Test Setup Photos z User’s Manual Sincerely, Larry Kerila, Product Design Manager Netgear Inc.

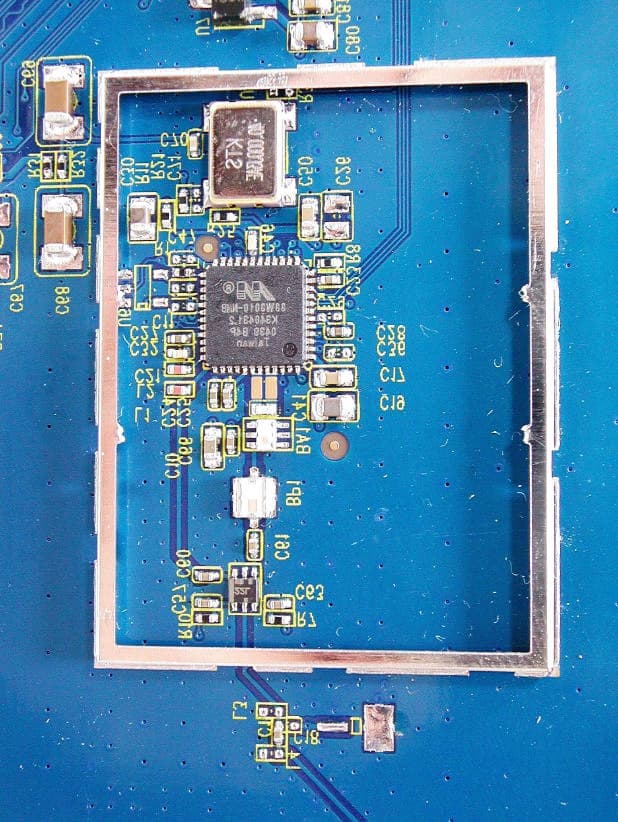

External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 1/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 2/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 3/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 4/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Location information ---------------------------------------------------------------- 1/1 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Position:

SHEET: AUTHOR:TITLE: P/N: REV: THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REVDESCRIPTION OF REVISIONENG APPDDATE 01271-10026-011 of 1 OVERLAY, WG311, V3H1M YU 02-25-05M YUINITIAL DOCUMENT CREATION01 38.5 mm 28.8mm R1.0 NOTE : 1. MATERIAL: 0.14 MM (TOTAL) THK PET, WHITE COLOR. TOP LAYER: MATTE TEXTURE PET, CLEAR, 0.025 THK ADHESIVE LAYER: ACRYLIC ADHESIVE, TRANSPARENT, 0.022 THK BOTT OM LAYER: METALLIZED PET, CLEAR, 0.075 THK 2. ADHESIVE: 3M #467MP OR EQUIVALENT ON BACK SIDE 3. TOLERANCES: ±0.25 MM 4. INK COLORS ARE SHOWN TO THE RIGHT. 5. COLOR TOLERANCE: DELTA E 2.0 MAX 6. DIE LINES ARE MAGENTA COLOR AND DO NOT PRINT. White Pantone Cool Gray 11C Pantone 1235C, 50% Saturation Pantone 1235C Pantone 2745C

External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 1/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 2/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 3/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of 54 Mbps Wireless PCI Adapter ------------------------------- 4/4 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Test Report -------------------------------------------------------------------------------------1/53 Report No.: N1015050142, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless PCI Adapter Applicant:NETGEAR, Inc. EUT:54 Mbps Wireless PCI Adapter Model:WG311v3 FCC ID:PY3WG311V3 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------------2/53 Report No.: N1015050142, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (2003) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and SubpartC Section 15.247. Applicant:NETGEAR, Inc. Applicant address:4500 Great America Parkway, Santa Clara, CA 9054 USA Product Name:54 Mbps Wireless PCI Adapter Model Name:WG311v3 Report No.:N1015050142 Test Date:March14, 2005 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. (3) This test report, measurements made by TRC are traceable to the NIST only Conducted and Radiated Method. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------------3/53 Report No.: N1015050142, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) for the following equipment: Product name:54Mbps Wireless PCI Adapter Trade name:NETGEAR Model name:WG311v3 Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : N1015050142 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name:Company name: CAMEO COMMUNICATIONS, INC.NETGEAR INC. Computer address:Computer address: 6F, No.22, Chung Shin Rd., Hsi-Chih, Taipei 221, Taiwan 4500 Great America Parkway, Santa Clara, CA 95054, USA ZIP / Postal codeZIP / Postal code 22195054 Contact person:Contact person: Jason ChangChuck Olson Title:Title: Wireless Comm. R&D Dept ManagerVice President of Engineering Internet e-mail address:Internet e-mail address: [email protected] Tel / Fax:Tel / Fax: 886-2-26499800 / 886-2-264999841-408-907-8000 / 1-408-907-8097 Test Report -------------------------------------------------------------------------------------4/53 Report No.: N1015050142, FCC Part 15.247 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I.GENERAL................................................................................................................... 6 1.1Introduction.......................................................................................................... 6 1.2Description of EUT .............................................................................................. 6 1.3Test method.......................................................................................................... 6 1.4Description of Support Equipment ....................................................................... 7 1.5Configuration of System Under Test .................................................................... 10 1.6Verify the Frequency and Channel ....................................................................... 12 1.7Test Procedure .................................................................................................... 13 1.8Location of the Test Site ...................................................................................... 13 1.9General Test Condition ....................................................................................... 13 II.Section 15.101(a) : Equipment Authorization of Unintentional Radiators............... 14 III.Section 15.203 : Antenna Requirement....................................................................... 15 IV.Section 15.207 : Power Line Conducted Emissions for AC Powered Units............ 16 4.1Test Condition & Setup....................................................................................... 16 4.2List of Test Instruments ....................................................................................... 17 4.3Test Result of Conducted Emissions................................................................... 18 RX mode .............................................................................................................. 18 IEEE 802.11b ........................................................................................................ 19 IEEE 802.11g ........................................................................................................ 21 V.Section 15.247(a) : Technical Description of the EUT........…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------ 1/2 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------ 2/2 Applicant: NETGEAR INC. FCC ID: PY3WG311V3 IC: 4054A-WG311V3 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: Front View of the Test Configuration Rear View of the Test Configuration
