PY3WG60054Mbps Wireless Mini-PCI Module

1 WG-600 MiniPCI Wireless Adapter Quick Installation Guide I. Network Configuration The WG-600 MiniPCI Wireless Adapter is an IEEE802.11g-compliant PCI Type DSSS wireless LAN adapter. It fully supports wireless networking under Windows XP/2000/98SE/ME. … The WG-600 MiniPCI Wireless Adapter can be operated in Infrastructure and Ad-Hoc network configurations. Infrastructure mode allows WG-600 MiniPCI Wireless Adapter users to join an Extended Basic Service Set (i.e., connect to access point). Ad-Hoc mode allows WG-600 MiniPCI Wireless Adapter users to join a Basic Service Set (i.e., peer-to-peer mode, without access point). II. Package Content The WG-600 MiniPCI Wireless Adapter x 1 Quick Installation Guide x 1 Product CD-ROM x 1 III. Installation of the WG-600 MiniPCI Wireless Adapter under Windows XP 1. Insert the WG-600 MiniPCI Wireless Adapter into the MiniPCI slot in your notebook and start Windows. Windows will auto-detect the MiniPCI Wireless Adapter and a “Found New Hardware Wizard” window will show up. 2. Select “Install from a list or specific (Advanced)” and insert the Product CD-ROM into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniPCI Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Infrastructure Ad-hoc Wired Wireless Access Point 2 Installation of the WG-600 MiniPCI Wireless Adapter under Windows 2000 1. Insert the WG-600 MiniPCI Wireless Adapter into the MiniPCI slot in your notebook and start Windows. Windows will auto-detect the MiniPCI Wireless Adapter and a “Found New Hardware Wizard” window will show up. Click Next to proceed. 2. Select “Search for a suitable driver for my device (recommended)”. Insert the Product CD-ROM into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniPCI Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Installaton of the WG-600 MiniPCI Wireless Adapter under Windows 98SE/ME 1. Insert the WG-600 MiniPCI Wireless Adapter into the MiniPCI slot in your notebook and start Windows. Windows will auto-detect new hardware and will display a “Add New Hardware Wizard” window. 2. Select “Search for a best driver for your device (recommended)”. Insert the Product CD- ROM into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The Windows will find “MiniPCI Wireless Adapter”. Click on Next to continue. 4. Once the [Please insert the disk labeled “Windows 98SE/ME CD-ROM”, and then click OK] window appears, enter the path corresponding to the appropriate drives and click OK. 5. Click Finish to complete the installation. Restart Windows. IV. Installation of the Wireless LAN Utility 1. Insert the Product CD-ROM again. 2. Go the utility folder and run setup.exe. 3. Follow the on-screen instructions to install the Wireless LAN Utility. 4. Upon completion, go to Program Files and run the Wireless LAN Utility. The utility interface will then appear and at the same time its icon appears in the System Tray in the bottom right corner of your task bar. V. Usage of the Wireless LAN Utility The Wireless LAN Utility consists of window with 5 items for you to monitor and configure the WG-600 MiniPCI Wireless Adapter: Configuration, Loop Back, AP Browser, Site Survey and About. 3 Configuration: The Configuration item allows you to modify the configuration parameters for the WG-600 MiniPCI Wireless Adapter such as Profile, Network Type, Channel, Transmit Rate, ESSID, WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore, you may monitor the current status of the MiniPCI Wireless Adapter such as State, Current Channel, Current Tx Rate, Throughput, Link Quality and Signal Strength. Look Back: The Look Back tool helps you examine point-to-point data transmission quality between the your MiniPCI Wireless Adapter and any work station on the network. By entering IP address of the remote station, set ping interval and packet size, you may know whether communication has been made successfully or not. Additionally, if you use the infrastructure wireless LAN configuration, you may run the loopback test by click the Look back button to verify the communication quality between your wireless station and Access Point. 4 AP Browser: By clicking the Rescan button, the AP Browser can display all the Access Points around working environment. Besides showing the ESSID of each Access Point, it also display BSSID, Channel, Signal, Quality and Supported Rates. To join any of the displayed Access Point, highlight the Access Point you desire to connect and then click the Join BSS or Join ESS to join the group. Site Survey: When the Site Survey screen is displayed, the channel quality of all 14 radio channels will be displayed. These channel quality measurements are shown on each gauge for the 14 radio channels. The blue bar indicated the channel quality is clear and good. The higher the blue bar is, the better quality you have (i.e., less interference). The yellow bar indicates the channel quality is fair and the red bar indicates the channel is busy or having severe interference. 5 About: The About item shows the versions the Wireless LAN Utility, driver, firmware and utility of the WG-600 MiniPCI Wireless Adapter. Also, the MAC address and frequency domain is displayed. Technical Support You can find the most recent software and user documentation will be updated periodically on the supplier Web site. If you have difficulty resolving the problem while installing or using the WG- 600 MiniPCI Wireless Adapter, please contact the supplier for support. 6 Limited Warranty Statement This Warranty constitutes the sole and exclusive remedy of any buyer or reseller’s equipment and the sole and exclusive liability of the supplier in connection with the products and is …

Text truncated - open the document above for the full version.

Company: NETGEAR IncorporatedPage : 1 of 5 Product : 54Mbps Wireless Mini-PCI modualModel : WG600 Company: NETGEAR IncorporatedPage : 2 of 5 Product : 54Mbps Wireless Mini-PCI modualModel : WG600

Company : NETGEAR IncorporatedModel : WG600 Product : 54Mbps Wireless Mini-PCI modual 54Mbps Wireless Mini-PCI modual Model No: WG600 FCC IDPY3WG600 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company: NETGEAR IncorporatedPage : 3 of 5 Product : 54Mbps Wireless Mini-PCI modualModel : WG600 Company: NETGEAR IncorporatedPage : 4 of 5 Product : 54Mbps Wireless Mini-PCI modualModel : WG600 Company: NETGEAR IncorporatedPage : 5 of 5 Product : 54Mbps Wireless Mini-PCI modualModel : WG600

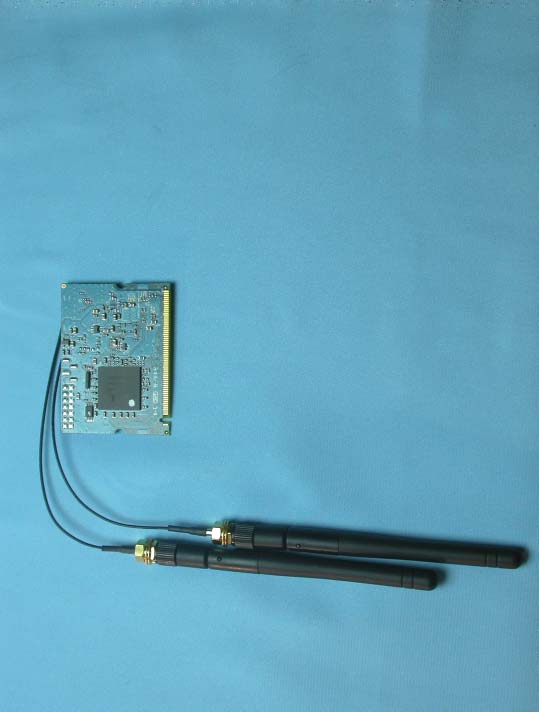

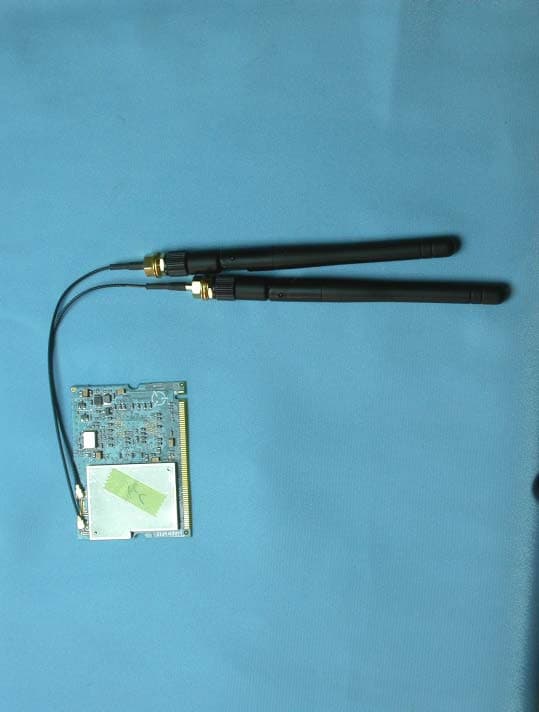

Description of Operation EUT is a 54Mbps Wireless Mini-PCI modual with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This 54Mbps Wireless Mini-PCI modual is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the 54Mbps Wireless Mini-PCI modual transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

FCC ID PY3WG600 Report No.510-9112-058F Page 1 of 2 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 9. RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500----F/3006 1,500-100,000----56 (B) Limits for General Population / Uncontrol Exposures 300-1,500----F/15006 1,500-100,000----130 9.1 FRIIS FORMULA Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 9.2 EUT OPERATING CONDITION A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID PY3WG600 Report No.510-9112-058F Page 2 of 2 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 9.3 TEST RESULT OF RF EXPOSURE EVALUATION Test ItemRF Exposure Evaluation Data Test ModeNormal Operation 9.3.1 ANTENNA GAIN Antenna GainThe maximum Gain measured in fully anechoic chamber is 2dBi linear scale. 9.3.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE EVALUATION DISTANCE ChannelChannel Frequency (MHz) Output Power to Antenna (dBm) Minimum Allowable Distance  From Skin(cm) CH12412.0017.46 CH62437.0017.38 CH112462.0017.35

FCC ID PY3WG600 Report No.510-9112-058F Page 1 of 39 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 ELECTROMAGNETIC COMPATIBILITY TEST REPORT Company NETGEAR Incorporated. Address 4500 Great America Parkway Santa Clara,CA 95054 Product name 54Mbps Wireless Mini-PCI modual Model name WG600 Date Received DEC. 31, 2002 Date Tested JAN. 02-06, 2003 MEASUREMENT REQUIREMENT USED 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Notes 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to test, and is invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. FCC ID PY3WG600 Report No.510-9112-058F Page 2 of 39 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 TABLE OF CONTENTS TITLEPAGE NO. 1. GENERAL INFORMATION.....................................................................................................................4 1.1 GENERAL STATEMENT ..............................................................................................................4 1.2 GENERAL DESCRIPTION OF EUT & POWER ..........................................................................4 1.3 DESCRIPTION OF PERIPHERALS ..............................................................................................5 1.4 EUT & PERIPHERALS SETUP DIAGRAM .................................................................................6 1.5 EUT OPERATING CONDITION ...................................................................................................6 1.6 DESCRIPTION OF TEST SITE .....................................................................................................7 1.7 SUMMARY OF TEST RESULTS ..................................................................................................7 2. CONDUCTED POWERLINE TEST .........................................................................................................8 2.1 TEST EQUIPMENTS......................................................................................................................8 2.2 TEST SETUP...................................................................................................................................8 2.3 CONDUCTED POWER LINE EMISSION LIMIT ........................................................................9 2.4 TEST PROCEDURE .......................................................................................................................9 2.5 UNCERTAINTY OF CONDUCTED EMISSION..........................................................................9 2.6 CONDUCTED RF VOLTAGE MEASUREMENT........................................................................10 2.7 PHOTOS OF CONDUCTION TEST ..............................................................................................11 3. RADIATED EMISSION TEST .................................................................................................................12 3.1 TEST EQUIPMENTS......................................................................................................................12 3.2 TEST SETUP...................................................................................................................................12 3.3 RADIATION LIMIT .......................................................................................................................13 3.4 TEST PROCEDURES .....................................................................................................................14 3.5 UNCERTAINTY OF RADIATED EMISSION..............................................................................14 3.6 RADIATED RF NOISE MEASUREMENT ...................................................................................15-23 3.7 PHOTOS OF OPEN SITE ...............................................................................................................24-25 4. 6dB BANDWIDTH MEASUREMENT ....................................................................................................26 4.1 TEST EQUIPMENTS......................................................................................................................26 4.2 TEST SETUP...................................................................................................................................26 4.3 LIMITS OF 6dB BANDWIDTH MEASUREMENT .....................................................................26 4.4 TEST PROCEDURE .......................................................................................................................26 4.5 UNCERTAINTY OF CONDUCTED EMISSION..........................................................................26 4.6 TEST RESULTS .............................................................................................................................27 4.7 PHOTO OF 6DB BANDWIDTH MEASURERMENT ..................................................................28 5. MAXIMUM PEAK OUTPUT POWER ..................................…
