PY3WG602V254Mbps Wireless Access Point

WG602 v2 August 2003 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Phone 1-888-NETGEAR User’s Guide for the WG602 54 Mbps Wireless Access Point 2 NETGEAR, INC. Technical Support Please register to obtain technical support. Please retain your proof of purchase and warranty information. To register your product, get product support or obtain product information and product documentation, go to www.netgear.com. If you do not have access to the World Wide Web, you can register your product by filling out the registration card and mailing it to NETGEAR customer service. You will find technical support information at: www.netgear.com/support/main.asp through the customer service area. If you want to contact technical support by telephone, see the support information card for the correct telephone number for your country. © 2003 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a registered trademark of NETGEAR, INC. Windows is a registered trademark of Microsoft Corporation. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. 3 Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment othe RF Exposure Requirements WARNING! To ensure compliance with FCC RF exposure requirements, the antenna used for this device must be installed to provide a separation distance of at least 20 cm (8 in) from all persons and must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this user guide. 4 Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 2.4 GHz frequency range. FCC requires this product to be used indoors in 2.4 GHz the frequency range to reduce the potential for harmful interference to co-channel Mobile Satellite systems. Regulatory Compliance Information This device is restricted to indoor use due to reduce the potential for harmful interference to co-channel Mobile Satellite and Radar Systems. Canadian Department of Communications Compliance Statement To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen tha the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. (DoC) 5 CE Declaration of Conformity For the following equipment: 54 Mbps Wireless Access Point WG602 v2 is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: •EN 301489-1 V1.2.1 (2000-08) •EN 301 489-17 V1.1.1 (2000-09) •EN 55022: 1988 Class B •EN 61000-3-2: 2000 •EN 6100-3-3: 1995 •EN 55024: 1998 (IEC 61000-4-5:1995, IEC 61000-4-3:1995, IEC 61000-4-4;1995, IEC 61000-4-5:1995, IEC 61000-4-6:1996, IEC 61000-4-8:1993, IEC 61000-4-11:1994) The test was carried out on February 19, 2003 at Sporton International Inc. Lab. 0984 ! 6 Contentsiii Contents Chapter 1 About This Manual Audience, Scope, Conventions ......................................................................................1-1 How to Use the PDF and HTML Versions of this Manual ...............................................1-2 How to Print this Manual .................................................................................................1-3 Chapter 2 Introduction About the 54 Mbps Wireless Access Point WG602 v2 ...................................................2-1 Key Features ..................................................................................................................2-2 802.11g Standar…

Text truncated - open the document above for the full version.

User’s Guide for the WG602 54 Mbps Wireless Access Point Wireless Networking BasicsB-3 The radio frequency channels used are listed in Table B-1: Note: The available channels supported by the wireless products in various countries are different. The preferred channel separation between the channels in neighboring wireless networks is 25 MHz (5 channels). This means that you can apply up to three different channels within your wireless network. There are only 11 usable wireless channels in the United States. It is recommended that only 2412 - 2462MHz can be used in the U.S. and if user select the wrong channel (frequency), the software will not support to use. Table B-1.802.11b Radio Frequency Channels ChannelCenter FrequencyFrequency Spread 12412 MHz2399.5 MHz - 2424.5 MHz 22417 MHz2404.5 MHz - 2429.5 MHz 32422 MHz2409.5 MHz - 2434.5 MHz 42427 MHz2414.5 MHz - 2439.5 MHz 52432 MHz2419.5 MHz - 2444.5 MHz 62437 MHz2424.5 MHz - 2449.5 MHz 72442 MHz2429.5 MHz - 2454.5 MHz 82447 MHz2434.5 MHz - 2459.5 MHz 92452 MHz2439.5 MHz - 2464.5 MHz 102457 MHz2444.5 MHz - 2469.5 MHz 112462 MHz2449.5 MHz - 2474.5 MHz 122467 MHz2454.5 MHz - 2479.5 MHz 132472 MHz2459.5 MHz - 2484.5 MHz

August 15,2003 Federal Communications Commission Authorization and Evaluation Division FCC ID: PY3WG602V2 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematic RF circuitry diagram 2. Functional block diagram 3. Operational Description 4. Antenna Specification The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

TCB Q and A.txt From: [email protected] Sent: September232003Tuesday 9:07 PM To: C kuo; Mike Kuo Subject: RE: FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237--urgent lucy_tsai 2003/09/22 01:22 PM Mike Kuo <[email protected]> jonson/ccsemc@ccsemc, eric/ccsemc@ccsemc, ting/ccsemc@ccsemc RE: FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 Hi Mike, Delta has revised page B-3, stating that once user selecting the wrong channel or frequency that the software won't be support. Please check attached file for details. Thank you and best regards, Lucy Mike Kuo <[email protected]> 2003/09/17 06:58 AM "'[email protected]'" <[email protected]>, Mike Kuo <[email protected]> "Eric (E-mail)" <[email protected]>, "Jonson Lee (E-mail)" <[email protected]>, "Lucy (E-mail)" <[email protected]>, "Ting (E-mail)" <[email protected]> RE: FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 Hi Lucy : Question #1 reply : Acknowledged statement in B-3 of user manual. However, Page 3-12 figure 3-19 which provide a drop down manual to allow the end user to select the country that this access point is using. If the software is written in this way, Netgear has no control that the end user will select other country and transmit the frequency which is not authorized. It is FCC policy that the equipment manufacturer can not allow the end user to select the other frequencies which is not authorized in the U.S. Best Regards Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, September 15, 2003 10:33 PM To: Mike Kuo Page 1 TCB Q and A.txt Cc: Eric (E-mail); Jonson Lee (E-mail); Lucy (E-mail); Ting (E-mail) Subject: FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 Hi Mike, For question 1, Delta confirmed that it has already been specified in the page B-3 and please check if it's acceptable. For question 2, we have revised the test repot attached file, page38. Please help to check if they are acceptable and issue the grant asap. Thank you and Best Regards, Lucy Mike Kuo <[email protected]> 2003/09/10 07:32 AM "Eric (E-mail)" <[email protected]>, "Lucy (E-mail)" <[email protected]>, "Ting (E-mail)" <[email protected]> "Jonson Lee (E-mail)" <[email protected]> FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 -----Original Message----- From: CERTADM Sent: Tuesday, September 09, 2003 4:30 PM To: '[email protected]' Subject: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 Notice_content ------------- Question #1: Page 3-12 of user manual, the software provided with this access point allows the end user to select the country based upon the country which this access point is used. Such user selectable option is not allowed due to the end user may select the channel which is not authorized to be operated in the U.S.. Please address this issue. Question #2: Section 7.5 of Test report, this access point should be classified as mobile device per 2.1091 of FCC rules. It is not a fixed transmitter based upon FCC definition. Note #1 statement is not correct. Since it is mobile device, there is no Sar consideration. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Page 2 TCB Q and A.txt Hello Lucy, Pls find the attached revised user manual if acceptable by TCB. Thanks Rita lucy_tsai 2003/09/17 09:33 AM skang/ccsemc@ccsemc, rita_hsiao/ccsemc@ccsemc RE: FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 Dear Shirley and Rita, Please refer to Mike's answer about Q1 and please have Delta to make some correction, thank you. Best Regards, Lucy ----- lucy_tsai/ccsemc 2003/09/17 09:32 AM ----- Mike Kuo <[email protected]> 2003/09/17 06:58 AM "'[email protected]'" <[email protected]>, Mike Kuo <[email protected]> "Eric (E-mail)" <[email protected]>, "Jonson Lee (E-mail)" <[email protected]>, "Lucy (E-mail)" <[email protected]>, "Ting (E-mail)" <[email protected]> RE: FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 Hi Lucy : Question #1 reply : Acknowledged statement in B-3 of user manual. However, Page 3-12 figure 3-19 which provide a drop down manual to allow the end user to select the country that this access point is using. If the software is written in this way, Netgear has no control that the end user will select other country and transmit the frequency which is not authorized. It is FCC policy that the equipment manufacturer can not allow the end user to select the other frequencies which is not authorized in the U.S. Question #2: reply : I made some modification on section 7.5. Please take a look attached page. Best Regards Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Monday, September 15, 2003 10:33 PM To: Mike Kuo Page 3 TCB Q and A.txt Cc: Eric (E-mail); Jonson Lee (E-mail); Lucy (E-mail); Ting (E-mail) Subject: FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 Hi Mike, For question 1, Delta confirmed that it has already been specified in the page B-3 and please check if it's acceptable. For question 2, we have revised the test repot attached file, page38. Please help to check if they are acceptable and issue the grant asap. Thank you and Best Regards, Lucy Mike Kuo <[email protected]> 2003/09/10 07:32 AM "Eric (E-mail)" <[email protected]>, "Lucy (E-mail)" <[email protected]>, "Ting (E-mail)" <[email protected]> "Jonson Lee (E-mail)" <[email protected]> FW: NETGEAR, INC., FCC ID:PY3WG602V2, AN03T3237 -----Original Message----- From: CERTADM Sent: Tuesday, September 09, 2003 4:30 PM To: '[email protected]' Subject: NETGEAR, INC., FCC I…

Text truncated - open the document above for the full version.

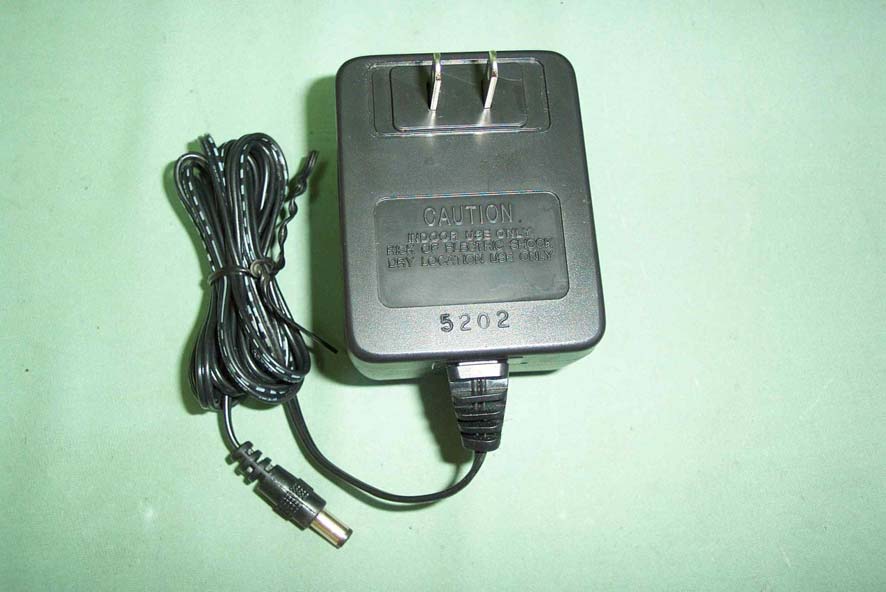

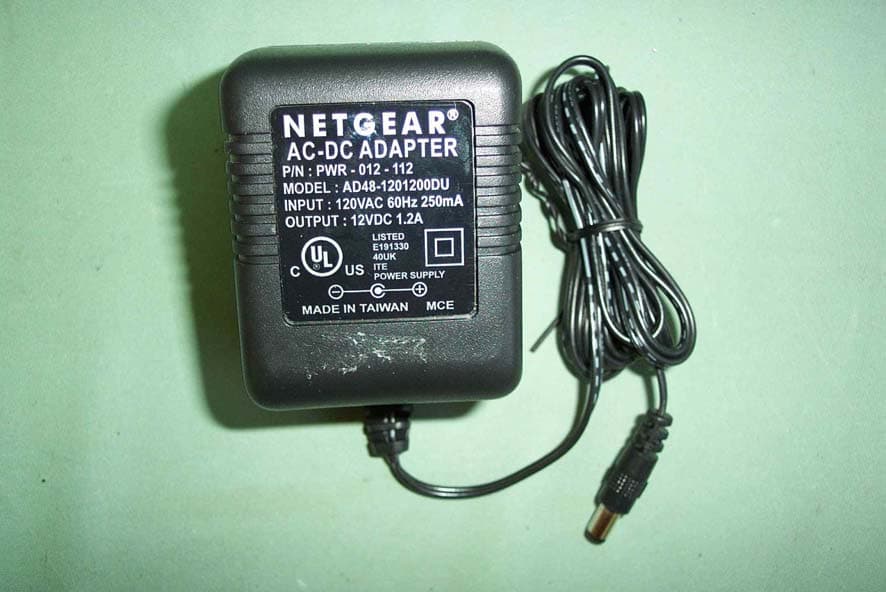

Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 67 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT Front view of EUT Back view of EUT Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 68 Front view of Power Adapter Back view of Power Adapter

FCC ID: PY3WG602V2 Canada ID: 4054A-WG602V2 Radio Module Inside "Complies with CANADA RSS-210" 54 Mbps Wireless Access Point WG602 v2 MAC SERIAL U.S. Design Patent No. D460,443 0984 ! Rxxxxxxxxxx 64.87mm 125.68mm BLINK = ACTIVITY LAN: GREEN = 100MBPS / YELLOW = 10MBPS Power 12 VDC 1.2A Ethernet RestoreAntenna EthernetWireless +

Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 69 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT Internal of EUT --- 1 Internal of EUT --- 2 Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 70 Internal of EUT --- 3 Internal of EUT --- 4

Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 1 of 70 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 54Mbps Wireless Access Point Brand Name: NETGEAR Model Number: WG602 v2 FCC ID: PY3WG602V2 Report No: B30806203-RP Issue Date: September 1, 2003 Prepared for NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA 95054, U.S.A. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION..................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION ................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES...............................................................................................................................8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.247 REQUIREMENTS...................................................................................... 11 7.1 6DB BANDWIDTH................................................................................................................... 11 7.2 PEAK POWER......................................................................................................................... 17 7.3 BAND EDGES MEASUREMENT...................................................................................... 23 7.4 PEAK POWER SPECTRAL DENSITY......................................................................................... 32 7.5 RADIO FREQUENCY EXPOSURE.............................................................................................. 38 7.6 RADIATED EMISSIONS........................................................................................................... 40 7.7 POWERLINE CONDUCTED EMISSIONS.................................................................................... 61 Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 3 1. TEST RESULT CERTIFICATION Applicant: NETGEAR, INC. 4500 Great America Parkway, Santa Clara, CA 95054, U.S.A. Equipment Under Test: 54Mbps Wireless Access Point Trade Name: NETGEAR Model: WG602 v2 Model Difference: N/A Report Number: B30806203-RP Date of Test: August 19 ~ 26, 2003 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jonson Lee Eric Wong Director of Linkou Laboratory Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 4 2. EUT DESCRIPTION Product 54Mbps Wireless Access Point Trade Name NETGEAR Model Number WG602 v2 FCC ID PY3WG602V2 Model Discrepancy N/A Power Rating Input: 120Vac, 60Hz Output: +12 Vdc, 1.2A Frequency Range 2412 ~ 2462 MHz (IEEE 80211 b/g) Modulation Technique DSSS (CCK; DQPSK; DBPSK) for IEEE 802.11b, OFDM for IEEE 802.11g Transmitting Speed 1,2,5.5,6,9,12,18,24,36,48 and 54Mbps with Auto Rate Sensing Number of Channels 11 Antenna Designation 1. Dipole Antenna with R-SMA connector non-user changeable. (TX and RX Diversity) 2. PIFA Antenna (RX only) Note: This submittal(s) (test report) is intended for FCC ID: PY3WG602V2 filin…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 38 7.5 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT SPECIFICATION EUT 54Mbps Wireless Access Point Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others __________________________ Device category Portable (<20cm separation) Mobile (>20cm separation) Others __ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 19.15 dBm (82.22mW) Antenna gain (Max) 2 dBi (Numeric gain: 1.58) Evaluation applied MPE Evaluation* SAR Evaluation N/A Note: 1. *The maximum output power is 19.15dBm(82.22mW) at 2437MHz, with1.58dBi antenna gain DTS device is not subject to rontine RF evaluation , MPE estimate is used to justify compliance.. 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULTS No non-compliance noted Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field Strength in Volts / meter P = Power in Watts G=Numeric antenna gain d=Distance in meters S=Power Density in milliwatts / square centimeter

Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 65 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B30806203-RP FCC ID: PY3WG602V2 Date of Issue: September 1, 2003 Page 66 Conducted Emission Set Up Photos
