PY3WGPS606Wireless Print Server

Draft 1, 01 Feb 05 Beta Draft 1 February 2005 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Phone 1-888-NETGEAR Reference Manual for the NETGEAR Wireless Print Server WGPS606 ii Draft 1, 01 Feb 05 NETGEAR, INC. Technical Support Please register to obtain technical support. Please retain your proof of purchase and warranty information. To register your product, get product support or obtain product information and product documentation, go to www.netgear.com. If you do not have access to the World Wide Web, you can register your product by filling out the registration card and mailing it to NETGEAR customer service. You will find technical support information at: www.netgear.com/support/main.asp through the customer service area. If you want to contact technical support by telephone, see the support information card for the correct telephone number for your country. © 2005 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a registered trademark of NETGEAR, INC. Windows is a registered trademark of Microsoft Corporation. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Draft 1, 01 Feb 05 iii Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice Warning! To comply with the FCC’s exposure requirements you must maintain a distance of at least 20 cm from the antenna of this device while it is in use. This device should not be co-located with other transmitters. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. RF Exposure Requirements WARNING! To ensure compliance with FCC RF exposure requirements, the antenna used for this device must be installed to provide a separation distance of at least 20 cm (8 in) from all persons and must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this user guide. Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 2.4 GHz frequency range. FCC requires this product to be used indoors in 2.4 GHz the frequency range to reduce the potential for harmful interference to co-channel Mobile Satellite systems. FOR HOME OR OFFICE USE Tested to Comply with FCC Standards NETGEAR WGPS606 54 Mbps Wireless USB Print Server with 4-Port Switch WGPS606 Draft 1, 01 Feb 05 iv Regulatory Compliance Information This device is restricted to indoor use due to reduce the potential for harmful interference to co-channel Mobile Satellite and Radar Systems. Canadian Department of Communications Compliance Statement This Class B Digital apparatus (NETGEAR WGPS606 54 Mbps Wireless USB Print Server with 4-Port Switch WGPS606) meets all the requirements of the Canadian Interference Causing Equipment Regulations. Cet appareil numerique del la classe B respect les exigences du Regalement sur le material broilleur du Canada. This device comples with Class B limits of Industry of Canada. Operation is subject to the following two conditions: 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. The device is certified to the requirements of RSS-139-1 and RSS-210 for 2.4 GHz spread spectrum devices. The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations. For further information, contact your local Industry Canada office. Product and Publication Details Model Number:WGPS606 Publication Date:February 2005 Product Family:wireless USB print server Product Name:NETGEAR WGPS606 54 Mbps Wireless USB Print Server with 4-Port Switch WGPS606 Home or Business Product:Home Language:English Publication Part Number:Beta Draft 1 Contentsiii Draft 1, 01 Feb 05 Contents Chapter 1 About This Manual Audience, Scope, Conventions, and Formats ................................................................1-1 How to Use This Manual ................................................................................................1-2 How to Print this Manual ........................................................................…

Text truncated - open the document above for the full version.

Netgear Inc. 4500 Great America Parkway, Santa Clara, California 95054 USA Federal Communications Commission Dear Sir, We, the undersigned, hereby authorize Exclusive Certification Corp. to act on our behalf in all matters relating to application for Wireless Print Server (Model: WGPS606, FCC ID No.: PY3WGPS606)” authorization, including the signing of all documents relating to these matters. Any and all carried out by Exclusive Certification Corp. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant (e.g., corporation), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988.21 U.S.A. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002(b). By: By: Larry Kerila (Signature) (Printed) Title : Product Design Manager Applicant: Netgear Inc. Address: 4500 Great America Parkway, Santa Clara, California 95054 USA Tel: +1-408-907-8000 Fax: +1-408-907-8097 E-mail: [email protected] Date: February 28, 2005

Netgear Inc. February 28, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID:PY3WGPS606 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompaniment this Application As outlined below: 1. Block Diagram, 2. Schematic Diagram, The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Larry Kerila / Mechanical Engineering Manager Applicant: Netgear, Inc. Address: 4500 Great America Parkway, Santa Clara, California 95054 USA TEL: +1-408-907-8000 FAX: +1-408-907-8097

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 2, 2005 RE: Netgear Inc. IC Number: PY3WGPS606 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide agency letter for this application. 2) Some documents appear to have confidentiality requested, but a confidentiality letter was not provided. Please provide. 3) Please provide a separate RF exposure exhibit. 4) Please explain compliance to 15.203. The users manual states the antenna is detachable. 5) RF exposure information in the users manual cites 1 cm and 20 cm on page 3. Note that this is considered a mobile device and should cite 20 cm. Please correct the 1 cm reference. 6) Some peak to average data > 1 GHz appear to have almost a 20 dB delta. This is highly unusual and implies that the device may have had a duty cycle associated with the carrier or an inappropriate large span that attributes to bad dynamic range, even if the carrier was set to continuous TX. Most 802.11 devices with appropriate measurement techniques have an 8-12 dB difference between the peak and average spurious emissions. Note that average measurements are only considered valid if the VBW is > 1/Ton time which appears may not have been the case here. Please verify these unusual readings as necessary. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

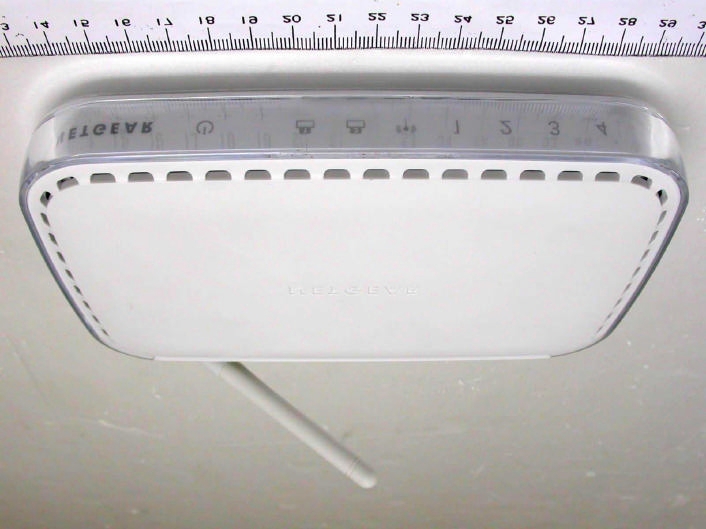

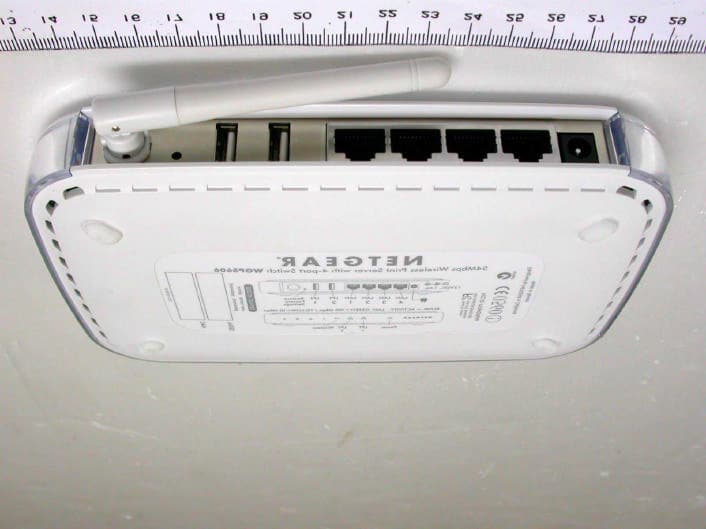

External Photos

Internal Photos

WGPS606 Operation Principle 1. CPU, U400, BCM53505S integrates 802.11b/g MAC+Baseband, 200-MHz MIPS32 core with a 3EDS/AES encryption engine, a USB host and device interface for printer server, and a configurable five- port 10/100Mbps Enthernet switch. 2. FLASH, U801, MX29LV160BBTC-90, 16Mbits Flash, Bottom sector, and 90ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U2, BCM2050KML provide a fully integrated 802.11b/g RF solution. The radio supports all data rate and modulation formats required by 802.11b/g and has the lowest power dissipation. The BCM2520KML incorporates the complete RF receive and transmit paths including; phase lock loop (PLL), voltage controlled oscillator (VCO), low-noise amplifier (LNA), downconverter, upconverter, modulator and filter. 4. 2.4GHz – 2.5GHz Power Amplifier, U23, the AWL6153 is a power amplifier optimized for WLAN applications in the 2.4GHz-2.5GHz frequency range. 5. Power part: derives its power from a 12V DC power adapter which needs to be converted to 1.8V,3.3V and 5V DC. 6. LED part: Power: on/off/blink: Green, Amber; Green: On Power on and working mode Amber: Blinking - Reset to Factory Default Amber: Solid Diagnostics Error LPT 1: on/off/blink: Amber/Green Off Printer detached Green: on Printer Ready Green: BlinkingData Transmission Amber: Solid LPT Error LPT 2: on/off/blink: Amber/Green Off Printer detached Green: on Printer Ready Green: BlinkingData Transmission Amber: Solid LPT Error Wireless: on/off/blink: Blue Alternate Blinking: Looking for network association Slow-Rate : Associated or joined with the network; no activity Fast-Rate : Associated or joined with the network; activity on the network LAN1 ~ LAN 4: Green/Amber Green: 100Mpbs Amber: 10Mbps Blinking: Activity Interface: o 4 RJ-45 Port (LAN) o 2 USB Interface (Print Server) o 1 Reset button o Power Jet Operating Temperature: 0-40C Operating Humidity: 10-90% RH Storage Temperature: -20-70C Storage Humidity: 5-95% RH Transmit Power: (802.11b-19 dBm+-1.5dbm)(802.11g-17dbm+-1.5dbm) Antenna Diversity: Yes

1.1. Test Result of RF Exposure Evaluation . Product: Wireless Print Server . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: February. 05, 2005 Temperature: 25 Humidity: 69 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 17.60 0.0180 06 2437 17.04 0.0160 11 2462 17.14 0.0160 Modulation Standard: IEEE 802.11g Test Date: February. 05, 2005 Temperature: 25 Humidity: 69 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 16.35 0.0140 06 2437 16.25 0.0130 11 2462 16.12 0.0130 The MPE is calculated as 0.0180 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 1 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ILAC MRA † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. † The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant NETGEAR Inc. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment Wireless Print Server Model No. WGPS606 FCC ID PY3WGPS606 Trade Name NETGEAR Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 2 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software .........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. RF Module Specifications................................................................................................16 2.6. History of this test report.................................................................................................16 3. General Information of Test.......................................................................................................17 4. Test Result and Data.................................................................................................................18 4.1. Antenna Requirement.....................................................................................................18 4.2. Test Result of Conducted Emission..................................................................................19 4.3. Test Result of Radiated emission.....................................................................................44 4.4. 6dB Bandwidth Measurement Data..................................................................................59 4.5. Peak Output Power Measurement Data...........................................................................63 4.6. Band Edges Measurement Data......................................................................................67 4.7. Restrict band emission Measurement Data.......................................................................72 4.8. Power Spectral Density Measurement Data......................................................................74 5. List of Measuring Equipment Used.............................................................................................78 Appendix A. Photographs of EUT........................................................................ ...............A1 ~ A8 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 3 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant NETGEAR Inc. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment Wireless Print Server Model No. WGPS606 FCC ID PY3WGPS606 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4 The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2003). The test was carried out on Feb. 05, 2005 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 4 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Te…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 19 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A 4.2. Test Result of Conducted Emission Test mode 1: Adaptor Model: AD-121A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 20 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 21 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 22 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 23 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 24 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 25 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 26 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 27 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 28 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 29 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 30 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 31 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Test mode 2: Adaptor Model: DV-1280-3 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 32 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 33 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 34 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 35 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 36 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 37 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 38 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 39 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 40 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 41 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 42 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 43 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 44 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A 4.3. Test Result of Radiated emission ó Test mode 1: Adaptor Model: AD-121A Emission frequencies below 1 GHz Channel HI Test Date: Feb. 04, 2005 Temperature: 25 Humidity: 69% Atmospheric pressure: 1029mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 148.80 H 50.62 -16.93 33.69 43.5 -9.81 Peak 219 1.2 250.02 H 54.63 -13.69 40.94 46.0 -5.06 Q.P 233 1.2 300.00 H 53.76 -11.32 42.44 46.0 -3.56 Q.P 241 1.2 400.11 H 50.86 -9.13 41.73 46.0 -4.27 Q.P 238 1.2 500.01 H 46.92 -7.80 39.12 46.0 -5.88 Peak 240 1.2 600.02 H 44.69 -6.38 38.21 46.0 -7.69 Peak 235 1.2 900.02 H 41.21 -3.21 38.00 46.0 -8.00 Peak 242 1.2 200.02 V 53.14 -16.71 36.43 43.5 -7.07 Peak 232 1.1 250.06 V 56.02 -13.69 42.33 46.0 -3.67 Q.P 240 1.1 300.03 V 52.43 -11.32 41.11 46.0 -4.89 Q.P 235 1.1 400.01 V 50.90 -9.13 41.77 46.0 -4.23 Q.P 235 1.1 500.10 V 50.02 -7.80 42.22 46.0 -3.78 Q.P 238 1.1 600.00 V 44.23 -6.38 37.85 46.0 -8.15 Peak 236 1.1 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120KHz for Peak detection and Quasi-peak detection at frequency below 1GHz. 4 The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 3MHz for Peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emissions is too below to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 45 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Modulation Standard: 802.11b (11Mbps) Emission frequencies above 1 GHz Channel LO Test Date: Feb. 04, 2005 Temperature: 25 Humidity: 69% Atmospheric pressure: 1029mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 4824.00 H 32.67 8.12 40.79 54 -13.21 Ave 172 1.0 4824.00 H 40.96 8.12 49.08 54 -2.49 Ave 172 1.0 7236.00 H 30.54 11.89 42.43 54 -11.57 Ave 179 1.0 7236.00 H 39.16 11.89 51.05 54 -22.95 Ave 179 1.0 9648.00 H --- 14.64 --- 54 --- Ave --- --- 12060.00 H --- 15.84 --- 54 --- Ave --- --- 4824.00 V 50.64 6.49 57.13 74 -16.87 Peak 167 1.1 4824.00 V 43.31 6.49 49.80 54 -4.20 Ave 167 1.1 7235.60 V 48.42 10.31 58.73 74 -15.27 Peak 176 1.1 7235.60 V 41.41 10.30 51.71 54 -2.29 Ave 176 1.1 9648.00 V --- 13.57 --- 54 --- Ave --- --- 12060.00 V --- 15.93 --- 54 --- Ave --- --- Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120KHz for Peak detection and Quasi-peak detection at frequency below 1GHz. 4 The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 3MHz for Peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emissions is too below to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 46 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Modulation Standard: 802.11g (54Mbps) Emission frequencies above 1 GHz Channel LO Test Date: Feb. 05, 2005 Temperature: 25 Humidity: 69% Atmospheric pressure: 1029mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 4824.20 H 30.56 8.12 38.68 54 -15.32 Ave 179 1.0 4824.20 H 41.75 8.12 49.81 54 -24.13 Ave 179 1.0 7235.80 H 39.42 11.89 51.31 54 -22.69 Ave 186 1.0 7235.80 H 29.64 11.89 41.53 54 -12.47 Ave 186 1.0 9648.00 H --- 14.64 --- 54 --- Ave --- --- 12060.00 H --- 15.84 --- 54 --- Ave --- --- 4824.40 V 51.64 6.49 58.13 74 -15.87 Peak 176 1.1 7235.60 V 49.72 10.30 60.02 74 -13.98 Peak 175 1.1 9648.00 V --- 13.57 --- 54 --- Ave --- --- 12060.00 V --- 15.93 --- 54 --- Ave --- --- Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120KHz for Peak detection and Quasi-peak detection at frequency below 1GHz. 4 The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 3MHz for Peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emission is too low to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Feb. 15, 2005 47 of 78 FCC ID: PY3WGPS606 FCC Test Report: FI05010401-A Modulation Standard: 802.11b (11Mbps) Emission frequencies above 1 GHz Channel MID Test Date: Feb. 05, 2005 Temperature: 25 Humidity: 69% Atmospheric pressure: 1029mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 4874.20 H 49.14 8.32 57.46 74 -16.54 Peak 186 1.0 4874.20 H 39.67 8.32 47.99 54 -6.01 Ave 186 1.0 7309.60 H 45.09 12.05 57.14 74 -16.86 Peak 188 1.0 7309.60 H 35.11 12.05 47.16 54 -6.84 Ave 188 1.0 9748.00 H --- 14.71 --- 54 --- Ave --- --- 12185.00 H --- 15.82 --- 54 --- Ave --- --- 4874.30 V 52.78 6.63 59.41 74 -14.59 Peak 176 1.1 4874.30 V 42.88 6.65 49.53 54 -4.47 Ave 176 1.1 7307.79 V 50.43 10.40 60.83 74 -13.17 Peak 182 1.1 7307.79 V 40.67 10.39 51.06 54 -2.94 Ave 182 1.1 9748.00 V --- 13.66 --- 54 --- Av…

Text truncated - open the document above for the full version.

Test Setup Photos
