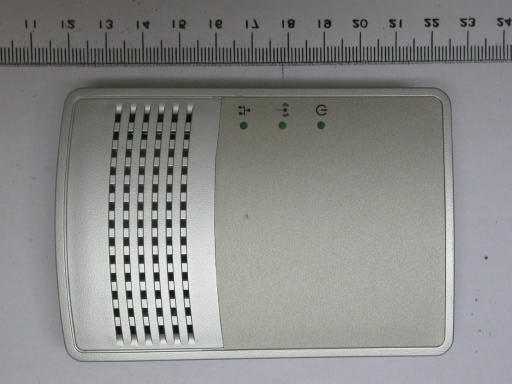

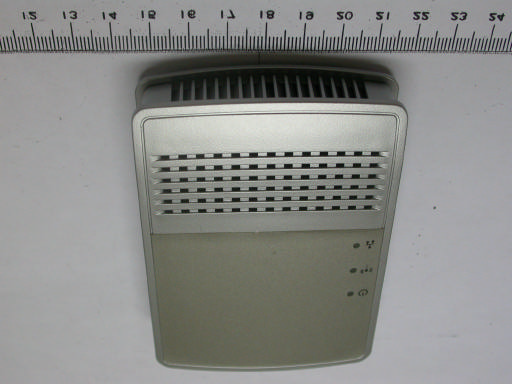

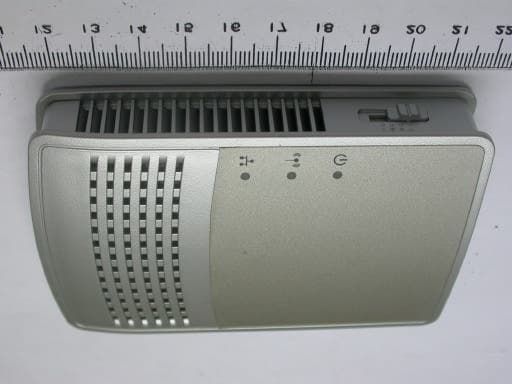

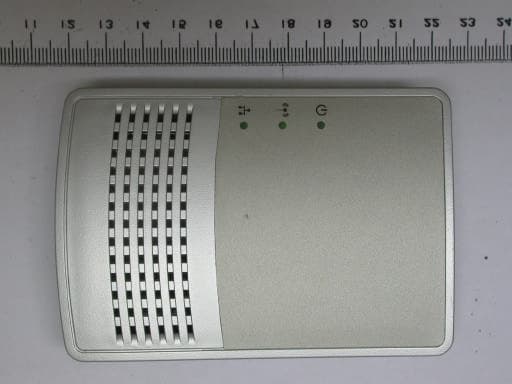

PY3WGR101Wireless Router

May 2004 (202-10034-01) 202-10034-01 Version 1.4 May 2004 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for the 54 Mbps Wireless Travel Router WGR101 ii May 2004 (202-10034-01) © 2004 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Certificate of the Manufacturer/Importer It is hereby certified that the 54 Mbps Wireless Travel Router WGR101 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Customer Support Refer to the Support Information Card that shipped with your 54 Mbps Wireless Travel Router WGR101 . World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a web browser such as Internet Explorer or Netscape are required. May 2004 (202-10034-01) EN 55 022 Declaration of Conformance This is to certify that the 54 Mbps Wireless Travel Router WGR101 is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). Compliance with the applicable regulations is dependent upon the use of shielded cables. It is the responsibility of the user to procure the appropriate cables. Countries of Operation and Conditions of Use in the European Community This device is intended to be operated in all countries of the European Community. Requirements for indoor vs. outdoor operation, license requirements and allowed channels of operation apply in some countries as described below. NOTE:The user must use the configuration utility provided with this product to ensure the channels of operation are in conformance with the spectrum usage rules for European Community countries as described below. •This device requires that the user or installer properly enter the current country of operation in the Radio Configuration Window as described in the user guide, before operating this device. •This device will automatically limit the allowable channels of operation applicable to each country. Incorrectly entering the country of operation may result in illegal operation and may cause harmful interference to other system. The user is obligated to ensure the device is operating according to the channel limitations, indoor/outdoor restrictions and license requirements for each European Community country as described in this document. •This device may be operated indoors or outdoors in all countries of the European Community using the 2.4GHz band except where noted below. •In Italy the end-user must apply for a license from the national spectrum authority to operate this device outdoors. •In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels 1 – 7. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution 1.FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 2.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party respons…

Text truncated - open the document above for the full version.

Hi, Tim: In regard to question 1& 2 on your comment letter, we'd like to clarify we apply DoC from other accredited lab. Thanks a lots for your help. Claire >From: "Timothy R. Johnson" <[email protected]> >To: <[email protected]> >Sent: Friday, June 18, 2004 6:18 PM ...snip... >> alternate email: [email protected] >> direct number: 404-414-8071 >> corporate phone: 703-847-4700 >> corporate fax: 703-847-6888 >> From: "Claire Wu" <[email protected]> To: "Timothy R. Johnson" <[email protected]> Subject: Re: Review of Netgear Inc., FCC ID: PY3WGR101 Page 1 of 1In 6/24/2004Printed for "Timothy R. Johnson" <[email protected]>

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 18, 2004 RE: Netgear Inc. FCC ID: PY3WGR101 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The DoC report provided does not appear to be done by an accredited lab. This is required if the device is approved using a DoC. Alternatively the device must be Certified if the DoC was not performed or approved by an accredited lab. If this device is to be Certified there are additional review costs associated with this application, and 2 grants will be issued. 2) For any PC peripheral testing, the device must be configured with a minimum test configuration as specified by ANSI C63.4 which includes complete computer + 2 I/O devices attached (one may be the EUT). This does not appear to be tested properly as required for a PC peripheral in the DoC report provided. Please note that although we are not required to perform a detailed review of the DoC requirements, we must ensure that the testing was properly performed (correct configurations, by an accredited lab, etc.) as required by the FCC . 3) Note Items 1) & 2) also affect how the device is labeled and certain information in the users manual. It is difficult to review these without understanding which compliance route is being taken for the PC peripheral portion of the device. 4) The maximum output power measured was only about 31 mW. However, the operational description mentions that the device is capable of 100 mW output. The FCC expects the sample under test to be operating at maximum power for all tests and the exhibits should all be consistent. It does not appear this occurred. It appears that possibly the built in power amplifier may have been disabled. Please explain. 5) Average measurements > 1 GHz (i.e. pages 58-59) are usually performed as specified by the FCC using the following settings: Peak Detector with RBW = 1 MHz, VBW = 10 Hz. An average detector appears to have been used. This has normally not been allowed, as average measurements are made by controlling the VBW. However, since peak measurements meet with the average limits, we will not require that the average measurements be retaken for this application. Please be aware of this to ensure all future testing is performed correctly. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Part Number Date Subject pages3 WGR101 Operation Principle 1. CPU, U6, 88W8510 have a 32-bit RISC processor integrated, operation frequency is 160MHz. It needs an external 44MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8000G), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, MX29LV800TTC-70, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8000G which is integrated all RF-Baseband receive and Transmit function. On-Chip Power Amplifier (PA) with up to 31mW output power at the antenna port. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. Components: Ethernet port (10/100BaseT) CONNECT THE 10/100BASET CABLING (RJ45 CONNECTOR) FOR THE EXTERNAL LAN, WAN, Reset Button Used to reboot, reset to factory default, Power Jack Connect the power adapter here. 4 stop manual switch Use to set different operation mode, client mode, AP mode, AP/NAT mode, config mode 5. Power part: there are several regulators are used on the board. U17, AZ1084S-3 is used to transfer DC5V to DC3V3; U1, U8 AME8805 are used to transfer DC3V3 to DC2V5; U20, 1117-ADJ is used to transfer DC3V3 to DC1V62. The core of CPU is operating at 1.5V. 6. LED part: LED Color Controlled by Description Power Green FW On - power on Off - no power Ethernet Link/Act Green HW On – Ethernet is connected Off – no Ethernet connection Blinking – receiving/ transmitting data WLAN Link/ Act Green FW On - Wireless connection available; Wireless Access Point is ready for use. Off - No Wireless connection available. Blinking - Data is transmitted or received via the Wireless access point. This includes "network traffic" as well as user data. 7. Switch button, SW1, it is used to reset the 88W8510. 8. Multi-layer Chip Band-Pass Filters, BP2,BP1, LCB22BM2450B1, Freq. Range: 2.4~2.5GHz; IL@BW: 1.7dB 9. GaAs IC SPDT Switch, U7, HWS314, features low insertion loss and positive voltage operation with very low DC power consumption.

1.1. Test Result of RF Exposure Evaluation . Product: Wireless Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 1.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: May. 18, 2004 Temperature: 25 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.85 0.0077 06 2437 12.36 0.0043 11 2462 11.62 0.0036 Modulation Standard: IEEE 802.11g Test Date: May. 18, 2004 Temperature: 25 Humidity: 58 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 10.29 0.0027 06 2437 10.28 0.0027 11 2462 10.04 0.0025 The MPE is calculated as 0.0077 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 1 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart B & C Applicant NETGEAR Inc. Address 4500 Great America Parkway, Santa Clara, CA 95054, USA Equipment 54 Mbps Wireless Travel Router Model No. WGR101 FCC ID PY3WGR101 Trade Name NETGEAR † The test result refers exclusively to the test presented test model / sample. † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 2 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations.............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission...............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power............................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation.........................................................................................11 1.10. Labeling Requirement.....................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System.................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. History of this test report..................................................................................................15 3. General Information of Test........................................................................................................16 4. Test Result and Data.................................................................................................................17 4.1. Antenna Requirement.....................................................................................................17 4.2. Test Result of Conducted Emission..................................................................................18 4.3. RF Portion......................................................................................................................31 4.4. 6dB Bandwidth Measurement Data..................................................................................43 4.5. Peak Output Power Measurement Data............................................................................47 4.6. Band Edges Measurement Data......................................................................................51 4.7. Power Spectral Density Measurement Data......................................................................64 4.8. Test Result of RF Exposure Evaluation.............................................................................68 5. List of Measuring Equipment Used.............................................................................................69 Appendix A. Photographs of EUT........................................................................ .............A1 ~ A7 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 3 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart B & C Applicant NETGEAR Inc. Address 4500 Great America Parkway, Santa Clara, CA 95054, USA Equipment 54 Mbps Wireless Travel Router Model No. WGR101 FCC ID PY3WGR101 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart B & C (2002). The test was carried out on May. 24, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 4 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 . RF Exposure Compliance Pass Test by: Exclusive Certification Corp. Tel:886-2-2792-3366 Fa…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 29 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 30 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 31 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 32 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 33 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 34 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.3.2. Test Result of Radiated Emission Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Test Date: May. 24, 2004 Temperature: 25 Humidity: 59 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Table Deg. Ant High (m) 37.29 V 48.70 -13.11 35.59 40.0 -4.41 180 1.5 39.99 V 52.23 -14.46 37.77 40.0 -2.23 180 1.5 126.93 V 54.84 -15.61 39.23 43.5 -4.27 180 1.5 132.33 V 55.45 -15.54 39.91 43.5 -3.59 180 1.5 481.30 V 51.48 -6.54 44.94 46.0 -1.06 180 1.5 642.30 V 45.26 -2.08 43.18 46.0 -2.82 180 1.5 924.40 H 36.36 3.66 40.02 46.0 -5.98 180 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Radiated emission frequencies above 1 GHz to 25 GHz were too low to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 35 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Modulation Standard: IEEE 802.11g a) Emission frequencies below 1 GHz Test Date: May. 24, 2004 Temperature: 25 Humidity: 59 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Table Deg. Ant High (m) 39.99 V 52.58 -14.46 38.12 40.0 -1.88 180 1.5 112.08 V 56.34 -16.31 40.03 43.5 -3.47 180 1.5 126.93 V 56.05 -15.61 40.44 43.5 -3.06 180 1.5 132.33 V 55.45 -15.54 39.91 43.5 -3.59 180 1.5 160.68 V 59.13 -17.06 42.07 43.5 -1.43 180 1.5 481.30 H 47.73 -6.53 41.20 46.0 -4.81 180 1.5 640.90 H 41.04 -2.09 38.95 46.0 -7.05 180 1.5 924.40 H 37.70 3.66 41.36 46.0 -4.64 180 1.5 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss - Amplifier b) Emission frequencies above 1 GHz Radiated emission frequencies above 1 GHz to 25 GHz were too low to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 36 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Modulation Standard: IEEE 802.11b Pol/Phase: Horizontal Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 37 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Modulation Standard: IEEE 802.11b Pol/Phase: Vertical Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 38 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 39 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Modulation Standard: IEEE 802.11g Pol/Phase: Horizontal Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 40 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Modulation Standard: IEEE 802.11g Pol/Phase: Vertical Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 41 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 42 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.3.3. Photographs of Radiated Emission Test FRONT VIEW REAR VIEW Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 43 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.4. 6dB Bandwidth Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: May. 18. 2004 Temperature: 25 Humidity: 58 a) Channel 01: 6dB Emission Bandwidth is 8.9 MHz b) Channel 06: 6dB Emission Bandwidth is 8.9 MHz c) Channel 11: 6dB Emission Bandwidth is 8.9 MHz (2) Modulation Standard: IEEE 802.11g Test Date: May. 18. 2004 Temperature: 25 Humidity: 58 a) Channel 01: 6dB Emission Bandwidth is 16.00 MHz b) Channel 06: 6dB Emission Bandwidth is 15.50 MHz c) Channel 11: 6dB Emission Bandwidth is 15.70 MHz Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 44 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 45 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 46 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 47 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.5. Peak Output Power Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: May. 18. 2004 Temperature: 25 Humidity: 58 a) Channel 01: Output Peak Power is 14.85dBm or 30.545mW b) Channel 06: Output Peak Power is 12.36dBm or 17.232mW c) Channel 11: Output Peak Power is 11.62dBm or 14.508mW (2) Modulation Standard: IEEE 802.11g Test Date: May. 18. 2004 Temperature: 25 Humidity: 58 a) Channel 01: Output Peak Power is 10.29dBm or 10.694mW b) Channel 06: Output Peak Power is 10.28dBm or 10.673mW c) Channel 11: Output Peak Power is 10.04dBm or 10.096mW Note: Conducted Power = Reading Value + Cable Loss Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 48 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 49 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 50 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 51 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.6. Band Edges Measurement Data (1) Modulation Standard: IEEE 802.11b Test Date: May. 18. 2004 Temperature: 25 Humidity: 58 a) Lower Band Edge: maximum value is -40.22dBm that is attenuated more than 20dB b) Upper Band Edge: maximum value is -36.75dBm that is attenuated more than 20dB (2) Modulation Standard: IEEE 802.11g Test Date: May. 18. 2004 Temperature: 25 Humidity: 58 a) Lower Band Edge: maximum value is -39.09dBm that is attenuated more than 20dB b) Upper Band Edge: maximum value is -36.68dBm that is attenuated more than 20dB Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 52 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 53 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 54 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 55 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 56 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 57 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 58 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.6.1. Note on Band edge Emission Modulation Standard: IEEE 802.11b Operation Mode: Receiving/ Transmitting Test Date: May. 18, 2004 Temperature: 25 Humidity: 58 a) Channel 1 Fundamental Frequency: 2412 MHz Limit@3m (dBuV/m) Frequency (MHz) Level (dBuV) polarization Remark Peak Ave. Margin (dB) Table Deg. (Deg.) Ant High (m) 2310.000 44.45 V Peak 74 54 -29.55 180 1.5 2310.000 37.66 V Ave 74 54 -16.34 180 1.5 2310.204 47.65 H Peak 74 54 -26.35 180 1.5 2310.000 42.27 H Ave 74 54 -11.73 180 1.5 b) Channel 11 Fundamental Frequency: 2462 MHz Limit@3m (dBuV/m) Frequency (MHz) Level (dBuV) polarization Remark Peak Ave. Margin (dB) Table Deg. (Deg.) Ant High (m) 2484.116 36.67 V Peak 74 54 -37.33 180 1.5 2484.192 35.55 V Ave 74 54 -18.45 180 1.5 2484.440 45.18 H Peak 74 54 -28.82 180 1.5 2483.964 38.83 H Ave 74 54 -15.17 180 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 59 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A 4.6.2. Modulation Standard: IEEE 802.11g Operation Mode: Receiving/ Transmitting Test Date: May. 18, 2004 Temperature: 25 Humidity: 58 c) Channel 1 Fundamental Frequency: 2412 MHz Limit@3m (dBuV/m) Frequency (MHz) Level (dBuV) polarization Remark Peak Ave. Margin (dB) Table Deg. (Deg.) Ant High (m) 2349.780 43.77 V Peak 74 54 -30.23 180 1.5 2310.000 36.33 V Ave 74 54 -17.67 180 1.5 2310.204 46.17 H Peak 74 54 -27.83 180 1.5 2310.000 41.05 H Ave 74 54 -12.95 180 1.5 d) Channel 11 Fundamental Frequency: 2462 MHz Limit@3m (dBuV/m) Frequency (MHz) Level (dBuV) polarization Remark Peak Ave. Margin (dB) Table Deg. (Deg.) Ant High (m) 2484.032 43.23 V Peak 74 54 -30.77 180 1.5 2483.804 35.18 V Ave 74 54 -18.82 180 1.5 2483.964 45.98 H Peak 74 54 -28.02 180 1.5 2484.040 39.03 H Ave 74 54 -14.97 180 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 60 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Modulation Standard: IEEE 802.11b Pol/Phase: Horizontal Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 61 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 62 of 69 FCC ID: PY3WGR101 FCC Test Report: FI04051202-A Modulation Standard: IEEE 802.11g Pol/Phase: Horizontal Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: May. 27, 2004 63 of 69 FCC ID: PY3WGR…

Text truncated - open the document above for the full version.
