WGR613VAL Operation Principle 1. CPU, U15, TNETV1060 have a 32-bit RISC processor integrated, operation frequency is 125MHz. It needs an external 25MHz crystal for system reference frequency, and an 8.192MHz crystal for telephony interface reference frequency. This chip is responsible to control Flash/SDRAM IC, CODEC IC and LED. This chip also has two integrated 10/100 Ethernet MAC/PHY. 2. FLASH: U4, MX29LV320ABTC, 4Mbytes Flash, and 90ns. It is used to store the normal and test firmware. 3. Wireless q RC2326(U2): IEEE 802.11 b/g RFFE ISM Band, highly integrated 802.11 b/g radio Radio, fully integrated up/down converters, LNA, PA, TX detector and T/R switches q RC2422(U8): IEEE 802.11 b/g IQ/IF Transceiver With Dual VCO Synthesizers, Highly integrated 802.11 b/g radio IQ/IF Transceiver PLL ASIC, Fully integrated IF and RF VCOs and synthesizer q (U1)TNETW1130GVF Wireless MAC and Baseband processor 4. Switching Controller: U6, MARVELL88E6060. It is used to provide 4 ports of ethernet interface. 5. CODEC, U9/U10, Si3210-KT, Programmable CMOS SLIC/CODEC. They provide 2 channel VOIP function. 6. Power part: several regulators are used on the board. U12, FP5452 is used to generate 3.3V and 2.5V DC voltage from 12V DC power input. Q9/Q16/Q17 is used to generate 1.6V DC voltage from 3.3V DC power, and 1.6V is CPU core voltage. U1 is used to generate 1.5V DC voltage from 3.3V DC power, and 1.5V is Switch core voltage. 7. Switch button, S1, it is used to factory restore or system reboot.

1.1. Test Result of RF Exposure Evaluation . Product: Wireless VoIP . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: February 25, 2005 Temperature: 23 Humidity: 59 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.89 0.0100 06 2437 14.77 0.0100 11 2462 14.89 0.0100 Modulation Standard: IEEE 802.11g Test Date: February 20, 2005 Temperature: 23 Humidity: 59 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.73 0.0100 06 2437 14.82 0.0100 11 2462 14.81 0.0100 The MPE is calculated as 0.0100 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 1 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ILAC MRA † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. † The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant NETGEAR Inc. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment Wireless VoIP Model No. WGR613VAL FCC ID PY3WGR613VAL Trade Name NETGEAR Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 2 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................6 1.5. 6dB Bandwidth.................................................................................................................6 1.6. Maximum Peak Output Power...........................................................................................6 1.7. Band Edges Measurement................................................................................................6 1.8. Power Spectral Density.....................................................................................................6 1.9. Restricted Bands of Operation...........................................................................................6 1.10. Labeling Requirement.......................................................................................................6 1.11. RF Exposure....................................................................................................................6 2. Test Configuration of Equipment under Test..................................................................................6 2.1. Test Mode and Test Software.............................................................................................6 2.2. Description of Test System................................................................................................6 2.3. Connection Diagram of Test System..................................................................................6 2.4. Feature of Equipment under Test.......................................................................................6 2.5. RF Module Specifications..................................................................................................6 2.6. History of this test report...................................................................................................6 3. General Information of Test.........................................................................................................6 4. Test Result and Data...................................................................................................................6 4.1. Antenna Requirement.......................................................................................................6 4.2. Test Result of Conducted Emission....................................................................................6 4.3. Test Result of Radiated emission.......................................................................................6 4.4. 6dB Bandwidth Measurement Data....................................................................................6 4.5. Peak Output Power Measurement Data.............................................................................6 4.6. Band Edges Measurement Data........................................................................................6 4.7. Restrict band emission Measurement Data.........................................................................6 4.8. Power Spectral Density Measurement Data........................................................................6 5. List of Measuring Equipment Used...............................................................................................6 Appendix A. Photographs of EUT......................................................................................A1 ~ A11 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 3 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant NETGEAR Inc. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment Wireless VoIP Model No. WGR613VAL FCC ID PY3WGR613VAL I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4 The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2003). The test was carried out on Mar. 01, 2005 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 4 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rul…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 18 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A 4.2. Test Result of Conducted Emission The test result including three kind of power adaptor Test mode 1: Adaptor Model: AD-121A2 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 19 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 20 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 21 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 22 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 23 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 24 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 25 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 26 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A

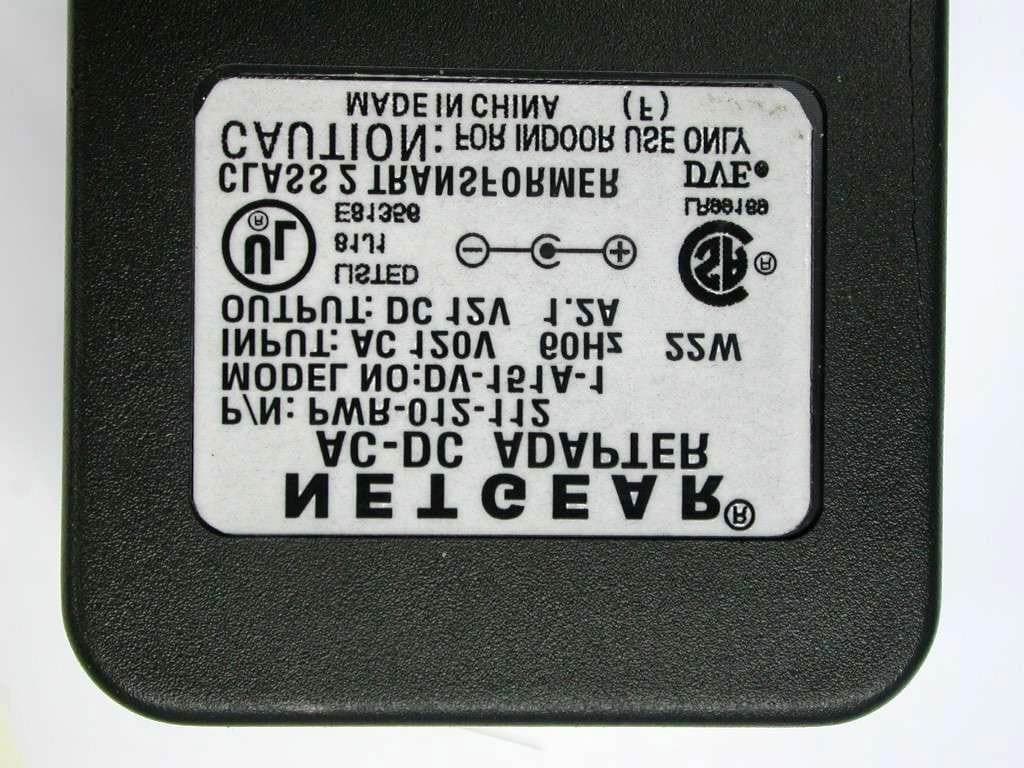

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 27 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 28 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 29 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 30 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Test mode 2: Adaptor Model: DV-151A-1 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 31 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 32 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 33 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 34 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 35 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 36 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 37 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 38 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 39 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 40 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 41 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 42 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Test mode 3: Adaptor Model: 481212003CT Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 43 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 44 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 45 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 46 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 47 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 48 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 49 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 50 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 51 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 52 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 53 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Test by:

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 54 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A 4.2.1. Photographs of Conducted Emission Test Front View Rear View Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 55 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A 4.3. Test Result of Radiated emission Test mode 1: Adaptor Model: AD-121A2 Emission frequencies below 1 GHz Channel HI Test Date: Mar. 01, 2005 Temperature: 22 Humidity: 58% Atmospheric pressure: 1032mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 125.32 H 53.04 -15.28 37.76 43.5 -5.74 Q.P 138 1.0 250.23 H 55.89 -13.69 42.20 46.0 -3.80 Q.P 144 1.0 312.73 H 53.92 -11.29 42.63 46.0 -3.37 Q.P 194 1.0 375.41 H 53.68 -10.10 43.58 46.0 -2.42 Q.P 133 1.0 625.43 H 44.83 -6.08 38.75 46.0 -7.25 Peak 135 1.0 751.23 H 42.57 -4.18 38.39 46.0 -7.61 Peak 145 1.0 937.82 H 46.11 -2.39 43.72 46.0 -2.28 Q.P 186 1.0 125.42 V 52.64 -15.28 37.36 43.5 -6.14 Q.P 128 1.0 250.38 V 57.79 -13.69 44.10 46.0 -1.90 Q.P 135 1.0 312.87 V 53.18 -11.29 41.89 46.0 -4.11 Q.P 144 1.0 375.38 V 52.58 -10.10 42.48 46.0 -3.52 Q.P 126 1.0 501.49 V 50.79 -7.74 43.05 46.0 -2.95 Q.P 134 1.0 625.24 V 45.92 -6.08 39.84 46.0 -6.16 Q.P 168 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth of test receiver/spectrum analyzer is 120 kHz and video bandwidth is 300 kHz for Peak detection and Quasi-peak detection at frequency below 1GHz. 4. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and video bandwidth is 3 MHz for Peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emissions is too below to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 56 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Modulation Standard: IEEE 802.11b (11Mbps) Emission frequencies above 1 GHz Channel LO Test Date: Mar. 01, 2005 Temperature: 22 Humidity: 58% Atmospheric pressure: 1032mmHg Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1060.01 H 61.82 -6.09 55.73 74 -18.2 Peak 193 1.0 1060.01 H 50.98 -6.09 44.89 54 -9.11 Ave 193 1.0 1121.38 H 64.23 -5.65 58.58 74 -15.42 Peak 185 1.1 1121.38 H 53.77 -5.65 48.12 54 -5.88 Ave 185 1.1 1187.09 H 62.69 -5.19 57.50 74 -16.50 Peak 175 1.1 1187.09 H 53.44 -5.19 48.25 54 -5.75 Ave 175 1.1 1686.94 H 58.66 -1.91 56.75 74 -17.25 Peak 194 1.0 1686.94 H 48.91 -1.91 47.00 54 -7.00 Ave 194 1.0 4823.96 H 55.68 8.12 63.80 74 -10.20 Peak 194 1.0 4823.96 H 42.82 8.12 50.94 54 -3.06 Ave 194 1.0 7232.85 H 50.01 11.88 61.89 74 -12.11 Peak 187 1.0 7232.85 H 37.33 11.90 49.23 54 -4.77 Ave 187 1.0 9647.79 H --- 14.84 --- 54 --- Ave --- --- 12059.68 H --- 15.84 --- 54 --- Ave --- --- 1059.77 V 65.31 -6.59 58.72 74 -15.28 Peak 185 1.1 1059.77 V 55.72 -6.59 49.13 54 -4.87 Ave 185 1.1 1121.24 V 64.56 -6.15 58.41 74 -15.59 Peak 176 1.0 1121.24 V 54.55 -6.15 48.40 54 -5.60 Ave 176 1.0 1187.11 V 65.83 -5.69 60.14 74 -13.86 Peak 181 1.1 1187.11 V 54.58 -5.69 48.89 54 -5.11 Ave 181 1.1 2036.95 V 52.51 -0.67 51.84 74 -22.16 Peak 176 1.0 2036.95 V 44.32 -0.67 43.65 54 -10.35 Ave 176 1.0 4824.78 V 52.79 7.36 60.15 74 -13.85 Peak 188 1.1 4824.78 V 38.11 7.36 45.47 54 -8.53 Ave 188 1.1 7236.59 V 46.34 11.06 57.40 74 -16.60 Peak 181 1.0 7236.59 V 33.88 11.06 44.94 54 -9.06 Ave 181 1.0 9647.72 V --- 13.57 --- 54 --- Ave --- --- 12059.84 V --- 15.93 --- 54 --- Ave --- --- Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth of test receiver/spectrum analyzer is 120 kHz and video bandwidth is 300 kHz for Peak detection and Quasi-peak detection at frequency below 1GHz. 4. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and video bandwidth is 3 MHz for Peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emissions is too below to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Mar. 10, 2005 57 of 97 FCC ID: PY3WGR613VAL FCC Test Report: FI05021501-A Modulation Standard: IEEE 802.11b (11Mbps) Emission frequencies above 1 GHz Channel MID Test Date: Mar. 01, 2005 Temperature: 22 Humidity: 58% Atm…
