PY3WGR614Wireless Router

SM-WGR614NA-1 Version 1.0 March 2003 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for the Model WGR614 Cable/DSL Wireless Router ii © 2003 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. EN 55 022 Declaration of Conformance This is to certify that the Model WGR614 Cable/DSL Wireless Router is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). iii Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das Model WGR614 Cable/DSL Wireless Router gemäß der im BMPT-AmtsblVfg 243/ 1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the Model WGR614 Cable/DSL Wireless Router has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Compliance with the applicable regulations is dependent upon the use of shielded cables. It is the responsibility of the user to procure the appropriate cables. Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Customer Support Refer to the Support Information Card that shipped with your Model WGR614 Cable/DSL Wireless Router. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required. iv This page intentionally left blank. Contentsv Contents Preface About This Manual Chapter 1 Introduction Key Features of the Router ............................................................................................1-1 802.11g Wireless Networking ...................................................................................1-2 A Powerful, True Firewall with Content Filtering ......................................................1-2 Security ....................................................................................................................1-3 Autosensing Ethernet Connections with Auto Uplink™ ...........................................1-3 Extensive Protocol Support ......................................................................................1-3 Easy Installation and Management ..........................................................................1-4 Maintenance and Support ........................................................................................1-5 Package Contents ..........................................................................................................1-5 The Router’s Front Panel .........................................................................................1-5 The Router’s Rear Panel .........................................................................................1-7 Chapter 2 Connecting the Router to the Internet What You Wi…

Text truncated - open the document above for the full version.

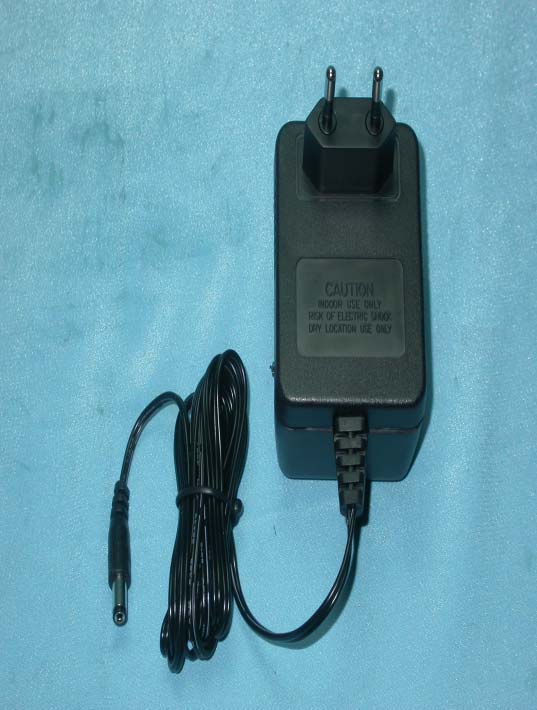

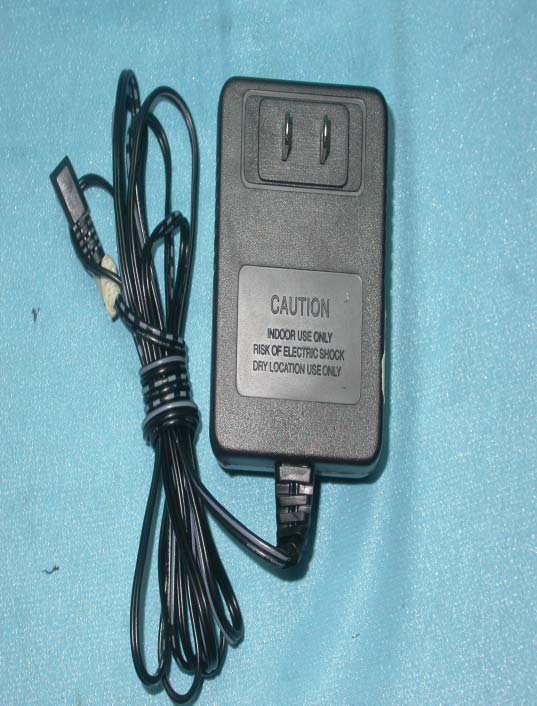

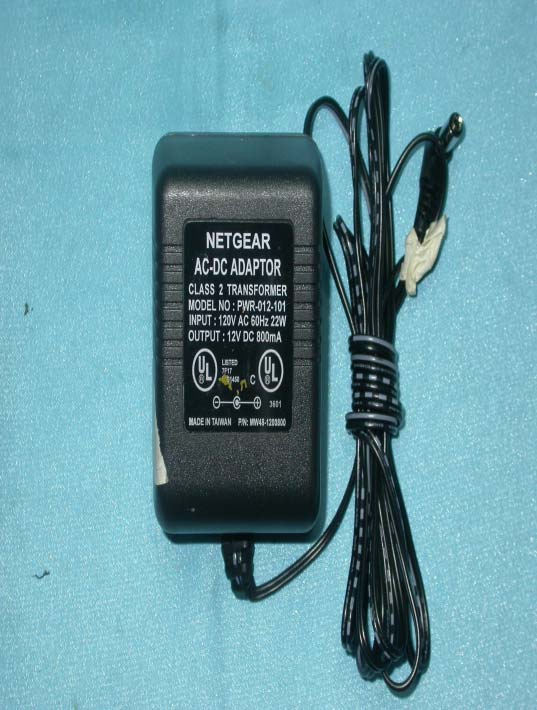

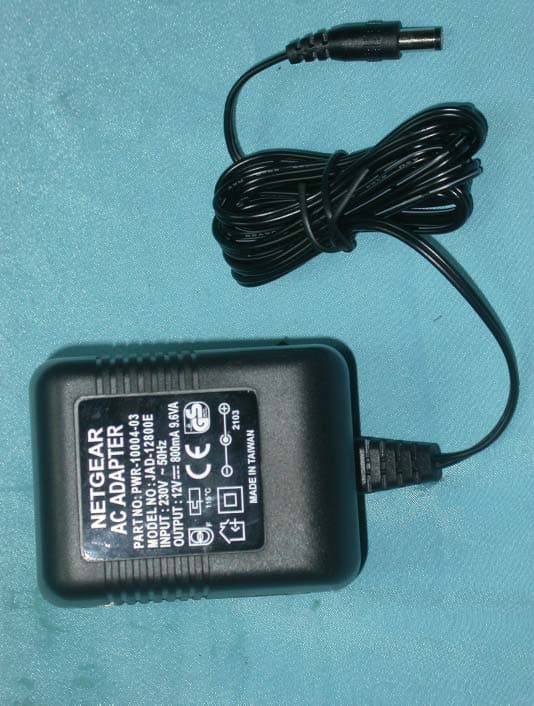

Company :NETGEAR Incorporated. Page : 1 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 2 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 3 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 4 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 5 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 6 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 7 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 8 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 9 of 10 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 10 of 10 Product :Wireless Router Model : WGR614

Company :NETGEAR Incorporated Model: WGR614 Product :Wireless Router Wireless Router Model No: WGR614 FCC IDPY3WGR614 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company :NETGEAR Incorporated. Page : 1 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 2 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 3 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 4 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 5 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 6 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 7 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 8 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 9 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 10 of 11 Product :Wireless Router Model : WGR614 Company :NETGEAR Incorporated. Page : 11 of 11 Product :Wireless Router Model : WGR614

Description of Operation EUT is a Wireless Router with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This Wireless Router is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the Wireless Router transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 1 of 2 RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 FRIIS FORMULA Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. EUT OPERATING CONDITION A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 2 of 2 TEST RESULT OF RF EXPOSURE EVALUATION Test Item RF Exposure Evaluation Data Test Mode Normal Operation ANTENNA GAIN Antenna GainThe maximum Gain measured in fully anechoic chamber is 2dBi linear scale. OUTPUT POWER INTO ANTENNA & RF EXPOSURE EVALUATION DISTANCE Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH1 2412.00 17.42 0.017407 1 CH6 2437.00 17.39 0.017287 1 CH11 2462.00 17.36 0.017168 1 The power density Pd (4 th column) at a distance of 20cm calculated from the Friis transmission formula is far belowthe limit of 1 mW/cm 2 . So, RF exposure limit warning or SAR test are not required.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 1 of 40 TEST REPORT Product Name Wireless Router Model Number WGR614 Applicant NETGEAR Incorporated. Address 4500 Great America Parkway Santa Clara,CA 95054 Date Received JUN.01,2003 Date Tested JUN.01~10,2003 Notes 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 2 of 40 Test Report Certification Product Name Wireless Router Model Number : WGR614 Applicant : NETGEAR Incorporated. Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 3 of 40 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION .....................................................................................................5 1.1 GENERAL STATEMENT ..................................................................................................... 5 1.2 GENERAL DESCRIPTION OF EUT & POWER................................................................. 5 1.3 DESCRIPTION OF PERIPHERALS..................................................................................... 6 1.4 EUT & PERIPHERALS SETUP DIAGRAM........................................................................ 7 1.5 EUT OPERATING CONDITION.......................................................................................... 7 1.6 DESCRIPTION OF TEST SITE ............................................................................................ 8 1.7 SUMMARY OF TEST RESULTS......................................................................................... 8 2. CONDUCTED POWERLINE TEST .........................................................................................9 2.1 TEST EQUIPMENTS ............................................................................................................9 2.2 TEST SETUP.......................................................................................................................... 9 2.3 CONDUCTED POWER LINE EMISSION LIMIT............................................................... 10 2.4 TEST PROCEDURE .............................................................................................................. 10 2.5 UNCERTAINTY OF CONDUCTED EMISSION ................................................................ 10 2.6 CONDUCTED RF VOLTAGE MEASUREMENT............................................................... 11 2.7 PHOTOS OF CONDUCTION TEST..................................................................................... 12 3. RADIATED EMISSION TEST..................................................................................................13 3.1 TEST EQUIPMENTS ............................................................................................................13 3.2 TEST SETUP.......................................................................................................................... 13 3.3 RADIATION LIMIT .............................................................................................................. 14 3.4 TEST PROCEDURES............................................................................................................15 3.5 UNCERTAINTY OF RADIATED EMISSION..................................................................... 15 3.6 RADIATED RF NOISE MEASUREMENT .......................................................................... 16-24 3.7 PHOTOS OF OPEN SITE...................................................................................................... 25-26 4. 6dB BANDWIDTH MEASUREMENT .....................................................................................27 4.1 TEST EQUIPMENTS ............................................................................................................27 4.2 TEST SETUP.......................................................................................................................... 27 4.3 LIMITS OF 6dB BANDWIDTH MEASUREMENT ............................................................ 27 4.4 TEST PROCEDURE .............................................................................................................. 27 4.5 UNCERTAINTY OF CONDUCTED EMISSION ................................................................ 28 4.6 TEST RESULTS .................................................................................................................... 28 4.7 PHOTO OF 6DB BANDWIDTH MEASURERMENT......................................................... 29 5. MAXIMUM PEAK OUTPUT POWER .....................................................................................30 5.1 TEST EQUIPMENTS ............................................................................................................30 5.2 TEST SETUP.......................................................................................................................... 30 5.3 LIMITS OF MAXIMUM PEAK OUTPUT POWER ............................................................ 30 5.4 TEST PROCEDURE .............................…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 1 of 3 2.7 PHOTOS OF CONDUCTION TEST Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 2 of 3 3.7 PHOTOS OF OPEN SITE Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PY3WGR614 Report No.ER03-06-003FRF Page 3 of 3 3.7 PHOTOS OF OPEN SITE
