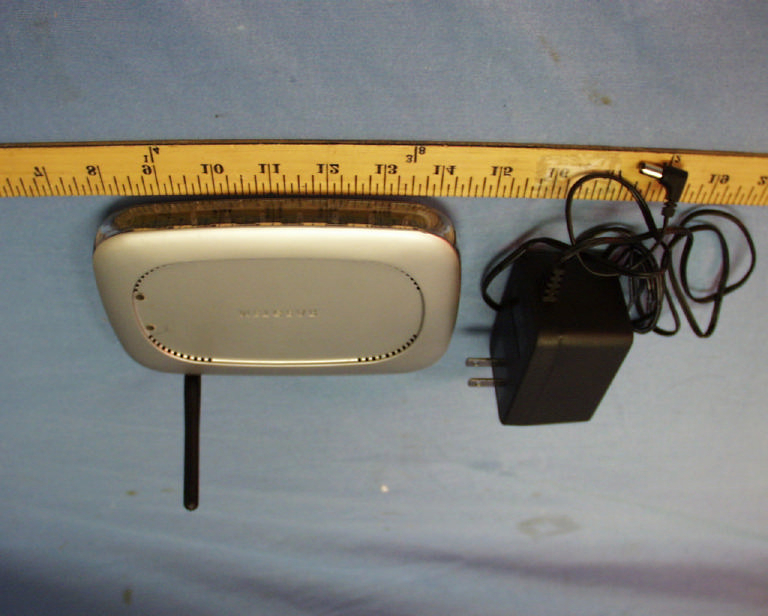

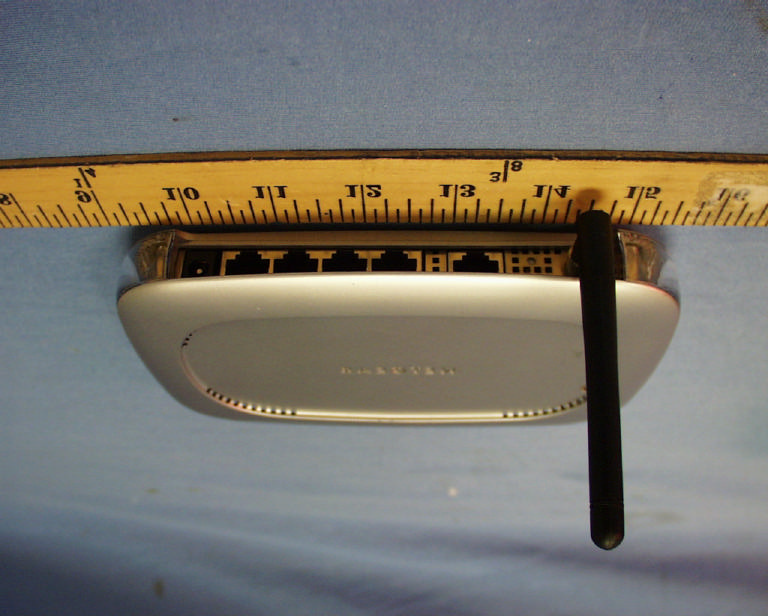

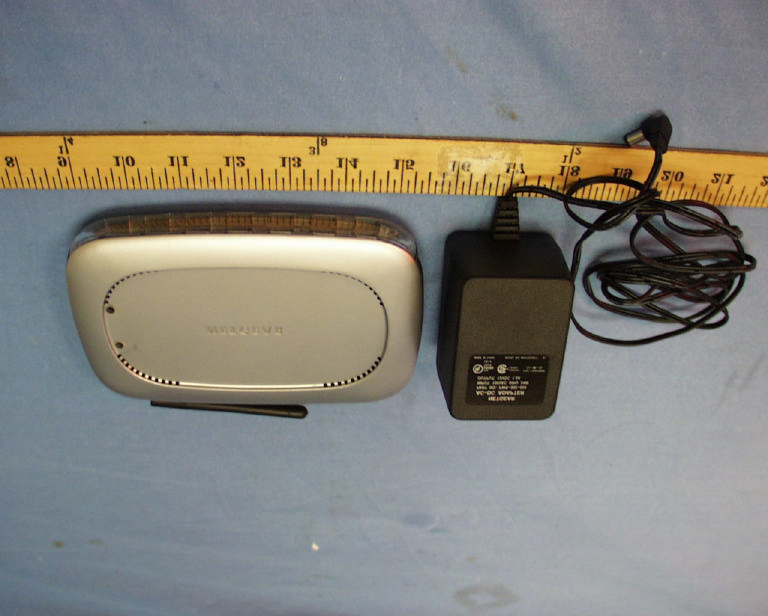

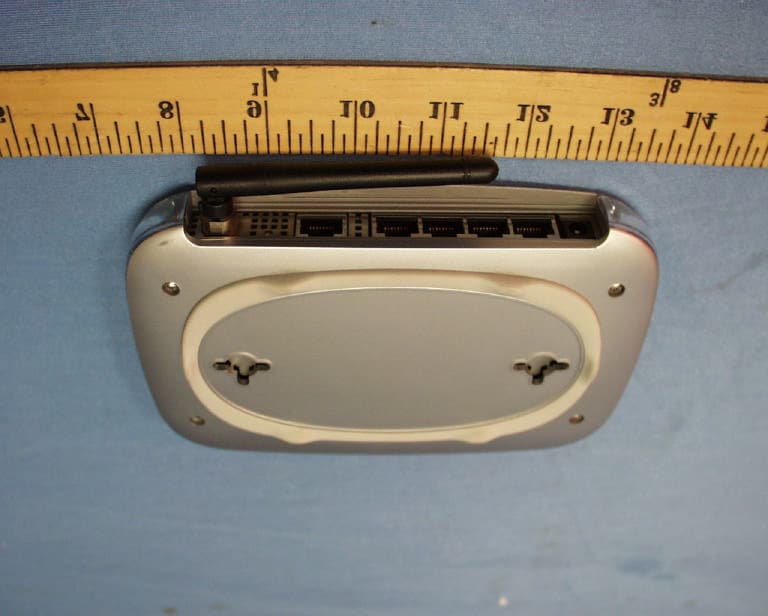

PY3WGR614V2802.11b/g Wireless Router

SM-WGR614NA-1 Version 1.0 March 2003 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for Cable/DSL Wireless Router WGR614 ii © 2003 by NETGEAR, Inc. All rights reserved. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution 1.FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 2.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. EN 55 022 Declaration of Conformance This is to certify that the Model WGR614 Cable/DSL Wireless Router is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). Compliance with the applicable regulations is dependent upon the use of shielded cables. It is the responsibility of the user to procure the appropriate cables. iii Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das Model WGR614 Cable/DSL Wireless Router gemäß der im BMPT-AmtsblVfg 243/ 1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the Model WGR614 Cable/DSL Wireless Router has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Customer Support Refer to the Support Information Card that shipped with your Model WGR614 Cable/DSL Wireless Router. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required. iv This page intentionally left blank. Contentsv Contents Preface About This Manual Chapter 1 Introduction Key Features of the Router ............................................................................................1-1 802.11g Wireless Networking ...................................................................................1-2 A Powerful, True Firewall with Content Filtering ......................................................1-2 Security ....................................................................................................................1-3 Autosensing Ethernet Connections with Auto Uplink ...............................................1-3 Extensive Protocol Support ......................................................................................1-3 Easy Installation and Management ........................................................................…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION NETGEAR INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PY3WGR614V2 FCC ID LABEL LOCATION

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11b/g WIRELESS ROUTER MODEL NUMBER: WGR614v2 BRAND NAME: NETGEAR FCC ID: PY3WGR614V2 REPORT NUMBER: 03U1974-1 ISSUE DATE: JUNE 12, 2003 Prepared for NETGEAR INC. 4500 GREAT AMERICA PARKWAY SANTA CLARA CA, 95054, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 2 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. TEST METHODOLOGY..................................................................................................................5 4. FACILITIES AND ACCREDITATION..........................................................................................5 4.1. FACILITIES AND EQUIPMENT.................................................................................................5 4.2. TABLE OF ACCREDITATIONS AND LISTINGS........................................................................6 5. CALIBRATION AND UNCERTAINTY.........................................................................................7 5.1. MEASURING INSTRUMENT CALIBRATION............................................................................7 5.2. MEASUREMENT UNCERTAINTY..............................................................................................7 5.3. TEST AND MEASUREMENT EQUIPMENT...............................................................................8 6. SETUP OF EQUIPMENT UNDER TEST.......................................................................................9 7. APPLICABLE RULES AND TEST RESULTS............................................................................13 7.1. 6 dB BANDWIDTH.....................................................................................................................13 7.2. OUTPUT POWER......................................................................................................................21 7.3. MAXIMUM PERMISSIBLE EXPOSURE...................................................................................23 7.4. PEAK POWER SPECTRAL DENSITY.......................................................................................25 7.5. CONDUCTED SPURIOUS EMISSIONS...................................................................................33 7.6. RADIATED EMISSIONS............................................................................................................49 7.7. POWERLINE CONDUCTED EMISSIONS................................................................................83 8. SETUP PHOTOS..............................................................................................................................87 REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 3 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: NETGEAR INC. 4500 GREAT AMERICA PARKWAY SANTA CLARA, CA 95054, USA EUT DESCRIPTION: 802.11b/g WIRELESS ROUTER MODEL: WGR614v2 DATE TESTED: MAY 14 – JUNE 7, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE NEELESH RAJ CHIEF ENGINEER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 4 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11b/g access point operating in the 2400 to 2483.5 MHz range. It has a peak output power of 26.5 dBm (447 mW) and an antenna gain of 1.8 dBi. REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 5 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report …

Text truncated - open the document above for the full version.

REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 61 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HARMONICS AND SPURIOUS EMISSIONS (b MODE, HIGH CHANNEL) 05/20/03 High Frequency Measurement Compliance Certification Services, Morgan Hill Open Field Site Test Engr:NEELESH RAJ Project #: Company: ATHEROS EUT Descrip.: EUT M/N: Test Target: Mode Oper: B MODE Test Equipment: Peak Measurements:Average Measurements: 1 MHz Resolution Bandwidth1 MHz Resolution Bandwidth 1MHz Video Bandwidth10Hz Video Bandwidth fDistRead PkRead Avg.AFCLAmpD CorrHPFPeakAvgPk LimAvg LimPk MarAvg MarNotes GHzfeetdBuVdBuVdB/mdBdBdB dBuV/mdBuV/mdBuV/mdBuV/mdBdB HARMONICS HIGH CHANNEL=2462 4.9279.859.958.133.23.0-45.70.01.051.349.574.054.0-22.7-4.5V 7.3809.857.050.736.33.8-46.50.01.051.545.274.054.0-22.5-8.8V 12.3059.846.137.039.45.2-45.70.01.045.936.874.054.0-28.1-17.2V 4.9279.857.853.833.23.0-45.70.01.049.245.274.054.0-24.8-8.8H 7.3809.850.542.636.33.8-46.50.01.045.037.174.054.0-29.0-16.9H 12.3059.846.236.939.45.2-45.70.01.046.036.774.054.0-28.0-17.3H 1.0V spur 2.6889.851.346.230.12.1-44.00.01.040.435.374.054.0-33.6-18.7V 2.6889.849.945.030.12.1-44.00.01.039.034.174.054.0-35.0-19.9V fMeasurement FrequencyAmpPreamp GainAvg LimAverage Field Strength Limit DistDistance to AntennaD CorrDistance Correct to 3 metersPk LimPeak Field Strength Limit ReadAnalyzer ReadingAvgAverage Field Strength @ 3 mAvg MarMargin vs. Average Limit AFAntenna FactorPeakCalculated Peak Field StrengthPk MarMargin vs. Peak Limit CLCable LossHPFHigh Pass Filter T86 Miteq 924341 Pre-amplifer 1-26GHzEMCO Horn 1-18GHz T60; S/N: 2238 @3m Spectrum Analyzer HP 8566B Analyzer Horn > 18GHz T87; ARA 18-26GHz; S/N:1049 (2 ft) gfedc (2 ~ 3 ft) gfedcb (4 ~ 6 ft) gfedc (12 ft) gfedcb Hi Frequency Cables REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 62 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RESTRICTED BANDEDGE (g NORMAL MODE, LOW CHANNEL, HORIZONTAL) LOW CH RESTRICTED, PEAK (802.11g mode) REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 63 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LOW CH RESTRICTED, AVG (802.11g mode) REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 64 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RESTRICTED BANDEDGE (g NORMAL MODE, LOW CHANNEL, VERTICAL) LOW CH RESTRICTED, PEAK (802.11g mode) REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 65 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LOW CH RESTRICTED, AVG (802.11g mode) REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 66 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RESTRICTED BANDEDGE (g NORMAL MODE, HIGH CHANNEL, HORIZONTAL) HIGH CH RESTRICTED, PEAK (802.11g mode) REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 67 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. HIGH CH RESTRICTED, AVG (802.11g mode) REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 68 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of th…

Text truncated - open the document above for the full version.

REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 87 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 88 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 89 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 90 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE MEASUREMENT SETUP DIGITAL DEVICE FRONT PHOTO REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 91 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE BACK PHOTO REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 92 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 03U1974-1 DATE: JUNE 12, 2003 EUT: 802.11b/g WIRELESS ROUTER FCC ID: PY3WGR614V2 Page 93 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
