PY3WGR614V5802.11b/g Router

July 2004 202-10036-01 202-10036-01 Version 1.5 July 2004 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for the 54 Mbps Wireless Router WGR614 v5 ii July 2004 202-10036-01 © 2004 by NETGEAR, Inc. All rights reserved. July 2004. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to  part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. EN 55 022 Declaration of Conformance This is to certify that the 54 Mbps Wireless Router WGR614 v5 is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). EN 55 022 Declaration of Conformance This is to certify that the 54 Mbps Wireless Router WGR614 v5 is shielded against the generation of radio interference in a ccordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that m ay cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment version marketed in US is restricted to usage of the channels 1-11 only July 2004 202-10036-01 iii Bestätigung des Herstellers/Importeurs Es wird hiermit bestätigt, daß das 54 Mbps Wireless Router WGR614 v5 gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung. Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen. Certificate of the Manufacturer/Importer It is hereby certified that the 54 Mbps Wireless Router WGR614 v5 has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Customer Support Refer to the Support Information Card that shipped with your 54 Mbps Wireless Router WGR614 v5. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required. Canada (IC): To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing July 2004 202-10036-01 iv Contentsv July 2004 202-10036-01 Contents Chapter 1  About Th…

Text truncated - open the document above for the full version.

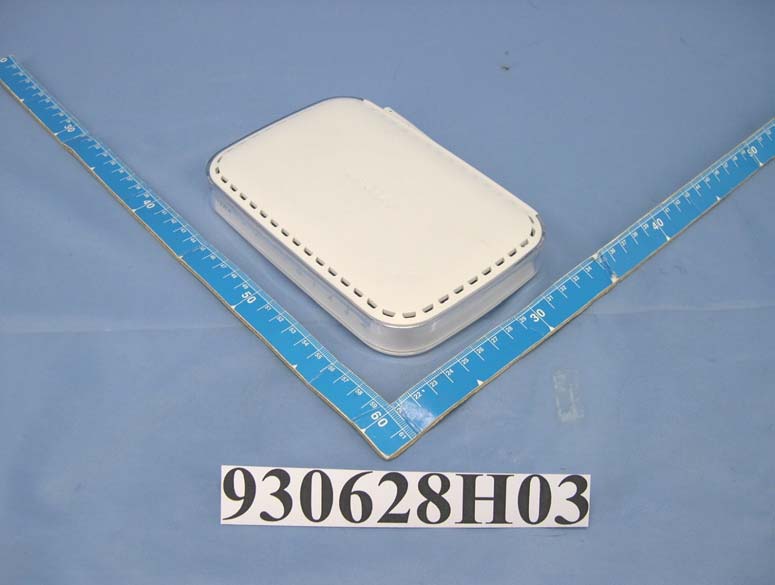

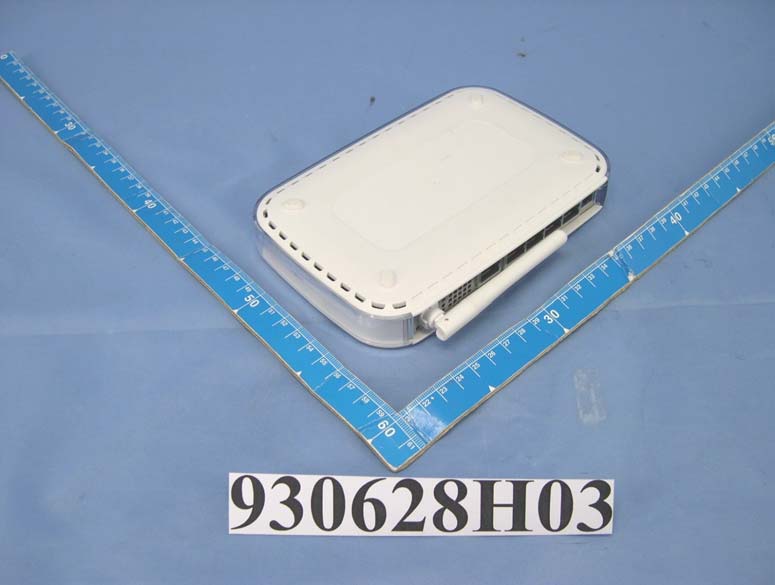

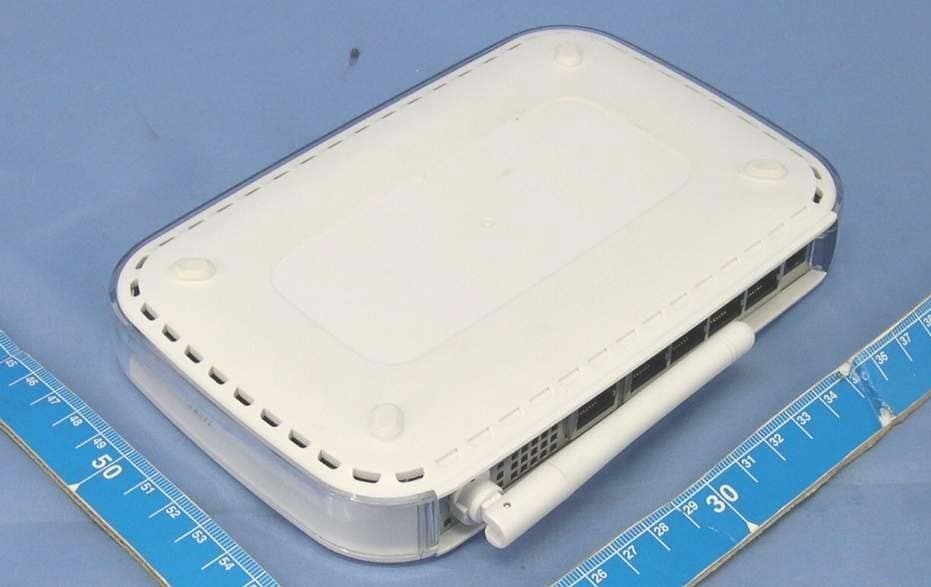

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: PY3WGR614V5 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

THIS DOCUMENT AND THE DATA DISCLOSED HEREIN OR WHEREWITH IS NOT TO BE REPRODUCED, USED OR DISCLOSED IN WHOLE OR IN PART TO ANYONE WITHOUT THE PERMISSION OF NETGEAR, INC. REV DESCRIPTION OF REVISION ENG APPD DATE SHEET: AUTHOR:TITLE: P/N: REV: 1 of 1 01 INITIAL DOCUMENT CREATION TBD 13 May 2004 Sharon TaniguchiARTWORK, WGR614 v5 BOTTOM LABEL 272-10109-0101 109 mm wide x 49 mm high SERIAL MA C 54 Mbps Wireless Router WGR614 v5 Internet Restore Factory Settings N10947 BLINK = ACTIVITY LAN: GREEN = 100MBPS / YELLOW = 10MBPS PowerTest Designed by NETGEAR in California Made in T aiwan 4 321 FCC ID: PY3WGR614V5CANAD A ID: 4054A -WGR614V5 Radio Module Inside"Complies with CANAD A RSS -210" 0560 Internet Wireless http://192.168.1.1 DEF AULT A CCESS user name: admin password: password 12VDC, 1A Made in China Manufacturing location to be printed on label by ODM

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: PY3WGR614V5 Report No. 930628H03 Operational Description This device is a 802.11b/g Router, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11b/g Router) is powered by AC adapter. The antenna types used in this product are Dipole Antenna with IPX connector and Printed Antenna without connector . The other instruction, please have a look at the users manual.

FCC ID: PY3WGR614V5 ADT No.: 930628H03 1 RF EXPOSURE REPORT REPORT NO.: RF930628H03 MODEL NO.: WGR614v5 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Netgear Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: PY3WGR614V5 ADT No.: 930628H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: PY3WGR614V5 ADT No.: 930628H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: PY3WGR614V5 ADT No.: 930628H03 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.585(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 12.0226443 0.037907848 1.0 6 2437 131.825674 0.041565129 1.0 11 2462 123.026877 0.038790835 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 104.712855 0.033016355 1.0 6 2437 114.815362 0.036201714 1.0 11 2462 100 0.031530374 1.0

Report No. 930628H03 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 27, 2004 High pass filter 2.4G WHK3.1/18G-1 0SS SN4 Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930628H03 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930628H03 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930628H03 4 Ch1 Report No. 930628H03 5 Ch11 Report No. 930628H03 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930628H03 7 Ch1 Report No. 930628H03 8 Ch11

FCC ID: PY3WGR614V5 Report No.: RF930628H03 1 Issued: Jul. 15, 2004 FCC TEST REPORT REPORT NO.: RF930628H03 MODEL NO.: WGR614v5 RECEIVED: Jun. 28, 2004 TESTED: Jun. 06 to 12, 2004 APPLICANT: Netgear Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: PY3WGR614V5 Report No.: RF930628H03 2 Issued: Jul. 15, 2004 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4 TEST TYPES AND RESULTS..................................................................... 10 4.1 CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2 TEST INSTRUMENTS ................................................................................ 10 4.1.3 TEST SETUP ...............................................................................................11 4.1.4 EUT OPERATING CONDITIONS................................................................ 12 4.1.5 TEST RESULTS.......................................................................................... 13 4.2 Radiated Emission Measurement ............................................................... 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 15 4.2.2 TEST INSTRUMENTS ................................................................................ 16 4.2.3 TEST PROCEDURES................................................................................. 17 4.2.4 TEST SETUP .............................................................................................. 18 4.2.5 EUT OPERATING CONDITIONS................................................................ 18 4.2.6 TEST RESULTS.......................................................................................... 19 4.2.7 TEST RESULTS –DSSS ............................................................................. 20 4.2.8 TEST RESULTS - OFDM ............................................................................ 25 4.3 6dB BANDWIDTH MEASUREMENT .......................................................... 29 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 29 4.3.2 TEST INSTRUMENTS ................................................................................ 29 4.3.3 TEST PROCEDURE ................................................................................... 30 4.3.4 TEST SETUP .............................................................................................. 30 4.3.5 EUT OPERATING CONDITIONS................................................................ 30 4.3.6 TEST RESULTS-DSSS ............................................................................... 31 4.3.7 TEST RESULTS-OFDM .............................................................................. 35 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 39 4.4.2 TEST INSTRUMENTS ................................................................................ 39 FCC ID: PY3WGR614V5 Report No.: RF930628H03 3 Issued: Jul. 15, 2004 4.4.3 TEST PROCEDURES................................................................................. 40 4.4.4 TEST SETUP .............................................................................................. 40 4.4.5 EUT OPERATING CONDITIONS................................................................ 40 4.4.6 TEST RESULTS- DSSS .............................................................................. 41 4.4.7 TEST RESULTS- OFDM ............................................................................. 42 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 43 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 43 4.5.2 TEST INSTRUMENTS ................................................................................ 43 4.5.3 TEST PROCEDURE ................................................................................... 44 4.5.4 TEST SETUP .............................................................................................. 44 4.5.5 EUT OPERATING CONDITIONS................................................................ 44 4.5.6 TEST RESULTS-DSSS ............................................................................... 45 4.5.7 TEST RESULTS-OFDM .............................................................................. 49 4.6 BAND EDGES MEASUREMENT ................................................................ 53 4.6.1 LIMITS OF BAND EDGES MEASUREMENT ............................................. 53 4.6.2 TEST INSTRUMENTS ...........................…

Text truncated - open the document above for the full version.

FCC ID: PY3WGR614V5 Report No.: RF930628H03 61 Issued: Jul. 15, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PY3WGR614V5 Report No.: RF930628H03 62 Issued: Jul. 15, 2004 RADIATED EMISSION TEST
