PY3WGR826VACCESS POINT

© NetgearInc. 2004 Page 1 of 36 All Rights Reserved User’s Manual for Netgear WGR826V Netgear Inc. 4500 Great America Parkway Santa Clara, California 95054 USA. Phone: (408) 907-8000 Fax: (408) 907-8097 Web Site: http://www.netgear.com © NetgearInc. 2004 Page 2 of 36 All Rights Reserved  2004 by Netgear, Inc., Santa Clara, California, USA All rights reserved. Printed in the United States of America. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise without the prior written consent of Netgear. Netgear makes no representations or warranties with respect to the contents of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Netgear reserves the right to revise this document and to make changes from time to time in its content without being obligated to notify any person of such revisions or changes. Netgear values and appreciates any comments you may have concerning our products or this document. Please address comments to: NETGEAR Inc. 4500 Great America Parkway Santa Clara, California 95054 Phone: (408) 907-8000 Fax: (408) 907-8097 Web Site: http://www.netgear.com CUSTOMER SUPPORT 1-888-638-4327 (1-888-NETGEAR) All other products or services mentioned herein may be registered trademarks, trademarks, or service marks of their respective manufacturers, companies, or organizations. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EOUIPMENT. RF exposure: Plcase include such a statcment in the user’s The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure. © NetgearInc. 2004 Page 3 of 36 All Rights Reserved Contents 1 Introduction ......................................................................................... 4 2 Quick Start .......................................................................................... 4 3 Settings and Configuration.................................................................. 5 3.1 Login.............................................................................................................. 5 3.2 Basic Settings ................................................................................................ 7 3.2.1 Basic Settings.......................................................................................................... 7 3.2.2 Logs....................................................................................................................... 10 3.2.3 Block sites ............................................................................................................. 12 3.2.4 Rules .....................................................................................................................14 3.2.5 Services .................................................................................................................16 3.2.6 Schedule ................................................................................................................ 18 3.2.7 E-mail....................................................................................................................20 3.2.8 Router Status ......................................................................................................... 22 3.2.9 Attached Devices .................................................................................................. 25 3.2.10 Set Password ......................................................................................................... 25 3.2.11 Diagnostics............................................................................................................ 26 3.2.12 Router Upgrade & Provisioning ........................................................................... 28 3.2.13 LAN IP Setup........................................................................................................ 32 3.2.14 Static Route ........................................................................................................... 35 © NetgearInc. 2004 Page 4 of 36 All Rights Reserved 1 Introduction This User’s Manual describes the configuration of the Netgear WGR826V VoIP TA. 2 Quick Start Basic setting should go through several steps. 1. Log in. 2. Basic Settings 3. Set password. 4. Set LAN IP 5. Set Rules. 6. Set Schedule. 7. Remote Management. © NetgearInc. 2004 Page 5 of 36 All Rights Reserved 3 Settings and Configuration 3.1 Login Run a browser, such as, Inetrnet Explorer, and enter in the router’s administration IP address. For example, “http://192.168.1.1”. Enter the user name and password (By default, user name is set to “root”. No password – leave the filed empty). Successful login brings up the basic settings page. © NetgearInc. 2004 Page 6 of 36 All Rights Reserved There are 4 component windows here. 1) The title windows, which display the logo, manufacture’s name, box’s name and model 2) The manual window, which shows the list of different setting and configuration pages. 3) Configuration window 4) Help windows, which give detailed explanation of the each field in the setting and configuration windows. The WGR826V Settings pages allow you to configure, upgrade and check the status of your NETGEAR Router. Click an item in the leftmost column. The current settings or information for that area appear in the center column. Helpful information related to the selected Settings …

Text truncated - open the document above for the full version.

IXP425 266MHz KENDIN KS8995X ixp 0ixp 1 LAN3LAN2LAN1 WAN LAN3LAN2LAN1 WAN 11g Ralink RT2500 mini-PCI Intel 16MB Flash 32MB RAM RS-232 LED 1 ... LED9 Si3210Si3210 • Special Note – LAN4 is not connected Hardware Configuration WAN 1 x RJ-45, IEEE-802.3u 10/100BASE-T Ethernet auto-sensing LAN 3 x RJ-45, IEEE-802.3u 10/100BASE-T Ethernet auto-sensing FXS Ports 2 x RJ-11, 5 REN for connecting phones at least 2000ft length with over-voltage protection due to accidental plug into a live PSTN connection. Flash 16MB RAM 32MB WLAN 802.11g LED One Color Green (2): PWR, WLAN Dual Colors Green/Yellow (7): Status, WAN, LAN1, LAN2, LAN3, Ph one1, Phone2 DB-9 Female Power Supply 12Vdc 1.25A 100~230VAC @ 50/60Hz world slim switching adapter Casing C2 RS-232 Hardware Components • CPU: Intel IXP-425 @ 266MHz • RAM: 32M-Byte supporting up to 533MHz CPU • Flash: Intel TE28F128 16M-Byte • Wi-Fi: 11g Ralink RT2500 mini PCI card • SLIC: Silicon Labs Si3210 • Switch: Kendin KS8995X 5-Port switch • RS-232 Console • 7 green/amber LEDs and 2 green LEDs • One Omni-directional Fixed Antenna • 12Vdc 1.25A slim universal swit ching power adapter that takes only one socket space

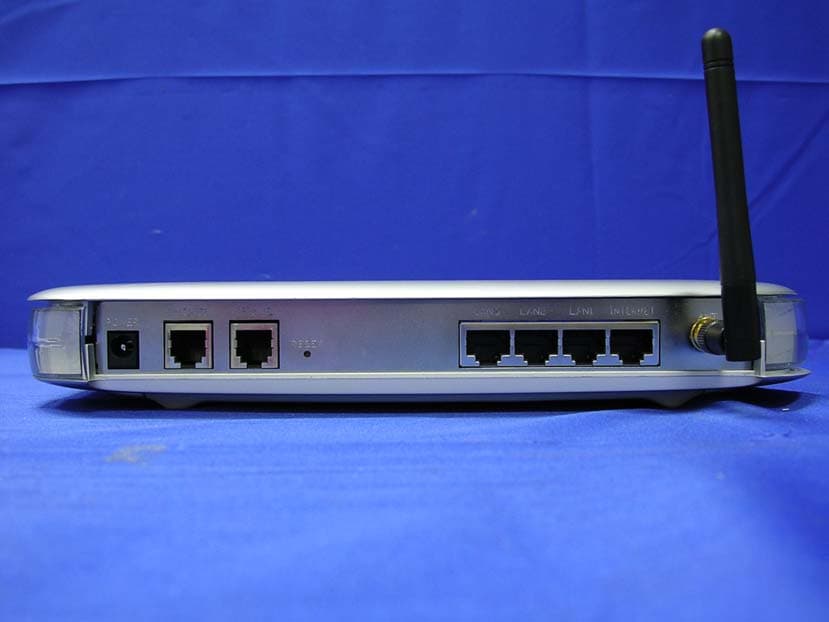

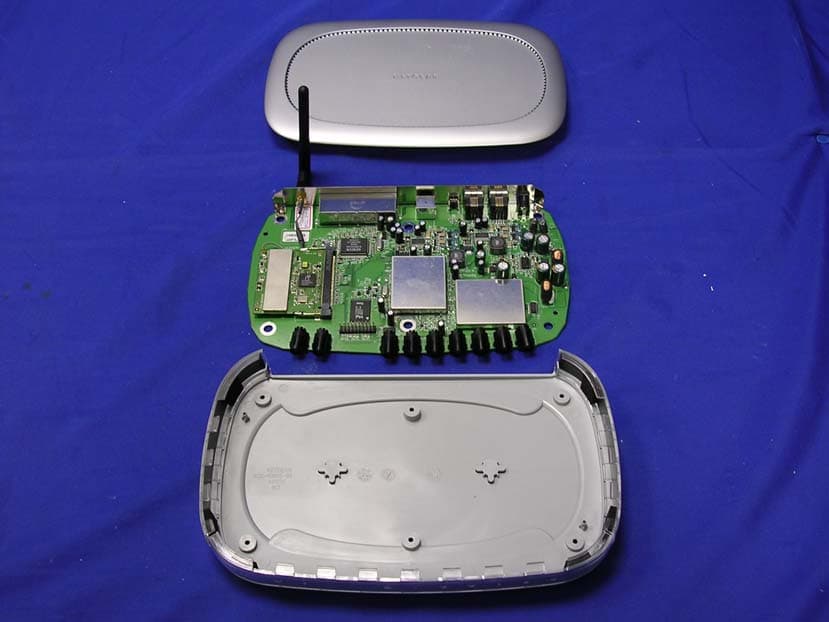

Report No.: 049L068FI Page : 1 of 9 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 049L068FI Page : 2 of 9 Version:1.0 (3) EUT Photo (4) EUT Photo

Netgear Inc. FCC ID.: PY3WGR826V 4500 Great America Parkway Santa Clara, CA 95054, USA . Tel : +886 2 2267-6511#6736 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Access Point Netgear Model No.: WGR826V TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Access Point Model No.: WGR826V F F C C C C I I D D : : PY3WGR826V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Netgear Inc. FCC ID.: PY3WGR826V 4500 Great America Parkway Santa Clara, CA 95054, USA . Tel : +886 2 2267-6511#6736 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Access Point Netgear Model No.: WGR826V TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Access Point Model No.: WGR826V F F C C C C I I D D : : PY3WGR826V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 049L068FI Page : 3 of 9 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 049L068FI Page : 4 of 9 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 049L068FI Page : 5 of 9 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 049L068FI Page : 6 of 9 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 049L068FI Page : 7 of 9 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 049L068FI Page : 8 of 9 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 049L068FI Page : 9 of 9 Version:1.0 (17) EUT Photo

Report No. 049L068FI Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Access Point Model No : WGR826V FCC ID. : PY3WGR826V Applicant : Netgear Inc. Address : 4500 Great America Parkway Santa Clara, CA 95054, USA Date of Receipt : Sep. 13, 2004 Date of Declaration: Sep. 29, 2004 Report No. : 049L068FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 049L068FI Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 049L068FI Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Access Point Test Item : RF Exposure Evaluation Test Site : No.3 OATS Antenna Gain Antenna Gain: The maximum Gain is 1.8dBi measured in fully anechoic chamber in linear scale. (802.11b) Output Power Into Antenna & RF Exposure Evaluation Distance (1.8dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 34.8337 0.0105 6 2437.00 30.6196 0.0092 11 2462.00 27.6058 0.0083 (802.11g) Output Power Into Antenna & RF Exposure Evaluation Distance (1.8dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 27.2898 0.0082 6 2437.00 29.7852 0.0090 11 2462.00 27.5423 0.0083 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 049L068FI Page: 1 of 55 Version:1.0 Test Report Product Name : Access Point Model No : WGR826V FCC ID : PY3WGR826V Applicant : Netgear Inc. Address : 4500 Great America Parkway Santa Clara, CA 95054, USA Date of Receipt : Sep. 13, 2004 Issue Date : Sep. 29, 2004 Report No. : 049L068FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 049L068FI Page: 2 of 55 Version:1.0 Test Report Certification Issue Date : Sep. 29, 2004 Report No. : 049L068FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Access Point Applicant : Netgear Inc. Address : 4500 Great America Parkway Santa Clara, CA 95054, USA Manufacturer : HON HAI PRECISION IND.CO.,LTD. Model No. : WGR826V Rated Voltage : DC 3.3V(Power by EUT) Trade Name : Netgear Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2003 Measurement Procedure : ANSI C63.4: 2001 Test Result : Complied Documented By : ( Rita Huang ) Tested By : ( Jeff Wu ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 049L068FI Page: 3 of 55 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................6 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................15 3.1. Test Equipment............................................................................................................................15 3.2. Test Setup ....................................................................................................................................15 3.3. Limits ..........................................................................................................................................15 3.4. Uncertainty ..................................................................................................................................15 3.5. Test Result of Peak Power Output...............................................................................................16 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................18 4.3. Limits ..........................................................................................................................................19 4.4. Test Procedure .............................................................................................................................20 4.5. Uncertainty ..................................................................................................................................20 4.6. Test Result of Radiated Emission................................................................................................21 5. Band Edge ..................................................................................................................................33 5.1. Test Equipment............................................................................................................................33 5.2. Test Setup ....................................................................................................................................33 5.3. Limits ........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 049L068FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 049L068FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 049L068FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
