PY3WGT634U108 Mbps Wireless Media Router

Start Here Follow these instructions to set up your router. Verify That Basic Requirements Are Met Assure that the following requirements are met: •You have your broadband Internet service settings handy. •The networking settings of the computer are set to obtain an IP address automatically. For instructions on how to do this, please see the animated tutorials on the 108 Mbps Wireless Media Router Resource CDfor Windows ® computers or the Reference Manual on the 108 Mbps Wireless Media Router Resource CDfor Macintosh ® computers. • For USB disk file sharing, you must have an approved USB storage device. See the Reference Manualon the 108 Mbps Wireless Media Router Resource CDfor a list of approved devices. First, Connect the Router to the Internet 1 1 Connect the Router Between Your PC & Modem a.Turn off your computer and cable or DSL broadband modem. b.Disconnect the Ethernet cable (A) which connects from the Ethernet port of your computer to the cable or DSL broadband modem. c.Securely insert the Ethernet cable from your broadband modem into the Internet port (B)on the WGT634U. d.Securely insert one end of the Ethernet cable that came with your router into a LAN port on the router such as LAN port 4 (C), and the other end into the Ethernet port of your computer (D). 2 2 Restart Your Network in the Correct Sequence Warning:Failure to restart your network in the correct sequence could prevent you from connecting to the Internet. a.First, turn on the cable or DSL modem and wait 2 minutes. b.Now, turn on your router by plugging in the power cord, and then wait 30 seconds. c.Last, turn on your computer. Note:If software usually logs you in to the Internet, do notrun that software or cancel it if it starts automatically. d.Check the status lights and verify the following: • Power:The power light goes on when your turn the router on. • LAN:A LAN light on the router such as the one for LAN port 4 is lit. If no LAN lights are lit, check that the Ethernet cable connecting the powered on computer to the router is securely attached at both ends. • Internet:The Internet light on the router is lit. If the Internet light is not lit, check that the Ethernet cable is securely attached to the router Internet port and the powered on modem. 3 3 Log in to the Router a. From your PC, launch a browser such as Internet Explorer or Netscape ® Navigator. b. Connect to the router by typing http://192.168.1.1 in the address field. c. When prompted, enter adminfor the router user name and passwordfor the router password, both in lower case letters. d.After logging in to the router, you will see the Internet Connection Setup Wizard on the settings main page. Installation Guide Broadband modem Broadband modem 108 Mbps Wireless Media Router WGT634U Broadband modem 108 Mbps Wireless Media Router WGT634U PowerInternet PortLAN Port 4 A B Internet Port C LAN Port 4 D 2 2 Configure the Wireless Adapter Settings Use the settings in step 1 to configure the wireless adapter of your computer. The settings of the computer and router must match exactly. 3 3 Verify Wireless Connectivity Verify wireless connectivity by connecting to the Internet or by logging in to the router. If you have problems with wireless connectivity, refer to the Troubleshooting Tips below or to the Reference Manual on the 108 Mbps Wireless Media Router Resource CD. You are now wirelessly connected to the Internet! Set up wireless security according to the instructions in the Wireless chapter of the Reference Manualon the 108 Mbps Wireless Media Router Resource CD. How Do I Set Up File and Photo Sharing? For information on how to set up the USB storage device for file/photo sharing and approved USB drives, please refer to the Reference Manualon the108 Mbps Wireless Media Router Resource CD. Note:Do not connect the USB storage device until prompted to do so by the File/Photo Sharing Wizard. Troubleshooting Tips Here are some tips for correcting simple problems that prevent you from connecting to the Internet or connecting to the router. Make sure the wireless settings in the computer and router match exactly •The Wireless Network Name (SSID), channel, and WEP settings of the router and wireless computer must match exactly. Be sure to restart your network in the correct sequence •Follow this sequence. Turn off the modem, router, and computer. Turn on the modem first and wait two minutes. Next turn on the router, and finally the computer. 4 4 Run the Setup Wizard to Connect to the Internet a.You are now connected to the router. If you do not see the menu above, click the Setup Wizardlink on the upper left of the main menu. b.Click Nextto proceed. Follow the screen prompts and input your ISP settings, as needed. c.If prompted with the message that new software is available, click Yes to update your router with the latest software enhancements. d.At the end of the Setup Wizard, click the Testbutton to verify your Internet connection and register your product. If you have trouble connecting to the Internet, use the Troubleshooting Tips below to correct basic problems, or refer to the Reference Manualon the 108 Mbps Wireless Media Router Resource CD. You are now connected to the Internet! Now, Set Up Basic Wireless Connectivity 1 1 Configure the WGT634U Wireless Settings Click Wireless Settings in the main menu. Select a Region. Leave the other settings unchanged. Click Applyto save your changes. *201-10094-01* 201-10094-01 February 2004 ©2004 NETGEAR, Inc. NETGEAR, the Netgear logo and Everybody's connecting are trademarks or registered trademarks of Netgear, Inc. in the United States and/or other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved. Technical Support PLEASE REFER TO THE SUPPORT INFORMATION CARD THAT SHIP…

Text truncated - open the document above for the full version.

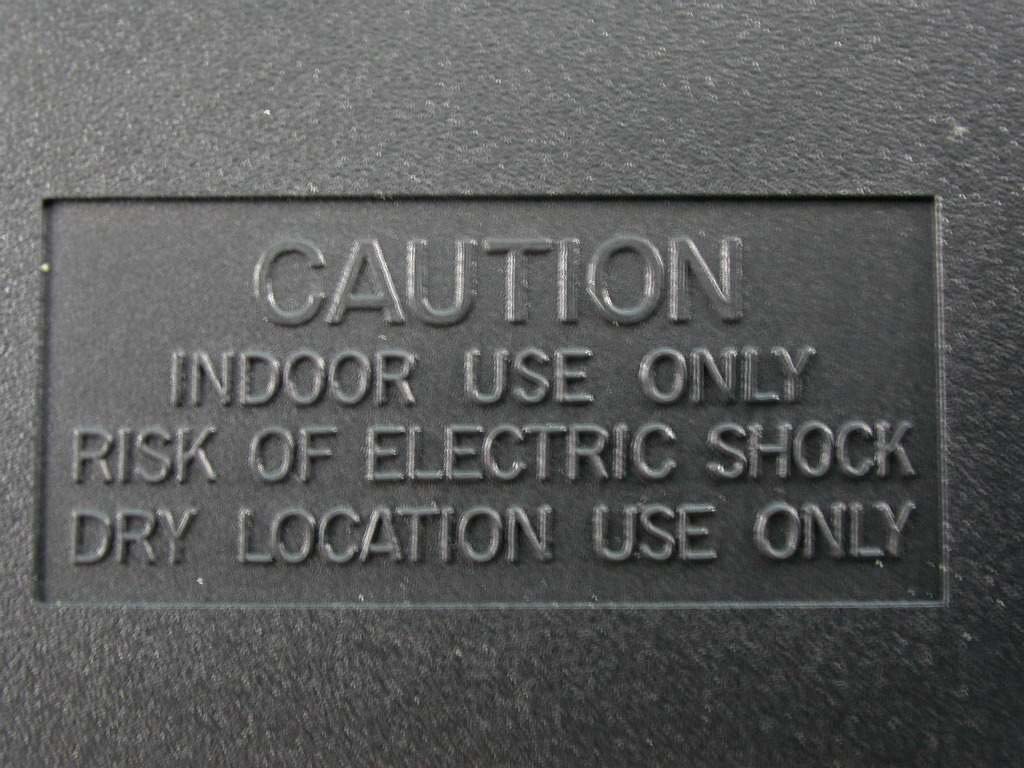

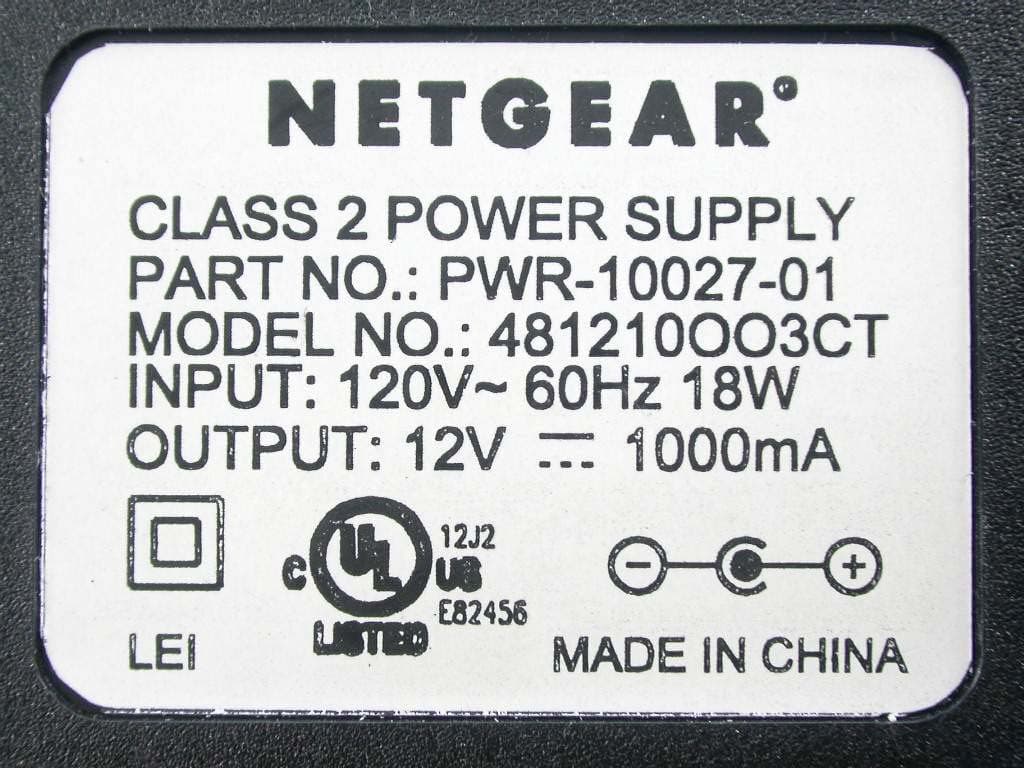

Page 1 CONSTRUCTION PHOTOS OF EUT NETGEAR WGT634U 930203R02 Page 2 Page 3

Page 10 Page 11

LABEL LOCATION FOR FCC ID: PY3WGT634U

108 Mbps Wireless Media Router WGT634U MAC SERIAL U.S . Design Patent No. D460,443 Made in Taiwan InternetRestore Factory Settings N10947 BLINK = ACTIVITY LAN: GREEN = 100MBPS / YELLOW = 10MBPS PowerInternetWireless 12VDC, 1.0A 3 4 2 1 0560 FCC ID: PY3WGT634U CANADA ID: 4054A-WGT634U Radio Module Inside "Complies with CANADA RSS-210" http://192.168.1.1 user name: admin password: password DEFAUL T ACCESS USB 108 Mbps Wireless Media Router WGT634U 272-10043-01 272-10043-01 MAC SERIAL U.S . Design Patent No. D460,443 Made in China InternetRestore Factory Settings N10947 BLINK = ACTIVITY LAN: GREEN = 100MBPS / YELLOW = 10MBPS PowerInternetWireless 12VDC, 1.0A 3 4 2 1 0560 FCC ID: PY3WGT634U CANADA ID: 4054A-WGT634U Radio Module Inside "Complies with CANADA RSS-210" http://192.168.1.1 user name: admin password: password DEFAUL T ACCESS USB

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

Page 12 Page 13

FCC ID: PY3WGT634U Report No.: 930203R02 Operational Description This device is a 108 Mbps Wireless Media Router which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique (turbo mode:108Mbps) will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: PY3WGT634U Report No: SA930203R02 1 RF EXPOSURE REPORT REPORT NO.: SA930203R02 MODEL NO.: WGT634U ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Netgear, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: PY3WGT634U Report No: SA930203R02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: PY3WGT634U Report No: SA930203R02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: PY3WGT634U Report No: SA930203R02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241249.4310.0161.0 6243749.6590.0161.0 11246249.8880.0161.0 For 802.11g (Normal mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.1190.0161.0 6243749.8880.0161.0 11246250.3500.0161.0 For 802.11g (Turbo mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243739.8110.0131.0

FCC ID: PY3WGT634U Report No.: RF930203R021Issued: Feb. 13, 2004 FCC TEST REPORT REPORT NO.: RF930203R02 MODEL NO.: WGT634U RECEIVED: Jan. 6, 2004 TESTED: Jan. 6 ~ Feb. 12, 2004 APPLICANT: Netgear, Inc. ADDRESS: 4500 Great America Parkway, Santa Clara, CA 95054, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 76 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: PY3WGT634U Report No.: RF930203R022Issued: Feb. 13, 2004 Table of Contents 1CERTIFICATION ..................................................................................................................... 4 2SUMMARY OF TEST RESULTS ............................................................................................ 5 3GENERAL INFORMATION ..................................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ....................................................................................... 6 3.2DESCRIPTION OF TEST MODES ......................................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 7 3.4DESCRIPTION OF SUPPORT UNITS ................................................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST .................................................................... 9 4TEST TYPES AND RESULTS............................................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT ....................................................................... 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................................... 10 4.1.2TEST INSTRUMENTS ..........................................................................................................10 4.1.3TEST PROCEDURES............................................................................................................11 4.1.4DEVIATION FROM TEST STANDARD..................................................................................11 4.1.5TEST SETUP ........................................................................................................................ 12 4.1.6EUT OPERATING CONDITIONS ......................................................................................... 12 4.1.7TEST RESULTS .................................................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT............................................................................. 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................... 19 4.2.2TEST INSTRUMENTS ..........................................................................................................20 4.2.3TEST PROCEDURES...........................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD................................................................................. 21 4.2.5TEST SETUP ........................................................................................................................ 22 4.2.6EUT OPERATING CONDITIONS ......................................................................................... 22 4.2.7TEST RESULTS .................................................................................................................... 23 4.2.8TEST RESULT (A) ................................................................................................................ 25 4.2.9TEST RESULT (B) ................................................................................................................ 28 4.36dB BANDWIDTH MEASUREMENT .................................................................................... 32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................. 32 4.3.2TEST INSTRUMENTS ..........................................................................................................32 4.3.3TEST PROCEDURE .............................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD................................................................................. 33 4.3.5TEST SETUP ........................................................................................................................ 33 4.3.6EUT OPERATING CONDITIONS ......................................................................................... 33 4.3.7TEST RESULT (A) ................................................................................................................ 34 4.3.8TEST RESULT (B) ................................................................................................................ 38 4.4MAXIMUM PEAK OUTPUT POWER.................................................................................... 44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .................................... 44 4.4.2TEST INSTRUMENTS ..........................................................................................................44 4.4.3TEST PROCEDURES...........................................................................................................45 4.4.4DEVIATION FROM TEST STANDARD................................................................................. 45 4.4.5TEST SETUP ...............................................…

Text truncated - open the document above for the full version.

FCC ID: PY3WGT634U Report No.: RF930203R0248Issued: Feb. 13, 2004 4.5 POWER SPECTRAL DENSITY MEASUREMENT 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT The Maximum of Power Spectral Density Measurement is 8dBm. 4.5.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.5.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator, the bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3 kHz RBW and 30 kHz VBW, set sweep time=span/3kHz. The power spectral density was measured and recorded. The sweep time is allowed to be longer than span/3KHz for a full response of the mixer in the spectrum analyzer. FCC ID: PY3WGT634U Report No.: RF930203R0249Issued: Feb. 13, 2004 4.5.4 DEVIATION FROM TEST STANDARD No deviation 4.5.5 TEST SETUP 4.5.6 EUT OPERATING CONDITIONS Same as 4.3.6 EUT SPECTRUM ANALYZER FCC ID: PY3WGT634U Report No.: RF930203R0250Issued: Feb. 13, 2004 4.5.7 TEST RESULT (A) EUT 108 Mbps Wireless Media Router MODEL WGT634U INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg. C, 69%RH, 991 hPa TESTED BY: Steven Lu CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-8.238PASS 62437-8.548PASS 112462-8.348PASS FCC ID: PY3WGT634U Report No.: RF930203R0251Issued: Feb. 13, 2004 CH1 FCC ID: PY3WGT634U Report No.: RF930203R0252Issued: Feb. 13, 2004 CH6 FCC ID: PY3WGT634U Report No.: RF930203R0253Issued: Feb. 13, 2004 CH11 FCC ID: PY3WGT634U Report No.: RF930203R0254Issued: Feb. 13, 2004 4.5.8 TEST RESULT (B) Normal mode: EUT 108 Mbps Wireless Media Router MODEL WGT634U INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg. C, 69%RH, 991 hPa TESTED BY: Steven Lu CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-11.238PASS 62437-9.988PASS 112462-11.018PASS FCC ID: PY3WGT634U Report No.: RF930203R0255Issued: Feb. 13, 2004 CH1 FCC ID: PY3WGT634U Report No.: RF930203R0256Issued: Feb. 13, 2004 CH6 FCC ID: PY3WGT634U Report No.: RF930203R0257Issued: Feb. 13, 2004 CH11 FCC ID: PY3WGT634U Report No.: RF930203R0258Issued: Feb. 13, 2004 Turbo mode: EUT 108 Mbps Wireless Media Router MODEL WGT634U INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg. C, 69%RH, 991 hPa TESTED BY: Steven Lu CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3 KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 62437-10.048PASS FCC ID: PY3WGT634U Report No.: RF930203R0259Issued: Feb. 13, 2004 CH6 FCC ID: PY3WGT634U Report No.: RF930203R0260Issued: Feb. 13, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: PY3WGT634U Report No.: RF930203R0261Issued: Feb. 13, 2004 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULT (A) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 1~2 pages shows 52.96dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 103.91dBuV/m, so the maximum field strength in restrict band is 103.91-52.96=50.95dBuV/m which is under 54 dBuV/m limit. The band edge emission plot on the following 3~4 pages shows 56.13dB delta between carrier maximum power and local maximum emission in restrict band (2.4871GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 102.04dBuV/m, so the maximum field strength in restrict band is 102.04-56.13=45.91dBuV/m which is under 54 dBuV/m limit. FCC ID: PY3WGT634U Report No.: RF930203R0262Issued: Feb. 13, 2004 FCC ID: PY3WGT634U Report No.: RF930203R0263Issued: Feb. 13, 2004 FCC ID: PY3WGT634U Report No.: RF930203R0264Issued: Feb. 13, 2004 FCC ID: PY3WGT634U Report No.: RF930203R0265Issued: Feb. 13, 2004 FCC ID: PY3WGT634U Report No.: RF930203R0266Issued: Feb. 13, 2004 4.6.7 TEST RESULT (B) The spectrum plots are attached on the following 6 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: Normal mode: The band edge emission plot on the following 1~2 pages shows 48.65dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 102.01dBuV/m, so the maximum field strength in restrict band is 102.01-48.65=53.36dBuV/m which is under 54 dBuV/m limit. The band edge emission plot on the following 3~4 pages shows 50.25dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 103.42dBuV/m, so the maximum field strength in restrict band is 103.42-50.25=53.17dBuV/m which is under 54 dBuV/m limit. Turbo mode: The band edge emission…

Text truncated - open the document above for the full version.

FCC ID: PY3WGT634U Report No.: RF930203R0274Issued: Feb. 13, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PY3WGT634U Report No.: RF930203R0275Issued: Feb. 13, 2004 RADIATED EMISSION TEST
