PY3WGX10254Mbps Wireless Powerline Access Point

July 2004 202-10036-01 202-10036-01 Version 1 July 2004 NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Reference Manual for the 54 Mbps Wireless Powerline Access Point WGX102 Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. ii July 2004 202-10036-01 © 2004 by NETGEAR, Inc. All rights reserved. July 2004. Trademarks NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.Other brand and product names are registered trademarks or trademarks of their respective holders. Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. Certificate of the Manufacturer/Importer It is hereby certified that the Model WGX102 wireless router has been suppressed in accordance with the conditions set out in the BMPT- AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions. Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations. Voluntary Control Council for Interference (VCCI) Statement This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Customer Support Refer to the Support Information Card that shipped with your 54 Mbps Wall-Plugged Router WGX102. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required. Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communicatio…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding 54 Mbps Wireless Powerline Access Point for the Netgear modal WGX102. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 4, 2004 RE: Netgear, Inc. FCC ID: PY3WGX103 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) Your Test setup photographs are too small to be useful. Please provide larger, clearer photographs. As a suggestion, it would be preferable to rotate all photographs and present in landscape format. 2.) The use of a strip outlet for the AC Conducted Emissions test cannot be recommended for this device. The amount of attenuation within this strip outlet over the frequency band of 150KHz to 30MHz is unknown. Moreover, many of these manufacturers include some sort of filtering. I would like to suggest that a supplemental test be performed with the EUT plugged directly into the LISN. A photograph of this supplemental test setup should be included. 3.) Section 1.10 of the Test Report states the two-part label will appear on the device. This is not supported by the label drawings. Please review. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

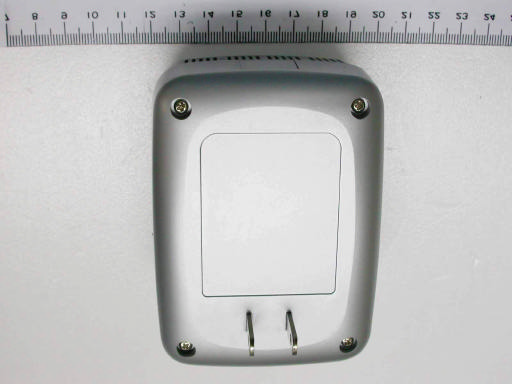

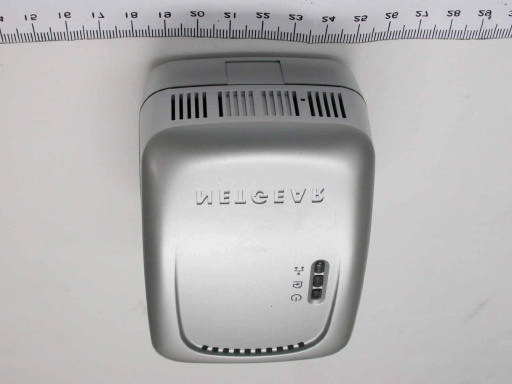

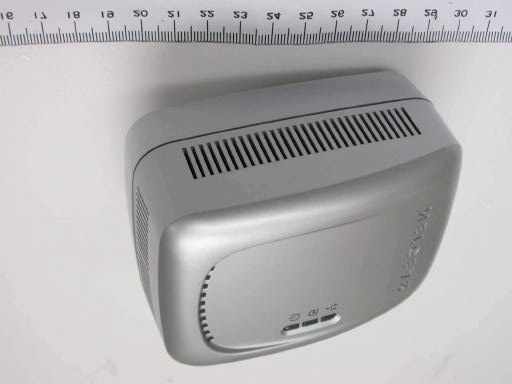

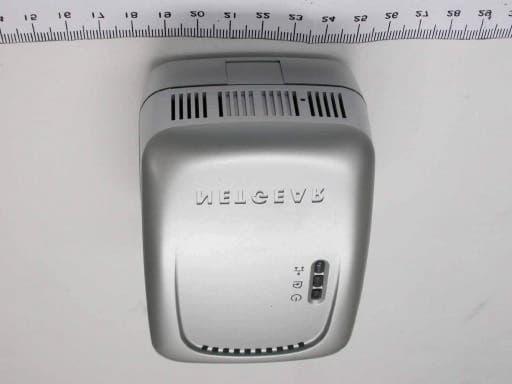

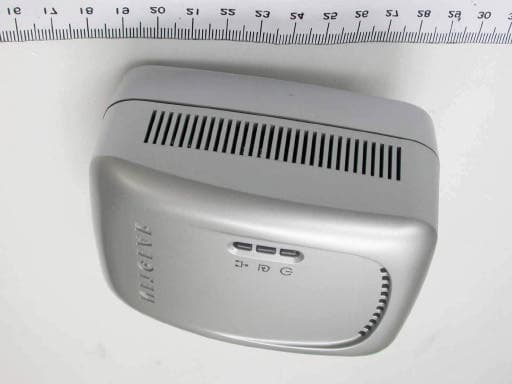

External Photo

0560 ! Label Location Label Size: 40 x 50 mm x 3

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 1 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Internal Photo Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 2 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 3 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 4 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 5 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 6 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 7 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 19, 2004 8 of 8 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A

Part Number Subject WGX102 Operation Principle 1. CPU, U6, 88W8500 have a 32-bit RISC processor integrated, operation frequency is 132MHz. It needs an external 44MHz crystal for reference frequency; this crystal is also used for RF module. This chip is responsible to control RF-Baseband Transceiver (88W8000), Flash IC and LED. This chip also has MII interface integrated to communicate with 10/100 Ethernet Switch. 2. FLASH, U13, AM29LV800BT-70EC, 8Mbits Flash, bottom sector, 70ns. It is used to store the normal and test firmware. 3. Integrated 2.4GHz ISM Band RF-Baseband Transceiver, U9, 88W8000 which is integrated all RF-Baseband receive and Transmit function. On-Chip Power Amplifier (PA) with up to +20 dBm output power at the antenna port. It is also integrated programmable frequency synthesizers with integrated VCOs, I/Q generation and CMOS up/down conversion mixers. 4. 10/100 Ethernet Switch, U10, 88E6060 support automatic MDI/MDIX crossover for 100BASE-TX and 10 BASE-T ports. Port 5 has dedicated, always on, MAC Mode (Forward) and PHY Mode (Reverse) RMII/MII/SNI interface for management and firewall applications. Each port works at 10Mbps or 100Mbp, full-duplex or half-duplex mode (forced or auto-negotiated). Flexible LED support for Link, Speed, Duplex Mode, Collision, and TX/RX Activities. 5. Power part: there are several regulators are used on the board. U18, AP34063 is used to transfer DC12V to DC3V3; U1, U8 and U12 AME8805 are used to transfer DC3V3 to DC2V5; U20, 1117-ADJ is used to transfer DC3V3 to DC1V8. The core of CPU is operate at 1.5V. 6. LED part: LED Color Controlled by Description Amber (Test) FW On - Error condition. Off - Normal operation Blinking - This LED blinks during start up/ Upgrade F/W Power/Test (Double color LED) Green (Power) F/W On – System booting complete and then turn it on Amber (10) HW On - Link at 10Mbps Blinking – receiving/ transmitting data LAN (Double color LED) Green (100) HW On - Link at 100Mbps Blinking – receiving/ transmitting data Amber (10) HW On - Link at 10Mbps Blinking – receiving/ transmitting data Internet (Double color LED) Green (100) HW On - Link at 100Mbps Blinking – receiving/ transmitting data WLAN Green FW On - Wireless connection available; Wireless Access Point is ready for use. Off - No Wireless connection available. Blinking - Data is transmitted or received via the Wireless access point. This includes "network traffic" as well as user data. 7. Switch button, SW1, it is used to reset the 88W8500. 8. 9.

1.1. Test Result of RF Exposure Evaluation Product : Wireless Router Test Item : RF Exposure Evaluation Data Test site : OATSI-SD Test Mode : Normal Operation 1.1.1. Antenna Gain The maximum Gain is +1.0dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Aug. 15, 2004 Temperature: 24 Humidity: 60 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm 2 ) 01 2412 20.83 0.0303 06 2437 21.95 0.0393 11 2462 19.81 0.0240 Modulation Standard: IEEE 802.11g Test Date: Aug. 15, 2004 Temperature: 24 Humidity: 60 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/Cm 2 ) 01 2412 16.44 0.0110 06 2437 17.88 0.0154 11 2462 15.61 0.0091 The MPE is calculated as 0.0393 mWcm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 1 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant Netgear Inc.. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment 54 Mbps Wireless Powerline Access Point Model No. WGX102 FCC ID PY3WGX102 Trade Name Netgear Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 2 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. History of this test report.................................................................................................15 3. General Information of Test.......................................................................................................16 4. Test Result and Data.................................................................................................................17 4.1. Antenna Requirement.....................................................................................................17 4.2. Test Result of Conducted Emission..................................................................................18 4.3. RF Portion......................................................................................................................31 4.4. 6dB Bandwidth Measurement Data..................................................................................41 4.5. Peak Output Power Measurement Data...........................................................................45 4.6. Band Edges Measurement Data......................................................................................49 4.7. Power Spectral Density Measurement Data......................................................................61 4.8. Test Result of RF Exposure Evaluation.............................................................................65 5. List of Measuring Equipment Used.............................................................................................66 Appendix A. Photographs of EUT........................................................................ ...............A1 ~ A7 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 3 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant Netgear Inc.. Address 4500 Great America Parkway Santa Clara California 95054 USA Equipment 54 Mbps Wireless Powerline Access Point Model No. WGX102 FCC ID PY3WGX102 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2002). The test was carried out on Aug. 15, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 4 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass 15.247(a)(2) . 6dB Bandwidth Pass 15.247(b) . Maximum Peak Output Power Pass 15.247(c) . 100kHz Bandwidth of Frequency Band Edges Pass 15.247(d) . Power Spectral Density Pass 1.1307 1.1310 2.1091 2.1093 . RF Exposure Compliance Pass Test by: Exclusive Certification Corp. Tel:88…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 31 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 32 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 33 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 34 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A 4.3.2. Test Result of Radiated Emission Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel LO Test Date: Aug. 15, 2004 Temperature: 24 Humidity: 60 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 150.69 H 52.40 -16.25 36.15 43.50 -7.35 Peak 230 1.0 250.59 H 57.76 -13.58 44.18 46.00 -1.84 Q.P 100 1.0 160.68 V 55.33 -17.06 38.27 43.50 -5.23 Peak 180 1.5 250.59 V 58.30 -13.58 44.72 46.00 -1.28 Q.P 160 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2038.80 H 65.16 -1.80 63.36 74 -10.64 Peak 210 1.0 2038.80 H 49.51 -1.80 47.71 54 -6.29 Ave 230 1.0 2360.80 H 55.20 -0.69 54.51 74 -19.49 Peak 180 1.5 2360.80 H 41.63 -0.69 40.94 54 -13.06 Ave 186 1.5 2400.00 H 53.93 -0.57 53.36 74 -20.64 Peak 270 1.5 2400.00 H 40.14 -0.57- 39.57 54 -14.43 Ave 270 1.5 2519.52 H 58.56 -0.16 58.40 74 -15.60 Peak 180 1.0 2519.52 H 48.05 -0.16 47.89 54 -6.11 Ave 200 1.0 2653.68 H 63.34 0.37 63.71 74 -10.29 Peak 100 1.0 2653.68 H 48.09 0.37 48.46 54 -5.54 Ave 90 1.0 2038.80 V 67.59 -2.50 65.09 74 -8.91 Peak 230 1.5 2038.80 V 47.35 -2.50 44.85 54 -9.15 Ave 226 1.5 2170.40 V 60.15 -2.03 58.12 74 -15.88 Peak 270 1.5 2170.40 V 35.44 -2.03 33.41 54 -20.59 Ave 270 1.5 2360.80 V 57.27 -1.39 55.88 74 -18.12 Peak 235 1.5 2360.80 V 42.17 -1.39 40.78 54 -13.22 Ave 230 1.5 2519.52 V 57.53 -0.86 56.67 74 -17.33 Peak 200 1.0 2519.52 V 44.02 -0.86 43.16 54 -10.84 Ave 200 1.0 2655.76 V 64.08 -0.36 63.72 74 -10.28 Peak 196 1.5 2655.76 V 46.71 -0.36 46.35 54 -7.65 Ave 210 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 35 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel MID Test Date: Aug. 15, 2004 Temperature: 24 Humidity: 60 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 250.59 H 56.37 -13.58 42.79 46.0 -3.21 Peak 165. 1.0 160.68 V 57.30 -17.06 40.24 43.5 -3.26 Peak 220 1.0 250.59 V 58.32 -13.58 44.74 46.0 -1.26 Q.P 140 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel MID Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2041.60 H 53.81 -1.80 52.01 74 -21.99 Peak 270 1.5 2041.60 H 38.73 -1.80 36.93 54 -17.07 Ave 260 1.5 2064.00 H 61.80 -1.74 60.06 74 -13.94 Peak 236 1.5 2064.00 H 45.08 -1.74 43.34 54 -10.66 Ave 250 1.5 2346.80 H 56.93 -0.75 56.18 74 -17.82 Peak 180 1.5 2346.80 H 43.86 -0.75 43.11 54 -10.89 Ave 200 1.5 2519.52 H 56.99 -0.16 56.83 74 -17.17 Peak 210 1.0 2519.52 H 41.91 -0.16 41.75 54 -12.25 Ave 205 1.0 2651.84 H 62.36 0.37 62.73 74 -11.27 Peak 180 1.0 2651.84 H 48.11 0.37 48.48 54 -5.52 Ave 200 1.0 2041.60 V 54.97 -2.50 52.47 74 -21.53 Peak 190 1.5 2041.60 V 39.81 -2.50 37.31 54 -16.69 Ave 200 1.5 2064.00 V 63.31 -2.44 60.87 74 -13.13 Peak 270 1.5 2064.00 V 43.26 -2.44 40.82 54 -13.18 Ave 300 1.5 2344.00 V 57.93 -1.45 56.48 74 -17.52 Peak 180 1.5 2344.00 V 44.18 -1.45 42.73 54 -11.27 Ave 190 1.5 2519.52 V 54.61 -0.86 53.75 74 -20.25 Peak 210 1.0 2519.52 V 44.72 -0.86 43.86 54 -10.14 Ave 220 1.0 2657.84 V 62.58 -0.36 62.22 74 -11.78 Peak 200 1.0 2657.84 V 48.97 -0.36 48.61 54 -5.36 Ave 200 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Aug. 18, 2004 36 of 66 FCC ID: PY3WGX102 FCC Test Report: FI04060302-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel HI Test Date: Aug. 15, 2004 Temperature: 24 Humidity: 60 Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 250.59 H 57.69 -13.58 44.11 46.0 -1.89 Q.P 165 1.0 160.68 V 57.19 -17.06 40.13 43.5 -3.37 Peak 220 1.0 250.59 V 58.55 -13.58 44.97 46.0 -1.13 Q.P 180 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel HI Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2088.00 H 62.52 -1.63 60.89 74 -13.11 Peak 180 1.5 2088.00 H 41.94 -1.63 40.31 54 -13.69 Ave 190 1.5 2356.00 H 59.14 -0.75 58.39 74 -15.61 Peak 200 1.5 2356.00 H 40.67 -0.75 39.92 54 -14.08 Ave 210 1.5 2664.00 H 64.60 0.44 65.04 74 -8.96 Peak 200 1.0 2664.00 H 42.80 0.44 43.24 54 -10.76 Ave 180 1.0 2040.00 V 54.42 -2.50 51.92 74 -22.08 Peak 270 1.5 2040.00 V 33.23 -2.50 30.73 54 -23.27 Ave 280 1.5 2088.00 V 61.14 -2.33 58.81 74 -15.19 Peak 180 1.5 2088.00 V 37.59 -2.33 35.26 54 -18.74 Ave 170 1.5 2356.00 V 60.01 -1.45 58.56 74 -15.44 Peak 190 1.5 2356.00 V 33.20 -1.45 31.75 54 -22.25 Ave 185 1.5 2644.00 V 63.47 -0.29 63.18 74 -10.82 Peak 270 1.5 2…

Text truncated - open the document above for the full version.

Test Setup Photo
