PZI-390FCT3BRemote Control Transmitter

SupraMatic SeriesInstructions for installation and operationRadio keypad FCT3b for the garage door operator 07.2004TR20H006 RE HÖR/Funkcodet FCT3b_USA 20.07.2004 15:26 Uhr Seite 1 humpe-933 Macintosh HD:KUNDEN:HÖR/AST:HÖR/AST/Amerika:HÖR/USA Zubehö r 2 07.2004 TR20H006 RE HÖR/Funkcodet FCT3b_USA 20.07.2004 15:26 Uhr Seite 2 humpe-933 Macintosh HD:KUNDEN:HÖR/AST:HÖR/AST/Amerika:HÖR/USA Zubehö r Protected by copyright. Subject to technical modifications. Any re-prints, in whole or in part, are not permittedwithout prior written approval. All termssubject to change. English.................................................... 4 3 07.2004 TR20H006 RE EN 50081EN 50082I-ETS 300220 HÖR/Funkcodet FCT3b_USA 20.07.2004 15:26 Uhr Seite 3 humpe-933 Macintosh HD:KUNDEN:HÖR/AST:HÖR/AST/Amerika:HÖR/USA Zubehö r USA: FCC ID: PZI-390FCT3bCanada:IC: 4205A-390FCT3bThis device complies with Part 15 of theFCC Rules and with RSS-210 of IndustryCanada.Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interfe- rence received, including interference that may cause undesired operation.CAUTION!Changes or modifications made to this equipment not expressly ap-proved by Hörm ann may void the FCC authorization to operate this equipment. The radiated output power of the FCT3bwith operating frequencies 390 MHz is farbelow the FCC radio frequency exposurelimits. Nevertheless, the FCT3b operating fre-quencies 390 MHz shall be used in such amanner that the potential for human contactduring normal operation is minimized.IC: before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to the user’s satisfaction. ENGLISH 4 07.2004 TR20H006 RE HÖR/Funkcodet FCT3b_USA 20.07.2004 15:26 Uhr Seite 4 humpe-933 Macintosh HD:KUNDEN:HÖR/AST:HÖR/AST/Amerika:HÖR/USA Zubehö r Important InformationRead and follow these instructions careful-ly. They provide important information forthe safe installation and operation of yourFCT3b.Please also follow the instructions to ensu-re safe operation of the operator and door. Keep these instructions in a safe place sothat you can refer to them as needed.Only drive through or walk under a remote-controlled door if the door is stationary andin the “fully-open” position.Only use the FCT3b when the door iswithin sight. When installing the FCT3b, use only origi-nal components.Observe local safety regulations, especiallywhere a 120V AC power supply is concer-ned. Any work should be carried out by aqualified electrician. • To ensure proper operation, all equip-ment should be protected from directsunlight, moisture or dirt. • The FCT3b has a temperature tolerancefrom -4 °F to +140 °F. If more than one radio receiver is re-quired, make sure that these aremounted at least 3 feet from eachother.Note:Local conditions can affect therange of the remote signal. ENGLISH 5 07.2004 TR20H006 RE HÖR/Funkcodet FCT3b_USA 20.07.2004 15:26 Uhr Seite 5 humpe-933 Macintosh HD:KUNDEN:HÖR/AST:HÖR/AST/Amerika:HÖR/USA Zubehö r 1 General 2 Installation 3 Important terminology 4 Signals of the LED 5 Operation 5.1 Programming function5.1.1 Programming/altering of access codes 5.2 Operating functions 5.2.1 Transmitting after entering an access code 5.2.2 Duplicating radio code from a hand transmitter to the FCT3bafter entering an access code 5.2.3 Recoding or resetting the radio code locations after enteringan access code 5.3 Function of the “bell/light”button 5.3.1 Transmitting using the “bell/light” button 5.3.2 Duplicating radio code from a transmitter to the “bell/light”button 5.3.3 Recoding or resetting the “bell/light” button 6 Resetting the FCT3b to factory settings Fig. 1 Installing the FCT3b Fig. 2 Duplicating radio code from a hand transmitter to the FCT3b Fig. 3 Signals of the LEDFig. 4 Programming/altering of access codes 1 General The FCT3b is a combination of a transmit-ter and a keypad.It will only function with a Hörmann opera-tor and/or receiver. Note:Before permanently installing theFCT3b be sure that the chosen location allows the radio signal to be properly received.The FCT3b can be installed at anydesired location but at least 1" awayfrom metal surfaces, otherwise use a plastic spacer. The FCT3b is powered by two CR2032 lithium batteries (see Fig. 1) . Successful en- tries and alterations are stored and retainedeven after voltage loss. With three freelyselectable 4-digit access codes you canoperate up to three functions. In addition,you can operate a bell or outdoor light (not protected by an access code). Thisrequires an additional receiver. The light ofthe keypad comes on at the first press of a button and stays on for 20 seconds afterthe last keystroke.2 Installation WARNING- The FCT3b must be securely installed insight of the door butaway from any movingparts. - The FCT3b must be installed out ofreach of children (minimum height: 5 ft). Choose an installation location for theFCT3b well away from existing cables andappliances with mains voltage (see Fig. 1) . ENGLISH 6 07.2004 TR20H006 RE HÖR/Funkcodet FCT3b_USA 20.07.2004 15:26 Uhr Seite 6 humpe-933 Macintosh HD:KUNDEN:HÖR/AST:HÖR/AST/Amerika:HÖR/USA Zubehö r WARNINGWORK SAFELY. ALWAYSwear appropriate safetyprotection when usingany tools. 3 Important terminology Access codesThese are 4-digit freely selectable uniquecodes, enabling you to access the threeradio code locations 1 to 3. An accesscode is always assigned to a specific radiocode location. In the factory setting or aftera reset the access codes are:Access code for radio code location 1 : “1234” Access code for radio code location 2 : “2345” Access code for radio code location 3 : “3456” Radio code locationThis is a storage space for a radio code.There are 4 radio code locations in theFCT3b. The radio code locations 1 to 3 areonly accessible with an access code. The fourth is the “bell/light” button wh…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 August 31, 2004 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Company requests confidentiality for the following products: FCC ID Number Product Title/Model PZI-390FCT3BFCT3b 390 MHz For the product stated above, we request that the following information be held confidential: 1.Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain Company trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Name: Franz Ziesché Company: Hörmann KG Antriebstechnik Address: Michaelisstr. 1 D-33803 Steinhagen Germany Phone:+49-(0)5204-922-341 Email:[email protected]

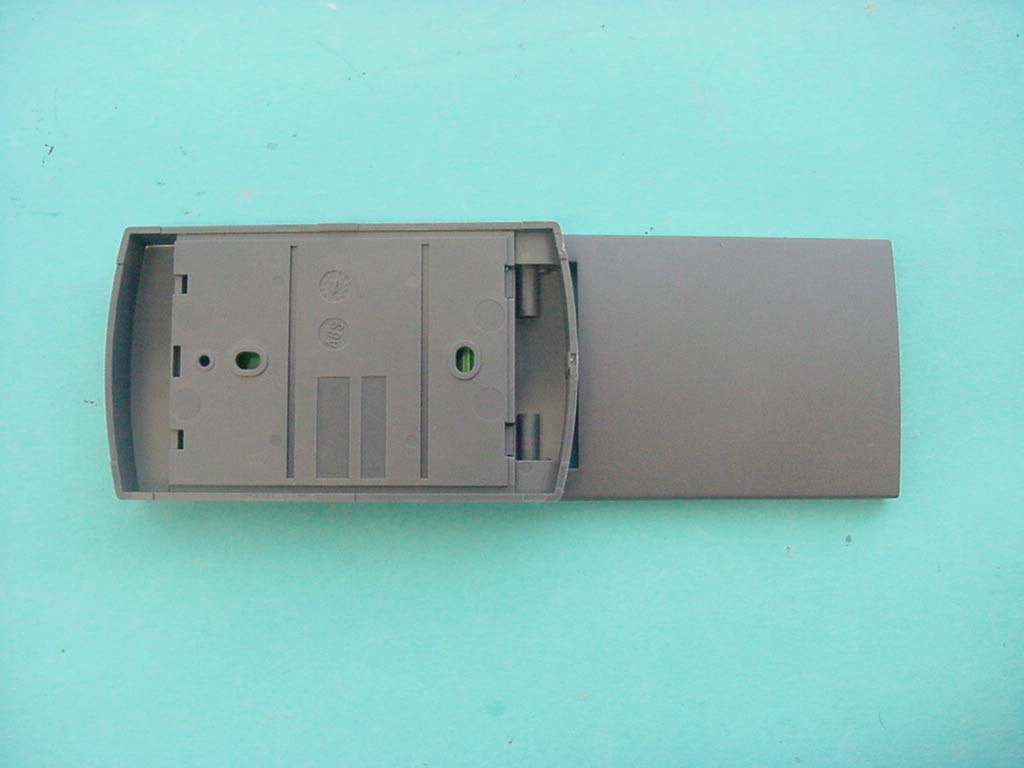

CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 18 (22) 5 Photographs of the equipment Photograph no.: 1 CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 19 (22) Photograph no.: 2

Label and Label Location Information Label 1 Label 2 Location Label 1 Label 2

CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 20 (22) Photograph no.: 3 CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 21 (22) Photograph no.: 4 CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 22 (22) Photograph no.: 5

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598- 0, Fax +49 (0) 598 9075 Test report No.: 2-3619-01-04/04This test report consists of 23 pagesPage 1 (22) Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report No. : 2-3619-01-04/04 Specification : FCC Part 15.231/RSS210 Applicant : Hörmann KG Type: FCT 3b 390 MHz FCC-ID : PZI-390FCT3B Certification No. IC: 4205A-390FCT3B BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 2 (22) Table of contents 1 GENERAL INFORMATION3 1.1Notes3 1.2Testing laboratory4 1.3Details of applicant4 1.4Application details4 1.5Test item5 1.6Test specifications5 2 TECHNICAL TEST6 2.1Summary of test results6 2.2Timing behavior 15.231(a1)7 2.3Field Strengths 15.231(b1)9 2.4Field Strengths and Frequency Bands 6.1.1 (b)10 2.5Bandwidth of signal 15.231(c)11 2.6Spurious Emissions (radiated)12 3 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS14 4 TEST SITE16 5 PHOTOGRAPHS OF THE EQUIPMENT18 CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 3 (22) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2004-08-25RSC - 8414Ames H. DateSectionNameSignature Technical responsibility for area of testing: 2004-08-25RSC - 8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 4 (22) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-081/94-D0 Listed by: Federal Communications Commission (FCC) Identification/Registration No: 90462 Anechoic chamber registration no.: 3463 (IC) Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3 Details of applicant Name :Hörmann KG Antriebstechnik Street :Michaelisstrasse 1 City :D-33803 Steinhagen Country :Germany Telephone:+49(0) 5204 922-0 Fax :+49(0) 5204-922-150 Contact person: Name :Mr. Frank Ziesché Telephone:+49(0) 5204 922-341 Fax :+49(0) 5204-922-340 1.4 Application details Date of test : 2004-08-24 CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 5 (22) 1.5 Test item Type of equipment :Remote Control Transmitter Type designation:FCT 3b 390 MHz Manufacturer:geba GmbH Street:Wecostrasse 7-11 City:D-53773 Eitorf Country:Germany Serial number:- / - Additional information Frequency:390.0 MHz Type of modulation:20K0A1D Channel spacing:>25 kHz Number of channels :1 Antenna:Integral printed board antenna Max. ERP:Peak: 76.5 dBμV/m ; Average: 73.0 dBμV/m (at 3m distance) Power supply:6.0V DC Lithium Batteries FCC-ID :PZI-390FCT3B Certification No. IC:4205A-390FCT3B Open Area Test Site IC No.:3436 ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Laboratory Manager : 2004-08-25RSC 8414Ames H. DateSectionNameSignature 1.6 Test specifications FCC part15.231 / RSS210 CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 6 (22) 2 Technical test 2.1 Summary of test results The radiated measurements were performed vertical and horizontal over the whole frequency range. We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual re-measurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, wave-guide horn The product fulfills the requirements for FCC part15 No deviations from the technical specification(s) were ascertained in the course of the tests performed. CETECOM ICT Services GmbH Test report no.: 2-3619-01-04/04 Date: 2004-08-25Page 7 (22) 2.2 Timing behavior 15.231(a1) Ref Lvl -20 dBm Ref Lvl -20 dBm RBW 1 MHzRF Att 10 dB A Unit dBm VBW 1 MHz SWT 80 ms Center 390 MHz8 ms/ 1AP SGL -110 -100 -90 -80 -70 -60 -50…
