PZWBHT400SLBWBBarcode Handy Terminal - Bluetooth

BHT-400BB-CE BHT-400BWB-CE This guide has been prepared expressly for the hands-on user. Always keep it nearby for speedy reference. Operator’s Guide 2 If you leave the BHT with the battery cartridge discharged or with no battery cartridge loaded or if you replace the battery cartridge in a wrong way, the BHT may lose the data stored in it. Before cold booting (refer to "Warm and Cold Booting"), it is recommended that important data be saved into the FLASH folder or uploaded to the host computer. Cold booting will erase all data stored in the RAM. All products and company names mentioned in this manual are trademarks or registered trademarks of their respective holders. The latest precision manufacturing technology yields LCD panels whose pixels are 99.99% defect free. The downside, note, is that up to 0.01% of the pixels can remain permanently dark or lit on today's state-of-the-art panels. A thin Newton's rings (rainbow-like patterns) may appear on the touch panel. This does not necessarily indicate a problem with the touch panel. Bluetooth ® is a trademark owned by its proprietor. DENSO WAVE uses Bluetooth ® wireless technology under license. ? DENSO WAVE INCORPORATED does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. ? If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product having been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty period. ? Intellectual Property Precaution DENSO WAVE INCORPORATED ("DENSO WAVE") takes reasonable precautions to ensure its products do not infringe upon any patent of other intellectual property rights of other(s), but DENSO WAVE cannot be responsible for any patent or other intellectual property right infringement(s) or violation(s) which arise from (i) the use of DENSO WAVE's product(s) in connection or in combination with other component(s), product(s), data processing system(s) or equipment or software not supplied from DENSO WAVE; (ii) the use of DENSO WAVE's products in a manner for which the same were not intended nor designed; or (iii) any modification of DENSO WAVE's products by other(s) than DENSO WAVE. 3 Product Name BHT-400BB-CE/400BWB-CE series has following models, and this operator's Guide is for following models. The difference of each model is shown on following table. Key type Radio Interface Series Model name 31-key 50-key Wireless LAN (IEEE 802.11b/g) Bluetooth ® Technology BHT-420BB-CE BHT-400BB-CE BHT-470BB-CE BHT-420BWB-CE BHT-400BWB-CE BHT-470BWB-CE Related Publications BHT-400BB-CE/400BWB-CE User's Manual (This manual can be downloaded from our Web site given below.) Instructions for using the handy terminal (BHT-400BB-CE/400BWB-CE) and optical communication unit (CU-400). BHT-400-CE API Reference Manual (This manual can be downloaded from our Web site given below.) Description for developing application programs for the handy terminal in Microsoft eMbedded Visual C++ 4.0. DENSO WAVE INCORPORATED http://www.denso-wave.com/ 4 Contents SAFETY PRECAUTIONS...................................................................................................5 Components and Functions...............................................................................................10 Operating the Touch Screen..............................................................................................14 Windows Desktop on the LCD...........................................................................................14 Reading Bar Codes..........................................................................................................15 Using Radio Link and Bluetooth ® Wireless Communication Link..........................................17 Using Infrared Link...........................................................................................................18 Loading the Battery Cartridge............................................................................................19 Calibrating the Touch Screen............................................................................................21 BHT Turning-off Notes......................................................................................................22 Battery Replacement Notes..............................................................................................23 Warm and Cold Booting....................................................................................................24 About Status Indicators.....................................................................................................26 Setting the Backlight.........................................................................................................28 Adjusting the Beeper Volume, Switching the Beeper & Vibrator, Calibrating the Touch Screen, and Setting the Backlight..................................................................................................29 Error Messages................................................................................................................34 Proper Care of the BHT....................................................................................................36 Handling Notes.................................................................................................................37 Declaration of Conformity (For European Union)................................................................39 Customer Registration......................................................................................................39 5 SAFETY PRECAUTIONS Be sure to observe all these safety precautions. Strict observance of these warning and caution indications are a MUST for preventing accidents which could result in bodily injury and substantial property damage. Make sure you fully understand all definitions of these ter…

Text truncated - open the document above for the full version.

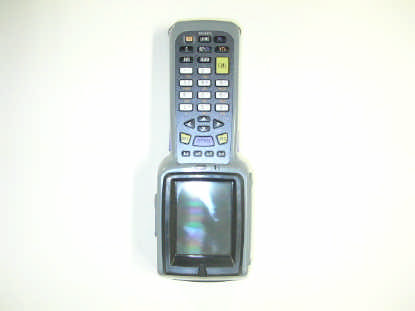

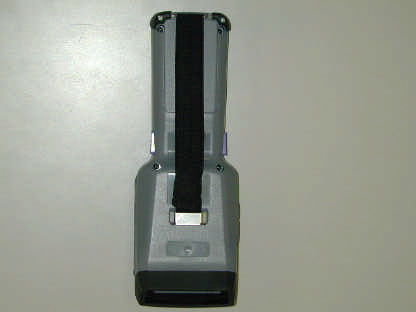

External Photos (1) BHT-420BWB-CE Front View (BHT-420BWB-CE) Rear View (BHT-420BWB-CE) Left Side View(BHT-420BWB-CE) Right Side View(BHT-420BWB-CE) (2) BHT-470BWB-CE Front View (BHT-470BWB-CE) Rear View (BHT-470BWB-CE) Left Side View(BHT-470BWB-CE) Right Side View(BHT-470BWB-CE)

Labelling of BHT-420BWB-CE/BHT-470BWB-CE T O P T O P T O P Certification Label Rated Nameplate Caution Label Laser Rated Nameplate (BHT-420BWB-CE) Rated Nameplate (BHT-470BWB-CE) Certification Label

Internal Photo Internal Photo of BT Module Internal Photo of WLAN module

Test report No. : 27DE0137-HO-C-1 Page : 2 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................8 SECTION 5: Conducted Emission....................................................................................................... 11 SECTION 6: Spurious Emission.......................................................................................................... 12 SECTION 7: Bandwidth ....................................................................................................................... 13 SECTION 8: Maximum Peak Output Power ..................................................................................... 13 SECTION 9: Carrier Frequency Separation ...................................................................................... 13 SECTION 10: Number of Hopping Frequency .................................................................................. 13 SECTION 11: Dwell time...................................................................................................................... 13 APPENDIX 1: Photographs of test setup ............................................................................................ 14 Conducted Emission ........................................................................................................14 Spurious Emission (Radiated) ........................................................................................15 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis)..........................................16 APPENDIX 2: Data of EMI test............................................................................................................ 17 Carrier Frequency Separation .......................................................................................21 20dB Bandwidth...............................................................................................................23 Number of Hopping Frequency......................................................................................25 Dwell time .........................................................................................................................27 Maximum Peak Output Power .......................................................................................30 Radiated Spurious Emission (below 1GHz) ..................................................................31 Conducted Spurious Emission ........................................................................................39 99% Occupied Bandwidth(BT) ......................................................................................44 APPENDIX 3:Test instruments ............................................................................................................ 45 Test report No. : 27DE0137-HO-C-1 Page : 3 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name : DENSO WAVE INCORPORATED Address : 1-1 Showa-cho Kariya-shi Aichi, 448-8661 Japan SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Barcode Handy Terminal Model No. : BHT-470BWB-CE Serial No. : 5496310346600007 Rating : DC3.7V (Li-ion Battery) Country of Manufacture : Japan Receipt Date of Sample : November 16, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: BHT-470BWB-CE is the Barcode Handy Terminal with IEEE802.11b/g Wireless LAN and Bluetooth. The Barcode Handy Terminal scans the barcode, sends and receives the data of barcode by radio. BHT-470BWB-CE has a variant model, BHT-420BWB-CE. The difference of BHT-470BWB-CE and BHT-420BWB-CE is number of keypads as follows, and the radio and electic parts of the both models are identical. Key type Radio module type Model No. 50-key 31-key IEEE802.11b/g Wireless LAN Bluetooth BHT-470BWB-CE ○ - ○ ○ BHT-420BWB-CE - ○ ○ ○ The distance of IEEE802.11b/g Wireless LAN antenna and Bluetooth antenna is within 20cm. IEEE802.11b/g Wireless LAN and Bluetooth modules can transmit simultaneously. Clock frequency in the system : [CPU] 32.768kHz, 13MHz (13MHz x 40 = 520MHz: Max Speed) [Sub-CPU] 32.768kHz, 12.288MHz [RTC] 32.768kHz [IEEE802.11b/g Wireless LAN] 40MHz [Bluetooth] 16MHz Equipment Type : Transceiver Test report No. : 27DE0137-HO-C-1 Page : 4 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) IEEE802.11b/g Wireless LAN Frequency band Lower limit 2412MHz Upper limit 2462MHz Type of Modulation DSSS, OFDM Antenna Type Multi-layer Mono Pole Antenna Connector Type Coaxial Connector Antenna Gain 3.3dBi ITU code G1D(DSSS), D1D(OFDM) Power Supply (Inner) DC 3.3V * For WLAN module test, please see UL Apex Test Report No. 27DE0137-HO-A. Bluetooth Frequency band Lower limit 2402MHz Upper limit 2480MHz Ba…

Text truncated - open the document above for the full version.

Test report No. : 27DE0137-HO-C-1 Page : 14 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 27DE0137-HO-C-1 Page : 15 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emission (Radiated) Front Rear Test report No. : 27DE0137-HO-C-1 Page : 16 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis

Test report No. : 27DE0137-HO-C-1 Page : 17 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2007/02/08 Company : DENSO WAVE INCORPORATED Report No. : 27DE0137-HO Kind of EUT : Barcode Handy Terminal Power : AC120V / 60Hz Model No. : BHT-470BWB-CE Temp./Humi. : 23deg.C / 29% Serial No. : 5496310346600007 Operator : Makoto Kosaka Mode / Remarks : Tx BT DH5 Low(with CU-421(USB)) LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin Phase Frequency QPAVFactorQPAVQPAVQPAVPhase [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] Phase 0.1500035.1----0.235.3----66.0----30.7----N 0.2060029.0----0.229.2----63.4----34.2----N 0.3550026.3----0.226.5----58.8----32.3----N 0.7630019.0----0.319.3----56.0----36.7----N 4.6000028.120.60.728.821.356.046.027.224.7N 28.5900019.9----1.921.8----60.0----38.2----N 0.1500033.0----0.233.2----66.0----32.8----L 0.2060027.3----0.227.5----63.4----35.9----L 0.3550026.3----0.226.5----58.8----32.3----L 0.7630020.7----0.321.0----56.0----35.0----L 4.6000028.620.80.729.321.556.046.026.724.5L 28.5900019.0----1.920.9----60.0----39.1----L Test report No. : 27DE0137-HO-C-1 Page : 18 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2007/02/08 Company : DENSO WAVE INCORPORATED Report No. : 27DE0137-HO Kind of EUT : Barcode Handy Terminal Power : AC120V / 60Hz Model No. : BHT-470BWB-CE Temp./Humi. : 23deg.C / 29% Serial No. : 5496310346600007 Operator : Makoto Kosaka Mode / Remarks : Tx BT DH5 Mid(with CU-421(USB)) LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< PEAK DATA >> N:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV]<< PEAK DATA >> L:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 27DE0137-HO-C-1 Page : 19 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2007/02/08 Company : DENSO WAVE INCORPORATED Report No. : 27DE0137-HO Kind of EUT : Barcode Handy Terminal Power : AC120V / 60Hz Model No. : BHT-470BWB-CE Temp./Humi. : 23deg.C / 29% Serial No. : 5496310346600007 Operator : Makoto Kosaka Mode / Remarks : Tx BT DH5 High(with CU-421(USB)) LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< PEAK DATA >> N:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV]<< PEAK DATA >> L:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 27DE0137-HO-C-1 Page : 20 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2007/02/09 Company : DENSO WAVE INCORPORATED Report No. : 27DE0137-HO Kind of EUT : Barcode Handy Terminal Power : AC120V / 60Hz Model No. : BHT-470BWB-CE Temp./Humi. : 23deg.C / 29% Serial No. : 5496310346600007 Operator : Makoto Kosaka Mode / Remarks : Rx BT Mid(with CU-421(USB)) LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< PEAK DATA >> N:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV]<< PEAK DATA >> L:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 27DE0137-HO-C-1 Page : 21 of 46 Issued date : March 14, 2007 Revised date : March 22, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Carrier Frequency Separation UL Apex Co., Ltd. Head Office EMC Lab. No.7 Shielded Room COMPANY : DENSO WAVE INCORPORATEDREGULATION : FCC15.247(a)(1)/RSS-210A8.1(2) EQUIPMENT : Barcode Handy TerminalTEST DISTANCE : - MODEL : BHT-470BWB-CEDATE : 2006/11/27 S/ N : 5496310346600007TEMPERATURE : 24deg.C POWER : DC3.7VHUMIDITY : 43% MODE : Tx(Hopping on)/InquiryENGINEER : Makoto Kosaka ChFreq. [MHz] Low2402.0 Mid2441.0 High2480.0 Inquiry2441.0 1.020 2.008 >965[kHz] 20dB Bandwidth >780[kHz] 20dB Bandwidth 1.010 1.000 >965[kHz] (20dB…

Text truncated - open the document above for the full version.

Test report No. : 27DE0137-HO-D-1 Page : 2 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENS Page SECTION 1: Client information ............................................................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................................................ 3 2.1 Identification of E.U.T. ...................................................................................................................................... 3 2.2 Product Description............................................................................................................................................ 3 SECTION 3 : Test standard information .............................................................................................................................. 5 3.1 Requirements for compliance testing defined by the FCC ................................................................................. 5 3.2 Exposure limit .................................................................................................................................................... 6 SECTION 4 : Test result ......................................................................................................................................................... 7 4.1 Result of Max. SAR value.................................................................................................................................. 7 4.2 Test location ....................................................................................................................................................... 7 SECTION 5 : Operation of E.U.T. during testing ................................................................................................................ 8 5.1 Test mode ........................................................................................................................................................... 8 5.2 Confirmation before / after SAR testing ............................................................................................................ 8 5.2 Confirmation after SAR testing.......................................................................................................................... 8 5.3 Operating modes for SAR testing....................................................................................................................... 9 SECTION 6 : Test surrounding.............................................................................................................................................. 12 6.1 Measurement uncertainty ..................................................................................................................................... 12 SECTION 7 : Results of confirmation before / after SAR testing ....................................................................................... 13 7.1 Correlation of EMC power and SAR power (WLAN IEEE802.11b/g)..............................................................13 7.2 Reference data of SAR test (Data rate determing of WLAN IEEE802.11b/g) ...................................................14 7.3 Duty factor verification (WLAN IEEE802.11b/g) ............................................................................................. 15 7.4 Correlation of EMC power and SAR power (Bluetooth) ................................................................................... 16 7.5 Power drift measurement.................................................................................................................................... 16 SECTION 8 : Measurement results ....................................................................................................................................... 17 8.1 SAR measurement results..................................................................................................................................... 17 APPENDIX 1 : Photographs of test setup ........................................................................................................................... 19 1. Photograph of EUT............................................................................................................................................. 20 2. Photograph of Setup ........................................................................................................................................... 21 APPENDIX 2: SAR Measurement data .............................................................................................................................. 29 1. Evaluation procedure .......................................................................................................................................... 30 2. Measurement data / WLAN 11b/g ...................................................................................................................... 31 3. Measurement data / Bluetooth ............................................................................................................................ 48 APPENDIX 3: Test instruments........................................................................................................................................... 53 1. Equipment used .................................................................................................................................................. 54 2. Dosimetry assessment setup ............................................................................................................................... 55 3. Configuration and peripherals ................................…

Text truncated - open the document above for the full version.

Test report No. : 27DE0137-HO-D-1 Page : 19 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1 : Photographs of test setup Test report No. : 27DE0137-HO-D-1 Page : 20 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 1. Photograph of EUT Right Side 224 mm 78mm Front Rear 53 mm Bluetooth Antenna WLAN Antenna WLAN Antenna Test report No. : 27DE0137-HO-D-1 Page : 21 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. Photograph of Setup (WLAN 11b/g mode) (1) Rear (WLAN) Test report No. : 27DE0137-HO-D-1 Page : 22 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 (2) RightSide (WLAN) Test report No. : 27DE0137-HO-D-1 Page : 23 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 (3) Left Side (WLAN) Test report No. : 27DE0137-HO-D-1 Page : 24 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 (4) Right side 5mm (WLAN) Test report No. : 27DE0137-HO-D-1 Page : 25 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 (5) Right side 10mm (WLAN) Test report No. : 27DE0137-HO-D-1 Page : 26 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 (Bluetooth mode) (7) Rear (BT) Test report No. : 27DE0137-HO-D-1 Page : 27 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 (8)Right Side (BT) Test report No. : 27DE0137-HO-D-1 Page : 28 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 (9) Left Side (BT)

Test report No. : 27DE0137-HO-D-1 Page : 29 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2: SAR Measurement data Test report No. : 27DE0137-HO-D-1 Page : 30 of 84 Issued date : March 14, 2007 Revised date : March 20, 2007 FCC ID : PZWBHT400SLBWB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 1. Evaluation procedure The evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and the horizontal grid spacing was [15mm x 15mm]. Based on these data, the area of the maximum absorption was determined by spline interpolation. Step 3: Around this point f…

Text truncated - open the document above for the full version.
