PZWPR700UDMContactless IC Card Reader/Writer

Contactless IC Card Reader/Writer PR-700UDM Operator’s Guide This manual instructs how to use the PR-700UDM and describes the connection method with a host computer. Please read this manual carefully before using the product and keep it for future reference. For more details on using PR-700UDM, see the User’s Manual that is available as a free download from our website “QBdirect” at http://www.qbdirect.net. Before downloading, you are requested to register as a member (free of charge). The device comes under strategic materials regulated by the Foreign Exchange and Foreign Trade Act. When the device is required to be exported abroad, an export permit based on this Act is required from the Japanese Government. Please contact sales for the details. SAFETY PRECAUTIONS Be sure to observe all these safety precautions.  Please READ through these instructions carefully. They will enable you to use the device correctly.  Always keep this manual nearby for reference. Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury and substantial property damage. Make sure you fully understand all definitions of these terms and symbols given below before you proceed to the text itself. Alerts you to those conditions that could cause serious bodily injury or death if the instructions are not followed correctly. Alerts you to those conditions that could cause minor bodily injury or substantial property damage if the instructions are not followed correctly. Meaning of Symbols A diagonal line through a circle () warns you of something you should not do; it may or may not have a picture inside. Here you see a screwdriver inside the circle, meaning that you should not disassemble. A black circle () with a picture inside alerts you to something you MUST do. This example shows that you MUST unplug the power cord. MEMO MEMO To System Designers  When introducing the PR-700UDM in those systems that could affect human lives (e.g., medicines management system), develop applications carefully through redundancy and safety design which avoids the feasibility of affecting human lives even if a data error occurs. Implantable Medical Equipment:  A patient with implantable medical equipment (cardiac pacemaker, etc.) is strongly advised to operate the PR-700UDM at least 12 cm away from the said medical equipment. A survey conducted on the wireless card systems has reported the possibility of their affecting or giving unfavorable impact on implantable medical equipment. This is a general characteristic of those systems using radio waves, and not a unique feature of DENSO WAVE's products or the PR-700UDM itself. Improper handling of the product against these warning precautions could result in overheating, smoke, or malfunction. Be sure to observe the following when using this product.  Do not contact metal objects with the terminal. Doing so could produce a large current through the product, resulting in heat or fire, as well as damage to the product.  Do not use the voltages other than power voltage specified. Doing so could cause the product to break or burn.  Do not use the product in the presence of inflammable gases. Doing so could cause fire or electrical shock.  Do not use the product in places subject to strong vibration or shock. Doing so could cause the product to break or burn.  Do not use the product in places where the use of radio waves is restricted, such as on airplanes or in hospitals. Doing so may cause failure or malfunction in electronic or medical equipment.  Do not scratch or modify the product or the USB cable. Do not heat, bend, twist or pull the USB cable. Doing so could break the product or the USB cable, resulting in fire.  Do not drop or apply force to the product. Doing so could cause the device to malfunction.  Do not use the product in places where it is subject to sharp temperature changes, dewing or steam. Doing so could cause fire or electric shock.  Avoid spilling liquid such as soft drink, coffee or water on the product. Doing so could cause fire or electric shock.  If the USB cable is damaged (e.g. exposed or broken lead wires), stop using it and contact your nearest dealer. Failure to do so could result in fire or electrical shock.  If smoke, abnormal orders or noises come from the product, immediately turn off the host computer, unplug the USB cable, and contact your nearest dealer. Failure to do so could result in fire or electrical shock.  If foreign material or water enters the product, immediately turn off the host computer, unplug the USB cable, and contact your nearest dealer. Failure to do so could cause fire or electrical shock.  If the product does not function correctly or the housing is damaged, turn off the host computer, unplug the USB cable, and contact your nearest dealer. Failure to do so could cause fire or electrical shock. Improper handling of the product against these warning precautions could result in overheating, smoke, or malfunction. Be sure to observe the following when using this product.  Never disassemble or modify the product. Doing so could result in fire or electrical shock.  Never leave the product in places where there are excessively high temperatures, such as inside unventilated automobiles, or in places exposed to direct sunlight. Doing so could affect the housing or parts, resulting in fire.  Avoid using the product in areas of extremely humidity or drastic temperature changes. Moisture may enter the product, resulting in malfunction, fire or electrical shock.  Do not place the product in places where it may be subject to oily smoke or steam such as near a cooking range or humidifier. Doing so could result in fire or electrical shock.  Never cover or wrap the product in a cloth or blanket. Doing so could cause the product to overheat, deforming its housing, resulting in fire. Always use the product in a well-ventilated area.  Do not cover the USB cable or allow it t…

Text truncated - open the document above for the full version.

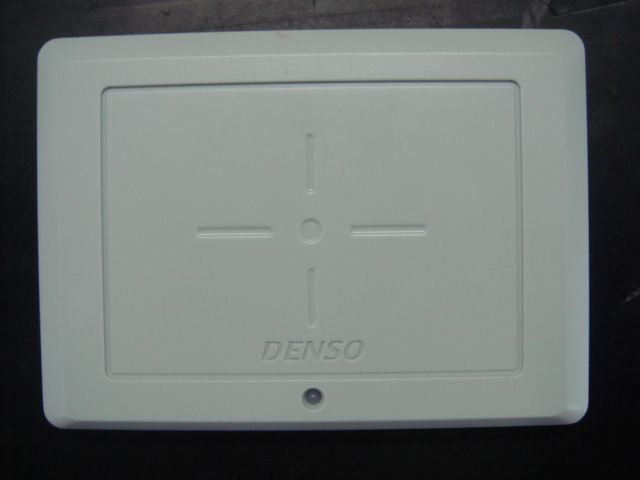

External Photo

Label Label Layout

Internal Photo Antenna

Test report No. : 10062667H-B-R2 Page : 2 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10062667H-B Revision Test report No. Date Page revised Contents - (Original) 10062667H-B November 12, 2013 - - 1 10062667H-B-R1 December 2, 2013 P. 17 - 22 Correction of test data. 2 10062667H-B-R2 December 6, 2013 P. 1 Correction of “Date of test”. 2 10062667H-B-R2 December 6, 2013 P. 5 Correction of Worst Margin (Spectrum Mask). 2 10062667H-B-R2 December 6, 2013 P. 8 Correction of Configuration 2 10062667H-B-R2 December 6, 2013 P. 11 Correction of test procedure description in Section 6. 2 10062667H-B-R2 December 6, 2013 P. 17 - 22 Correction of CALCULATION 2 10062667H-B-R2 December 6, 2013 P. 18, 20 Change of data by retest. Test report No. : 10062667H-B-R2 Page : 3 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................................. 8 SECTION 5: Conducted emission ..................................................................................................... 10 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) ...... 11 SECTION 7: Other test ...................................................................................................................... 12 APPENDIX 1: Data of EMI test ........................................................................................................ 13 Conducted emission ..............................................................................................................................................................13 Fundamental emission and Spectrum Mask .......................................................................................................................17 Spurious emission .................................................................................................................................................................19 20dB Bandwidth and 99% Occupied Bandwidth ...............................................................................................................26 Frequency Tolerance ............................................................................................................................................................28 APPENDIX 2: Test instruments ........................................................................................................ 29 APPENDIX 3: Photographs of test setup ......................................................................................... 30 Conducted emission ..............................................................................................................................................................30 Radiated emission .................................................................................................................................................................31 Worst Case Position ..............................................................................................................................................................32 Test report No. : 10062667H-B-R2 Page : 4 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO WAVE INCORPORATED Address : 1 Yoshiike, Kusagi, Agui-cho, Chita-gun, Aichi, 470-2297, Japan Telephone Number : +81-569-49-5095 Facsimile Number : +81-569-49-5488 Contact Person : Hideki Hokimoto SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Contactless IC card reader/writer Model No. : PR-700UDM Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : September 30, 2013 Country of Mass-production : Japan Condition of EUT Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No Modification by the test lab 2.2 Product Description General Specification The PR-700UDM reader/writer, which is easy to plug in to your host computer with a USB cable, is an IC card reader/writer capable of reading contactless IC cards. Clock frequency(ies) in the system : CPU: 16 MHz (48MHz MAX), RF: 27.12 MHz Radio Specification Equipment Type : Transceiver Frequency of Operation : 13.56MHz Type of Modulation : Amplitude Modulate Antenna Type : loop antenna Antenna Connector Type : fixed Power Supply (inner) : DC4.1V, DC3.3V Test report No. : 10062667H-B-R2 Page : 5 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 : Operati…

Text truncated - open the document above for the full version.

Test report No. : 10062667H-B-R2 Page : 30 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted emission Photo 1 Photo 2 Test report No. : 10062667H-B-R2 Page : 31 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated emission Photo 1 Photo 2 Test report No. : 10062667H-B-R2 Page : 32 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below 30MHz Y-axis Above 30MHz Horizontal:X-axis / Vertical:X-axis X-axis Y-axis Z-axis Test report No. : 10062667H-B-R2 Page : 33 of 33 FCC ID : PZWPR700UDM Issued date : November 12, 2013 Revised date : December 6, 2013 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 With/Without Tag With Tag Without Tag End of Report
