PZWSE1HU001RFID TAG Handy Reader Writer

- 1 - RF TAG Handy Reader Writer SE1-HU This Instruction Manual sets forth the procedures for handling and precautions. Before use, read through this guide carefully to make sure that you use the antenna controller both correctly and effectively. Also keep it handy for ready reference. For more details on using this antenna controller, see the User’s Manual that is available as a free download from our website ‘QBdirect’ at ‘http://www.qbdirect.net/’. Before downloading, you are requested to register as a member (free of charge). Copyright © 2012 DENSO WAVE INCORPORATED. All rights reserved. 466144-XXXX - 2 -  About This Manual  Specifications are subject to change without prior notice.  No part of this publication may be reproduced in any form or by any means without permission in writing from the publisher.  Please contact DENSO WAVE if you loose this document.  DENSO WAVE has taken all possible means to ensure this document. Please inform us if you have any doubt or find mistakes or missing in the contents of this document.  Liability Limitations  DENSO WAVE takes reasonable precautions to ensure its products do not infringe upon any patent of other intellectual property rights of other(s), but DENSO WAVE cannot be responsible for any patent or other intellectual property right infringement(s) or violation(s) which arise from any of the following: (i) The use of DENSO WAVE’s product(s) in connection or in combination with other component(s), product(s), data processing system(s) or equipment or software not supplied from DENSO WAVE; (ii) The use of DENSO WAVE’s products in a manner for which the same were not intended nor designed; or (iii) The modification of DENSO WAVE’s products by other(s) than DENSO WAVE.  Any malfunctions which DENSO WAVE considers to be caused by having been dropped or received excessive shock shall be repaired at the user’s own expense even within the warranty period.  DENSO WAVE takes no responsibility for the operation of ID systems implemented in the applications where high security level is required or applications that may have a direct or indirect affect on human body including: (i) Applications where outdoor use or interference on electrical and electronic devices is expected. (ii) Air carriers, hospitals, railways, safety control facilities related to nuclear power, public administrations, regulations for controlling entertainment and individual institutions, human life, security control organizations for assets and around-the-clock control facilities to maintain essential utilities such as electricity, water and gas supplies. 1 Yoshiike Kusagi Agui-cho, Chita-gun Aichi 470-2297, Japan http://www.denso-wave.com/ - 3 -  DECLARATION OF CONFORMITY For European Union [EN] English Hereby, DENSO WAVE INCORPORATED declares that this HIGH FREQUENCY 13.56MHz TRANSCEIVER is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. [BG] Bulgarian С настоящето, DENSO WAVE INCORPORATED, декларира, че HIGH FREQUENCY 13.56MHz TRANSCEIVER е в съответствие със съществените изисквания и другитеприложими разпоредби на Директива 1999/5/EC. [HR] Croatian Ovim DENSO WAVE INCORPORATED, izjavljuje da je HIGH FREQUENCY 13.56MHz TRANSCEIVER u sklau s bitnim zahtjevima i drugim relevantnim odredbama Direktive 1999/5/EC i Pravilnika o RiTT opremi (NN25/2012). [CS] Czech DENSO WAVE INCORPORATED tímto prohlašuje, že HIGH FREQUENCY 13.56MHz TRANSCEIVER splňuje základní požadavky a všechna příslušná ustanoveni Směrnice 1999/5/ES. [DA] Danish Undertegnede DENSO WAVE INCORPORATED erklærer herved, at følgende udstyr HIGH FREQUENCY 13.56MHz TRANSCEIVER overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. [DE] German Hiermit erklärt DENSO WAVE INCORPORATED, dass sich das Gerät HIGH FREQUENCY 13.56MHz TRANSCEIVER in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. [ET] Estonian Käesolevaga kinnitab DENSO WAVE INCORPORATED seadme HIGH FREQUENCY 13.56MHz TRANSCEIVER vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. [EL] Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ DENSO WAVE INCORPORATED ∆ΗΛΩΝΕΙ ΟΤΙ HIGH FREQUENCY 13.56MHz TRANSCEIVER ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ [ES] Spanish Por la presente, DENSO WAVE INCORPORATED, declara que este HIGH FREQUENCY 13.56MHz TRANSCEIVER cumple con los requisitos esenciales y otras exigencias relevantes de la Directiva 1999/5/EC. [FR] French Par la présente, DENSO WAVE INCORPORATED déclare que l’appareil HIGH FREQUENCY 13.56MHz TRANSCEIVER est conforme aux exigencies essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. [IT] Italian Con la presente DENSO WAVE INCORPORATED dichiara che questo HIGH FREQUENCY 13.56MHz TRANSCEIVER è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. [LV] Latvian Ar šo DENSO WAVE INCORPORATED deklarē, ka HIGH FREQUENCY 13.56MHz TRANSCEIVER atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. [LT] Lithuanian Šiuo DENSO WAVE INCORPORATED deklaruoja, kad šis HIGH FREQUENCY 13.56MHz TRANSCEIVER atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas - 4 - [HU] Hungarian A DENSO WAVE INCORPORATED ezzennel kijelenti, hogy a HIGH FREQUENCY 13.56MHz TRANSCEIVER típusú beren-dezés teljesíti az alapvető követelményeket és más 1999/5/EK irányelvben meghatározott vonatkozó rendelkezéseket. [NL] Dutch Hierbij verklaart DENSO WAVE INCORPORATED dat het toestel l HIGH FREQUENCY 13.56MHz TRANSCEIVER in overeenstemming is met de essentiële eisen en de andere relevante bepalin-gen van richtlijn 1999/5/EG. [PL] Polish Niniejszym DENSO WAVE INCORPORATED deklaruje że HIGH FREQUENCY 13.56MHz TRANSCEIVER jest zgodny z zasadniczymi wymaganiami…

Text truncated - open the document above for the full version.

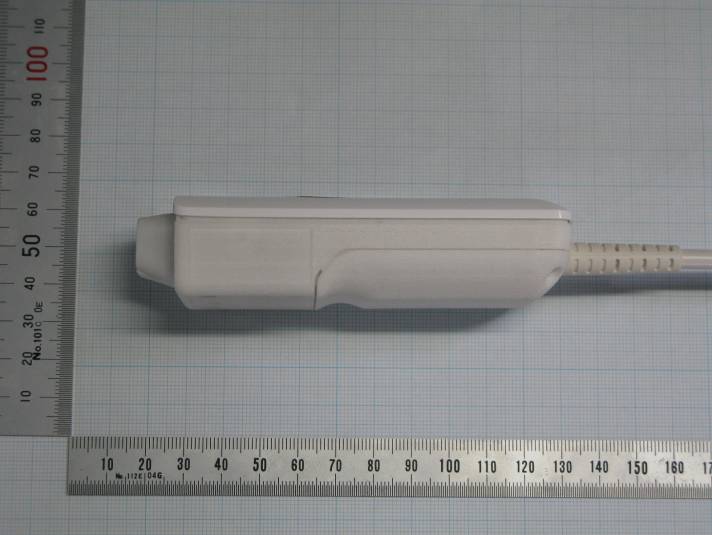

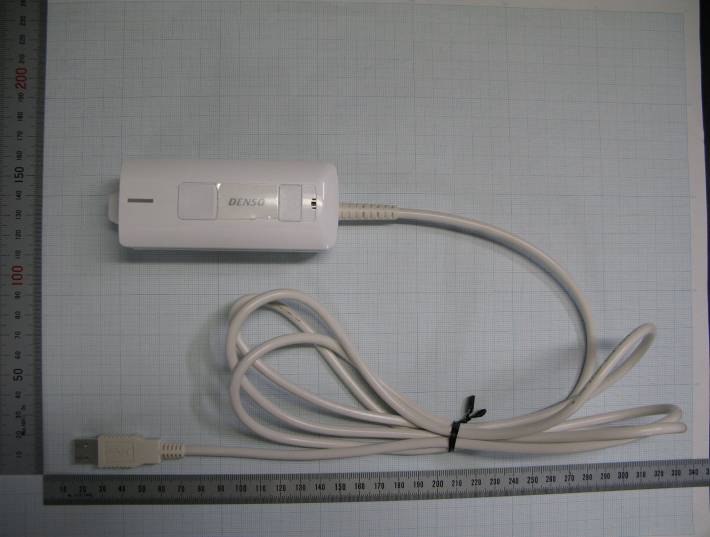

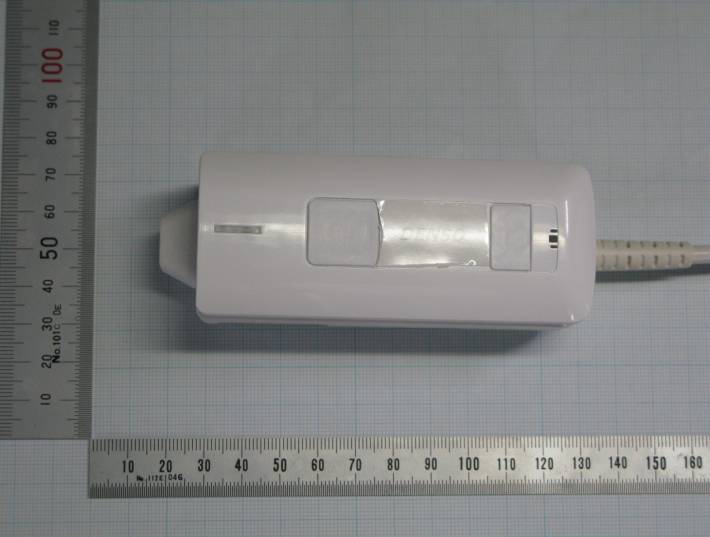

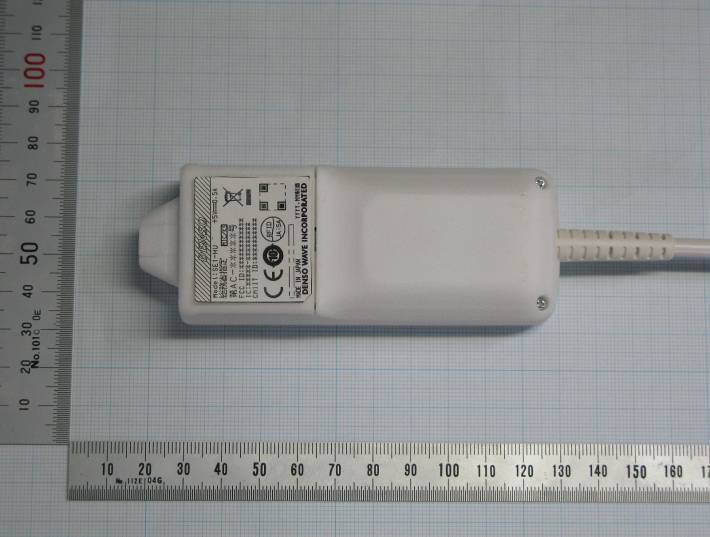

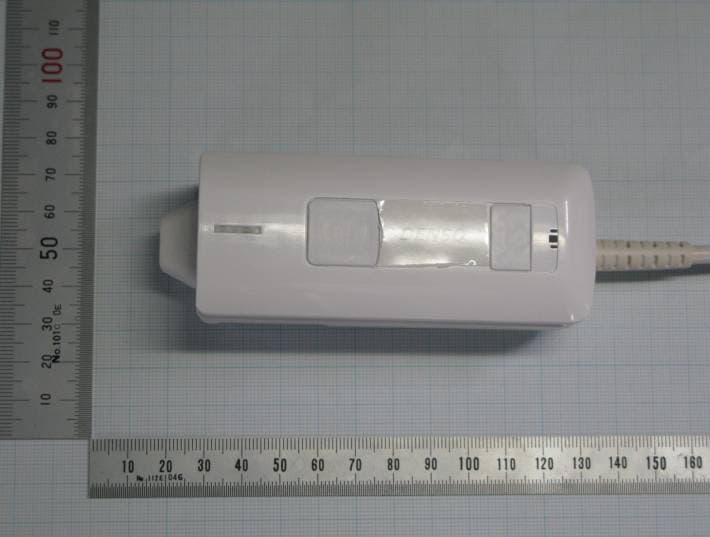

Photo of SE1-HU ( Proto Type ) Fig. External Photo of SE1-HU with cable Fig. External Photo of SE1-HU (TOP side) Fig. External Photo of SE1-HU (BOTTOM side) Fig. External Photo of SE1-HU (FRONT side) Fig. External Photo of SE1-HU (REAR side) Fig. External Photo of SE1-HU (RIGHT side) Fig. External Photo of SE1-HU (LEFT side)

External dimensions Weight: Approx. 150 g 100 10 27 40 2000 +150 0 USB Connector (Type A) Antenna LED Nameplate (Note) Tolerances of dimensions for which tolerances are not indicated conform to the standard tolerance in the table above. Trigger SW Buzzer Option SW (Unit: mm [inch]) Standard Tolerance Nominal Dimension (L) Tolerance L  18 [0.71] 1.2[0.047] 18  L  30[1.18] 1.5[0.059] 30  L  50 [1.97] 2.3[0.091] 50  L  80 [3.15] 3.0[0.118] 80  L  120 [4.73] 3.8[0.150] 120  L  180 [7.09] 4.5[0.177] 180  L  250 [9.85] 6.0[0.236] Nameplate 31 29.5 (Unit: mm [inch]) Standard Tolerance Nominal Dimension (L) Tolerance L  18 [0.71] 1.2[0.047] 18  L  30[1.18] 1.5[0.059] 30  L  50 [1.97] 2.3[0.091] 50  L  80 [3.15] 3.0[0.118] 80  L  120 [4.73] 3.8[0.150] 120  L  180 [7.09] 4.5[0.177] 180  L  250 [9.85] 6.0[0.236] (Note) Tolerances of dimensions for which tolerances are not indicated conform to the standard tolerance in the table above.

Photograph of the main board of SE1-HU Fig. TOP View Fig. BOTTOM View Internal Photo of SE1-HU Fig. Internal Photo of SE1-HU (TOP side) Fig. Internal Photo of SE1-HU (BOTTOM side) Fig. Internal Photo of SE1-HU (The antenna is stuck inside of the front part of case.)

Test report No. : 4786002526H-A Page : 2 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 4786002526H-A Revision Test report No. Date Page revised Contents - (Original) 4786002526H-A March 11, 2013- - Test report No. : 4786002526H-A Page : 3 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................................. 8 SECTION 5: Conducted emission ..................................................................................................... 10 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) ...... 11 SECTION 7: Other test ...................................................................................................................... 12 APPENDIX 1: Data of EMI test ........................................................................................................ 13 Conducted emission .............................................................................................................................................................. 13 Fundamental emission and Spectrum Mask....................................................................................................................... 14 Spurious emission ................................................................................................................................................................. 15 Frequency Tolerance ............................................................................................................................................................ 18 APPENDIX 2: Test instruments ........................................................................................................ 19 APPENDIX 3: Photographs of test setup ......................................................................................... 20 Conducted emission .............................................................................................................................................................. 20 Radiated emission ................................................................................................................................................................. 21 Worst Case Position .............................................................................................................................................................. 22 Test report No. : 4786002526H-A Page : 4 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : DENSO WAVE INCORPORATED Address : 1, Yoshiike, Kusaki, Agui-cho, Chita-gun, Aichi, 470-2297 Japan Telephone Number : +81-569-49-5342 Facsimile Number : +81-569-49-5488 Contact Person : Osamu Nakashima SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : RFID TAG Handy Reader Write Model No. : SE1-HU Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : February 15, 2013 Country of Mass-production : Japan Condition of EUT Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : MAIN 20MHz (PLL:120 MHz), RF: 13.56MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 13.56MHz Modulation : ASK Power Supply (inner) : DC 5V Antenna type : Loop Coil Antenna Gain : -79.05dBi Operating Temperature : -0deg.C to 40deg.C Test report No. : 4786002526H-A Page : 5 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : Test specification: FCC Part 15 Subpart C: 2012, final revised on December 27, 2012 and effective January 28, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 : Operation within the band 13.110-14.010MHz * The EUT complies with FCC Part 15 Subpart B:2012, final revised on December 27, 2012 and effective January 28, 2013. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 [QP] 3.7dB (13.56006MHz, L) [AV] 0.7dB (13.56006MHz, l) Complied Conducted <IC>RSS-Gen 7.2.2 <IC>RSS-Gen 7.2.2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.225(a) 70.9dB 13.56000MHz, QP, 90deg. Complied Radiated <IC> RSS-Gen 4.8, 4.11 <IC>RSS-210 A2.6 Spectrum Mask ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.225(b)(c) 44.0dB 14.01000MHz, QP, 90deg. Complied Radiated <IC>RSS-Gen 4.9, 4.11 <IC> RSS-210 A2.6 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section15.215(c) See data Complied Radiated <IC> - <IC> -…

Text truncated - open the document above for the full version.

Test report No. : 4786002526H-A Page : 20 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted emission Photo 1 Photo 2 Test report No. : 4786002526H-A Page : 21 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Photo 1 Photo 2 Test report No. : 4786002526H-A Page : 22 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Below 30MHz Y-axis Above 30MHz Horizontal:Z-axis / Vertical:Z-axis X-axis Y-axis Z-axis Test report No. : 4786002526H-A Page : 23 of 23 Issued date : March 11, 2013 FCC ID : PZWSE1HU001 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 With Tag With Square type Tag With Cylinder type Tag End of Report
