Q23104001Wireless Bluetooth module

Never stop thinking. Data Sheet, DS3, June, 2003 Wireless Solutions ROK104001 Bluetooth TM System Module Edition 2003-06-16 Published by Infineon Technologies AG, St.-Martin-Strasse 53, 81669 München, Germany © Infineon Technologies AG 2003. All Rights Reserved. Attention please! The information herein is given to describe certain components and shall not be considered as warranted characteristics. Terms of delivery and rights to technical change reserved. We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and charts stated herein. Infineon Technologies is an approved CECC manufacturer. Information For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office in Germany or our Infineon Technologies Representatives worldwide ( www.infineon.com ). Warnings Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office. Infineon Technologies Components may only be used in life-support devices or systems with the express written approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may be endangered. For questions on technology, delivery and prices please contact the Infineon Technologies Offices in Germany or the Infineon Technologies Companies and Representatives worldwide: see our webpage at http://www.infineon.com. ROK104001 Revision History:2003-06-16DS3 Previous Version:2003-05-16DS2 PageSubjects (major changes since last revision) Updated Information on FCC and R&TTE Approval, Updated section 3.6.8 on Power Management 2003-June Document has been updated: 2003-May Document’s layout has been changed: 2003-Feb. ROK104001 Data Sheet3DS1, 2003-02-01 1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.1Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 1.2Reference documents for ECP firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.1Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2Pin Definition and Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1Functional Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2Design Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.1Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.2Baseband . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.3Voltage Regulation Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.4Crystal Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2.5Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.3Module HW Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.3.1Host Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.3.1.1UARTs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.4Other Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.4.1Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.4.2General Purpose I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.4.3PCM Voice Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.4.4Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.5Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.5.1Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.5.2Bluetooth Module Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.5.3LM & HCI Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.5.4Host Controller Interface (HCI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3.5.5Link Manager (LM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.6Design Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.6.1Power-up Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.6.2RESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.6.3Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.6.4Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.6.5Shielding / EMC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 3.6.5.1PCB Design Rules . . . . . . .…

Text truncated - open the document above for the full version.

MESSAGE 1 (1) Prepared (also subject responsible if other) No. MICMRBS MIC/AD/RQ-02:003 Approved Checked Date Rev Reference MIC/AD/RQ (R Borchers) 2002-05-21 B COMPONENT COMPATIBILITY Regarding the components in ROK 104 001 and TVK 1280084 (prodno. LPY 111 352) the following applies. - The crystal is identical in the two modules/designs. - The voltage regulator is fully compatible except regarding max supply voltage which is 16V for the LP2985 (on TVK 1280084) and 6V for the LP3985 (on ROK 104 001). Fully compatible means that all characteristical data are almost identical and the small differences do not affect the radio performance. We have been using both types during development of ROK 104 001 without finding any differences in the module’s/designs data. Roger Borchers Manager Component Engineering

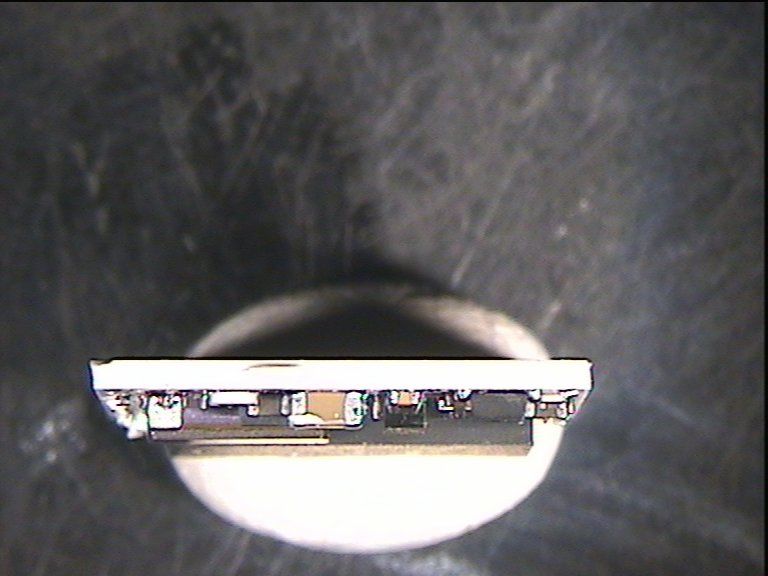

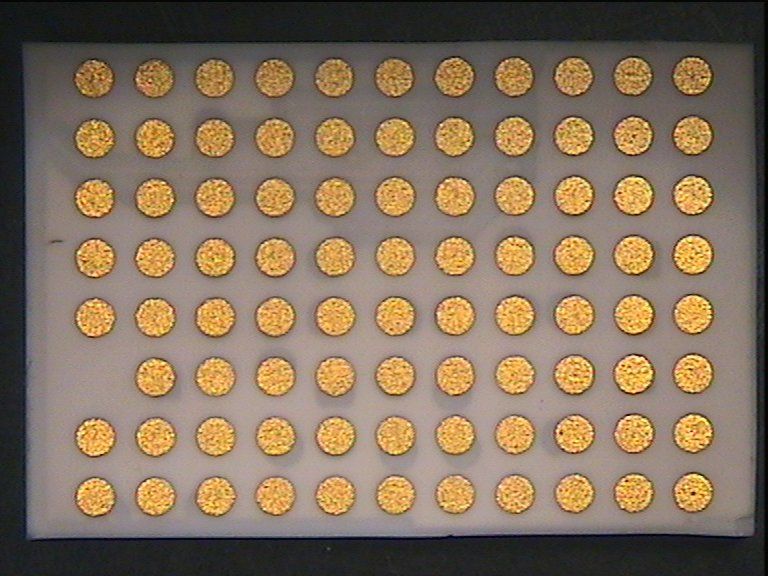

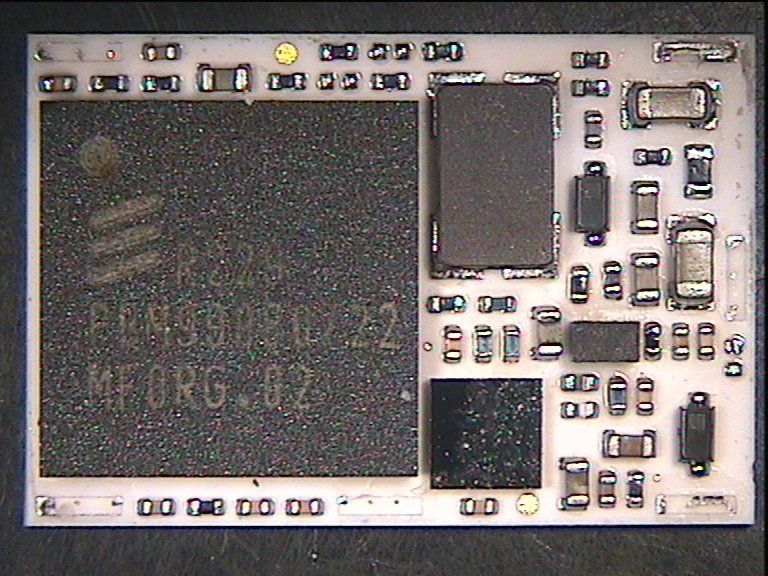

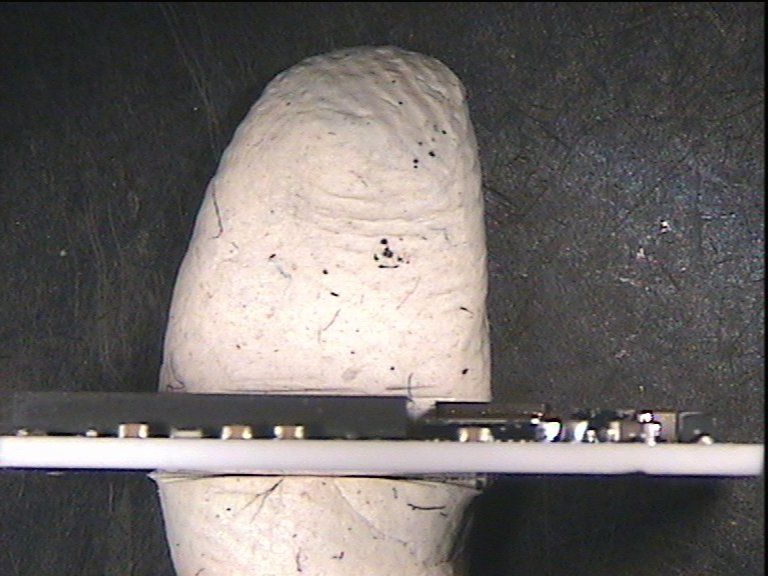

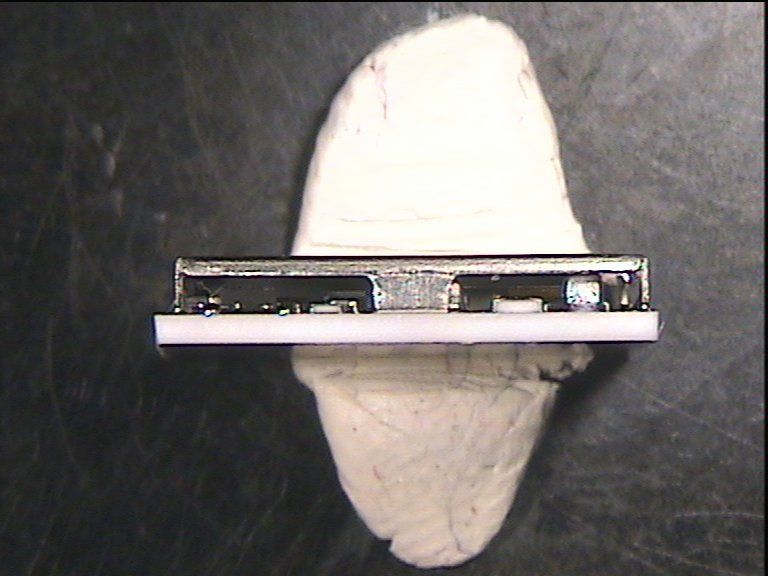

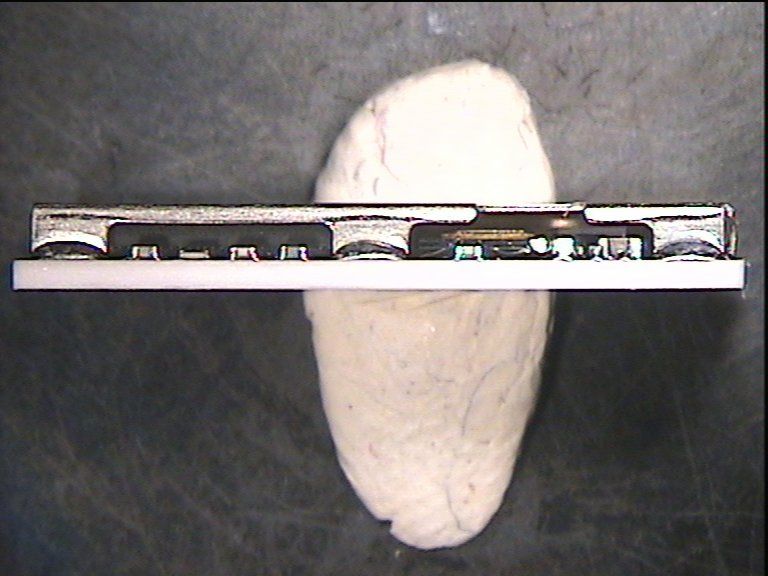

Registergericht h registered in:Vorstand h Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany Aufsichtsratsvorsitzende h Dr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Peter de Wit 30. April 2003 Phone +31 (0) 6 22 47 00 55 Fax +31 (0) 46 442 2192 request for a modular approval - FCC ID: Q23 104001 Dear Application Examiner, Infineon Technologies of München, Germany, are seeking for FCC authorization for the use of their device “ROK 104001” as a modular transmitter. The requirements of the FCC Public notice DA00-1407 are met. The following requirements are fulfilled: 1. The modular transmitter must have its own RF shielding The radio portion of the module is contained in its own RF shielding. See photos in exhibits. 2. The modular transmitter must have buffered modulation/data inputs The modulation/Data inputs are buffered. 3. The modular transmitter must have its own power supply regulation The modular transmitter has its own power supply regulation. FCC Federal Communications Commission Project name: 4_INFIN_0203_BTT - 2 - 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The transmitter shall only be used with the tested antenna. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in the requested a stand-alone configuration. 6. The modular transmitter must be labelled with its own FCC ID number The EUT will be labelled with its own FCC ID number. The label is specified in related exhibit. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. The maximum measured power output is 1,41 mW (1,5 dBm), the maximum antenna gain is 1,6 dBi = numeric gain 1,445 (see also FCC test report) The maximum permissible exposure is defined in 47 CFR 1.1310 with 1 mW/cm². The distance from the EUT's transmitting antenna where the exposure level reaches the maximum permitted level is calculated using the general equation: S = P*G / 4πR² S max = 1mW/cm², P = 1,41 mW, linear power gain relative to the isotropic radiator = 1,6 dBi = 1,445 (numeric gain), R = distance in cm Solving for R, the 1mW/cm² limit is reached in a distance of 0,40 cm to the transmitting antenna. After installation of Infineon Bluetooth module “ROK 104001”, the minimum distance of 0,40 cm must always be ensured. During normal use of this device it is impossible that the user gets closer to the transmitting antenna. Please contact us if you have any additional questions. Best Regards 7layers AG

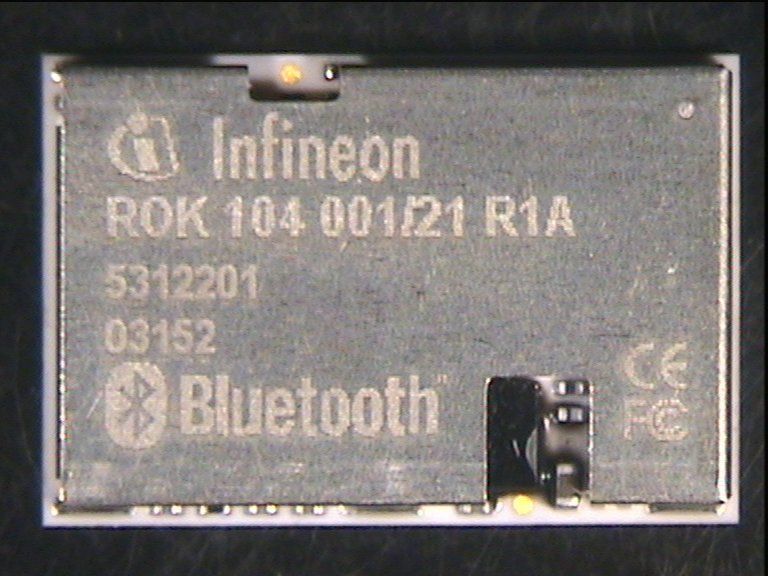

Internal information MARKING INSTRUCTIONS 1 (3) Prepared (also subject responsible if other) No. IFWS OP PAO (Kristofer Holst) 151 86-ROK104001 Uen Approved Checked Date Rev Reference IFWS OP PAO (Monica Hagman) 2003-04-22 C Marking Instructions This marking specification is valid for all ROK104001 modules. 1 Quality Marking shall be permanent and readable by the naked eye. 2 The Infineon logotype The Infineon logotype shall be expressed in a precise form. It may not be changed. 3 Text demands The font shall be Arial Narrow and bold. 4 Marking Each module shall be marked with the following information printed on the shield. Marking Description 1: Infineon logotype. 2: < ROK 104 001/2 R1A> Product number with suffix and revision state acc to purchase order. 3: <bbbbbbb> Batch number 4: <yyww2> Manufacturing year (yy), week (ww) and factory code (2) 5: Bluetooth logotype. Available in the 1/1424- SVF191065Uen 6: CE-logo. Available in archive 2/1424- SVF191065Uen 7: FCC ID: Q23104001 FCC No. Internal information MARKING INSTRUCTIONS 2 (3) Prepared (also subject responsible if other) No. IFWS OP PAO (Kristofer Holst) 151 86-ROK104001 Uen Approved Checked Date Rev Reference IFWS OP PAO (Monica Hagman) 2003-04-22 C 5 Marking example ROK 104 001/2 P1A bbbbbbb FCC ID: Q23104001 yyww2 Pin 1 Internal information MARKING INSTRUCTIONS 3 (3) Prepared (also subject responsible if other) No. IFWS OP PAO (Kristofer Holst) 151 86-ROK104001 Uen Approved Checked Date Rev Reference IFWS OP PAO (Monica Hagman) 2003-04-22 C 6 Revision information Rev Description Date A New document 2002-11-26 B Changed to 7 figure batch.No 2003-04-02 C Changed marking of product No & added FCC ID 2003-04-23 7 Annex 7.1 Access The document is stored in LIS1, access level IFWS. 7.2 Review

TECHNICAL DESCRIPTION Appliciant Company name: Infineon Technologies Street: St. - Martin-Str. 53 P.O.Box: Postal code/City: 81 541 Muenchen Contact person: Henrik Arfwedson (IFWS-Sweden) Phone: +46 (0)8 404 6244 Telefax: +46 (0)8 757 4210 e-mail: [email protected] Manufacturer Company name: Infineon Technologies Street: St. - Martin-Str. 53 P.O.Box: Postal code/City: 81 541 Muenchen, Germany Contact person: Henrik Arfwedson (IFWS-Sweden) Phone: +46 (0)8 404 6244 Telefax: +46 (0)8 757 4210 e-mail: [email protected] 3. Information on the radio equipment Manufacturer: Infineon Technologies Type designation: ROK 104001 Use of the equipment: wireless Bluetooth module Equipment category: short range device Frequency / Frequency range: 2400 - 2483.5 MHz Maximum transmitter output power: 1.6 dBm Number of channels and channel separation: 78, 1 MHz Modulation: FHSS Information on antenna: internal 1.6 dBi Duty cycle: maximum transmission: 92% Power supply: DC 3.3V Applicable standards: FCC Part 15, Subpart C 10-1-98 ITU Class: 78 MOF 1D

Registergericht h registered in:Vorstand h Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany Aufsichtsratsvorsitzende h Dr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Peter de Wit 30. April 2003 Phone +31 (0) 6 22 47 00 55 Fax +31 (0) 46 442 2192 RF exposure requirements - FCC ID: Q23 104001 Dear Application Examiner, The maximum measured power output is 1,41 mW (1,5 dBm), the maximum antenna gain is 1,6 dBi = numeric gain 1,445 (see also FCC test report) The maximum permissible exposure is defined in 47 CFR 1.1310 with 1 mW/cm². The distance from the EUT's transmitting antenna where the exposure level reaches the maximum permitted level is calculated using the general equation: S = P*G / 4πR² S max = 1mW/cm², P = 1,41 mW, linear power gain relative to the isotropic radiator = 1,6 dBi = 1,445 (numeric gain), R = distance in cm Solving for R, the 1mW/cm² limit is reached in a distance of 0,40 cm to the transmitting antenna. After installation of Infineon Bluetooth module “ROK 104001”, the minimum distance of 0,40 cm must always be ensured. During normal use of this device it is impossible that the user gets closer to the transmitting antenna. Please contact us if you have any additional questions. Best Regards 7layers AG FCC Federal Communications Commission Project name: 4_INFIN_0203_BTT

Data sheet Bluetooth ™ Swivel Antenna PCB Bluetooth ™ Swivel Antenna SMA Omnidirectional for optimal radiation performance Length: 50 mm Art No: 6076019 Art No: 6069019 PCBSMA λ This is our standard Swivel Antenna intended for use with all 2.4 GHz applica- tions where very high performance is of utmost importance and a small foot- print is of lesser consideration. Since this is a half-wave antenna, it is indepen- dent of ground plane and the design minimizes special considerations for its placement. Typical application areas are: • Desktop PCs • Printers • Instruments • Network access points • Development prototypes Description The Bluetooth Swivel Antenna is a half-wave ( 2 ) antenna for external or internal mounting. Two designs are available: • provided with a standard SMA connector. • soldered directly on the PCB allowing the radiator to be placed outside the casing. No external matching network is required. The adjustable radiator is made of a flexible material and can be rotated 360 degrees in order to optimize radiation performance. gigaAnt, E-mail: [email protected], www.gigaAnt.com Specification subject to change without notice , FE 010012 Your strategic partner for antenna technology in the 2.4 GHz frequency band. Antenna specification Frequency:2.4-2.5 GHz Efficiency:75% Gain:1.6 dBi Nominal impedance:50Ω VSWR:<1.5:1 Connector:SMA Male/Soldered directly on PCB Mounting:Case or PCB Operating temperature:-25 °C – +70 °C Relative humidity:95% at 30 °C Weight:SMA 7.4 g, PCB 5.0 g Dimensions PCB version Mounting interface for PCB version (mm) Dimensions SMA version (mm) 49 52.9 19.420 18.420 61.5 48.5 Article No. SMA Swivel 6069019, PCB Swivel 6076019 3D Radiation pattern -25 dBi -15 dBi -5 dBi 5 dBi 30 210 60 240 90 270 120 300 150 330 1800 -25 dBi -15 dBi -5 dBi 5 dBi 30 210 60 240 90270 120 300 150 330 180 0 Horizontal cut, xy-plane Vertical cut, xz-plane

EMC Measurement/Technical Report 4_Infin_0203_BTT_FCCa on 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Flinkstone ROK 104001 Registergericht - registered in: Düsseldorf, HRB 44096 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99 Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Measurement Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 -- 11 14 17 28 31 33 34 Spurious RF Radiated Emissions 19 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation Processing Gain 23 25 27 -- 4.2 4.2 4.4 4.5 4.6 4.7 4.8 -- 8. Annex measurement plots25 Pages Page 2 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 58 Testreport Reference: 4_Infin_0203_BTT_FCCa 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result 21s60b01op-mode 1temporary antenna connectorpassed 21s60b01op-mode 2temporary antenna connectorpassed 21s60b01op-mode 3temporary antenna connectorpassed 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result 21s60b01op-mode 1temporary antenna connectorpassed 21s60b01op-mode 2temporary antenna connectorpassed 21s60b01op-mode 3temporary antenna connectorpassed 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result 21s60b01op-mode 1temporary antenna connectorpassed 21s60b01op-mode 2temporary antenna connectorpassed 21s60b01op-mode 3temporary antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result 21s60b02op-mode 1enclosurepassed 21s60b02op-mode 2enclosurepassed 21s60b02op-mode 3enclosurepassed § 15.247(f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Dwell Time OP-ModeSetupPortFinal Result 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (d)FCC Part 15, Subpart C Page 4 of 58 Testreport Reference: 4_Infin_0203_BTT_FCCa FCC §15.3110-1-1998 The measurement was performed according to Power Density OP-ModeSetupPortFinal Result 21s60b01op-mode 4temporary antenna connectorpassed 21s60b01op-mode 5temporary antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result 21s60b01op-mode 6temporary antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 20.02.2003 Arndt Stöcker 25.02.2003 20.02.2003 - 24.02.2003 Responsible for testing and report Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Infineon Technologies Wireless Solution Sweden AB Henrik Arfwedson Isafjordsgatan 16 164 81 Kista-Stockholm Sweden please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 58 Testreport Reference: 4_Infin_0203_BTT_FCCa 2.0 Product Labeling 2.1 FCC ID Label: At the time of the report there was no FCC label available. 2.2 Location of Label on the EUT: see above Page 7 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa 3. Testobject Data Type Designation: Kind of Devi…

Text truncated - open the document above for the full version.

6. Foto Report Picture1EUT: Picture2setup for conducted tests (21s60b01): Page 31 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa Picture3setup for radiated tests (21s60b02): Picture4setup for radiated spurious emissions test: Page 32 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa 7. Setup Drawings Drawing 1general test setup: Page 33 of 58Testreport Reference: 4_Infin_0203_BTT_FCCa
