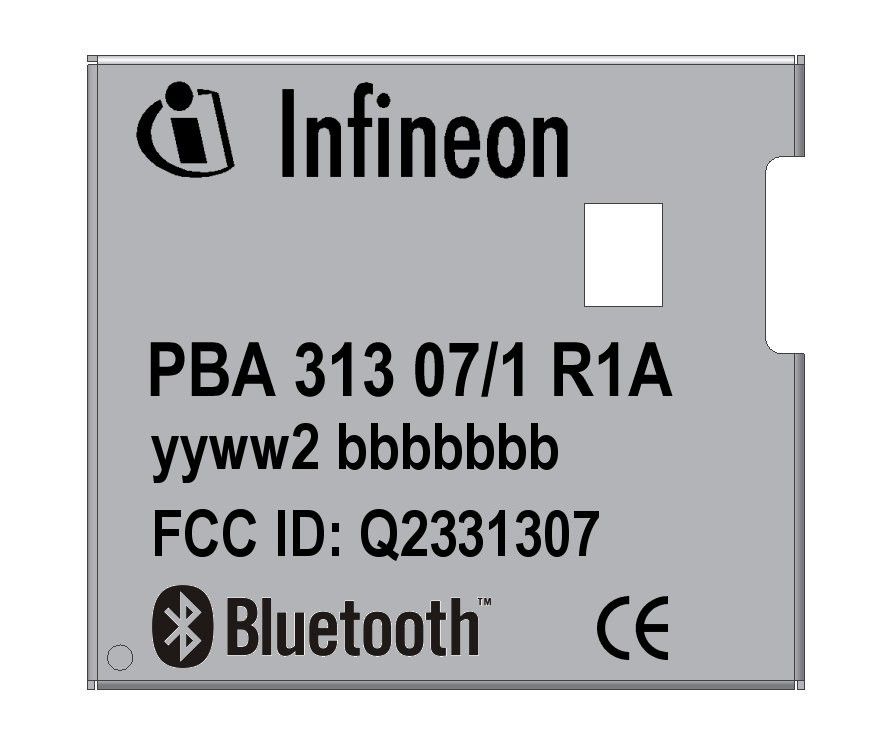

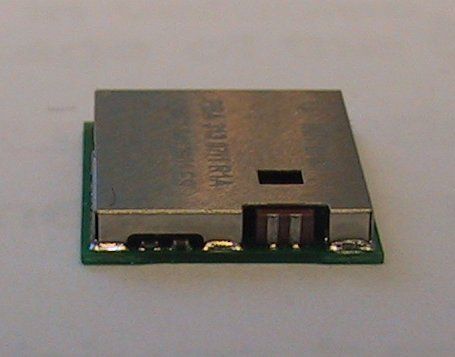

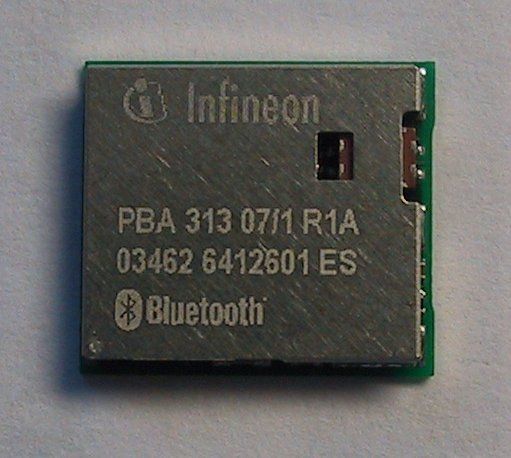

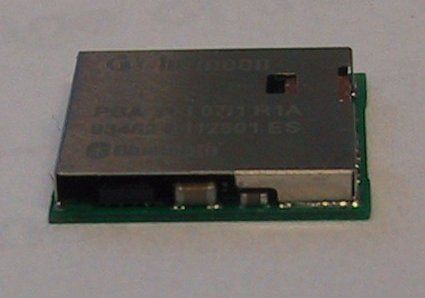

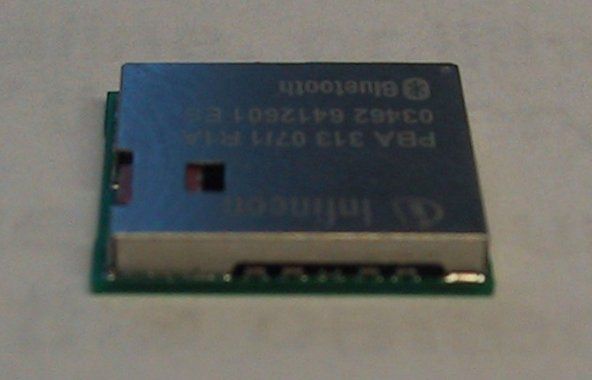

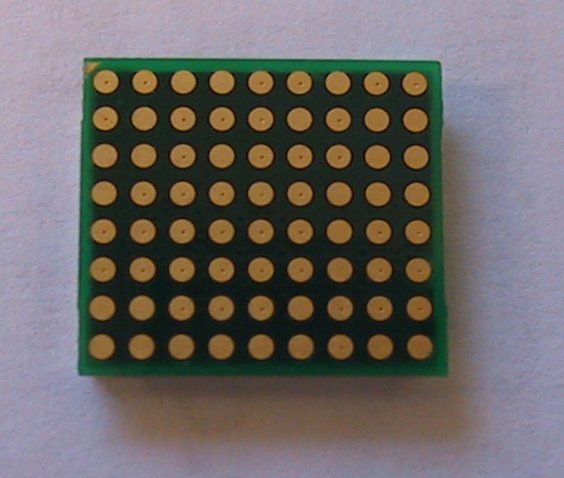

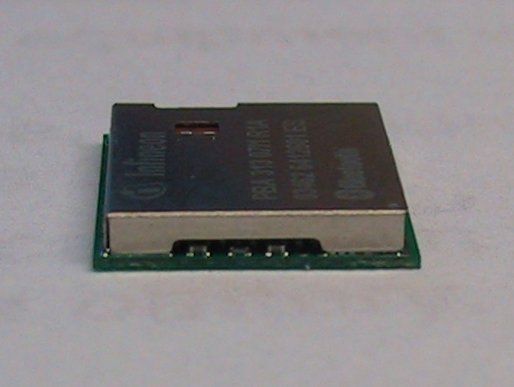

Q2331307Wireless Bluetooth module

Intel Mobile Communications GmbH

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: May 03, 2004
Application Purpose: Original Equipment
Date of Application: May 03, 2004
Equipment Note: Wireless Bluetooth module
Frequency Range: 2402.00000000 - 2480.00000000
Company: Intel Mobile Communications GmbH
Country: Germany

Documents & Files

Select a file to view

Internal Photos

Operational Description

RF Exposure Info

↗

Test Report

↗

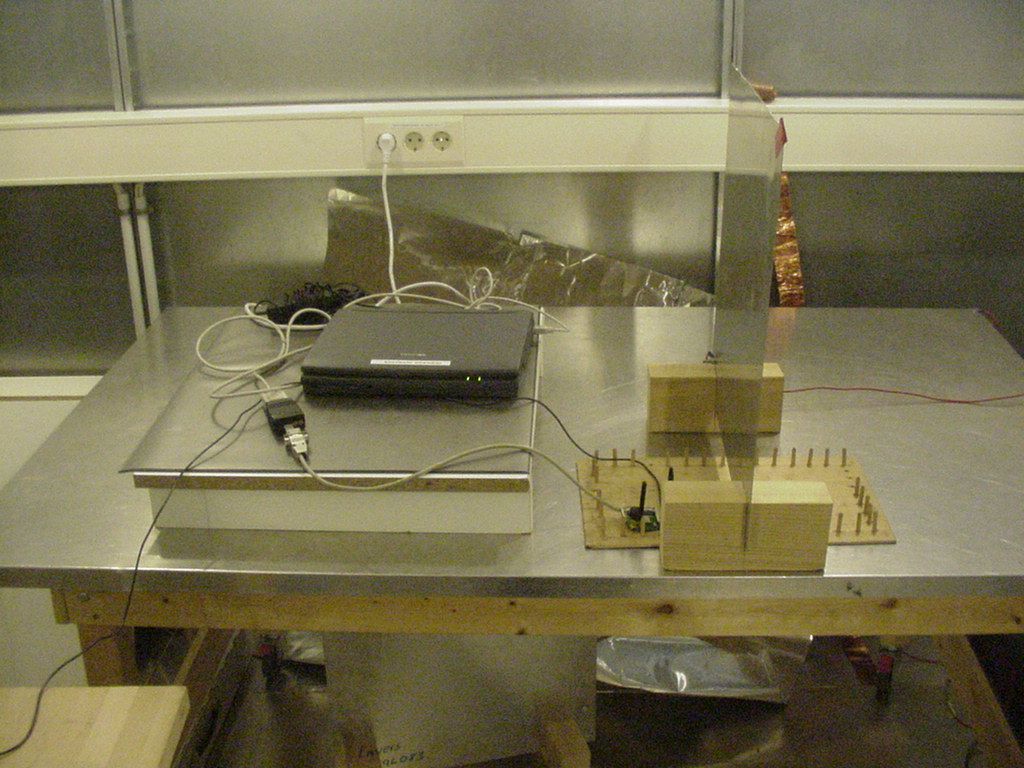

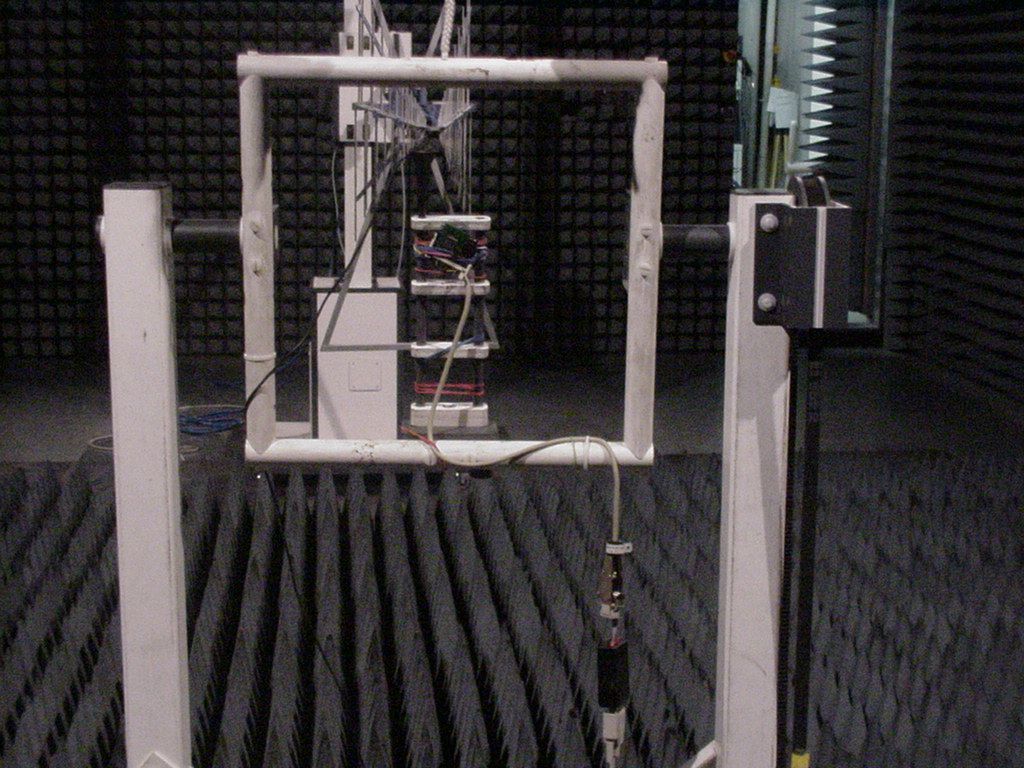

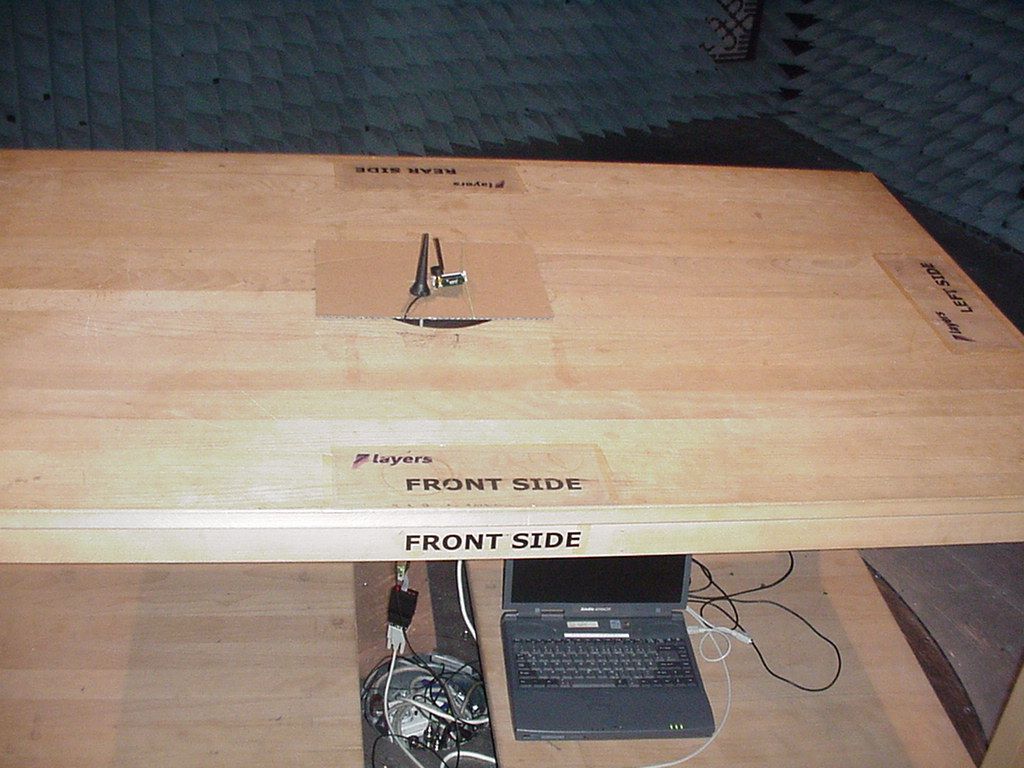

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Preliminary Data Sheet, 11/2001 CONFIDENTIAL Never stop thinking. Secure Mobile Solutions Preliminary Product Overview T3130-7V10PO1-7600 Apr-2004 PBA 313 07 Singlestone Singlestone PBA 313 07 Preliminary Product Overview 4/2004 2 For questions on technology, delivery and prices please contact the Infineon Technologies Offices in Germany or the Infineon Technologies Companies and Representatives worldwide: see our webpage at http://www.infineon.com ABM ® , AOP ® , ARCOFI ® , ARCOFI ® -BA, ARCOFI ® -SP, DigiTape ® , EPIC ® -1, EPIC ® -S, ELIC ® , FALC ® 54, FALC ® 56, FALC ® -E1, FALC ® -LH, IDEC ® , IOM®, IOM®-1, IOM®-2,IPAT ® -2, ISAC ® -P, ISAC ® -S, ISAC ® -S TE, ISAC ® -P TE, ITAC ® , IWE ® , MUSAC ® -A, OCTAT ® -P, QUAT ® -S, SICAT ® , SICOFI®, SICOFI®-2, SICOFI®-4, SICOFI®-4μC, SLICOFI®, are registered trademarks of Infineon Technologies AG. ACE ™ , ASM ™ , ASP ™ , POTSWIRE ™ , QuadFALC ™ , SCOUT ™ are trademarks of Infineon Technologies AG. BLUETOOTH TM is a trademark owned by its proprietor and used by Infineon Technologies AG under license. Edition 4/2004 Published by Infineon Technologies WS Sweden AB, Isafjordsgatan 16 SE-164 81 Kista © Infineon Technologies AG All Rights Reserved. Attention please! The information presented in this document does not constitute a part of any quotation or contract. Infineon Technologies especially emphazises the following: As far as patents or other rights of third parties are concerned, liability is expressly excluded for applications, processes and circuits implemented within components or assemblies. The information describes the type of component and shall not be considered as assured characteristics or representation. Terms of delivery and rights to change design reserved. Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office. Infineon Technologies AG is an approved CECC manufacturer. Packing Please use the recycling operators known to you. We can also help you - get in touch with your nearest sales office. By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs incurred. Components used in life-support devices or systems must be expressly authorized for such purpose! Critical components 1 of the Infineon Technologies AG, may only be used in life-support devices or systems 2 with the express written approval of Infineon Technologies AG. 1 A critical component is a component used in a life-support device or system whose failure can reasonably be expected to cause the failure of that life-support device or system, or to affect its safety or effectiveness of that device or system. 2 Life support devices or systems are intended (a) to be implanted in the human body, or (b) to support and/or maintain and sustain human life, such as, for example, in medical, air traffic, defense, or life-sustaining automotive applications. If they fail, it is reasonable to assume that the health of the user or another person may be endangered. Exclusion of Warranty and Liability The Software is provided "as is" and Infineon gives no warranty - expressly or implied - of any kind, including, but not limited to, warranties of merchantability or fitness for a particular purpose, nor does Infineon assume any liability whatsoever as to the performance of the Software. In addition, Infineon assumes no responsibility for the ability of the customer to use this Software for the purpose it was provided for, nor does Infineon assume responsibility for any claims, including, but not limited to, claims of infringement of intellectual property rights of third parties, arising from the customer's use of the Software. Singlestone PBA 313 07 Preliminary Product Overview 4/2004 3 Table of Contents 1Introduction......................................................................................................................5 2General Device Overview..............................................................................................6 2.1General Features.............................................................................................................7 2.2Block diagram.................................................................................................................8 2.3Typical application.........................................................................................................8 2.4Mechanical dimension and pad arrangement.................................................................9 2.5Module pin-out..............................................................................................................10 2.6Functional Block Diagram............................................................................................11 2.7System Integration and Applications............................................................................12 2.7.1General description..................................................................................................12 3Electrical Specifications.............................................................................................13 3.1Absolute Maximum Ratings..........................................................................................13 3.2Operating conditions....................................................................................................13 3.3Latch-up immunity........................................................................................................13 3.4Quality..........................................................................................................................13 3.5Capacitance..................................................................................................................14 3.6Current consum…

Text truncated - open the document above for the full version.

Block Diagram

Text truncated - open the document above for the full version.

Cover Letter(s)

Ersteller: U. Rodemeier Revision: 00 Erstelldatum: 3. August 2001 Datum: 3. August 2001 Seite 1 von 1 C:\PDF\PDF-IN\ApplicantLetter1 Agent Rev1.doc PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg To Whom It May Concern: Please be advised that Infineon authorizes 7 layers AG to act on our behalf, until otherwise notified, for applications submitted to PHOENIX TEST-LAB GmbH (PTL). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Henrik Arfwedson Head of Application Engineering (name and function of person signing) Stockholm 2004-03-15 _______________________ (place) (date) (signature)

Cover Letter(s)

Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR Infineon module, FCC-ID: Q2331307 To Whom It May Concern: This letter serves as an official request for confidentiality under the FCC Rule Section 0.459. We have requested that the schematic diagrams, Parts list, Block diagram and Description of Operational required to be submitted with this application be withheld from public review. The reason for this request is that these documents are company proprietary information that should never get into the possession of competitors, which would be harmful for our business. Do not hesitate to contact me if you have any additional questions. Thank you very much. Henrik Arfwedson Head of Application Engineering (name and function of person signing) Stockholm 2004-03-15 _______________________ (place) (date) (signature)

Cover Letter(s)

Commercial Power of Attorney Henrik Arfwedson Isafjordsgatan 16 SE-164 81 Kista Commercial Power of Attorney for the type approval / registration of the Flinkstone Bluetooth Module PBA 313 07 in several countries The company 7 layers, D-40880 Ratingen, has been contracted by Infineon Technologies Wireless Solutions Sweden AB to obtain „Radio Type Approvals“ for the following electronic components, manufactured and/or released by Infineon Technologies Wireless Solutions Sweden AB: PBA 313 07 Unless future correspondence from Infineon Technologies Wireless Solutions Sweden AB directs otherwise, please extend your full cooperation to 7 layers regarding matters to the above mentioned products for the period beginning 01.01.04 through 31.12.04. Thank you. Henrik Arfwedson Head of Application Engineering (name and function of person signing) Stockholm 2004-01-13 _______________________ (place) (date) (signature)

Cover Letter(s)

Registergericht registered in:VorstandBoard of Directors:7 layers AG, Borsigstrasse 11 Ratingen, HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendeDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7Layers.com Torsten Lohoff 17. March 2003 Phone +49 2102 749350 Fax +49 2102 749306 request for a modular approval - FCC ID: Q2331307 Dear Application Examiner, Infineon Technologies of München, Germany, are seeking for FCC authorization for the use of their device “Singlestone PBA 313 07” as a modular transmitter. The requirements of the FCC Public notice DA00-1407 are met. The following requirements are fulfilled: 1. The modular transmitter must have its own RF shielding The radio portion of the module is contained in its own RF shielding. See photos in exhibits. 2. The modular transmitter must have buffered modulation/data inputs The modulation/Data inputs are buffered. 3. The modular transmitter must have its own power supply regulation The modular transmitter has its own power supply regulation. FCC Federal Communications Commission Project name: 4_INFIN_0703_BTT - 2 - 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The transmitter shall only be used with the tested antenna. 5. The modular transmitter must be tested in a stand-alone configuration The EUT was tested in the requested a stand-alone configuration. 6. The modular transmitter must be labelled with its own FCC ID number The EUT will be labelled with its own FCC ID number. The label is specified in related exhibit. If the module is installed inside of an end-product, the label will not be visible. In this case the OEM customer will be instructed to how to apply the exterior label. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. After installation of Infineon Bluetooth module “Singlestone PBA 313 07”, the minimum distance of 0,515 cm must always be ensured. During normal use of this device it is impossible that the user gets closer to the transmitting antenna. Please see also provided RF exposure calculations. Please contact us if you have any additional questions. Best Regards 7layers AG

RF Exposure Info

Test Report

EMC Measurement/Technical Report on 4_Infin_0703_BTT_FCCa 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Bluetooth(R) Transceiver Singlestone PBA 313 07 Registergericht - registered in: Düsseldorf, HRB 44096 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Wolfgang Dahm Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Test Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 -- 11 14 17 28 31 33 35 Spurious RF Radiated Emissions 19 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation Processing Gain 23 25 27 -- 4.1 4.2 4.3 4.4 4.5 4.6 4.7 -- 8. Annex measurement plots25 Pages Page 2 of 59Testreport Reference: 4_Infin_0703_BTT_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all the applicable FCC rules as listed above. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 59 Testreport Reference: 4_Infin_0703_BTT_FCCa 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed setup 3op-mode 4temporary antenna connectorpassed setup 3op-mode 5temporary antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed setup 3op-mode 4temporary antenna connectorpassed setup 3op-mode 5temporary antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result setup 1op-mode 1temporary antenna connectorpassed setup 1op-mode 2temporary antenna connectorpassed setup 1op-mode 3temporary antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result setup 2op-mode 1enclosurepassed setup 2op-mode 2enclosurepassed setup 2op-mode 3enclosurepassed § 15.247(f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Dwell Time OP-ModeSetupPortFinal Result setup 3op-mode 4temporary antenna connectorpassed setup 3op-mode 5temporary antenna connectorpassed § 15.247 (d)FCC Part 15, Subpart C Page 4 of 59 Testreport Reference: 4_Infin_0703_BTT_FCCa FCC §15.3110-1-1998 The measurement was performed according to Power Density OP-ModeSetupPortFinal Result setup 3op-mode 4temporary antenna connectorpassed setup 3op-mode 5temporary antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result setup 3op-mode 6temporary antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 59Testreport Reference: 4_Infin_0703_BTT_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 29.10.2003 Robert Machulec 17.11.2003 29.10.2003 - 31.10.2003 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Infineon Technologies Wireless Solution Sweden AB Henrik Arfwedson Isafjordsgatan 16 164 81 Kista-Stockholm Sweden SE-164 81 Kista please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 59 Testreport Reference: 4_Infin_0703_BTT_FCCa 2.0 Product Labeling 2.1 FCC ID Label: At the time of the report there was no FCC label available. 2.2 Location of Label on the EUT: see above Page 7 …

Text truncated - open the document above for the full version.

Test Report

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7layers.com Annex Additional declaration part according FCC 15.247 for Bluetooth TM Devices Version: 2002-06-01 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 2 of 5 pages 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 3 of 5 pages 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviour for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 4 of 5 pages 7 Dwell time in data…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Steffen Buch(Program Manager Mobile Connectivity)

[email protected]+49 89 998853Fax: +49 89 99 9550706

Technical Contact

Infineon TechnologiesHenrik Arfwedson

[email protected]+46 8 404 6244

St. - Martin-Str. 53 · M�nchen · Germany

Non-Technical Contact

Infineon TechnologiesHenrik Arfwedson

[email protected]+46 8 404 6244

Test Firm

7layers AGRobert Machulec

[email protected]49-2102-749-313Fax: 49-2102-749-350

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	3.33 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Power listed is conducted. This modular transmitter is approved for use in computers and peripherals, handheld devices and accessories, industrial and medical sensors, access points and home base stations, and may operate in conjunction with other mobile and portable transmitters; provided, the other mobile and portable transmitters have satisfied the appropriate RF exposure requirements contained in the FCC rules. The grantee also must provide OEM integrators, or end users if marketed directly to end users, with installation and operating instructions for satisfying RF exposure requirements. The Grantee must inform second manufacturers/installers that in order for this module to be operated in any configuration other than that permitted in the preceding sentences, a separate FCC equipment authorization must be obtained for each device into which this module is installed. The only antennas approved for use with this module are those documented in the filing, and must be installed in the manner specified therein. If the Grantee does not provide an antenna with this module, it may not be sold to the end- user, but may be sold to a second manufacturer/installer. Instructions must be provided by the Grantee to the second manufacturer/installer that describe how this module must be installed into a final product in such a manner that only the authorized antenna(s) is (are) used, and it complies with the requirements of Section 15.203 (i.e., has either a permanently attached antenna or utilizes a unique connector). Compliance of this module in its final configuration is the responsibility of the Grantee. If the second manufacturer/installer desires to use an antenna with this module that has not been previously approved for use with it, then the Grantee must file a Class II permissive change to approve the new antenna with the module. Alternatively, the second manufacturer/installer may obtain a separate FCC equipment authorization for the module and the new antenna. If the second manufacturer/installer markets a device that does not comply with the Grantee instructions for antenna configuration without having obtained a separate FCC equipment authorization for the module and new antenna configuration, that device will be considered unauthorized equipment. Marketing of unauthorized equipment is prohibited by Section 2.803 of the FCC Rules.
