Q2FMM-5100PMaxon Australia 1X CDMA Voice/Data Modem

FCC Documentation 1/25 Maxon Proprietary : Restricted Distribution. This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement. Maxon Electronics Australia Pty. Ltd. 36A Gibson Avenue, Padstow, N.S.W. Australia Tel : +61 2 9707-2000 Facsimile : +61 2 9707-3328 URL : http//www.maxon.com.au User Manual CM-5100P CDMA 1X Network card Incorporating extracts of MM-5100P User Manual Version : 0.1 Date : JUL. 25, 2003 FCC Documentation- CM-5100P CDMA 1X Network card 2/25 Maxon Proprietary : Restricted Distribution. This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement. Maxon Electronics Australia Pty. Ltd. 36A Gibson Avenue, Padstow, N.S.W. Australia Tel : +61 2 9707-2000 Facsimile : +61 2 9707-3328 URL : http//www.maxon.com.au FCC RF EXPOSURE COMPLIANCE In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. This CDMA PCMCIA Card has been tested for FCC RF exposure hand and body SAR compliance with the MM-5100P PCMCIA Card form factor. In order to comply with FCC RF exposure requirements, the CDMA PCMCIA Card module must be operated with the MM-5100P PCMCIA Card form factor. The use of this device in any other type of host configuration may not comply with FCC RF exposure requirements and should be avoided. During operation, a 1.5cm separation distance should be maintained between the antenna, whether extended or retracted, and the user’s/bystander’s body (excluding hands, wrists, feet, and ankles) to ensure FCC RF exposure compliance. CAUTION Change or modification without the express consent of Maxon Electronics Australia Pty. Ltd. voids the user’s authority to use the equipment. This equipment has been tested and found to comply with the limits pursuant to Part 15.105 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference in radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna z Increase the separation distance between the equipment and the receiver z Contact Maxon Electronics Australia Pty. Ltd. Technical Support for assistance. FCC Documentation- CM-5100P CDMA 1X Network card 3/25 Maxon Proprietary : Restricted Distribution. This document is the sole and exclusive property of Maxon Australia. Not to be distributed or divulged without prior written agreement. Maxon Electronics Australia Pty. Ltd. 36A Gibson Avenue, Padstow, N.S.W. Australia Tel : +61 2 9707-2000 Facsimile : +61 2 9707-3328 URL : http//www.maxon.com.au Table of contents 1. Contact Information······························································································· 4 2. Product Overview ·································································································· 5 2.1 Overview........................................................................................................ 5 2.2 What is the CM-5100P CDMA network card ............................................... 5 2.3 Supplied accessories................................................................................... 5 3. Specifications ········································································································ 6 3.1 Mechanical Specifications ........................................................................... 6 3.2 Environment Specifications ........................................................................ 6 3.3 Electrical Specifications .............................................................................. 6 3.4 CDMA RF Specifications.............................................................................. 7 4. Instruction ·············································································································· 9 4.1 Supplied accessories................................................................................... 9 4.2 Getting started .............................................................................................. 9 5. Circuit description ······························································································· 14 5.1 CM-5100P CDMA 1X Network card circuit description ........................... 14 5.2 Power interface part ................................................................................... 15 5.3 Digital part ................................................................................................... 15 5.4 RF part ......................................................................................................... 16 6. Range of operating power levels and description of means for variation of operating power ··································································································· 20 7. Description of frequency determining a…

Text truncated - open the document above for the full version.

FCC Documentation- MM-5100P CDMA 1X Network card JUL.25, 2003 1/2 Maxon Electronics Australia Pty Ltd 36A Gibson Ave. Padstow NSW 2211 Tel : 02 9707-2000 Fax : 02 9707-3328 www.maxon.com.au MM-5100P BLOCK DIAGRAM FCC Documentation- MM-5100P CDMA 1X Network card JUL. 25, 2003 2/2 . Maxon Electronics Australia Pty Ltd 36A Gibson Ave. Padstow NSW 2211 Tel : 02 9707-2000 Fax : 02 9707-3328 www.maxon.com.au Block Diagram MM-5100P I F SAW DUX I F SAW I TM 2520 SW 0 90 F/2 CDMA LPF CDMA LPF GPS LPF GPS LPF GPS/CDMA ADC GPS/CDM A ADC Chi pX8 Chi pX8 TANK Ci rc u i t Si gnl e band VCO LOOP Fi l te r CDMA Antenna SBI &MODE CONTROL LO G I C PLL_CLKPLL_DATAPLL_EN SBI &MODE CONTROL LO G I C TX BPF LO O P Fi l te r HDET TCXO TX_AG C _AD J 183.6M H z 686.04~ 710.77M H z PAM RFT3100 367.2M H z Pout=24.5dBm 267.2M H z 138.6M H z 19.2M H z O utput Range : - 7 7 ~ 1 0 d B m 4 4 22 TRK_LO _ADJ DUX : Dupl exer BPF : Band Pass Fi l te r SAW : Surface Acousti c W ave LN A : Low Noi se Am pl i fi er PAM : Power Am pl i fi er M odul e PLL: Phase-Lock LoopVCO : Vol ta g e C o n tro l l ed O sci l l ator ADC: Anal og to Di gi ta l Converter TX I L: 2.5dB RX I L:4.0dB TX attn: 40dBRX atten:55dB I L: 3dB I L: 12dB I L : 3dB DUAL PLL LOOP Fi l te r 3 PLL 0 9 0 /2 R X_AG C _AD J SBDTSBCKSBST PA_ON NF:7.0dBGai n:12dB I & Q o ffs e t RX_I DATA RX_Q DATA SBDTSBCKSBST SLEEP 3 3 DAC_I REF CX77105 FSRS836C1(LG ) (FSM S0183B2) (EFSD 836M CS3) PLL USB 1.1 HK ADCs UART1UART2 Vol ta g e Regul ator gpsO ne Processor ARM 7TDM I Bl urtooth Baseband Processor Vocoder EVRC 13k MP3 MI DI Q D SP2000 MMC Control l er VC-TCXO(1 9 .2 M H z) ANSI /I EEE 1149.1A-1993 JTAG I nterface Memory Fl ash: 32M b SRAM :8M b (SV5C3238UTA-85I ) Si l i con7 Mi croprocessor Bus Address/Data MSM5100 (M o b i l e Stati on M odem ) Tem p. sensorVol ta g e s e n s o r HDET CDMA Processor TX_Q ,TX_Q /TX_I ,T X _ I / SBDT SBCK SBST SBI I ntegrated CODEC Enhanced General Purpose I nterface RS-232 seri al Bus R F c o n tro l s Recei ved D ata RF I nterface LD O I out=1A Vout=3.8V 2.8V 2.7V TX Bl ock RX Bl ock TCXO ,I FR3300 PAM LN A_G AI N PA_O N PA_R0 TX DACs Sl eep X-tal (32.768KH z) TANK Ci rc u i t B uzzer R-UI M Control l er LD OLD O LD O 2.85V LD O 3.0V LD O 3.0V B uzzer dri ver LED s (2 e a ) RESET I DLE TCXO _EN SLEEP PS_HOLD 3.8V 2 8 CDMA Engi ne /2 (FSRS881C1) RX BPF LNA Mi xer 1372.08~ 1419.54M H z NF:1.2dBGai n:16dB BPF 2 2 DFM Processor 3 Debug Port UART wi th i ntegrated PCM CI A bus I nterface ` 1.8432M H z PCM CI A I nterface Connector RF sw i tc h

EXHIBIT C - EUT PHOTOGRAPHS DELL Notebook – Front View DELL Notebook – Top View DELL Notebook – Bottom View DELL Notebook – Rear View DELL AC Adapter View IBM Notebook – Front View IBM Notebook – Top View IBM Notebook – Bottom View IBM Notebook – Rear View IBM AC Adapter View SONY Notebook – Front View SONY Notebook – Top View SONY Notebook – Bottom View SONY Notebook – Rear View SONY AC Adapter View EUT – Length View EUT – Width View

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Top Side the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: Q2FMM-5100 This device complies with Part15 if the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersired operation. 2.1875" 1.0" FCC ID: Q2FMM-5100P

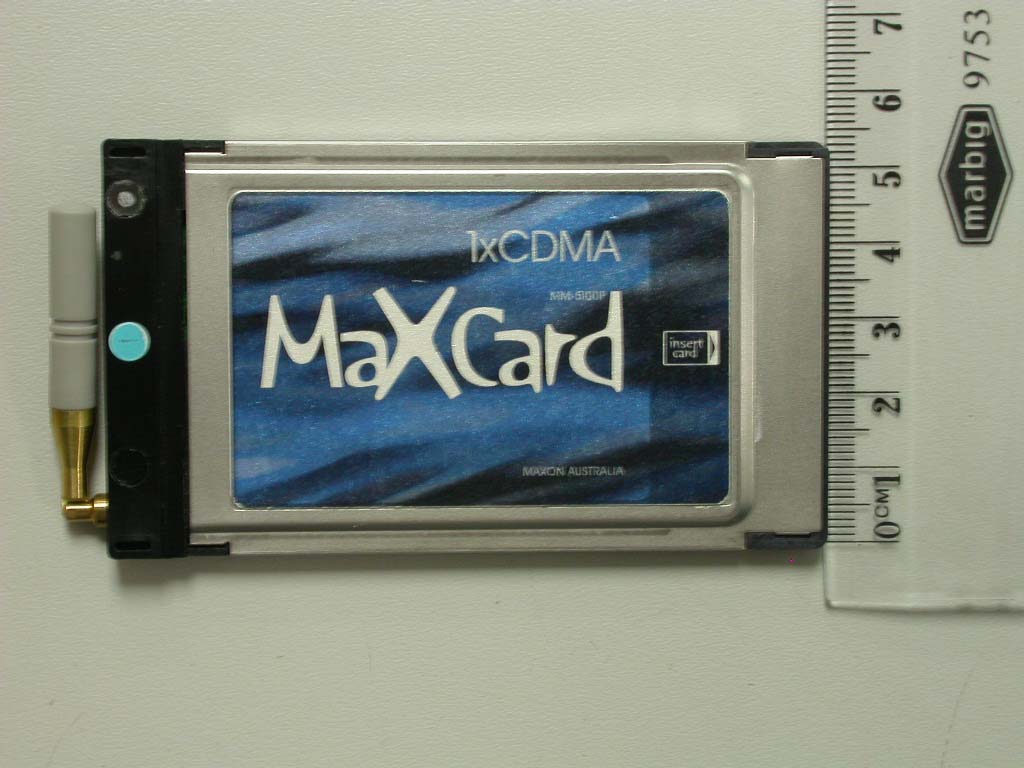

EUT – Top View EUT – Bottom View EUT – Component without Shielding

ANTENNA SPECIFICATION MODEL CMP-836M894 FREQUENCY RANGE 824 ~ 894MHz IMPEDANCE 50 ohm (NOMINAL) GAIN 1dBi ± 1dB VSWR <= 1:2.0 SIZE 60.3 * Φ6 RADIATION PATTERN [824MHz: Azimuth] [859MHz: Azimuth] [894MHz: Azimuth] [824MHz: Elevation] [859MHz: Elevation] [894MHz: Elevation]

MODEL NAME : MM-5100P VERSION : 0.1A DATE : 2003.07.25 1-1case assembly 1-2network card assembly NO LEVELDESCRIPTIONPART NO.Q'tyREFERENCE NO 1 1-1 11-1-1Antenna Assembly1 21-1-2Cover Upper Type 2,T=0.2180-9180-4000-00-000S1 31-1-3Cover Lower Type 280-9180-4100-00-000S1 41-1-4I/O Assmebly,L.C.P1 51-1-5Shield case,FrameC5210S-1/2H,0.2T2 61-1-6sheet 7 1-2 81-2-1RCC,6L,Build-up, C-typePCB1 91-2-2MODEM PROCESSORMSM51001U400 10 1-2-3RX TRANSCEIVERIFR33001U101 11 1-2-4TX TRANSCEIVER RFT3100-1 (RFT3100C32BCCP1TR) RFT3100-2 1U300 12 1-2-5DUAL BAND LNA+MIXERITM25201U100 13 1-2-63208 MCP(FLASH+SRAM)SV5C3238UTA-85I1U401 14 1-2-7VC-TCXORTVY-124DF327T-S-19.2001U102 15 1-2-8PLL ICS1M8838X-NOTO-409NMC1U103 16 1-2-9SAW DUPLEXEREFSD836MC5S31DUX100 17 1-2-10RX RF SAW FILTERFSRS0881C11FL100 18 1-2-11TX RF SAW FILTERFSRS0836C11FL300 19 1-2-12RX IF SAW FILTERFSMS0183B21FL101 20 1-2-13NTC THERMISTOR2322_615_336831TH400 21 1-2-14DUAL BAND VCOVC-2R8A90-13951U104 22 1-2-15POWER AMPLIFIERCX77105-16P1U301 23 1-2-16RF SwitchMM8430-2600B1CON101 24 1-2-17EAR-JACK ConnectorEPJ1-5-A-DD1EPJ700 25 1-2-18PCMCIA Connector20-9180-068-009-0021CON700 26 1-2-19LO BUFFER AmplifierMAAMSS0005TR1U303 27 1-2-20USB TRANSCEIVERISP1105W1U403 28 1-2-21TVS arrays 5VPSMF056U710, U711, U712, U713,U714, U715 29 1-2-22Flip Chip TVS array 5VSFC05-55U717,U718,U719,U720,U721 30 1-2-23TVS arrays,USB linePSR051U716 NETWORK CARD ASSEMBLY MM-5100P CDMA 1X NETWORK CARD ASSEMBLY CASE ASSEMBLY PART LIST CMOTech Co., Ltd 1 / 12 MODEL NAME : MM-5100P VERSION : 0.1A DATE : 2003.07.25 1-1case assembly 1-2network card assembly NO LEVELDESCRIPTIONPART NO.Q'tyREFERENCE NO PART LIST 31 1-2-24LDO+RESET IC,300mATC1300R-2.8VUA TR1U500 32 1-2-25LDO,150mATPS76430 (DBVR)1U502 33 1-2-26LDO,100mATC1015-2.7VCT713 1U505 34 1-2-27LDO,100mATC1015-3.0VCT7133U501, U703,U702 35 1-2-28LDO,100mATC1015-2.85VCT7131U503 36 1-2-29LDO, 1A,SOP8MIC39102BM1U700 37 1-2-30PCMCIA to UART ICOX16CF950-TQ-B1U701 38 1-2-3124Pin system connectorTIO-24S-A2-0.5SM1CON701 39 1-2-32BUZZERSMOS-1020I-26L01BUZ700 40 1-2-33DUAL DATA BUFFERSN74LVC2G126DCUR1U504 41 1-2-34VARACAP DIODE1SV281(TPH3)4VD140, VD141, VD300, VD301 42 1-2-35QUARTZ CRYSTALCM130 , 32.768KHz1XT400 43 1-2-36USB CRYSTAL,48MHz CSTCW4800MX41 CSCTW48MOX12058-R0 1XT401 44 1-2-37Oscillator,+/-100ppmCS10-14.7456MHz1XTAL700 45 1-2-38MOSFET,N&P channelSI1016X-T11Q302 46 1-2-39MOSFET, P-CH,1.25WSI2305DS-T11Q500 47 1-2-40TRUMF4N TR1Q400 48 1-2-41TREMG2T2R1Q501 49 1-2-42TVS DIODERSA6.1EA TR1Q502 50 1-2-43TREMH3T2R1Q503 51 1-2-44SWITCHING DIODE1SS400G1D400 52 1-2-45Diode-SchottakyRB050L- 401D700 53 1-2-46Schottky Barrier DiodeMA2S728 (TX)2D301, D302 54 1-2-47LED(0603 size),REDSML-310VT T861LED400 55 1-2-48LED,Dual(RED&GREEN)SML-020VMT1LED700 56 1-2-49FUSE,0603FCC16-202-AD1F700 57 1-2-50Inductor,BeadHH-1M2012-221JT1BD400 58 1-2-51Inductor,BeadHB-1M1608-601JT7 BD300, BD301, BD302, BD500, BD501, BD502, BD700 52 1-2-52 CHIP TANTAL CAP. (TCML Series) TA-6R3TCML 100M-PR27 TC100, TC101, TC102, TC103, TC200, TC300, TC301, TC302, TC303, TC304, TC500, TC501, TC502, TC503, TC504, TC505, TC506, C413, TC400, TC701, TC702, TC703, TC704, TC705, TC706, TC707, TC708 CMOTech Co., Ltd 2 / 12 MODEL NAME : MM-5100P VERSION : 0.1A DATE : 2003.07.25 1-1case assembly 1-2network card assembly NO LEVELDESCRIPTIONPART NO.Q'tyREFERENCE NO PART LIST 53 1-2-53Ceramic MLCC, 1.0pF0402 NPO 1R04C323, L117, C100, C101 54 1-2-54Ceramic MLCC, 2.0pF0402 NPO 2R01C325 55 1-2-55Ceramic MLCC, 3.9pF0402 NPO 3R92C152, C327 56 1-2-56Ceramic MLCC, 5.6pF0402 NPO 5R61C127 57 1-2-57Ceramic MLCC, 12pF0402 NPO 1203C121, C313, C320 58 1-2-58Ceramic MLCC, 15pF0402 NPO 1503C112, C133, C165 59 1-2-59Ceramic MLCC, 18pF0402 NPO 1802C456, C457 60 1-2-60Ceramic MLCC, 22pF0402 NPO 2202C348, C349 61 1-2-61Ceramic MLCC, 24pF0402 NPO 2402C128, C129 62 1-2-62Ceramic MLCC, 33pF0402 NPO 3306C150, C151, C706, C707, C712, C713 63 1-2-63Ceramic MLCC, 47pF0402 NPO 4701C302 64 1-2-64Ceramic MLCC, 56pF0402 NPO 5601C324 65 1-2-65Ceramic MLCC, 68pF0402 NPO 6802C318, C319 66 1-2-66Ceramic MLCC, 100pF0402 NPO 10122 C114, C123, C125, C130, C160, C164, C170, C301, C304, C307, C309, C330, C331, C334, C340, C346, C429, C430, C431, C444, C445, C449 67 1-2-67Ceramic MLCC, 220pF0402 NPO 2212C453, C454 68 1-2-68Ceramic MLCC, 330pF0402 NPO 3312L115, C335 69 1-2-69Ceramic MLCC, 1.0nF 0402 X7R 102 (+/-10%/50V) 28 C118, C119, C122, C134, C135, C147, C163, C200, C223, C310, C312, C328, C336, C342, C344, C347, C350, C455, C503, C505, C507, C509, C513, R305, R306, C701,C702, C710 70 1-2-70Ceramic MLCC, 2.7nF0402 X7R 272 1C155 71 1-2-71Ceramic MLCC, 3.3nF0402 X7R 332 3C153, C169, C300 72 1-2-72Ceramic MLCC, 4.7nF0402 X7R 472 1C145 73 1-2-73Ceramic MLCC, 5.6nF0402 X7R 562 1C315 74 1-2-74Ceramic MLCC, 6.8nF0402 X7R 682 1C322 75 1-2-75Ceramic MLCC, 10nF0402 X7R 10324 C117, C131, C148, C149, C314, C339, C341, C343, C415, C419, C425, C432, C433, C447, C448, C450, C501, C502, C504, C506, C508, C510, C512, C711 76 1-2-76Ceramic MLCC, 33nF0402 Y5V 3331C167 77 1-2-77Ceramic MLCC, 47nF0402 Y5V 4732C113, C222 CMOTech Co., Ltd 3 / 12 MODEL NAME : MM-5100P VERSION : 0.1A DATE : 2003.07.25 1-1case assembly 1-2network card assembly NO LEVELDESCRIPTIONPART NO.Q'tyREFERENCE NO PART LIST 78 1-2-78Ceramic MLCC, 100nF0402 Y5V 10455 C124, C126, C140, C141, C142, C143, C144, C146, C161, C162, C166, C171, C303, C305, C306, C308, C321, C326, C332, C333, C337, C338, C400, C401, C402, C403, C405, C406, C407, C408, C409, C410, C411, C412, C417, C420, C421, C422, C423, C424, C426, C427, C428, C438, C446, C451, C452, C458, C511, C460, C461, C703, C704, C705, C714 79 1-2-79Ceramic MLCC, 220nF0603 Y5V 2241C168 80 1-2-80Ceramic MLCC, 470nF0603 Y5V 4742C154, C201 81 1-2-81Ceramic MLCC, 1uF0603 Y5V 1051C311 82 1-2-82Ceramic MLCCDNIDNI C115, C132, C221, C224, C225, C226, C227, C228, C229, C230, C231, C345 83 1-2-83Ceramic Inductor,1.0nHCI-B1005-10NSJT1L309 84 1-2-84Ceramic Inductor,3.9nHCI-B1005-39NJJT1L303 85 1-2-85Ceramic Inductor,4.7nHCI-B1005-47NJJT1L220 86 1-2-86C…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For MAXON ELECTRONICS AUSTRALIA PTY. LTD. A1, Nevesby North New South Wales, Australia 2212 FCC ID: Q2FMM-5100P 2003-10-09 This Report Concerns: Original Report Equipment Type: CDMA 1X Network Card Test Engineer: Eric Hong / Report No.: R0308292S Test Date: 2003-09-16 Reviewed By: Benjamin Jing / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 2 of 90 TABLE OF CONTENTS SUMMARY....................................................................................................................................................................4 1 - REFERENCE ...........................................................................................................................................................5 2 - TESTING EQUIPMENT.........................................................................................................................................6 2.1 EQUIPMENTS LIST & CALIBRATION INFO...............................................................................................................6 2.2 EQUIPMENT CALIBRATION CERTIFICATE...............................................................................................................6 3 - EUT DESCRIPTION .............................................................................................................................................34 4 - SYSTEM TEST CONFIGURATION...................................................................................................................35 4.1 JUSTIFICATION.....................................................................................................................................................35 4.2 EUT EXERCISE PROCEDURE................................................................................................................................35 4.3 EQUIPMENT MODIFICATIONS...............................................................................................................................35 5 – CONDUCTED OUTPUT POWER MEASUREMENTS ...................................................................................36 5.1 PROVISION APPLICABLE.......................................................................................................................................36 5.2 TEST PROCEDURE................................................................................................................................................36 5.3 TEST EQUIPMENT.................................................................................................................................................36 5.4 TEST RESULTS.....................................................................................................................................................36 6 - DOSIMETRIC ASSESSMENT SETUP...............................................................................................................38 6.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................................................39 6.2. SYSTEM COMPONENTS........................................................................................................................................40 6.3 MEASUREMENT UNCERTAINTY............................................................................................................................44 7 - EVALUATION PROCEDURE.............................................................................................................................45 7.1 SAR EVALUATION PROCEDURE...........................................................................................................................45 7.2 EXPOSURE LIMITS................................................................................................................................................46 7.3 SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION...................................................................................46 7.4 SAR MEASUREMENT...........................................................................................................................................46 7.5 SYSTEM ACCURACY VERIFICATION.....................................................................................................................47 7.6 LIQUID MEASUREMENT RESULT..........................................................................................................................48 7.7 835MHZ HEAD LIQUID PROBE COMPARISON MEASUREMENT RESULT................................................................55 8 - SAR TEST RESULTS............................................................................................................................................58 8.1 SAR BODY WORN WORST-CASE TEST DATA.....................................................................................................58 8.2 PLOTS OF TEST RESULT.......................................................................................................................................58 EXHIBIT A - SAR SETUP PHOTOGRAPHS .........................................................................................................71 DELL, BOTTOM OF LAPTOP FLUSH WITH PHANTOM, ANTENNA PARALLEL TO LAPTOP.............................................71 DELL, BOTTOM OF LAPTOP FLUSH WITH PHANTOM, ANTENNA PERPENDICULAR TO LAPTOP...................................71 DELL, BYSTANDER POSITION WITH 1.5CM SEPARATION DIST…

Text truncated - open the document above for the full version.

MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 66 of 90 Plot #8 MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 67 of 90 Plot #9 MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 68 of 90 Plot #10 MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 69 of 90 Plot #11 MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 70 of 90 Plot #12 MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 71 of 90 EXHIBIT A - SAR SETUP PHOTOGRAPHS Dell, Bottom of Laptop Flush with Phantom, Antenna Parallel to Laptop Dell, Bottom of Laptop Flush with Phantom, Antenna Perpendicular to Laptop MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 72 of 90 Dell, Bystander Position with 1.5cm Separation Distance Dell, Keyboard Facing with Phantom, Antenna Perpendicular to Laptop MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 73 of 90 Dell, Bottom of Laptop Flush with Phantom, Antenna Parallel to Laptop IBM, Bottom of Laptop Flush with Phantom, Antenna Perpendicular to Laptop MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 74 of 90 IBM, Bystander Position with 1.5cm Separation Distance IBM, Keyboard Facing with Phantom, Antenna Perpendicular to Laptop MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 75 of 90 SONY, Bottom of Laptop Flush with Phantom, Antenna Parallel to Laptop SONY, Bottom of Laptop Flush with Phantom, Antenna Perpendicular to Laptop MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 76 of 90 SONY, Bystander Position with 1.5cm Separation Distance SONY, Keyboard Facing with Phantom, Antenna Perpendicular to Laptop MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 77 of 90 EXHIBIT B – EUT PHOTOGRAPHS DELL Notebook – Front View DELL Notebook – Top View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 78 of 90 DELL Notebook – Bottom View DELL Notebook – Rear View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 79 of 90 DELL AC Adapter View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 80 of 90 IBM Notebook – Front View IBM Notebook – Top View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 81 of 90 IBM Notebook – Bottom View IBM Notebook – Rear View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 82 of 90 IBM AC Adapter View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 83 of 90 SONY Notebook – Front View SONY Notebook – Top View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 84 of 90 SONY Notebook – Bottom View SONY Notebook – Rear View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 85 of 90 SONY AC Adapter View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 86 of 90 EUT – Top View EUT – Bottom View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 87 of 90 EUT – Length View EUT – Width View MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 88 of 90 EXHIBIT C – Z-Axis DELL: MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 89 of 90 IBM: MAXON ELECTRONICS AUSTRALIA PTY. LTD. FCC ID: Q2FMM-5100P Report #R0308292S SAR Evaluation Report Page 90 of 90 SONY:

FCC Documentation- MM-5100P CDMA 1X Network card JUL.25, 2003 1/5 Maxon Electronics Australia Pty Ltd 36A Gibson Ave. Padstow NSW 2211 Tel : 02 9707-2000 Fax : 02 9707-3328 www.maxon.com.au MM-5100P SCHEMATIC DIAGRAMS FCC Documentation- MM-5100P CDMA 1X Network card JUL. 25, 2003 2/5 Maxon Electronics Australia Pty Ltd 36A Gibson Ave. Padstow NSW 2211 Tel : 02 9707-2000 Fax : 02 9707-3328 www.maxon.com.au . Schematic Diagrams MM-5100P schematic (page 1) FCC Documentation- MM-5100P CDMA 1X Network card JUL. 25, 2003 3/5 Maxon Electronics Australia Pty Ltd 36A Gibson Ave. Padstow NSW 2211 Tel : 02 9707-2000 Fax : 02 9707-3328 www.maxon.com.au . MM-5100P schematic (page 2) FCC Documentation- MM-5100P CDMA 1X Network card JUL. 25, 2003 4/5 Maxon Electronics Australia Pty Ltd 36A Gibson Ave. Padstow NSW 2211 Tel : 02 9707-2000 Fax : 02 9707-3328 www.maxon.com.au . MM-5100P schematic (page 3) FCC Documentation- MM-5100P CDMA 1X Network card JUL. 25, 2003 5/5 Maxon Electronics Australia Pty Ltd 36A Gibson Ave. Padstow NSW 2211 Tel : 02 9707-2000 Fax : 02 9707-3328 www.maxon.com.au . MM-5100P schematic (page 4)

Maxon Electronics Australia Pty. Ltd. FCC ID: Q2FMM-5100P EXHIBIT B - TEST SETUP PHOTOGRAPHS DELL Conducted Emission - Front View DELL Conducted Emission - Side View Maxon Electronics Australia Pty. Ltd. FCC ID: Q2FMM-5100P IBM Conducted Emission - Front View IBM Conducted Emission - Side View Maxon Electronics Australia Pty. Ltd. FCC ID: Q2FMM-5100P SONY Conducted Emission - Front View SONY Conducted Emission - Side View Maxon Electronics Australia Pty. Ltd. FCC ID: Q2FMM-5100P DELL Radiated Emission - Front View DELL Radiated Emission - Rear View Maxon Electronics Australia Pty. Ltd. FCC ID: Q2FMM-5100P IBM Radiated Emission - Front View IBM Radiated Emission - Rear View Maxon Electronics Australia Pty. Ltd. FCC ID: Q2FMM-5100P SONY Radiated Emission - Front View SONY Radiated Emission - Rear View
