Q2FMM-5500PROWireless CDMA 1XEVDO Ethernet Modem

1 MM-5500PRO Quick Start Manual Wireless CDMA 1x EVDO Ethernet modem Technical Support: [email protected] TEL : 61 2 9707 2000 FAX : 61 2 9707 3328 www.maxon.com.au 2 FCC RF EXPOSURE COMPLIANCE In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. This MM-5500PRO Wireless Ethernet modemhas been tested for FCC exposure compliance with the MM-5500PRO wireless ethernet modem form factor. In order to comply with FCC RF exposure requirements, the MM-5500PRO Wireless Ethernet modem must be operated with the MM-5500PRO wireless ethernet modem form factor. The use of this device in any other type of host configuration may not comply with FCC RF exposure requirements and should be avoided. During operation, a 20cm separation distance should be maintained between the antenna, whether extended or retracted, and the user’s/bystander’s body (excluding hands, wrists, feet, and ankles) to ensure FCC RF exposure compliance. CAUTION Change or modification without the express consent of Maxon Electronics Australia Pty. Ltd. voids the user’s authority to use the equipment. This equipment has been tested and found to comply with the limits pursuant to Part 22 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference in radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna 3 Table of Contents Copyright..................................................................................................................................4 Purpose.....................................................................................................................................4 1. Introduction.............................................................................................................................5 1.1 MM-5500PRO Overview..............................................................................................5 1.2 Features..........................................................................................................................5 2. Operation Process..................................................................................................................6 2.1 PPP mode......................................................................................................................6 2.2 PPPoE mode...................................................................................................................6 3. Factory Default........................................................................................................................7 3.1 Connecting Internet.....................................................................................................7 4. MM-5500PRO Configuration................................................................................................9 5. PPP mode Configuration......................................................................................................11 6. PPPoE mode Configuration.............................................................................................12 7. Firmware Upgrade...............................................................................................................21 8. Radius Test............................................................................................................................22 9. Appendix.................................................................................................................................24 4 Copyright Advance product information describes products which are in development and subject to development changes. INEWDC has made best effort to ensure that the information contained in this document is accurate and reliable. This document is the property of INEWDC and implies no license under patents, copyrights, trade secrets. No part of this publication may be copied, reproduced, stored in a retrieval system, or transmitted, in any form or by any means (electronic, mechanical, photographic, or otherwise) without the prior permission of INEWDC. Purpose This manual includes how to configure and use the MM-5500PRO. 5 1. Introduction 1.1 MM-5500PRO Overview There are a lot of connections for Internet. Figure 1 shows one of the connectivity on the internet using a normal ADSL modem. [Figure 1. Normal Network using an ADSL Modem] MM-5500PRO is an wireless ethernet modem that supports the connection between LAN (Local Area Network) to WAN(Wide Area Network) wirelessly in Small Office Home Office. Figure 2 shows the MM-5500PRO’s shape. [Figure 2. Each part name of MM-5500PRO] MM-5500PRO supports WAN protocol like PPP, HDLC etc. using CDMA 1x EVDO modem, routing and bridging functions internally for the high speed data transfer. 1.2 Features 6 2. Operation Process There are two-way of MM-5500PRO operation. One is PPP (Point to Point Protocol) mod…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Maxon Electronics Australia Pty Ltd. FCC ID: Q2FMM-5500PRO FCC Part 22 Certification Request for Confidentiality Gentlemen: Pursuant to sections 0.457 and 0.459 of the Commission’s Rules, Maxon Electronics Australia Pty Ltd. hereby requests confidentiality of the Block Diagrams, Circuit Diagrams, Circuit Description, Parts List, Tune-up Procedure, and Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product in which Maxon Electronics Australia Pty Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Maxon Electronics Australia Pty Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application will not be made before the date of the Grant for this application. Sincerely, SIGNATURE NAME: Raymond Wayne Sanders TITLE: Managing Director COMPANY NAME: Maxon Electronics Australia Pty Ltd.

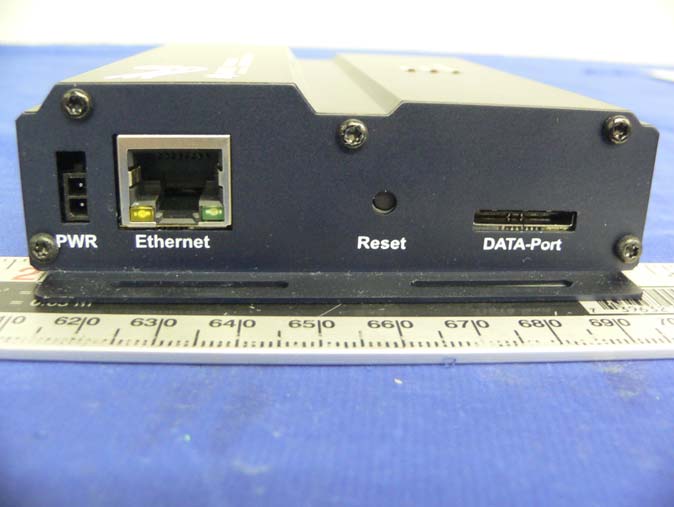

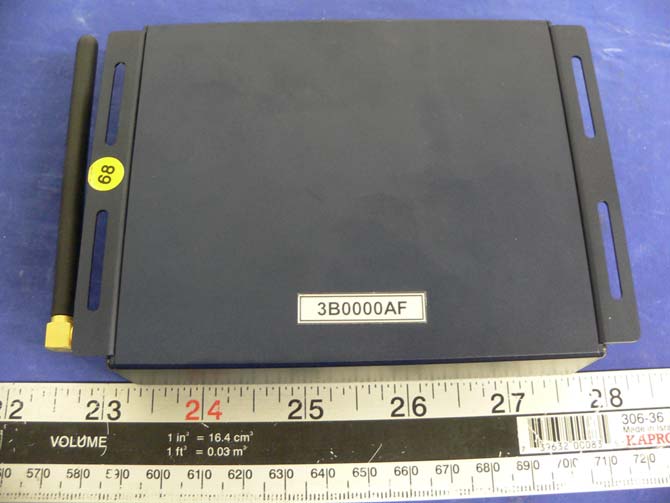

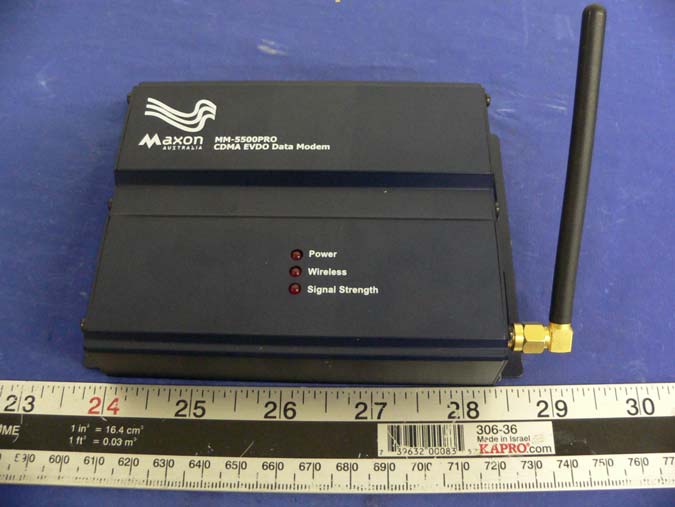

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT – Rear View EUT Port View 1 EUT Port View 2 Power Adapter

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: Q2FMM-5500PRO This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Component with Shielding View EUT – Component without Shielding View EUT – Solder View Antenna View Interface Board

§1.1307(b)(1) & §2.1091 - RF EXPOSURE According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 24.53 (dBm ) Maximum peak output power at antenna input terminal: 283.79 (mW) Prediction distance: 20 (cm) Predication frequency: 800 (MHz) Antenna Gain (typical): 0 (dBi) antenna gain: 1.0 (numeric) Power density at predication frequency at 20 cm: 0.056(mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.53 (mW/cm 2 ) Test Result The EUT is a mobile device. The power density level at 20 cm is 0.056 mW/cm², which is below the uncontrolled exposure limit of 0.53 mW/cm² at 800 MHz.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 22 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For Maxon Electronics Australia Pty. Ltd. 36A Gibson Ave, Padstow New South Wales 2212, Australia FCC ID: Q2FMM-5500PRO This Report Concerns: Original Report Equipment Type: Wireless CDMA 1XEVDO Ethernet Modem Test Engineer: Daniel Deng / Report No.: R0506231 Report Date: 2005-08-10 Reviewed By: Hans Mellberg / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Maxon Electronics Australia Pty. Ltd FCC ID: Q2FMM-5500PRO Report # R0506231Rpt Page 2 of 25 FCC Part 22 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 INTERFACE PORTS AND CABLING.................................................................................................................................6 CONFIGURATION OF TEST SYSTEM..............................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1047 - MODULATION CHARACTERISTIC .......................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST RESULTS.............................................................................................................................................................9 §2.1053 - SPURIOUS RADIATED EMISSIONS .....................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 TEST RESULT.............................................................................................................................................................11 §1.1307(B)(1) & §2.1091 - RF EXPOSURE...............................................................................................................12 §2.1046, §22.913(A) - RF POWER OUTPUT............................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.................................…
