Q2FMM-5500UCDMA EVDO USB Voice/Data Modem

FCC Documentation- MM-5500U CDMA 1x/EVDO Modem Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. FCC Documentation MM-5500U CDMA 1x/EVDO Modem Version : 0.1 Date :JUN 21, 2004 Maxon Proprietary : Restricted Distribution This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. 36a Gibson Avenue, Padstow New South Wales, 2211. Australia Phone:+61 2 9707 2000 URL: http//www.maxon.com.au FCC Documentation- MM-5500U CDMA 1x/EVDO Modem 2/22 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. FCC RF EXPOSURE COMPLIANCE In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, o r attachments could impair call quality, damage the phone, or result in violation of FCC regulations. This MM-5500U CDMA card has been tested for FCC RF exposure hand and body SAR compliance. In order to comply with FCC RF exposure requirements, this product must be operated with the MM-5500U CDMA card. The use of this card in any other type of host configuration may not comply with FCC RF exposure requirements and should be avoided. During operation, a 1.5cm separation distance should be maintained between the antenna, whether extended or retracted, and the user’s/bystander’s body (excluding hands, wrists, feet, and ankles) to ensure FCC RF exposure compliance. CAUTION Change or modification without the express consent of Maxon Electronics Australia Pty Ltd voids the user’s authority to use the equipment. This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference in radio and television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna z Increase the separation distance between the equipment and the receiver z Contact Maxon Electronics Australia Pty Ltd Technical Support for assistance. FCC Documentation- MM-5500U CDMA 1x/EVDO Modem 3/22 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. Table of contents 1. Contact Information······························································································· 4 2. Product Overview ·································································································· 5 2.1 Overview........................................................................................................ 5 2.2 What is the MM-5500U CDMA 1x/EVDO Modem ........................................ 5 2.3 Supplied accessories................................................................................... 5 3. Specifications ········································································································ 6 3.1 Mechanical Specifications........................................................................... 6 3.2 Environment Specifications ........................................................................ 6 3.3 Electrical Specifications .............................................................................. 6 3.4 CDMA RF Specifications.............................................................................. 7 4. Instruction ·············································································································· 9 4.1 Supplied accessories................................................................................... 9 4.2 Getting start .................................................................................................. 9 5. Circuit description ······························································································· 14 5.1 MM-5500U CMDA 1x/EVDO Modem circuit description .......................... 14 5.2 Power interface part ................................................................................... 15 5.3 Digital part ................................................................................................... 15 5.4 RF part ......................................................................................................... 16 6. Range of operating power levels and description of means for variation of operating power··································································································· 18 7. Description of frequency determining and stabilizing circuitry······················ 19 8. Description of circuit employed for suppression of spurious radiation ········ 20 9. Description of modulation system used ··························································· 21 FCC Documentation- MM-5500U CDMA 1x/EVDO Modem 4/22 Confidential and proprietary information This document is the sole an…

Text truncated - open the document above for the full version.

ELECTRONICS AUSTRALIA PTY LTD Incorporated in N.S.W. A.C.N. 003 793 593 A.B.N. 38 226 964 857 July 19th 2004 FCC ID: Q2FMM-5500U Federal Communications Commission Authorisation and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Yours Faithfully, Raymond Sanders Managing Director [email protected] 36A GIBSON AVENUE, PADSTOW, SYDNEY, NSW 2211 TEL: Int. 61 (02) 9707 2000 Fax: Int. 61 (02) 9707 3328 Web site: www.maxon.com.au

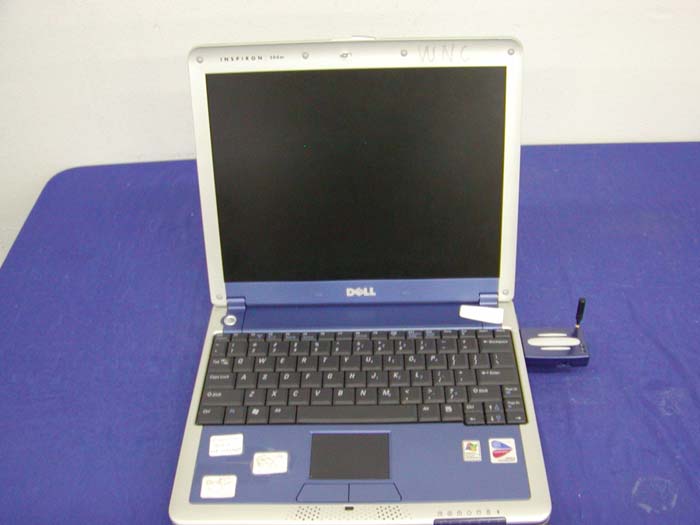

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS Chassis - Front View Chassis – Rear View EUT & Host Notebook PC

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: Q2FMM-5500U

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Board and Housing View EUT – Main Board and Transmitter Board Top EUT – Main Board and Transmitter Board Bottom EUT – Main Board with Transmitter Board Cover Removed EUT – Transmitter Board Cover Removed View EUT – Transmitter Board Bottom View EUT – Main Board Top View

FCC Documentation- MM-5500U CDMA 1x/EVDO Modem 14/22 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. 5. Circuit description 5.1 MM-5500U CMDA 1x/EVDO Modem circuit description The MM-5500U CDMA 1x/EVDO modem consists of the CDMA Engine, power generation part, digital part, RF part and connectors. The Fig 5-1 is block diagram of MM-5500U CDMA 1x/EVDO modem. Logic part Rx Tx Synthesizer RF part LNA Power Amp MSM5500 Memory -Flash(64Mb) -SRAM(32Mb) Power interface U701 MIC39102 (LDO) Iout=1A Vout=3.8V RF Vcc Audio interface signal Ear-jack port CDMA Engine MM-5500U Block Diagram protection DUX DC5V Debug Port *only test CDMA Antenna LED U703 ISP1105W (USB transceiver) D+ D- USB Connector (DWAP-02-04) RF S/W Figure 5.1 MM-5500U CDMA 1x/EVDO modem block diagram FCC Documentation- MM-5500U CDMA 1x/EVDO Modem 5.2 Power interface part DC Power is supplied from the USB connector. - LDO(U701): This component is low dropout regulator. Output voltage is about 3.8V DC. This LDO output voltage is inputted to CDMA Engine power interface. Each block of CDMA Engine uses low-drop-output linear regulator. - U500 : voltage regulator for digital circuit ( 2.8 DC ) - U501 : voltage regulator for VC-TCXO and IFR3300 ( 3.0V DC ) - U502 : voltage regulator for RF Rx part ( 3.0V DC ) - U503 : voltage regulator for RF Tx part ( 2.85V DC ) - U505 : voltage regulator for digital part(2.7V DC ) - And power AMP is directly supplied. 5.3 Digital part - U400 : MSM(Mobile Station Modem) ASIC is chip responsible for CDMA/FM mobile station’s base-band digital signal processing. For this chip to function, TCXO(19.2MHz) is required as basic clocks. And sleep crystal (32.768KHz) is used as clock source of MSM ASIC. MSM consists of CDMA core and DFM core. CDMA core is a part for processing CDMA signal consisting of modulator/demodulator, interleaver/deinterleaver and encoder/decoder in the CDMA mode. - U401: Memory part consists of Flash memory and SRAM. Flash memory: store to main program. SRAM: performs to read and write data - U703: USB transceiver is fully compliant with the USB specification Rev1.1. 15/22 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. FCC Documentation- MM-5500U CDMA 1x/EVDO Modem 16/22 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement. 5.4 RF part RF part consists of synthesizing part, transmission and reception part. Fig 5.2 RF part block diagram FCC Documentation- MM-5500U CDMA 1x/EVDO Modem 5.4.1.1 Frequency synthesizing part Frequency synthesizing part called PLL Synthesizer consists of three synthesizer circuit which is first local synthesizer, Tx IF synthesizer and Rx IF synthesizer. The first local synthesizer generates the primary local system oscillation frequency, operating over 1372.08 ~ 1419.54 MHz frequency range. Tx IF and Rx IF synthesizer generate the second local oscillation frequency, 267.2 MHz and 367.2 MHz respectively. 5.4.1.2 Receiving part - Duplexer. The duplexer filters the RF signal transmitted through Antenna and sends the signals to LNA. - LNA. This part in front-end is used to amplify the received signal with low noise figure - Down converter. It acts as a mixer using first local frequency to produce the desired signal in the mid-range frequency of 183.6 MHz. - Rx AGC. This part is designed to control the gain of the dynamic range of midrange frequency produced in down converter according 80 dB dynamic range. Currently, previous BBA is divided into IFR3300(Rx IF-baseband converter) and RFT3100(Tx baseband-IF converter). IFR3300 acts as the baseband analog processor which processing the signals between the IFR3300 and digital processing circuit. In the while, RFT3100 consists of Tx AGC and Tx part analog processor of previous BBA. 5.4.1.3 Transmission part - Tx AGC. It is designed to be gain-controlled from 84 dB dynamic range. The gain of this part is controlled by MSM using digital control signal. - Up converter. This part mixes the IF transmission frequency 138.6 MHz and the first local 1372.08 ~ 1419.54 MHz to generate transmission frequency of 824.64 ~ 848.37 MHz. - Power AMP module. This part is designed to work in 824 MHz ~ 849 MHz frequency range in the CDMA mode and can generate the proper output power. The DC voltage into the power amp module is typical 3.8V. 17/22 Confidential and proprietary information This document is the sole and exclusive property of Maxon. Not to be distributed or divulged without prior written agreement.

MM-5500U CDMA 1x/EVDO MODEM COMPONENT PARTS LIST 1MM-5500U Modem Ass'y 1-1Case Ass'y 1-2Interface board Ass'y 1-3CDMA Engine Ass'y 2Accessory 3Packing NO LEVELPART-NUMBERDESCRIPTIONQ'TY REFERENCEVendor 1MM-5500U Modem ASS'Y 1-1CASE ASS'Y 1 1-1-1Upper CaseUpper Case1 2 1-1-2Lower CaseLower Case1 3 1-1-3R-UIM coverR-UIM cover1 4 1-1-4Rubber coverRubber cover1 5 1-1-5USB connector capUSB connector cap1 6 1-1-6AntennaAntenna1 7 1-1-7LabelLabel1 8 1-1-8poly bagpoly bag1 9 1-1-9SheetSheet1 1-2 INTERFACE BOARD ASS'Y 7 1-2-1PCB,4Layer,1.0TPCB1HITECH 8 1-2-2PSR05TVS array for USB lines1 U700PROTEK 9 1-2-3PSMF05TVS arrays +/- 5V line3 U704,U705,U707PROTEK 10 1-2-4MIC39102BMLDO , adjustable , 1A1 U701MICREL 11 1-2-5TC1015LDO, 3.0V 2 U702,U706MICROCHIP 12 1-2-6ISP1105WUSB transeiver1 U703PHILIPS 13 1-2-7SMOS-8526B-28C0Buzzer1 BUZ700SINWOO 14 1-2-8DWAP-02-04USB Type "A" 1 CON700 15 1-2-9AXK6F70345PInterface connector(header)1 CON701NAIS 16 1-2-10EPJ1-5-A-TDEar-jack connector1 CON702WOOYOUNG 17 1-2-11Antenna HolderAntenna Holder1 CON703 18 1-2-12MM8430-2600BRF switch1 CON704MURATA 19 1-2-13KP09C-6S-2.54SFR-UIM Connector1 CON705HIROSE 20 1-2-14LED, Single, LAMP type1 LED700 21 1-2-15LED, Bi-Color, LAMP type1 LED701 22 1-2-16 MXTK91TK1000 MCB2-SH-68-030-T Antenna cable assy, 5cm,single head 1 J701 MURATA SUNRIDGE 23 1-2-172.7K(1%)Chip Resistor 1 R700PHICOMP 24 1-2-181.3K(1%)Chip Resistor 1 R701PHICOMP 25 1-2-1910K(5%)Chip Resistor 3 R702, R705, R715PHICOMP 26 1-2-2030K(5%)Chip Resistor 3 R703, R704, R718PHICOMP 27 1-2-211.5K(5%)Chip Resistor 1 R706PHICOMP 28 1-2-2233ohm(5%)Chip Resistor 2 R707, R708PHICOMP 29 1-2-23220ohm(5%)Chip Resistor 7 R709, R110,R711,R712 R719,R720,R721 PHICOMP 30 1-2-244.7ohm(5%)Chip Resistor 2 R713, R714PHICOMP 31 1-2-251K(5%)Chip Resistor 2 R716, R717PHICOMP 32 1-2-2610uF/10VTantal capacitor5 TC700,TC702,TC703, TC704,TC705 PHICOMP 33 1-2-2747pFChip Capacitor2 C701, C702PHICOMP 34 1-2-281nFChip Capacitor 6 C703,C704,C715,C716 C717,C722 PHICOMP 35 1-2-2910nFChip Capacitor3 C705,C706,C707PHICOMP 36 1-2-32100pFChip Capacitor6 C708,C712,C713,C714 C718,C719 PHICOMP 37 1-2-33100nFChip Capacitor4 C709,C710,C711,C723PHICOMP 38 1-2-3433pFChip Capacitor2 C724,C725PHICOMP 39 1-2-358.2nHChip Inductor1 L700PHICOMP 40 1-2-361pFChip Capacitor1 C721PHICOMP 1-3 CDMA Engine ASS'Y 41 1-3-1PCB,6-layer,0.8TPCB1ORIEN-TECH 42 1-3-2SHIELD CAN,FrameFrame,SPTE(0.3T)GaNa 43 1-3-3SHIELD CAN,TopSUS304 0.2(hear line)GaNa 44 1-3-4SHIELD CAN,BottomSUS304 0.2(hear line)3GaNa 45 1-3-5MSM5500MODEM PROCESSOR1 U400QUALCOMM 46 1-3-6 S1M8656A IFR3300 RX TRANSCEIVER1 U101QUALCOMM 47 1-3-7RFT3100-1, RFT3100-2TX TRANSCEIVER1 U300QUALCOMM 48 1-3-8ITM2520DUAL BAND LNA+MIXER1 U100INTEGRANT 49 1-3-9 SV5C6432UBR-70I SV5C3238UTA-85I FLASH+SRAM1 U401Silicon7 50 1-3-10 RTVY-1244DF327T -S-19.200 VC-TCXO1 U102RALTRON 51 1-3-11S1M8838A01-G0T0PLL IC1 U103SAMSUNG 52 1-3-12 EFSD836MC5S3 SFX836KN001 DUPLEXER1 DUX100 PANASONIC SEC 53 1-3-13EFCH1575MTE3GPS RX SAW1 FL200PANASONIC 54 1-3-14 FSRS0881C1 SFH881NF001 RX RF SAW FILTER1 FL100 LG INOTECH SEC 55 1-3-15 FSRS0836C1 SFH836NF001 TX RF SAW FILTER1 FL300 LG INOTECH SEC 56 1-3-16 FSMS0183B2 FSMS0183C1 RX IF SAW FILTER1 FL101LG INOTECH 57 1-3-17SAFCC183MGPS RX IF SAW1 FL202MURATA 58 1-3-18MM9329-2700RA1RF CONNECTOR2 RF100, RF200MURATA 59 1-3-192322_615_33683THERMISTOR1 TH400PHICOMP 60 1-3-20 VC-2R8A90-1395 LVS1395BUS DUAL BAND VCO1 U104 FUJITSU LISOTEK 61 1-3-21CX77105-16PPOWER AMPLIFIER1 U301CONEXANT 62 1-3-22AXK5F70545PCONNECTOR,70pin1 CON500NAIS 63 1-3-23MAAMSS0005LO BUFFER1 U303MACOM 64 1-3-24TC1300R-2.8VUALDO+RESET IC1 U500TELCOM 65 1-3-25TPS76430(DBVR)LDO.3.0V1 U502TI 66 1-3-26 TC1015-2.7VCT713 TPS76427(DBVR) LDO,2.7V1 U505 TELCOM TI 67 1-3-27 TC1015-3.0VCT713 TPS76430DBVR LDO,3.0V1 U501 TELCOM TI 68 1-3-28TC1015-2.85VCT713LDO,2.85V1 U503TELCOM 69 1-3-29SN74LVC2G126DCURDATA BUFFER1 U504TOSHIBA 70 1-3-301SV281VARACAP.4 VD140, VD141, VD300, VD301 TOSHIBA 71 1-3-31 CM130 RSE-32.768-12.5-H14_TR CRYSTAL,32.768KHz1 XT400 CITIZEN RALTRON 72 1-3-32 CSTCW4800MX41 SMRS-48.000-B2 USB CRYSTAL,48MHz1 XT401 MURATA RALTRON 73 1-3-33EMD9TR1 Q302ROHM 74 1-3-34SI2305DS-T1TR,FET,PMOS1 Q500VISHAY 75 1-3-35UMF4NTR1 Q400ROHM 76 1-3-36EMG2TR1 Q501ROHM 77 1-3-37RSA6.1ENTVS DIODE1 Q502ROHM 78 1-3-38EMH3TR1 Q503ROHM 79 1-3-391SS400GSWITCHING DIODE1 D400ROHM 80 1-3-40MA2S728SWITCHING DIODE0 D301, D302PANASONIC 81 1-3-41SML-310VTLED1 LED400ROHM 82 1-3-42FCC16-202-ADFUSE1 FU500KAMAYA 83 1-3-43220HH-1M2012-221JT1 BD400Ceratech 84 1-3-44600HB-1M1608-601JT6 BD300, BD301, BD302, BD500, BD501, BD502 Ceratech 85 1-3-4510uF/6.3VTANTAL CAP.18 TC100, TC101, TC102, TC103, TC200, TC300, TC301, TC302, TC303, TC304, TC500, TC501, TC502, TC503, TC504, TC505, TC506, C413 Ceratech 86 1-3-4622uF/4VTANTAL CAP.1 C413 87 1-3-470.56pFNPO1 R123PHICOMP 88 1-3-481.0pFNPO5 C110, C115, C226, C228, C345 PHICOMP 89 1-3-491.5pFNPO1 C229PHICOMP 90 1-3-502.0pFNPO2 C325, L117PHICOMP 91 1-3-513.0pFNPO1 C225PHICOMP 91 1-3-523.3pFNPO1 C152PHICOMP 92 1-3-533.9pFNPO3 C227, C323, C327PHICOMP 93 1-3-545.6pFNPO1 C127PHICOMP 94 1-3-556.8pFNPO1 C112PHICOMP 95 1-3-5612pFNPO3 C121, C313, C320PHICOMP 96 1-3-5715pFNPO2 C133, C165PHICOMP 97 1-3-5818pFNPO2 C456, C457PHICOMP 98 1-3-5922pFNPO4 C128, C129, C348, C349PHICOMP 99 1-3-6033pFNPO2 C150, C151PHICOMP 100 1-3-6147pFNPO1 C302PHICOMP 101 1-3-6256pFNPO1 C324PHICOMP 10268pFNPO2 C318, C319PHICOMP 103100pFNPO24 C114, C123, C125, C130, C160, C164, C170, C221, C301, C304, C307, C309, C330, C331, C334, C340, C346, C429, C430, C431, C444, C445, C449 PHICOMP 104 1-3-63220pFNPO2 C453, C454PHICOMP 105 1-3-64330pFX7R2 L115, C335PHICOMP 106 1-3-651.0nFX7R27 C118, C119, C122, C134, C135, C147, C163, C200, C223, C230, C310, C312, C328, C329, C336, C342, C344, C347, C350, C455, C503, C505, C507, C509, C513, R305, R306 PHICOMP 107 1-3-662.7nFX7R1 C155PHICOMP 108 1-3-673.3nFX7R3 C153, C169, C300PHICOMP 109 1-3-684.7nFX7R1 C145PHICOMP 110 1-3-695.6nFX7R1 C315PHICOMP 111 1-3-706.8nFX7R1 C322PHICOMP 112 1-3-7110nFX7R24 C117,…

Text truncated - open the document above for the full version.

ELECTRONICS AUSTRALIA PTY LTD Incorporated in N.S.W. A.C.N. 003 793 593 A.B.N. 38 226 964 857 Wednesday, August 11, 2004 BACL A FCC TCB, IC FCB and EU CAB 230 Commercial Street Sunnyvale, CA 94085 Attention : Shirley Cui/Account Executive Dear Shirley, The CDMA USB Modems, model MM-5500U, contain NO tunable components. The MM-5500U modem operates specifically within the 800 Mhz frequency band and is controlled by its embedded firmware. I understand that 47CFR2.1033 states that the factory tune up procedure is a required exhibit but please allow me to restate that the modem has no tunable components. Should you require any further information from Maxon Australia on this subject, please do not hesitate to contact the undersigned. Yours Faithfully, Maxon Electronics Australia Pty. Ltd. Raymond Wayne Sanders Managing Director 36A GIBSON AVENUE, PADSTOW, SYDNEY, NSW 2211 TEL: Int. 61 (02) 9707 2000 Fax: Int. 61 (02) 9707 3328 Web site: www.maxon.com.au

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. SAR EVALUATION REPORT For MAXON ELECTRONICS AUSTRALIA PTY. LTD. 36A Gibson Ave, Padstow New South Wales 2212, Australia FCC ID: Q2FMM-5500U This Report Concerns: Original Report Equipment Type: CDMA 1xRTT USB Voice/Data Modem Test Engineer: Eric Hong / Report No.: R0406251S Report Date: 2004-07-14 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Maxon Electronics Australia Pty. Ltd FCC ID: Q2FMM-5500U Report #R0406251S.doc SAR Evaluation Report Pa ge 2 of 59 TABLE OF CONTENTS SUMMARY....................................................................................................................................................................3 1 - REFERENCE ...........................................................................................................................................................4 2 - TESTING EQUIPMENT.........................................................................................................................................5 2.2 EQUIPMENT CALIBRATION CERTIFICATE...............................................................................................................5 3 - EUT DESCRIPTION .............................................................................................................................................17 4 - SYSTEM TEST CONFIGURATION...................................................................................................................18 4.1 JUSTIFICATION.....................................................................................................................................................18 4.2 EUT EXERCISE PROCEDURE................................................................................................................................18 4.3 EQUIPMENT MODIFICATIONS...............................................................................................................................18 5 – CONDUCTED OUTPUT POWER ......................................................................................................................19 5.1 PROVISION APPLICABLE.......................................................................................................................................19 5.2 TEST PROCEDURE................................................................................................................................................19 5.3 TEST EQUIPMENT.................................................................................................................................................19 5.4 TEST RESULTS.....................................................................................................................................................19 6 - DOSIMETRIC ASSESSMENT SETUP...............................................................................................................21 6.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................................................22 6.2 SYSTEM COMPONENTS.........................................................................................................................................23 6.3 MEASUREMENT UNCERTAINTY............................................................................................................................27 7 - SYSTEM EVALUATION .....................................................................................................................................28 7.1 SIMULATED TISSUE LIQUID PARAMETER CONFIRMATION...................................................................................28 7.2 EVALUATION PROCEDURES..................................................................................................................................28 7.3 SYSTEM ACCURACY VERIFICATION.....................................................................................................................29 SYSTEM VALIDATION RESULT...................................................................................................................................30 7.4 SAR EVALUATION PROCEDURE...........................................................................................................................33 7.5 EXPOSURE LIMITS................................................................................................................................................34 8 - TEST RESULTS ....................................................................................................................................................35 8.1 SAR TEST DATA..................................................................................................................................................35 8.2 PLOTS OF TEST RESULT.......................................................................................................................................36 EXHIBIT A - SAR SETUP PHOTOGRAPHS .........................................................................................................49 COMPACL, BOTTOM SIDE TOUCHING PHANTOM, ANTENNA POINTING DOWN AND PERPENDICULAR WITH PHANTOM.49 COMPACL, BOTTOM SIDE TOUCHING PHANTOM, ANTENNA PARALLEL WITH PHANTOM............................................49 COMPACL, SIDE, BY STAND, 1.5CM SEPARATION WITH PHANTOM, ANTENNA PARALLEL WITH PHANTOM...............51 COMPACL, SIDE, BY STANDER, 1.5CM SEPARATION WITH PHANTOM, ANTENNA PARALLEL WITH PHANTOM, WITH HEADSET .................................................................................…
