Q3CCANEL868Energy Saving Lamp

USER MANUAL Self-ballasted fluorescent (electronic energy saving lamp) is a new kind of lighting style that uses trip-phospher tube with electronic ballast. It is characterized of energy saving, long life and flicker-free, and is widely used for restaurants, hotels, shops, homes lighting. 1. Specifications: MAE-SP-10WL(D), MAE-SP-15WL(D), MAE-SP-20WL(D), MAE-SP-25WL(D), MAE-SG-10WL(D), MAE-SG-15WL(D), MAE-SG-20WL(D), MAE-SG-25WL(D), MAE-UB-10WL(D), MAE-UB-15WL(D) AC 120V/60Hz 2. Working environment temperature: -18~ 40. 3. Precautions: z Use only on 120 volt, 60 hertz; z Never disassemble of modify the lamp---any changes could void the user’s authority to operate this device; z Not for use in totally enclosed fixture; z Risk of electric shock---do not use where directly exposed to water; z This device is not intended for use with emergency exit fixtures or emergency exit lights; z To prevent burns, do not touch the bulb or cap during operation or immediately after switching off; z Handle the plastic enclosure when replacement; z Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. z This product complier with Part 18 of the FCC rules but may cause interference to televisions, radios, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or plug the lamp or the compliance into a different outlet. z To prevent risk of fire, never install this device in the following fixtures: a. Fixture on dimming circuits. b. Emergency exit lights powered by direct current (DC). 4. COMPLIANCE INFORMATION STATEMENT Product Name: Energy Saving Lamp Model No.: MAE-SP-10WL(D), MAE-SP-15WL(D), MAE-SP-20WL(D), MAE-SP-25WL(D), MAE-SG-10WL(D), MAE-SG-15WL(D), MAE-SG-20WL(D), MAE-SG-25WL(D), MAE-UB-10WL(D), MAE-UB-15WL(D)

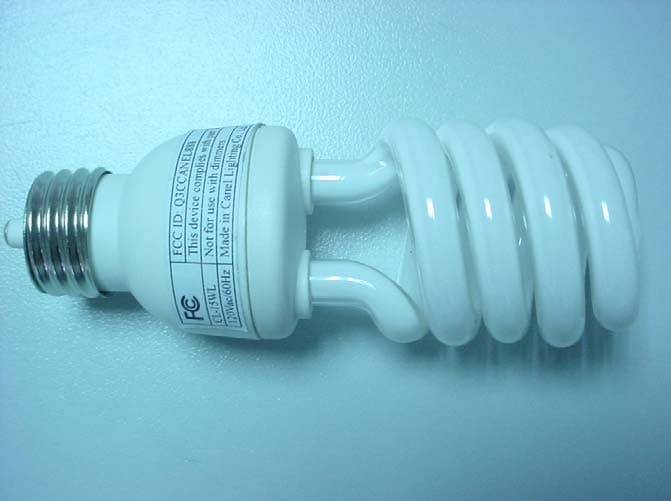

External Photos MAE-SP-10WL (D): EUT-Front View MAE-SP-10WL (D): EUT-Bottom View MAE-SP-15WL (D): EUT-Front View MAE-SP-15WL (D): EUT-Bottom View MAE-SP-20WL (D): EUT-Front View MAE-SP-20WL (D): EUT-Bottom View MAE-SP-25WL (D): EUT-Front View MAE-SP-25WL (D): EUT-Bottom View MAE-SG-10WL (D): EUT-Front View MAE-SG-10WL (D): EUT-Bottom View MAE-SG-15WL (D): EUT-Front View MAE-SG-15WL (D): EUT-Bottom View MAE-SG-20WL (D): EUT-Front View MAE-SG-20WL (D): EUT-Bottom View MAE-SG-25WL (D): EUT-Front View MAE-SG-25WL (D): EUT-Bottom View MAE-UB-10WL (D): EUT-Front View MAE-UB-10WL (D): EUT-Bottom View MAE-UB-15WL (D): EUT-Front View MAE-UB-15WL (D): EUT-Bottom View

ID Label Label FCC ID: Q3CCANEL868

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. MAE-SP-10WL (D) MAE-SP-15WL (D) MAE-SP-20WL (D) MAE-SG-10WL (D) MAE-SG-15WL (D) MAE-SG-20WL (D) MAE-UB-10WL (D) MAE-UB-15WL (D) MAE-SP-25WL (D) MAE-SG-25WL (D)

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For CANEL LIGHTING CO., LTD. 3 rd FL., No. 107, Chung Cheng Road, Sec. 1, Taipei, Taiwan FCC ID: Q3CCANEL868 July 28, 2006 This Report Concerns: Original Report Equipment Type: ENERGY SAVING LAMPS Test Engineer: Louise Lu Report Number: RSZ06063082 Test Date: July 27, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 CANEL LIGHTING CO., LTD. FCC ID: Q3CCANEL868 Report # RSZ06063082 Page 2 of 23 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA..............................................................................................................................................13 CANEL LIGHTING CO., LTD. FCC ID: Q3CCANEL868 Report # RSZ06063082 Page 3 of 23 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The CANEL LIGHTING CO., LTD.’s model: E26 Series: MAE-SP-10WL (D), MAE-SP-15WL (D), MAE-SP-20WL (D), MAE-SP-25WL (D), GU10 Series: MAE-SG-10WL (D), MAE-SG-15WL (D), MAE-SG-20WL (D), MAE-SG-25WL (D), UB Series: MAE-UB-10WL (D), MAE-UB-15WL (D), or the “EUT” as referred to in this report is a ENERGY SAVING LAMPS which measures approximately 10W: 115.0 cm L x 44.5 cm W, 15W: 120.0 cm L x 44.5 cm W, 20W: 125.0 cm L x 52.0 cm W, 25W: 145.0 cm L x 52.0 cm W, rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0606006. Provided by the manufacturer, we received EUT on 2006-06-30. Objective The following test report is prepared on behalf of CANEL LIGHTING CO., LTD. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurements were performed at Bay Area Compliance Lab Corp. (ShenZhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Lab Corp. (ShenZhen) to co…

Text truncated - open the document above for the full version.

Bill of Materials Models Components/ Rating MAE-SP- 10WL(D) MAE-SP- 15WL(D MAE-SP- 20WL(D) MAE-SP- 25WL(D) MAE-SG- 10WL(D) MAE-SG- 15WL(D) MAE-SG- 20WL(D) MAE-SG-25 WL(D) MAE-UB- 10WL(D) MAE-UB- 15WL(D) Compact Fluorescent Lamp Φ 9mm Φ 9mm Φ 11mm Φ 11mm Φ 9mm Φ 9mm Φ 11mm Φ 11mm Φ 9mm Φ 9mm CD3 (C3), CD4 10uF 10uF 15 uF 22uF 10uF 22uF 15 uF 22uF 10uF 10uF C4 103K 103K 333K 333K 103K 103K 333K 333K 103J 103J C5 102K 102K 152K 152K 102K 102K 152K 152K 102J 102J C6 473K 473K 473K 473K 473K 473K 473K 473K 473K 473K C7 222K 222K 472K 472K 222K 222K 472K 472K 222J 222J D6, D7 1N4007 1N4007 N N 1N4007 1N4007 N N 1N4007 1N4007 D8, D9 FR107 FR107 FR107 FR107 FR107 FR107 FR107 FR107 FR107 FR107 Q1, Q2 BT32 BT32 BT34 BT34 BT32 BT32 BT34 BT34 BT32 BT32 R2, R3 12 12 36 36 12 12 36 36 12 12 R4 1 1 1.6 1 1 1 1.6 1 1 1 R5 1 1 1.6 1 1 1 1.6 1 1 1 T2 5.0mH 2.1mH 2.7 2. 5mH 5.0mH 3.6mH 2.7m H 2.5mH 4.3mH 4.1mH T1 6*3*3 3:5:3 6*3*3 3:5:3 10*6*4 3:5:3 10*6*4 3:5:3 6*3*3 3:5:3 6*3*3 3:5:3 10*6*4 3:5:3 10*6*4 3:5:3 6*3*3 5:3:3 6*3*3 4:4:3

Circuit Diagram for MAE-SP-10/15/20/25WL(D), MAE-SG- 10/15/20/25WL(D), MAE-UB-10/15WL(D) INDQ D4DB3 116 R1A1M 1/4W 116 R2A 116 R3A 116 R4A 116 R5A 116 R7A470K 1/4W FUSE1 C4333K, 103J /100V C6 473K/400V C7 472K,222K /1KV C5 102K,473K,152K,102J /1KV LAMP LAMP T2-3 T1-2 T1-1 L1 C10.1uF 275VAC Q1BT34,BT32 Q2 BT34,BT32 PortPort D9 FR107 D8FRIO7 D6IN4007D7IN4007 10W /15W/20W/25W CIRCUIT DIAGRAM D1 IN4007 D2 IN4007 D10IN4007 CD3(C3) 22uF,15uF,10uF /200V CD4 22uF,15uF,10uF /200V T2

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For CANEL LIGHTING CO., LTD. 3 rd FL., No. 107, Chung Cheng Road, Sec. 1, Taipei, Taiwan FCC ID: Q3CCANEL868 July 28, 2006 This Report Concerns: Original Report Equipment Type: ENERGY SAVING LAMPS Test Engineer: Louise Lu Report Number: RSZ06063082 Test Date: July 27, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 CANEL LIGHTING CO., LTD. FCC ID: Q3CCANEL868 Report # RSZ06063082 Page 2 of 23 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA..............................................................................................................................................13 CANEL LIGHTING CO., LTD. FCC ID: Q3CCANEL868 Report # RSZ06063082 Page 3 of 23 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The CANEL LIGHTING CO., LTD.’s model: E26 Series: MAE-SP-10WL (D), MAE-SP-15WL (D), MAE-SP-20WL (D), MAE-SP-25WL (D), GU10 Series: MAE-SG-10WL (D), MAE-SG-15WL (D), MAE-SG-20WL (D), MAE-SG-25WL (D), UB Series: MAE-UB-10WL (D), MAE-UB-15WL (D), or the “EUT” as referred to in this report is a ENERGY SAVING LAMPS which measures approximately 10W: 115.0 cm L x 44.5 cm W, 15W: 120.0 cm L x 44.5 cm W, 20W: 125.0 cm L x 52.0 cm W, 25W: 145.0 cm L x 52.0 cm W, rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0606006. Provided by the manufacturer, we received EUT on 2006-06-30. Objective The following test report is prepared on behalf of CANEL LIGHTING CO., LTD. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurements were performed at Bay Area Compliance Lab Corp. (ShenZhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Lab Corp. (ShenZhen) to co…

Text truncated - open the document above for the full version.

Test Setup Photos MAE-SP-10WL (D): Conducted Emission - Front View MAE-SP-10WL (D): Conducted Emission - Side View MAE-SP-15WL (D): Conducted Emission - Front View MAE-SP-15WL (D): Conducted Emission - Side View MAE-SP-20WL (D): Conducted Emission - Front View MAE-SP-20WL (D): Conducted Emission - Side View MAE-SP-25WL (D): Conducted Emission - Front View MAE-SP-25WL (D): Conducted Emission - Side View MAE-SG-10WL (D): Conducted Emission - Front View MAE-SG-10WL (D): Conducted Emission – Side View MAE-SG-15WL (D): Conducted Emission - Front View MAE-SG-15WL (D): Conducted Emission -Side View MAE-SG-20WL (D): Conducted Emission - Front View MAE-SG-20WL (D): Conducted Emission - Side View MAE-SG-25WL (D): Conducted Emission - Front View MAE-SG-25WL (D): Conducted Emission - Side View MAE-UB-10WL (D): Conducted Emission - Front View MAE-UB-10WL (D): Conducted Emission - Side View MAE-UB-15WL (D): Conducted Emission - Front View MAE-UB-15WL (D): Conducted Emission - Side View
