Page 41 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 EXHIBIT 6 User Manual Page 42 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 USER MANUAL OF ENERGY SAVING LAMP Self-ballasted fluorescent (electronic energy saving lamp) is a new kind of lighting style that uses trip-phospher tube with electronic ballast. It is characterized of energy saving, long life and flicker-free, and is widely used for restaurants, hotels, shops, homes lighting. 1. Specifications: CL-10WL, CL-15WL, CL-20WL, CL-25WL AC 120V 60Hz 2. Working environment temperature: -18°C~ 40°C. 3. Precautions: z Use only on 120 volt, 60 hertz; z Never disassemble of modify the lamp---any changes could void the user’s authority to operate this device; z Not for use in totally enclosed fixture; z Risk of electric shock---do not use where directly exposed to water; z This device is not intended for use with emergency exit fixtures or emergency exit lights; z To prevent burns, do not touch the bulb or cap during operation or immediately after switching off; z Handle the plastic enclosure when replacement; z Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. z This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or plug the lamp or the compliance into a different outlet. Page 43 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 z To prevent risk of fire, never install this device in the following fixtures: a. Fixture on dimming circuits. b. Emergency exit lights powered by direct current (DC). 4. COMPLIANCE INFORMATION STATEMENT Product Name: Energy Saving Lamp Model No.: CL-10WL, CL-15WL, CL-20WL, CL-25WL This device complies with part 18 of FCC Rules. ****** FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

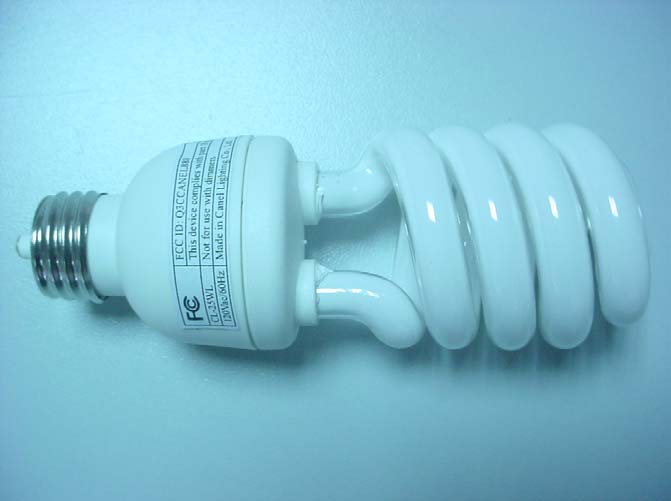

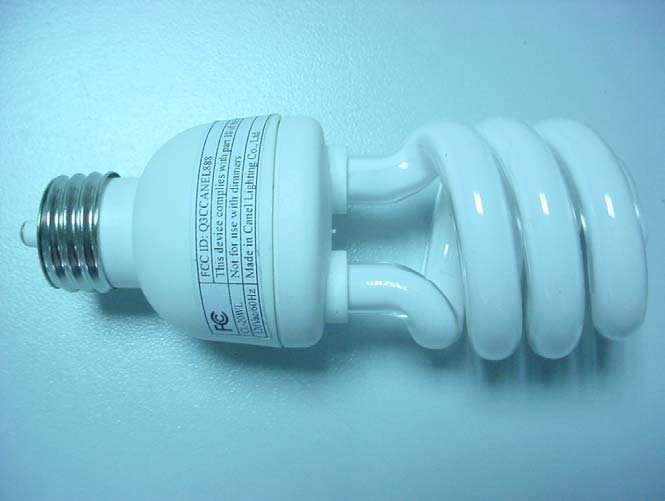

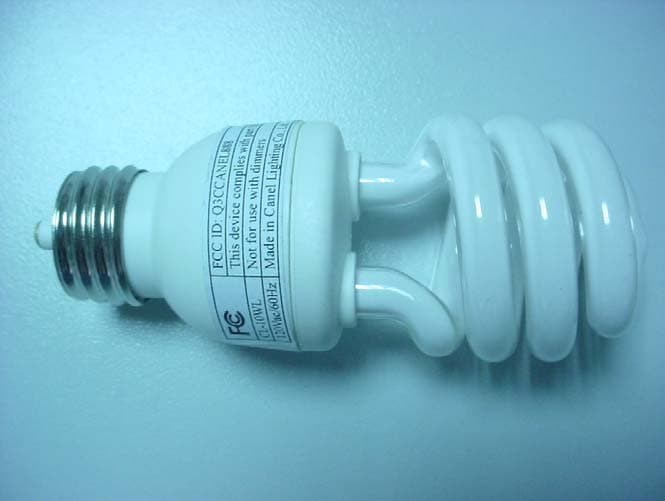

Page 6 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Figure 1 M/N: CL-10WL General Appearance Figure 2 M/N: CL-15WL General Appearance Label Location Label Location Page 7 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Figure 3 M/N: CL-20WL General Appearance Figure 4 M/N: CL-25WL General Appearance Label Location Label Location

Page 4 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 For M/N: CL-10WL/15WL/20WL/25WL Label FCC ID: Q3CCANEL888 This device complies with part 18 of the FCC Rules. CL-10WL Not for use with dimmers 120Vac/60Hz Made in Canel Lighting Co., Ltd. FCC ID: Q3CCANEL888 This device complies with part 18 of the FCC Rules. CL-20WL Not for use with dimmers 120Vac/60Hz Made in Canel Lighting Co., Ltd. FCC ID: Q3CCANEL888 This device complies with part 18 of the FCC Rules. CL-25WL Not for use with dimmers 120Vac/60Hz Made in Canel Lighting Co., Ltd. FCC ID: Q3CCANEL888 This device complies with part 18 of the FCC Rules. CL-15WL Not for use with dimmers 120Vac/60Hz Made in Canel Lighting Co., Ltd.

Page 6 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Figure 1 M/N: CL-10WL General Appearance Figure 2 M/N: CL-15WL General Appearance Label Location Label Location Page 7 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Figure 3 M/N: CL-20WL General Appearance Figure 4 M/N: CL-25WL General Appearance Label Location Label Location

Page 8 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Figure 5 M/N: CL-10WL/15WL Main Board, Component Side Figure 6 M/N: CL-10WL/15WL Main Board, Cu Foil Side Page 9 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Figure 7 M/N: CL-20WL/25WL Main Board, Component Side Figure 8 M/N: CL-20WL/25WL Main Board, Cu Foil Side

Page 13 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Bill of Difference The models CL-10WL, CL-15WL, CL-20WL, CL-25WL are the same, except the following components list different: Components/ rating Models Tube C2/C3 C5 C7 D5 R2/R3 R4/R5R6 T1 Q1, 2 CL-10WL Φ 9, Spire 10uF 101K 222K - 20Ω, 1/4W 1Ω, 1/4W 470K, 1/4W 6.2mH, EE-16, 0.25 × 260 BT32 CL-15WL Φ 9, Spire 15uF 181K 222K - 20Ω, 1/4W 2Ω, 1/4W 470K, 1/4W 2.0mH, EE-16, 0.25 × 230 BT32 CL-20WL Φ12, Spire 10uF 681K 682K FR-107 20Ω, 1W 1Ω, 1/4W FR-107 2.4mH, EE-16, 0.25 × 200 BT34 CL-25WL Φ12, Spire 22uF 471K 682K FR-107 20Ω, 1W 0.5Ω, 1/4W FR-107 3.0mH, EE-16SL, 0.25 × 240 BT34 Page 14 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Circuit Diagram D3 Q1 Q2 R6 470K L1 R1 C4 R2 C1 L2-1 C5 R3 L2-2 C6 C7 R7 L2-3 R5 R4 D1D2 10W¡¢15W CIRCUIT DIAGRAM D4 IN4007 473K/400V£» 150uH 470KÅ·/1/4W 333J/100V 1Õ×Å·/1/4W£» IN4007 IN4007 104K/275V F2 F1 C2 10uF/200V C3 10uF/200V Port Port FUSE * * * D3 Q1 Q2 R6 470K L1 R1 C4 D5 FR107 R2 C1 L2-1 C5 R3 L2-2 C6 C7 R7 L2-3 R5 R4 D1 D2 20W¡¢25W CIRCUIT D4 IN4007 473K/400V£ 150uH 470KÅ·/1/4 333J/100V 1Õ×Å·/1/4W IN4007 IN4007 104K/275 F2 F1 C2 10uF/200 C3 10uF/200 Pt Pt FUSE * * *

Page 17 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 EXHIBIT 4 Test Report Page 18 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 APPLICATION FOR CERTIFICATION On Behalf of Canel Lighting Co., Ltd. Energy Saving Lamp Model Number : CL-10WL, CL-15WL, CL-20WL, CL-25WL Prepared for : Canel Lighting Co., Ltd. 3 rd Fl, No.107, Chung Cheng Road, Sec.1, Shihlin, Taipei, Taiwan Prepared by : Shenzhen Unitech Technology Co., Ltd. Rm.906, Daxin Building, Road Nanxin, Nanshan District, Shenzhen, Guangdong, P.R China Telephone : (0755) 26085878~9 Report No. : SUTF030501 Date of Test : April 15-30, 2003 Date of Report : May 5, 2002 Page 19 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 TABLE OF CONTENTS Description Page Test Report Declaration 1. GENERAL INFORMATION .......................................................................................... 21 1.1. Description of Device (ETU) ..............................................................................................21 1.2. Test Facility........................................................................................................................22 1.3. Test Uncertainty.................................................................................................................22 2. POWER LINE CONDUCTED EMISSION TEST........................................................... 23 2.1. Test Equipment..................................................................................................................23 2.2. Block Diagram of Test Setup .............................................................................................23 2.3. Power Line Conducted Emission Test Limits.....................................................................23 2.4. Configuration of ETU on Test ............................................................................................23 2.5. Operating Condition of ETU...............................................................................................24 2.6. Test Procedure ..................................................................................................................24 2.7. Power Line Conducted Emission Test Results ..................................................................24 3. MODIFICATION TO TEST SPECIFICATIONS ............................................................ 27 4. PHOTOGRAPH ............................................................................................................. 28 4.1. Photo of Power Line Conducted Emission Test.................................................................28 Appendix I: Power Line Conduction Emission Test Data Page 20 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 Page 21 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 1. GENERAL INFORMATION 1.1 Description of Device (EUT) Description : Energy Saving Lamp Model Number : CL-10WL, CL-15WL, CL-20WL, CL-25WL Applicant : Canel Lighting Co., Ltd. 3 rd Fl, No.107, Chung Cheng Road, Sec.1, Shihlin, Ta i p e i , Ta i w a n Manufacturer : Canel Lighting Co., Ltd. Lincun, Xihu Industrial Zone, Tangxia Town, Dongguan, Guangdong, P.R China Date of Receipt : April 10, 2003 Date of Test : April 15-30, 2003 Page 22 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 1.2 Test Facility Site Description 3m Anechoic Chamber : Certificated by FCC, USA December 09, 2002 (Registration number: 709623) EMC Laboratory : Certificated by TUV Rheinland (Guangdong) Limited, which is member of TUV Rheinland / Berlin-Brandenburg Group. March 26, 2001 Name of Firm : Shenzhen Emtek Co., Ltd. Site Location : Bldg 69, Taipinyang Industrial Zone, Majialong, Nanshan, Shenzhen, Guangdong, China 1.3 Test Uncertainty Conducted Emission Uncertainty=±2.66dB Radiated Emission Uncertainty =±4.26dB Page 23 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 2. POWER LINE CONDUCTED EMISSION TEST 2.1 Test Equipment The following test equipments are used during the power line conducted emission test: Item Equipment Manufacturer Model No Last Cal. Cal. Interval 1. Test Receiver Rohde & Schwarz ESCS30 Jun. 04, 02 1 Year 2. L.I.S.N.#1 Rohde & Schwarz ESH2-Z5 Jun. 04, 02 1 Year 3. L.I.S.N.#2 Rohde & Schwarz ESH3-Z6 Jun. 04, 02 1 Year 4. L.I.S.N.#3 Kyoritsu KNW-407 Jun. 04, 02 1 Year 5. Terminator EMCO 50Ω Jun. 04, 02 1 Year 6. Terminator EMCO 50Ω Jun. 04, 02 1 Year 7. RF Cable FUJIKURA RG-55/U Sep. 04, 02 1/2 Year 8. Passive Probe Rohde & Schwarz ESH-Z3 Jun. 04, 02 1 Year 9. Coaxial Switch Anritsu MP59B Jun. 04, 02 1/2 Year 2.2 Block Diagram of Test Setup Block diagram of connection between the EUT and simulators (EUT: Energy Saving Lamp) 2.3 Power Line Conducted Emission Test Limits Te s t L i m i t s Frequency MHz dBμV 0.45 ~ 2.51 48 2.51-3.0 70 3.0-30 48 2.4 Configuration of EUT on Test The following equipment are installed on Power Line Conducted Emission Test to meet the commission requirement and operating regulations in a manner which tends to maximize its emission characteristics in a normal application. 2.4.1 Energy Saving Lamp (EUT) Model No. : CL-10WL / CL-15WL / CL-20WL / CL-25WL Serial No. : F2003050501 Manufacturer : Canel Lighting Co., Ltd. Test Receiver AC Mains L.I.S.N. EUT Page 24 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 2.5 Operating Condition of EUT 2.5.1 Setup the EUT and simulator as shown as Section 2.2. 2.5.2 Turn on the power of all equipment. 2.5.3 Let the EUT work in test mode (ON) and test it. 2.6 Test Procedure 2.6.1 The EUT is connected to the power mains through a line impedance stabilization network (L.I.S.N.). This provides a 50 ohms coupling impedance for the EUT. Please refer the block diagram of the test setup and photographs. Both sides of AC line are checked to find out the maximum conducted emission levels. In order to find the maximum emission levels, the relative positions of equipment and all of the interface cables…

Text truncated - open the document above for the full version.

Page 28 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 4. PHOTOGRAPH 4.1 Photo of Power Line Conducted Emission Test (CL-10WL) 4.2 Photo of Power Line Conducted Emission Test (CL-15WL) Page 29 Canel Lighting Co., Ltd. Energy Saving Lamp FCC ID: Q3CCANEL888 4.3 Photo of Power Line Conducted Emission Test (CL-20WL) 4.4 Photo of Power Line Conducted Emission Test (CL-25WL)
