Q3CCANEL878Energy Saving Lamp

USER MANUAL Self-ballasted fluorescent (electronic energy saving lamp) is a new kind of lighting style that uses trip-phospher tube with electronic ballast. It is characterized of energy saving, long life and flicker-free, and is widely used for restaurants, hotels, shops, homes lighting. 1. Specifications: MAE-SP-5WL(D), MAE-SP-7WL(D), MAE-SP-9WL(D) AC 120V/60Hz 2. Working environment temperature: -18~ 40. 3. Precautions: z Use only on 120 volt, 60 hertz; z Never disassemble of modify the lamp---any changes could void the user’s authority to operate this device; z Not for use in totally enclosed fixture; z Risk of electric shock---do not use where directly exposed to water; z This device is not intended for use with emergency exit fixtures or emergency exit lights; z To prevent burns, do not touch the bulb or cap during operation or immediately after switching off; z Handle the plastic enclosure when replacement; z Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. z This product complies with Part 18 of the FCC Rules but may cause interference to televisions, radios, wireless remote control or maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If interference should occur, move the lamp away from the appliance a distance of three feet or more. Or plug the lamp or the compliance into a different outlet. z To prevent risk of fire, never install this device in the following fixtures: a. Fixture on dimming circuits. b. Emergency exit lights powered by direct current (DC). 4. COMPLIANCE INFORMATION STATEMENT Product Name: Energy Saving Lamp Model No.: MAE-SP-5WL(D), MAE-SP-7WL(D), MAE-SP-9WL(D)

External Photos MAE-SP-5WL (D): EUT-Front View MAE-SP-5WL (D): EUT-Bottom View MAE-SP-7WL (D): EUT-Front View MAE-SP-7WL (D): EUT-Bottom View MAE-SP-9WL (D): EUT-Front View MAE-SP-9WL (D): EUT-Bottom View

ID Label Label FCC ID: Q3CCANEL878

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Refer to the below arrow. MAE-SP-5WL (D) MAE-SP-7WL (D) MAE-SP-9WL (D)

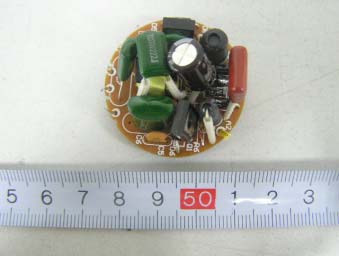

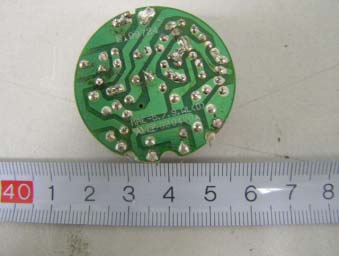

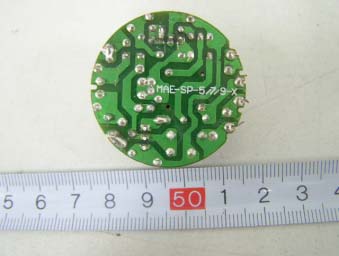

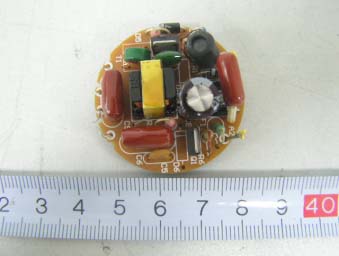

Internal Photos MAE-SP-5WL (D): EUT- Uncovered View MAE-SP-5WL (D): EUT- PCB Top View MAE-SP-5WL (D): EUT- PCB Bottom View MAE-SP-7WL (D): EUT-Uncovered View MAE-SP-7WL (D): EUT-PCB Top View MAE-SP-7WL (D): EUT-PCB Bottom View MAE-SP-9WL (D): EUT-Uncovered View MAE-SP-9WL (D): EUT-PB Top View MAE-SP-9WL (D): EUT-PB Bottom View

Bill of Materials Models Components/ Rating MAE-SP-5WL(D) MAE-SP-7W L(D) MAE-SP-9WL(D) Compact Fluorescent Lamp Φ 9mm Φ 9mm Φ 9mm CD3 (C3), CD4 4.7uF 10uF 10uF C4 103K 103K 103K C5 473K 473K 473K C6 222K 222K 222K C7 821K 471K 102J D6, D7 N N 1N4007 D8, D9 N N N Q1, Q2 BT21 BT32 BT32 R2, R3 5.6 8.2 8.2 R4 470K 470K 470K R5 N N N T2 3.0mH 3.5mH 4.5mH T1 6*3*3 3:10:3 6*3*3 3:5:3 6*3*3 4:3:4

Circuit Diagram for MAE-SP-5W/7W/9WL(D) 1 2 3 4 5 6 AB C D 6 5 4 3 2 1 D CB A Title Number Revision Size B Date: 10-May-2006 Sheet of File: C:\Documents and Settings\Administrator\ \ 9W.DDB Drawn By: DB3DB3 116 R1]A1M 1/4W 116 R2A RESPACK2 116 R3A RESPACK2 116 R7A470K 1/4W FUFUSE1 C4103K/100V C5 473K/400V C6 222K/1KV C7 102K/1KV SPRINGLAMP SPRINGLAMP T1-2INDUCTOR2 T1-1INDUCTOR2 T1-3INDUCTOR2 L1 INDUCTOR2 C1104k/275AV Q1 BT32 Q2BT32 PortPort 5W 7W 9W CIRCUIT DIAGRAM D1 IN4007 D2 IN4007 D5IN4007 C310uF/200V L2INDUCTOR2 D3 IN4007 D4 IN4007 C8222K/1000V D6IN4007 D7IN4007

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 18 EMI MEASUREMENT AND TEST REPORT For CANEL LIGHTING CO., LTD. 3 rd FL., No. 107, Chung Cheng Road, Sec. 1, Taipei, Taiwan FCC ID: Q3CCANEL878 July 28, 2006 This Report Concerns: Original Report Equipment Type: ENERGY SAVING LAMPS Test Engineer: Louise Lu Report Number: RSZ06063083 Test Date: July 26, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 CANEL LIGHTING CO., LTD. FCC ID: Q3CCANEL878 Report # RSZ06063083 Page 2 of 13 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 EXTERNAL I/O CABLE..................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSION...........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................8 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA..............................................................................................................................................10 CANEL LIGHTING CO., LTD. FCC ID: Q3CCANEL878 Report # RSZ06063083 Page 3 of 13 FCC Part 18 Report GENERAL INFORMATION Product Description for Equipment under Test (EUT) The CANEL LIGHTING CO., LTD.’s model: E14 Series: MAE-SP-5WL (D), MAE-SP-7WL (D), MAE- SP-9WL (D), or the “EUT” as referred to in this report is a ENERGY SAVING LAMPS which measures approximately 5W: 9.0 cm L x 4.0 cm W, 7W: 9.5 cm L x 4.0 cm W, 9W: 11.0 cm L x 4.0 cm W, rated input voltage: AC 120V/60Hz. * The test data gathered are from production sample, serial number: 0606007. Provided by the manufacturer, we received EUT on 2006-06-30. Objective The following test report is prepared on behalf of CANEL LIGHTING CO., LTD. in accordance with Part 2, Subpart J, and Part 18, Subparts A, B and C of the Federal Communication Commissions rules and regulations. The objective of the manufacturer is to determine compliance with FCC Part 18 limits. Related Submittal(s)/Grant(s) No related submittal(s). Test Methodology All measurements contained in this report were conducted with MP-5, FCC Methods of Measurements of Radio Noise Emissions from ISM Equipment, February 1986. All measurements were performed at Bay Area Compliance Lab Corp. (ShenZhen). The radiated testing was performed at an antenna-to-EUT distance of 3 meters. Test Facility The Test site used by Bay Area Compliance Lab Corp. (ShenZhen) to collect radiated and conducted emission measurement data is located in the 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, GuangDong 518038…

Text truncated - open the document above for the full version.

Test Setup Photos MAE-SP-5WL (D): Conducted Emission - Front View MAE-SP-5WL (D): Conducted Emission - Side View MAE-SP-7WL (D): Conducted Emission - Front View MAE-SP-7WL (D): Conducted Emission - Side View MAE-SP-9WL (D): Conducted Emission - Front View MAE-SP-9WL (D): Conducted Emission - Side View
