Q3MGTP100Tablet PC

11Mbps Wireless LAN Mini-PCI Card User's Manual 11Mbps Wireless LAN Mini-PCI CardPage 1 11Mbps Wireless LAN MINI-PCI Card WL-350F User's Manual 2001/7/19 11Mbps Wireless LAN Mini-PCI Card Page 2 11Mbps Wireless LAN Mini-PCI CardUser's Manual Copyright statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher. Printed in Taiwan, 2001/7/23 11Mbps Wireless LAN Mini-PCI Card User's Manual 11Mbps Wireless LAN Mini-PCI CardPage 3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this R&TTE Compliance Statement 11Mbps Wireless LAN Mini-PCI Card Page 4 11Mbps Wireless LAN Mini-PCI CardUser's Manual This equipment complies with all the requirements of the DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000 . Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this manual and of the computer manufacturer must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries intended for use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Iceland, Liechtenstein, Norway and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and13 11Mbps Wireless LAN Mini-PCI Card User's Manual 11Mbps Wireless LAN Mini-PCI CardPage 5 Contents 1 Contents ................................................................................................................. 5 2 Introduction............................................................................................................. 6 3 Wireless LAN Basics..................................................................................................7 4. Installation for Windows 98/2000/ME.............................................................................8 4.1 Installation Overview.............................................................................................9 4.2. Installation Procedure of Wireless LAN 11 bps........................................................10 4.3. Uninstallation Procedure for Windows 98..............................................................16 4.4. Installation Procedure for Windows 2000 / Windows ME..........................................17 4.5. Uninstallation Procedure for Windows 2000/Windows ME........................................19 5. Configuration Utilit ...................................................................................................20 6. Troubleshooting .......................................................................................................29 7. Technical specifications of Wireless LAN ....................................................................31 11Mbps Wireless LAN Mini-PCI Card Page 6 11Mbps Wireless LAN Mini-PCI CardUser's Manual 2. Introduction Thank you for purchasing your Wireless LAN, 11Mbps Wireless LAN Mini-PCI Card Card. This manual will assist you with the installation procedure. The package you have received should contain the following items: • 11Mbps Wireless LAN Mini-PCI Card Card. • User's Manual • Quick installation guide • Diskette containing Wireless LAN Management utility and drivers Note: if anything is missing, please contact your vendor The diskette contains the drivers and the program Configuration Utility that is used for managing the 11Mbps Wireless LAN Mini-PCI Card Card and establishing the wireless connection with your Local Area Network. 11Mbps Wireless LAN Mini-PCI Card User's Manual 11Mbps Wireless LAN Mini-PCI CardPage 7 3. Wireless LAN Basics Wireless LAN (Local Area N…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 8, 2003 RE: FCC ID: Q3MGTP100 Attention: Ellis Wu I have a few comments on this Application. 1. Please note that in accordance with CFR Part 2.925(a)(1) states that the “FCC Identifier consisting of the two elements in the exact order specified in §2.926...shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification.” Please note that the FCC identifier as shown on the label is not on a single line as required by the rules. Please correct the FCC ID label to comply with this requirement. In lieu of placing the FCC ID on a line by itself, you may “block-in” the ID number (i.e. place a block around the ID to separate it from any other item). 2. Please note that the operational description states that there is no antenna connector. The internal photos of the device clearly show the card with antenna connectors, and it clearly shows the antenna cable with the matching connector. Perhaps you mean that there is not external antenna connector to connect an external antenna. Please clarify the operational description in this respect. 3. Please note that on page 9 of the SAR report the explanations for mode 5 and 6 are ‘jumbled’. Please correct. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

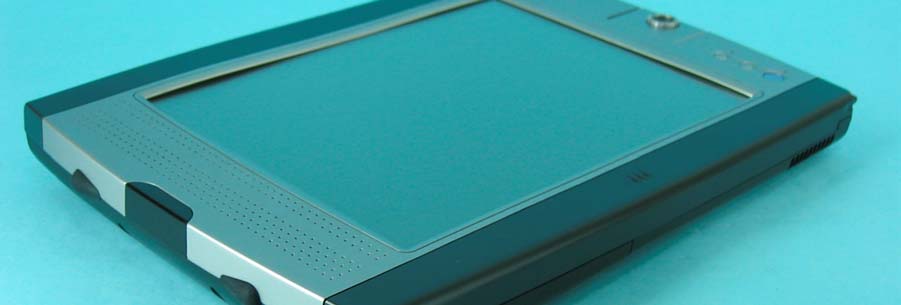

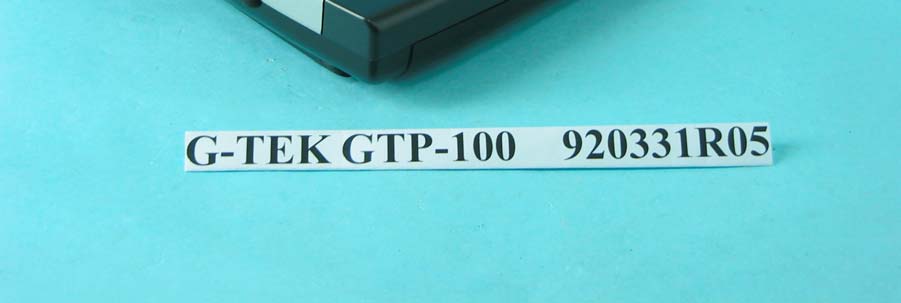

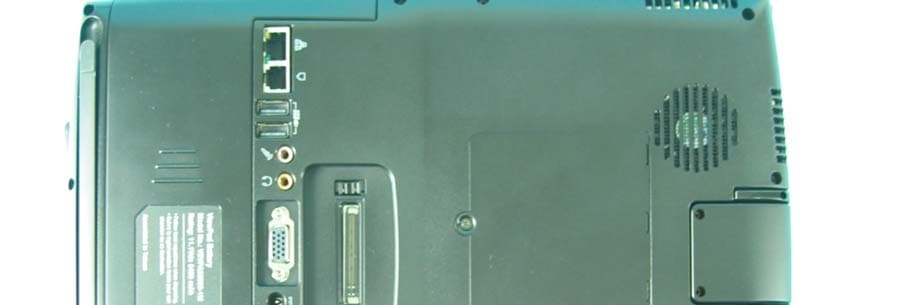

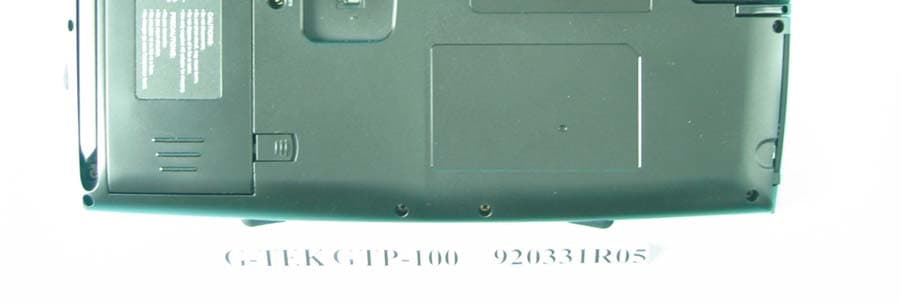

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: Q3MGTP100 ADT No.910222R01A Operational Description The transmitter of the EUT is powered by Mini-PCI interface of UFL Pocket PC. The antenna is Dipole antenna with UFL antenna connector. Authorization of Limited Module Approval has been reguested on this product. For more detailed instruction, please take a look at the user’s manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although the bit rate is higher, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: Q3MGTP100 Report No.: SA920331R05 1 Issued: May 8 th 2003 SAR TEST REPORT REPORT NO.: SA920331R05 MODEL NO.: GTP-100 RECEIVED: May 5, 2003 TESTED: May 6, 2003 APPLICANT: G-TEK Electronics Corporation ADDRESS:16F,106, Sec.1,Hsin-Tai 5th Road, Hsichih, Taipei county, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 16 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. FCC ID: Q3MGTP100 Report No.: SA920331R05 2 Issued: May 8 th 2003 Table of Contents 1.CERTIFICATION ........................................................................................ 3 2.GENERAL INFORMATION ........................................................................ 4 2.1GENERAL DESCRIPTION OF EUT .......................................................... 4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................ 4 2.3GENERAL INOFRMATION OF THE SAR SYSTEM .................................. 5 2.4GENERAL DESCRIPTION OF THE PROBE SCAN RULE ....................... 7 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................... 8 4.DESCRIPTION OF SUPPORT UNITS..................................................... 10 5.TEST RESULTS....................................................................................... 10 5.1TEST PROCEDURES.............................................................................. 10 5.2MEASURED SAR RESULT...................................................................... 11 5.3SAR LIMITS ............................................................................................. 12 5.4EUT CONDUCTED POWER VARIATION ................................................ 12 5.5TISSUE .................................................................................................... 13 5.6TEST EQUIPMENT FOR TISSUE PROPERTY....................................... 13 6.SYSTEM VALIDATION............................................................................. 14 7.MEASUREMENT UNCERTAINTIES........................................................ 15 8.INFORMATION ON THE TESTING LABORATORIES ............................. 16 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q3MGTP100 Report No.: SA920331R05 3 Issued: May 8 th 2003 1. CERTIFICATION PRODUCT :Tablet PC MODEL NO. : GTP-100 BRAND NAME : G-TEK APPLICANT : G-TEK Electronics Corporation STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on 6 th May. 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: Q3MGTP100 Report No.: SA920331R05 4 Issued: May 8 th 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCTTablet PC MODEL NO.GTP-100 POWER SUPPLY3.3VDC powered by host equipment CLASSIFICATIONPortable device, production unit MODULATION TYPE BPSK, QPSK, CCK RADIO TECHNOLOGY DSSS TRANSFER RATE 1~11Mbps FREQUENCY RANGE2412MHz ~ 2462MHz NUMBER OF CHANNEL11 CONDUCTED OUTPUT POWER 40.92mW ANTENNA TYPEDipole Antenna PEAK SAR0.363W/kg DATA CABLENA I/O PORTSMini PCI ASSOCIATED DEVICESNA 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS According to the specifications of the manufacturer, this product must comply with the requirements of the following standards: FCC 47 CFR Part 2 (2.1093) FCC OET Bulletin 65, Supplement C (01- 01) RSS-102 All tests have been performed and recorded as per the above standards. FCC ID: Q3MGTP100 Report No.: SA920331R05 5 Issued: May 8 th 2003 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM DASY4 (software 4.1, build 33) consists of high precision robtics system, probe alignment sensor, phantom, robot controller, controlled PC and near-field probe. The robot includes six axis that can move to the precision position of the DASY4 software defined. The DASY4 software can define the area which is detected by the probe. The robot is connected to controlled box. Controlled PC is connected to the controlled robot box. The DAE includes amplifier, signal multiplexing, AD converter, offset measurement, surface detection. It is connected to the Electro-optical coupler (ECO). The ECO performs the conversion form the optical into digital electric signal of the DAE and transfers data to the PC. ET3DV6 ISOTROPIC E-FIELD PROBE Construction Symmetrical design with triangular core. Built-in optical fiber for surface detection system. Built-in shielding against static charges. PEEK enclosure material (resistant to organic solvents, e.g., glycolether). Calibration Basic Broad Band Calibration in air: 10-2500 MHz Conversion Factors (CF) for HSL 900 and HSL 1800 CF-Calibration for other liquids and frequencies upon request Frequency 10 MHz to 3 GHz; Linearity: ± 0.2 dB (30 MHz to 3 GHz) Directivity ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 Db in HSL (rotation normal to probe axis) Dynamic Range 5 μW/g to > 100 mW/g; Linearity: ± 0.2 dB Optical Surface Detection ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces Dimensions Overall length: 330 mm (Tip Length: 16 mm) Tip diameter: 6.8 mm (Body diameter: 12 mm) Distance from probe tip t…

Text truncated - open the document above for the full version.

FCC ID: Q3MGTP100 Report No.: RF910222R01A1Issued: April 12, 2003 Reference No.: RF910222R01 FCC TEST REPORT REPORT NO.: RF910222R01A MODEL NO.: GTP-100 RECEIVED: Mar. 28, 2003 TESTED: February 22 ~ March 15 , 2002 APPLICANT: G-TEK Electronics Corporation ADDRESS: 16F, 106, Sec. 1, Hsin-Tai 5 th Road, Hsichih, Taipei county, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: Q3MGTP100 Report No.: RF910222R01A2Issued: April 12, 2003 Reference No.: RF910222R01 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.36dB BANDWIDTH MEASUREMENT .......................................................... 23 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 23 4.3.2TEST INSTRUMENTS ................................................................................ 23 4.3.3TEST PROCEDURE ................................................................................... 24 4.3.4TEST SETUP .............................................................................................. 24 4.3.5EUT OPERATING CONDITIONS................................................................ 24 4.3.6TEST RESULTS.......................................................................................... 25 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 29 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 29 4.4.2TEST INSTRUMENTS ................................................................................ 29 4.4.3TEST PROCEDURES................................................................................. 30 4.4.4TEST SETUP .............................................................................................. 30 4.4.5EUT OPERATING CONDITIONS................................................................ 30 FCC ID: Q3MGTP100 Report No.: RF910222R01A3Issued: April 12, 2003 Reference No.: RF910222R01 4.4.6TEST RESULTS.......................................................................................... 31 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 32 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 32 4.5.2TEST INSTRUMENTS ................................................................................ 32 4.5.3TEST PROCEDURE ................................................................................... 33 4.5.4TEST SETUP .............................................................................................. 33 4.5.5EUT OPERATING CONDITIONS................................................................ 33 4.5.6TEST RESULTS.......................................................................................... 34 4.6BAND EDGES MEASUREMENT ................................................................ 38 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 38 4.6.2TEST INSTRUMENTS ................................................................................ 38 4.6.3TEST PROCEDURE ................................................................................... 38 4.6.4EUT OPERATING CONDITION .................................................................. 39 4.6.5TEST RESULTS.......................................................................................... 39 4.7ANTENNA REQUIREMENT..........................................…

Text truncated - open the document above for the full version.

FCC ID: Q3MGTP100 Report No.: RF910222R01A43Issued: April 12, 2003 Reference No.: RF910222R01 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q3MGTP100 Report No.: RF910222R01A44Issued: April 12, 2003 Reference No.: RF910222R01 RADIATED EMISSION TEST
