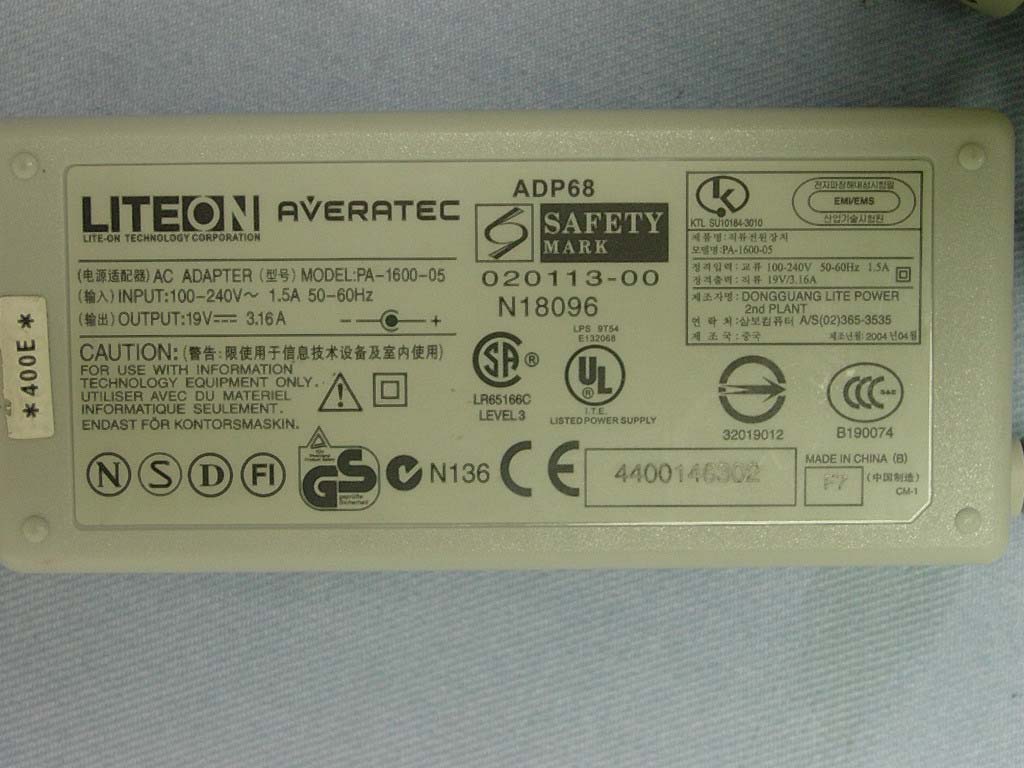

Compliance Certification Services Inc. Report No: 40629002 Date of Issue: July 20, 2004 Page 1 of 7 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40629002 Date of Issue: July 20, 2004 Page 2 Compliance Certification Services Inc. Report No: 40629002 Date of Issue: July 20, 2004 Page 3

Corporation Design 116.5116.5 +0 -0.25 +0 -0.25 9 9 . 5 9 9 . 5 + 0 - 0 . 2 5 + 0 - 0 . 2 5 R2*3R2*3 63-040119-Y0 Color Requirement: P FCC Label for E12K Lower Cover E12K Wen Fu ChiengWen Fu Chieng 1 : 1 1 1 08 / 17 04' 0 63-040270-30 C2.5C2.5 TUV RheinlandTUV Rheinland .. .. Background: Silver Text: Pantone Black PC , Thickness 0.5mm Adhesive:3M(468) Draw No.: C3988 71001018 R33872 63-040270-00 FCC ID:I4L-MS6833A DC 20V 3A MODEL NO.: E12KT

Compliance Certification Services Inc. Report No: 40629002 Date of Issue: July 20, 2004 Page 4 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 40629002 Date of Issue: July 20, 2004 Page 5 Compliance Certification Services Inc. Report No: 40629002 Date of Issue: July 20, 2004 Page 6 Compliance Certification Services Inc. Report No: 40629002 Date of Issue: July 20, 2004 Page 7

1 A PPROVAL SHEET MODEL E12T DESCRIPTION E12T Wireless PIFA Antenna Wgt P/N TWE12WIPI01A CUSTOMER P/N PIFA ANTENNA-L C3812-E12T DATE 25 NOV.,2003 Manager Chief Engineer 118 51 20 Well Green Technology Co., Ltd. No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: +886-3-420-6428 ; FAX: +886-3-420-6418 Check Responser w g t For Twinhead International Com p uter , Inc. 2 3 4 Antenna Testing Conditions: 1.Testing set up 0 degree Clockwise LCD OPEN LCD CLOSE 600 cm HORN Standard Antenna R3767CG Network Analyzer Rotator Controller Radiation Pattern Testing - Anechoic Chamber 5 2. Mechanical dimensions A ntenna E12T Cable φ 1.13 Wireless LAN Right up A ntenna E12T Cable φ 1.13 Wireless LAN Left up 6 1. Return Loss Well Green Technology CO. , Ltd Frequency Band 2.4~2.5GHz Date 25 NOV.,2003 Return Loss Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz E12T 2450 -14.62 -15.01 -15.50 P/N TWE12WIPI01A 7 2. VSWR Well Green Technology CO. , Ltd Frequency Band 2.4~2.5GHz Date 25 NOV.,2003 VSWR Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz E12T 2450 1.43 1.43 1.39 P/N TWE12WIPI01A 8 3. Smith Chart Well Green Technology CO. , Ltd Frequency Band 2.4~2.5GHz Date 25 NOV.,2003 P/N TWE12WIPI01A 9 Free Space 1. Radiation Pattern of XY Plane (Azimuth)-2.45GHz 0 90 180 270 10 2. Radiation Pattern of XY Plane (Azimuth)-5.25GHz 0 90 180 270 11 3. Peak Gain and Average Gain Gain of XY Plane (Azimuth) Antenna Polarization 2.45GHz Peak 0.62 V Average -4.74 Peak -0.55 H Average -6.19 Peak 1.41 E12T H+V Average -2.39 Gain of XY Plane (Azimuth) Antenna Polarization 5.25GHz Peak 1.14 V Av e r a g e -5.03 Peak -1.62 H Av e r a g e -5.72 Peak 2.16 E12T H+V Average -2.35 12 SPECIFICATIONS: Electrical Properties Frequency Range 2.4~2.5GHz Impedance 50Ohms nomimal VSWR 2.0 Peak Gain : -5.0dBi peak gain 3dBi Standard Connector I-PEX&MMCX Flmale Connector

1 A PPROVAL SHEET MODEL 3200 Series DESCRIPTION E12T Wireless PIFA Antenna Wgt P/N TWE12WIPI02A CUSTOMER P/N PIFA ANTENNA-R C3774-E12T DATE 25 NOV.,2003 Manager Chief Engineer 118 51 20 Well Green Technology Co., Ltd. No. 20, Alley51 ,Lane 118,ShuangLian Sec.2,Mintzu Rd., PingJen City, TaoYuan Hsien, Taiwan, R.O.C TEL: +886-3-420-6428 ; FAX: +886-3-420-6418 Check Responser w g t For Twinhead International Com p uter , Inc. 2 3 4 Antenna Testing Conditions: 1.Testing set up 0 degree Clockwise LCD OPEN LCD CLOSE 600 cm HORN Standard Antenna R3767CG Network Analyzer Rotator Controller Radiation Pattern Testing - Anechoic Chamber 5 2. Mechanical dimensions A ntenna E12T Cable φ 1.13 Wireless LAN Right up A ntenna E12T Cable φ 1.13 Wireless LAN Left up 6 1. Return Loss Well Green Technology CO. , Ltd Frequency Band 2.4~2.5GHz Date 25 NOV.,2003 Return Loss Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz E12T 2450 -13.87 -20.54 -21.92 P/N TWE12WIPI02A 7 2. VSWR Well Green Technology CO. , Ltd Frequency Band 2.4~2.5GHz Date 25 NOV.,2003 VSWR Antenna Center freg. @MHz BW @MHz 2.4GHz 2.45GHz 2.5GHz E12T 2450 1.61 1.28 1.26 P/N TWE12WIPI02A 8 3. Smith Chart Well Green Technology CO. , Ltd Frequency Band 2.4~2.5GHz Date 25 NOV.,2003 P/N TWE12WIPI02A 9 Free Space 1. Radiation Pattern of XY Plane (Azimuth)-2.45GHz 0 90 180 270 10 2. Radiation Pattern of XY Plane (Azimuth)-5.25GHz 0 90 180 270 11 3. Peak Gain and Average Gain Gain of XY Plane (Azimuth) Antenna Polarization 2.45GHz Peak -1.31 V Average -5.08 Peak -1.42 H Average -6.51 Peak 0.07 E12T H+V Average -2.73 Gain of XY Plane (Azimuth) Antenna Polarization 5.25GHz Peak -0.88 V Av e r a g e -5.71 Peak -0.92 H Av e r a g e -5.32 Peak 0.90 E12T H+V Average -2.50 12 SPECIFICATIONS: Electrical Properties Frequency Range 2.4~2.5GHz Impedance 50Ohms nomimal VSWR 2.0 Peak Gain : -5.0dBi peak gain 3dBi Standard Connector I-PEX&MMCX Flmale Connector

Compliance Certification Services Inc. Date of Issue: July 19, 2004 Report No: 40629002-RP FCC ID: Q3Z3280K8M Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 64 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Averatec Inc. Notebook built-in b/g WLAN Module Model: 3280 Series Trade Name: Averatec Prepared for Averatec Inc. 80 Icon, Foothill Ranch, CA92610 Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Date of Issue: July 19, 2004 Report No: 40629002-RP FCC ID: Q3Z3280K8M Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES... .....................................................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................30 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................35 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................60 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................63 Compliance Certification Services Inc. Date of Issue: July 19, 2004 Report No: 40629002-RP FCC ID: Q3Z3280K8M Page 4 2. EUT DESCRIPTION Product Notebook built-in b/g WLAN Module Trade Name Averatec Model Number 3280 Series Model Discrepancy N/A Power Supply PA-1600-05 I/P: AC 100-240V, 1.5A, 50-60Hz O/P: DC 19V, 3.16A Frequency Range 2412 ~ 2462 MHz Transmit Power 802.11b mode: 18.88dBm 802.11g mode: 18.19dBm Modulation Technique 802.11b: DSSS (CCK; DQPSK; DBPSK) 802.11g: OFDM Transmit Data Rate 802.11b: 11Mbps(CCK) with fall back rates of 5.5, 2, and 1Mbps 802.11g: 54Mbps with fall back rates of 48/36/24/18/12/9/6 Mbps (OFDM) Number of Channels 11 Channels Antenna Specification PIFA Antenna / Gain: 0.62 dBi Note: This submittal(s) (test report) is intended for FCC ID: Q3Z3280K8M filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Date of Issue: July 19, 2004 Report No: 40629002-RP FCC ID: Q3Z3280K8M Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2001 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measureme…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Date of Issue: July 19, 2004 Report No: 40629002-RP FCC ID: Q3Z3280K8M Page 63 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Date of Issue: July 19, 2004 Report No: 40629002-RP FCC ID: Q3Z3280K8M Page 64 Conducted Emission Set Up Photos
