Q45ACCESSODesktop Reader

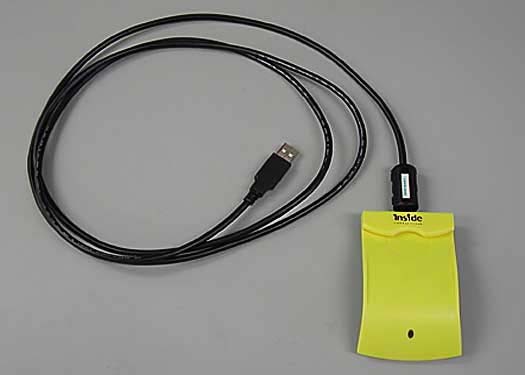

Accesso 2G - Datasheet - Accesso 2G DS 1 Version 1.1 INSIDE CONTACTLESS ACCESSO 2G DESKTOP READER 13.56 MHz for ISO chips - 14 443 type A and B - 15 693 - FeliCa DATASHEET Chips > Packaging > Readers > more... Accesso 2G - Datasheet - Accesso 2G DS 2 Version 1.1 Content CHAPTER 1 : ACCESSO DESCRIPTION System Integration7 Dimensions and Pin Co-ordinates8 Mechanical Interface – Component View8 CHAPTER 2 CONNECTION Power supply10 Characteristics10 USB Interface11 PC drivers installation11 Baud rate11 Coupler’s Inputs and Outputs12 How to reset the coupler13 Software reset13 Accesso 2G - Datasheet - Accesso 2G DS 3 Version 1.1 CHAPTER 3 COMMAND INTERFACE REFERENCE MANUAL HOST - COUPLER protocol2 description2 Coupler commands overview5 SELECT_CARD6 SELECT_PAGE8 TRANSMIT10 GET_RESPONSE12 READ_STATUS13 SET_STATUS14 Modifiable parameters15 Coupler’s INPUTs AND OUTPUTS16 EEPROM free area16 DISABLE_COUPLER17 DISABLE_COUPLER ENHANCED18 ENABLE_COUPLER19 ASK_RANDOM20 LOAD_KEY_FILE21 SELECT_CURRENT_KEY22 DIVERSIFY_KEY23 GET_CONFIG24 Accesso 2G - Datasheet - Accesso 2G DS 4 Version 1.1 CHAPTER 4 USER’S GUIDE Managing INSIDE chips2 Security configuration3 Selecting a chip4 Selecting a page5 Reading chip memory6 Writing chip memory7 Halting a chip8 How to work with several chips in the field9 Managing INSIDE’s chips protocols10 Managing the security11 INSIDE chips security11 Key loading13 How to set a key as the active one14 How to authentify a chip15 How to authentify a PAGE15 Protecting the keys16 Managing STANDARD chips protocols17 Time out adjustment17 15 693-3 protocol17 ISO 14 443 type A18 ISO 14 443 type B18 FeliCa ( new version)18 Managing the RF field19 How to reset the RF field ?19 How to asleep the coupler19 How to wake up the coupler19 APPENDIX A HOW TO LOAD A KEY IN A COUPLER Exchange key21 General key loading procedure21 Terminology and notation22 Key loading step by step22 Algorithms23 Key permutation23 Checksum byte calculation23 Load key checksum calculation23 APPENDIX B ERROR CODE Accesso 2G - Datasheet - Accesso 2G DS 5 Version 1.1 Main Features : √√ √√ √USB interface √√ √√ √ Security management: !Security module !Secure key loading √√ √√ √ Secured Key Storage √√ √√ √ Contactless interfaces: !ISO 15 693 !ISO 14 443 type A !ISO 14 443 type B !FELICA TM √√ √√ √Contactless transmission of data and energy supply √√ √√ √Carrier frequency: 13.56MHz √√ √√ √Transparent mode for contactless data exchange √√ √√ √ Low power consumption < (To be defined) √√ √√ √Stand by mode for low power standby current consumption < (To be defined) √√ √√ √Operating temperature range: -20°C to +50°C √√ √√ √CE approval capabilities Product Ordering Code ProductOrdering codePackageTools Desktop USB readerACCESSO 2GBlack andYellow - OEM USB ReaderACCESSO 2G OEM PCB- Accesso 2G - Datasheet - Accesso 2G DS - 6 Version 1.1 FCC AND CE COMPLIANCE Federal Communications Commission (FCC) Part 15 statement This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information : This equipement generates and uses radiofrequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in part 15 of FCC rules, which are designed to provide reasonable protection against such interference in a residential installation. however, there is no guarentee that interference will not occure in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •If using an indoor antenna, have quality outdoor antenna installed •Reoriant the receiving antenna until interference is reduced or eliminated •Move the radio or television receiver away from the receiver/control •Move the antenna leads away from any wire runs to the receiver/control •Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits. This device complies with part 15 off the FCC rules. Operation is subject to the following two conditions : (1) this device may not cautse harmful interference, and (2) : this device must accept any interference received, including interference that may cause undesired operation. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user or master may find the following booklet prepared by the Federal Communication Commissions helpful: «Interference Handbook». This booklet is available from the US Government Printing Office, Washington, DC 20402. The user shall not make any changes or modifications to the equipment unless authorized by installation instructions or User’s Manual. Unauthoriezd changes or modifications could void the user’s authority to operate the equipment. Model : ACCESSO FCC ID : Q45ACCESSO This device is certified to comply with Class B limits. Part 15 of FCC rules. See instruction manual. Made in France Electrical Rating: 5.0V " 50mA Tested To Comply With FCC Standards Accesso 2G - Datasheet - Accesso 2G DS 6 Version 1.1 CHAPTER 1 : ACCESSO DESCRIPTION ACCESSO and M260H are couplers developed by INSIDE Contactless for managing the RF communication interface with 13.56 MHz standard chips. They have the following features : "" "" " Operating frequency13.56MHz "" "" " Host interfaceUSB "" "" " Target applicationsProximity and short range applications "" "" " Target chipAll INSIDE’s chips, 15693 chips, 14443 chips (type A and type B), FELICA TM You will find in this chapter ... !! !! !Coupler’s mechanical characteristics (PIN position, size...) Accesso 2G - Datasheet - Accesso…

Text truncated - open the document above for the full version.

ACCESSO Block Diagram Microcontroller Data decoding Carrier + data mixer (Amplifier) 13.56 MHz Crystal oscillator Carrier amplifier Antenna Coil trigger Band pass filter USB Interface USB Connector 6 MHz Crystal oscillator Amplifier Envelope detector USB Power supply

INSIDE TECHNOLOGIES 11A, Parc Club du Golf 13856 Aix-en-Provence Cedex 3 - France Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. INSIDE TECHNOLOGIES would like the following documents regarding this submission for FCC ID Q45ACCESSO to be kept confidential. 1. Schematics, electronic file name “ACCESSO-schematic.pdf” The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, INSIDE TECHNOLOGIES Mr Adel HAMZA Reader Operation Manager

Top Bottom

Accesso 2G - Datasheet - Accesso 2G DS - 6 Version 1.1 FCC AND CE COMPLIANCE Federal Communications Commission (FCC) Part 15 statement This equipment has been tested to FCC requirements and has been found acceptable for use. The FCC requires the following statement for your information : This equipement generates and uses radiofrequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in part 15 of FCC rules, which are designed to provide reasonable protection against such interference in a residential installation. however, there is no guarentee that interference will not occure in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •If using an indoor antenna, have quality outdoor antenna installed •Reoriant the receiving antenna until interference is reduced or eliminated •Move the radio or television receiver away from the receiver/control •Move the antenna leads away from any wire runs to the receiver/control •Plug the receiver/control into a different outlet so that it and the radio or television receiver are on different branch circuits. This device complies with part 15 off the FCC rules. Operation is subject to the following two conditions : (1) this device may not cautse harmful interference, and (2) : this device must accept any interference received, including interference that may cause undesired operation. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user or master may find the following booklet prepared by the Federal Communication Commissions helpful: «Interference Handbook». This booklet is available from the US Government Printing Office, Washington, DC 20402. The user shall not make any changes or modifications to the equipment unless authorized by installation instructions or User’s Manual. Unauthoriezd changes or modifications could void the user’s authority to operate the equipment. Model : ACCESSO FCC ID : Q45ACCESSO This device is certified to comply with Class B limits. Part 15 of FCC rules. See instruction manual. Made in France Electrical Rating: 5.0V " 50mA Tested To Comply With FCC Standards

Model : ACCESSO FCC ID : Q45ACCESSO This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 20 mm 40 mm Made in china Electrical Rating: 5.0V ∀ 50mA Tested To Comply With FCC Standards

Top Cover Off Top Antenna Off Antenna Bottom Top Main PCB Bottom Main PCB

ACCESSO Theory of Operation In the communication protocol, the data send by the reader to the chip is mixed with the 13.56MHz carrier, amplified and sent to the antenna coil. An ASK signal coming from the chip is recognized by the reader as an amplitude modulation of the carrier signal. The reader needs two steps for a full recovery of the data. The first step is demodulating the backscattering signal, and the second step is to adapt the level to the microcontroller that performs the signal decoding. The demodulation is accomplished by detecting the envelope of the carrier signal. A half- wave capacitor-filtered rectifier circuit is used for the demodulation process. A diode detects the peak voltage of the backscattering signal. The demodulated signal must then pass through band pass filter, amplifier and trigger (signal shaping) circuit before it is fed to the microcontroller. The microcontroller performs data decoding and an asynchronous serial data stream utilizing an open-collector interface.
