Aix en Provence, March 15th,2012 Subject: RADIO Certification of DeskRead Applicant: Inside Secure Product: DeskRead Model: NA FCC ID: Q45DESKREAD IC ID: 4717A-DESKREAD To Whom It May Concern: We would like to submit the above product for Certification concerning FCC and Canadian rules. Please review all required documents enclosed. This application is about a NFC reader able to interface with electronic tags and contactless cards using the 13.56MHz frequency.This reader is especially used in a development kit, the customers designing their own applications. . Compliance for RF exposure requirement was demonstrated in this test report. If you have any queries, please do not hesitate to contact us. Regards, Demange Serge, March 15th, 2012-03-15

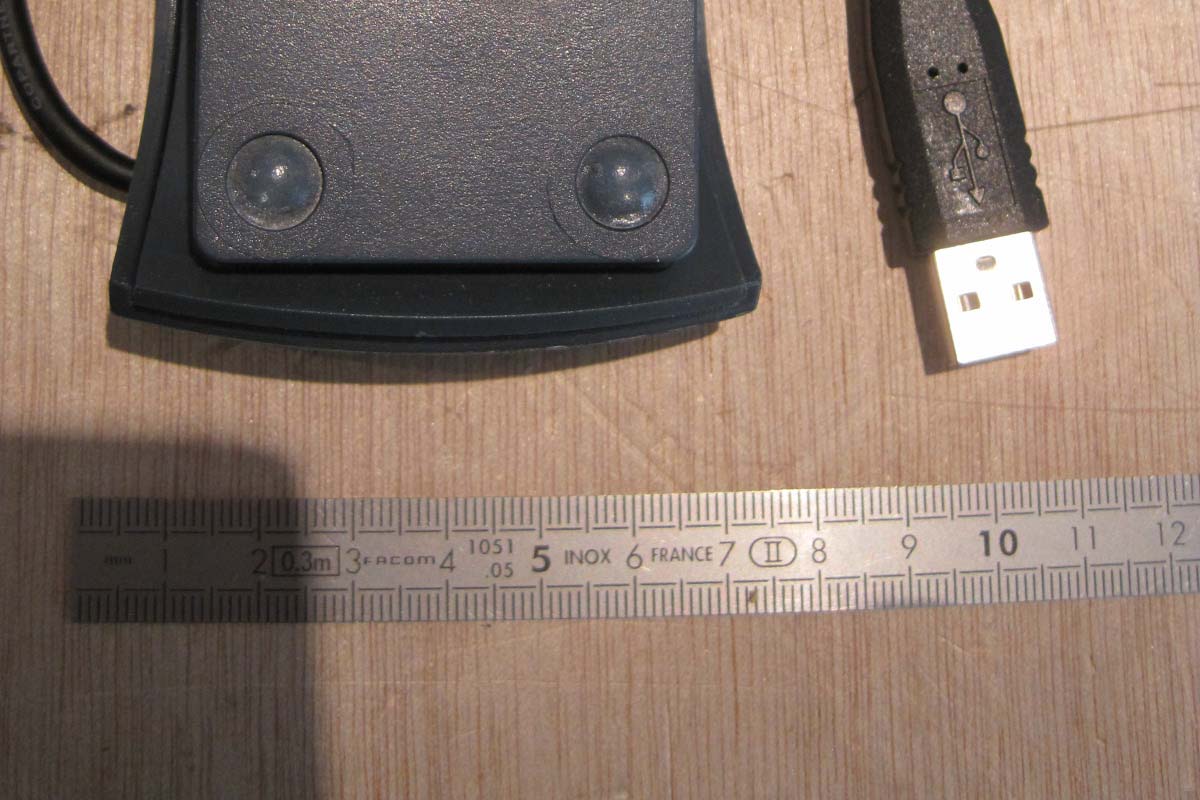

External Photos : DeskRead product

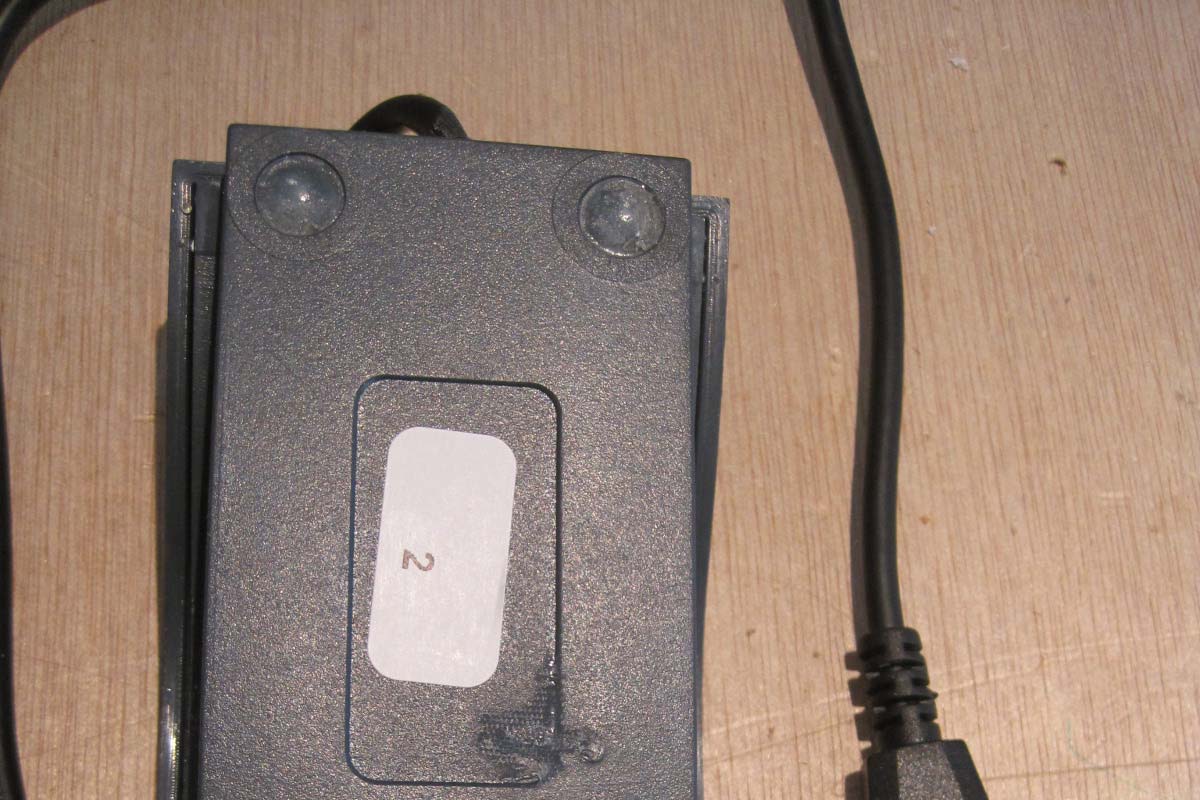

DeskRead Label position DeskRead Label position P a g e 1

DeskRead Pictures DeskRead Pictures Page 1 DeskRead Pictures Page 2

R041-10-101358-4A - DM / CHB RADIO TEST REPORT According to the standard(s): FCC part 15 Subpart C RSS-Gen:2010 RSS-210:2010 Equipment under test: TAG READER A-NFC2 DeskRead FCC ID: Q45DESKREAD IC: 4717A - DESKREAD Company: INSIDE SECURE Diffusion: Mr DEMANGE (Company: INSIDE SECURE) Number of pages: 29 including 1 annex Ed. Date Modified page(s) Written by Name Visa Technical verification and Quality approval Name Visa 3 29-Jun-12 3, 6 to 9, 26 to 28 David MONTAULON Regis GONZALEZ Duplication of this report is only permitted for an integral photographic facsimile. It includes the number of pages referenced above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole production of the item tested. R041-11-101358-4A Ed.3 PAGE: 2 NAME OF THE EQUIPMENT UNDER TEST (E.U.T.) : TAG READER A-NFC2 Serial number : 1 Part number : / Software Version : / MANUFACTURER'S NAME : INSIDE SECURE APPLICANT’S ADRESS: Company : INSIDE SECURE Address : ZAC de Pichaury - 41 Parc du Club du Golf 13856 AIX EN PROVENCE CDX 3 FRANCE Person(s) present during the tests : Mr DEMANGE Responsible : Mr DEMANGE DATE(S) OF TESTS : October, the 4 th and 5 th of 2011 and June, the 20 th of 2012 TESTS LOCATION(S) : Emitech Grand Sud Laboratory in Vendargues (34) - France Open area test site in Salinelles (30) - France FCC Registration number: 8127-19 IC Filling number : 4379C-1 TESTS SUPERVISOR(S) : None TESTS OPERATOR(S) : David MONTAULON and Régis GONZALEZ R041-11-101358-4A Ed.3 PAGE: 3 CONTENTS 1. INTRODUCTION.....................................................................................................................................4 2. REFERENCE DOCUMENT(S)................................................................................................................4 3. EQUIPMENT UNDER TEST CONFIGURATION ....................................................................................4 4. EQUIPMENT UNDER TEST CONFIGURATION SCHEME ....................................................................5 5. SUMMARY OF TEST RESULTS ............................................................................................................6 6. CONDUCTED EMISSION .......................................................................................................................7 7. RADIATED EMISSIONS – SECTION 15.209 – RSS-210:2010 (§2.7 TABLE 2 & 3) ............................10 a) Radiated emissions (below 30MHz) ......................................................................................................10 b) Radiated emissions pre-measurement (above 30MHz).........................................................................14 8. OPERATION WITHIN THE BAND 13.110-14.010 MHZ – SECTION 15.225 & RSS-210 ANNEX 2.6 ..19 a) Field strength.........................................................................................................................................19 9. FREQUENCY TOLERANCE – SECTION 15.225 ..................................................................................23 10. OCCUIPIED BANDWIDTH – CNR-GEN § 4.6.......................................................................................24 ANNEX: PHOTOGRAPH(S) ..........................................................................................................................22 R041-11-101358-4A Ed.3 PAGE: 4 1. INTRODUCTION This document submits the results of Electromagnetic Compatibility tests performed on the equipment TAG READER A-NFC2 (denominated hereafter E.U.T.: equipment under test) according to document(s) listed below. 2. REFERENCE DOCUMENT(S) FCC Part 15 Code of Federal Regulations Title 47 – Telecommunications Chapter 1 – Federal Communications Commission Part 15 – Radio frequency devices Subpart C – Intentional Radiators ANSI C 63.4 (2003) American National Standard for Methods of measurement of Radio-Noise from low-voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210:2010 Low-power – Licence exempt Issue 8, December 2010 Radiocommunication devices (all frequency bands): category 1 equipment RSS-Gen: 2010 General requirements and information for the Certification of radiocommunication equipment 3. EQUIPMENT UNDER TEST CONFIGURATION Product description : The TAG READER A-NFC2 is radio equipment with a contactless card interface (13.56MHz with an internal antenna): FCC ID: Q45DESKREAD IC: 4717A - DESKREAD ITU emission code: / Utilization: RFID TAG reader Antenna type: Incorporated antennas Antenna gain: Unknown Operating frequency range: 13.56 MHz Number of channels: 1 Channel spacing: / Power source: USB Power level and frequency range are not user adjustable R041-11-101358-4A Ed.3 PAGE: 5 4. EQUIPMENT UNDER TEST CONFIGURATION SCHEME USB cable  Test PC Tag reader A-NFC2 E.U.T. R041-11-101358-4A Ed.3 PAGE: 6 5. SUMMARY OF TEST RESULTS Tests designation Results satisfying? Comments Antenna requirement - section 15.203 YES Integrated antenna Restricted band of operation - section 15.205 YES Conducted emissions - section 15.207, RSS-Gen: 2010 § 7.2.2. YES Radiated emissions (below 30MHz) - section 15.209 & RSS-210: 2010 (§2.7 table 3) YES Radiated emissions (above 30MHz) - section 15.209, RSS-210: 2010 (§2.7 table 2) YES Field strength - section 15.225, RSS-210: 2010 (annex A.2.6) YES Frequency tolerance - section 15.225 YES Occupied bandwidth - CNR-Gen § 4.6 YES N.P.: Not Performed. N.A.: Not Applicable. ƒ In emission : Sample subject to the test complies with prescriptions of the standard(s) FCC part 15 Subpart C 15.225, RSS-Gen: 2010 & RSS-210:2010 according to limits specified in this test report. R041-11-101358-4A Ed.3 PAGE: 7 6. CONDUCTED EMISSION Temperature (°C): 25 Humidity (%HR): 50 Pressure (hPa): 1005 Standard: FCC Part 15 Subpart C 15.109 & RSS-GEN: 2010 (§7.2.4) Test method: ANSI C63.4:2003 Test configuration : Tested cable(s) Measure with E.U.T. height 115Vac/60Hz p…
