Q47-MCR200Tag Reader Module

FCC ID: Q47-MCR200Report No. T40452F Appendix K Page 1 of 18 APPENDIX K OF TEST REPORT T40452F USER MANUAL FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contactless Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29 th July 2004 EMC Technologies Pty Ltd A.C.N. 057 105 549 16/6 Gladstone Rd Castle Hill, NSW 2154 Ph: + 612 9899 4599 Fax: + 612 9899 4019 email: [email protected] HTTP: www.emctech.com.au Device Product Group MCR200 User Manual Document No: DPG-00144 Category: 431 Revision: 7 ERG Approvals Author Hardware Manager Name: Dan Zorde Gino Bertino Signature: Date: This material is confidential to ERG and may not be disclosed in whole or in part to any third party nor used in any manner whatsoever other than for the purposes expressly consented to by ERG in writing. This material is also copyright and may not be reproduced, stored in a retrieval system or transmitted in any form or by any means in whole or in part without the express written consent of ERG. Device Product Group Security Level 3 MCR200 User Manual DPG-00144 ERG Confidential © ERG 2004 Page 2 of 17 Revision 7 / 5 July 2004 Document History Revision Revision Date Description Author 1.0 10 March 03 First release Gino Bertino 2.0 04 April 03 Revised FCC compliance statement Gino Bertino 3.0 05 May 03 Includes reference to correct FCC ID code Gino Bertino 4.0 23 Jun 03 Removed blank second page Gino Bertino 5.0 2 July 03 Change to Section 4.4 ferrite statement Dan Zorde 6.0 7 May 04 Updated for Rev2 card reader with shield Dan Zorde 7.0 5 July 04 Shield update Dan Zorde Device Product Group Security Level 3 MCR200 User Manual DPG-00144 ERG Confidential © ERG 2004 Page 3 of 17 Revision 7 / 5 July 2004 Table of Contents 1 INTRODUCTION ....................................................................................................................................... 5 1.1 P URPOSE ............................................................................................................................................. 5 1.2 SCOPE................................................................................................................................................. 5 1.3 T ERMINOLOGY ..................................................................................................................................... 5 2 OVERVIEW OF THE MCR ........................................................................................................................ 6 3 MODULE ARCHITECTURE ...................................................................................................................... 8 3.1 ELECTRICAL SPECIFICATION.................................................................................................................. 8 3.2 H OST SERIAL COMMUNICATION INTERFACE ............................................................................................ 8 3.3 P OWER S UPPLY ................................................................................................................................... 9 3.4 RF CONTROLLER .................................................................................................................................. 9 3.4.1 Transmitter ................................................................................................................................. 9 3.4.2 Receiver ..................................................................................................................................... 9 3.4.3 Card Interface ............................................................................................................................ 9 4 HOST INTERFACE CONNECTIONS......................................................................................................10 4.1 S UPPORTED E LECTRICAL I NTERFACES ................................................................................................ 10 4.2 H OST I NTERFACE C ONNECTOR ........................................................................................................... 10 4.3 I NTERFACE C ONNECTIONS .................................................................................................................. 10 4.4 I NTERCONNECTING CABLE ................................................................................................................... 11 5 MECHANICAL SPECIFICATION ............................................................................................................ 12 5.1 P HYSICAL D IMENSIONS ....................................................................................................................... 12 5.1.1 Size .......................................................................................................................................... 12 5.1.2 Mounting Holes ........................................................................................................................ 13 5.2 I NDIVIDUAL C OMPONENT D IMENSIONS ................................................................................................. 14 5.2.1 Control Board Dimensions .......................................................................................................14 5.2.2 Antenna Dimensions ................................................................................................................ 15 6 MOUNTING GUIDELINES ...................................................................................................................... 16 7 ANTENNA TUNING................................................................................................................................. 17 List of Tables T ABLE 1: T ERMINOLOGY ....................................................................................................................................... 5 T ABLE 2: S ERIAL I NTERFACE C ONNECTIONS ...............................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 3 EMC Job No. T40452 EMC Technologies Pty Ltd A.C.N. 057 105 549 ABN 82 057 105 549 Unit 16, 6 Gladstone Road, Castle Hill, N.S.W. 2154 Australia Telephone +612 9899 4599 Facsimile +612 9899 4019 Email [email protected] Victoria 57 Assembly Drive Tullarmarine, Victoria Australia 3043 Telephone +61 3 9335 3333 Facsimile +61 3 9338 9260 Accredited Testing and Competent Body Service 21 st May 2004 Request for Modular Approval for FCC ID: Q47-M CR200 The device we are looking for modular approval is a smart card reader. Details of the device are provided in Technical User Manual in appendix K of the EMC report. The unit complies with notice DA00-1407 for Part 15 Unlicensed Modular Transmitter Approval in the following ways. 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Answer 1 The unit was tested stand alone. The only external device is a ferrite core, which is provided with the device in the cable harness. Details of the ferrite and installation are provided in Appendix K of the EMC Report. The unit has been designed with screening in mind as the multi layed PCB have been used to limit both emissions from the unit and its susceptibility from other devices. Metal screens are provided on the Antenna and Control boards. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Answer 2 The transmitter/Receiver is buffered in the assembly. The only data connection is and RS 232 or RS 485 interface. No direct connection is provided to the Tx/Rx. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. Answer 3 The unit has its own supply regulation details of the power supply are provided in Appendix G section 2.5 and on the circuit diagram Appendix E page 9. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. Answer 4 The antenna is part of the unit in the form of a PCB, which is connected to the Tx/Rx via a cable. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits 3 regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). Answer 5 The unit was tested stand-alone. The cable proved with Ferrite was representative and will be provided with the unit. The unit was tested with a switch mode PSU to represent the typical final installation. The data cable and the supply were greater than 10cm in length. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Answer 6 ERG in there Installation Manual have provided details of the installation of the unit and the labelling required. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Answer 7 The transmitter …

Text truncated - open the document above for the full version.

Response to TCB Findings The manual needs to include the ferrite bead information for the AC power supply cable/interconnecting cable as appropriate. A revised addition of the manual has been included in Appendix K Pg 12, ferrite information added. The product sources the 12dc from the host. There is not AC mains supply. When the EUT was tested it was tested with a representative AC source. The DC cable is supplied with the MCR200.

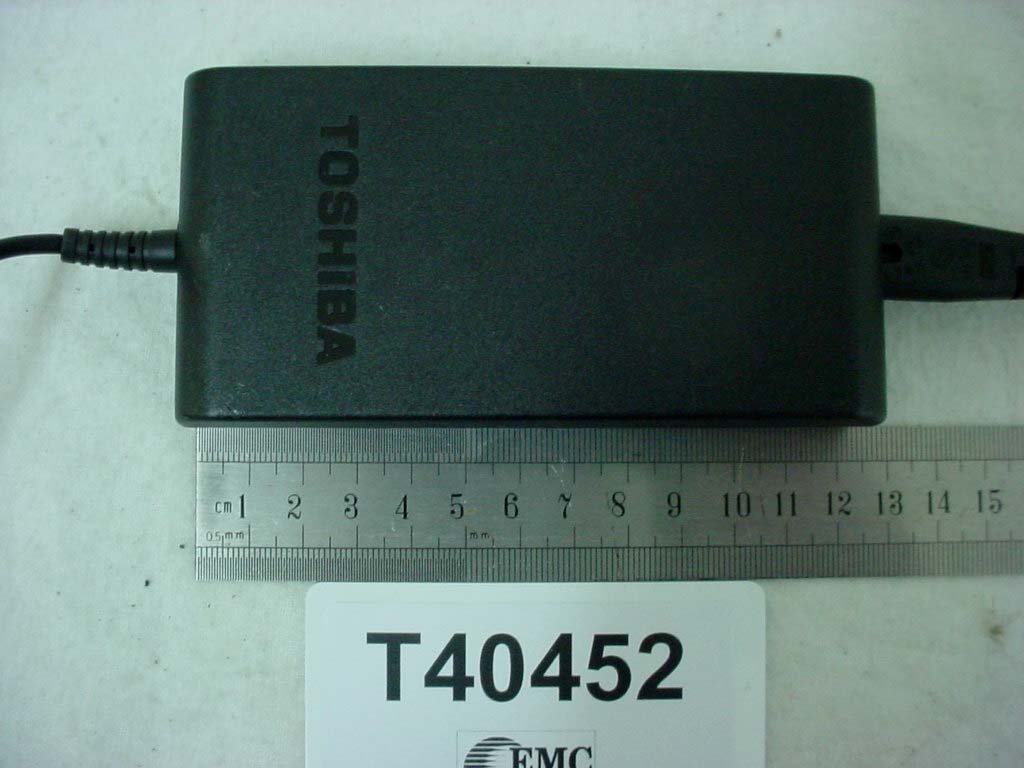

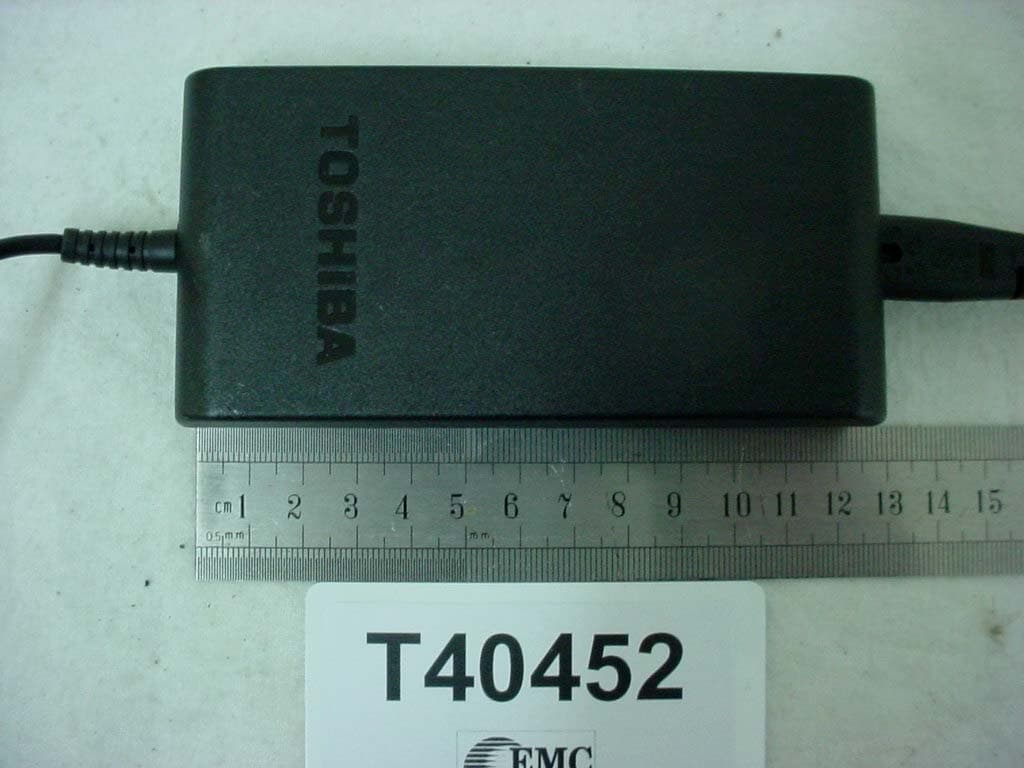

FCC ID: Q47-MCR200Report No. T40452F Appendix C Page 1 of 3 APPENDIX C OF TEST REPORT T40452F Test Sample Photos FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contactless Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29 th July 2004 EMC Technologies Pty Ltd A.C.N. 057 105 549 16/6 Gladstone Rd Castle Hill, NSW 2154 Ph: + 612 9899 4599 Fax: + 612 9899 4019 email: [email protected] HTTP: www.emctech.com.au FCC ID: Q47-MCR200Report No. T40452F Appendix C Page 2 of 3 APPENDIX C1 TEST SAMPLE EXTERNAL PHOTOS Identification Top FCC ID: Q47-MCR200Report No. T40452F Appendix C Page 3 of 3 APPENDIX C2 TEST SAMPLE EXTERNAL PHOTOS PSU Label PSU ID

FCC ID: Q47-MCR200Report No. T40452F Appendix H Page 1 of 2 APPENDIX H OF TEST REPORT T40452F LABELLING - LOCATION FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contactless Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29 th July 2004 EMC Technologies Pty Ltd A.C.N. 057 105 549 16/6 Gladstone Rd Castle Hill, NSW 2154 Ph: + 612 9899 4599 Fax: + 612 9899 4019 email: [email protected] HTTP: www.emctech.com.au

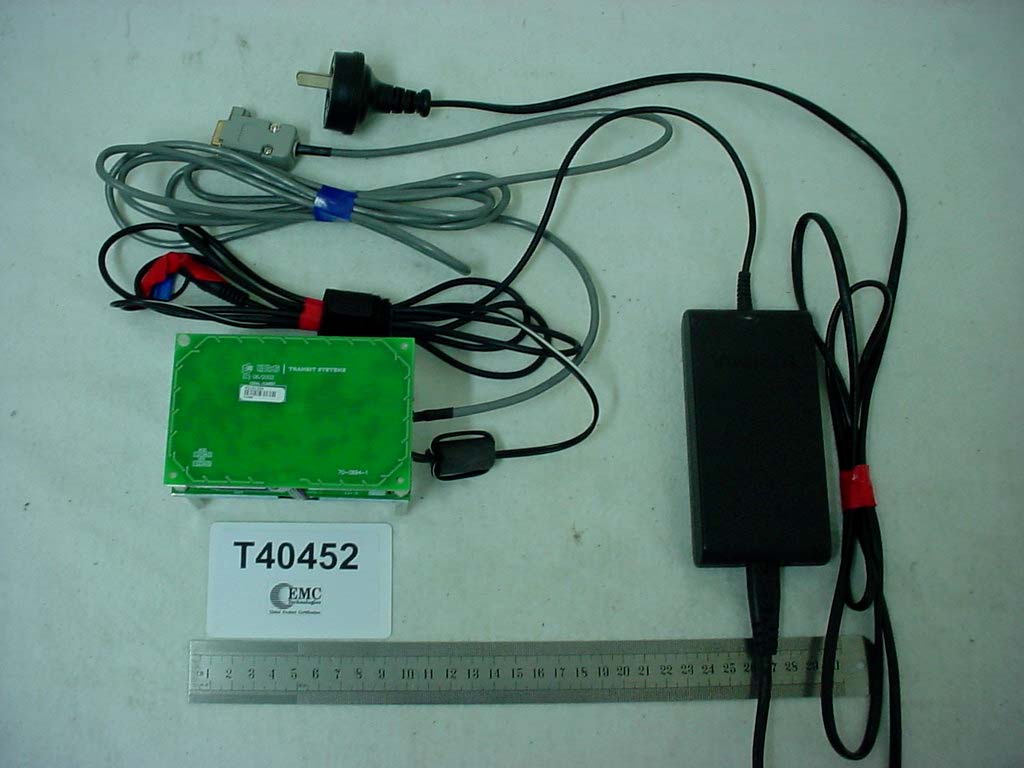

FCC ID: Q47-MCR200Report No. T40452F Appendix D Page 1 of 6 APPENDIX D OF TEST REPORT T40452F Internal Photos FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contactless Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29 th July 2004 EMC Technologies Pty Ltd A.C.N. 057 105 549 16/6 Gladstone Rd Castle Hill, NSW 2154 Ph: + 612 9899 4599 Fax: + 612 9899 4019 email: [email protected] HTTP: www.emctech.com.au FCC ID: Q47-MCR200Report No. T40452F Appendix D Page 2 of 6 APPENDIX D1 TEST SAMPLE INTERNAL PHOTO Identification with top moved Complete unit with Power Data & Antenna Cable FCC ID: Q47-MCR200Report No. T40452F Appendix D Page 3 of 6 APPENDIX D2 TEST SAMPLE INTERNAL PHOTO Processor Board Component Side Processor Board with Ferrite – Component Side APPENDIX D3 FCC ID: Q47-MCR200Report No. T40452F Appendix D Page 4 of 6 TEST SAMPLE INTERNAL PHOTO Processor Board – Under Side Processor Board with Shield Fitted FCC ID: Q47-MCR200Report No. T40452F Appendix D Page 5 of 6 APPENDIX D4 TEST SAMPLE INTERNAL PHOTO Antenna Board Antenna Board FCC ID: Q47-MCR200Report No. T40452F Appendix D Page 6 of 6 APPENDIX D5 TEST SAMPLE INTERNAL PHOTO Antenna Board with Shield Fitted Antenna Board with Shield/Ferrite

Page 1 of 23 EMC Technologies Pty Ltd A.C.N. 057 105 549 ABN 82 057 105 549 Unit 16, 6 Gladstone Road, Castle Hill, N.S.W. 2154 Australia Telephone +612 9899 4599 Facsimile +612 9899 4019 Email [email protected] Victoria 57 Assembly Drive Tullarmarine, Victoria Australia 3043 Telephone +61 3 9335 3333 Facsimile +61 3 9338 9260 Accredited Testing and Competent Body Service EMI TEST REPORT for CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contactless Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29th July 2004 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, interferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 FCC ID: Q47-MCR200Report No. T40452F Page 2 of 22 EMC Technologies Pty Ltd 16/6 Gladstone Rd Castle Hill NSW 2154 Australia Tel: +61 2 98994599 Fax: +61 2 98994019 EMI TEST REPORT FOR CERTIFICATION FOR CERTIFICATION OF FCC Part 15.225 & FCC PART 15.207 TRANSMITTER FCC ID: Q47-MCR200 EMC Technologies Report No. T40452F Date: 29 th July 2004 CONTENTS 1. SUMMARY of TEST RESULTS 2. GENERAL INFORMATION 3. CONDUCTED EMI RESULTS 4. RADIATED EMI RESULTS 5. FREQUENCY TOLERANCE 6. CONCLUSION APPENDIX A. MEASUREMENT INSTRUMENTATION DETAILS APPENDIX B. PHOTOGRAPHS TEST SETUP APPENDIX C. PHOTOGRAPHS TEST SAMPLE (EXTERIOR) APPENDIX D. PHOTOGRAPHS TEST SAMPLE (INTERIOR) APPENDIX E. TEST SAMPLE SCHEMATICS APPENDIX F. TEST SAMPLE PCB LAYOUTS APPENDIX G. TEST SAMPLE BLOCK DIAGRAM (OPERATIONAL DESCRIPTION) APPENDIX H. LABELLING – LOCATION APPENDIX I. GRAPHS of EMI MEASUREMENT APPENDIX K USER MANUAL FCC ID: Q47-MCR200Report No. T40452F Page 3 of 22 EMC Technologies Pty Ltd 16/6 Gladstone Rd Castle Hill NSW 2154 Australia Tel: +61 2 98994599 Fax: +61 2 98994019 EMI TEST REPORT FOR CERTIFICATION OF FCC PART 15.225 & FCC PART 15.207 TRANSMITTER Report Number: T40452F Test Sample Name: Contactless Smart Card Reader Model Number: MCR2000 Serial Number: 0318111546 FCC ID: Q47-MCR200 Manufacturer: ERG Transit Systems Tested For: ERG Transit Systems Address: 247 Balcatta Road BALCATTA WA 6021 Phone: 08 9273-1100 Fax: 08 9273-1570 Responsible Party: Dan Zorde/Gino Bertino Test Standards:FCC Part 15.225 Intentional Radiators FCC Part 15.207 Conducted Limits ANSI C63.4:1992 OET Bulletin No. 63 Test Dates: 30/04/2005, 03/05/2004, 05/05/2004, 29/7/04 Testing Officers: Bruce HoldsworthGerald Gidah Attestation:I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature: Les Dickenson Branch Manager EMC Technologies Pty Ltd Issued by EMC Technologies Pty Ltd, Unit 16/6 Gladstone Road, Castle Hill, NSW, 2154, Australia. Phone: +61 2 9899 4599 Fax: +61 2 9899 4019 FCC ID: Q47-MCR200Report No. T40452F Page 4 of 22 EMC Technologies Pty Ltd 16/6 Gladstone Rd Castle Hill NSW 2154 Australia Tel: +61 2 98994599 Fax: +61 2 98994019 EMI TEST REPORT FOR CERTIFICATION of FCC PART 15.225 & FCC PART 15.207 TRANSMITTER on the Contactless Smart Card Reader 1. SUMMARY of RESULTS This report details the results of EMI tests and measurements performed on the Contactless Smart Card Reader, Model: MCR200, in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Rules for intentional radiators. All results are detailed in this report. Part 15.31e Amplitude stability with supply variation:Compiled Part 15.207 Conducted Emissions:Complied Part 15.225 a, b &c Carrier Signal Field Strength 13.110 – 14.010MHz:Complied Part 15.225 d (15.209) Field Strength Outside 13.110 – 14.010MHz:Complied Part 15.225 e Frequency Tolerance:Complied 2. GENERAL INFORMATION 2.1General Description of Test Sample Manufacturer:ERG Transit System Test Sample:Contactless Smart Card Reader Model:MCR200 Serial No:0318111546 FCC ID:Q47-MCR200 Equipment Type:Intentional Radiator 2.2 Test Sample Functional Description The MCR200 is a multiprotocol card reader that is used to read and write data to type A and type B contactless smart cards. The MCR200 is used in a range of ERG ticketing equipment in the transport industry. 2.3 Technical Specifications and System Overview Clock Circuit Speed:7.3728 MHz Crystal frequency:7.3728 MHz, 13.56 MHz Data Cable:RS-232 Microprocessor:MITSUBISHI M16C FCC ID: Q47-MCR200Report No. T40452F Page 5 of 22 EMC Technologies Pty Ltd 16/6 Gladstone Rd Castle Hill NSW 2154 Australia Tel: +61 2 98994599 Fax: +61 2 98994019 2.4EUT Configurations The EUT was tested as a table top unit in accordance with the guidelines contained in the relevant standard. For testing the MCR200 connects to a test PC running an application reading and writing to the card. The interface is standard RS-232. Testing with a PC connection allows test personnel to monitor the operation of the reader. 2.5 Test Sample Support Equipment PC with RS-232 communication port. Connection should be via a shielded cable. Power should be from a 12V AC/DC power supply. 2.6Test Sample Block Diagram 2.7EUT Operation Conditions Refer to User Manual Appendix K. 2.8Modific…

Text truncated - open the document above for the full version.

FCC ID: Q47-MCR200Report No. T40452F Appendix A Page 1 of 2 APPENDIX A OF TEST REPORT T40452F Measurement Instrumentation FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contact less Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29 th July 2004 EMC Technologies Pty Ltd A.C.N. 057 105 549 16/6 Gladstone Rd Castle Hill, NSW 2154 Ph: + 612 9899 4599 Fax: + 612 9899 4019 email: [email protected] HTTP: www.emctech.com.au FCC ID: Q47-MCR200Report No. T40452F Appendix A Page 2 of 2 APPENDIX A MEASUREMENT INSTRUMENTATION CALIBRATION DETAILS Equipment TypeMake/Model Serial Number Last Cal. DD/MM/YY Due Date DD/MM/YY EMI Receivers Analyser 9 kHz to 26 GHz HP8546A CISPR Receiver S/N: 3549A00288 HP 8574B CISPR Receiver HP 8593E S/N 3249A00402 22/07/03 26/7/04 09/09/03 22/07/04 *2 26/7/05 *2 09/09/04 *2 LISN:EMCO 3825/2 SN 94112274 Rohde & Schwarz ESH3-Z5 S/N 832479/014 02/12/03 15/04/04 02/12/04 *3 15/04/05 *3 AntennasEMCO 3146 Log Periodic S/N 9603-4415 300-1000MHz EMCO 3110B Biconical S/N 9603-2350 20-300 MHz EMCO 3115 Horn Antenna S/N: 3823 1-18GHz 17/03/04 17/03/04 30/01/02 17/03/05 *3 17/03/05 *3 30/01/05 *3 PreamplifierPRA1G2-35B S/N 659 30 to 1000 MHz 17/10/0317/10/04 *3 Note *1 : National Measurements Laboratory calibration Note *2 : NATA Calibration by Hewlett Packard (Aust) Ltd Note *3 : In-house calibration. Traceable to Australian National Standards. TEST SITES Equipment TypeMake/Model Serial Number Last Cal. DD/MM/YY Due Date DD/MM/YY Shielded Room/ Test Laboratory 7.23m × 4.83m × 2.45m N/AN/A Open Area Test Site (OATS) 3/10/30 metre site. 1-4 metre antenna mast. 1.2 metre/1.2 Tonne turntable. (Situated at Upper Colo, NSW) 12/11/0312/11/04 *3

FCC ID: Q47-MCR200Report No. T40452F Appendix I Page 1 of 10 APPENDIX I OF TEST REPORT T40452F GRAPHS OF EMI MEASUREMENT FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contactless Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29 th July 2004 EMC Technologies Pty Ltd A.C.N. 057 105 549 16/6 Gladstone Rd Castle Hill, NSW 2154 Ph: + 612 9899 4599 Fax: + 612 9899 4019 email: [email protected] HTTP: www.emctech.com.au FCC ID: Q47-MCR200Report No. T40452F Appendix I Page 2 of 10 Graphs of EMI Measurements Conducted Emissions Graph 1:0.15 MHz to 30 MHzActive LineEUT Transmitting Graph 2:0.15 MHz to 30 MHzNeutral LineEUT Transmitting Graph 70.15 MHz to 30 MHzActive LineTX terminated in 1kΩ Graph 80.15 MHz to 30 MHzNeutral LineTX terminated in 1kΩ Radiated Emissions Graph 3:0.009 MHz to 30 MHzLoop AntennaEUT Transmitting Graph 4:13.55 MHz to 13.57 MHz Carrier ZoomEUT Transmitting Graph 5:29 MHz to 1000 MHz Vertical EmissionsEUT Transmitting Graph 6:29 MHz to 1000 MHzHorizontal Emissions EUT Transmitting EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T40452 Test Date: 3/05/04 GRAPH No. 1 r:\pcf\T40452_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019ERG Transit Systems Model No.: MCR200 Serial No.: 0318111546 Contactless Smart Card Reader Tested at 120VAC, 60Hz Used Toshiba AC Adaptor, Model No.: PA3083U-1ACA Conducted Emissions (dBuV) T40452C1 Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LIMITS (CISPR) _ FCCN_BAV FCC CLASS B AV CONDUCTED LIMITS (CISPR) __ Active Line 1 2 3 Ver 5.5 Build 74Generic file for any test. t:L0111204 c1:C0020904 c2:NONE p:NONE a:L0100305Site ID: Syd Room#2,16/6 Gladstone Rd. Castle Hill, NSW Test Officer:Gerald Gidah Peaks:No Freq Peak Qp Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 13.56 54.4 55.1 60.0 -4.9 55.0 50.0 5.0 2 27.13 47.9 42.2 60.0 -17.8 34.7 50.0 -15.3 Frequency (MHz) 1 10 .145 30.5 10 20 30 40 50 60 70 v ^ 1 ~ * v ^ 2 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T40452 Test Date: 3/05/04 GRAPH No. 2 r:\pcf\T40452_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019ERG Transit Systems Model No.: MCR200 Serial No.: 0318111546 Contactless Smart Card Reader Tested at 120VAC, 60Hz Used Toshiba AC Adaptor, Model No.: PA3083U-1ACA Conducted Emissions (dBuV) T40452C1 Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LIMITS (CISPR) _ FCCN_BAV FCC CLASS B AV CONDUCTED LIMITS (CISPR) __ Neutral Line 4 5 6 Ver 5.5 Build 74Generic file for any test. t:L0111204 c1:C0020904 c2:NONE p:NONE a:L0100305Site ID: Syd Room#2,16/6 Gladstone Rd. Castle Hill, NSW Test Officer:Gerald Gidah Peaks:No Freq Peak Qp Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 13.56 55.1 55.8 60.0 -4.2 55.8 50.0 5.8 2 27.13 36.8 40.0 60.0 -20.0 31.3 50.0 -18.7 Frequency (MHz) 1 10 .145 30.5 10 20 30 40 50 60 70 v ^ 1 ~ * v ^ 2 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T40452 Test Date: 29-07-04 GRAPH No. 7 r:\PCF\T40452_7.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019ERG Transit Systems Contactless Smart Card Reader Model No.: MCR200 Serial No.: 0318111546 Tx Output connected to 1kohm Load Conducted Emissions (dBuV) T40452c2 Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LI MITS (CISPR) _ FCCN_BAV FCC CLASS B AV CO NDUCTED LIMITS (CISPR) __ Active Line 5 6 7 Ver 5.5 Build 74 t:L0110705 c1:C0020904 c2:NONE p:NONE a:L0100305Site ID: Syd Room#2,16/6 Gladstone Rd. Castle Hill, NSW Test Officer:Kumar Thambiaiah Peaks:No Freq Peak Qp Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 13.56 41.8 42.3 60.0 -17.7 42.3 50.0 -7.7 Frequency (MHz) 1 10 .145 30.5 10 20 30 40 50 60 70 80 v ^ 1 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T40452 Test Date: 29-07-04 GRAPH No. 8 r:\PCF\T40452_8.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019ERG Transit Systems Contactless Smart Card Reader Model No.: MCR200 Serial No.: 0318111546 Tx Output connected to 1kohm Load Conducted Emissions (dBuV) T40452c2 Limits: Legend: Source: _ FCCN_BQP FCC CLASS B QP CONDUCTED LI MITS (CISPR) _ FCCN_BAV FCC CLASS B AV CO NDUCTED LIMITS (CISPR) __ Neutral Line 2 3 4 Ver 5.5 Build 74 t:L0110705 c1:C0020904 c2:NONE p:NONE a:L0100305Site ID: Syd Room#2,16/6 Gladstone Rd. Castle Hill, NSW Test Officer:Kumar Thambiaiah Peaks:No Freq Peak Qp Val FCCN_BQP dL1 Av Val FCCN_BAV dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 13.56 42.0 42.8 60.0 -17.2 42.8 50.0 -7.2 Frequency (MHz) 1 10 .145 30.5 10 20 30 40 50 60 70 80 v ^ 1 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:T40452 Test Date: 05-05-04 GRAPH No. 3 C:\reports\pcf\T40452_3.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019ERG Transit Systems Contactless Smart Card Reader Model: MCR200 Radiated Emissions (dBuV) T40452r1T40452r1 # = Ambient Limits: Legend: Source: _ FCC_loop_3m Fcc Pt15 Subpart C Section 15.209(a) 3Metre Limits __ Ambients __ Emissions 5 6 7 1 2 3 Ver 5.5 Build 70Colo Radiated Test Setup Active Loop t:A0081204E c1:C0200904 c2:NONE p:NONE a:NONESite ID: OATS#1,1247 Upper …

Text truncated - open the document above for the full version.

FCC ID: Q47-MCR200Report No. T40452F Appendix B Page 1 of 4 APPENDIX B OF TEST REPORT T40452F Test Setup Photos FCC ID:Q47-MCR200 Manufacturer:ERG Transit Systems Test Sample:Contactless Smart Card Reader Model: MCR200 Serial No:0318111546 Date:29 th July 2004 EMC Technologies Pty Ltd A.C.N. 057 105 549 16/6 Gladstone Rd Castle Hill, NSW 2154 Ph: + 612 9899 4599 Fax: + 612 9899 4019 email: [email protected] HTTP: www.emctech.com.au FCC ID: Q47-MCR200Report No. T40452F Appendix B Page 2 of 4 APPENDIX B1 TEST SETUP PHOTOS Conducted Emissions FCC ID: Q47-MCR200Report No. T40452F Appendix B Page 3 of 4 APPENDIX B2 TEST SETUP PHOTOS Radiated Emissions FCC ID: Q47-MCR200Report No. T40452F Appendix B Page 4 of 4 APPENDIX B3 TEST SETUP PHOTOS Frequency Tolerance Test
