Q55VIVOPAYVENDLow Power Transmitter Wireless Card Reader

ViVOpay Vend User Manual ViVOtech, Inc. 451 El Camino Real Santa Clara, CA 95050 Ph: (888) 363-3753 Email: [email protected] www.vivotech.com Document: & Confidential Proprietary ViVOpay OEM S500 Technical Reference Document: Proprietary & Confidential Product Overview The ViVOpay VEND Vending Reader (the Reader) is an electronic module capable of communicating with ISO 14443 Type A and Type B compatible cards and tags using Radio Frequency (RF). Data stored on the cards and tags is read by the Reader and transmitted to a host. This section provides general information about the Reader. Refer to Appendix A, B, and C for technical details. Overview The Reader consists of a set of printed circuit boards consisting of a Control PCA and an Antenna PCA. The two circuit boards together contain all circuitry required to communicate with between the host and RFID cards and tags. An optional Interface PCA may be connected to the Control PCA to add additional Reader to Host configurations. All circuit boards are designed to be assembled as a single module for simple mounting, or they may be separated to accommodate space constraints. Type A & B cards and tags do not contain internal power and are activated by the RF power transmitted by the Reader. When a card or tag is positioned close to the antenna the card/tag is powered and activated, and it transmits its data as a modulated RF signal to the RF receiver. The RF receiver demodulates the signal and sends the demodulated tag data to the microcontroller. The microcontroller collects the tag data, decrypts it (if required), and transmits it to the host terminal. The LEDs and beeper indicate when a tag has been read successfully. Features Read of ISO 14443 Type A & Type B cards and tags. ARM 32-bit Microcontroller. Crypto data processing for contactless Smartcards (optional). RS-232 (9600, 19200, 38,400, 57,600 baud) Magnetic Stripe Card and Magnetic Stripe Card Reader emulation. Horizontal (4) or Vertical (3) LED indicators, or external LED drive. Beeper or external beeper drive. Field replaceable firmware. Compact packaging fits in the space of a typical Card Reader or Bill Collector. Expandable interface for use with custom Interface PCAs. FCC Regulatory Compliance Notices Class B Equipment This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . Cautions and Warnings CAUTION: Danger of Explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturers instructions. CAUTION: The unit should be mounted 1-2 feet away from other units. Can be adjusted based on lane setup. CAUTION: The unit should not be placed directly on or within 4 inches of any large metal surfaces. WARNING: Avoid close proximity to items such as cellular telephones and portable 2-way radios which may reduce the ability of the reader. For IC Regulatory Compliance: "Operation is subject to the following two conditions: (1) this device may not cause interference,and this device must accept any interference,including interference that may casuse undersired operation of the device. Information to user The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. Applying Power The ViVOpay Vend does not have a switch to turn on/off power. After connecting the cable from the Reader to the host apply power to the host and/or power supply. The Reader will perform a power-up sequence as follows: All LEDs will illuminate an internal self-test is being performed. The default RS-232 parameters (19,200 bps, 8 data, 1 stop, no parity) will be set. If self-test and initialization is successful the beeper will emit two short beeps and the leftmost LED will remain illuminated indicating the Reader is ready. With the power-up sequence successfully completed, the unit will read a valid card or tag if presented and send the data to the host. Document: Proprietary & Confidential 451 EL CAMINO REAL, SANTA CLARA, CA 95050 PH: (408) 248-7001 FAX: (408) 248-7002 Technical Operation Description Behind the scenes: All of the major card associations are endorsing the ISO 14443 standard, with RF-based contactless payment initiatives using the technology.+ User Experience: Contactless devices as cell phones and plastic cards are enabled with RF tags that securely release the payment information to the VEND terminals without the need of physical contact with the Point of Sale terminal using contactless technology.The VEND is constantly emitting a magnetic field, when it detects an RF tag in the field it communicates with it and retrieves the payment information. The card information is then transmitted to the POS device via the contactless technolog…

Text truncated - open the document above for the full version.

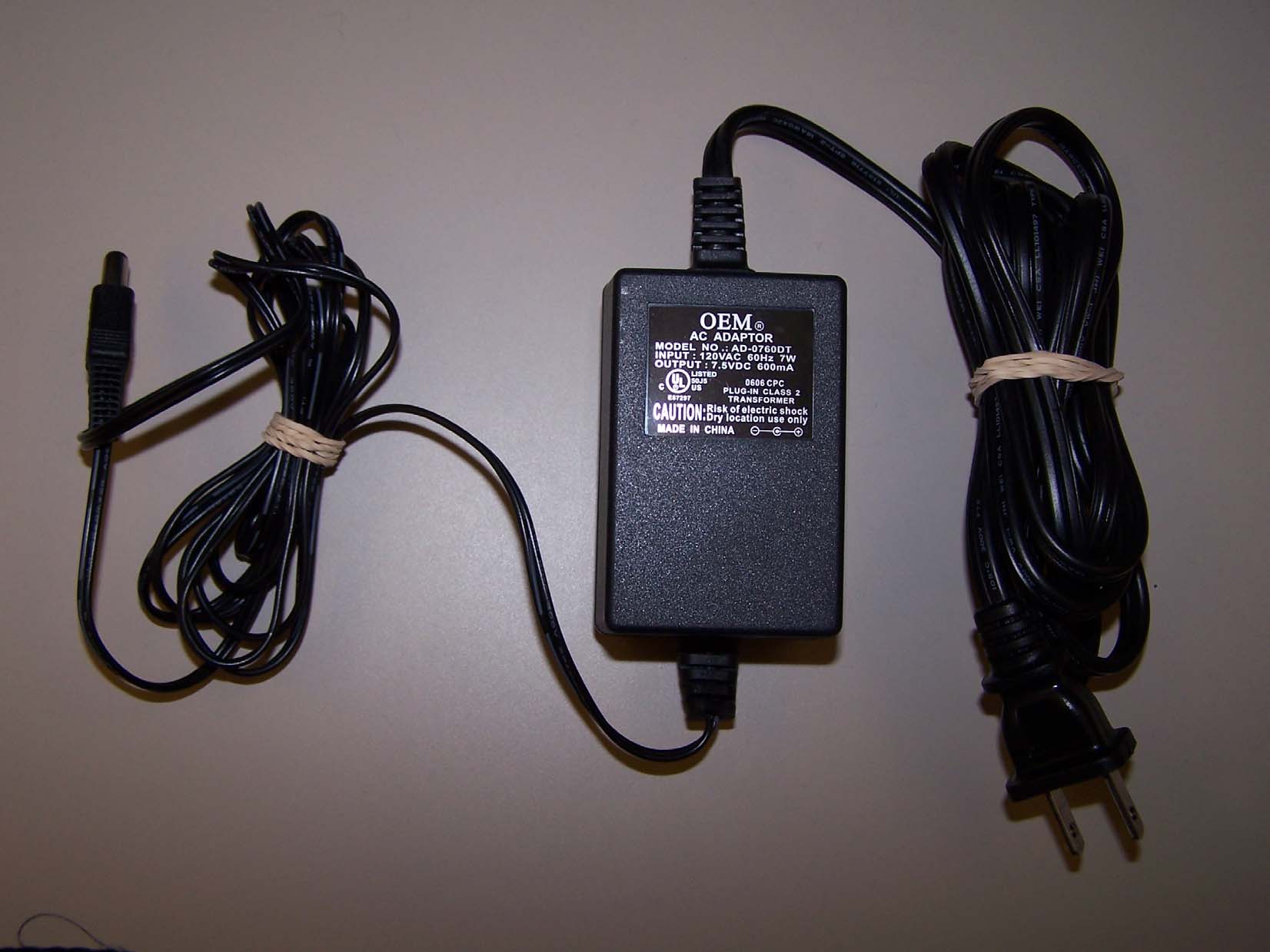

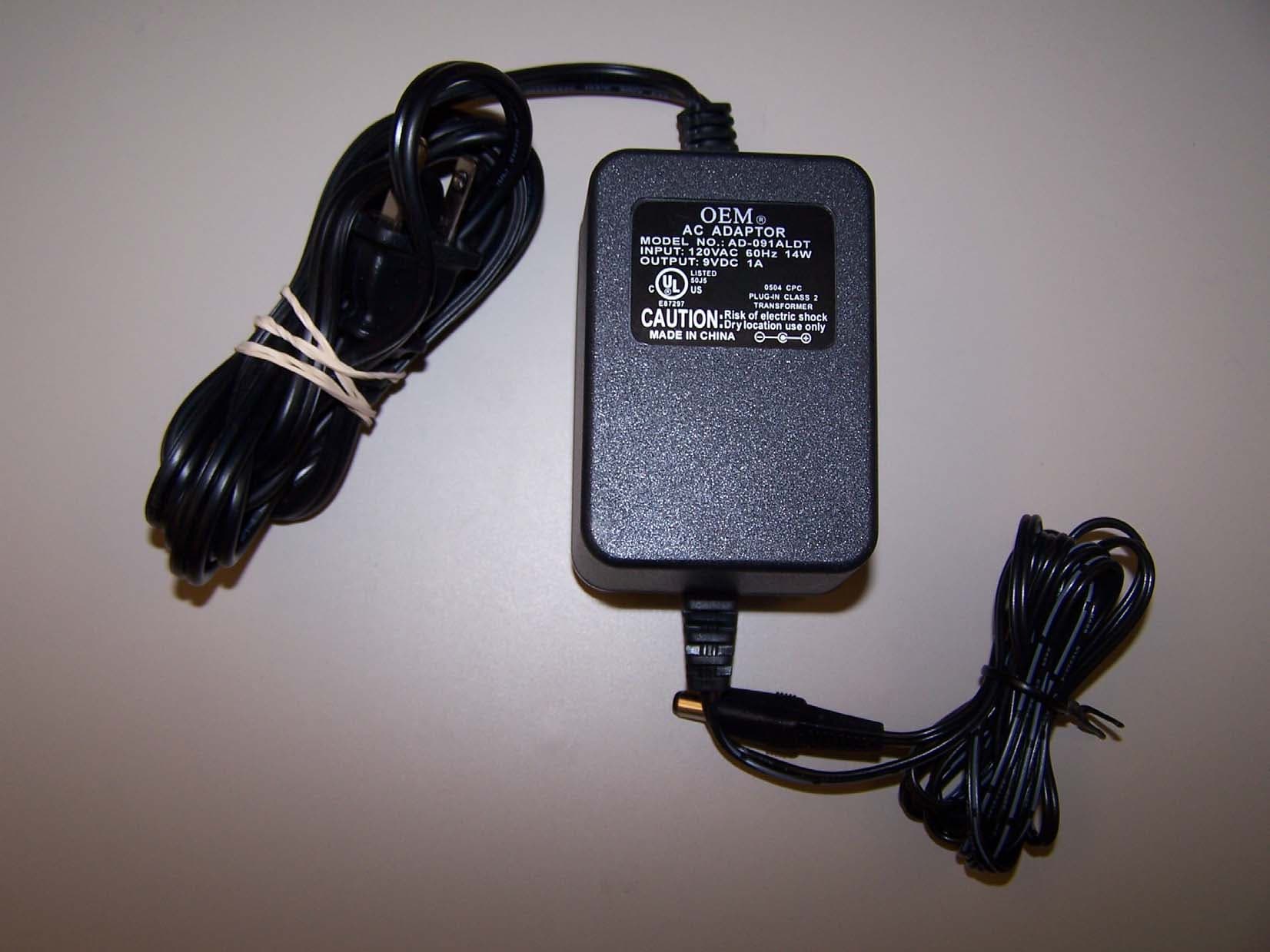

1 Helen Zhao Subject: FW: answer: 06U10662 TCB questions: ViVOtech, Inc., FCC ID: Q55VIVOPAYVEND , Assessment NO.: AN06T6337, Notice#1 External Photos(revised).pdf 06U10662-1C FCC Report.pdf VP Vend User Manual(revised).p... From: Claire Hoque Sent: Wednesday, January 03, 2007 9:59 AM To: Helen Zhao Subject: answer: 06U10662 TCB questions: ViVOtech, Inc., FCC ID: Q55VIVOPAYVEND , Assessment NO.: AN06T6337, Notice#1 Hi Helen, Pls see answer below, thanks. Claire -----Original Message----- Sent: Monday, December 04, 2006 2:03 PM Subject: ViVOtech, Inc., FCC ID: Q55VIVOPAYVEND , Assessment NO.: AN06T6337, Notice#1 Question #1: The user manual does not contain user information as specified in FCC15.21. Please update the user manual. <answer>manual is revised. Question #2: The FCC ID label format shows the device is powered by 7.5-40VDC, page 6 of the test report shows the device is powered by 9VDC, but the device was actually tested with 7.5VDC and 9VDC power supply. Please explain. Please also provide external photos of the two power supplies. <answer>pls see revised external photos which include the two power supplies. Question #3: Page 8 of the test report shows there is a ferrite core on DC cable, please update I/O cables on page 7 to specify clearly. <answer>report is revised. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

R. Schnell 08/28/06 A 1 MKT. PART V iV O pa y V end U nit L a bel V iV O tech, Inc. 451 E l C a mino R ea l, S a nta C la ra , C A 95050 240-2276-00-AW T H IS DO C U ME N T IS T H E P R O P E R T Y O F V IV O T E C H , AN D C O N T AIN S V IV O T E C H 'S C O N F IDE N T IAL AN D P R O P R IE T AR Y IN F O R MAT IO N IN C O N S IDE R AT IO N O F V IV O T E C H 'S DIS C L O S U R E O F T H IS DO C U ME N T T O Y O U , Y O U AG R E E T H AT N E IT H E R IT , N O R T H E IN F O R MAT IO N C O N T AIN E D T H E R E IN S H AL L B E DIS C L O S E D T O O T H E R S O F DU P L IC AT E D, IN WH O L E O R IN P AR T , O R U S E D F O R AN Y P E R P O S E S O T H E R T H AN AG R E E D B Y V IV O T E C H , WIT H T H E E X P R E S S WR IT T E N C O N S E N T O F V IV O T E C H . Made in 240-2276-00 Rev A 40.6mm (1.6 in) 38.1mm (1.5 in) Assy: Rev: Model: ViVOpay Vend Input: 7.5 - 45VDC 3W N O T E S : 1. 2. Dieline in ma genta does not print. 3. Ma teria ls a nd printing s pecifica tion defined in 240-2276-00-DW This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: Q55VIVOPAYVEND RoHS F/W: IC: 5141A-VPVEND www.vivotech.com Add FCC, UL 11/??/06 T. Phan

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR LOW POWER TRANSMITTER WIRELESS CARD READER MODEL NUMBER: VIVOPAY VEND FCC ID: Q55VIVOPAYVEND REPORT NUMBER: 06U10662-1C ISSUE DATE: DECEMBER 08, 2006 Prepared for VIVOTECH 451 EL CAMINO REAL SANTA CLARA, CA 95050, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10662-1C DATE: DECEMBER 08, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 2 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 11/15/06 Initial Issue T.C. B 11/20/06 Updates from client regarding FCC id and model number. T.C. C 12/08/06 Updates page 6 & 7 information T.C. REPORT NO: 06U10662-1C DATE: DECEMBER 08, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 3 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. TEST CONFIGURATION .............................................................................................................6 5.3. MODE(S) OF OPERATION ......................................................................................................... 6 5.4. MODIFICATIONS ........................................................................................................................ 7 5.5. DETAILS OF TESTED SYSTEM .................................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. 99% BANDWIDTH ..................................................................................................................... 10 7.2. RADIATED EMISSIONS.............................................................................................................12 7.2.1. OPERATION WITHIN THE BAND 13.110 – 14.010 MHz ............................................. 12 7.2.2. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 15 7.3. FREQUENCY STABILITY .......................................................................................................... 20 7.4. AC MAINS LINE CONDUCTED EMISSIONS ........................................................................... 21 8. SETUP PHOTOS .............................................................................................................................. 28 REPORT NO: 06U10662-1C DATE: DECEMBER 08, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 4 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: VIVOTECH 451 EL CAMINO REAL SANTA CLARA, CA 95050, USA EUT DESCRIPTION: LOW POWER TRANSMITTER WIRELESS CARD READER MODEL: VIVOPAY VEND SERIAL NUMBER: 01817 DATE TESTED: OCTOBER 22 to 27, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN MENGISTU MEKURIA EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 06U10662-1C DATE: DECEMBER 08, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 5 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 U…

Text truncated - open the document above for the full version.

REPORT NO: 06U10662-1B DATE: NOVEMBER 20, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 28 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS RADIATED EMISSION (30-1000 MHz) RADIATED EMISSIONS (FRONT) REPORT NO: 06U10662-1B DATE: NOVEMBER 20, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 29 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSIONS (BACK) REPORT NO: 06U10662-1B DATE: NOVEMBER 20, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 30 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. AC MAINS LINE CONDUCTED EMISSION (0.15-30 MHz) LINE CONDUCTED EMISSION (FRONT) REPORT NO: 06U10662-1B DATE: NOVEMBER 20, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 31 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LINE CONDUCTED EMISSION (BACK) REPORT NO: 06U10662-1B DATE: NOVEMBER 20, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 32 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSIONS (0.009-30 MHz) RADIATED EMISSIONS (Below 30 MHz) REPORT NO: 06U10662-1B DATE: NOVEMBER 20, 2006 EUT: LOW POWER TRANSMITTER WIRELESS CARD READER FCC ID: Q55VIVOPAYVEND Page 33 of 33 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. FREQUENCY STABILITY END OF REPORT TEMPERATURE CHAMBER
