Q5EKBT-200BLE Beacon

KBT-200 BLE Beacon User Quick Guide Appearance Power Supply Installation The KBT-200 is powered by a built-in battery with a lifespan of 3 years. After this period, you may contact us for battery replacement. Tape-Adhered Installation a. Make sure the installation position is clean and dry. b. Remove the protective film of the 3M adhesive tape at the back of the device, and stick the device onto the position and press it with proper strength for 5 to 10 seconds. Kirisun App You can set the parameters of the KBT-200 using the Kirisun App, an app supporting iBeacon mode. You may download the app or obtain it from our sales person. Run the app and enable Bluetooth if you are prompted to, and the app will start to scan nearby BLE beacons. Connect Bluetooth Beacon Click the Bluetooth beacon to be connected, enter the password within 30 seconds, in order to obtain operating privileges . (Factory Password:1234) Setting Configuration Introduction: 1.MAC: The MAC address of the KBT-200. 2.Device Name: Rename the KBT-200. 3.UUID Value: The 128-bit (i.e. 16-byte) identifier of the KBT-200, conforming to the ISO/IEC11578:1996 standard. 4.Major Value: The 16-bit identifier of the KBT-200, ranging from 0-65535. 5.Minor Value: The 16-bit identifier of the KBT-200, ranging from 0-65535. 6.Transmitting power: The transmitting power of the KBT-200. 7.Measured power: The reference RSSI when the KBT-200 is 1 meter from the phone. 8.Broadcast interval: The broadcast interval of the KBT-200. 9.Battery: The remaining battery of the KBT-200. 10.Password: The default password of the KBT-200 is 1234. Software instructions Modifying iBeacon Name Modifying the UUID Click Device Name. In the popup interface, enter an English character string of 12 digits at most, and click confirm to modify. Click UUID value. In the popup interface, enter 16 bytes (i.e. 32 hexa- decimal characters), and click confirm to modify. Modifying the Major and Minor Click Major value or Minor value. In the popup interface, set a value from 0 to 65535, and click confirm to modify. Modifying Measured Power Click Measured Power. In the popup interface, set a value from -100dBm to -30dBm (the default -61dBm), and click confirm to modify. When this power is measured by the receiving device, the distance between the device and the KBT-200 is about 1 meter. Modifying Tx Power Click Tx Power. In the popup interface, set a value from -30 to 4 dBm (the default 0 dBm), and click confirm to modify. Modifying Broadcast Interval Click Interval. In the popup interface, set a value from 100 to 1000 ms (the default 500 ms), and click confirm to modify. Modifying the Password This document is only for reference, and actual product prevails. Kirisun reserves the right to the final interpretation of this document. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. VersionV1.0

Kirisun Communication Co., Ltd. Agent Authorization Company: Kirisun Communication Co., Ltd. Address: 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Product Name: BLE Beacon Model Number(s): KBT-200 Product Description: BLE Beacon We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-08-06 Name: Jessica Wang Company: Kirisun Communication Co., Ltd.

Kirisun Communication Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-08-06 Subject; Request for Confidentiality FCC ID: Q5EKBT-200 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Kirisun Communication Co., Ltd. Contact person: Jessica Wang

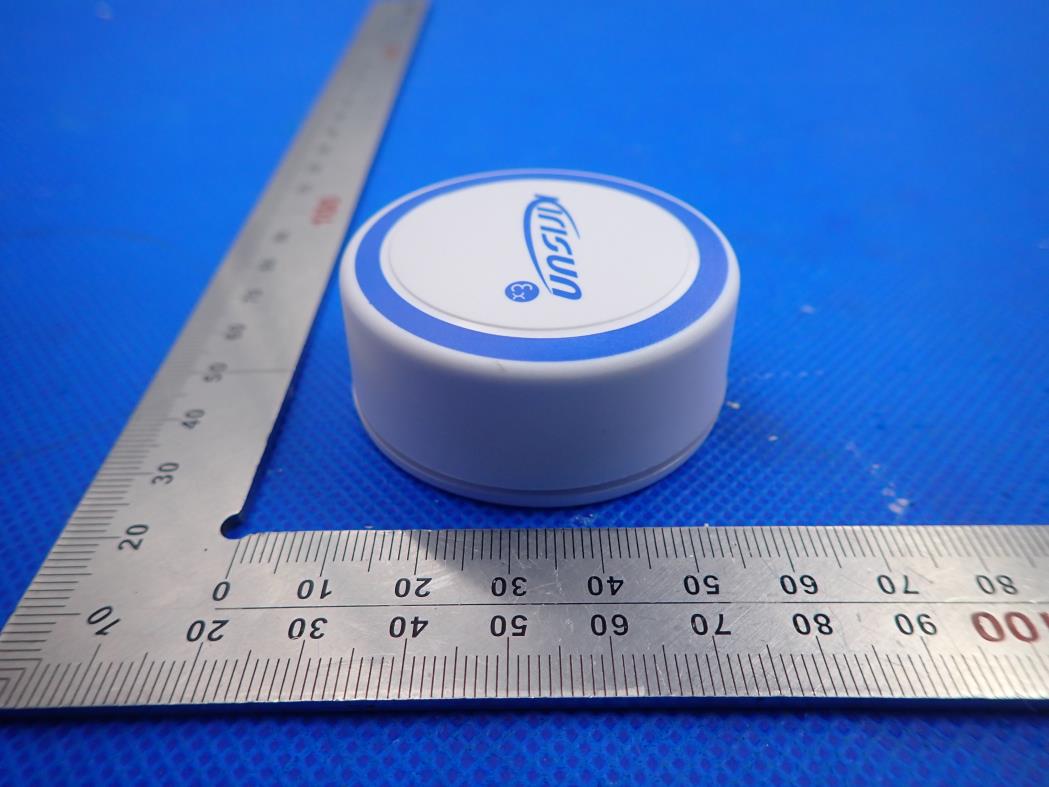

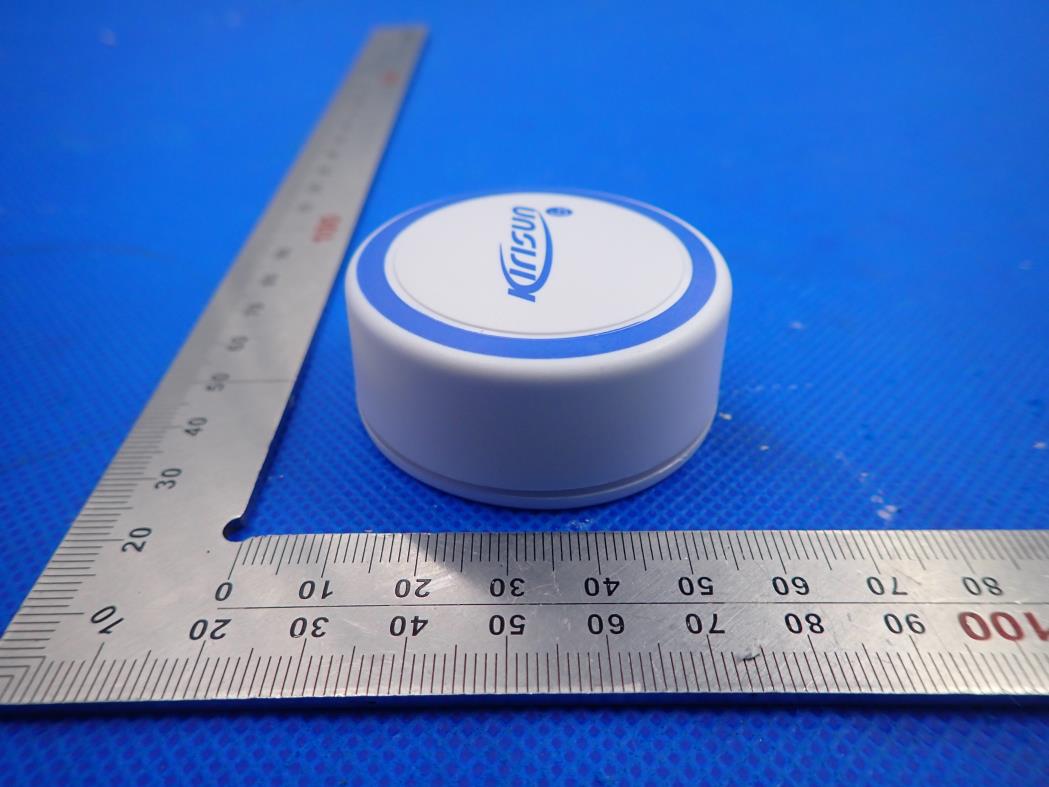

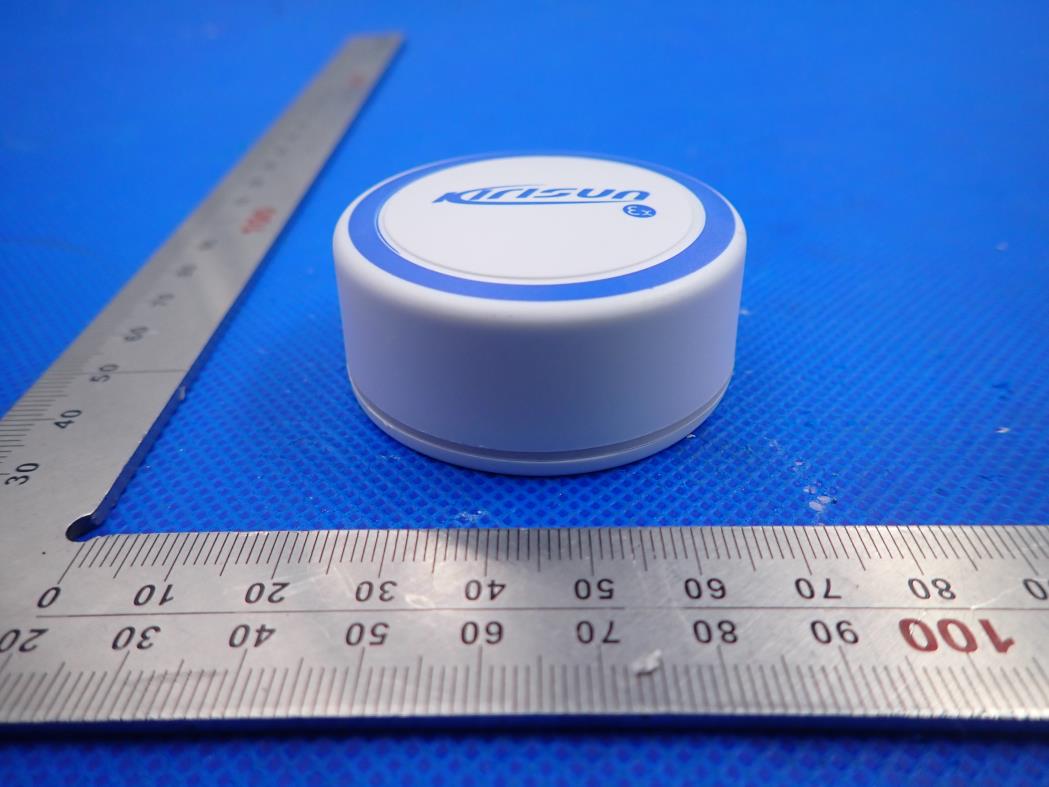

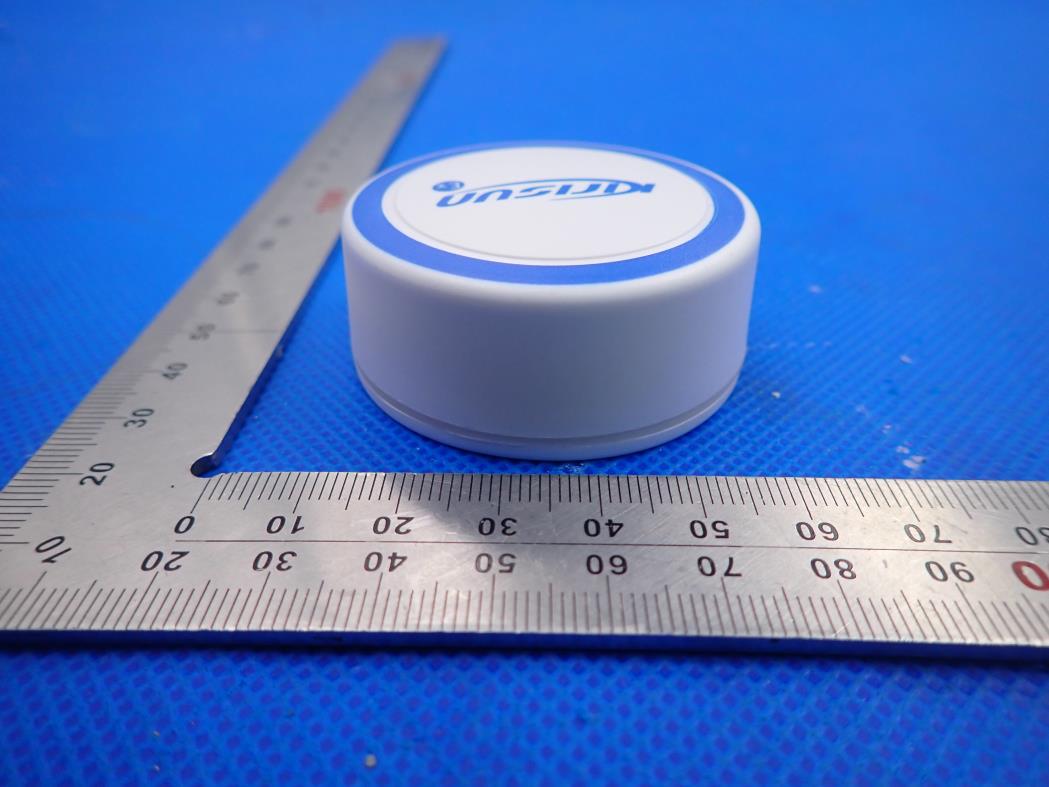

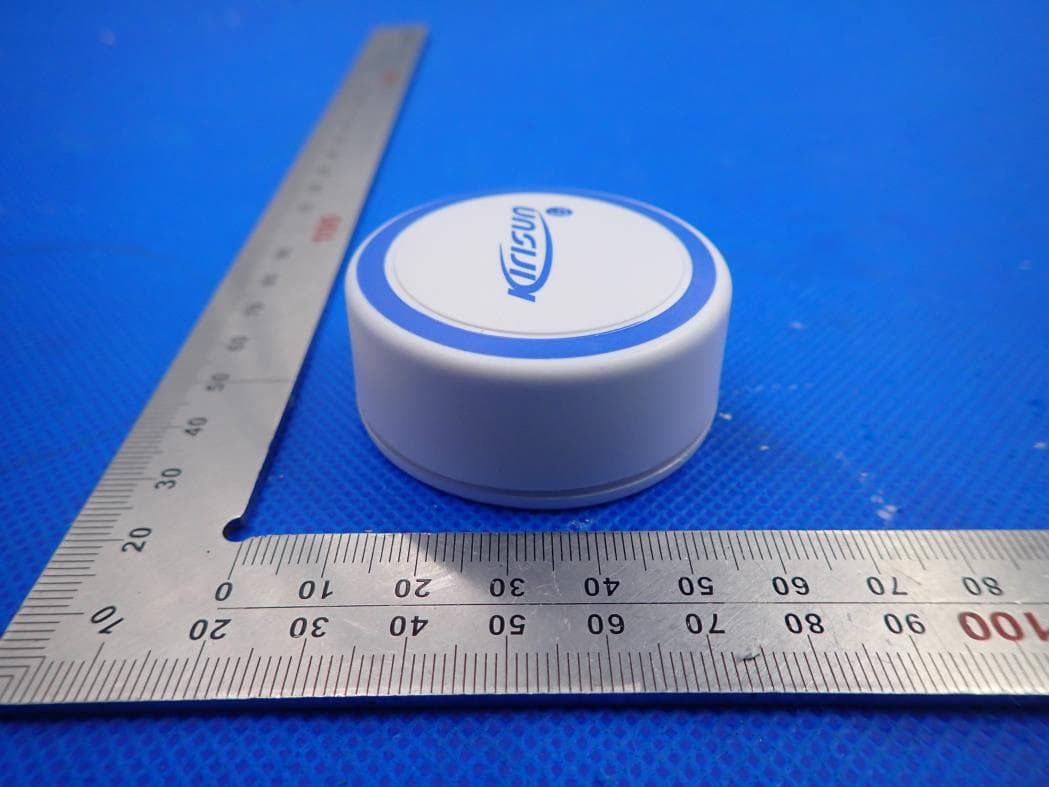

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: Q5EKBT-200

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT BT Antenna

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description BLE Beacon Model Name KBT-200 FCC ID Q5EKBT-200 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t = -0.295dBm=0.93mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.93mW /5mm) .[√2.402(GHz)]=0.29<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 65 FCC Test Report Report No.: AGC00689200701FE02 FCC ID : Q5EKBT-200 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BLE Beacon BRAND NAME : Kirisun MODEL NAME : KBT-200 APPLICANT : Kirisun Communication Co., Ltd. DATE OF ISSUE : July 31, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00689200701FE02 Page 2 of 65 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / July 31, 2020 Valid Initial Release Report No.: AGC00689200701FE02 Page 3 of 65 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 5 2. GENERAL INFORMATION ............................................................................................................................ 6 2.1. PRODUCT DESCRIPTION .................................................................................................................... 6 2.2.TABLE OF CARRIER FREQUENCYS .................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ................................................................................................... 7 2.4.TEST METHODOLOGY .......................................................................................................................... 7 2.5. SPECIAL ACCESSORIES ..................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ............................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 8 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................. 10 5.1 CONFIGURATION OF TESTED SYSTEM ............................................................................................ 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .......................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .......................................................................................................... 10 6. TEST FACILITY ............................................................................................................................................ 11 7. PEAK OUTPUT POWER ............................................................................................................................. 12 7.1. MEASUREMENT PROCEDURE .......................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT .............................................................................................. 13 8. 6 DB BANDWIDTH ...................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .......................................................................................................... 17 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 17 8.3. LIMITS AND MEASUREMENT RESULTS ........................................................................................... 17 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 19 9.1. MEASUREMENT PROCEDURE .......................................................................................................... 21 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................. 21 9.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 21 9.4. LIMITS AND MEASUREMENT RESULT .............................................................................................. 21 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 35 10.1. MEASUREMENT PROCEDURE ........................................................................................................ 36 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................... 36 10.3. MEASUREMENT EQUIPMENT USED .............................................................................................. 36 10.4. LIMITS AND MEASUREMENT RESULT ............................................................................................ 36 11. RADIATED EMISSION ............................................................................................................................... 38 Report No.: AGC00689200701FE02 Page 4 of 65 11.1. MEASUREMENT PROCEDURE ........................................................................................................ 40 11.2. TEST SETUP ..................................................................................................................................... 41 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................ 42 11.4. TEST RESULT .....................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00689200701FE02 Page 43 of 65 RADIATED EMISSION BELOW 1GHZ EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal RESULT: PASS Report No.: AGC00689200701FE02 Page 44 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been tested. The GFSK for 1Mbps is the worst case and recorded in the report. Report No.: AGC00689200701FE02 Page 45 of 65 RADIATED EMISSION ABOVE 1GHZ EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00044.370.0844.4574-29.55 peak 4804.00037.670.0837.7554-16.25 AVG 7206.00040.722.2142.9374-31.07 peak 7206.00033.262.2135.4754-18.53 AVG Value Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00043.820.0843.974-30.1 peak 4804.00037.160.0837.2454-16.76 AVG 7206.00041.642.2143.8574-30.15 peak 7206.00034.542.2136.7554-17.25 AVG Value Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC00689200701FE02 Page 46 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4880.00044.570.1444.7174-29.29 peak 4880.00037.890.1438.0354-15.97 AVG 7320.00042.492.3644.8574-29.15 peak 7320.00034.222.3636.5854-17.42 AVG Value Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4880.00044.620.1444.7674-29.24 peak 4880.00038.410.1438.5554-15.45 AVG 7320.00043.162.3645.5274-28.48 peak 7320.00035.772.3638.1354-15.87 AVG Value Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC00689200701FE02 Page 47 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00045.340.2245.5674-28.44 peak 4960.00038.690.2238.9154-15.09 AVG 7440.00043.272.6445.9174-28.09 peak 7440.00034.522.6437.1654-16.84 AVG Value Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00038.940.2239.1674-34.84 peak 4960.00034.760.2234.9854-19.02 AVG 7440.00036.332.6438.9774-35.03 peak 7440.00031.782.6434.4254-19.58 AVG Value Type Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. RESULT: PASS Note: Other emissions are attenuated more than 20 dB below the permissible value. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. Report No.: AGC00689200701FE02 Page 48 of 65 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS (1M) EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00689200701FE02 Page 49 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC00689200701FE02 Page 50 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00689200701FE02 Page 51 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. Report No.: AGC00689200701FE02 Page 52 of 65 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS (2M) EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00689200701FE02 Page 53 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC00689200701FE02 Page 54 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00689200701FE02 Page 55 of 65 EUT BLE Beacon Model Name KBT-200 Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. Report No.: AGC00689200701FE02 Page 56 of 65 12. FCC LINE CONDUCTED EMISSION TEST 12.1. LIMITS OF LINE CONDUCTED EMISSION TEST Frequency Maximum RF Line Voltage Q.P.( dBuV) Average( …

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
