Q5EM80PoC Mobile Radio

M80 PoC Mobile Radio Quick Guide Appearance Installation FCC StatementIC Statement RED Statement Basic Functions 1. Powering On/Off Powering on When the radio is off, supply a voltage of 12~24V, and the radio will be powered on automatically within about 30s. When the radio is in soft off state, you can start it by pressing and holding for 3s before release. Powering on When the radio is on, you can power it off by pressing and holding for 5s before release. 2. Standby Mode To minimize battery consumption, press to set the radio to standby mode. 3. Adjusting the Volume In the main interface, press the Volume Up/Down key to turn up/down the volume. 4. Login Login After power-on, the login interface as shown below will be displayed. Log in by entering an account and a password (“123456” by default), which are created on the Network Management System (NMS). Note: After successful login, the password will be remembered for automatic login next time. Apps You can run other apps by clicking Apps at the bottom of the interface. Clear SMS cache: Clear the list of recorded messages and cached data. Locating interval: Set the interval of GPS data upload to 6s, 12s, 30s, 60s, 120s or 300s. Outgoing call alert: Enable/disable the alert of outgoing-call. Incoming call alert: Enable/disable the alert of incoming call. Sign out: Return to the login interface. 10 .Advanced Functions On the dispatcher software, you can enable revive, stun, kill, voice playback and track playback. Troubleshooting Please read carefully the Safety Information before using the product. Safety Information Attachments Programming Keys This document is only for reference, and actual product prevails. Kirisun reserves the right to the final interpretation of this document. Failure Description Reason Solution Low, interrupted or no volume while receiving traffic Make sure the plug is in position. Ensure a supply voltage of at least 6V. Loose power plug Low supply voltage Low volume Loosen antenna or not in position Blocked or destroyed speaker Turn up the volume. Power off the radio and install the antenna properly. Clean the outside of the radio. If the problem remains, contact your dealer or an authorized maintenance provider for examination and repair. Burnt fuse Startup failed Talk failed GPS positioning failed No GPS signals received at the position Incorrect platform parameter settings - Incorrect channel settings Set parameters properly and try again. - Wrong default call group Select a right group and try again. Move to an open and flat area. Battery/supply voltage below 6V 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Information to user. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To comply with RF exposure requirements, a minimum separation distance of 20cm must be maintained from the user’s body.Use only the supplied or an approved antenna. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The information listed above provides the user with information needed to make him or her aware of a RF exposure, and what to do to assure that this radio operates within the exposure limits. The device complies with RF specifications when the device used at 20cm from the body.. 1. The operating temperature of the EUT can’t exceed 40 and shouldn’t be lower than -20. 2. The device complies with RF specifications when the device used at 20cm from your body. Hereby, Kirisun Communication Co.,Ltd. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states. Power key Programmable keys (P1~P3) Return key (P4) USB port and TF card slot SIM card slot 4G main antenna interface GPS antenna interface Analog camera interface Power interface IP camera interface Serial port Volume up key Hand microphone jack Volume down key Emergency alarm key Speaker and microphone T…

Text truncated - open the document above for the full version.

2020-08-24 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Kirisun Communication Co.,Ltd./ 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Agency agreement expiration date: Aug. 23, 2021 By: Jessica Wang Signature Printed Title: Product Manager On behalf of : Kirisun Communication Co.,Ltd. Telephone: 0755-86096055

2020-08-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Q5EM80 Product Name: PoC Mobile Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Jessica Wang Signature Printed Title: Product Manager On behalf of : Kirisun Communication Co.,Ltd. Telephone: 0755-86096055

Kirisun Communication Co.,Ltd. 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Tel.: +86-755-86106477 Dear Madam or Sir, We would like to confirm the models M80 and iTALK-470 are same in all respects, the same function, frequency range, modulation method, channel spacing, RF output power, circuit board and external structure. The only difference is the model name. Sincerely Yours, Signature: Jessica Wang 2020-8-24

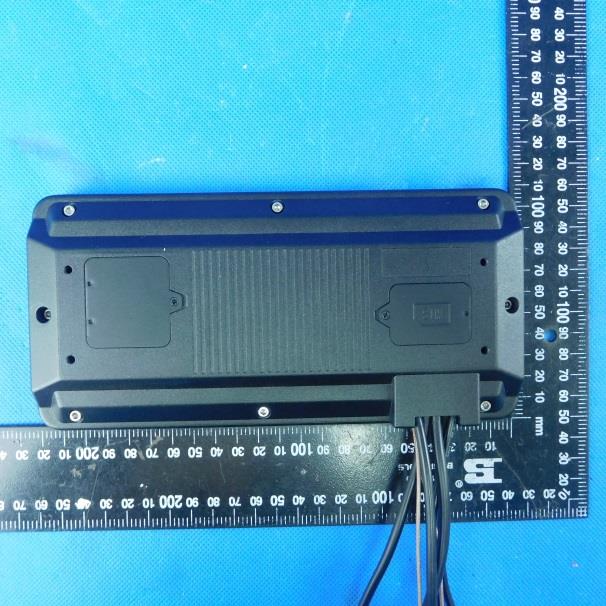

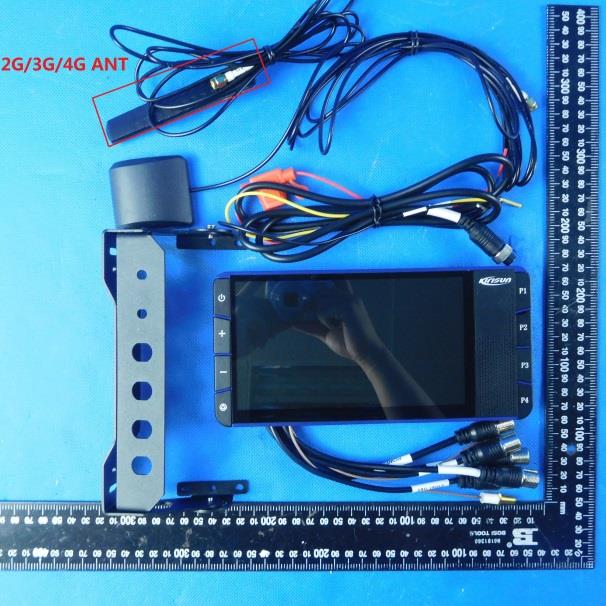

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT External photos of the EUT Model:M80
