Q5EPT810001Mobile Radio

INSTRUCTION MANUAL PT8100 VHF/UHF MOBILE RADIO PT8100 Memo： 23 INSTRUCTION MANUAL VHF/UHF MOBILE RADIO MANDATORY SAFETY INSTRUCTIONS TO INSTAL- -LERS AND USERS ● Use Only manufacturer or dealer supplied antennas. ● Antenna minimum safe distance: 108 cm. ● Antennas used for this transmitter must not exceed an antenna gain of 3 dBi. The FCC (Federal Communications Commission) has adopted a safety standard for human exposure to RF energy which is below the OSHA (Occupational Safety and Health Act) limits. ● Antenna mounting: The antenna supplied by the manu- -facturer or radio dealer must not be mounted at a location such that during radio transmission, any person can come Closer than the above indicated minimum safe distance to the antenna (i.e. 108cm). ● To comply with current FCC RF Exposure limitations, the antenna must be installed at or exceeding the minim--um safe distance indicated above, and in accordance with the requirements to the antenna manufacturer or supplier. ● Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid if the minim-um safe distance is observed. Antenna substitution: Don't substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person(s) to excess--ive radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Maintain a separation distance from the antenna to person(s) at least 108cm. ● “This transmitter is authorized to operate with a maximum duty factor of 50%, in a typical push-to-talk mode, for satisfying FCC RF exposure compliance requirements.” ● The device is authorised for occupational use only. Qualified users must be provided with training information for meeting occupational exposure requirements. ● The device complies with SAR and/or RF field strength limits of RSS-102 requirement and contact information where the user can obtain Canadian information on RF exposure and compliance. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CONTENTS 1. Package-opened Inspection and Installing.........................1 2. Radio Overview..................................................................3 3. Basic Operation..................................................................6 4. Programmable Button Function..........................................7 5. Radio Call.........................................................................11 5.1. Transmit The Selective Call.......................................11 5.2. Receive The Selective Call........................................11 5.3. Call Tips....................................................................11 6. Zone.................................................................................12 7. Talkaround........................................................................12 8. Utilities..............................................................................13 9. Scan.................................................................................14 9.1 Start/End Scan Function..........................................14 9.2 Nuisance Delete.........................................................15 9.3 Edit Scan List..............................................................15 9.4 Add Or Delete The Channels In The Scan List..........15 9.5 Set The Priority Channels..........................................16 10. OST.................................................................................16 11. GPS Information View......................................................17 12. Trouble Shooting Guide...................................................18 13. Major Specifications........................................................20 Accessories Fixed bracket Power Cable Hand Microphone Microphone Hanger M4*10 Combination Screw M4*16 Self-tapping Screw M5*16 Self-tapping Screw Instruction Manual Fuse 1.1 Supplied Accessories 1. Package-opened Inspection and Installing Please check the radio in the package and the supplied acce- ssories in the following table before using. Any articles are found lost or damaged, please contact the distributor without delay. 1 2 Quantity 1.2 1.2.1 ＊ ＊ ＊ 1.2.2 ＊ ＊ Preparation Connection of Power Cable First of all, please check whether there is a hole for the power cable on the insulating board. If no, please bore the board with the suitable drill bit and fix a rubber grommet on it. Afterwards, please have the cable pass through the insulating board and lead from the car into the car engine. Connect the red conductor to the positive terminal of the accumulator and the black conductor to the negative terminal. At last, ring the remained conductor and fix it. Note: Please maintain the sufficient relaxation of the power cable to make it convenient to dismantle the radio in the state of power connection. Radio Installing Warning: For passengers' safety, please fix the radio firmly on the fixed bracket so that the radio will not be loosened in case of collision. The fixed bracket is taken as an example. Draw the position and drill a hole on the instrument panel first, and then install the fixed bracket with 4 M5*16 self-tapping screws. (Note: please fix the radio at the position convenient for operation and control, and leave an enough space for fixation and connection of the cable.) Slide the radio into the fixed bracket and fix it with 4 M4*10 combination screws (plus plain washer and spring washer). (Different combinations of fixing holes are selectable to adjust the radio to the proper height and visual angle.) Fuse Microphone Hanger Power Cable Hand Microphone Fixed bracket M4*10 Combination Screw M5*16 / M4*16 Self-tapping Screw 1 1 1 1 4 2 4 1 2 1 2 3 4 5 6 7 8 9 3 2. 2.1 Radio Overview Description of External View （1） Power button Press this button for a long time (more than 1.5 seconds)…

Text truncated - open the document above for the full version.

KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. would like the following documents regarding this submission for FCC ID: Q5EPT810001 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Chen Xin / Manager Fax: 86-755-86096018 Tel: 86-755-86096055 E-mail: [email protected] KIRISUN ELECTRONICS (SHENZHEN) CO., LTD

Justification Letter DATE: May 17, 2010 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Colombia, Maryland 21046 FCC ID: Q5EPT810001 Model: PT8100-01 Dear Sir/Madam, We , KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorised frequencies inside the U.S.A. We , KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. acknowledge this equipment meets the requirements of FCC Rules, Parts 90.203 (e) and (g) as applicable. Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation. Sincerely, Chen Xin / Manager Fax: 86-755-86096018 Tel: 86-755-86096055 E-mail: [email protected] KIRISUN ELECTRONICS (SHENZHEN) CO., LTD

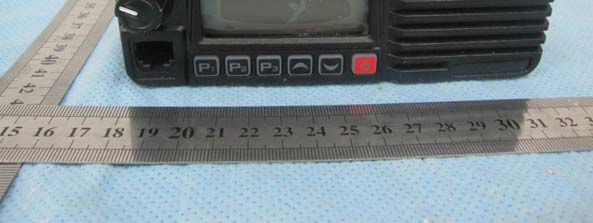

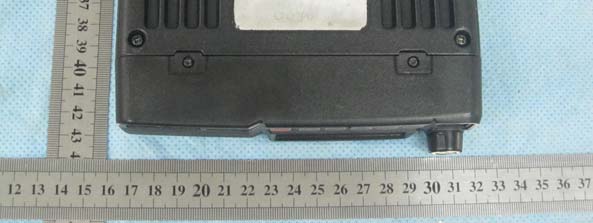

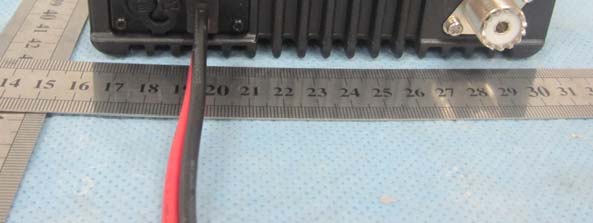

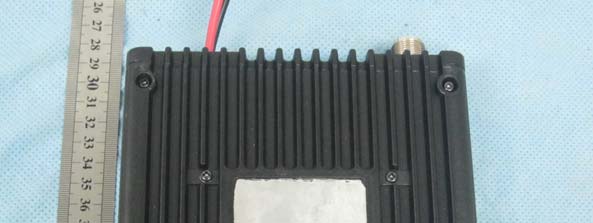

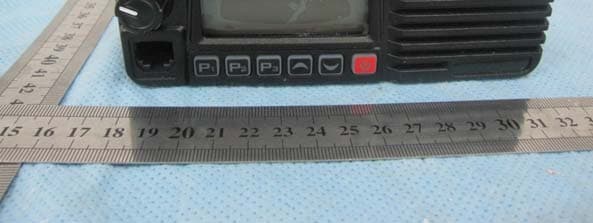

External photos of the EUT

Label RF Warning Label

Internal photos of the EUT

NO. DescriptionRef.NO 1 PT8100-01 Main Board Material，136MHz－174MHz，ROHS 2 PT8100PCB，4 Layer，FR4,1.6mm,PT8100V-091123.PCB,ROHS 3 CPU / MB90F882PMC-GE1,LQFP100,FUJITSU,ROHSIC11 4 IC/ UPB1509GV,ROHSIC19 5 Power Module / RA30H1317M,ROHSIC1 6 IC / SYSTEM,RESET, PST9124NR，ROHSIC14 7 IC / TA31136FN,SSOP,ROHSIC6 8 IC / AT24C512BN-SH25,ATMEL,ROHSIC12 9 PLL IC / MB15E03SL,PLL,16-PIN,SSOP,ROHSIC3 10 IC / XC62FP3502PR,SOT-89,ROHSIC2 11 DTMF IC / HT9172,SOP,ROHSIC5 12 IC / L7808CV,ROHSIC16 13 OP-AMP IC / NJM2902V,OP-AMP,ROHSIC8, IC9, IC10, IC13 14 OP-AMP IC / NJM2904V,OP-AMP,ROHSIC4 15 IC / NJM78L05UA，ROHSIC18 16 IC / TA78033AF, TOSHIBA,OP-AMPIC17 17 IC / TDA7297D,ST,ROHSIC7 18 Diode / 02DZ18(X.Y),ROHSD35 19 Diode / DA221(ROHM),ROHSD13 20 Diode / 1SS372(TOSHIBA),ROHSD32 21 Diode / 1SV278,ROHSD8 22 Diode / L709CER,ROHSD3, D11, D36, D37 23 Diode / 0603,MA2S111(PANASONIC),ROHSD12, D15 24 Diode / DAN222,(ROHM),ROHSD20, D21, D33 25 Diode / HSC277(HITACHI),ROHSD2, D19 26 Diode / HVC376B,ROHS D1, D4, D5, D6, D14, D16, D17, D18, D27, D28, D29, D30 27 Diode / HZU5ALL(HITACHI),ROHSD7 28 Diode / RB706F-40,SOT-323,ROHSD9, D10, D25 29 Diode / DSM3MA1,ROHSD34 30 Transistor / DTA144EE(ROHM),ROHSQ23, Q29, Q35, Q36 31 Transistor / DTC144EE(ROHM),ROHS Q9, Q10, Q17, Q22, Q24, Q25, Q27, Q28, Q37, Q42, Q43, Q44, Q47, Q50 32 Transistor / KRC404RTK,ROHSQ41 33 Transistor / 2SA1641(S.T),ROHSQ39 34 Transistor / 2SC3357，ROHSQ4, Q5 35 Transistor / 2SC4116-GR，ROHSQ13 36 Transistor / 2SC4617(R)(ROHM),ROHSQ8, Q14, Q21, Q26, Q31, Q52 37 Transistor / 2SC4919,MUTING,CIRCUIT(SANYO),ROHSQ32 38 Transistor / 2SC5108Y(TOSHIBA),ROHSQ1, Q2, Q7, Q11, Q20 39 Transistor / KTA1298(Y),ROHSQ38, Q40 40 FET / 2SK508NV(K52),ROHSQ6, Q12 41 FET / 3SK318,ROHSQ18, Q19 42 FET / 2SK1824,ROHS Q3, Q30, Q33, Q34, Q45, Q46, Q49, Q53, Q54 43 IC / JTBM450CX24,ROHSCD1 44 Filter / LTM450FW,450kHz±7kHz,ROHSCF2 45 Filter / LTM450HT,450kHz±3kHz,ROHSCF1 46 IF Filter / 49.95MHz±7.5KHz,U-5*2,ROHSXF1, XF2 47 Chip R / 0402,0R±5%,ROHS C134, C135, C374, C375, R17, R66, R72, R84, R85, R86, R144, R145, R167, R172, R187, R188, R189, R229, R237, R248, R252, R257, R268, R302, R322, R325, R339 48 Chip R / 0402,10R±5%,ROHS R2, R3, R71, R82, R266, R327, R329, R330, R332 49 Chip R / 0402,100R±5%,ROHSR21, R26, R101, R121, R247 50 Chip R / 0402,1K±5%,ROHS R9, R48, R70, R83, R104, R136, R194, R201, R219, R231, R254, R265, R270, R292, R297, R315, R338 51 Chip R / 0402,10K±5%,ROHS R10, R12, R13, R15, R24, R35, R62, R65, R68, R74, R79, R81, R112, R174, R210, R228, R233, R280, R283, R284, R285, R286, R287, R298, R307, R308, R309, R313, R314, R316 52 Chip R / 0402,100K±5%,ROHS R40, R52, R53, R59, R60, R67, R80, R199, R208, R214, R225, R230, R236, R239 53 Chip R / 0402,1M±5%,ROHS R130, R131, R133, R137, R139, R192, R277, R312 54 Chip R / 0402,120R±5%,ROHSR61 55 Chip R / 0402,1.2K±5%,ROHSR152, R267 56 Chip R / 0402,12K±5%,ROHSR16, R245 57 Chip R / 0402,120K±5%,ROHSR150, R175 58 Chip R / 0402,150R±5%,ROHSR63, R111 59 Chip R / 0402,1.5K±5%,ROHSR54, R218 60 Chip R / 0402,15K±5%,ROHSR162, R272 61 Chip R / 0402,150K±5%,ROHS R6, R11, R27, R168, R181, R216, R223, R226 62 Chip R / 0402,1.8K±5%,ROHSR336 63 Chip R / 0402,18K±5%,ROHSR198, R207, R217, R259 64 Chip R / 0402,180K±1%,ROHSR92, R117, R169, R170, R177, R209, R221 65 Chip R / 0402,200K±5%,ROHSR69 66 Chip R / 0402,22R±5%,ROHSR37, R103 67 Chip R / 0402,2.2K±5%,ROHSR1, R227 68 Chip R / 0402,22K±5%,ROHSR106, R109, R110, R153, R171, R215 69 Chip R / 0402,220K±5%,ROHSR183, R213, R311 70 Chip R / 0402,2.7K±5%,ROHSR57, R148, R222 71 Chip R / 0402,27K±5%,ROHSR78, R118, R161, R205 72 Chip R / 0402,270K±5%,ROHSR42, R164, R246, R306, R318 73 Chip R / 0402,330R±5%,ROHSR14, R43 74 Chip R / 0402,3.3K±5%,ROHSR124, R142, R146, R159, R173, R211 75 Chip R / 0402,33K±5%,ROHS R147, R151, R156, R157, R185, R249, R319 76 Chip R / 0402,330K±5%,ROHSR73, R108, R134, R269 77 Chip R / 0402,360R±5%,ROHSR299 78 Chip R / 0402,3.9K±5%,ROHSR279 79 Chip R / 0402,39K±5%,ROHSR64, R143, R278 80 Chip R / 0402,390K±5%,ROHSR202, R220, R310 81 Chip R / 0402,43K±5%,ROHSR163 82 Chip R / 0402,47R±5%,ROHSR33 83 Chip R / 0402,470R±5%,ROHSR100, R271, R291 84 Chip R / 0402,4.7K±5%,ROHS R5, R38, R39, R91, R128, R154, R158, R176, R179, R180, R191, R195, R196, R197, R200, R203, R282, R288, R289, R290, R304 85 Chip R / 0402,47K±5%,ROHS R89, R105, R123, R126, R127, R129, R141, R160, R238, R293, R294, R300, R328, R331, R333, R337 86 Chip R / 0402,470K±5%,ROHSR140, R165, R204, R250, R253, R305 87 Chip R / 0402,56R±5%,ROHSR115, R135 88 Chip R / 0402,560R±5%,ROHSR51, R55 89 Chip R / 0402,5.6K±5%,ROHS R155, R178, R184, R193, R212, R241, R260 90 Chip R / 0402,56K±5%,ROHS R97, R125, R149, R232, R258, R263, R275 91 Chip R / 0402,560K±5%,ROHSR99, R243 92 Chip R / 0402,6.8K±5%,ROHSR94, R95, R113, R114, R244, R317 93 Chip R / 0402,68K±5%,ROHSR264, R274 94 Chip R / 0402,820R±5%,ROHSR76, R77, R255 95 Chip R / 0402,8.2K±5%,ROHSR235, R242 96 Chip R / 0402,82K±5%,ROHSR75, R88, R224 97 Chip R / 0402,91K±5%,ROHSR190 98 Chip R / 0603,0R±5%,ROHSC31, C176, D23, L52, L62 99 Chip R / 0603,10R±5%,ROHSR8 100 Chip R / 0603,10K±5%,ROHSR45 101 Chip R / 0603,120R±5%,ROHSR4 102 Chip R / 0603,1.5K±1%,ROHSR41 103 Chip R / 0603,22R±5%,ROHSR30 104 Chip R / 0603,220R±5%,ROHSL8 105 Chip R / 0603,2.2K±5%,ROHSR18, R19 106 Chip R / 0603,270R±5%,ROHSR44 107 Chip R / 0603,270K±5%,ROHSR36 108 Chip R / 0603,3.3K±5%,ROHSR32 109 Chip R / 0603,47R±5%,ROHSR29, R34 110 Chip R / 0603,47K±5%,ROHSR182, R206 111 Chip R / 0603,560R±5%,ROHSR22, R23 112 Chip R / 0603,680R±5%,ROHSR58 113 Chip R / 0805,0R±5%,ROHSL54 114 Chip R / 0805,22R±5%,ROHSL30 115 Chip R / 0805,47R±5%,ROHSL31 116 Chip R / 1206,220R±5%,ROHSR46, R47 117 Chip R / EVM2NSX80B54,50K±25%,B Linear,ROHSVR2 118 R / 10D220，ROHSR281 119 Chip Fuse / 433003,3A/32V,1206，ROHSF1 120 Chip C / 0402,10P±0.5P,50V,C0G,ROHSC7, C16, C80, C138, C139, C307 121 Chip C / 0402,100P±5%,50V,C0G,ROHS C27, C28, C97, C103, C105, C108, C112, C114, C125, C335, C336, C349, C350, C351, C352, C353, C354, C356, C359, …

Text truncated - open the document above for the full version.

Common Section Measurement Adjustment Item Condition Test equipmentTerminal Parts Method Specifications/ Remark 1.Setting 1) BATT terminal votage:13.8V 2) SSG standard modulation [Wide] MOD:1kHz,DEV:3kHz [Narrow] MOD:1kHz,DEV:1.5kHz 1) CH:High C122 3.5V ±0.2V 2.VCO lock voltage RX 2) CH:Low Check 0. 6 or more 3) CH:High PTT:ON C39 3.5V ±0.2V 3.VCO lock voltage TX 4) CH:Low PTT:ON Power meter DVM ANT CV Check 0.6V or more Transmitter Section Measurement Adjustment Item Condition Test equipment Terminal Parts Method Specifications/ Remark 1.Frequency Adjust 1) CH:High 2) PTT:ON Frequency counter173.9875MHz ±100Hz 2.High power Adjust TEST CH: Low Low’ Center High’ High (5 points) BATT terminal voltage:13.6V PTT:ON 25W±2W 8A or less 3.Mid Power TEST CH: Low Low’ Center High’ High (5 points) BATT terminal voltage:13.6V PTT:ON 10W±1W 5A or less 4.Low power Adjust TEST CH: Low Low’ Center High’ High (5 points) BATT terminal voltage:13.6V PTT:ON Power meter Ammeter ANT Programming Software:KSP8100V1.1 7 5W±1W 3A or less 5.Max deviation Adjust [Wide] TEST CH: Center AG:1kHz/100mV Deviation meter filter LPT:15kHz HPF:OFF PTT:ON Power meter Deviation meter Oscilloscope AG AF VTVM ANT MIC connecto r VR2 4.0kHz (According to the lager +,–) ±200Hz [Narrow] TEST CH: Center PTT:ON 2.0kHz (According to the lager +,–) ±200Hz Measurement Adjustment Item Condition Test equipment Terminal Parts Method Specifications/ Remark 6.DCS Balance Adjust [Wide] TEST CH: Low Low’ Center High’ High (5 points) LPF:300Hz HPF:OFF PTT:ON [Narrow] TEST CH: Low Low’ Center High’ High (5 points) LPF:300Hz HPF:OFF PTT:ON Power meter Deviation meter Oscilloscope AG AF VTVM ANT Make the demodulation wave into square waves 7.DCS Deviation Adjust [Wide] TEST CH: Low Low’ Center High’ High (5 points) LPF:300Hz HPF:OFF PTT:ON 0.7kHz ±100Hz [Narrow] TEST CH: Center PTT:ON 0.3kHz ±100Hz 8.QT Deviation Adjust [Wide] TEST CH: Low Low’ Center High’ High (5 points) LPF:300Hz HPF:OFF PTT:ON 0.7kHz ±100Hz [Narrow] TEST CH: Center PTT:ON Programming Software:KSP8100V1.1 7 0.3kHz ±100Hz

FCC PART 90 & RSS-119 TEST REPORT FCC Part 90 and RSS-119 Report Reference No......................: FCC ID..............................................: IC. ...................................................... WE10040018 Q5EPT810001 8922A-PT810001 Compiled by ( position+printed name+signature)..: File administrators Xiankun Ding Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: July 15, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address ............................................: 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES RSS-119 Issue 10: Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mobile Radio Trade Mark .......................................: Model/Type reference.......................: PT8100-01 Listed Models ..................................: / Ratings .............................................: DC 13.60 V Rated Output Power .........................: 25 Watt(43.98 dBm) Modulation/Channel Separation ........ FM/12.5KHz&25KHz Frequency Range.............................: From 136 MHz to 174 MHz Result................................................: Positive V1.0 Page 2 of 75 Report No.: WE10040018 FCC ID: Q5EPT810001 IC: 8922A-PT810001 T E S T R E P O R T Test Report No. : WE10040018 July 15, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Radio Model /Type : PT8100-01 Listed Models : / Applicant : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Manufacturer : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 75 Report No.: WE10040018 FCC ID: Q5EPT810001 IC: 8922A-PT810001 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment Under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 11 4.1. Conducted Emissions 11 4.2. Occupied Bandwidth & Emission Mask 13 4.3. Transmitter Radiated Spurious Emssion 24 4.4. Spurious Emssion On Antenna Port 29 4.5. Modulation Charcateristics 37 4.6. Frequency Stability 42 4.7. Maximum Transmitter Power 44 4.8. Transmitter Frequency Behavior 48 4.9. Receiver Radiated Spurious Emssion 51 4.10. Receiver Conducted Spurious Emssion 57 4.11. RF Exposure Evaluation 64 5. TEST SETUP PHOTOS OF THE EUT 66 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 68 V1.0 Page 4 of 75 Report No.: WE10040018 FCC ID: Q5EPT810001 IC: 8922A-PT810001 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. RSS-119 Issue 10 April 2010: Spectrum Management and Telecommunications Radio Standards Specification Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.4-2009 : American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. V1.0 Page 5 of 75 Report No.: WE10040018 FCC ID: Q5EPT810001 IC: 8922A-PT810001 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Apr 27, 2010 Testing commenced on : Apr 27, 2010 Testing concluded on : July 15, 2010 2.2. Product Description The KIRISUN ELECTRONICS (SHENZHEN) CO., LTD.’s Model: PT8100-01 or the “EUT” as referred to in this report; more general information as follows: Name of EUT Mobile Radio Model Number PT8100-01 FCC ID: Q5EPT810001 IC 8922A-PT810001 Rated Output Power 25W(43.98 dBm) Modilation Type FM for Analog Voice 16K0F3E for 25KHz Channel Separation Emission Designator Analog 11K50F3E for 12.5KHz Channel Separation Channel Separation Analog Voice 12.5KHz&25KHz Antenna Type External Frequency Range From 13…

Text truncated - open the document above for the full version.

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No......................: FCC ID .............................................: IC. ...................................................... WE10040019 Q5EPT810001 8922A-PT810001 Compiled by ( position+printed name+signature)..: File administrators Xiankun Ding Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: July 16, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address ............................................: 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Test specification: Standard ...........................................: FCC Per 47 CFR 2.1091(b) TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mobile Radio Trade Mark .......................................: Manufacturer ....................................: KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Model/Type reference.......................: PT8100-01 Listed Models ..................................: / Ratings .............................................: DC 13.60 V RF Output Power Rating ..................: 25 Watt/43.98 dBm Modulation/Channel Separation ........ FM/12.5KHz&25KHz Frequency Range From 136 MHz to 174 MHz Result................................................: Positive V1.0 Page 2 of 8 Report No.: WE10040019 FCC ID: Q5EPT810001 IC: 8922A-PT810001 MPE T E S T R E P O R T Test Report No. : WE10040019 July 16, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Radio Model /Type : PT8100-01 Listed Models : / Applicant : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Manufacturer : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 8 Report No.: WE10040019 FCC ID: Q5EPT810001 IC: 8922A-PT810001 Contents 1. MEASUREMENT UNCERTAINTY ................................................. 4 2. METHOD OF MEASUREMENT .................................................... 4 2.1. EME measurements made on trunk mounted antennas 4 2.1.1. External vehicle EME measurement ..............................................................................4 2.1.2. Internal vehicle EME measurement ...............................................................................4 2.2. EME measurements made on center roof mounted antennas 4 2.2.1. External vehicle EME measurement ..............................................................................4 2.2.2. Internal vehicle EME measurement ...............................................................................4 3. TEST RESULT ........................................................................ 5 4. CONCLUSION ........................................................................ 7 5. ANTENNA LOCATION DRAWING ................................................ 8 V1.0 Page 4 of 8 Report No.: WE10040019 FCC ID: Q5EPT810001 IC: 8922A-PT810001 1. Measurement Uncertainty The information below presents an estimate of the possible errors that are associated with the measurement system. Description Error NARDA Survey Meter ± 3% Repeatability Accuracy ± 7% 2. Method of measurement 2.1. EME measurements made on trunk mounted antennas 2.1.1. External vehicle EME measurement (Antenna mounted in trunk center) With the survey meter and probe, take ten (10) measurements, at the standard test distance of 60 cm to the antenna, from the back of the vehicle in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a range starting at twenty (20) centimeters above ground and ending at 2.0 meters. 2.1.2. Internal vehicle EME measurement (Antenna mounted in trunk center) While rotating survey meter probe through 180 degrees to ensure that the highest level is found, scan the inside of the vehicle, both front and back seating areas, for the highest level in each location. After the highest level is found, scan vertically making two (2) additional measurements within an area approximately 40 cm wide (representing the width of a person) so as to have a total of three (3) measured points as indicated below that will be averaged . a) Head area b) Chest area c) Lower Trunk area 2.2. EME measurements made on center roof mounted antennas 2.2.1. External vehicle EME measurement With the survey meter and probe, take ten (10) measurements, at the standard test distance of 110 cm from the vehicle-mounted antenna, in a vertical line and then average the results. These measurements are taken and recorded at every twenty (2…
