Q5EPT810003Mobile Radio

KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. FCC ID: Q5EPT810003 Model: PT8100-03 DATE: November 17, 2010 To whom it may concern: We the undersigned, hereby authorize Shenzhen Huatongwei International Inspection Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen Huatongwei International Inspection Co., Ltd on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. Sincerely, Chen Xin / Manager Fax: 86-755-86096018 Tel: 86-755-86096055 E-mail: [email protected] KIRISUN ELECTRONICS (SHENZHEN) CO., LTD

KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. would like the following documents regarding this submission for FCC ID: Q5EPT810003 to be kept confidential. 1. Block Diagram 2. Schematic 3. Theory of Operation 4. Tune Up Procedure The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Chen Xin / Manager Fax: 86-755-86096018 Tel: 86-755-86096055 E-mail: [email protected] KIRISUN ELECTRONICS (SHENZHEN) CO., LTD

KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. Frequency Attestation Letter DATE: November 17, 2010 FCC ID: Q5EPT810003 IC: 8922A-PT810003 Model: PT8100-03 Dear Sir/Madam, We, KIRISUN ELECTRONICS (SHENZHEN) CO., LTD. acknowledge that this device can only use the allowed frequency band from 450 MHz to 470 MHz for Canada, and only use the allowed frequency band from 438 MHz to 490 MHz for USA. Sincerely, Chen Xin / Manager Fax: 86-755-86096018 Tel: 86-755-86096055 E-mail: [email protected] KIRISUN ELECTRONICS (SHENZHEN) CO., LTD

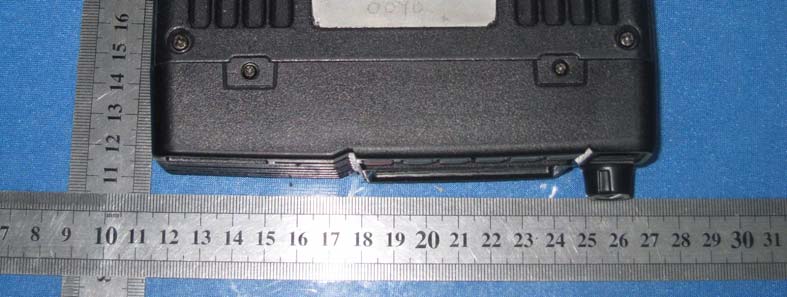

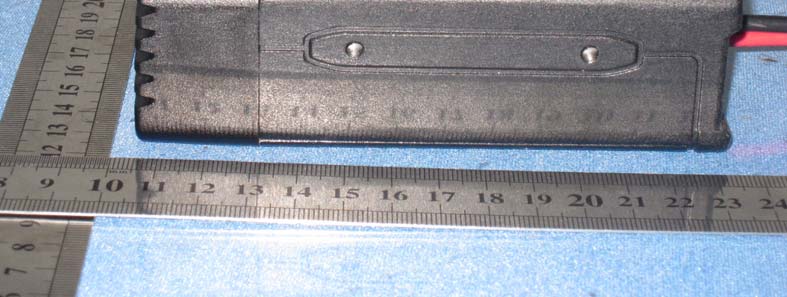

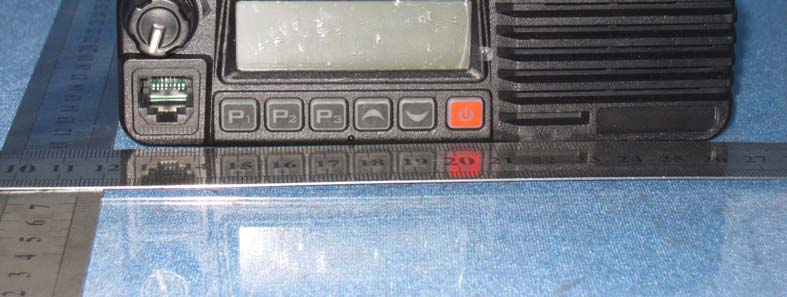

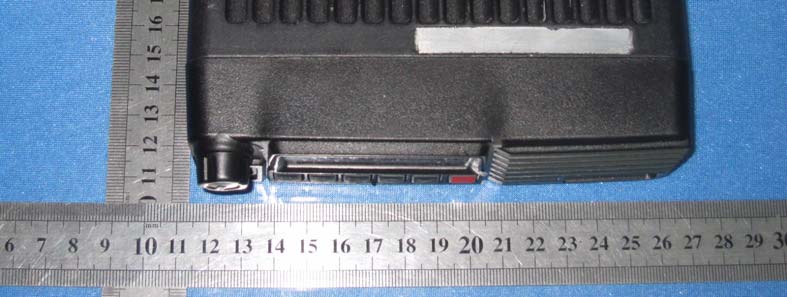

External photos of the EUT

Label RF Warning Label

Internal photos of the EUT

NO. DescriptionRef.No 1 PT8100-03 Main Board Material 438-490MHz,ROHS 2 PT8100PCB , 4 Layer，FR4,1.6mm,PT8100U-091111.PCB,ROHS 3 CPU / MB90F882PMC-GE1,LQFP100,FUJITSU,ROHSIC11 4 Power Module / RA30H4452M，ROHSIC1 5 IC / SYSTEM,RESET, PST9124NR，ROHSIC12 6 IC / TA31136FN,SSOP,ROHSIC6 7 IC / AT24C512BN-SH25,ATMELROHSIC15 8 PLL IC / MB15E03SL,PLL,16-PIN,SSOP,ROHSIC3 9 IC / XC62FP3502PR,SOT-89,ROHSIC2 10 DTMF IC / HT9172,SOP,ROHSIC5 11 IC / L7808CV,ROHSIC16 12 OP AMP IC/ NJM2902V,OP-AMP,ROHSIC8, IC9, IC10, IC13 13 OP AMP IC / NJM2904V,OP-AMP,ROHSIC4 14 IC / NJM78L05UA，ROHSIC18 15 IC / TA78033AF, TOSHIBA,ROHSIC17 16 IC / TDA7297D,ST,ROHSIC7 17 Diode / 02DZ18(X.Y),ROHSD35 18 Diode / DA221(ROHM),ROHSD13 19 Diode / 1SS372(TOSHIBA),ROHSD32 20 Diode / 1SV278,ROHSD8 21 Diode / L709CER,ROHSD3, D11, D36, D37 22 Diode / 0603,MA2S111(PANASONIC),ROHSD12, D15, D22 23 Diode / DAN222,(ROHM),ROHSD20, D21, D33 24 Diode,HSC277(HITACHI),ROHSD2, D19 25 Diode / 0603,HVC355B(HITACHI),ROHSD23 26 Diode / HVC376B,ROHS D1, D4, D5, D6, D14, D16, D17, D18, D26, D27, D28, D29, D30 27 Diode / HZU5ALL(HITACHI),ROHSD7 28 Diode / RB706F-40,SOT-323,ROHSD9, D10, D25 29 Diode / DSM3MA1,ROHSD34 30 Transistor / DTA144EE(ROHM),ROHSQ23, Q29, Q35, Q36 31 Transistor / DTC144EE(ROHM),ROHS Q9, Q10, Q17, Q22, Q24, Q25, Q27, Q28, Q37, Q42, Q43, Q44, Q47, Q50 32 Transistor / KRC404RTK,ROHSQ41 33 Transistor / 2SA1641(S.T),ROHSQ39 34 Transistor / 2SC3357，ROHSQ4, Q5 35 Transistor / 2SC4116-GR，ROHSQ13 36 Transistor / 2SC4617(R)(ROHM),ROHSQ14, Q21, Q26, Q31, Q51, Q52 37 Transistor / 2SC4919,MUTING,CIRCUIT(SANYO),ROHSQ32 38 Transistor / 2SC5108Y(TOSHIBA),ROHSQ1, Q2, Q7, Q11, Q20 39 Transistor / KTA1298(Y),ROHSQ38, Q40 40 FET / 2SK508NV(K52),ROHSQ6, Q12 41 FET / 3SK318,ROHSQ18, Q19 42 FET / 2SK1824,ROHS Q3, Q30, Q33, Q34, Q45, Q46, Q49, Q53, Q54 43 FET / 2SK1829,ROHSQ16 44 IC / JTBM450CX24,ROHSCD1 45 Filter / LTM450FW,450kHz±7kHz,ROHSCF2 46 Filter / LTM450HT,450kHz±3kHz,ROHSCF1 47 IF Filter / 49.95MHz±7.5KHz,U-5*2,ROHSXF1 48 Chip R / 0402,0R±5%,ROHS C134, C135, C162, R66, R72, R84, R85, R86, R101, R144, R145, R149, R172, R187, R189, R222, R229, R237, R248, R252, R257, R268, R282, R298, R301, R320, R325, R338 49 Chip R / 0402,10R±5%,ROHS R2, R3, R71, R82, R219, R327, R329, R330, R332 50 Chip R / 0402,100R±5%,ROHSR21, R26, R121, R247 51 Chip R / 0402,1K±5%,ROHS R9, R10, R15, R24, R35, R48, R54, R70, R78, R83, R136, R194, R201, R206, R231, R254, R266, R270, R292, R315, R337 52 Chip R / 0402,10K±5%,ROHS R12, R13, R62, R65, R68, R74, R79, R81, R112, R174, R210, R228, R233, R280, R283, R284, R285, R286, R287, R305, R306, R307, R309, R311, R313 53 Chip R / 0402,100K±5%,ROHS R40, R52, R53, R59, R60, R64, R67, R80, R92, R117, R123, R199, R203, R208, R225, R236, R239, R271 54 Chip R / 0402,1M±5%,ROHS R128, R130, R131, R132, R133, R137, R139, R192, R312 55 Chip R / 0402,1.2K±5%,ROHSR152, R267 56 Chip R / 0402,12K±5%,ROHSR245 57 Chip R / 0402,120K±5%,ROHSR150, R175 58 Chip R / 0402,150R±5%,ROHSR63, R111 59 Chip R / 0402,1.5K±5%,ROHSR211 60 Chip R / 0402,15K±5%,ROHSR88, R155, R162, R272 61 Chip R / 0402,150K±5%,ROHS R6, R11, R27, R166, R167, R218, R226 62 Chip R / 0402,1.8K±5%,ROHSR336 63 Chip R / 0402,18K±5%,ROHSR198, R207, R217, R259 64 Chip R / 0402,180K±5%,ROHSR93, R143, R169, R170 65 Chip R / 0402,200K±5%,ROHSR69 66 Chip R / 0402,22R±5%,ROHSR33, R37, R103 67 Chip R / 0402,220R±5%,ROHSR115 68 Chip R / 0402,2.2K±5%,ROHSR227 69 Chip R / 0402,22K±5%,ROHS R106, R109, R110, R153, R171, R215 70 Chip R / 0402,220K±5%,ROHSR183, R213, R310 71 Chip R / 0402,240R±5%,ROHSR61 72 Chip R / 0402,2.7K±5%,ROHSR1, R57, R148, R214 73 Chip R / 0402,27K±5%,ROHSR161, R177, R205 74 Chip R / 0402,270K±5%,ROHS R42, R141, R164, R216, R221, R302, R316, R318 75 Chip R / 0402,330R±5%,ROHSR43 76 Chip R / 0402,3.3K±5%,ROHSR124, R142, R146, R159, R197 77 Chip R / 0402,33K±5%,ROHS R147, R151, R156, R157, R185, R249, R250 78 Chip R / 0402,330K±5%,ROHSR73, R108, R134, R209, R230 79 Chip R / 0402,36K±5%,ROHSR98 80 Chip R / 0402,3.9K±5%,ROHSR279 81 Chip R / 0402,39K±5%,ROHSR278 82 Chip R / 0402,390K±5%,ROHSR202, R220, R308 83 Chip R / 0402,43K±5%,ROHSR160, R163 84 Chip R / 0402,47R±5%,ROHSR14 85 Chip R / 0402,470R±5%,ROHSR100, R291 86 Chip R / 0402,4.7K±5%,ROHS R5, R16, R39, R91, R154, R158, R168, R173, R181, R191, R195, R196, R288, R289, R290, R304 87 Chip R / 0402,47K±5%,ROHS R89, R105, R126, R127, R129, R176, R180, R238, R246, R253, R293, R294, R299, R300, R321, R323, R324, R328, R331, R333, R334, R335 88 Chip R / 0402,470K±5%,ROHS R96, R140, R165, R204, R303, R317, R319 89 Chip R / 0402,56R±5%,ROHSR135 90 Chip R / 0402,560R±5%,ROHSR51, R55 91 Chip R / 0402,5.6K±5%,ROHS R178, R184, R193, R212, R241, R260 92 Chip R / 0402,56K±5%,ROHS R97, R125, R232, R258, R263, R275 93 Chip R / 0402,560K±5%,ROHSR99, R243, R277 94 Chip R / 0402,6.2K±5%,ROHSR240 95 Chip R / 0402,6.8K±5%,ROHS R94, R95, R113, R114, R244, R314 96 Chip R / 0402,68K±5%,ROHSR118, R264, R274 97 Chip R / 0402,820R±5%,ROHSR76, R77, R255 98 Chip R / 0402,8.2K±5%,ROHSR235, R242 99 Chip R / 0402,82K±5%,ROHSR75, R224 100 Chip R / 0402,91K±5%,ROHSR190 101 Chip R / 0603,0R±5%,ROHSL52, L62 102 Chip R / 0603,10R±5%,ROHSR29, R30 103 Chip R / 0603,1K±5%,ROHSR18, R19 104 Chip R / 0603,12R±5%,ROHSR8 105 Chip R / 0603,120R±5%,ROHSR41 106 Chip R / 0603,180R±5%,ROHSR25, R31 107 Chip R / 0603,220R±5%,ROHSR4, R45 108 Chip R / 0603,270R±5%,ROHSR44 109 Chip R / 0603,2.7K±5%,ROHSR34 110 Chip R / 0603,270K±5%,ROHSR36 111 Chip R / 0603,33R±5%,ROHSR7 112 Chip R / 0603,430R±5%,ROHSR22, R23 113 Chip R / 0603,470R±5%,ROHSR32 114 Chip R / 0603,47K±5%,ROHSR200, R265 115 Chip R / 0603,680R±5%,ROHSR58 116 Chip R / 0805,0R±5%,ROHSL29 117 Chip R / 0805,100R±5%L30, L31 118 Chip R / 1206,220R±5%,ROHSR46, R47 119 Chip R / EVM2NSX80B54,50K±25%,B Linear,ROHSVR2 120 R / 10D220，ROHSR281 121 Chip Fuse / 1206L150PR,1206,1.5A/6V,ROHSF1 122 Chip C / 0402,10P±0.5P,50V,C0G,ROHS C7, C53, C80, C106, C138, C139, C307 123 Chip C / 0402,100P±5%,50V,C0G,ROHS C36, C37, C90, C91, C99, C…

Text truncated - open the document above for the full version.

FCC PART 90 & RSS-119 TEST REPORT FCC Part 90 and RSS-119 Report Reference No......................: FCC ID..............................................: IC. ...................................................... WE10100015 Q5EPT810003 8922A-PT810003 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Nov 29, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address ............................................: 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Test specification: Standard ...........................................: FCC Part 90: PRIVATE LAND MOBILE RADIO SERVICES RSS-119 Issue 10: Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mobile Radio Trade Mark .......................................: Model/Type reference.......................: PT8100-03 Listed Models ..................................: / Ratings .............................................: DC 13.60 V Rated Output Power.........................: 25 Watt(43.98 dBm)/5Watt(36.99 dBm) Modulation/Channel Separation ........ FM/12.5KHz&25KHz Frequency Range .............................: From 450 MHz to 470 MHz for IC From 438 MHz to 490 MHz for FCC Result................................................: Positive V1.0 Page 2 of 154 Report No.: WE10100015 FCC ID: Q5EPT810003 IC: 8922A-PT810003 T E S T R E P O R T Test Report No. : WE10100015 Nov 29, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Radio Model /Type : PT8100-03 Listed Models : / Applicant : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Manufacturer : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 154 Report No.: WE10100015 FCC ID: Q5EPT810003 IC: 8922A-PT810003 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 6 2.5. EUT Configuration 6 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Related Submittal(s) / Grant (s) 6 2.9. Modifications 6 2.10. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 8 3.4. Configuration of Tested System 8 3.5. Discription of Tested Modes 8 3.6. Statement of the measurement uncertainty 8 3.7. Test Description 9 3.8. Equipments Used during the Test 9 4. TEST CONDITIONS AND RESULTS 11 4.1. Conducted Emissions 11 4.2. Occupied Bandwidth & Emission Mask 20 4.3. Transmitter Radiated Spurious Emssion 41 4.4. Spurious Emssion on Antenna Port 48 4.5. Modulation Charcateristics 87 4.6. Frequency Stability 95 4.7. Maximum Transmitter Power 98 4.8. Transmitter Frequency Behavior 112 4.9. Receiver Radiated Spurious Emssion 117 4.10. Receiver Conducted Spurious Emssion 127 4.11. RF Exposure Evaluation 140 5. TEST SETUP PHOTOS OF THE EUT 143 6. EXTERNAL AND INTERNAL PHOTOS OF THE EUT 146 V1.0 Page 4 of 154 Report No.: WE10100015 FCC ID: Q5EPT810003 IC: 8922A-PT810003 1. TEST STANDARDS The tests were performed according to following standards: FCC Rules Part 90: PRIVATE LAND MOBILE RADIO SERVICES. RSS-119 Issue 10 April 2010: Spectrum Management and Telecommunications Radio Standards Specification Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz. TIA/EIA 603: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.4-2009 : American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. V1.0 Page 5 of 154 Report No.: WE10100015 FCC ID: Q5EPT810003 IC: 8922A-PT810003 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Oct 25, 2010 Testing commenced on : Oct 25, 2010 Testing concluded on : Nov 29, 2010 2.2. Product Description The KIRISUN ELECTRONICS (SHENZHEN) CO., LTD.’s Model: PT8100-03 or the “EUT” as referred to in this report; more general information as follows: Name of EUT Mobile Radio Model Number PT8100-03 FCC ID: Q5EPT810003 IC 8922A-PT810003 Rated Output Power 25W(43.98 dBm)/5Watt(36.99dBm) Modilation Type FM for Analog Voice 16K0F3E for 25KHz Channel Separation Emission Designator Analog 11K50F3E for 12.5KHz Channel Separation C…

Text truncated - open the document above for the full version.

MPE TEST REPORT FCC Per 47 CFR 2.1091(b) Report Reference No......................: FCC ID .............................................: WE10100016 Q5EPT810003 Compiled by ( position+printed name+signature)..: File administrators Eric Zhang Supervised by ( position+printed name+signature)..: Test Engineer Wenliang Li Approved by ( position+printed name+signature)..: Manager Jimmy Li Date of issue.....................................: Nov 30, 2010 Testing Laboratory Name..............: Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name............................: KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address ............................................: 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Test specification: Standard ...........................................: FCC Per 47 CFR 2.1091(b) TRF Originator..................................: Shenzhen Huatongwei International Inspection CO., Ltd Master TRF.......................................: Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mobile Radio Trade Mark .......................................: Manufacturer ....................................: KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Model/Type reference.......................: PT8100-03 Listed Models ..................................: / Ratings .............................................: DC 13.60 V RF Output Power Rating ..................: 25 Watt(43.98 dBm)/5Watt(36.99 dBm) Modulation/Channel Separation ........ FM/12.5KHz&25KHz Frequency Range From 438 MHz to 490 MHz Result................................................: Positive V1.0 Page 2 of 11 Report No.: WE10100016 FCC ID: Q5EPT810003 MPE T E S T R E P O R T Test Report No. : WE10100016 Nov 30, 2010 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile Radio Model /Type : PT8100-03 Listed Models : / Applicant : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA Manufacturer : KIRISUN ELECTRONICS(SHENZHEN) CO., LTD. Address : 6/F., BLDG. H-2, EAST INDUSTRIAL ZONE OF OVERSEAS CHINESE TOWN NANSHAN DIST. SHENZHEN P.R. CHINA The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 11 Report No.: WE10100016 FCC ID: Q5EPT810003 Contents 1. MEASUREMENT UNCERTAINTY ................................................. 4 2. METHOD OF MEASUREMENT .................................................... 4 2.1. EME measurements made on trunk mounted antennas 4 2.1.1. External vehicle EME measurement ..............................................................................4 2.1.2. Internal vehicle EME measurement ...............................................................................4 2.2. EME measurements made on center roof mounted antennas 4 2.2.1. External vehicle EME measurement ..............................................................................4 2.2.2. Internal vehicle EME measurement ...............................................................................4 3. TEST RESULT ........................................................................ 5 4. CONCLUSION ........................................................................ 7 5. ANTENNA LOCATION DRAWING ................................................ 8 V1.0 Page 4 of 11 Report No.: WE10100016 FCC ID: Q5EPT810003 1. Measurement Uncertainty The information below presents an estimate of the possible errors that are associated with the measurement system. Description Error NARDA Survey Meter ± 3% Repeatability Accuracy ± 7% 2. Method of measurement 2.1. EME measurements made on trunk mounted antennas 2.1.1. External vehicle EME measurement (Antenna mounted in trunk center) With the survey meter and probe, take ten (10) measurements, at the standard test distance of 60 cm to the antenna, from the back of the vehicle in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a range starting at twenty (20) centimeters above ground and ending at 2.0 meters. 2.1.2. Internal vehicle EME measurement (Antenna mounted in trunk center) While rotating survey meter probe through 180 degrees to ensure that the highest level is found, scan the inside of the vehicle, both front and back seating areas, for the highest level in each location. After the highest level is found, scan vertically making two (2) additional measurements within an area approximately 40 cm wide (representing the width of a person) so as to have a total of three (3) measured points as indicated below that will be averaged . a) Head area b) Chest area c) Lower Trunk area 2.2. EME measurements made on center roof mounted antennas 2.2.1. External vehicle EME measurement With the survey meter and probe, take ten (10) measurements, at the standard test distance of 110 cm from the vehicle-mounted antenna, in a vertical line and then average the results. These measurements are taken and recorded at every twenty (20) centimeters over a range starting at twenty (20) centimeters above ground and ending at 2.0 meters; this would …

Text truncated - open the document above for the full version.

Test setup photos of the EUT
