Q5ET330PoC Radio

Charging steps Note Caution Warning 1. Insert the micro USB plug of the power adapter into the micro USB socket at the rear of the battery or that on the earphone. 2. Plug the AC plug of the power adapter into the 110~220V AC power outlet. 3. Charging starts, and the indicators on the power adapter and on the radio shine red light. 4. When charging is finished, the battery indicator light will turn green. 5. Unplug the AC plug of the power adapter. 1. To fully charge the battery, ensure the ambient temperature is 5 ° C to 40 ° C. 2. Before charging, turn off the radio. 3. Do not disassemble the battery housing. 4. For smooth charging, do not reconnect the power supply or load or remove the battery during charging. 5. If the operation time of the battery is still short after normal charging, please replace the battery. 6. Do not use the battery under a temperature of 60 ° C. 1. Please use the supplied battery, so as to ensure normal operation of the radio. 2. Please use the supplied power adapter so as to ensure normal charging and battery life. 1. To avoid explosion, do not place the battery in fire or strike it with strong force. 2. To prevent the battery electrodes from being short circuited, wipe the battery surface often with a dry towel, and avoid putting the battery (or the radio) in a pocket or purse with a metallic object, for example, a key. Belt clip Product Dimension Package dimension N.W. G.W. 1 2 3 4 1 2 3 4 5 6 7 8 9 10 112X61X34 mm 250X166X59 mm ≤ 280 g 495 g 1. Installing the battery To install the battery, aim the battery pack at the battery slot of the radio, and then push it forward. When a "click" is heard, the battery is locked. 2. Removing the battery To remove the battery, turn off the radio, press the battery latch at the bottom of the radio, and draw out the battery backward. 3. Installing the antenna To install the antenna, insert the threaded end of the antenna into the threaded hole on the radio and rotate it clockwise until it is tightened. 4. Removing the antenna To remove the antenna, rotate the antenna counterclockwise until it is out. 5. Installing the belt clip To install the belt clip, align the two attached screws with the screw holes at the back of the radio, and screw them clockwise. 6. Removing the belt clip To remove the belt clip, unscrew counterclockwise the two screws at the back of the radio. 7. Installing/removing external earphone/microphone Take out the cover of the earphone/microphone jack and plug an earphone or a microphone. 8. Installing the strap Pass the radio cord through the hole on the back housing of the radio. 1. Powering on/off Power on: Rotate the Power/Volume key clockwise. The radio will beep, and the LCD and green indicator light will be on. Power off: Rotate the Power/Volume counterclockwise. 2. Adjusting the volume Rotate the Power/Volume key clockwise to increase the volume, or counterclockwise to decrease it. 3. Selecting a group Method 1: In standby state, click the 【Menu key】, select 【Group Selection】, press the 【Up/Down key】 to select a group, and press the 【Menu key】. To exit, hold down the 【Menu key】. Method 2: In standby state, press the 【side key 1】, and select a group. Unless with written consent by our company, it is prohibited to copy, transfer, distribute or store any content in this document in any form. Under the principle of continuous improvement, our company reserves the right to modify, improve and withdraw any information in this document without prior notification. The content in this document is provided as is. Unless otherwise stipulated by law, there is no explicit or implied guarantee of any type for the accuracy, reliability or content of the document, including but not limited to marketability and applicability to specific use. Our company reserves the right of final interpretation of this document. Red light on: Transmission or charging is under progress. Green light: Signals are being received. RSSI Indicate signal strength. Indicate remaining battery capacity. Indicate the keyboard is locked. Enable always-on backlight. Enable mute mode. Remaining ba- ttery capacity Keyboard lock Backlight on Mute No. Problem Solution Power-on failed Reason: Battery performance dropped. Solution: Replace the battery. Insufficient standby time Charging exception Network connection failed Reason 1: Low battery. Solution: Charge or replace the battery. Reason 2: SIM card failed. Solution: Check or replace SIM card. Reason 3: Battery in poor contact. Solution: Reinstall the battery or clean its contacts. Reason 1: Poor contact. Solution: Change for another socket or plug. Reason 2: Low battery voltage resulting in no charging display. Solution: Charge for about half an hour, and then reconnect the micro USB plug. Reason 3: Battery failed. Solution: Replace the battery. Reason 4: Charger failed. Solution: Replace or repair the charger. T330 PoC Radio Quick Guide Please read carefully the Safety Information before using the product. Appearance LED indicator Icons Basic Operation Basic OperationTroubleshooting Statement of Rights Antenna Indicator light Power/volume knob Earphone/microphone jack LCD PTT key Up key Down key Menu key Speaker Side key 1 Side key 2 Microphone Attachments Dimension/Weight Installing/Uninstalling AccessoriesCharging the battery No.Name Radio Battery Antenna USB cable Power adapter Quick Guide Safety Information Strap Desktop charger (optional) The battery is not charged when delivered, so it has not reached its normal capacity. Therefore, please charge the battery before starting using it. After long-term storage (more than 2 months), the battery should be charged as well before use. After charging/discharging for two or three times, the battery capacity will reach the optimal state. If the battery is still low after several times of correct charging, please replace it with a new one. VersionV1.0 4. Selecting a member Method 1: In standby state, click the 【Menu key】, select Member Selection…

Text truncated - open the document above for the full version.

2020-09-25 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Q5ET330 Product Name: PoC Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Jessica Wang Signature Printed Title: Product Manager On behalf of : Kirisun Communication Co.,Ltd. Telephone: 0755-86096055

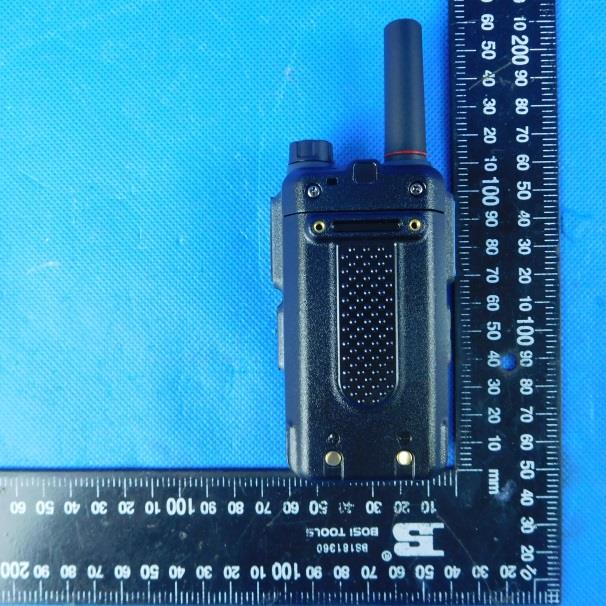

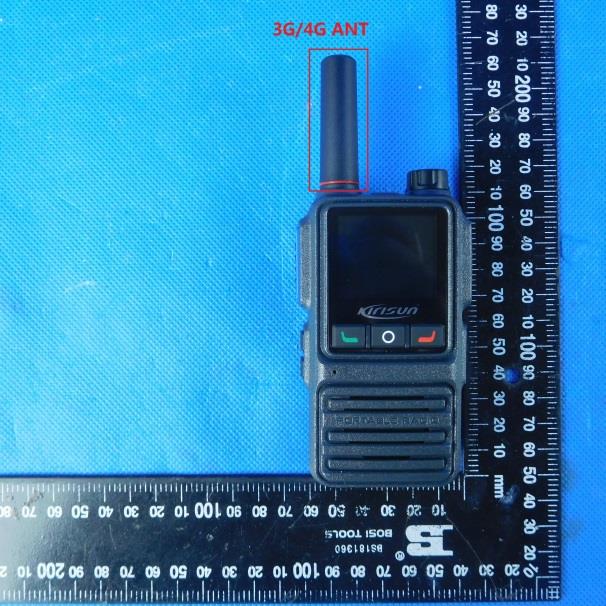

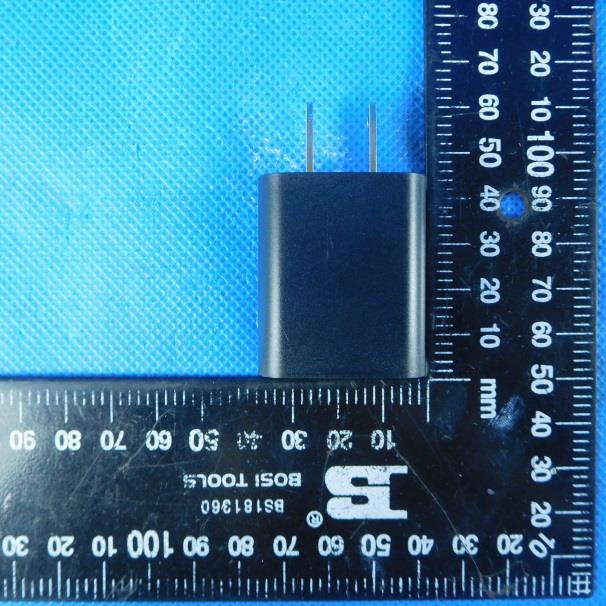

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT E X T E R N A L P H O T O S O F EUT M odel:T330

Label & Location

INTE RNAL PHOTOS OF EUT Model:T330

Page: 1 of 55 TEST REPORT Report No. ...................................... : CHTEW20090045 Report verificaiton: Project No. ...................................... : SHT2008039602EW FCC ID ............................................. : Q5ET330 Applicant’s name ........................... : Kirisun Communication Co.,Ltd. Address ............................................. : 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Test item description .................... : PoC Radio Trade Mark ....................................... : KIRISUN Model/Type reference ....................... : T330 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: Aug.25, 2020 Date of testing..............................: Aug.26, 2020- Sep.08, 2020 Date of issue...............................: Sep.09, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Fanghui Zhu Supervised by ( position+printedname+signature) ... : Test Engineer: Patrick Qiu Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20090045 Page: 2 of 55 Issued: 2020-09-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. RF Specification Description 5 3.4. Testing Laboratory Information 6 3.5. Environmental conditions 6 4. Equipments Used during the Test 7 5. Measurement Uncertainty 8 6. SAR Measurements System Configuration 9 6.1. SAR Measurement Set-up 9 6.2. DASY5 E-field Probe System 10 6.3. Phantoms 11 6.4. Device Holder 11 7. SAR Test Procedure 12 7.1. Scanning Procedure 12 7.2. Data Storage and Evaluation 14 8. Position of the wireless device in relation to the phantom 16 8.1. Front-of-face 16 8.2. Body Position 16 9. Dielectric Property Measurements & System Check 17 9.1. Tissue Dielectric Parameters 17 9.2. System Check 18 10. SAR Exposure Limits 24 11. Conducted Power Measurement Results 25 11.1. WCDMA 25 11.2. LTE 28 12. Maximum Tune-up Limit 41 13. Measured and Reported SAR Results 47 13.1. Head SAR 48 13.2. Body SAR 50 14. TestSetup Photos 54 15. External and Internal Photos of the EUT 55 Report No.: CHTEW20090045 Page: 3 of 55 Issued: 2020-09-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions PCF Head(Dist.= 25mm) 0.403 Body-worn(Dist.= 10mm) 0.743 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW20090045 Page: 4 of 55 Issued: 2020-09-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D05 SAR for LTE Devices v02r05: SAR Evaluation Considerations for LTE Devices TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2020-09-09 Original Report No.: CHTEW20090045 Page: 5 of 55 Issued: 2020-09-09 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 3. Summary 3.1. Client Information Applicant: Kirisun Communication Co.,Ltd. Address: 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Manufacturer: Kirisun Communication Co.,Ltd. Address: 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen …

Text truncated - open the document above for the full version.

Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 292 of 357 Band5-5MHz-QPSK-20525-1RB#0-1000~26000MHz Band5-5MHz-QPSK-20625-1RB#0-30~1000MHz Band5-5MHz-QPSK-20625-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 293 of 357 Band5-5MHz-16QAM-20425-1RB#0-30~1000MHz Band5-5MHz-16QAM-20425-1RB#0-1000~26000MHz Band5-5MHz-16QAM-20525-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 294 of 357 Band5-5MHz-16QAM-20525-1RB#0-1000~26000MHz Band5-5MHz-16QAM-20625-1RB#0-30~1000MHz Band5-5MHz-16QAM-20625-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 295 of 357 Band5-10MHz-QPSK-20450-1RB#0-30~1000MHz Band5-10MHz-QPSK-20450-1RB#0-1000~26000MHz Band5-10MHz-QPSK-20525-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 296 of 357 Band5-10MHz-QPSK-20525-1RB#0-1000~26000MHz Band5-10MHz-QPSK-20600-1RB#0-30~1000MHz Band5-10MHz-QPSK-20600-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 297 of 357 Band5-10MHz-16QAM-20450-1RB#0-30~1000MHz Band5-10MHz-16QAM-20450-1RB#0-1000~26000MHz Band5-10MHz-16QAM-20525-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 298 of 357 Band5-10MHz-16QAM-20525-1RB#0-1000~26000MHz Band5-10MHz-16QAM-20600-1RB#0-30~1000MHz Band5-10MHz-16QAM-20600-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 299 of 357 Band12-1.4MHz-QPSK-23017-1RB#0-30~1000MHz Band12-1.4MHz-QPSK-23017-1RB#0-1000~26000MHz Band12-1.4MHz-QPSK-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 300 of 357 Band12-1.4MHz-QPSK-23095-1RB#0-1000~26000MHz Band12-1.4MHz-QPSK-23173-1RB#0-30~1000MHz Band12-1.4MHz-QPSK-23173-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 301 of 357 Band12-1.4MHz-16QAM-23017-1RB#0-30~1000MHz Band12-1.4MHz-16QAM-23017-1RB#0-1000~26000MHz Band12-1.4MHz-16QAM-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 302 of 357 Band12-1.4MHz-16QAM-23095-1RB#0-1000~26000MHz Band12-1.4MHz-16QAM-23173-1RB#0-30~1000MHz Band12-1.4MHz-16QAM-23173-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 303 of 357 Band12-3MHz-QPSK-23025-1RB#0-30~1000MHz Band12-3MHz-QPSK-23025-1RB#0-1000~26000MHz Band12-3MHz-QPSK-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 304 of 357 Band12-3MHz-QPSK-23095-1RB#0-1000~26000MHz Band12-3MHz-QPSK-23165-1RB#0-30~1000MHz Band12-3MHz-QPSK-23165-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 305 of 357 Band12-3MHz-16QAM-23025-1RB#0-30~1000MHz Band12-3MHz-16QAM-23025-1RB#0-1000~26000MHz Band12-3MHz-16QAM-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 306 of 357 Band12-3MHz-16QAM-23095-1RB#0-1000~26000MHz Band12-3MHz-16QAM-23165-1RB#0-30~1000MHz Band12-3MHz-16QAM-23165-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 307 of 357 Band12-5MHz-QPSK-23035-1RB#0-30~1000MHz Band12-5MHz-QPSK-23035-1RB#0-1000~26000MHz Band12-5MHz-QPSK-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 308 of 357 Band12-5MHz-QPSK-23095-1RB#0-1000~26000MHz Band12-5MHz-QPSK-23155-1RB#0-30~1000MHz Band12-5MHz-QPSK-23155-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 309 of 357 Band12-5MHz-16QAM-23035-1RB#0-30~1000MHz Band12-5MHz-16QAM-23035-1RB#0-1000~26000MHz Band12-5MHz-16QAM-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 310 of 357 Band12-5MHz-16QAM-23095-1RB#0-1000~26000MHz Band12-5MHz-16QAM-23155-1RB#0-30~1000MHz Band12-5MHz-16QAM-23155-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 311 of 357 Band12-10MHz-QPSK-23060-1RB#0-30~1000MHz Band12-10MHz-QPSK-23060-1RB#0-1000~26000MHz Band12-10MHz-QPSK-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 312 of 357 Band12-10MHz-QPSK-23095-1RB#0-1000~26000MHz Band12-10MHz-QPSK-23130-1RB#0-30~1000MHz Band12-10MHz-QPSK-23130-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 313 of 357 Band12-10MHz-16QAM-23060-1RB#0-30~1000MHz Band12-10MHz-16QAM-23060-1RB#0-1000~26000MHz Band12-10MHz-16QAM-23095-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei Intern…

Text truncated - open the document above for the full version.

Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 319 of 357 Band13-10MHz-QPSK-23230-1RB#0-30~1000MHz Band13-10MHz-QPSK-23230-1RB#0-1000~26000MHz Band13-10MHz-16QAM-23230-1RB#0-30~1000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 320 of 357 Band13-10MHz-16QAM-23230-1RB#0-1000~26000MHz Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 321 of 357 8.6 Appendix F: Frequency Stability Test Result Voltage Band Bandwidt h Modulatio n Channe l RB Configure Voltag e [Vdc] Tempe rature (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict Band2 1.4MHz QPSK 18607 6RB#0 VL NT -10.11 -0.005463 ±2.5 PASS Band2 1.4MHz QPSK 18607 6RB#0 VN NT -9.66 -0.005220 ±2.5 PASS Band2 1.4MHz QPSK 18607 6RB#0 VH NT -7.11 -0.003842 ±2.5 PASS Band2 1.4MHz QPSK 18900 6RB#0 VL NT -9.73 -0.005176 ±2.5 PASS Band2 1.4MHz QPSK 18900 6RB#0 VN NT -9.97 -0.005303 ±2.5 PASS Band2 1.4MHz QPSK 18900 6RB#0 VH NT -10.94 -0.005819 ±2.5 PASS Band2 1.4MHz QPSK 19193 6RB#0 VL NT 7.34 0.003844 ±2.5 PASS Band2 1.4MHz QPSK 19193 6RB#0 VN NT 5.61 0.002938 ±2.5 PASS Band2 1.4MHz QPSK 19193 6RB#0 VH NT -7.61 -0.003986 ±2.5 PASS Band2 1.4MHz 16QAM 18607 6RB#0 VL NT -10.27 -0.005549 ±2.5 PASS Band2 1.4MHz 16QAM 18607 6RB#0 VN NT -7.84 -0.004236 ±2.5 PASS Band2 1.4MHz 16QAM 18607 6RB#0 VH NT -8.57 -0.004631 ±2.5 PASS Band2 1.4MHz 16QAM 18900 6RB#0 VL NT -11.63 -0.006186 ±2.5 PASS Band2 1.4MHz 16QAM 18900 6RB#0 VN NT -9.76 -0.005191 ±2.5 PASS Band2 1.4MHz 16QAM 18900 6RB#0 VH NT -9.31 -0.004952 ±2.5 PASS Band2 1.4MHz 16QAM 19193 6RB#0 VL NT -7.00 -0.003666 ±2.5 PASS Band2 1.4MHz 16QAM 19193 6RB#0 VN NT -6.82 -0.003572 ±2.5 PASS Band2 1.4MHz 16QAM 19193 6RB#0 VH NT -7.57 -0.003965 ±2.5 PASS Band2 3MHz QPSK 18615 15RB#0 VL NT -7.32 -0.003954 ±2.5 PASS Band2 3MHz QPSK 18615 15RB#0 VN NT -8.33 -0.004499 ±2.5 PASS Band2 3MHz QPSK 18615 15RB#0 VH NT -9.51 -0.005136 ±2.5 PASS Band2 3MHz QPSK 18900 15RB#0 VL NT -9.43 -0.005016 ±2.5 PASS Band2 3MHz QPSK 18900 15RB#0 VN NT -9.30 -0.004947 ±2.5 PASS Band2 3MHz QPSK 18900 15RB#0 VH NT -10.14 -0.005394 ±2.5 PASS Band2 3MHz QPSK 19185 15RB#0 VL NT -6.81 -0.003568 ±2.5 PASS Band2 3MHz QPSK 19185 15RB#0 VN NT 6.94 0.003636 ±2.5 PASS Band2 3MHz QPSK 19185 15RB#0 VH NT -5.24 -0.002746 ±2.5 PASS Band2 3MHz 16QAM 18615 15RB#0 VL NT -5.78 -0.003122 ±2.5 PASS Band2 3MHz 16QAM 18615 15RB#0 VN NT -8.30 -0.004483 ±2.5 PASS Band2 3MHz 16QAM 18615 15RB#0 VH NT -7.17 -0.003873 ±2.5 PASS Band2 3MHz 16QAM 18900 15RB#0 VL NT -9.63 -0.005122 ±2.5 PASS Band2 3MHz 16QAM 18900 15RB#0 VN NT -7.68 -0.004085 ±2.5 PASS Band2 3MHz 16QAM 18900 15RB#0 VH NT -11.20 -0.005957 ±2.5 PASS Band2 3MHz 16QAM 19185 15RB#0 VL NT -7.07 -0.003704 ±2.5 PASS Band2 3MHz 16QAM 19185 15RB#0 VN NT 6.48 0.003395 ±2.5 PASS Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 322 of 357 Band2 3MHz 16QAM 19185 15RB#0 VH NT -5.78 -0.003029 ±2.5 PASS Band2 5MHz QPSK 18625 25RB#0 VL NT -8.04 -0.004340 ±2.5 PASS Band2 5MHz QPSK 18625 25RB#0 VN NT -8.67 -0.004680 ±2.5 PASS Band2 5MHz QPSK 18625 25RB#0 VH NT -7.38 -0.003984 ±2.5 PASS Band2 5MHz QPSK 18900 25RB#0 VL NT -12.46 -0.006628 ±2.5 PASS Band2 5MHz QPSK 18900 25RB#0 VN NT -9.31 -0.004952 ±2.5 PASS Band2 5MHz QPSK 18900 25RB#0 VH NT -9.13 -0.004856 ±2.5 PASS Band2 5MHz QPSK 19175 25RB#0 VL NT -7.24 -0.003796 ±2.5 PASS Band2 5MHz QPSK 19175 25RB#0 VN NT -6.14 -0.003219 ±2.5 PASS Band2 5MHz QPSK 19175 25RB#0 VH NT 6.79 0.003560 ±2.5 PASS Band2 5MHz 16QAM 18625 25RB#0 VL NT -9.37 -0.005058 ±2.5 PASS Band2 5MHz 16QAM 18625 25RB#0 VN NT 5.62 0.003034 ±2.5 PASS Band2 5MHz 16QAM 18625 25RB#0 VH NT -7.93 -0.004281 ±2.5 PASS Band2 5MHz 16QAM 18900 25RB#0 VL NT -9.51 -0.005059 ±2.5 PASS Band2 5MHz 16QAM 18900 25RB#0 VN NT -8.57 -0.004559 ±2.5 PASS Band2 5MHz 16QAM 18900 25RB#0 VH NT -10.89 -0.005793 ±2.5 PASS Band2 5MHz 16QAM 19175 25RB#0 VL NT 5.79 0.003035 ±2.5 PASS Band2 5MHz 16QAM 19175 25RB#0 VN NT -7.68 -0.004026 ±2.5 PASS Band2 5MHz 16QAM 19175 25RB#0 VH NT 6.19 0.003245 ±2.5 PASS Band2 10MHz QPSK 18650 50RB#0 VL NT -7.71 -0.004156 ±2.5 PASS Band2 10MHz QPSK 18650 50RB#0 VN NT -8.10 -0.004367 ±2.5 PASS Band2 10MHz QPSK 18650 50RB#0 VH NT -11.76 -0.006340 ±2.5 PASS Band2 10MHz QPSK 18900 50RB#0 VL NT -9.77 -0.005197 ±2.5 PASS Band2 10MHz QPSK 18900 50RB#0 VN NT -10.03 -0.005335 ±2.5 PASS Band2 10MHz QPSK 18900 50RB#0 VH NT -10.54 -0.005606 ±2.5 PASS Band2 10MHz QPSK 19150 50RB#0 VL NT -6.37 -0.003344 ±2.5 PASS Band2 10MHz QPSK 19150 50RB#0 VN NT 6.67 0.003501 ±2.5 PASS Band2 10MHz QPSK 19150 50RB#0 VH NT 8.07 0.004236 ±2.5 PASS Band2 10MHz 16QAM 18650 50RB#0 VL NT -7.35 -0.003962 ±2.5 PASS Band2 10MHz 16QAM 18650 50RB#0 VN NT -12.09 -0.006518 ±2.5 PASS Band2 10MHz 16QAM 18650 50RB#0 VH NT -10.33 -0.005569 ±2.5 PASS Band2 10MHz 16QAM 18900 50RB#0 VL NT -7.10 -0.003777 ±2.5 PASS Band2 10MHz 16QAM 18900 50RB#0 VN NT -8.43 -0.004484 ±2.5 PASS Band2 10MHz 16QAM 18900 50RB#0 VH NT -9.24 -0.004915 ±2.5 PASS Band2 10MHz 16QAM 19150 50RB#0 VL NT -5.94 -0.003118 ±2.5 PASS Band2 10MHz 16QAM 19150 50RB#0 VN NT -6.90 -0.003622 ±2.5 PASS Band2 10MHz 16QAM 19150 50RB#0 VH NT 7.10 0.003727 ±2.5 PASS Band2 15MHz QPSK 18675 75RB#0 VL NT -9.31 -0.005012 ±2.5 PASS Band2 15MHz QPSK 18675 75RB#0 VN NT -8.63 -0.004646 ±2.5 PASS Band2 15MHz QPSK 18675 75RB#0 VH NT -9.96 -0.005362 ±2.5 PASS Band2 15MHz QPSK 18900 75RB#0 VL NT -9.24 -0.004915 ±2.5 PASS Band2 15MHz QPSK 18900 75RB#0 VN NT -11.01 -0.005856 ±2.5 PASS Band2 15MHz QPSK 18900 75RB#0 VH NT -8.10 -0.004309 ±2.5 PASS Project No.: SHT2008039601EW Radio Specification: LTE Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 323 of 357 Band2 15MHz QPSK 19125 75RB#0 VL NT -9.26 -0.004867 ±2.5 PASS Band2 15MHz QPSK 19125 75RB#0 VN NT -1…

Text truncated - open the document above for the full version.

6.TEST SETUP PHOTOS OF THE EUT M odel:T330
