T450 PoC Radio Quick Guide Appearance No.Name Radio Battery Antenna USB cable Power adapter Quick Guide Safety Information Strap Desktop charger (optional) Charging the Battery Attachments Method 1: Charging through Micro USB Cable 1. Connect the power adapter to an AC power socket as required. 2. Power off the radio. Connect one end of the micro USB cable to the power adapter, and the other end to the USB port on the radio. Red indicator light is on. Method 2: Desktop charger 1. Plug the power adapter into a qualified AC power socket. 2. Connect the USB cable of the power adapter to the USB port at the back of the desktop charger. Green indicator light is on. 3. Insert the battery only or together with the radio into the desktop charger. 4. Make sure the battery contacts the charging points properly and red indicator light is on. 5. When the indicator light turns from red to green, charging is finished. Installing the Battery Installing a SIM Card 1. Remove the battery and find the SIM card holder in the upper part of the battery holder. Push the cover of the SIM card holder rightwards and then open the cover. 2. Insert a Nano-SIM card into the guide slot of the cover, and make sure the card is in position. 3. Press the cover of the SIM card holder back onto the holder, and push the cover leftwards to lock it. Note: Please use a standard Nano-SIM card. Indicator State Device State Red light on Green light on Blue light on Red light flashing fast - SIM card not installed or installed improperly. (Voice prompt “No SIM card”.) - Failed to unlock PIN code of SIM card. - In individual/group/all call - Downloading/playing back voice record. In individual-call standby state. Network registration failed due to inactivated or overdue SIM card. Green light flashing slow Blue light flashing fast Network registration succeeded. Enter standby state. - Registering to a network. - Device not configured on the server. (Voice prompt “Not configured”.) - Device expired. In power-off state. Programmable keys No. Function Description Alarm on/off Remaining battery capacity announcement User announcement Group announcement Playback Bluetooth on/off Wi-Fi on/off Individual Call All Call Send/quit an emergency alarm. Announce remaining battery capacity. Announce the user name of the radio. Announce the current group in which the radio is in. Play back the latest 99 voice records. Enable/disable Bluetooth function. Enable/disable Wi-Fi function. Make a quick individual call. Broadcast To suit you operation habits, programmable keys 1 and 2 are provided. You may enable various functions on these keys using the CPS. The functions are listed as below. Icons Icon Description 2G/3G/4G received signal strength 2G/3G/4G transmission Wi-Fi signal strength Searching GPS signal GPS signal acquired In group call In individual call In all call Remaining battery capacity Short message 2G,3G,4G Bluetooth enabled Connected to Bluetooth device In emergency alarm Alarm message Basic Operation 1. Powering On/Off To power on the radio, rotate the ɋPower/volume knobɌ clockwise until you hear a tick. Wait a while. The screen backlight and yellow indicator light is on, and the message “Starting” is displayed on the screen. To power off the radio, rotate the ɋPower/volume knobɌ counterclockwise until you hear a tick. 2. Adjusting the Volume Rotate the ɋPower/volume knobɌ clockwise to increase the volume, or counterclockwise to decrease it. 3. Individual Call - In the standby status, press the ɋOK Ɍkey, select ɋContactsɌ, and choose a contact. - Press the ɋOK Ɍkey, select ɋInitiate Individual CallɌYou will hear a voice prompt “Enter individual-call mode”. 4. Group Call ŚInitiating Group Call Under individual/group/broadcast call mode, you can call the members of a group by pressing the ɋPTTɌkey. If there is no member online, you will hear a voice prompt “No member online”, and transmission will be terminated. Note: A group is set through the network management system. śSwitching Groups Method 1: After the radio registers successfully and enters standby state, rotate theɋGroup knobɌto select a group. Method 2: In the standby interface, press the ɋMenuɌkey to enter the Menu interface, press navigation keys to selectɋGroup ListɌand then a group, and then press theɋOKɌkey. Troubleshooting Stun Kill Channel knob LED Navigation keys Back key Display Key Speaker Earphone jack USB port Charging contact Strap hole Power/ volume knob Playback key Menu/ok key Microphone PTT key Programmable key 1 Programmable key 2 Belt clip Antenna Please read carefully the Safety Information before using the product. This document is only for reference, and actual product prevails. Kirisun reserves the right to the final interpretation of this document. Method 1 Method 2 LED Indicator 5. All Call After programming an all-call key through the CPS, you may enter all-call mode by pressing the key, and then initiate an all call by pressing the ɋPTTɌ key. An all-call should be answered within 3 seconds,otherwise it will be qiutted. An all-call can interrupte an individual call or a group call. 6. Broadcast Call After programming a broadcast-call key through the CPS, you may enter broadcast-call mode by pressing the key, and then initiate a broadcast call by pressing the ɋPTTɌ key. An broadcast-call should be answered within 3 seconds, otherwise it will be qiutted.An broadcast-call can interrupte an individual call or a group call. 7. Receiving a Call By switching to a group set through the NMS, the radio can receive an individual call, a group call or an all call from the group and output voice. 8. Late Entry This function enables the radio to join an undergoing group call after a delay. 9. Priority Call Different call priority can be set on the radio. A radio with a higher call priority initiates a call prior to a radio with a lower call priority. Note: The default call time of all types of calls is 60 seconds, which is modifiable through the NMS. A call is ter…
Text truncated - open the document above for the full version.
2020-08-10 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Kirisun Communication Co.,Ltd./ 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Agency agreement expiration date: Aug. 09, 2021 By: Jessica Wang Signature Printed Title: Product Manager On behalf of : Kirisun Communication Co.,Ltd. Telephone: 0755-86096055
2020-08-10 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Q5ET450 Product Name: PoC Radio Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagram Operation description BOM Tune up SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: Jessica Wang Signature Printed Title: Product Manager On behalf of : Kirisun Communication Co.,Ltd. Telephone: 0755-86096055
Kirisun Communication Co.,Ltd. 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Tel.: +86-755-86106477 Dear Madam or Sir, We would like to confirm the models T450 and iTALK-340 are same in all respects, the same function, frequency range, modulation method, channel spacing, RF output power, circuit board and external structure. The only difference is the model name. Sincerely Yours, Signature: Jessica Wang 2020-7-7

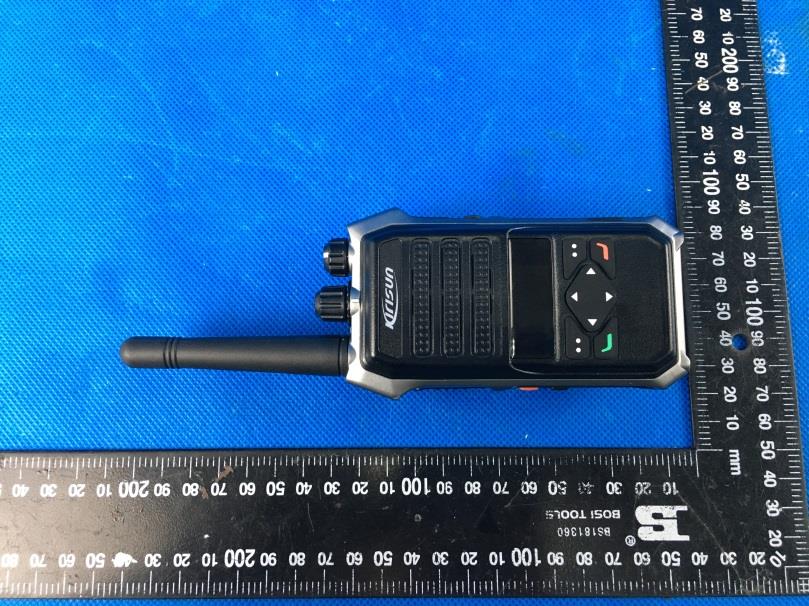

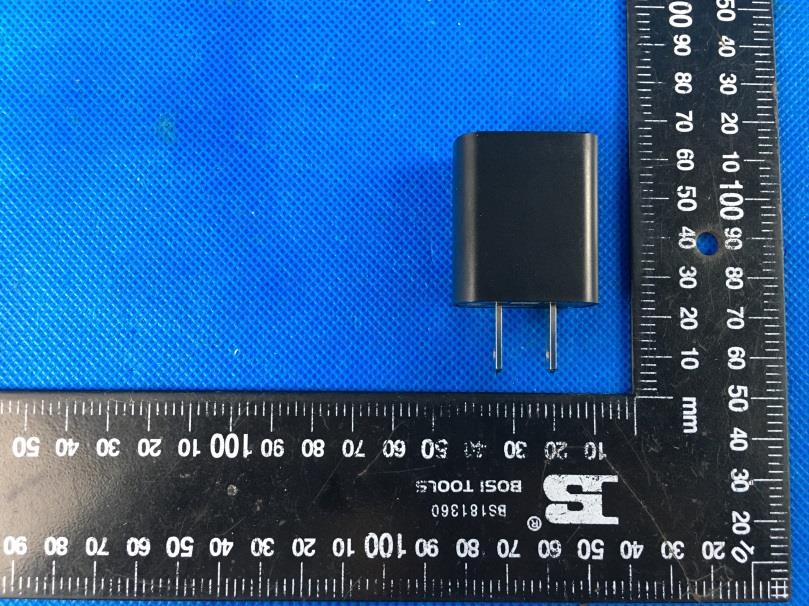

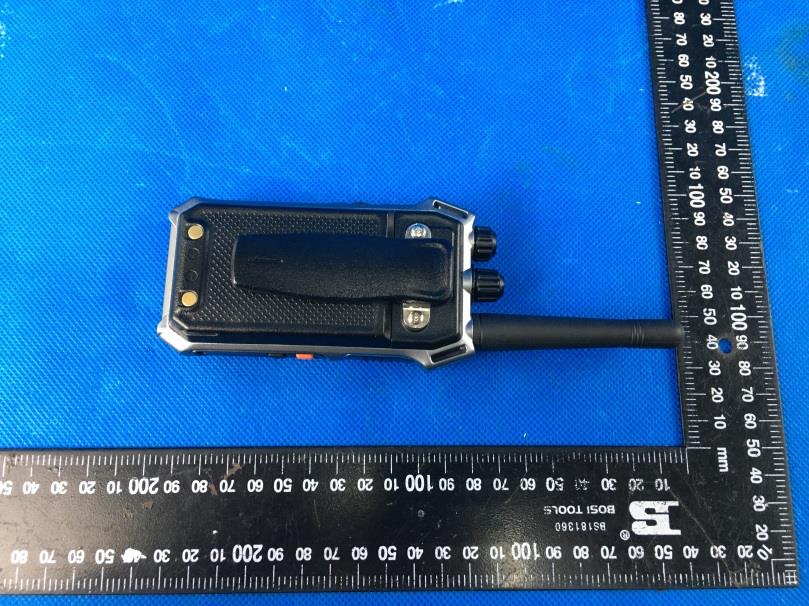

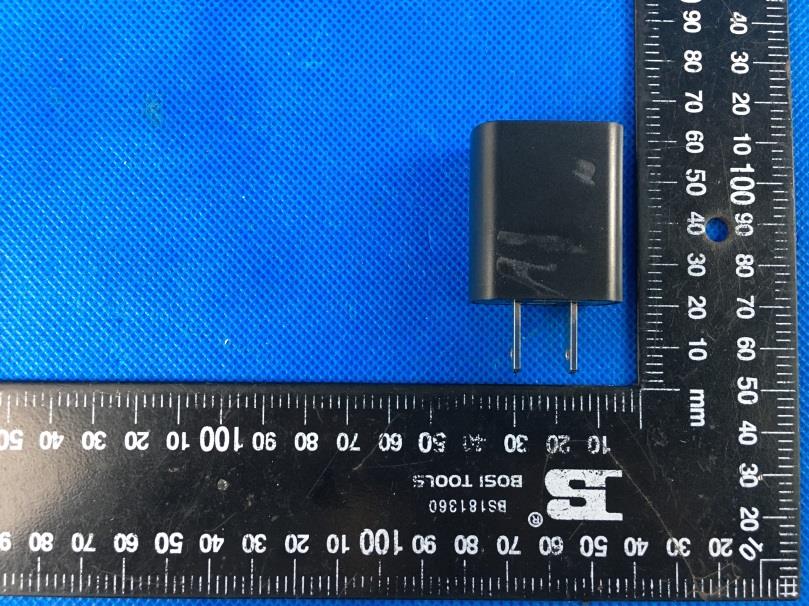

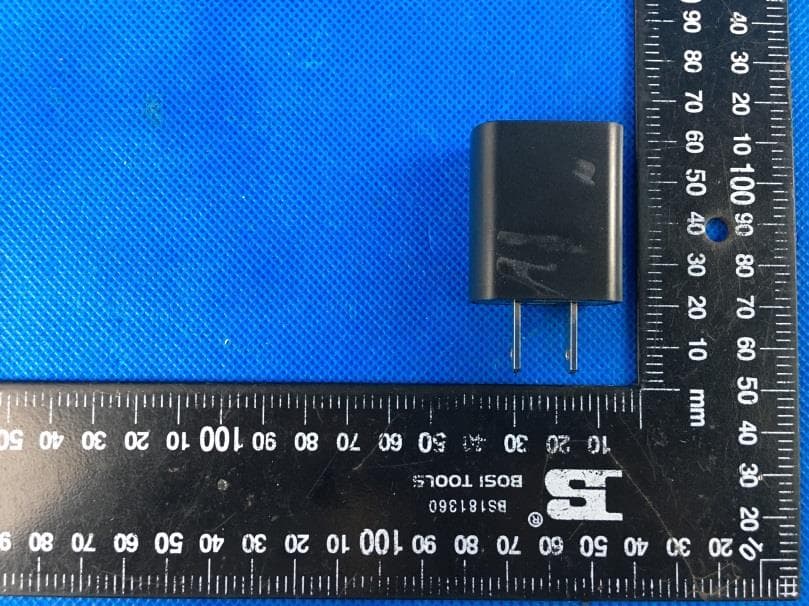

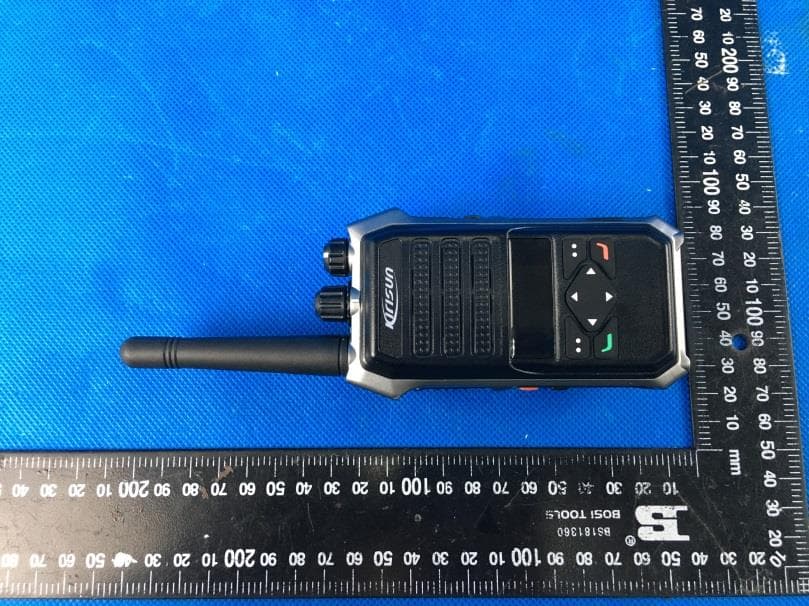

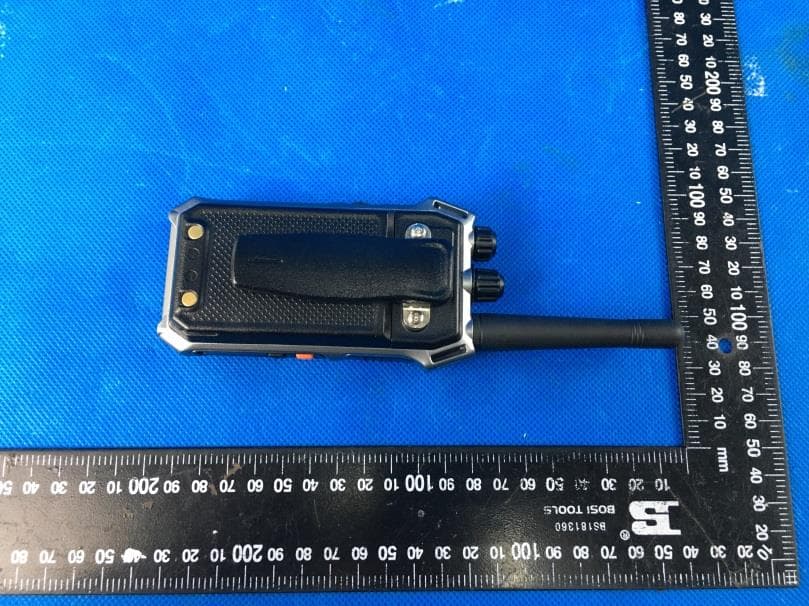

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT External photos of the EUT Model:T450
Label & Location
Internal photos of the EUT M odel:T450
Page: 1 of 85 TEST REPORT Report No. ...................................... : CHTEW20080025 Report verificaiton: Project No. ...................................... : SHT2006146103EW FCC ID ............................................. : Q5ET450 Applicant’s name ........................... : Kirisun Communication Co.,Ltd. Address ............................................. : 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan District, Shenzhen 518057, P.R.China Test item description .................... : PoC Radio Trade Mark ....................................... : KIRISUN,iTALK Model/Type reference ....................... : T450 Listed Model(s) ................................. : iTALK-340 Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: Jul.09, 2020 Date of testing..............................: Jul.10, 2020- Aug.03, 2020 Date of issue...............................: Aug.04, 2020 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Fanghui Zhu Supervised by ( position+printedname+signature) ... : Test Engineer: Xiaodong Zhao Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW20080025 Page: 2 of 85 Issued: 2020-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. RF Specification Description 5 3.4. Testing Laboratory Information 7 3.5. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurements System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Front-of-face 17 8.2. Body Position 17 9. Dielectric Property Measurements & System Check 18 9.1. Tissue Dielectric Parameters 18 9.2. System Check 20 10. SAR Exposure Limits 30 11. Conducted Power Measurement Results 31 11.1. GSM 31 11.2. WCDMA 32 11.3. LTE 35 11.4. Wi-Fi 50 11.5. Bluetooth 51 12. Maximum Tune-up Limit 52 13. Measured and Reported SAR Results 61 13.1. Head SAR 63 13.2. Body SAR 67 14. Simultaneous Transmission analysis 74 14.1. Head 75 14.2. Body-worn 78 15. TestSetup Photos 84 16. External and Internal Photos of the EUT 85 Report No.: CHTEW20080025 Page: 3 of 85 Issued: 2020-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions PCF DTS NII Simultaneous TX Head(Dist.= 25mm) 0.211 0.029 0.075 0.286 Body-worn(Dist.= 10mm) 0.701 0.084 0.104 0.805 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW20080025 Page: 4 of 85 Issued: 2020-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D05 SAR for LTE Devices v02r05: SAR Evaluation Considerations for LTE Devices TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2020-08-04 Original Report No.: CHTEW20080025 Page: 5 of 85 Issued: 2020-08-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V02 (2020-06) 3. Summary 3.1. Client Information Applicant: Kirisun Communication Co.,Ltd. Address: 3rd Floor, Building A, Tongfang Information Habour, No.11 Langshan Road, Nanshan Di…
Text truncated - open the document above for the full version.
Date: 7/21/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM850 Front-of-face Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 848.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.952 S/m; ε r = 42.669; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.8°C;Liquid Temperature:22.6°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 848.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 251/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.269 W/kg Front/CH 251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.91 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.285 W/kg SAR(1 g) = 0.202 W/kg; SAR(10 g) = 0.149 W/kg Maximum value of SAR (measured) = 0.253 W/kg 0 dB = 0.253 W/kg = -5.97 dBW/kg Appendix A: SAR Test Data Plots Plot No.1 Date: 7/23/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM1900 Front-of-face Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1909.8 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 1910 MHz; σ = 1.464 S/m; ε r = 40.463; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1909.8 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 810/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.179 W/kg Front/CH 810/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.09 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.207 W/kg SAR(1 g) = 0.127 W/kg; SAR(10 g) = 0.082 W/kg Maximum value of SAR (measured) = 0.177 W/kg 0 dB = 0.177 W/kg = -7.52 dBW/kg Appendix A: SAR Test Data Plots Plot No.2 Date: 7/23/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band II Front-of-face Communication System: UID 0, Generic UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.461 S/m; ε r = 40.468; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.7°C;Liquid Temperature:22.5°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1907.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 9538/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.233 W/kg Front/CH 9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.91 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.265 W/kg SAR(1 g) = 0.163 W/kg; SAR(10 g) = 0.104 W/kg Maximum value of SAR (measured) = 0.226 W/kg 0 dB = 0.226 W/kg = -6.46 dBW/kg Appendix A: SAR Test Data Plots Plot No.3 Date: 7/22/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band IV Front-of-face Communication System: UID 0, Generic UMTS (0); Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.373 S/m; ε r = 40.795; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.92, 8.92, 8.92) @ 1712.4 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 1312/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.198 W/kg Front/CH 1312/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.393 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.232 W/kg SAR(1 g) = 0.144 W/kg; SAR(10 g) = 0.093 W/kg Maximum value of SAR (measured) = 0.200 W/kg 0 dB = 0.200 W/kg = -6.99 dBW/kg Appendix A: SAR Test Data Plots Plot No.4 Date: 7/21/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band V Front-of-face Communication System: UID 0, Generic UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.951 S/m; ε r = 42.673; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 846.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 4233/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0984 W/kg Front/CH 4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.11 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.109 W/kg SAR(1 g) = 0.077 W/kg; SAR(10 g) = 0.057 W/kg Maximum value of SAR (measured) = 0.0970 W/kg 0 dB = 0.0970 W/kg = -10.13 dBW/kg Appendix A: SAR Test Data Plots Plot No.5 Date: 7/23/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab LTE Band 2 Front-of-face Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1860 M…
Text truncated - open the document above for the full version.
Date: 7/23/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band II Body-worn belt clip Communication System: UID 0, Generic UMTS (0); Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.461 S/m; ε r = 40.468; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.8°C;Liquid Temperature:22.6°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1907.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 9538/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.700 W/kg Rear/CH 9538/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.83 V/m; Power Drift = -0.17 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.480 W/kg; SAR(10 g) = 0.249 W/kg Maximum value of SAR (measured) = 0.789 W/kg 0 dB = 0.789 W/kg = -1.03 dBW/kg Appendix A: SAR Test Data Plots Plot No.18 Date: 7/22/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band IV Body-worn belt clip Communication System: UID 0, Generic UMTS (0); Frequency: 1712.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1712.4 MHz; σ = 1.373 S/m; ε r = 40.795; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.92, 8.92, 8.92) @ 1712.4 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 1312/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.501 W/kg Rear/CH 1312/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.37 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.577 W/kg SAR(1 g) = 0.342 W/kg; SAR(10 g) = 0.213 W/kg Maximum value of SAR (measured) = 0.488 W/kg 0 dB = 0.488 W/kg = -3.12 dBW/kg Appendix A: SAR Test Data Plots Plot No.19 Date: 7/21/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band V Body-worn belt clip Communication System: UID 0, Generic UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.951 S/m; ε r = 42.673; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 846.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Rear/CH 4233/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.479 W/kg Rear/CH 4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.92 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.538 W/kg SAR(1 g) = 0.349 W/kg; SAR(10 g) = 0.236 W/kg Maximum value of SAR (measured) = 0.466 W/kg 0 dB = 0.466 W/kg = -3.32 dBW/kg Appendix A: SAR Test Data Plots Plot No.20 Date: 7/23/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab LTE Band 2 Body-worn Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1860 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1860 MHz; σ = 1.459 S/m; ε r = 40.529; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.4°C;Liquid Temperature:22.2°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1860 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 18700/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.303 W/kg Front/CH 18700/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.63 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.349 W/kg SAR(1 g) = 0.210 W/kg; SAR(10 g) = 0.129 W/kg Maximum value of SAR (measured) = 0.297 W/kg 0 dB = 0.297 W/kg = -5.27 dBW/kg Appendix A: SAR Test Data Plots Plot No.21 Date: 7/22/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab LTE Band 4 Body-worn Communication System: UID 0, Generic LTE-FDD (0); Frequency: 1745 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1745 MHz; σ = 1.392 S/m; ε r = 40.742; ρ = 1000 kg/m 3 Phantom section: Flat Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.92, 8.92, 8.92) @ 1745 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Front/CH 20300/Area Scan (61x141x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.406 W/kg Front/CH 20300/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.82 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.540 W/kg SAR(1 g) = 0.325 W/kg; SAR(10 g) = 0.198 W/kg Maximum value of SAR (measured) = 0.457 W/kg 0 dB = 0.457 W/kg = -3.40 dBW/kg Appendix A: SAR Test Data Plots Plot No.22 Date: 7/21/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab LTE Band 5 Body-worn Communication System: UID 0, Generic LTE-FDD (0); Frequency: 829 MHz;Duty Cycle: 1:1 Medium parameters used (interp…
Text truncated - open the document above for the full version.
Appendix B: DAE and Probe Calibration Certificate 1 of 12 1.1. DAE4 Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 2 of 12 Appendix B: DAE and Probe Calibration Certificate 3 of 12 Appendix B: DAE and Probe Calibration Certificate 4 of 12 1.2. Probe Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 5 of 12 Appendix B: DAE and Probe Calibration Certificate 6 of 12 Appendix B: DAE and Probe Calibration Certificate 7 of 12 Appendix B: DAE and Probe Calibration Certificate 8 of 12 Appendix B: DAE and Probe Calibration Certificate 9 of 12 Appendix B: DAE and Probe Calibration Certificate 10 of 12 Appendix B: DAE and Probe Calibration Certificate 11 of 12 Appendix B: DAE and Probe Calibration Certificate 12 of 12
Appendix C: Dipole Calibration Certificate 1 of 71 1.1. D750V3 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 2 of 71 Appendix C: Dipole Calibration Certificate 3 of 71 Appendix C: Dipole Calibration Certificate 4 of 71 Appendix C: Dipole Calibration Certificate 5 of 71 Appendix C: Dipole Calibration Certificate 6 of 71 Appendix C: Dipole Calibration Certificate 7 of 71 Appendix C: Dipole Calibration Certificate 8 of 71 Appendix C: Dipole Calibration Certificate 9 of 71 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-750 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2018/2/7 -28.1 54.1 -0.2 2019/2/3 -27.5 2.14% 53.5 0.6 -0.5 0.3 2020/1/22 -27.7 1.42% 53.2 0.9 -0.6 0.4 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration. Appendix C: Dipole Calibration Certificate 10 of 71 1.2. D835V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 11 of 71 Appendix C: Dipole Calibration Certificate 12 of 71 Appendix C: Dipole Calibration Certificate 13 of 71 Appendix C: Dipole Calibration Certificate 14 of 71 Appendix C: Dipole Calibration Certificate 15 of 71 Appendix C: Dipole Calibration Certificate 16 of 71 Appendix C: Dipole Calibration Certificate 17 of 71 Appendix C: Dipole Calibration Certificate 18 of 71 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-835 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2018/2/19 -27.8 50.8 -4.0 2019/2/3 -27.1 2.52% 49.9 0.9 -3.6 0.4 2020/1/22 -26.9 3.24% 50.2 0.6 -3.7 0.3 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration. Appendix C: Dipole Calibration Certificate 19 of 71 1.3. D1750V2 Dipole Cali…
