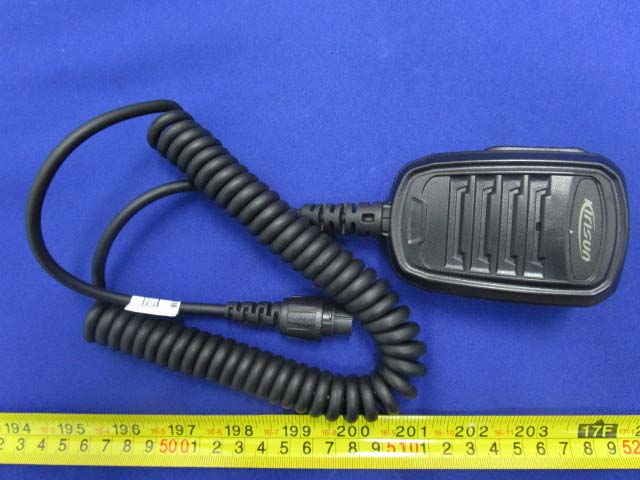

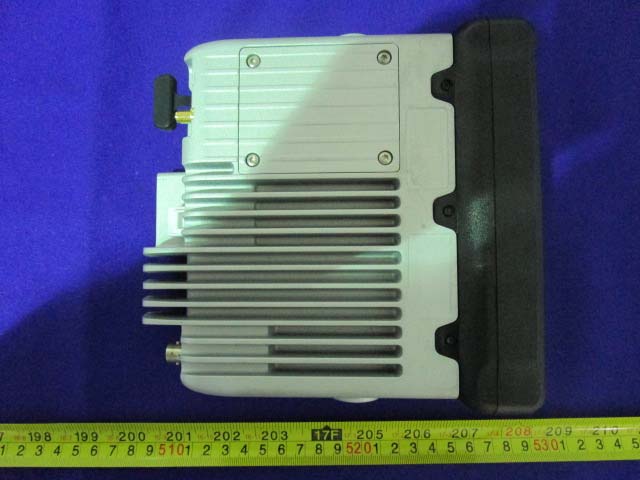

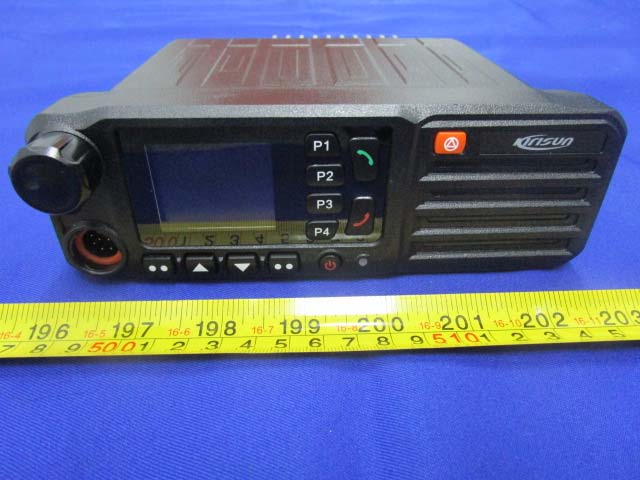

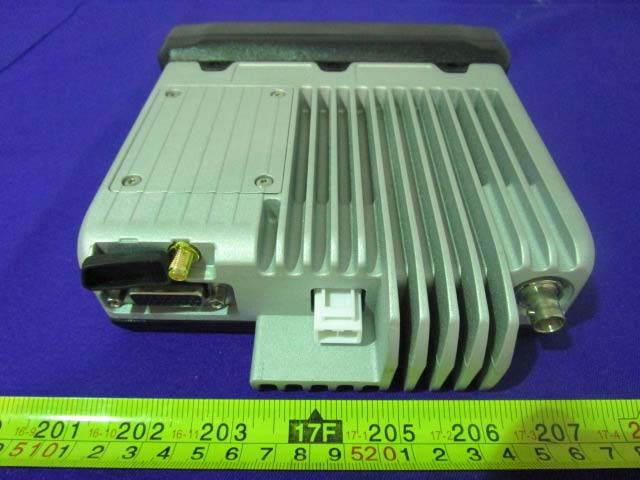

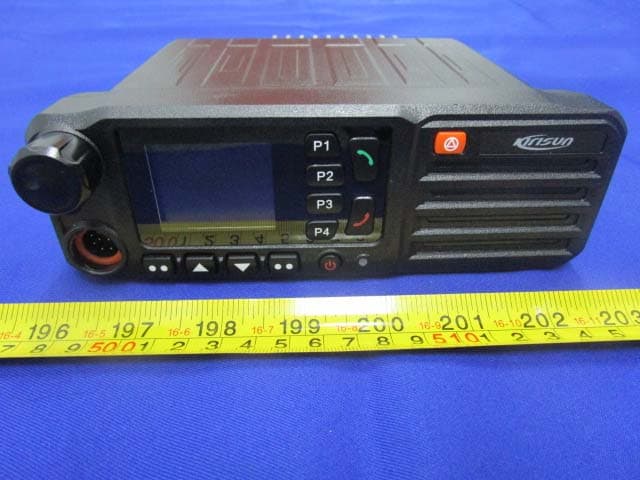

Q5ETM84001DMR Mobile Radio

TM840 DMR Mobile RadioQuick User Guide TM840 DMR Mobile RadioQuick User Guide Quick User Guide TM840 DMR Mobile Radio We are very grateful for your purchasing KIRISUN DMR Mobile Radio produced by Kirisun Communications Co., Ltd. We believe KIRISUN DMR Mobile Radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of KIRISUN DMR Mobile Radio can meet your demands for reliable communication. TM840 DMR Mobile RadioQuick User Guide 1 1 Safety Information  The government bans on operation the radio transmitter without permission in the jurisdiction scope. Illegal operation will punished with fine or arrest. This product can only be maintained by the professional technicians.  Safety: It’s very important for users to realize the generally dangerous of using the radio.  Warning: Please turn off the radio when you are refueling in the explosive atmosphere (such as gas, dust and smog, etc.) or park at the gas station. TM840 DMR Mobile Radio Quick User Guide 2 2 First Use 2.1 Unpacking and Checking Please unpack carefully and check all the items listed in the following table before discarding the packing material. If any damage or loss occurs during shipment, please contact your dealer. 2.1.1 Standard Accessories No. Material Quantity 1 Mobile 1 2 Hand Microphone 1 3 Fixed Bracket 1 4 Power Supply Line 1 5 Fuse 2 6 Microphone Hanger, with two ST4*16tapping screws 1 TM840 DMR Mobile RadioQuick User Guide 3 7 Plastic handle screw, contain matching flat washer and spring washer 2 8 ST4.8*20 Self-tapping screws 6 9 Certificate of Approval 1 10 Quick User Guide 1 TM840 DMR Mobile Radio Quick User Guide 4 TM840 DMR Mobile RadioQuick User Guide 5 2.2 Preparing Your Mobile for Use 2.2.1 Installing your Mobile 1）Using six ST4.8*20 self-tapping self-drilling screws to fasten the bracket at the suitable place inside the vehicle. 2）Using two Plastic handle screw to fasten the mobile on the bracket. 3） Connect the Power Supply Cable First, arrange the 5 meter power cable (First, find that if there is a hole on the thermal baffle can cross the power line. If there don’t have one, please drill a hole use the suitable drill bit and put on rubber hole. Then let the power line through the thermal baffle into the engine compartment), and connect the engine battery or other power supply to the open end (the power supply can’t exceed 16 Volt). Attention that the red line connect positive pole, the black line connect the negative pole. Put in the suitable protective tube (random provided, please apply the protective tube from the suppliers if you change it in the late, avoid causing other damage), put the plug insert the power interface socket at the tail of turn-table. 4）Connect the Antenna TM840 DMR Mobile Radio Quick User Guide 6 5）Connect the hand Microphones Install hand microphone Put the direction indicative plane of the hand microphone plug on the top and insert it into the microphone interface of the mobile. Then clockwise rotate the self-lock cover on the microphone plug until the self-lock cover against the card slot. At this moment, please press down a little bit and continue rotate in clockwise until it can’t be rotated. Uninstall hand microphone Anticlockwise rotate the self-lock cover on the hand microphone until you can’t be rotated, then pull the plug out. Install Microphone Hanger Clip Using two ST4*16 tapping screw to install the microphone Hanger clip at the place where it is convenient for your use (the microphone and the microphone line should install at the place doesn’t impact the safe drive), put the hand microphone hang on the microphone hanger. TM840 DMR Mobile RadioQuick User Guide 7 3 Product Overview 3.1 Control Parts Introduction TM840 DMR Mobile Radio Quick User Guide 8 No. Part Name No. Part Name 1 Volume Control Knob 11 PTT Key(Hand Microphone) 2 Microphone/Programming Cable Interface 12 Emergency Button 3 The Menu/Ok Button 13 Hook off Key 4 Up Key 14 Dial Key 5 Down Key 15 P1~P4 (Programmable Keys) 6 Return Button 16 LCD Display 7 On/Off Button 17 Antenna Connector 8 LED Indicator 18 Power Cable Connector 9 Speaker 19 GPS Antenna Connector 10 Microphone 20 26 Pin Connector TM840 DMR Mobile RadioQuick User Guide 9 3.2 Programmable Buttons For the convenience of users to operate the radio according to their own habits, the following buttons can be programmed as short cuts to radio functions by dealer. P1 to P4 can be programmed to “long press” and short press. Note： Short Press：Pressing and releasing rapidly. Long Press: Pressing and holding for the programmed duration. (This time can be set via the programming settings) No. Shortcut Keys Description 1 None No function. The error alert will be heard when the key pressed. 2 High/Low Toggles power level between high and low. 3 Monitor Press monitor key to enter to “carrier squelch” mode when the current channel is with CTC/DCS, thus the radio will unmute TM840 DMR Mobile Radio Quick User Guide 10 when receiving carrier. 4 Squelch Off To always unmute the speaker no matter whether carrier is present or not. (Analog mode). 5 Squelch Level Adjust the signal stress required for the radio to unmute. 6 Scan Toggles scan on or off. To receive signal from other channels 7 LCDBrightness Adjust the brightness level by entering to "LCD Brightness". 8 LCD Backlight Type To adjust off time of LCD backlight in this option. 9 Repeater/Talkaround Toggle between using a repeater and communicating directly with another radio. 10 Zone Selection To change the current call zone. 11 Home Screen To quickly return to the home screen. 12 Nuisance Delete To temporarily ignore unwanted channel activity. 13 Scramble/Encryption Toggles scramble/encryption on or off. 14 Contacts Provides directly access to the contact list 15 Message Selects the message menu. Only works on digital mode. TM840 DMR Mobile RadioQuick User Guide 11 16 Call log Selects the call log menu. On…
