Q5ETR850DMR Repeater

TR850, TR850G DMR Repeater Instruction Manual II Instruction Manual TR850, TR850G DMR Repeater We are very grateful for your purchasing TR850 (TR850G) produced by Kirisun Communications Co., Ltd. We believe TR850(TR850G) can bring great convenience to your life and work. TR850 (TR850G) DMR repeater which always incorporates the advanced technology and exquisite craft, we hope that the quality and function of this product could make you feel satisfied. TR850, TR850G DMR Repeater Instruction Manual III Notice to User ◆ Please read this Instruction Manual carefully before any operation to this product. When you start to use the product, we deem that you have read this manual carefully. ◆ Please save this Instruction Manual in a safe place for inference in need. ◆ In order to preserve your rights and interests, please fill in the Warranty Card seriously and actually when you purchase this product, and ask for the valid purchasing certificate. ◆ Kirisun and the authorized parties own the related intellectual property of all the product parts include accessories. Any design and materials may not be modified, copied, extracted or translated without the authorization of Kirisun or its authorized parties. ◆ Due to the update or modification of the product, Kirisun owns the right to change the specifications of software and hardware described in this manual without further notice. Specifications and information contained in this manual are for reference only. ◆ All described information in this manual are verified, if any missing or mistakes, Kirisun reserves the rights to the interpretation of this manual. TR850, TR850G DMR Repeater Instruction Manual IV Safety Information In order to use the indoor digital repeater effectively, please read the following information. ◆This product can only be maintained by the professional technicians. Do not disassemble the radio by yourself. ◆The repeater setting and mounting must be approved by the local Radio Management Departments. ◆Installing the antenna of repeater must be do well of lightning protection, otherwise life or property damage may be occurred. ◆Please use the qualified power, antenna, lightning protection device, power divider and corresponding accessories and make sure they are installed correctly, otherwise repeater damage will be occurred. TR850, TR850G DMR Repeater Instruction Manual I Contents 1 Unpacking and checking .......................................................................................... 1 1.1 Standard Accessories .............................................................................................. 1 2 Radio Overview ....................................................................................................... 3 2.1 Power On/Off Button ................................................................................................ 5 2.2 ACCY Connector ..................................................................................................... 5 2.2.1 Pin Instruction .......................................................................................................... 5 2.2.2 External Connector Instruction ................................................................................. 7 2.3 LED Indicators ......................................................................................................... 8 3 Basic Operations ..................................................................................................... 9 3.1 Powering On/Off ...................................................................................................... 9 3.2 Voice and Data Transfer .......................................................................................... 9 3.3 IP Connecting .......................................................................................................... 9 3.4 Warning ................................................................................................................. 10 3.5 Programming Software .......................................................................................... 10 3.5.1 File Menu ............................................................................................................... 10 3.5.2 Model Menu ........................................................................................................... 11 3.5.3 Edit Menu ............................................................................................................... 11 4 Program Menu ....................................................................................................... 15 5 Installation Guide (refit guide) ................................................................................ 18 6 Frequently Asked Questions (FAQ) ....................................................................... 22 7 Recommend Duplexer Parameters ........................................................................ 23 TR850, TR850G DMR Repeater Instruction Manual 1 1 Unpacking and Checking Please unpack carefully and check all the items listed in the following table before discarding the packing material. If any damage or loss occurs during shipment, please contact your dealer. 1.1 Standard Accessories Item Quantity Repeater 1 Foot pad（4 pcs） 1 Instruction Manual 1 TR850, TR850G DMR Repeater Instruction Manual 2 TR850, TR850G DMR Repeater Instruction Manual 3 2 Radio Overview TR850, TR850G DMR Repeater Instruction Manual 4 No. Part Name 1 Handles 2 Frond Panel LED Indicators 3 Power Switch 4 GPS Antenna Connector 5 ACCY Connector 6 Network Connector(IP) 7 100-240V AC Cable Connector 8 GND Screw 9 Tx Connector 10 Fan 11 Cooler 12 RX Connector 13 13.6V DC Connector TR850, TR850G DMR Repeater Instruction Manual 5 2.1 Power On/Off Button Power on/off the repeater. 2.2 ACCY Connector 2.2.1 Pin Instruction Pin Instruction PIN1 Undefined PIN2 Undefined 1 9 10 18 19 26 TR850, TR850G DMR Repeater Instruction Manual 6 PIN3 Undefined PIN4 GND P…

Text truncated - open the document above for the full version.

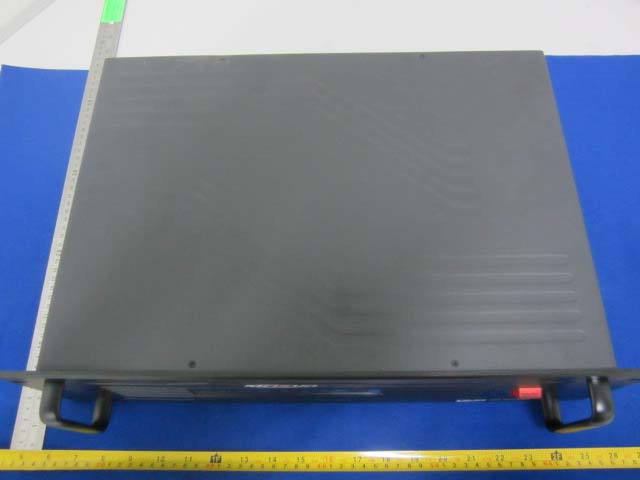

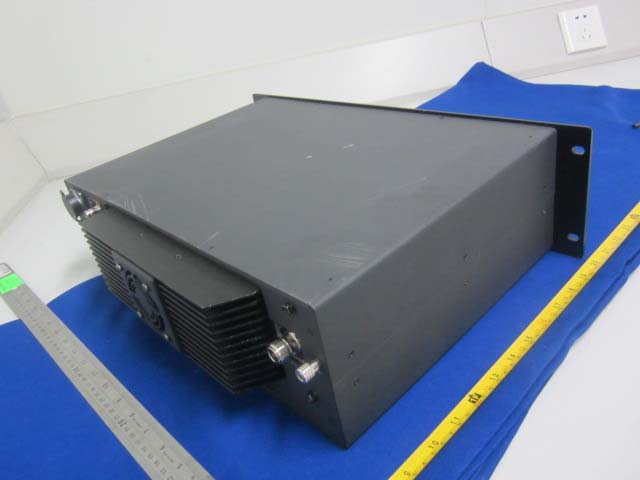

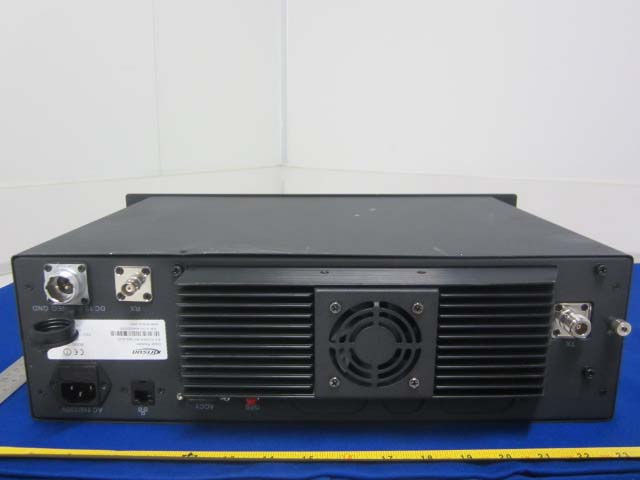

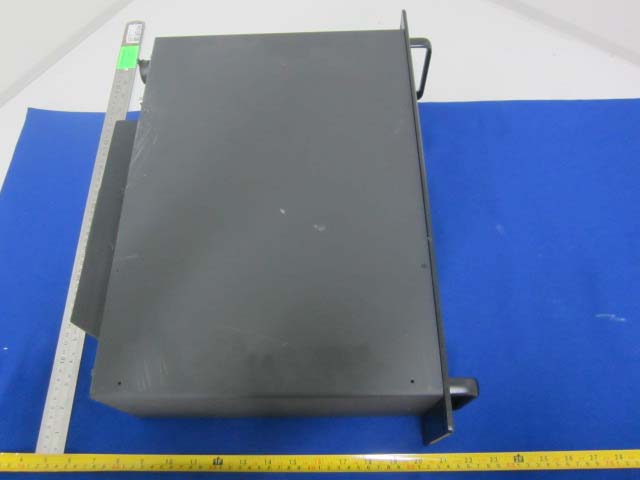

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Rear Side View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Top Cover Off View EUT – Bottom Cover Off View EUT – Main Board Top With Shielding View EUT – Main Board Top Without Shielding View EUT – Main Board Bottom With Shielding View EUT – Main Board Bottom Without Shielding View EUT – Transmit Board Top View EUT – Transmit Board Bottom View EUT – Receiver Board Top View EUT –Receiver Board Bottom View EUT – I/O Board Top View EUT – I/O Board Bottom View EUT – Power Switch Board Top View EUT – Power Switch Board Bottom View EUT – LED Board Top View EUT – LED Board Bottom View EUT – Power Filter View EUT – Switching Power Supply View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG140721007-00 FCC Part 22 and 90 Page 8 of 38 FCC §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to 1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E|, |H| or S (minutes) 0.3- 3.0 614 1.63 (100)* 6 3.0 - 30 1842/f 4.89/f (900/f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100,000 / / 5 6 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance S = PG/4πR 2 Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency Output Power Typical AntennaDistancePower DensityPower Density MHz mW dBinumeric cm mW/cm2 mW/cm2 435 43000 0 1 100 0.34 1.45 Note: the target power is 43 W. Result: The device meet FCC MPE at 100 cm distance

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and shall be marked with an asterisk “★” (Rev.2) FCC PART 22 and 90 TEST REPORT For Kirisun Communications Co., Ltd. 3-6Flrs, ROBETA Building, No. 1, QiMin Road, Song Ping Shan Area, Science & Industry Park, Nanshan District, Shenzhen 518057 P.R. China FCC ID: Q5ETR850 Report Type: Original Report Product Type: DMR Repeater Test En gineer: Leon Chen Re port Number: RDG140721007-00 Re port Date: 2014-08-15 Reviewed B y: Jerry Zhang EMC Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG140721007-00 FCC Part 22 and 90 Page 2 of 38 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 FCC §2.1046 &§ 22.727 & §90.205- RF OUTPUT POWER .................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC §2.1047 & §90.207 - MODULATION CHARACTERISTIC .......................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049& §22.357 & § 22.731 &§90.209 & §90.210 – OCCUPIED BANDWIDTH & EMISSION MASK 15 APPLICABLE STANDARD ............................................................................................................................................ 15 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §2.1051& §22.861 & §90.210 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ........................... 21 APPLICABLE STANDARD ............................................................................................................................................ 21 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 21 TEST PROCEDURE ..............................................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission View (Below 1 GHz) Radiated Emission View (Above 1 GHz)
