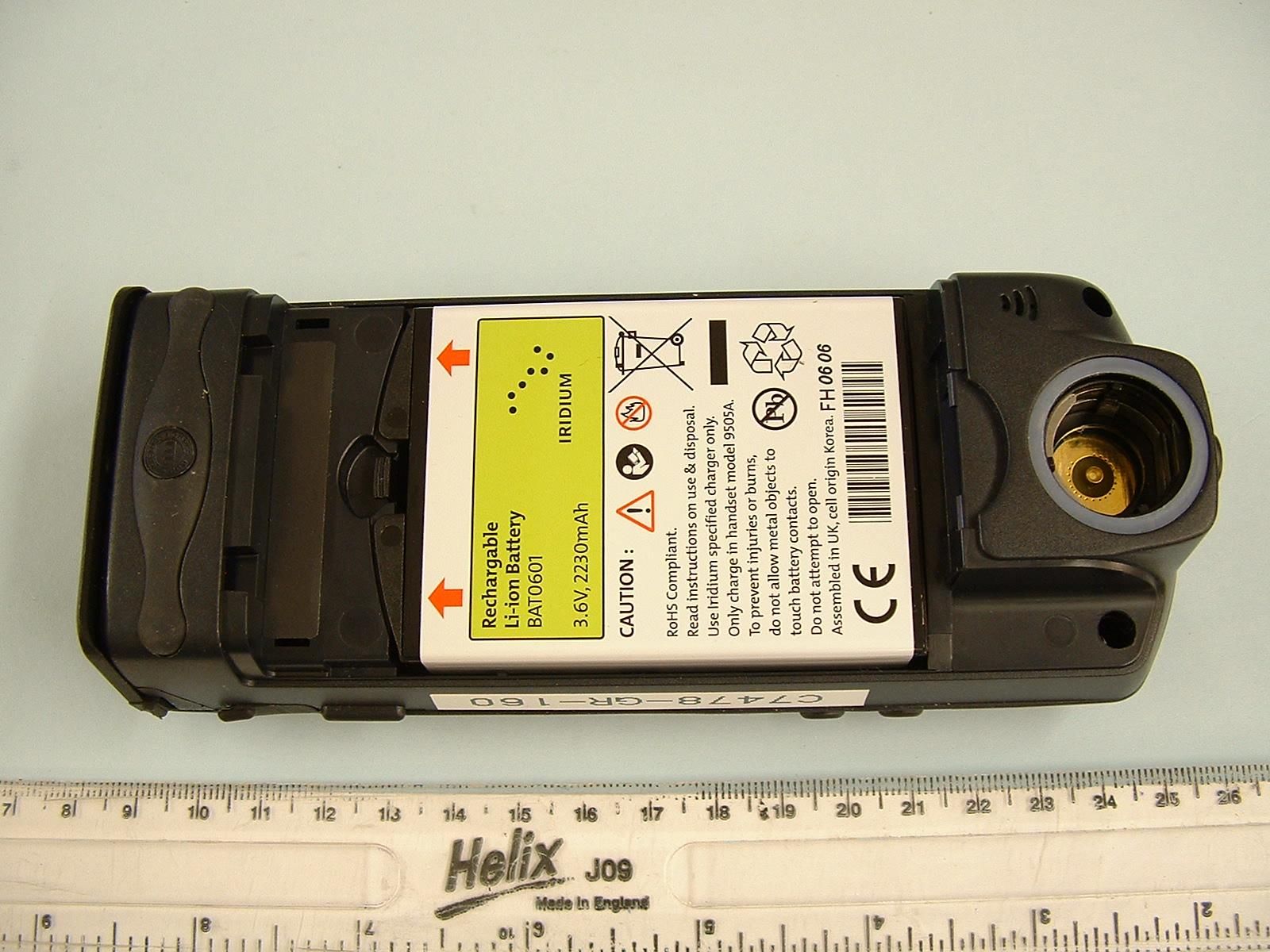

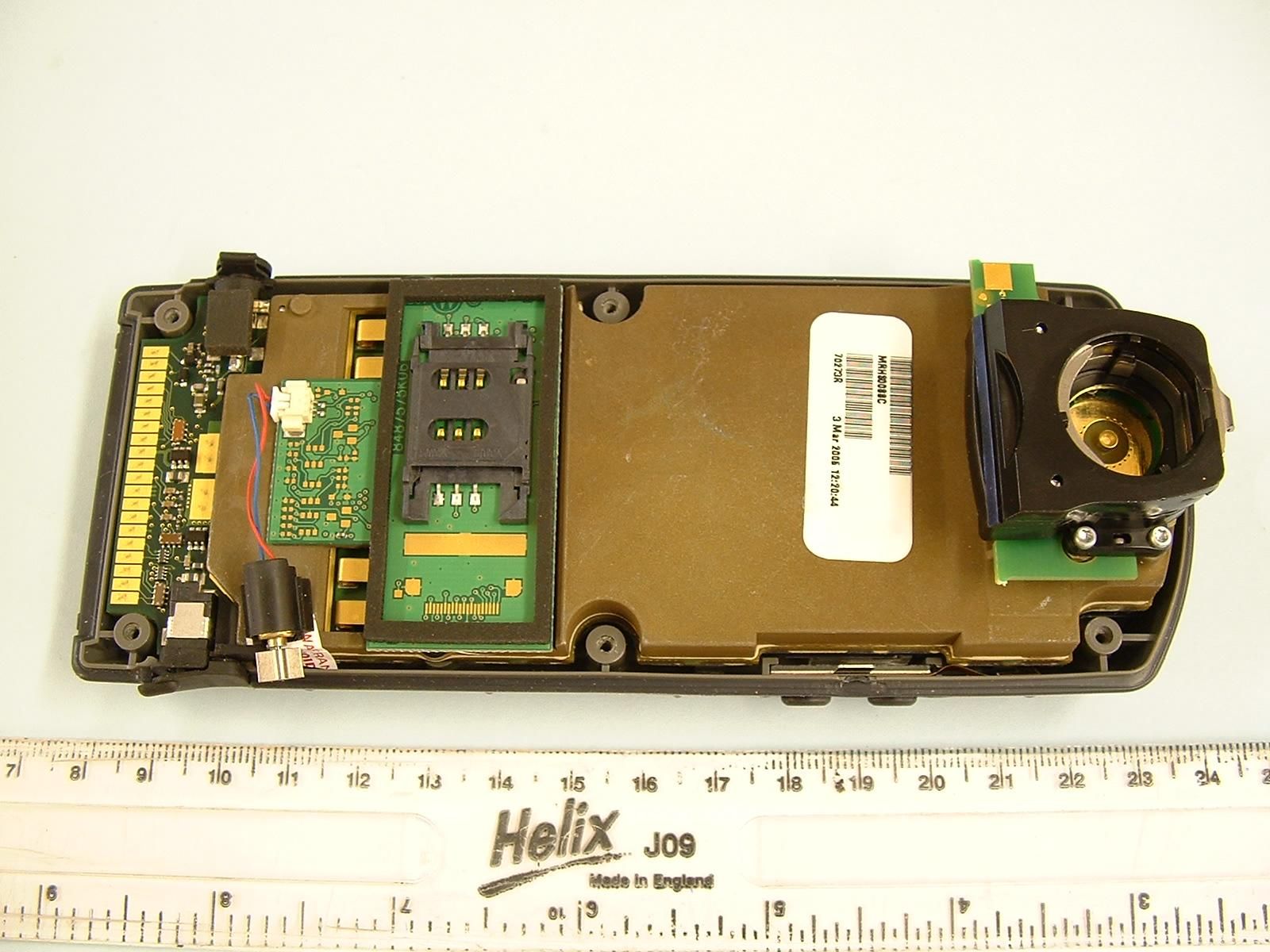

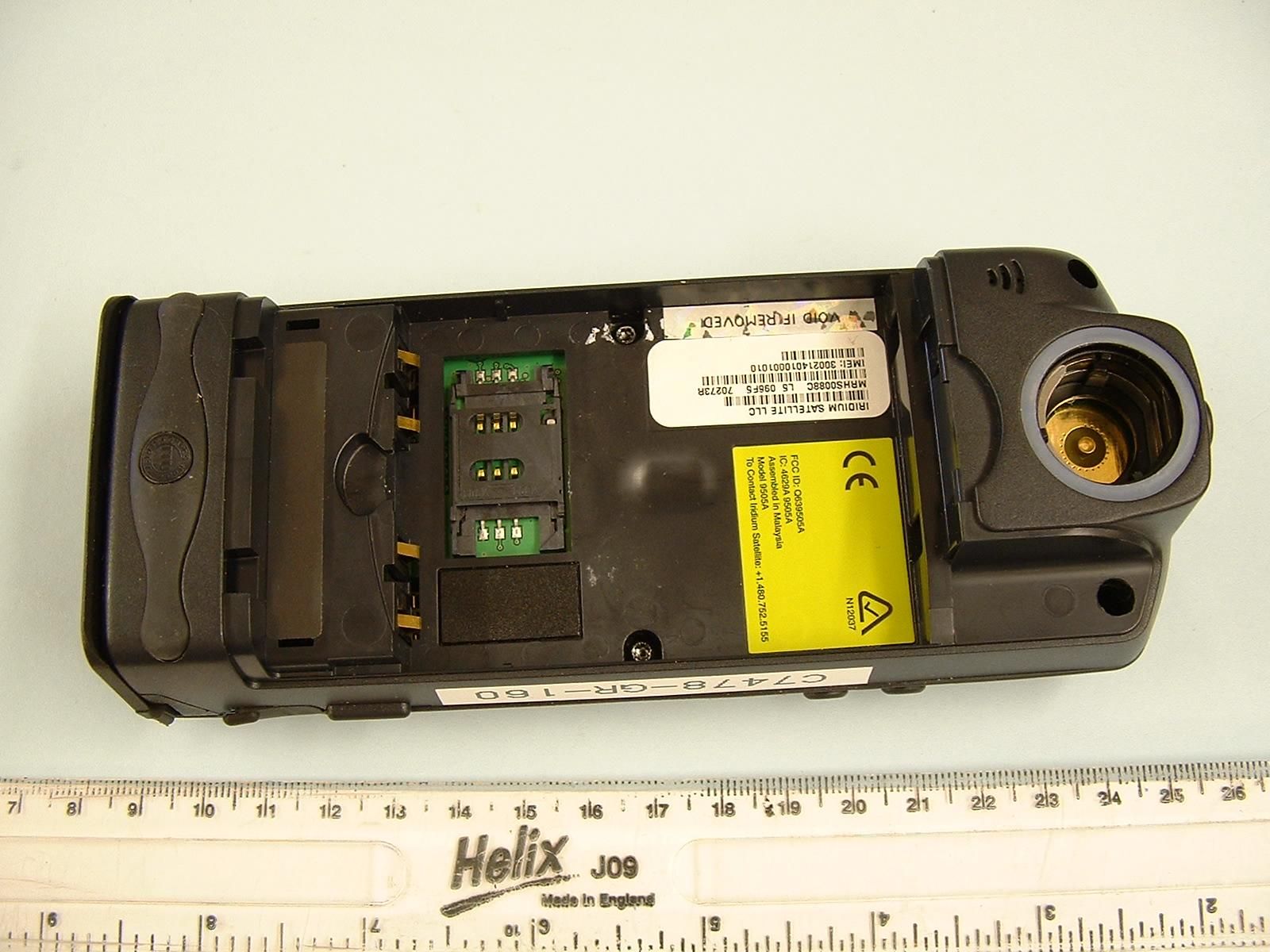

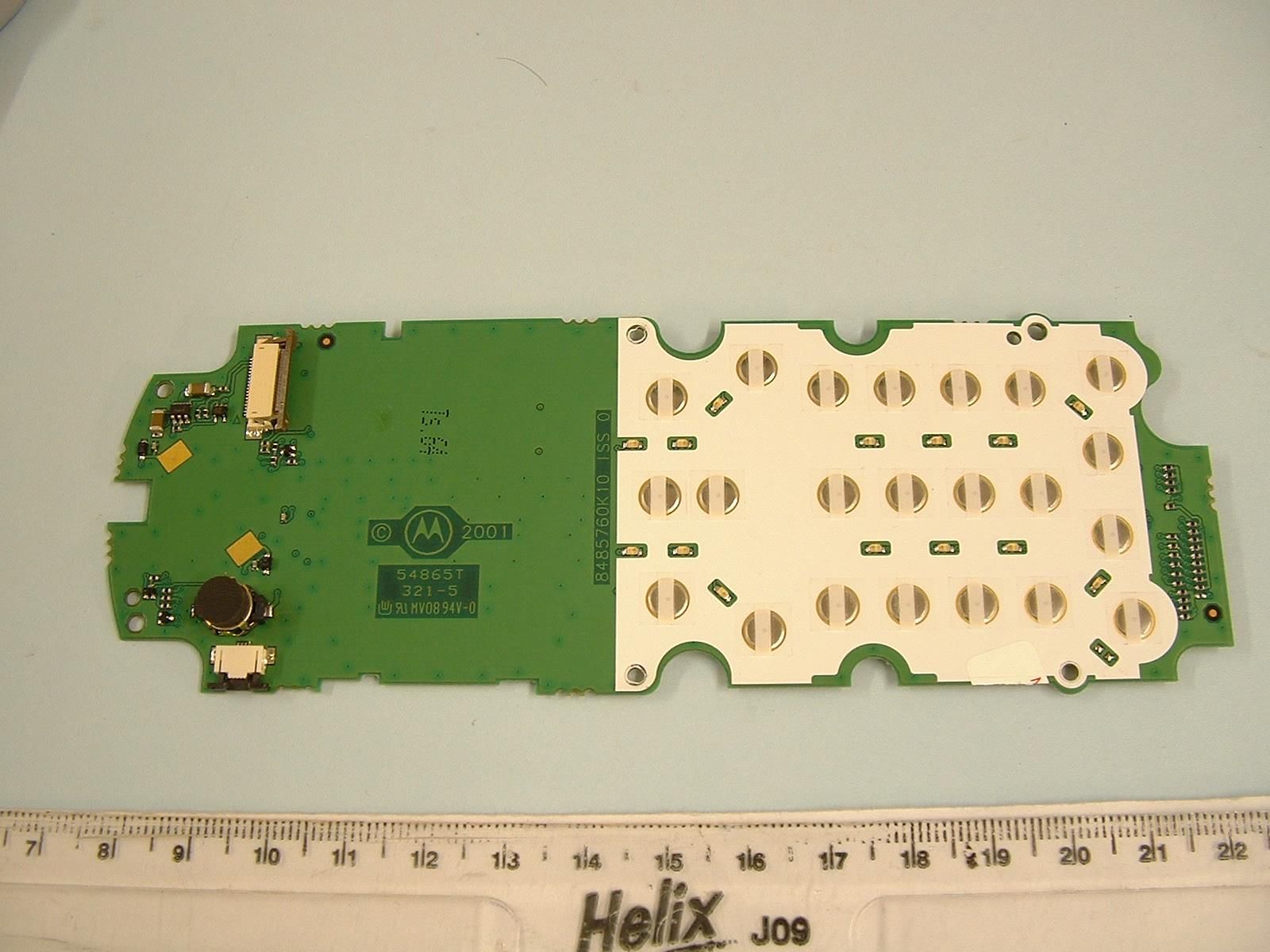

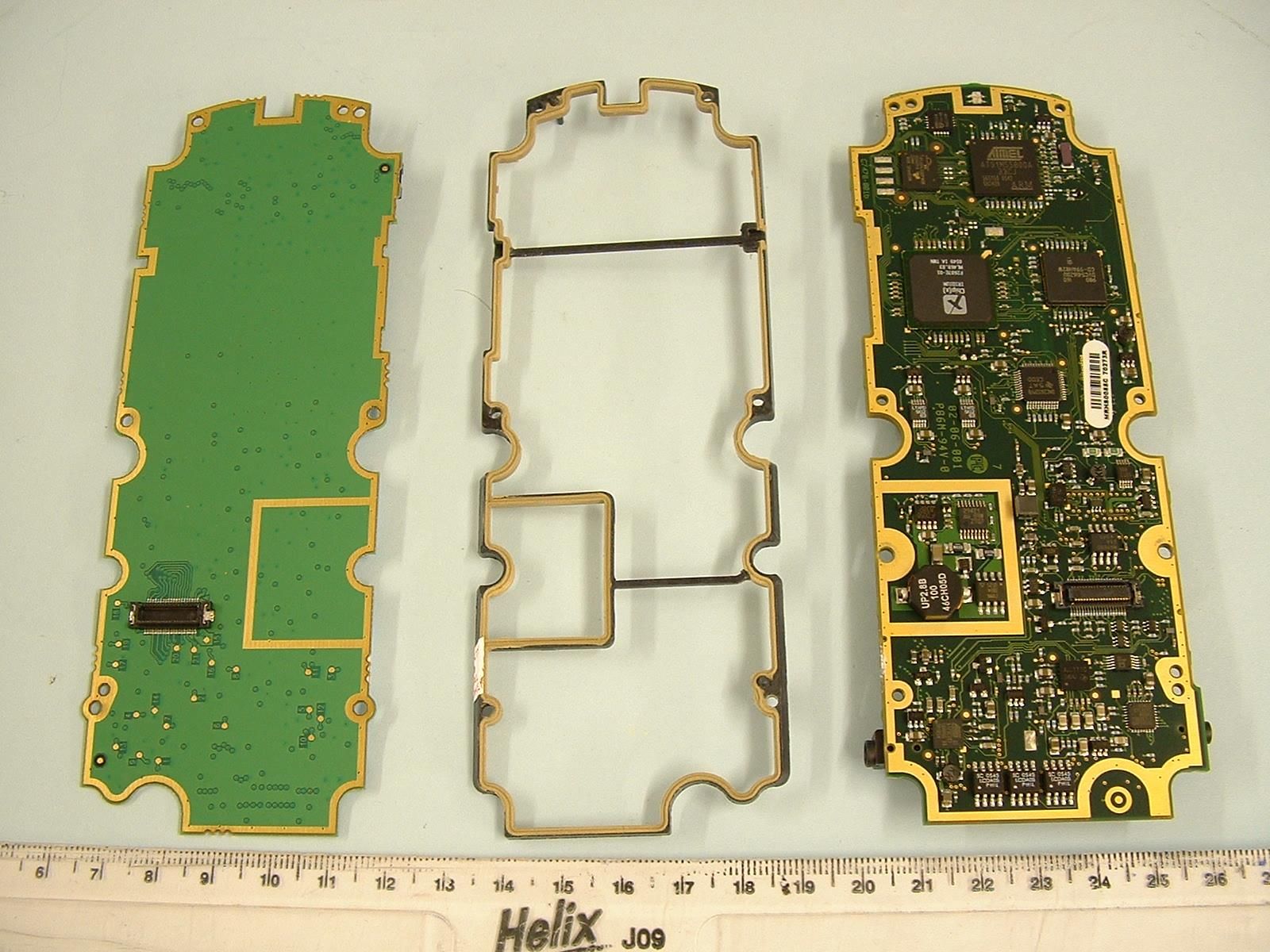

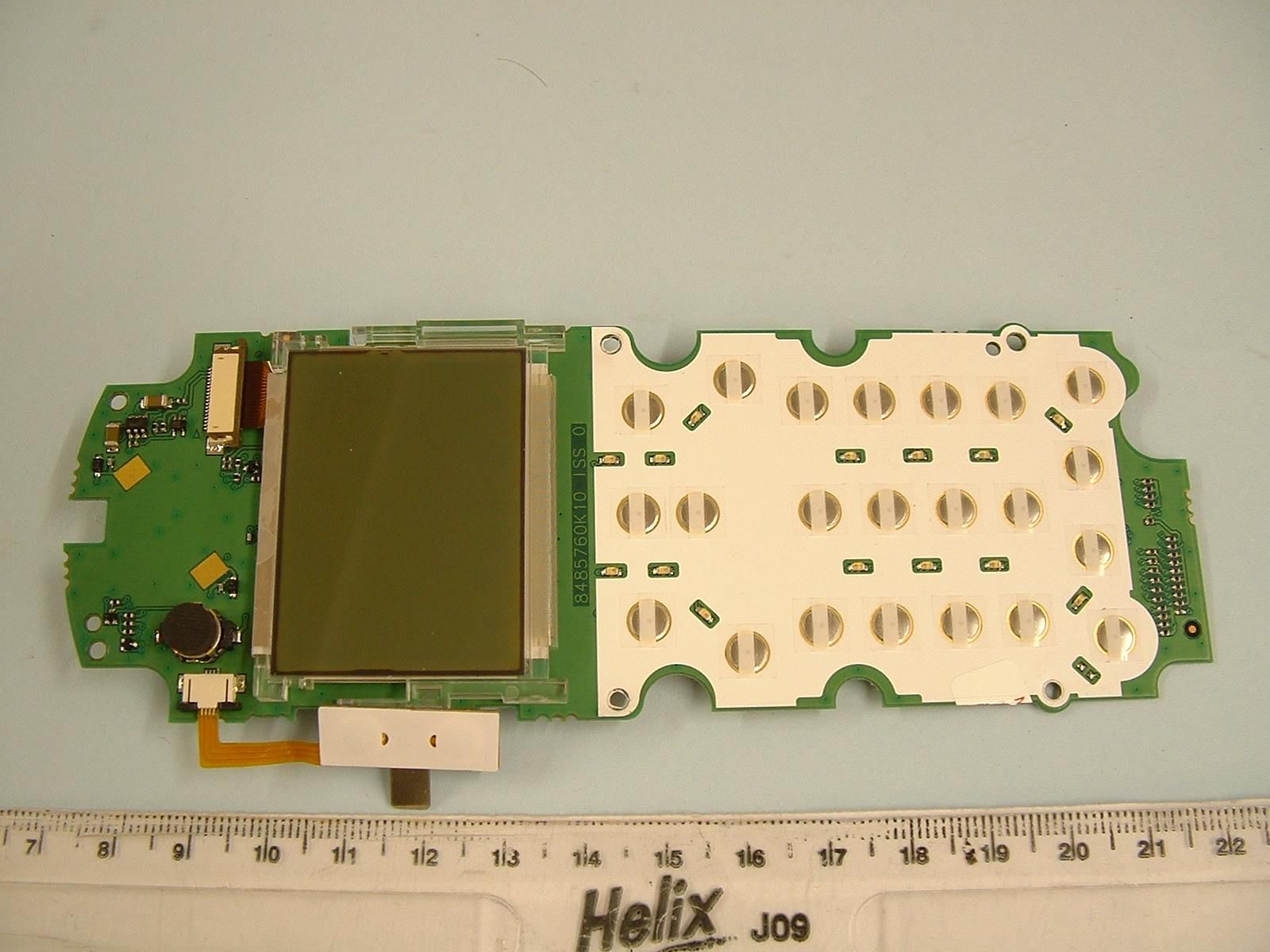

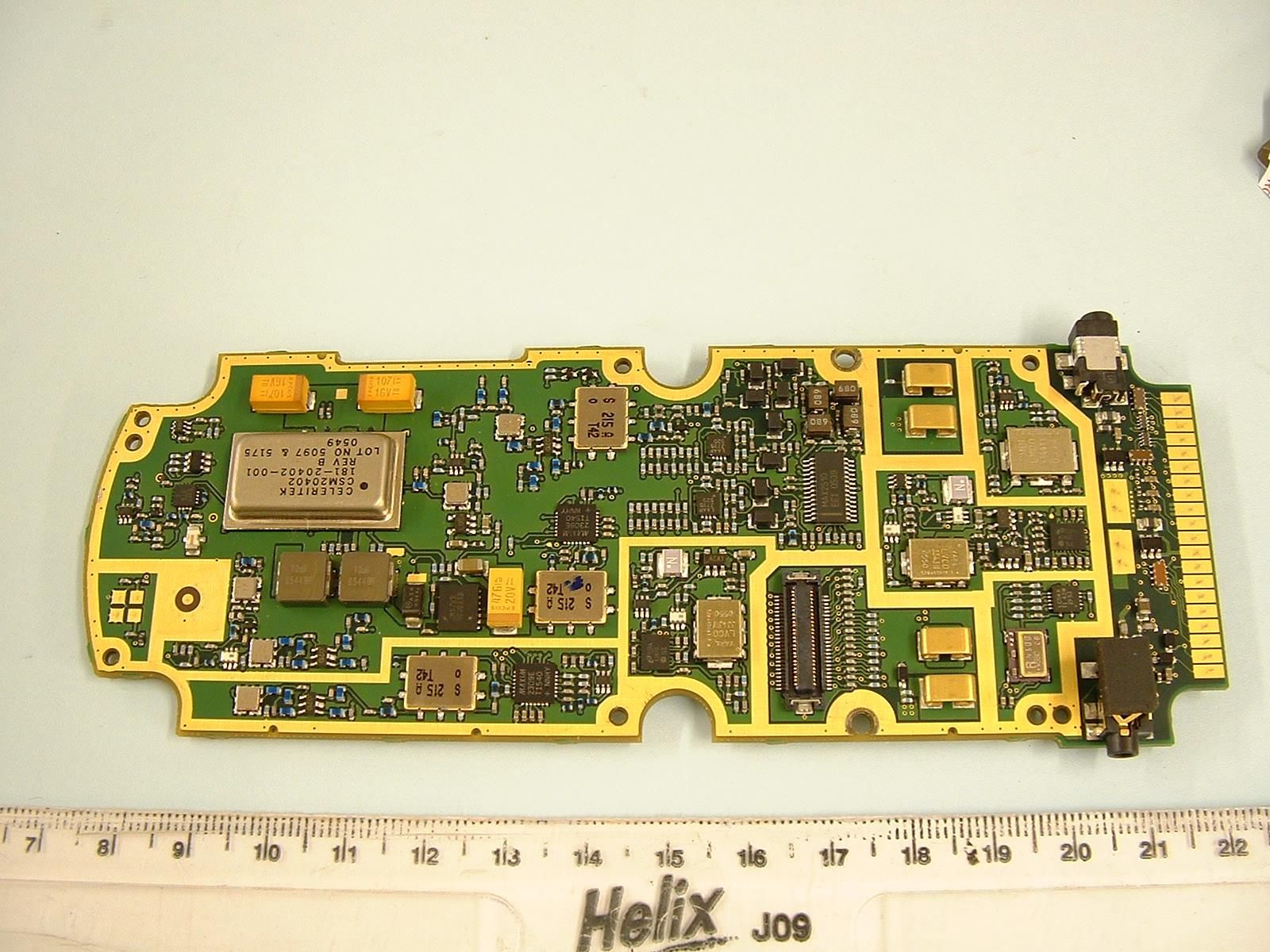

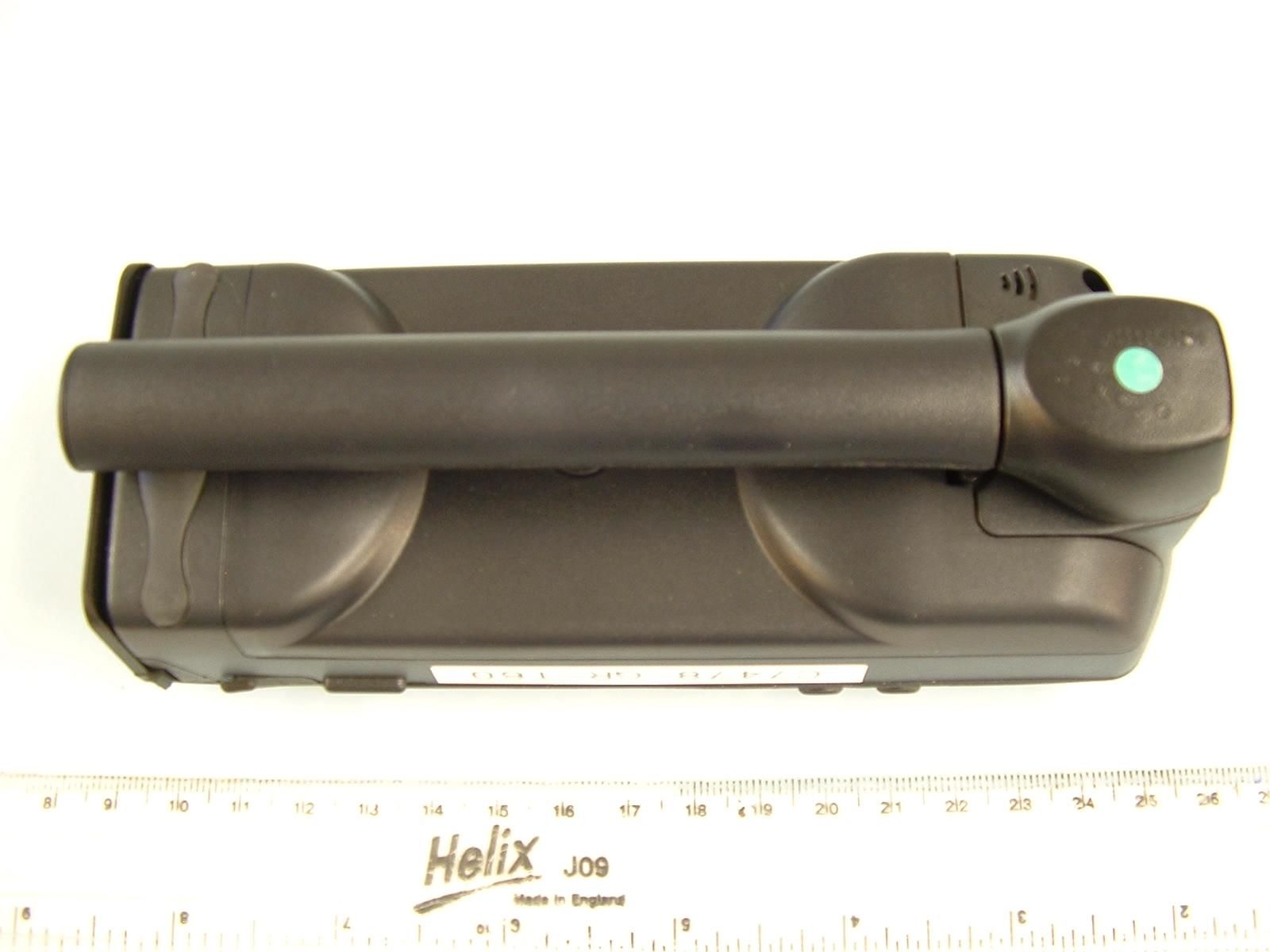

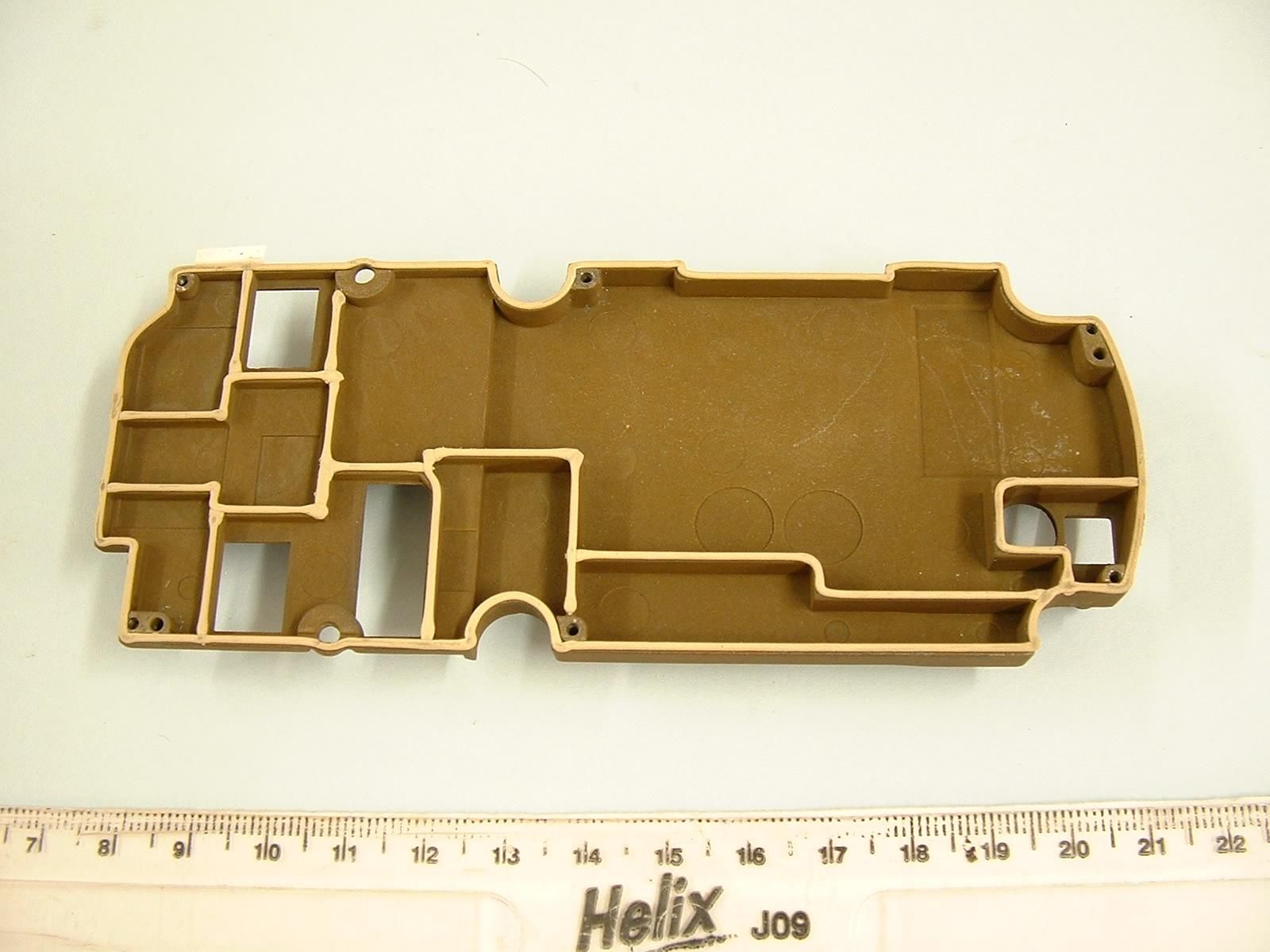

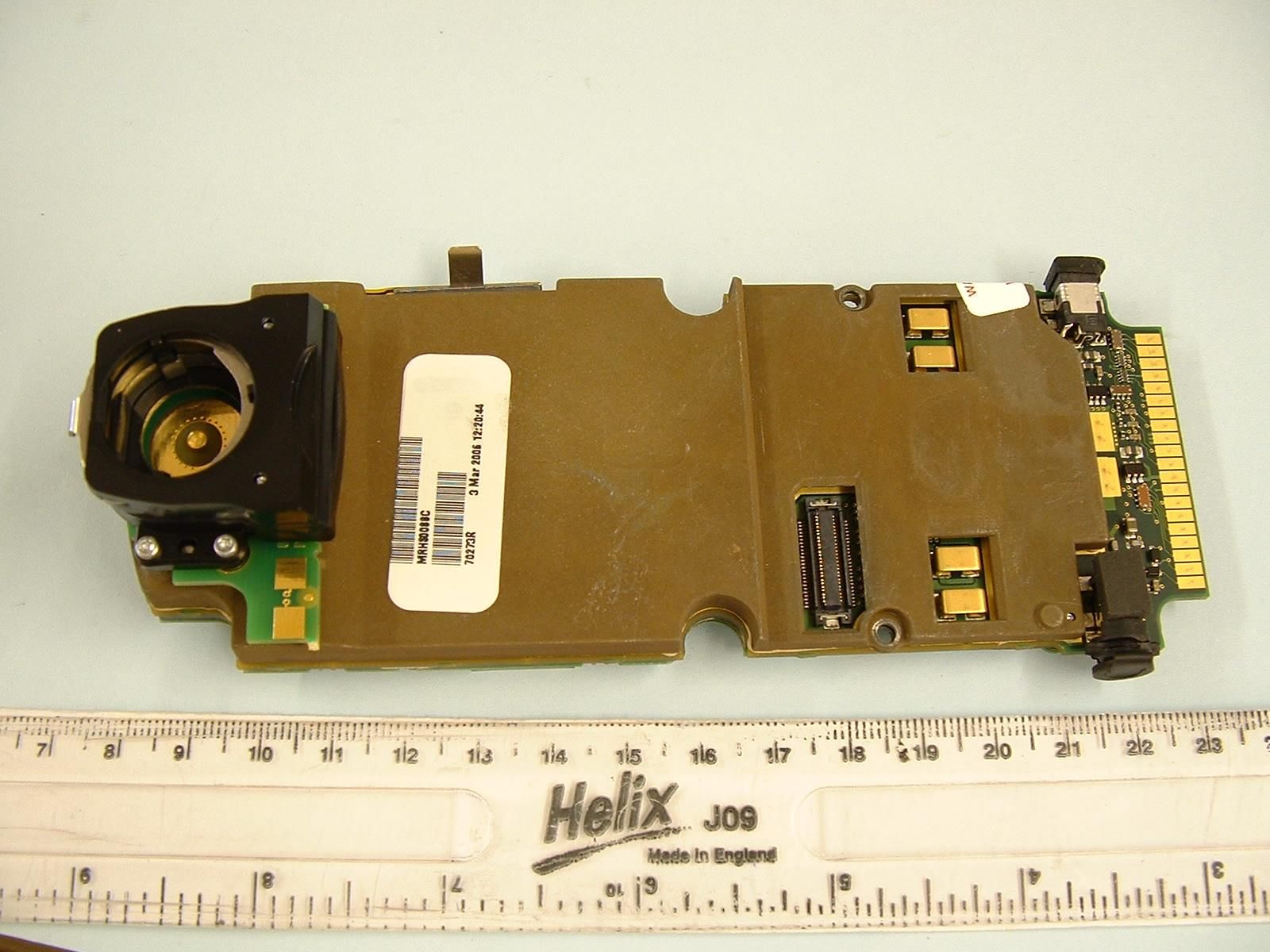

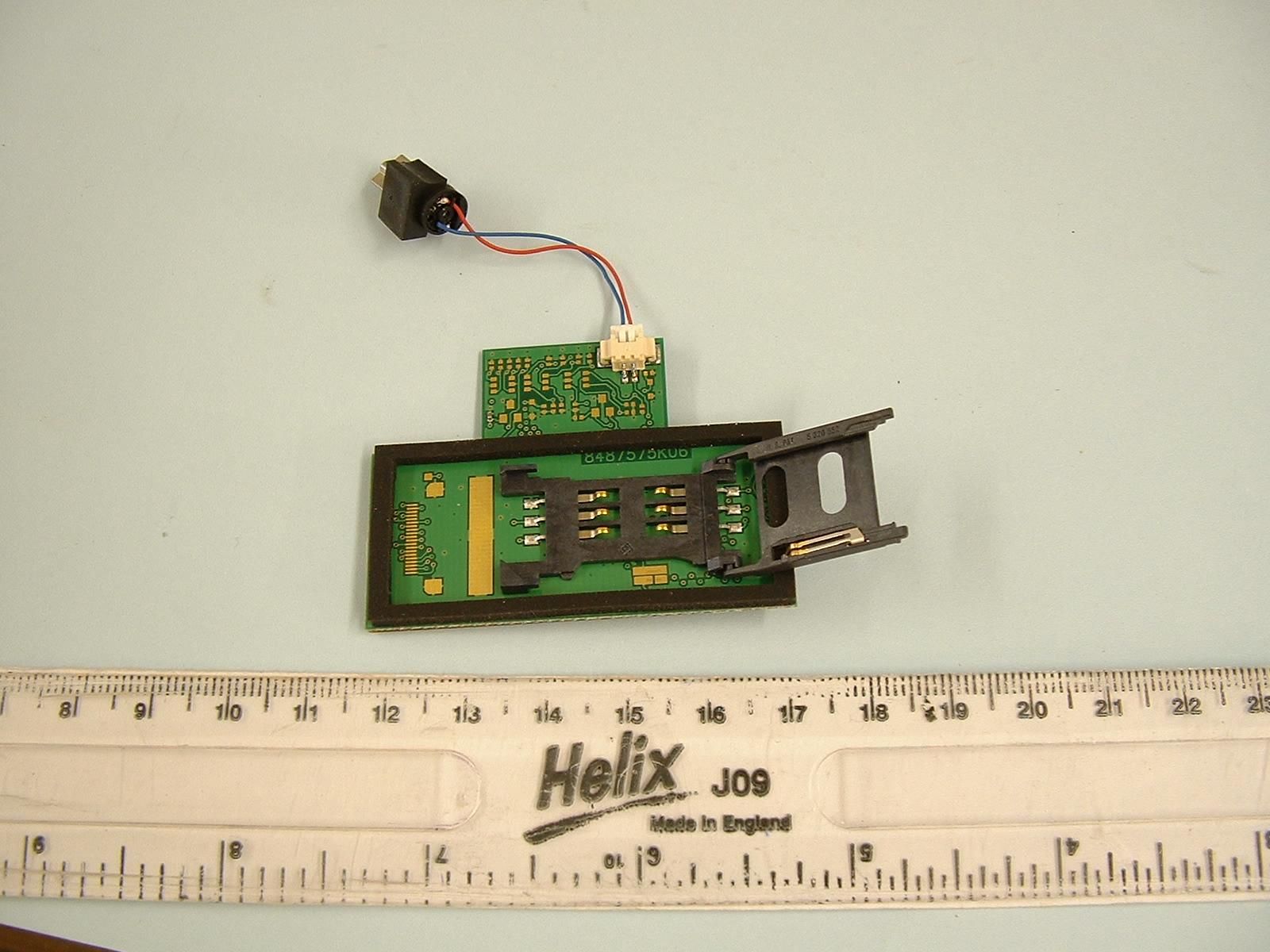

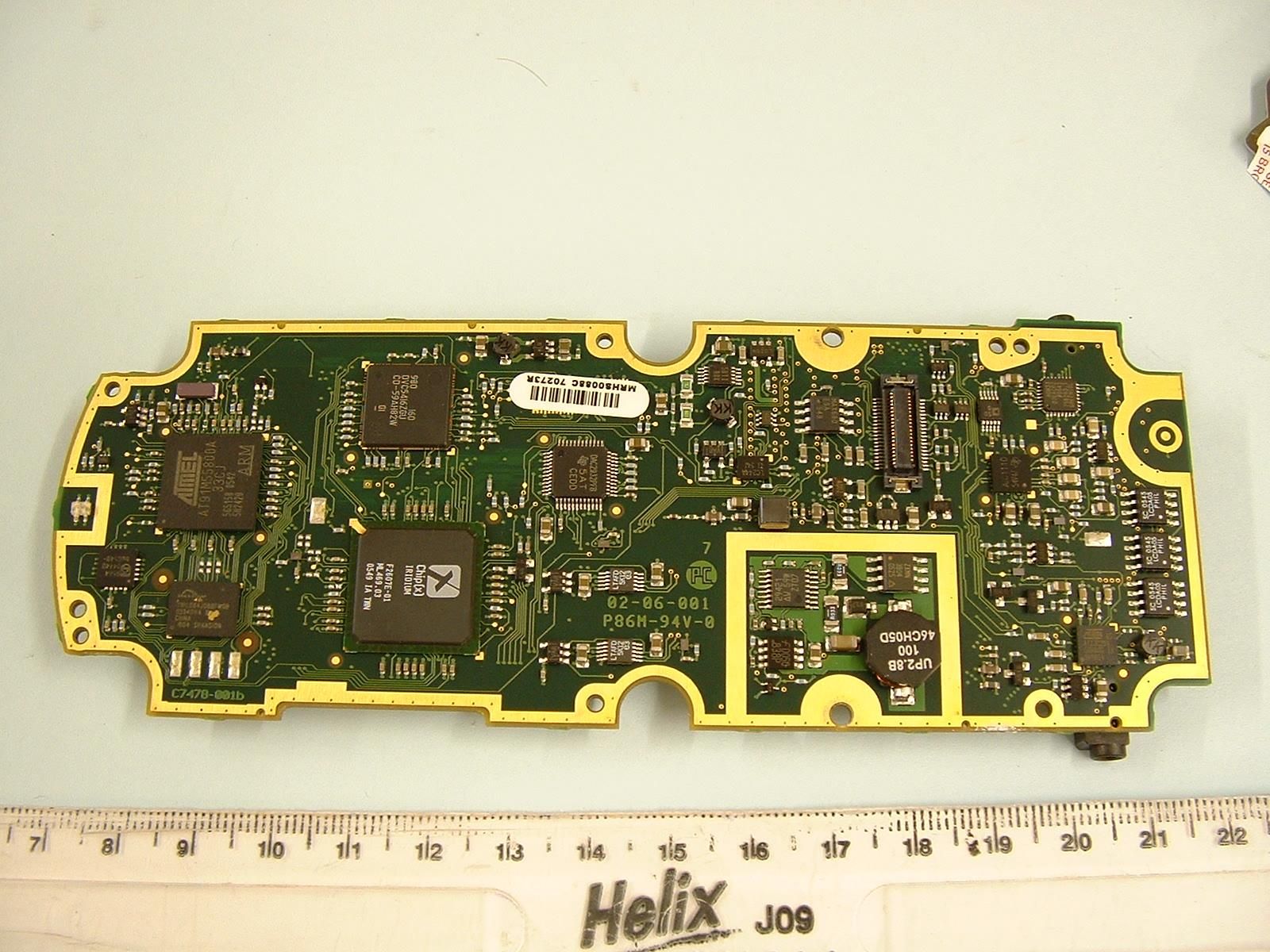

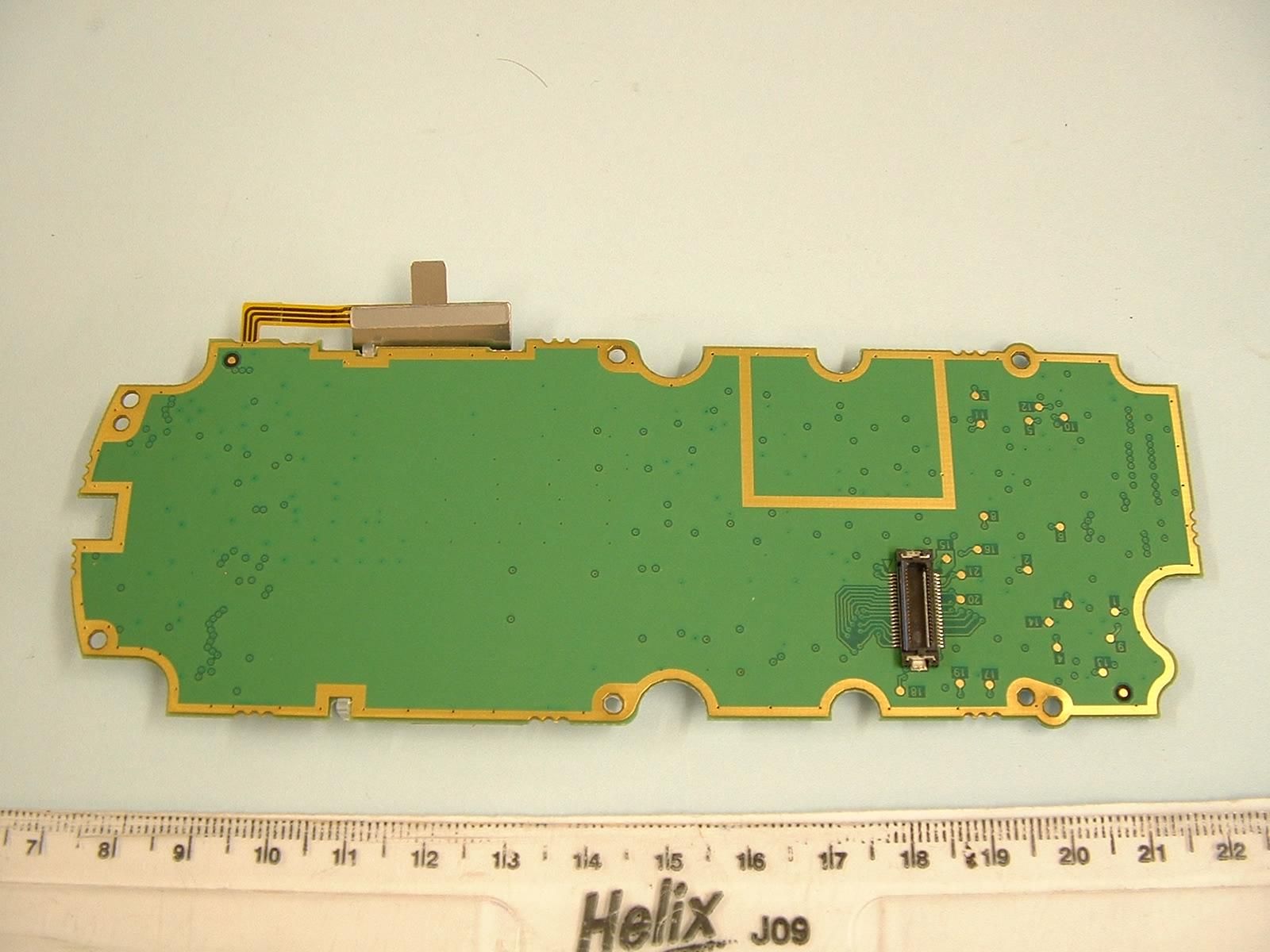

Q639505ACIridium Satellite Phone type 9505A

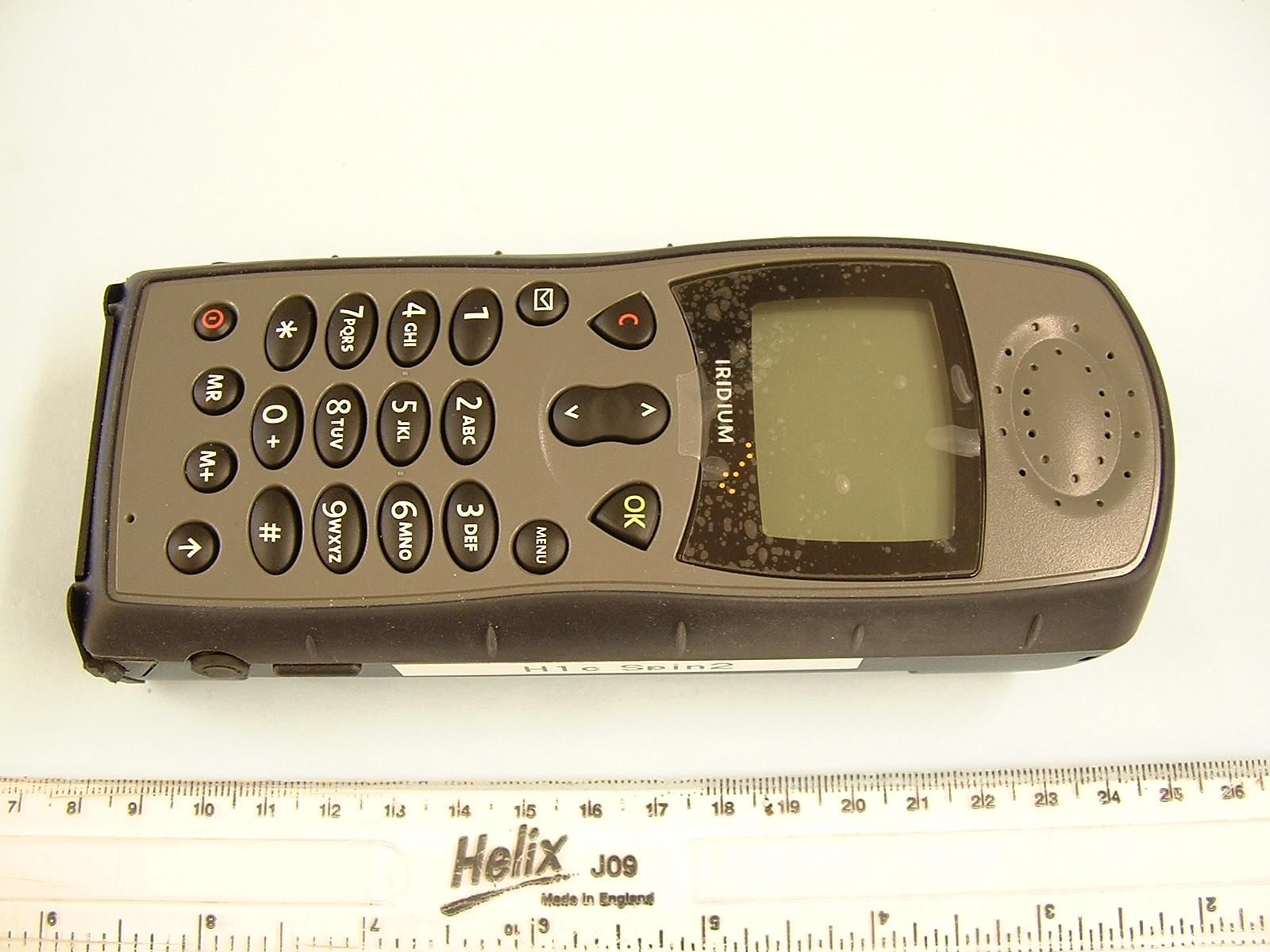

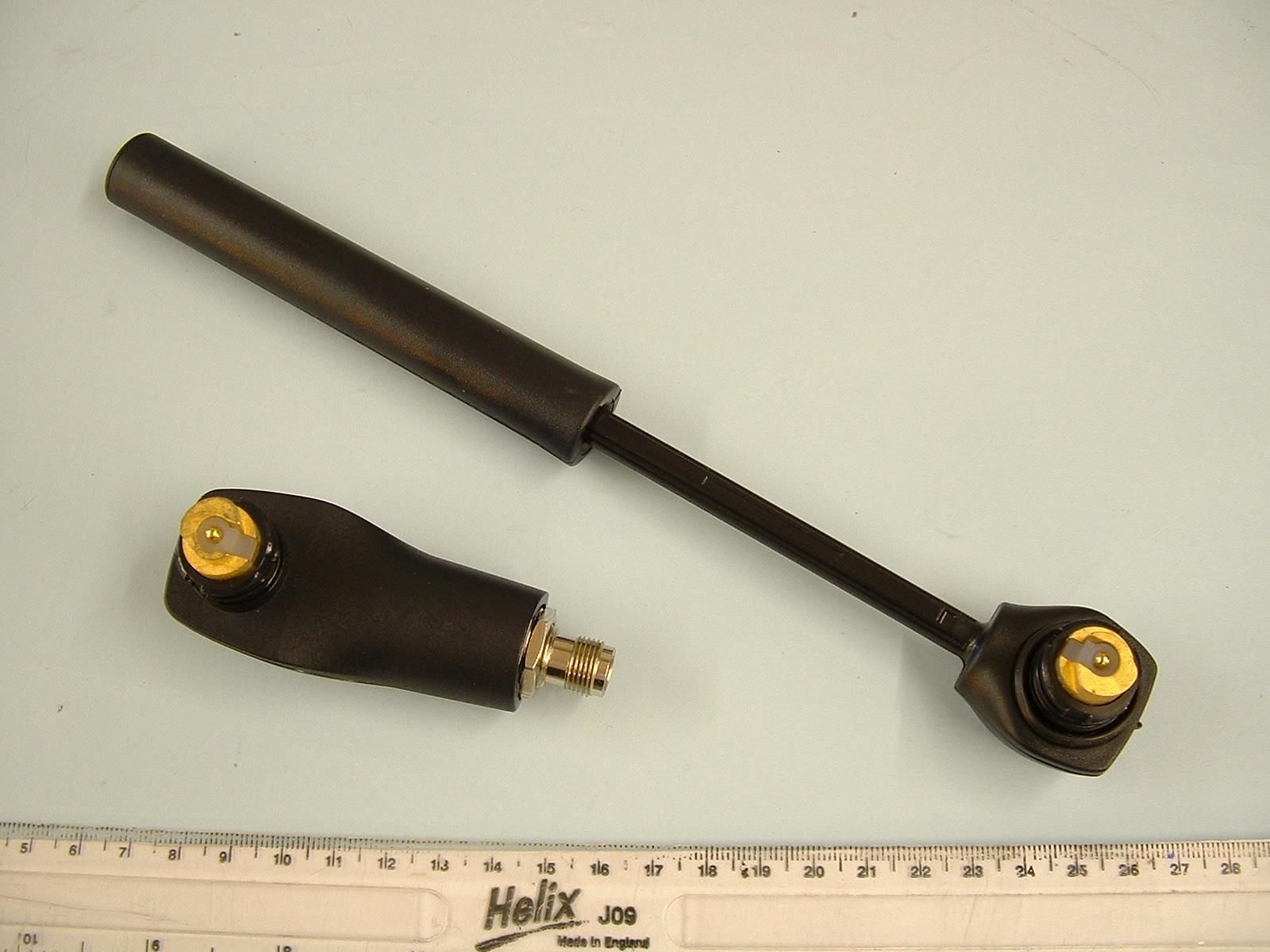

9505 A Satellite Phone User’s Guide S atellite Antenna Lock Release Button Display Microphone Headset Jack Real-Time C lock Battery Charge I ndicator E arpiece Signal Strength I ndicator Status Indicator S atellite Antenna Volume Control Keys Display and Status Indicators Alphanumeric Keypad Data Connector Power Connector Battery and Sim Compartment Scroll Bar Message Key Quick Access Key Represents functions not on front of phone. HELPFUL HINTS The 9505A Satellite Telephone, working exclusively within the Iridium Satellite Communications System, outperforms other current communications equipment. Designed and manufactured to exacting standards, it is small, light and resistant to water, dust, shock and environmental variables and is ideal for remote areas and rugged conditions. Only Iridium offers complete coverage of the most remote points on Earth—oceans, land masses, airways, and even polar regions—and a comprehensive range of mobile and fixed wireless products.No matter where on the globe, your telephone remains in contact at all times and provides a clear signal. With Voice and Data Service, the Iridium 9505A Satellite Telephone provides the ultimate solution to your communications needs. Customize your own package of satellite services, designed for flexible, global coverage, and enjoy your state-of-the-art 9505A Satellite Telephone! Anytime. Anywhere. You have Iridium.














































































































































































































! "#$ %




















  &' (  #$









   ) *




















+ ' (  ) *



















 $  ) *




















 $ , ) *$ -












 ) *.(





















!























 /





















   $


























 '  $
























     0



































 # $



















































 1   / #

















 1  2 , #













!     !
















3  ),#






















!+  4 5 ),













!  6(  6(7













! 8  6(
























! 1   6(7
















! 1  6(7  . 9












!3 - 8
























+ $ :# .* :8 8*






 $ ,  ),$/ *












     ),






 '    1


















 ;   -< $ # '
+ ;   # .* 5 6(7
 1   =<>
















 ;      6(7





























 $ '  0  #














 0 $ " 1  7








3 0  5$
















3+ 1 >  $ 0











3 $  0
















3 '   $  $ )










3 ;   ) *#















++ ;
















+ >     $ >/





+
 "
















+ #  #






















+ $ , 5;  (















+ # 5'  #






+!   '  #










+ #   #











 #   #







  #












   /#




















 #  '









3 -,  1 , 5







    #$
















 #     *








   89  #













 # < (  >








    > / *-










 < -    ..














   ? */ <


















 #














 $"" % !

















 6 ,  #
















 '    "    6 ,





3 &






















 $ #  #





















  $ < (



















    7 $ < (














   =$ <…

Text truncated - open the document above for the full version.

H1C Regulatory Label Artwork Sample

Cambridge Consultants Ltd Science Park Milton Road Cambridge England CB4 0DW Tel +44 (0)1223 420024 Fax +44 (0)1223 423373 [email protected] www.CambridgeConsultants.com Commercially confidential You are authorised to open and view any electronic copy we send you of this document within your organisation and to print a single copy. Otherwise the material may not in whole or in part be copied, stored electronically or communicated to third parties without the prior written agreement of Cambridge Consultants Limited. C7478-S-007 v0.1 10 March 2006 H1c Monaco Specification Iridium Iridium Satellite LLC 6701 Democracy Boulevard Bethesda MD 20817 U.S.A. Prepared by P J Goldsmith Reviewed by Marion Campbell Secretary Melanie Geran Commercially confidential Subject: H1c Monaco Specification C7478-S-007 v0.1 Page 2 of 12 10 March 2006 Revision History (This table will be filled in from V1.0 onwards, V1.0 being the first complete version of this document.) Version Date Author Comment V1.0 10 th March 2006 Peter Goldsmith First reviewed version. Distribution Iridium Satellite LLC David Schoen Conrad Geibel Cambridge Consultants Project Reviewer – Richard Traherne Project Manager – Marion Campbell QA – Brian Ashwood Project Team Commercially confidential Subject: H1c Monaco Specification C7478-S-007 v0.1 Page 3 of 12 10 March 2006 Table of Contents List of References 4 1 Introduction 4 2 Headline Specification 5 3 Interfaces 6 3.1 Antenna 6 3.2 Butt Connector 6 3.2.1 Power On/Off Control 6 3.2.2 Digital Peripheral Link (DPL) 7 3.2.2.1 DPL Control 7 3.2.2.2 DPL Audio 7 3.2.3 Data / Fax 7 3.2.4 90ms Synchronization Input 7 3.2.5 User Connector Pin Assignment 8 3.3 Internal SIM 8 3.4 Microphone 8 3.5 Speaker 9 3.6 Sounder 9 3.7 Headset connector 9 3.8 Battery Connection 9 3.9 DC charging connector 10 4 Major functional blocks 11 4.1 Transceiver board 11 4.2 MMI board 11 4.3 SIM board 11 4.4 Antenna Latch board 12 4.5 Reservoir capacitor assembly 12 Commercially confidential Subject: H1c Monaco Specification C7478-S-007 v0.1 Page 4 of 12 10 March 2006 List of References Ref Title Document Number 1 Product Requirement Specification C7032-RS-001 2 Architecture Specification C7032-S-003 3 Baseband Electronics Design Specification C7032-S-007 4 H1c transceiver board design approach C7478-TM-002 5 H1c transceiver board schematics C7478-DL-001 6 MMI board C7478-DL-006 7 SIM board for handset C7478-DL-002 8 Antenna Latch for handset C7478-DL-004 9 ‘SuperCap’ Reservoir Capacitor board C7478-DL-005 10 DPL Protocol and Hardware Specification C7032-S-018 1 Introduction This specification describes the Iridium H1c Monaco L-band satellite handset. This will be sold as a 9505A handset. This is the same description as the previous version of the handset, which will be referred to as the H1b Monaco. The mechanical casework remains identical to the older Laguna 9505 handset. The handset is housed in a plastic case and is powered by a Lithium ion battery. The user interface is provided by a keyboard and display mounted on the MMI board. In normal use, the handset is self-contained, with built in microphone and speaker for voice calls, plus a socket for a headset. However, certain audio and data interfaces are also presented on a custom connector, called the Butt Connector, on the base of the handset. Commercially confidential Subject: H1c Monaco Specification C7478-S-007 v0.1 Page 5 of 12 10 March 2006 2 Headline Specification Physical Specification Length 157mm (6.18”) Width 63mm (2.48”) Depth (without antenna) 41mm (1.61”) Weight (approximate) 310g (with battery) 240g (without battery) Environment Specification Operating Temperature Range -20 o C to +60 o C Operating humidity range <85% RH Storage temperature range -40 o C to +85 o C RF Interface Specification Frequency Range 1616MHz to 1626.5MHz Duplexing method TDD (Time Division Duplex) Oscillator stability ±1 ppm Input/Output impedance 50 ohms Multiplexing method TDMA/FDMA DC Power Specification Battery type Lithium Ion Battery voltage 3.6V nominal Battery capacity 2230mAh Commercially confidential Subject: H1c Monaco Specification C7478-S-007 v0.1 Page 6 of 12 10 March 2006 3 Interfaces 3.1 Antenna The handset’s antenna interface is presented on a custom mechanical interface, which is compatible with the existing Iridium handset antenna designs. 3.2 Butt Connector The Butt Connector is a 20-way custom plug. The user interfaces carried on this connector are:- ß Power On/Off control signal ß Digital audio ß Digital Peripheral Link ß RS-232 (Data/Fax) Port ß 90ms Synchronization input 3.2.1 Power On/Off Control An external on/off input is provided on a pin of the 20-way Butt Connector as shown in table 1 below. The EXT_ON_OFF control input is connected in parallel with the On/Off button on the keypad and is used to turn the handset on and off in a toggle fashion. The handset contains a 10k O pull-up resistor from this input to the battery positive voltage. The EXT_ON_OFF control input is normally left “floating” (i.e. high). It is pulled to GND level (i.e. low) for at least 270 ms then released to cause the handset to alternate from its current on/off state as shown in Table below Handset Start State EXT_ON_OFF Control Input Handset End State Power is supplied, EXT_ON_OFF is floating, unit is off EXT_ON_OFF is pulled to GND for at least 270ms then released Power is supplied, EXT_ON_OFF is floating, unit is on Power is supplied, EXT_ON_OFF is floating, unit is on EXT_ON_OFF is pulled to GND for at least 270ms then released Power is supplied, EXT_ON_OFF is floating, unit is off The signal shall be deemed to be asserted when the voltage level on this pin is 0.5V or less. The leakage current from this pin in the floating state shall not exceed 10 μA. Commercially confidential Subject: H1c Monaco Specification C7478-S-007 v0.1 Page 7 of 12 10 March 2006 3.2.2 Digital Peripheral Link (DPL) The DPL interface is composed of two ports: a full duplex asynchronous …

Text truncated - open the document above for the full version.

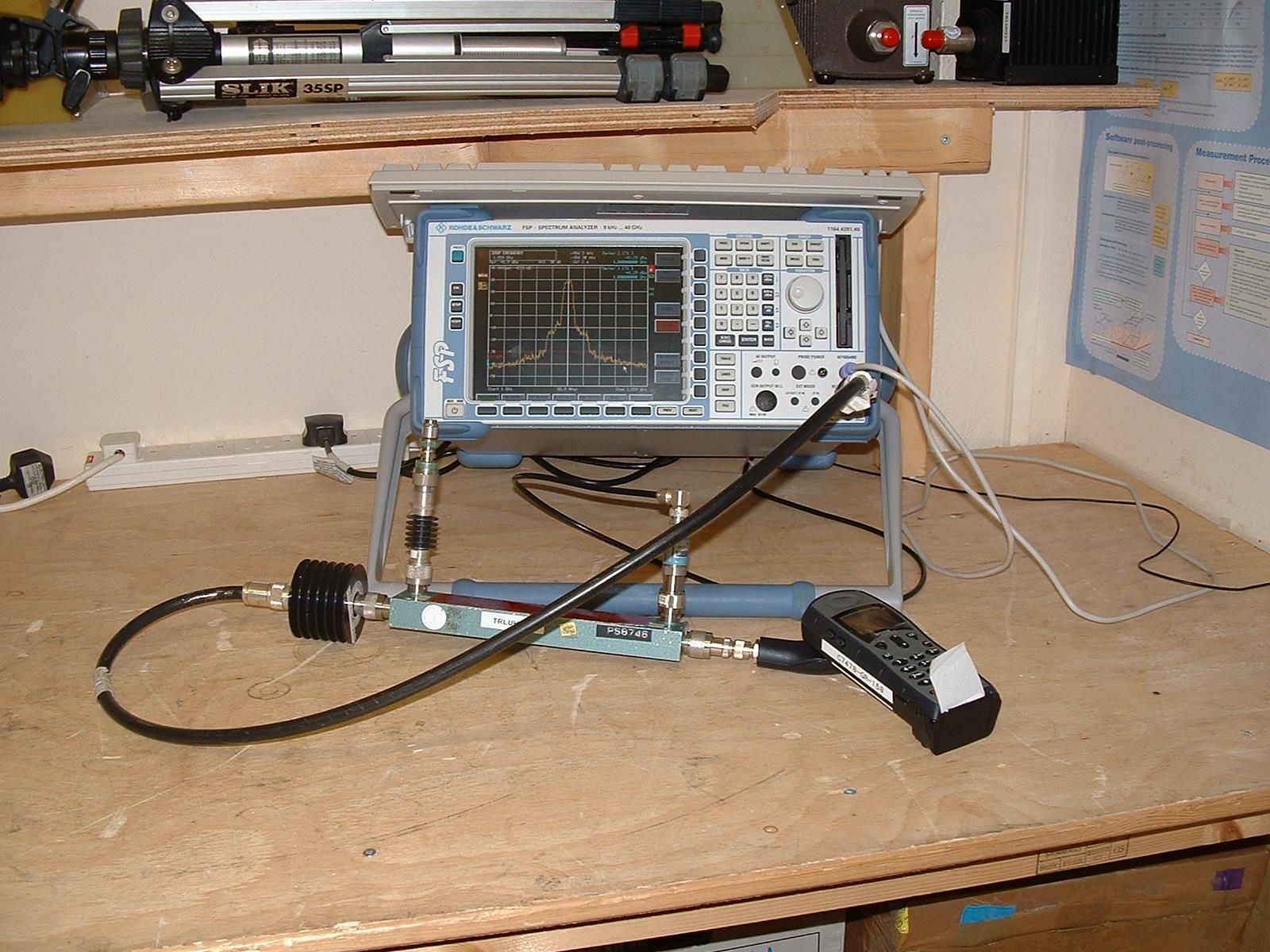

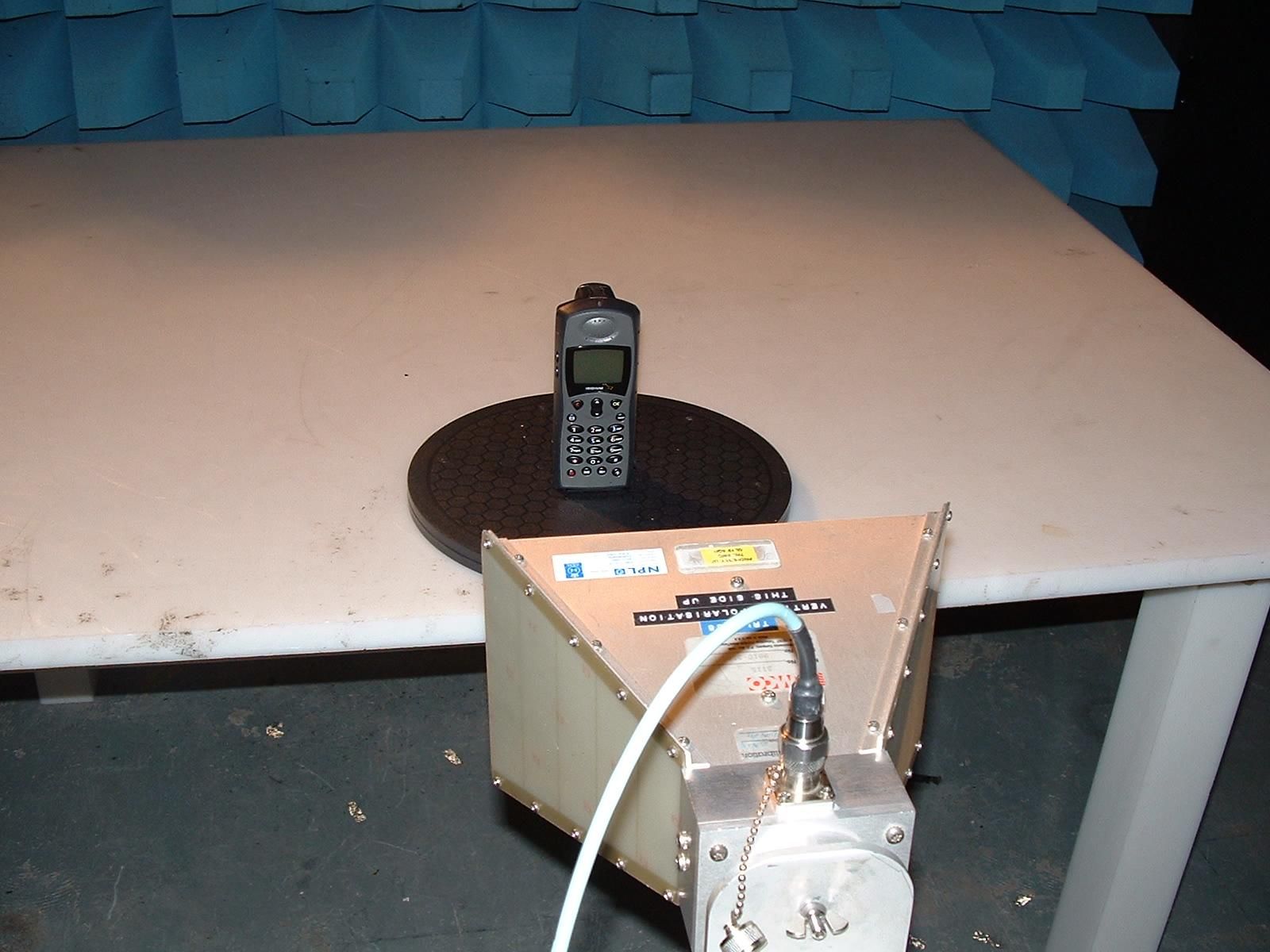

Page 1 of 38 SAR Test Report Report Number: M060313 Test Sample: Iridium Satellite Phone Model Number: 9505A Tested For: TRL Compliance Ltd Date of Issue: 10 th April 2006 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements, which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. The certificate on page 2 may be reproduced in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: Q639505AC Report No.: M060313 Page 2 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au CONTENTS CONTENTS .......................................................................................................................................... 2 1.0 GENERAL INFORMATION ......................................................................................................... 3 2.0 DESCRIPTION OF DEVICE ........................................................................................................ 4 2.1 Description of Test Sample............................................................................................... 4 2.2 Test sample Accessories .................................................................................................. 4 2.2.1 Battery Types ...................................................................................................................4 2.2.2 Body Worn Position .......................................................................................................... 4 2.3 Test Signal, Frequency and Output Power ....................................................................... 4 2.4 Conducted Power Measurements..................................................................................... 4 2.5 Battery Status ................................................................................................................... 5 2.6 Details of Test Laboratory................................................................................................. 5 2.6.1 Location ............................................................................................................................ 5 2.6.2 Accreditations ................................................................................................................... 5 2.6.3 Environmental Factors...................................................................................................... 5 3.0 DESCRIPTION OF SAR MEASUREMENT SYSTEM .................................................................. 6 3.1 Probe Positioning System................................................................................................. 6 3.2 E-Field Probe Type and Performance............................................................................... 6 3.3 Data Acquisition Electronics ............................................................................................. 6 3.4 Calibration and Validation Procedures and Data .............................................................. 6 3.4.1 Validation Results (1640 MHz) ......................................................................................... 6 3.4.2 Deviation from reference validation values ....................................................................... 7 3.4.3 Liquid Depth 15cm............................................................................................................ 7 3.5 Phantom Properties (Size, Shape, Shell Thickness)......................................................... 7 3.6 Tissue Material Properties ................................................................................................ 8 3.6.1 Liquid Temperature and Humidity ..................................................................................... 8 3.7 Simulated Tissue Composition Used for SAR Test........................................................... 8 3.8 Device Holder for DASY4 ................................................................................................. 8 4.0 SAR MEASUREMENT PROCEDURE USING DASY4 ................................................................ 9 5.0 MEASUREMENT UNCERTAINTY............................................................................................. 10 6.0 EQUIPMENT LIST AND CALIBRATION DETAILS ................................................................... 12 7.0 SAR TEST METHOD .................................................................................................................13 7.1 Description of the Test Positions .................................................................................... 13 7.1.1 “Touch Position” ............................................................................................................. 13 7.1.2 “Tilted Position”...............................................................................................................13 7.2 List of All Test Cases (Antenna In/Out, Test Frequencies, User Modes) ........................ 13 7.3 FCC RF Exposure …

Text truncated - open the document above for the full version.

FCC ID: Q639505AC Report No.: M060313 Page 20 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au APPENDIX B PLOTS OF THE SAR MEASUREMENTS Plots of the measured SAR distributions inside the phantom are given in this Appendix for all tested configurations. The spatial peak SAR values were assessed with the procedure described in this report. Table: 1600 MHz SAR Plots Test Position Antenna Plot Number Test Channel Touch Left Retracted 1 120 Touch Left Extended 2 120 Tilted Left Extended 3 120 Z-axis Graphs for plots 1 to 3 Tilted Left Retracted 4 000 Tilted Left Retracted 5 120 Tilted Left Retracted 6 240 Z-axis Graphs for plots 4 to 6 Touch Right Retracted 7 120 Touch Right Extended 8 120 Z-axis Graphs for plots 7 and 8 Tilted Right Retracted 9 120 Tilted Right Extended 10 120 Z-axis Graphs for plots 9 and 10 Table: SAR Validation Plots Date Plot Number Frequency 24 th march 2006 11 1640 MHz 27 th march 2006 12 1640 MHz Z-axis Graphs for plots 11 and 12 FCC ID: Q639505AC Report No.: M060313 Page 21 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 24 March 2006 File Name: Touch Left 1600 MHz (DAE442 Probe1380) 24-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:300214010004000 * Communication System: 1600 MHz Satellite; Frequency: 1618.25 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.24062 mho/m, ε r = 40.9989; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.42, 5.42, 5.42) - Phantom: SAM 22; Serial: 1260; Phantom section: Left Section Channel 120 Test/Area Scan (121x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.162 mW/g Channel 120 Test/Area Scan 2 (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.179 mW/g Channel 120 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.88 V/m; Power Drift = -0.190 dB Peak SAR (extrapolated) = 0.324 W/kg SAR(1 g) = 0.165 mW/g; SAR(10 g) = 0.113 mW/g Maximum value of SAR (measured) = 0.180 mW/g 0 dB = 0.180mW/g SAR MEASUREMENT PLOT 1 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 20.7 Degrees Celsius Humidity 62.0 % FCC ID: Q639505AC Report No.: M060313 Page 22 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 24 March 2006 File Name: Touch Left 1600 MHz Extended Antenna (DAE442 Probe1380) 24-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:300214010004000 * Communication System: 1600 MHz Satellite; Frequency: 1618.25 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.24062 mho/m, ε r = 40.9989; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.42, 5.42, 5.42) - Phantom: SAM 22; Serial: 1260; Phantom section: Left Section Channel 120 Test/Area Scan (121x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.01 mW/g Channel 120 Test/Area Scan 2 (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.010 mW/g Channel 120 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.88 V/m; Power Drift = 0.359 dB Peak SAR (extrapolated) = 0.032 W/kg SAR(1 g) = 0.014 mW/g; SAR(10 g) = 0.00868 mW/g Maximum value of SAR (measured) = 0.017 mW/g 0 dB = 0.017mW/g SAR MEASUREMENT PLOT 2 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 20.7 Degrees Celsius Humidity 62.0 % FCC ID: Q639505AC Report No.: M060313 Page 23 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 24 March 2006 File Name: Tilted Left 1600 MHz Extended Antenna (DAE442 Probe1380) 24-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:300214010004000 * Communication System: 1600 MHz Satellite; Frequency: 1618.25 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.24062 mho/m, ε r = 40.9989; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.42, 5.42, 5.42) - Phantom: SAM 22; Serial: 1260; Phantom section: Left Section Channel 120 Test/Area Scan (121x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.013 mW/g Channel 120 Test/Area Scan 2 (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.015 mW/g Channel 120 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.67 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.024 W/kg SAR(1 g) = 0.013 mW/g; SAR(10 g) = 0.00855 mW/g Maximum value of SAR (measured) = 0.015 mW/g 0 dB = 0.015mW/g SAR MEASUREMENT PLOT 3 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 20.7 Degrees Celsius Humidity 62.0 % FCC ID: Q639505AC Report No.: M060313 Page 24 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Z-Axis Graph for Plot 1 Z-Axis Graph for Plot 2 Z-Axis Graph for Plot 3 FCC ID: Q639505AC Report No.: M060313 Page 25 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 27 March 2006 File Name: Tilted Left 1600 MHz (DAE442 Probe1380) 27-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:…

Text truncated - open the document above for the full version.

FCC ID: Q639505AC Report No.: M060313 Page 29 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 24 March 2006 File Name: Touch Right 1600 MHz (DAE442 Probe1380) 24-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:300214010004000 * Communication System: 1600 MHz Satellite; Frequency: 1618.25 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.24062 mho/m, ε r = 40.9989; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.42, 5.42, 5.42) - Phantom: SAM 22; Serial: 1260; Phantom section: Right Section Channel 120 Test/Area Scan (121x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.200 mW/g Channel 120 Test/Area Scan 2 (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.191 mW/g Channel 120 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.93 V/m; Power Drift = 0.051 dB Peak SAR (extrapolated) = 0.343 W/kg SAR(1 g) = 0.186 mW/g; SAR(10 g) = 0.126 mW/g Maximum value of SAR (measured) = 0.206 mW/g 0 dB = 0.206mW/g SAR MEASUREMENT PLOT 7 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 20.7 Degrees Celsius Humidity 62.0 % FCC ID: Q639505AC Report No.: M060313 Page 30 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 24 March 2006 File Name: Touch Right 1600 MHz Extended Antenna (DAE442 Probe1380) 24-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:300214010004000 * Communication System: 1600 MHz Satellite; Frequency: 1618.25 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.24062 mho/m, ε r = 40.9989; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.42, 5.42, 5.42) - Phantom: SAM 22; Serial: 1260; Phantom section: Right Section Channel 120 Test/Area Scan (121x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.01 mW/g Channel 120 Test/Area Scan 2 (61x61x1): Measurement grid: dx=15mm, dy=15mm Channel 120 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.26 V/m; Power Drift = 0.380 dB Peak SAR (extrapolated) = 0.013 W/kg SAR(1 g) = 0.00644 mW/g; SAR(10 g) = 0.00427 mW/g Maximum value of SAR (measured) = 0.01 mW/g 0 dB = 0.010mW/g SAR MEASUREMENT PLOT 8 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 20.7 Degrees Celsius Humidity 62.0 % FCC ID: Q639505AC Report No.: M060313 Page 31 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Z-Axis Graph for Plot 7 Z-Axis Graph for Plot 8 FCC ID: Q639505AC Report No.: M060313 Page 32 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 24 March 2006 File Name: Tilted Right 1600 MHz (DAE442 Probe1380) 24-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:300214010004000 * Communication System: 1600 MHz Satellite; Frequency: 1618.25 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.24062 mho/m, ε r = 40.9989; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.42, 5.42, 5.42) - Phantom: SAM 22; Serial: 1260; Phantom section: Right Section Channel 120 Test/Area Scan (121x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.253 mW/g Channel 120 Test/Area Scan 2 (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.582 mW/g Channel 120 Test/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.01 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 0.531 W/kg SAR(1 g) = 0.277 mW/g; SAR(10 g) = 0.175 mW/g Maximum value of SAR (measured) = 0.302 mW/g 0 dB = 0.302mW/g SAR MEASUREMENT PLOT 9 Ambient Temperature 21.2 Degrees Celsius Liquid Temperature 20.7 Degrees Celsius Humidity 62.0 % FCC ID: Q639505AC Report No.: M060313 Page 33 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The certificate on page 2 may be reproduced in full. www.emctech.com.au Test Date: 27 March 2006 File Name: Tilted Right 1600 MHz Extended Antenna (DAE442 Probe1380) 27-03-06.da4 DUT: Iridium Satellite Phone; Type: 9505A; Serial: IMEI:300214010004000 * Communication System: 1600 MHz Satellite; Frequency: 1618.25 MHz; Duty Cycle: 1:1 * Medium parameters used: σ = 1.26694 mho/m, ε r = 40.2753; ρ = 1000 kg/m 3 - Electronics: DAE3 Sn442; Probe: ET3DV6 - SN1380; ConvF(5.42, 5.42, 5.42) - Phantom: SAM 22; Serial: 1260; Phantom section: Right Section Channel 120 Test 2/Area Scan (121x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.019 mW/g Channel 120 Test 2/Area Scan 2 (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.020 mW/g Channel 120 Test 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.71 V/m; Power Drift = -0.055 dB Peak SAR (extrapolated) = 0.035 W/kg SAR(1 g) = 0.020 mW/g; SAR(10 g) = 0.013 mW/g Maximum value of SAR (measured) = 0.021 mW/g 0 dB = 0.021mW/g SAR MEASUREMENT PLOT 10 Ambient Temperature 21.4 Degrees Celsius Liquid Temperature 20.8 Degrees Celsius Humidity 64.0 % FCC ID: Q639505AC Report No.: M060313 Page 34 of 38 This document must not be copied or reproduced, except in full without the written permission of the Manager, EMC Technologies Pty Ltd. The…
