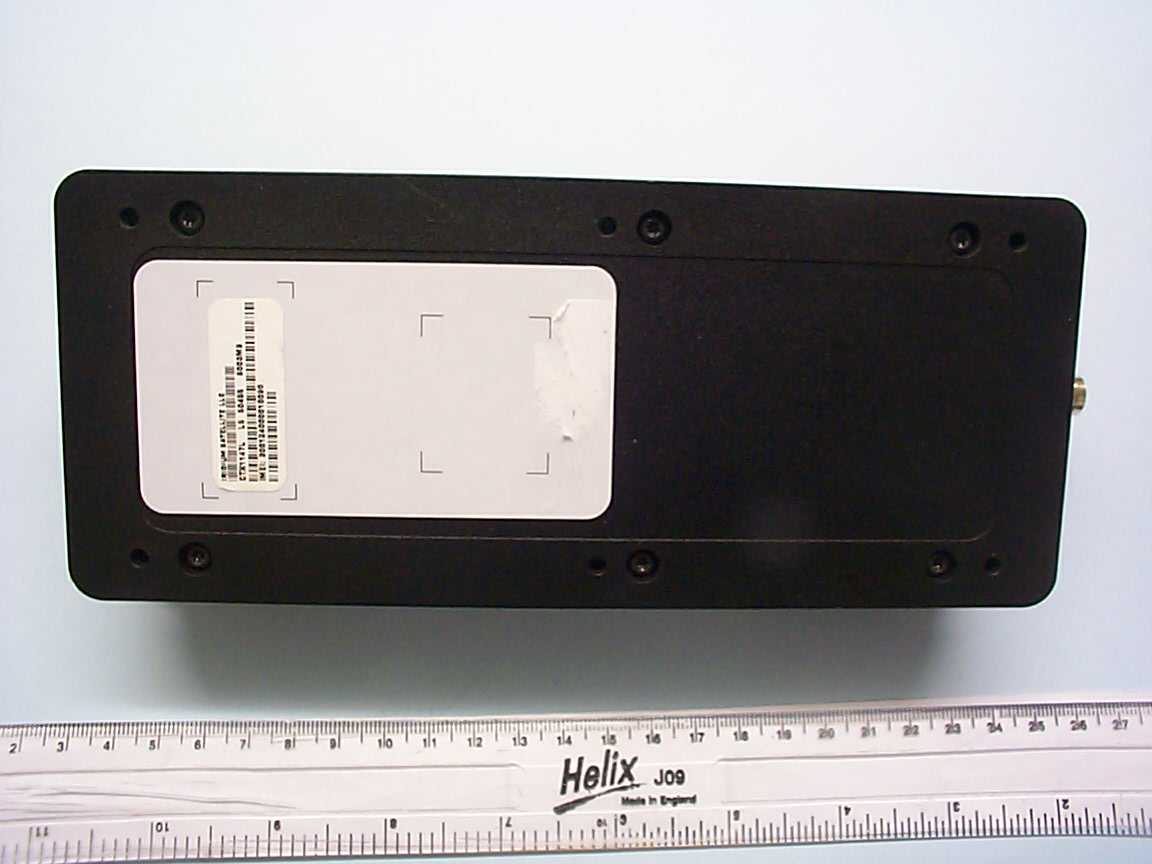

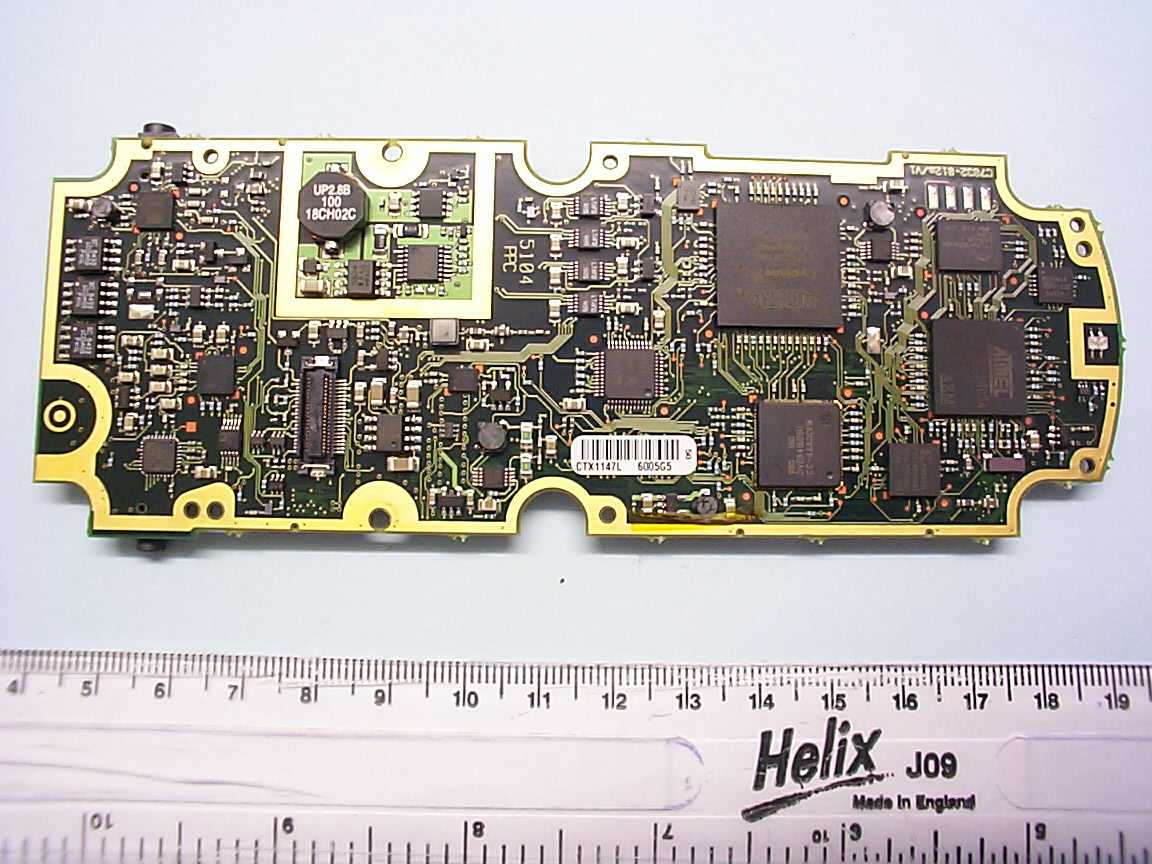

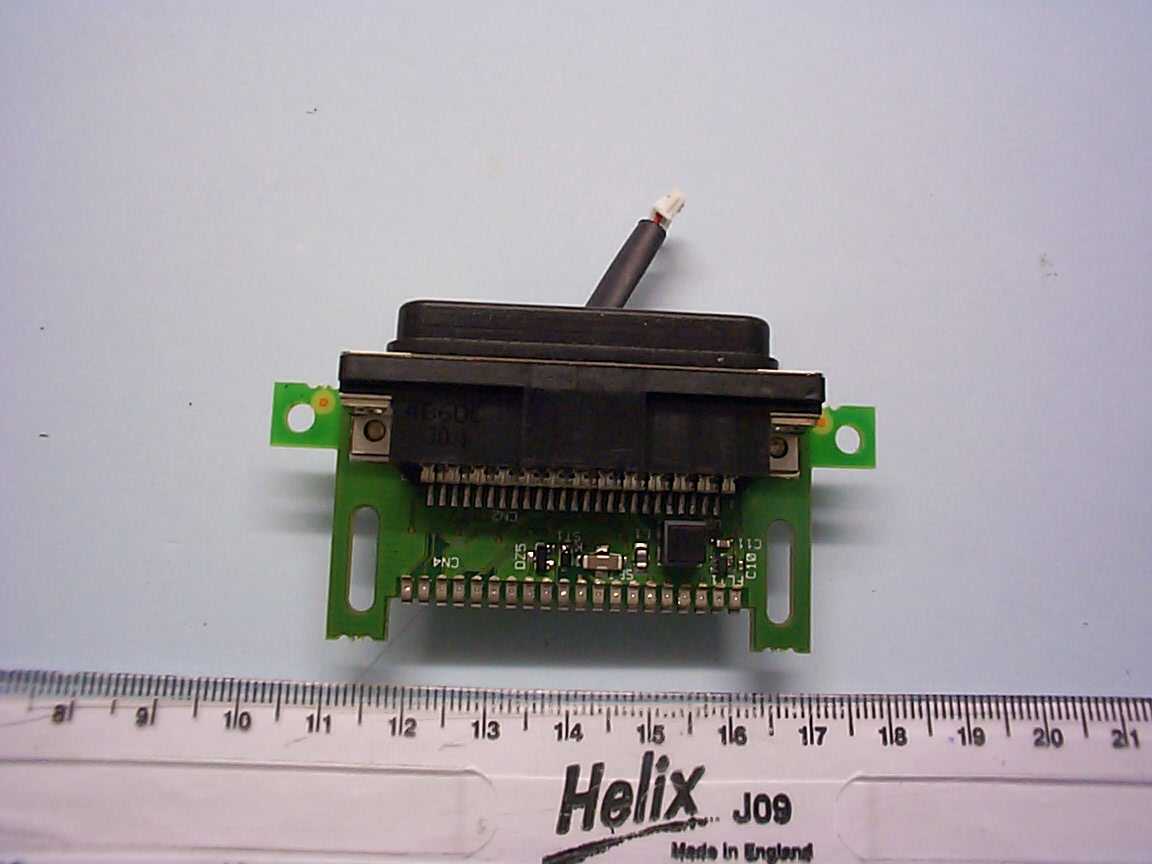

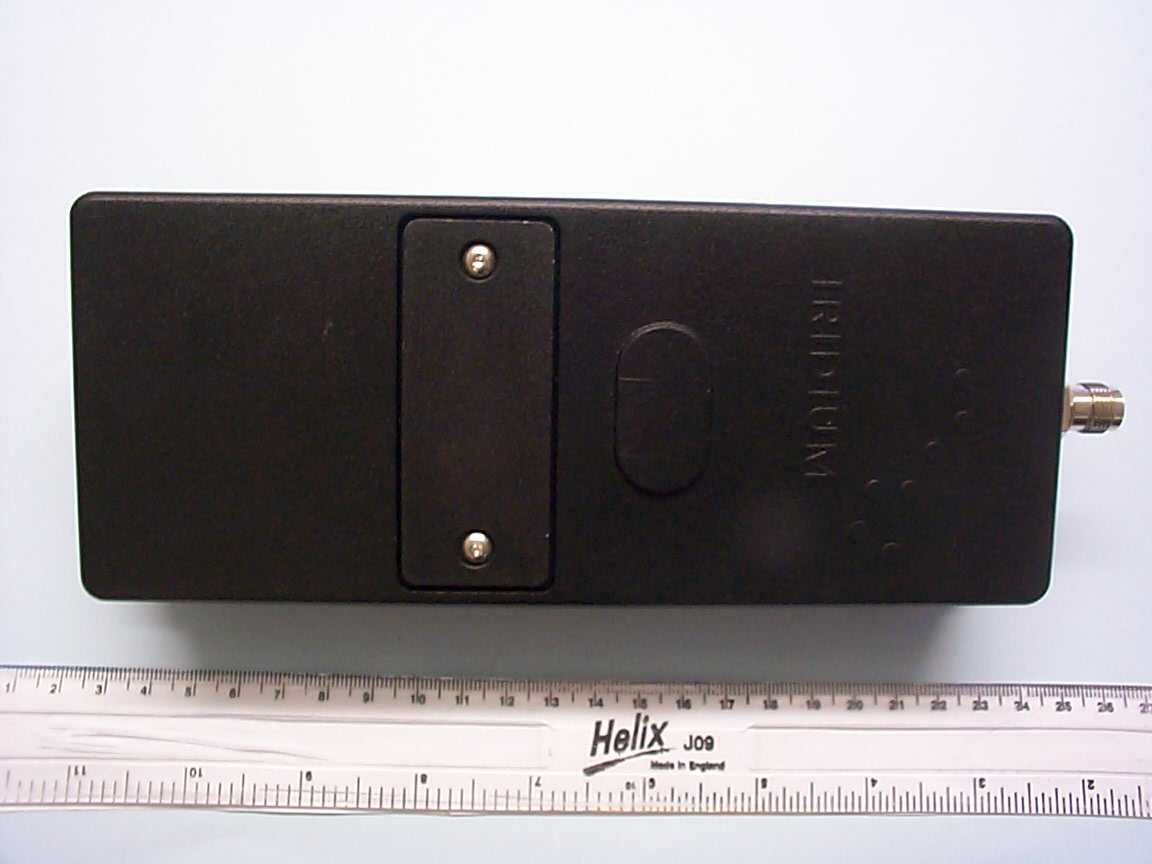

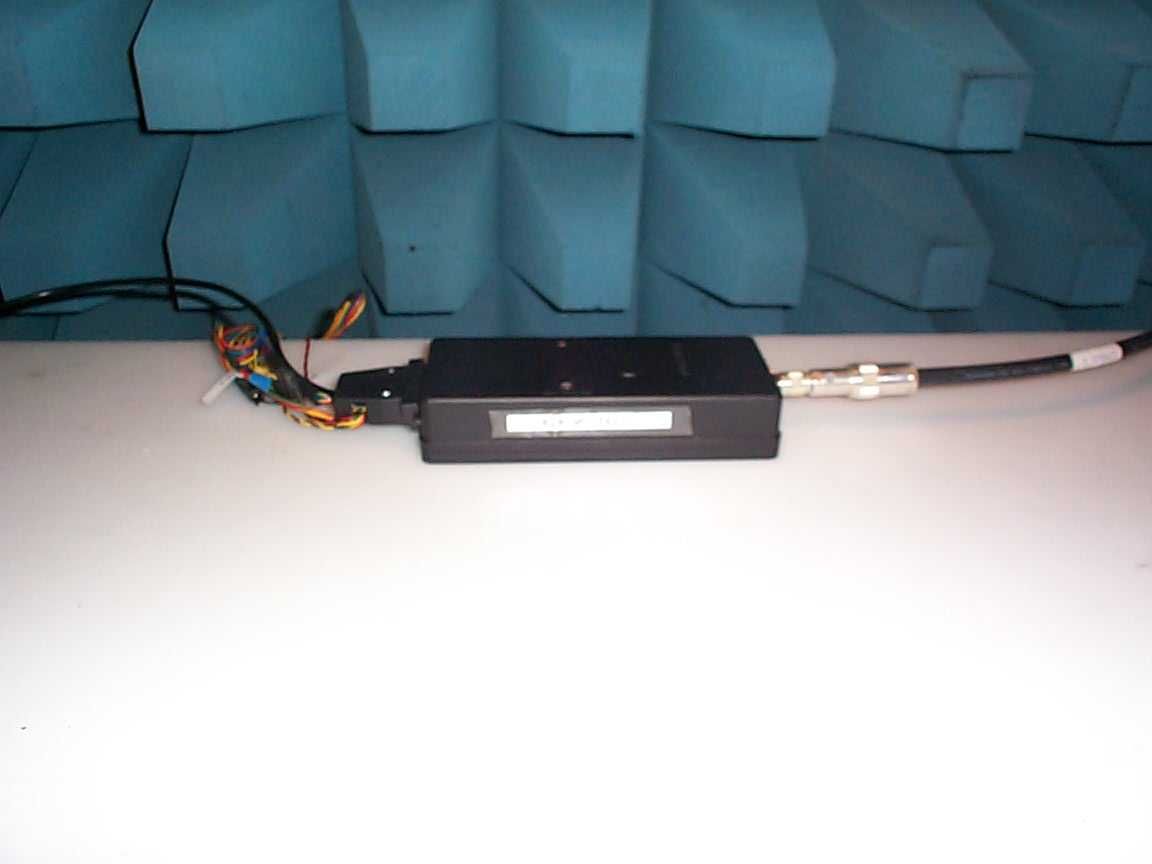

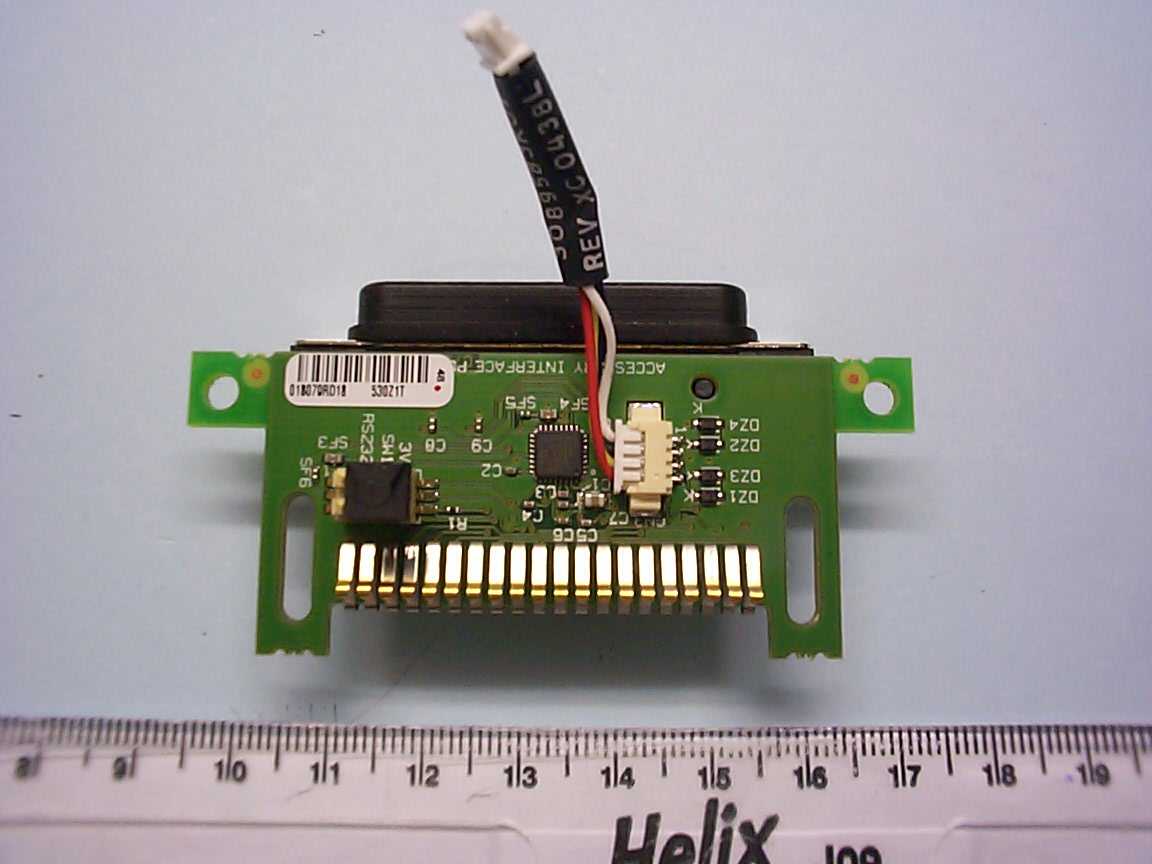

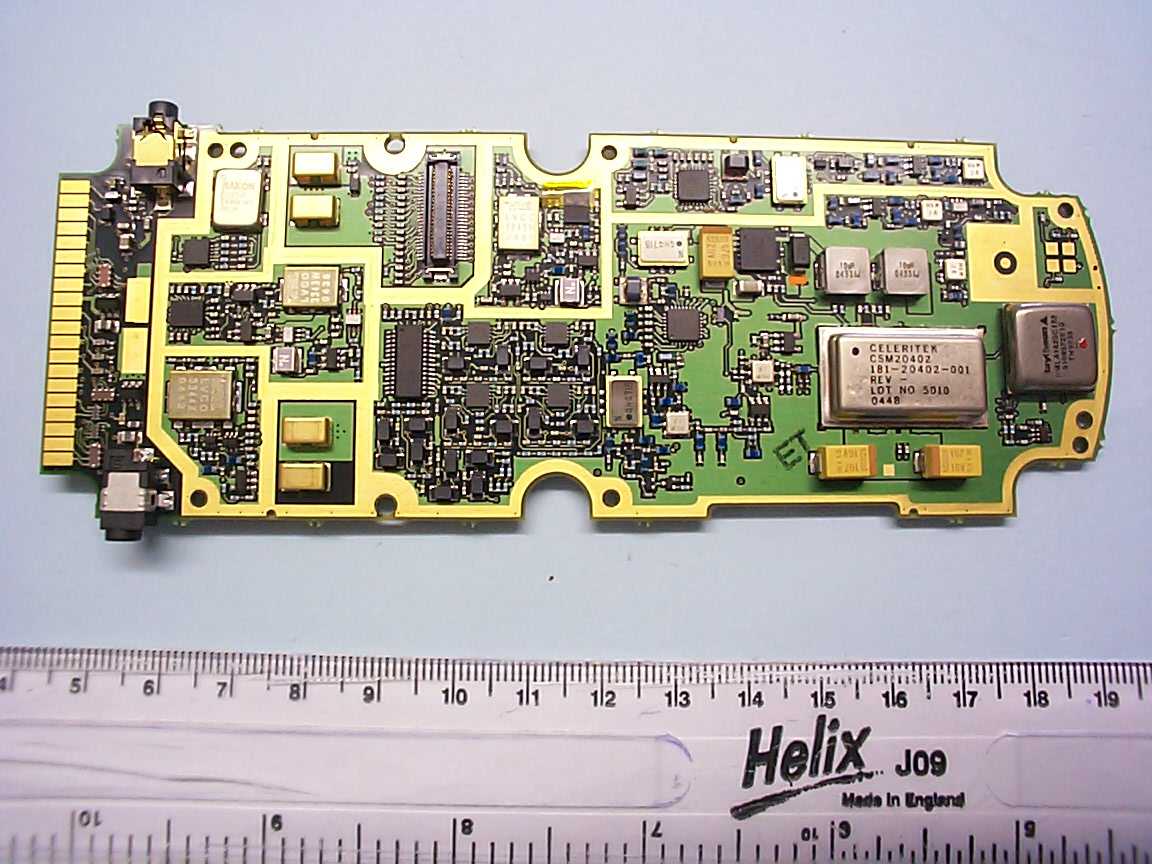

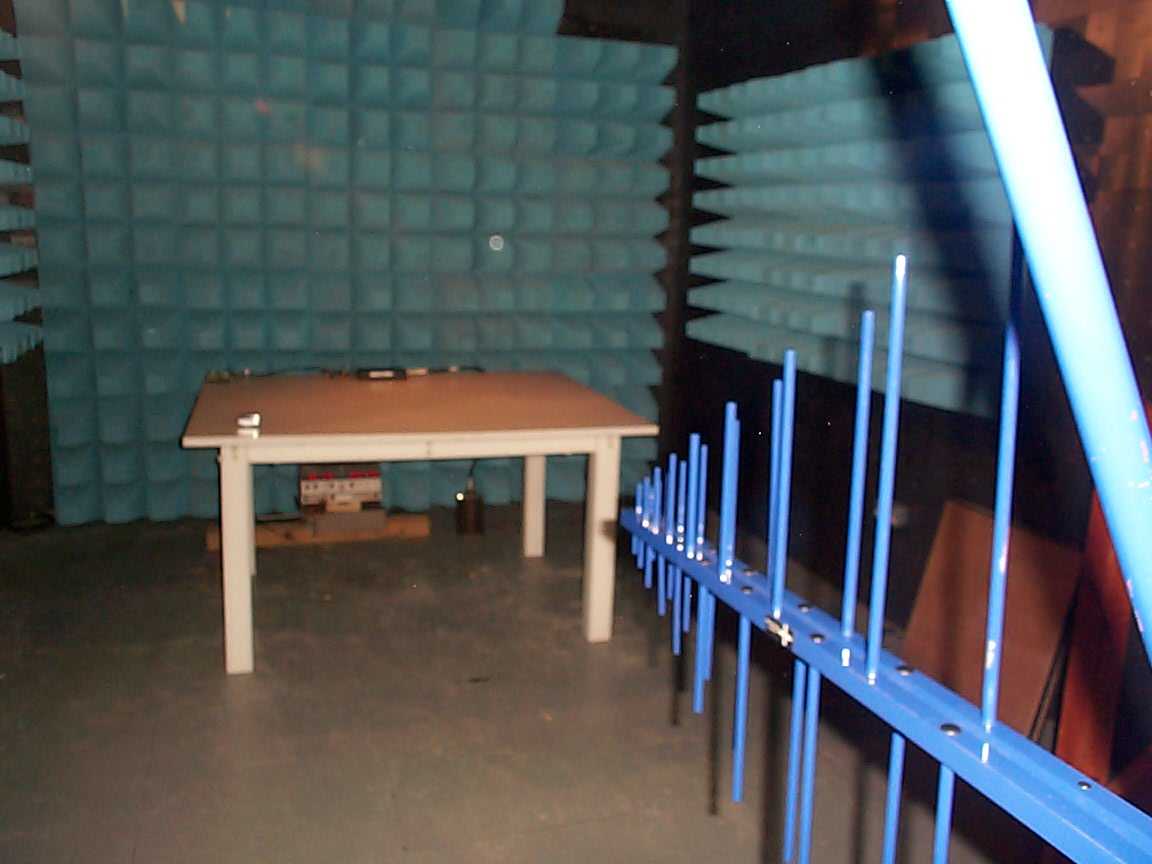

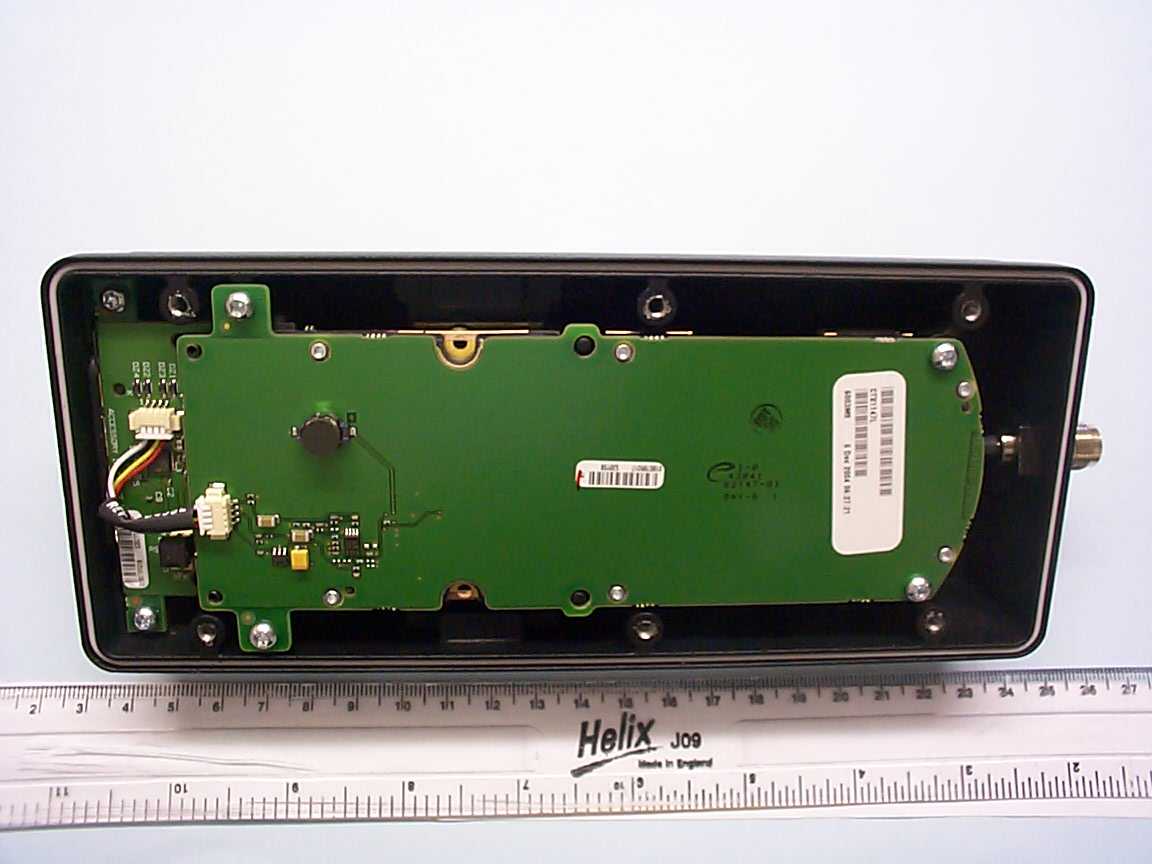

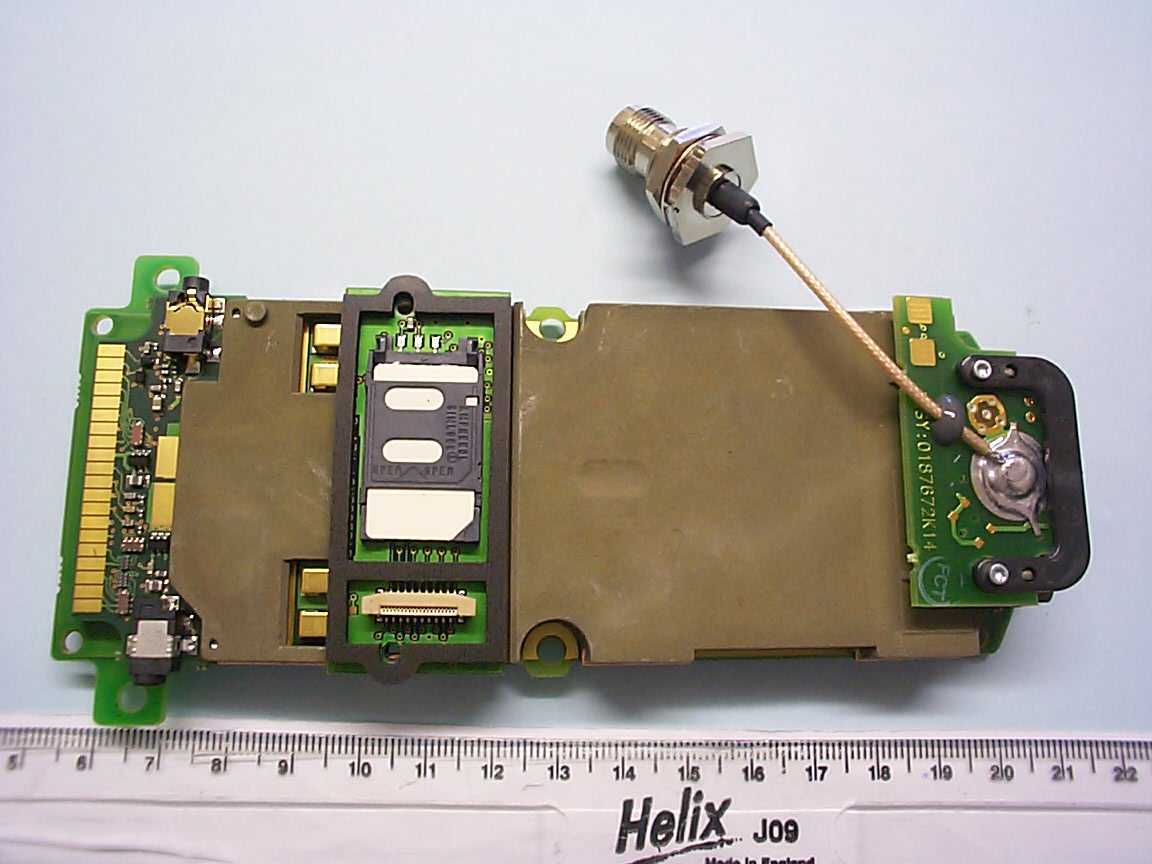

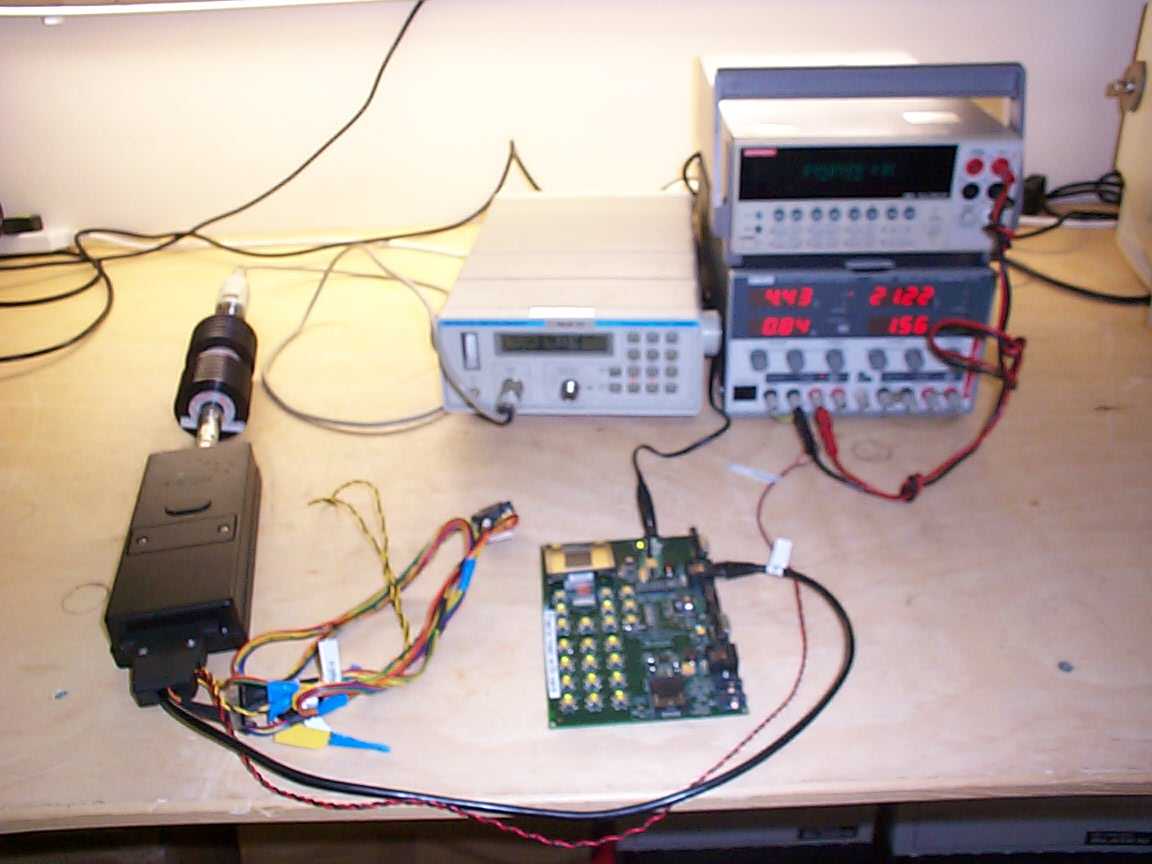

Q639522ASatellite L Band Transceiver 9522A

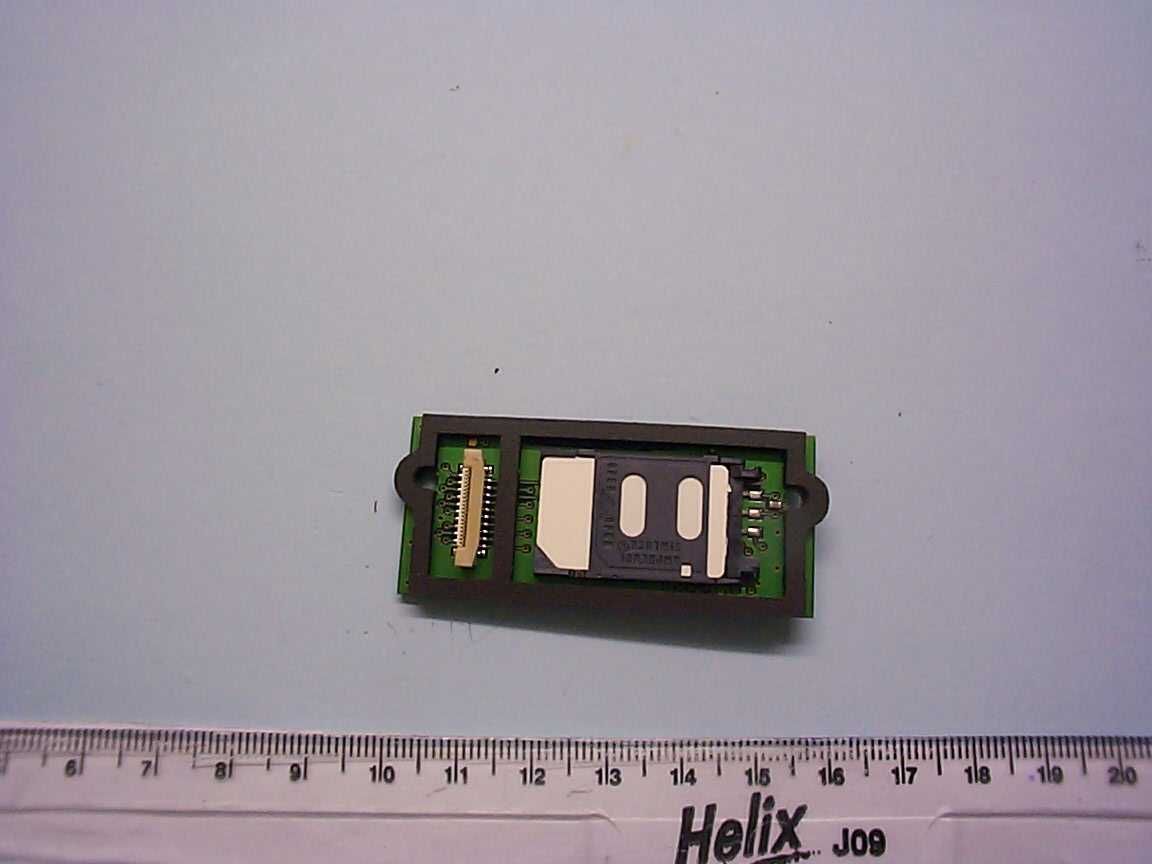

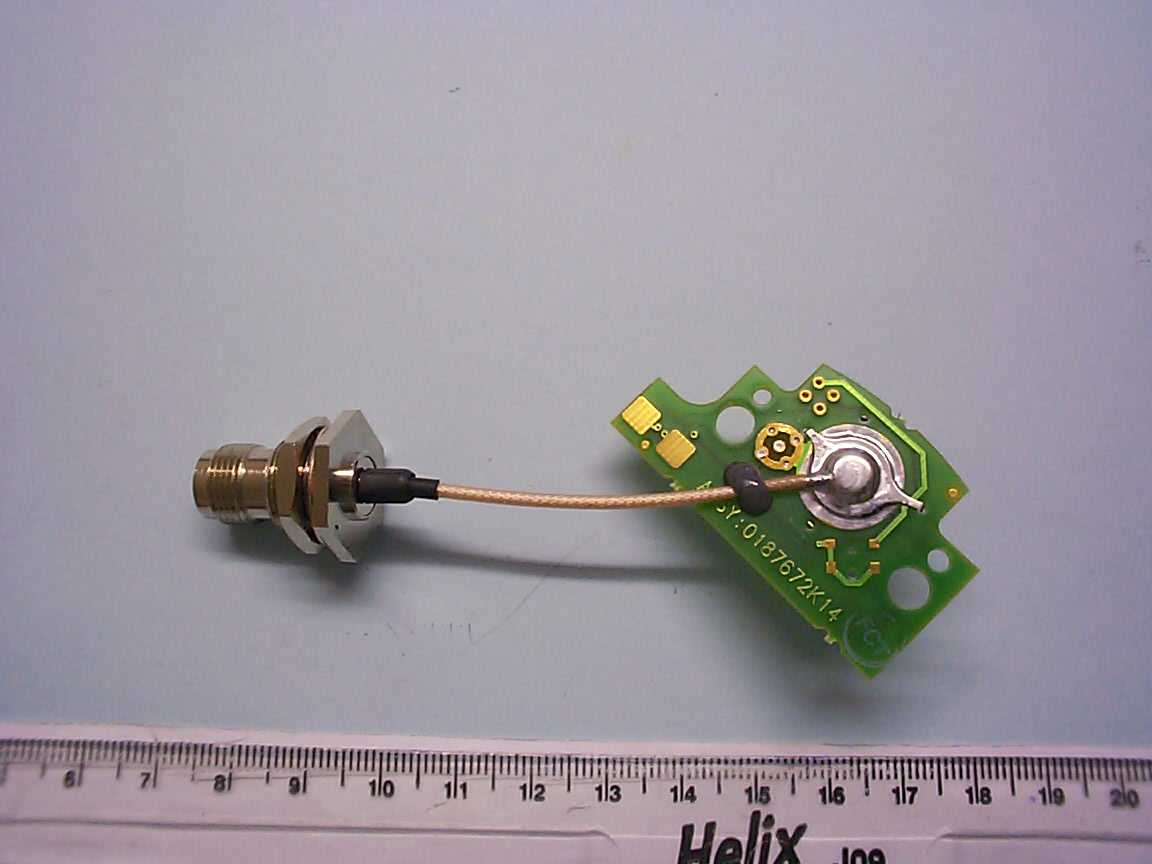

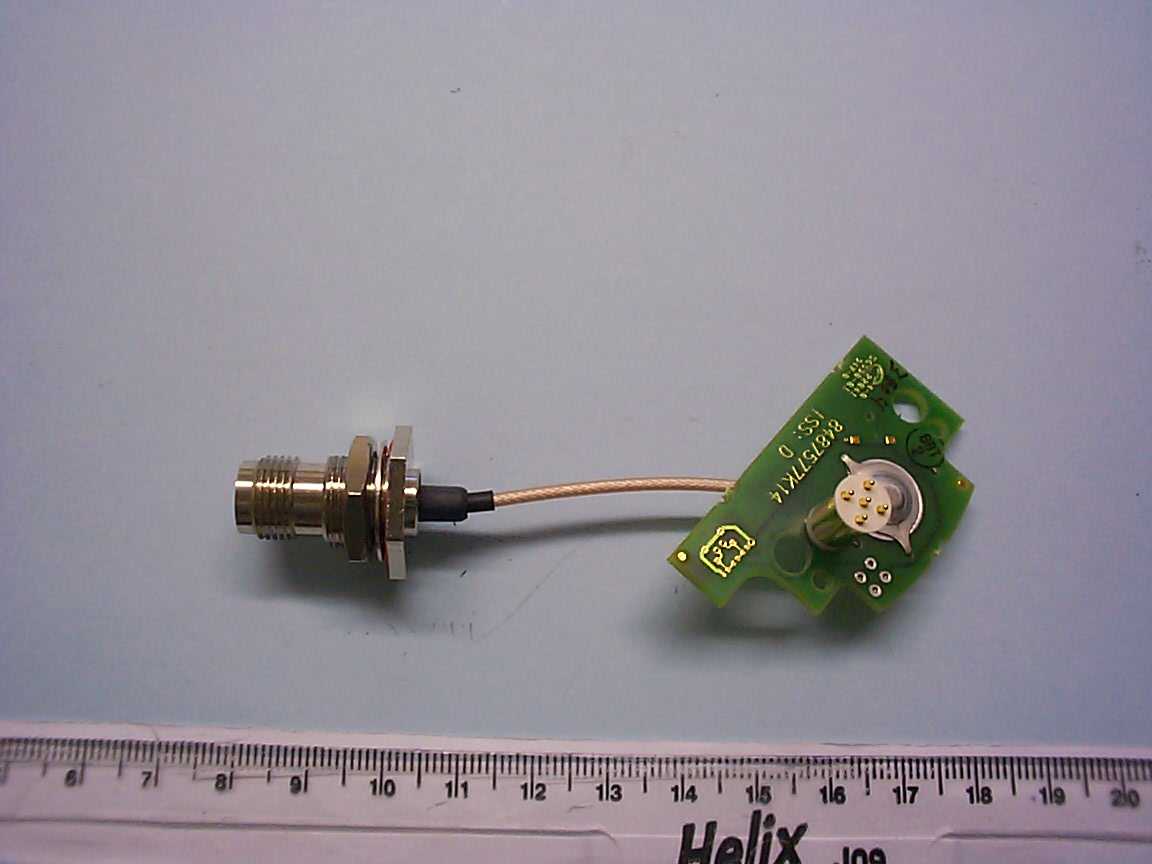

9522A L-BAND TRANSCEIVER USER’S GUIDE 43755_user_guide 2/1/05 5:00 PM Page 1 Contents Export Compliance Information. . . . 1 1 Product Overview. . . . . . . . . . . . . 1 2 Standards Compliance. . . . . . . . . 1 2.1 FCC Compliance . . . . . . . . . . . 1 2.2 CE Compliace . . . . . . . . . . . . . 1 3 Physical Specifications. . . . . . . . . 2 3.1 Environmental . . . . . . . . . . . . . 2 3.2 Dimensions . . . . . . . . . . . . . . . 2 3.3 Interface Connectors . . . . . . . 3 3.3.1 Multi-Interface Connector . . 3 3.3.2 Antenna Connector . . . . . . . 4 3.3.3 SIM Chip Reader . . . . . . . . . 4 3.4 Mounting . . . . . . . . . . . . . . . . . 4 3.5 Connector Sealing in Harsh Environments. . . . . . . . . . . . . . 5 4 Electrical Interfaces. . . . . . . . . . . 5 4.1 DC Power Interface . . . . . . . . . 5 4.1.1 DC Power Interface Signal Specifications. . . . . . . . . . . . 5 4.1.2 DC Power Input Specifications5 4.2 Control/Digital Audio (DPL Bus) Interface . . . . . . . 6 4.2.1 Control/Digital Audio Interface Signal Descriptions . . . . . . . 6 4.3 RS232 Data Interface . . . . . . . 6 43755_user_guide 2/1/05 5:00 PM Page 2 4.3.1 RS232 Data Signal Descriptions . . . . . . . . . . . . . 6 4.3.2 Autobaud . . . . . . . . . . . . . . . 6 4.4 Analog Audio Interface . . . . . . 6 4.4.1 Analog Audio Interface Signal Descriptions.. . . . . . . . . . . . . 6 4.5 SIM Interface . . . . . . . . . . . . . . 6 4.6 RF Interface . . . . . . . . . . . . . . . 7 4.6.1 RF Interface Specifications . 7 4.6.2 Radio Characteristics . . . . . 7 5 Instructions for Safe Installation. . . 7 5.1 Instructions for the Integrator 7 5.2 Instructions from the Integrator8 6 Modem Commands and Configuration8 Warranty. . . . . . . . . . . . . . . . . . . . . . . . 9 1 Coverage. . . . . . . . . . . . . . . . . . . . . 9 2 Conditions. . . . . . . . . . . . . . . . . . . . 9 3 Obtaining Warranty Service . . . . . . 9 4 General Provisions . . . . . . . . . . . . . 10 5 Conditions of Use . . . . . . . . . . . . . . 10 6 State Law . . . . . . . . . . . . . . . . . . . . 11 7 Contact . . . . . . . . . . . . . . . . . . . . . . 11 Declaration of Conformity. . . . . . . . . 12 43755_user_guide 2/1/05 5:00 PM Page 3 Export Compliance Information This product is controlled by the export laws and regulations of the United States of America. The U.S. Governement may restrict the export or re-export of this product to certain individuals and/or des- tinations. For further information, contact the U.S. Department of Commerce, Bureau of Industry and Security or visit www.bis.doc.gov. 1 Product Overview The 9522A L-Band Transceiver (LBT) is designed to be integrated into a specific application with other hardware and software to pro- duce a solution designed for a specific application or vertical market. Some examples of these solutions include a maritime voice telepho- ny terminal or a vehicle tracking solution. The LBT functionally supports all of Iridium’s voice and data servic- es. Applications can be built to use one or multiple services using the voice and data interfaces. The 9522A is a functional replacement to the 9522 “Sebring” LBT. However it should be noted that there are some differences to the voice interface. The 9522A is regulatory approved for FCC, Canada, and CE assum- ing an antenna with a gain of ≤3 dBi. This allows the LBT to be inte- grated into a variety of subscriber products, or retrofitted into exist- ing LBT-based products. These products, when integrated together will require Regulatory testing to be conducted by the integrator. The LBT is essentially provided as a ‘black box’ with all interfaces provided via a DB25 connector. The product provides the core trans- ceiver module and SIM card reader. All other functions and hardware such as keypad, display, power supply, antenna etc. must be provid- ed by the solution developer. The DB25 provides the following inter- faces and connections: • Analog Audio • Control / Digital Audio • RS232 • Power Input • On / Off 2 Standards Compliance The 9522A is designed to comply with the standards for Radio Emissions Compliance, Electromagnetic Compatibility, and AC Safety in the United States, European Union and Canada. 2.1 FCC Compliance The 9522A is certified under 47 CFR Part 25 as FCC ID:Q639522A. It also complies with Part 15 of the FCC Regulations. Operation is sub- ject to the condition that this device does not cause harmful interfer- ence. Any changes or modifications, including the use of a non-stan- dard antenna, not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT: To comply with FCC RF exposure requirements, a min- imum separation of 20 cm is required between the antenna and all persons. 2.2 CE Compliance This product, when marked with the CE symbol, complies with the European Community Council Directive for R&TTE, 99/5/EC, provid- ed that the integrator/user adheres to the instructions detailed in this LBT Interface Specification. This product is in compliance with appli- cable ETSI standards. Compliance with the requirements of ETSI EN 301 489 requires the use of a shielded digital data interface cable. 1 43755_user_guide 2/1/05 5:00 PM Page 4 3 Physical Specifications The 9522A LBT is depicted in Figure 1 below. Figure 1: Top View 3.1 Environmental The environmental specifications of the 9522A LBT are summarized in Table 1below. Table 1: Environmental Specifications 3.2 Dimensions The overall dimensions of the 9522A LBT and its weight are summa- rized in Table 2 below. Dimensioned views of the 9522A LBT are shown in Figures 2-5 to follow. Table 2: Mechanical Dimensions Figure 2: Side View 2 Parameter Value Operating Temperature Range -10ºC to + 55ºC Operating Humidity Range ≤ 75% RH Storage Temperature Range -40ºC to + 85ºC Storage Humidity Range ≤ 93% RH Parameter Value Length (including antenna connector) 216.1mm (8.51”) Length (excluding antenna connector) 196.4mm (7.73”) Width 82.6mm (…
