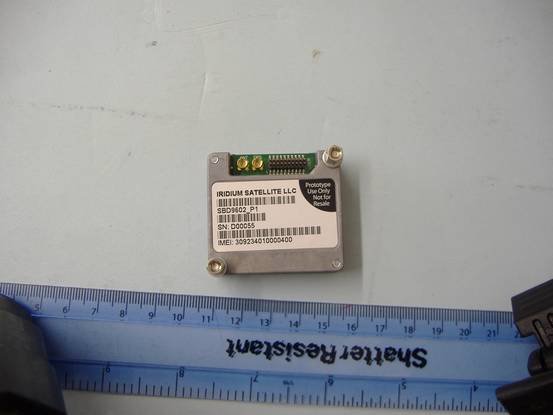

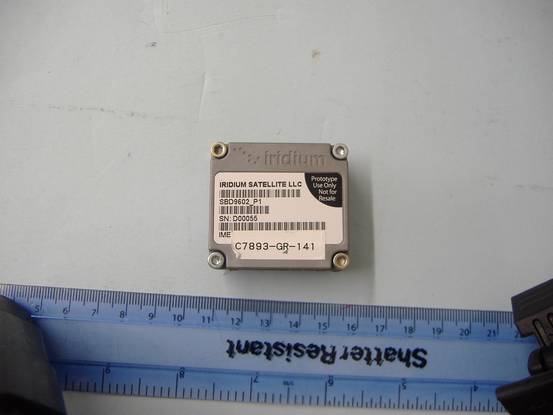

Q639602Iridium Satellite Transceiver Module 9602

>>>>>>>>>>>>>DRAFT COPY ONLY<<<<<<<<<<< RELEASE RESTRICTED TO PRODUCT DEVELOPERS ONLY 9602 SBD Product Developer’s Guide Iridium Communications Inc. Proprietary & Confidential Information Iridium Communications Inc. 6707 Democracy Blvd., Suite 300 Bethesda, MD 20817 USA www.iridium.com Toll Free: +1.866.947.4348 [US Only] International +1.480.752.5155 email: [email protected] Iridium Communications Inc. Information Contained in this Guide 9602 SBD Transceiver Product Developers Guide is Subject to Change Without Notice Revision 4 Iridium Communications Inc. Distribution of Guide Restricted Proprietary & Confidential Information 2 to Product Developers Only LEGAL DISCLAIMER AND CONDITIONS OF USE This document contains information for the Iridium 9602 Short Burst Data Transceiver and accompanying accessories (“Product”) is provided “as is.” The purpose of providing such information is to enable Value Added Resellers and Value Added Manufacturers (collectively, “Product Developer(s)”) to understand the Product and how to integrate it into a wireless data solution. Reasonable effort has been made to make the information in this document reliable and consistent with specifications, test measurements and other information. However, Iridium Communications Inc. and its affiliated companies, directors, officers, employees, agents, trustees or consultants (“Iridium”) assume no responsibility for any typographical, technical, content or other inaccuracies in this document. Iridium reserves the right in its sole discretion and without notice to you to change Product specifications and materials and/or revise this document or withdraw it at any time. The Product Developer assumes the full risk of using the Product specifications and any other information provided. IRIDIUM MAKES NO REPRESENTATIONS, GUARANTEES, CONDITIONS OR WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY IMPLIED REPRESENTATIONS, GUARANTEES, CONDITIONS OR WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, SATISFACTORY QUALITY, NON-INTERFERENCE, ACCURACY OF INFORMATIONAL CONTENT, OR ARISING FROM A COURSE OF DEALING, LAW, USAGE, OR TRADE PRACTICE, USE, OR RELATED TO THE PERFORMANCE OR NONPERFORMANCE OF ANY PRODUCTS, ACCESSORIES, FACILITIES OR SERVICES OR INFORMATION EXCEPT AS EXPRESSLY STATED IN THIS GUIDE AND/OR THE PRODUCT AND/OR SATELLITE SERVICE DOCUMENTATION. ANY OTHER STANDARDS OF PERFORMANCE, GUARANTEES, CONDITIONS AND WARRANTIES ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. THIS DISCLAIMER AND EXCLUSION SHALL APPLY EVEN IF THE EXPRESS LIMITED WARRANTY CONTAINED IN THIS GUIDE OR SUCH DOCUMENTATION FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL IRIDIUM BE LIABLE, WHETHER IN CONTRACT OR TORT OR ANY OTHER LEGAL THEORY, INCLUDING WITHOUT LIMITATION STRICT LIABILITY, GROSS NEGLIGENCE OR NEGLIGENCE, FOR ANY DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, INCLUDING ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF PRIVACY, LOSS OF USE, LOSS OF TIME OR INCONVENIENCE, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS CAUSED BY THE PRODUCT (INCLUDING HARDWARE, SOFTWARE AND/OR FIRMWARE) AND/OR THE IRIDIUM SATELLITE SERVICES, OR ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCT (INCLUDING HARDWARE, SOFTWARE AND/OR FIRMWARE) AND/OR THE IRIDIUM SATELLITE SERVICES TO THE FULLEST EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW AND WHETHER ADVISED OF THE POSSIBILITIES OF SUCH DAMAGES. IRIDIUM IS NOT LIABLE FOR ANY CLAIM MADE BY A THIRD PARTY OR MADE BY YOU FOR A THIRD PARTY. Your use of the information contained in this Guide is restricted to the development activity authorized under the agreement(s) between you and Iridium, and is otherwise subject to all applicable terms and conditions of such agreement(s), including without limitation software license, warranty, conditions of use and confidentiality provisions. Export Compliance Information This Product is controlled by the export laws and regulations of the United States of America. The U.S. Government may restrict the export or re-export of this Product to certain individuals and/or destinations. For further information, contact the U.S. Department of Commerce, Bureau of Industry and Security or visit www.bis.doc.gov . Iridium Communications Inc. Information Contained in this Guide 9602 SBD Transceiver Product Developers Guide is Subject to Change Without Notice Revision 4 Iridium Communications Inc. Distribution of Guide Restricted Proprietary & Confidential Information 3 to Product Developers Only Revision History Revision Date Comment 0.1 Sep 11 2009 First revision adapted from 9601 Product Developers Guide v1.25 0.2 Oct 20 2009 Updated following feedback from ISLLC 4.0 Mar 1 2010 Update following FP-1 build Iridium Communications Inc. Information Contained in this Guide 9602 SBD Transceiver Product Developers Guide is Subject to Change Without Notice Revision 4 Iridium Communications Inc. Distribution of Guide Restricted Proprietary & Confidential Information 4 to Product Developers Only Contents Revision History ............................................................................................................................. 3 Contents ........................................................................................................................................ 4 List of Abbreviations ...................................................................................................................... 6 1 Product Overview ................................................................................................................... 6 1.1 Key Features .............................................................................................................. 6 1.2 Transceiver Packaging and Regulatory Certification …

Text truncated - open the document above for the full version.

>>>>>>>>>>>>>DRAFT COPY ONLY<<<<<<<<<<< RELEASE RESTRICTED TO PRODUCT DEVELOPERS ONLY 9602 SBD Product Developer’s Guide Iridium Communications Inc. Proprietary & Confidential Information Iridium Communications Inc. 6707 Democracy Blvd., Suite 300 Bethesda, MD 20817 USA www.iridium.com Toll Free: +1.866.947.4348 [US Only] International +1.480.752.5155 email: [email protected] Iridium Communications Inc. Information Contained in this Guide 9602 SBD Transceiver Product Developers Guide is Subject to Change Without Notice Revision 4 Iridium Communications Inc. Distribution of Guide Restricted Proprietary & Confidential Information 2 to Product Developers Only LEGAL DISCLAIMER AND CONDITIONS OF USE This document contains information for the Iridium 9602 Short Burst Data Transceiver and accompanying accessories (“Product”) is provided “as is.” The purpose of providing such information is to enable Value Added Resellers and Value Added Manufacturers (collectively, “Product Developer(s)”) to understand the Product and how to integrate it into a wireless data solution. Reasonable effort has been made to make the information in this document reliable and consistent with specifications, test measurements and other information. However, Iridium Communications Inc. and its affiliated companies, directors, officers, employees, agents, trustees or consultants (“Iridium”) assume no responsibility for any typographical, technical, content or other inaccuracies in this document. Iridium reserves the right in its sole discretion and without notice to you to change Product specifications and materials and/or revise this document or withdraw it at any time. The Product Developer assumes the full risk of using the Product specifications and any other information provided. IRIDIUM MAKES NO REPRESENTATIONS, GUARANTEES, CONDITIONS OR WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY IMPLIED REPRESENTATIONS, GUARANTEES, CONDITIONS OR WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, SATISFACTORY QUALITY, NON-INTERFERENCE, ACCURACY OF INFORMATIONAL CONTENT, OR ARISING FROM A COURSE OF DEALING, LAW, USAGE, OR TRADE PRACTICE, USE, OR RELATED TO THE PERFORMANCE OR NONPERFORMANCE OF ANY PRODUCTS, ACCESSORIES, FACILITIES OR SERVICES OR INFORMATION EXCEPT AS EXPRESSLY STATED IN THIS GUIDE AND/OR THE PRODUCT AND/OR SATELLITE SERVICE DOCUMENTATION. ANY OTHER STANDARDS OF PERFORMANCE, GUARANTEES, CONDITIONS AND WARRANTIES ARE HEREBY EXPRESSLY EXCLUDED AND DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. THIS DISCLAIMER AND EXCLUSION SHALL APPLY EVEN IF THE EXPRESS LIMITED WARRANTY CONTAINED IN THIS GUIDE OR SUCH DOCUMENTATION FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL IRIDIUM BE LIABLE, WHETHER IN CONTRACT OR TORT OR ANY OTHER LEGAL THEORY, INCLUDING WITHOUT LIMITATION STRICT LIABILITY, GROSS NEGLIGENCE OR NEGLIGENCE, FOR ANY DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, INCLUDING ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF PRIVACY, LOSS OF USE, LOSS OF TIME OR INCONVENIENCE, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS CAUSED BY THE PRODUCT (INCLUDING HARDWARE, SOFTWARE AND/OR FIRMWARE) AND/OR THE IRIDIUM SATELLITE SERVICES, OR ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCT (INCLUDING HARDWARE, SOFTWARE AND/OR FIRMWARE) AND/OR THE IRIDIUM SATELLITE SERVICES TO THE FULLEST EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW AND WHETHER ADVISED OF THE POSSIBILITIES OF SUCH DAMAGES. IRIDIUM IS NOT LIABLE FOR ANY CLAIM MADE BY A THIRD PARTY OR MADE BY YOU FOR A THIRD PARTY. Your use of the information contained in this Guide is restricted to the development activity authorized under the agreement(s) between you and Iridium, and is otherwise subject to all applicable terms and conditions of such agreement(s), including without limitation software license, warranty, conditions of use and confidentiality provisions. Export Compliance Information This Product is controlled by the export laws and regulations of the United States of America. The U.S. Government may restrict the export or re-export of this Product to certain individuals and/or destinations. For further information, contact the U.S. Department of Commerce, Bureau of Industry and Security or visit www.bis.doc.gov . Iridium Communications Inc. Information Contained in this Guide 9602 SBD Transceiver Product Developers Guide is Subject to Change Without Notice Revision 4 Iridium Communications Inc. Distribution of Guide Restricted Proprietary & Confidential Information 3 to Product Developers Only Revision History Revision Date Comment 0.1 Sep 11 2009 First revision adapted from 9601 Product Developers Guide v1.25 0.2 Oct 20 2009 Updated following feedback from ISLLC 4.0 Mar 1 2010 Update following FP-1 build Iridium Communications Inc. Information Contained in this Guide 9602 SBD Transceiver Product Developers Guide is Subject to Change Without Notice Revision 4 Iridium Communications Inc. Distribution of Guide Restricted Proprietary & Confidential Information 4 to Product Developers Only Contents Revision History ............................................................................................................................. 3 Contents ........................................................................................................................................ 4 List of Abbreviations ...................................................................................................................... 6 1 Product Overview ................................................................................................................... 6 1.1 Key Features .............................................................................................................. 6 1.2 Transceiver Packaging and Regulatory Certification …

Text truncated - open the document above for the full version.

Attestation Statement Concerning the Iridium 9602 Transceiver TRaC test report 0F3048WUS1 FCC ID: Q639602 Incorrect Carrier Power. This is to confirm that the TRaC test report 0F3048WUS1 contains an incorrect conducted carrier power measurement. The conducted carrier power is shown in this report as 31.51dBm. This report was submitted and a grant issued under FCC ID Q639602. Subsequently, after the report was issued a fault was discovered with the power sensor head, serial No. 1564 used for this measurement. This fault is not apparent during the normal set up and calibration procedure for the power sensor. The power sensor head fails to read the correct power only in very specific frequency bands. The conducted carrier power has been re-measured using an alternative power sensor head, Serial No. 236997/010 and the measured levels were found to be higher than those previously recorded. The measurement was then cross checked with a third sensor head Serial No. 100002 and found to give the same result. The new power levels are now recorded in TRaC test report 0F3048WUS1-3 and a comparison is in the table below, in both cases the measurements are seen to be below the required limits. Channel Number Incorrect level Correct Level Limit Level 1 31.38 dBm 34.48 dBm 70 dBm 75 31.40 dBm 34.49 dBm 70 dBm 150 31.47 dBm 34.40 dBm 70 dBm 240 31.51 dBm 34.38 dBm 70 dBm In order to avoid this problem in the future, we have now changed our procedure for the measurement of conducted power to include a second power sensor. If you require any further details about the measurement and the power sensor head originally used I will be happy to supply these. I declare under penalty of perjury under the laws of the United States of America that the foregoing is true and correct. Executed on November 11, 2011. John Charters Radio Product Manager TRaC Global Ltd.

1 : 1 mm 9602 Product Approval Label (41mm x 45mm casework) 1 1 C7893-AW-002 NAMD 19-May-2009 3M 7816 Thermal Transfer Label Mtl 2.0 mil (51 micron) Gloss Radiant White Polyester, 0.8 mil (20 micron) #310 Acrylic Adhesive, 3.2 mil (81 micron) 55# Densified kraft liner (backing sheet or roll) (TBC) Printed as shown - using Ribbon TR4070 (TBC) 100 mm 100 mm 100 mm 100 mm THIRD ANGLE PROJECTION TITLE SHEET OF CCL DRAWING No. MATERIAL FINISH SCALEDIM’S IN DRAWN BY DATE CHECKED STANDARD TOLERANCES WHOLE NUMBERS (eg 35) ±0.5mm SINGLE DECIMAL (eg 35.3) ±0.2mm DOUBLE DECIMAL (eg 35.30) ±0.1mm WHOLE NUMBER ANGLE (eg 90°) ±1° SINGLE DECIMAL ANGLE (eg 90.0°) ±0.5° CCL FreeHand Drawing Format A3 © Cambridge Consultants Limited, 2009 Address: Science Park, Milton Road, Cambridge, CB4 0DW, England Telephone: +44 (0)1223 420024 ISSUE CHANGE NOTE No. APPROVED / DATE SUPPLIER’S REFCLIENT’S REF COMMERCIALLY CONFIDENTIAL. This Drawing contains ideas and information which are proprietary to Cambridge Consultants Limited: it is given to you in confidence. You are authorised to open and view any electronic copy we send you of this document within your organisation and to print a single copy. Otherwise the material may not in whole or in part be copied, stored electronically or communicated to third parties without the prior written agreement of Cambridge Consultants Limited. 0.6N/A / N/AN/A IRIDIUM SATELLITE LLC Transceiver Model 9602 IC: 4629A-9602 FCCID: Q639602 RoHS Compliant. CAUTION : Read instructions on use & disposal. Assembled in Malaysia. To Contact Iridium Satellite: +1.480.752.5155 No User Serviceable Parts - Warranty void if opened N12037 IRIDIUM SATELLITE LLC Transceiver Model 9602 IC: 4629A-9602 FCCID: Q639602 RoHS Compliant. CAUTION : Read instructions on use & disposal. Assembled in Malaysia. To Contact Iridium Satellite: +1.480.752.5155 No User Serviceable Parts - Warranty void if opened N12037 NOTES 1. Printed PANTONE Colour(s) : Process Black on White Background 2. NON-VARYING PRINT : To be based on .eps file of same File Name and Issue No. 3. Position Label as shown below on back of product casework - application to be free from creases and bubbles 4. VARYING PRINT : none Product Approval Label : Title text is set in “TheMix 7-Bold” 6-point Body text is set in “TheMix 5” 5- or 6-point Numbers are set in “TheMix 5C-Caps” 5- or 6-point 41.0 23.0 R 2.00 (4 POS’N)

1 : 1 mm 9602 Product Approval Label (41mm x 45mm casework) 1 1 C7893-AW-002 NAMD 19-May-2009 3M 7816 Thermal Transfer Label Mtl 2.0 mil (51 micron) Gloss Radiant White Polyester, 0.8 mil (20 micron) #310 Acrylic Adhesive, 3.2 mil (81 micron) 55# Densified kraft liner (backing sheet or roll) (TBC) Printed as shown - using Ribbon TR4070 (TBC) 100 mm 100 mm 100 mm 100 mm THIRD ANGLE PROJECTION TITLE SHEET OF CCL DRAWING No. MATERIAL FINISH SCALEDIM’S IN DRAWN BY DATE CHECKED STANDARD TOLERANCES WHOLE NUMBERS (eg 35) ±0.5mm SINGLE DECIMAL (eg 35.3) ±0.2mm DOUBLE DECIMAL (eg 35.30) ±0.1mm WHOLE NUMBER ANGLE (eg 90°) ±1° SINGLE DECIMAL ANGLE (eg 90.0°) ±0.5° CCL FreeHand Drawing Format A3 © Cambridge Consultants Limited, 2009 Address: Science Park, Milton Road, Cambridge, CB4 0DW, England Telephone: +44 (0)1223 420024 ISSUE CHANGE NOTE No. APPROVED / DATE SUPPLIER’S REFCLIENT’S REF COMMERCIALLY CONFIDENTIAL. This Drawing contains ideas and information which are proprietary to Cambridge Consultants Limited: it is given to you in confidence. You are authorised to open and view any electronic copy we send you of this document within your organisation and to print a single copy. Otherwise the material may not in whole or in part be copied, stored electronically or communicated to third parties without the prior written agreement of Cambridge Consultants Limited. 0.6N/A / N/AN/A IRIDIUM SATELLITE LLC Transceiver Model 9602 IC: 4629A-9602 FCCID: Q639602 RoHS Compliant. CAUTION : Read instructions on use & disposal. Assembled in Malaysia. To Contact Iridium Satellite: +1.480.752.5155 No User Serviceable Parts - Warranty void if opened N12037 IRIDIUM SATELLITE LLC Transceiver Model 9602 IC: 4629A-9602 FCCID: Q639602 RoHS Compliant. CAUTION : Read instructions on use & disposal. Assembled in Malaysia. To Contact Iridium Satellite: +1.480.752.5155 No User Serviceable Parts - Warranty void if opened N12037 NOTES 1. Printed PANTONE Colour(s) : Process Black on White Background 2. NON-VARYING PRINT : To be based on .eps file of same File Name and Issue No. 3. Position Label as shown below on back of product casework - application to be free from creases and bubbles 4. VARYING PRINT : none Product Approval Label : Title text is set in “TheMix 7-Bold” 6-point Body text is set in “TheMix 5” 5- or 6-point Numbers are set in “TheMix 5C-Caps” 5- or 6-point 41.0 23.0 R 2.00 (4 POS’N)

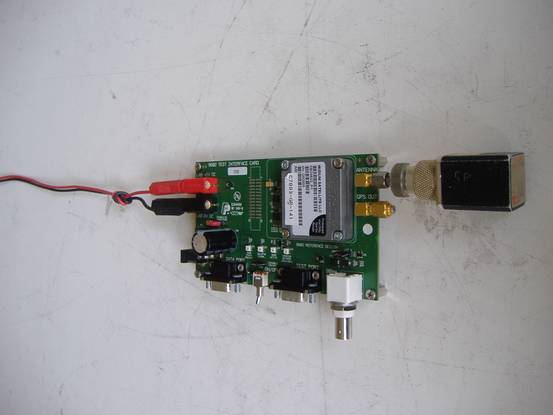

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup1: EUTAttenuatorCombiner TRLUH281 / Splitter CompanionAttenuator Device Formula: S=EIRP/ 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S=1415.8/ 4 π 20mW/cm 2 S=0.28mW/cm 2 Notes: 1.The unit will be mounted at least 20cm away from the body. 2.The carrier power EIRP of 1415.8mW was the worst case peak level measured. 3.The carrier power EIRP includes worst case gain antenna of 3dBi 4.The units EIRP is less than 3 watts so under 2.1091 the unit does not require routineSAR evaluation Limit The limit of Power density for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup1: EUTAttenuatorCombiner TRLUH281 / Splitter CompanionAttenuator Device Formula: S=EIRP/ 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S=1415.8/ 4 π 20mW/cm 2 S=0.28mW/cm 2 Notes: 1.The unit will be mounted at least 20cm away from the body. 2.The carrier power EIRP of 1415.8mW was the worst case peak level measured. 3.The carrier power EIRP includes worst case gain antenna of 3dBi 4.The units EIRP is less than 3 watts so under 2.1091 the unit does not require routineSAR evaluation Limit The limit of Power density for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

This report corrects the priorreport for FCC ID No.Q639602 to set forth replacement data reflecting more accurate conducted power measurements REPORT ON THE CERTIFICATION TESTING OF AN IRIDIUM SATELLITE LLC 9602TRANSCEIVER WITH RESPECT TO FCC RULES CFR 47, PART 25 AND FCC RULES CFR 47, PART 15 TEST REPORT NO:0F3048WUS1-2 COPY NO:1 ISSUE NO:3 FCC ID:Q639602 REPORT ON THE CERTIFICATION TESTING OF AN IRIDIUM SATELLITE LLC 9602TRANSCEIVER WITH RESPECT TO FCC RULES CFR 47, PART 25 AND FCC RULES CFR 47, PART 15 APPROVED BY:J CHARTERS RADIO PRODUCT MANAGER DATE:1 st December2011 Distribution: Copy Nos:1.Iridium Satellite LLC 2.TCB: TRaC Global 3.TRaC Global THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE 0F3048WUS1-2Page 3 of 62 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE4 APPLICANT’S SUMMARY5 EQUIPMENT TEST CONDITIONS6 TESTS REQUIRED6 PRODUCT DESCRIPTION & STANDARDS REFERENCES7 TEST RESULTS – Transmitter RF Output Power - Conducted8 Emissions Limitations - Conducted9 Spurious Emissions - Conducted10 Spurious Emissions - Radiated 11 Frequency Stability -Temperature12 Frequency Stability -Voltage13 TEST RESULTS – Unintentional Radiator Spurious Emissions - Radiated14 Conducted Emissions –AC Powerline Conduction15 ANNEX PHOTOGRAPHSA APPLICANT’S SUBMISSION OF DOCUMENTATION LISTB TEST EQUIPMENT LISTC EQUIPMENT CALIBRATIOND MEASUREMENT UNCERTAINTYE DUTY CYCLE F EMISSIONS LIMITATIONSG TRANSMITTER SPURIOUSEMISSIONS– ConductedH TRANSMITTER SPURIOUS EMISSIONS– RadiatedI FREQUENCY STABILITY – TemperatureJ FREQUENCY STABILITY – VoltageK UNINTENTIONAL RADIATED EMISSIONSL CONDUCTED EMISSIONS – AC POWERLINE CONDUCTIONM Notes:1.Component failure during test YES[ ]NO[X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. CERTIFICATE OF CONFORMITY & COMPLIANCE 0F3048WUS1-2 FCC IDENTITY:Q639602 PURPOSE OF TEST:Certification TEST SPECIFICATION:FCC RulesCFR 47, Part25& Part 15 TEST RESULT:Compliant to Specification ITU EMISSIONS DESIGNATOR41K7Q7D EQUIPMENT UNDER TEST:9602Transceiver EQUIPMENT TYPE:Satellite Communications Module PEAKOUTPUTPOWER(EIRP):4.48dBW, 2.81W MEAN OUTPUT POWER(EIRP):-5.88dBW, 0.26W CHANNEL SPACING:41.667 kHz NUMBER OF CHANNELS:252(240 Transmit Channels) MODULATION TYPE:Q7D POWER SOURCE(s):+5Vdc TEST DATE(s): 19 th October 2011 – RF Output power 24 th February – 9 th March 2010- All other tests APPLICANT:IridiumSatellite LLC ADDRESS:6707 Democracy Blvd. Suite 300 Bethesda United States of America MD 20817 TESTED BY:D WINSTANLEY APPROVED BY:J CHARTERS RADIO PRODUCT MANAGER 0F3048WUS1-2Page 5 of 62 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):9602Transceiver EQUIPMENT TYPE:Satellite Communications Module PURPOSE OF TEST:Certification TEST SPECIFICATION(s):FCC Rules CFR 47, Part 25 & Part 15 TEST RESULT:COMPLIANTYes No [X] [ ] APPLICANT’S CATEGORY:MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S CONTACT PERSON(s):Donna Bethea-Murphy E-mail address:[email protected] APPLICANT:Iridium Satellite LLC ADDRESS:6707Democracy Blvd. Suite 300 Bethesda United States of America MD 20817 TEL:+1 301 571 6277 FAX:+1 301 571 6250 MANUFACTURER:Iridium Satellite LLC DEVELOPMENT AGENT:Cambridge Consultants Limited DEVELOPMENT AGENTS CONTACT PERSON(s):Ms M Campbell E-mail address:[email protected] ADDRESS:Science Park Milton Road Cambridge CB4 4DW United Kingdom TEL:+44(0)1223 420024 FAX:+44 (0)1223 423373 EUT(s) COUNTRY OF ORIGIN:United States TEST LABORATORY:TRaC Global, Up Holland TEST DATE(s): 19 th October 2011 – RF Output power 24 th February – 9 th March 2010- All other tests TEST REPORT No:0F3048WUS1-2 0F3048WUS1-2Page 6 of 62 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1.TEST/EXAMINATIONFCC Part 2FCC Part 25APPLICABILITYRESULT RF Power Output-25.204(a)YESPASS Emissions Limitations-25.202(f)YESPASS Spurious Emissions at Antenna Terminals 2.1051 25.202(f) 25.213 YESPASS Protection of the Radio Navigation Satellite Service - 25.216(c) 25.216(f) YESPASS Spurious Emissions Radiated2.1053 25.202(f) 25.213 YESPASS Frequency Stability Temperature2.105525.202(d)YESPASS Frequency Stability Voltage2.105525.202(d)YESPASS Note: The 9602Transceiveris subject to FCC Part 25 & Part 2 for FCC Certification for units marketed within the United States. The above tests, as specified in FCC Part 2, with limits as defined in FCC Part 25 were performed on the 9602Transceiver. 2.Product Use:Satellite Telephone and Data Communications 3.Emission Designator:41k7Q7D 4.Temperatures:Ambient (Tnom) 20 o C 5.Supply Voltages:Vnom+5Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel[ ] Two channel[ ] 6.Equipment Category: Multi-channel[X] 7.Channel spacing:Narrowband[X]41.667 kHz Wideband[ ] 8.TestLocation:TRaC Global Pendle Place[X] Hull[ ] 9.Modifications made during test program No modifications were performed. 0F3048WUS1-2Page 7 of 62 Product Description The satellite communications moduleconsists of an L-Band Transceiver (LBT) capable of simultaneous transmit and receive (duplex) operation covering the frequency range of 1616MHz to 1626.5MHz. The frequency accesses used for duplex channels are organised into sub-bands each of which contains eight frequency accesses. Each sub-band, therefore occupies 333.33 kHz (i.e. 8x41.667kHz). Up to 30 sub-bands containing 240 frequency accesses may be used for duplex channels. Standard References 47 CFR 2Code of Federal Regulations, Title 47, Part 2, “Frequency allocations and Radio Telemetry Matters; 10-1-03 EditionGeneral Rules and Regulations” 47 CFR 25Code of Federal Regulations, Title 47, Part 25,”SatelliteCommunications” Subpart C, 10-1-03 Edition “Technical Matters” 47 CFR 15Code of Federal Regulations, Title 47, Part 15,”Radio Frequency Devices” Subpart B, 20-09-07 Edition “Unintentional Radiators” C63.4-2003American National Standards Institute (ANSI), “Methods of …
