888 TWO WAY CAR ALARM SYSTEM USER’S MANUAL INTRODUCTION Congratulations on your wise choice of Steel mate Car Alarm System! Steelmate Co., Ltd. is a leading supplier to the automotive industry. We use our best endeavors to provide a range of highly innovative security and safety produc ts to meet the needs of our customers. Through its innovative technology and best practice manufacturing facilities, Steelmate is (becoming) the market leader in China. Its high quality products, unique designs, and comprehensive after sales service ensure that Steelmate remains the first choice of Motor Vehicle Owners. Steelmate is not just a Brand... it is a culture ... a group of people striving to provide better and more efficient products in a rapidly changing world. It is a group of people who work hard, and stake their reputations on a successful outcome. With this kind of culture, with its expertise and with the customers needs firmly in mind, Steelmate is striving to be the Premier Brand in the vehicle market. Steelmate's expertise and experience will provi de your vehicle with lifetime security. Thanks Features: 1. Long distance surveillance range 2. Two-way remote controller with color LED monitor 3. FSK technique, high stability and anti-jamming 4. Sound, vibrancy, figure indicate the status and function REMOTE FUNCTION AND OPERATOIN FOR MODEL 888 CAR ALARM SYSTEM FCC/ID Q6W888 A FCC NOTICE: (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar stat ement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installatio n. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, th ere is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which c an be determined by turning the equipment off and on, the user is encour aged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. To press button on the remote to activate the alarm system: Press button --- in general status: to arm the car and lock door in 3 seconds. --- in driving status: to lock door --- in alarm status: to stop alarm and return to the arm status. Press button --- in armed status: to disarm the car and unlock door. --- in driving status: to unlock door. --- in alarm status: to stop alarm, disarm the car and unlock door. Press button --- in general status, to arm the car with mute mode in 3 second, at the same time, the direction lights flash once. Press button + --- in general status: the siren chirps for 15 seconds, direction lights flash --- in driving status: the siren chirps for 30 seconds, direction lights flash Press button + --- in general status: to open the trunk of the parked car (trunk release) --- in driving status: into pre-anti-robbery status for emergency alarm 1. Alarm Armed: Press button on the remote, is signaled by one flash of the direction lights, one acoustic signal of siren and one acoustic signal of remote, doors will lock, the system will be armed in 3 seconds in alarm mode. The display on the remote is: 2. Mute Armed: Press button on the remote, is signaled by one flash of the direction lights, one acoustic signal of remote, doors will lock, the system will be armed in 3 seconds in mute mode. The display on the remote is: 3. Disarm the system in alarm mode In alarm armed status, press button to disarm the system, at the same time, the doors will be unlocked, the direction lights will flash twice, the siren will chirp twice and the remote will beep. The display on the remote is: 4. Disarm the system in mute mode In alarm armed status, press button to disarm the system, at the same time, the doors will be unlocked, the direction lights will flash twice, the siren will not chirp and the remote will beep. The display on the remote is: 5. Trunk opening with remote Press button + at the same time to open the trunk of the parked car. The display in the remote is: 6. Auto lock/unlock the door The doors will be locked when the foot brake is pressed in 15 seconds after the car started. The doors will be unlocked when the car stopped and the ACC is on off position. In driving status, press button to lock the doors, press button to unlock the doors. 7. Locating the vehicle in parking lot with sound and flash To press button + the siren will alarm for 30 seconds and direction lights will flash to locate the vehicle. 8.Emergency aid In driving status, To press button + ask for help, the siren will chirp for 30 seconds and the direction lights will flash, press any button on remote will stop chirping. 9.Anti-burglary and anti-hijacking (optional) In driving status, press + the direction lights flash swiftly, into pre-anti-robbery status, press button again in 3 seconds, the direction lights stop flashing, the siren will chirp loudly in 10 seconds, and 10 seconds late, the direction will flash and the siren will chirp loudly together till the button pressed. 10. Battery capability status When the battery capability is shown on the remote to be exhausted, to replace the battery of remote (1.5 voltage, alkali…

Text truncated - open the document above for the full version.

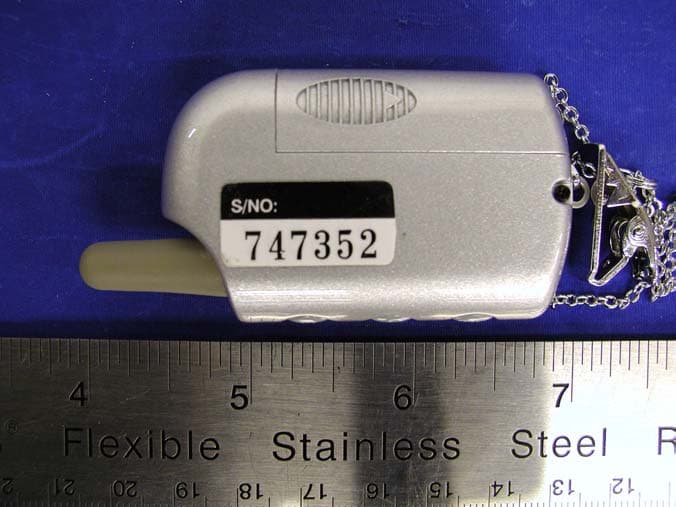

EXHIBIT C - EUT EXTENRAL PHOTOGRAPHS EUT – Top View EUT – Rear View

EXHIBIT A – FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label The FCC labels should contain FCC statement in FCC 15.19 paragraph (3). A sample of the statement is presented hereinafter as reference. Specifications : Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of EUT / Proposed FCC ID Location FCC ID:Q6W888 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:Q6W888A This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

EXHIBIT C - EUT INTENRAL PHOTOGRAPHS EUT – Component View 1 EUT – Solder View 1 EUT – Component View 2 EUT – Solder View 2

888 Car Alarm System Technical Information: Description and Specification Function description: 1、 Two-way remote controller with pager function 2 、 Color LCD remote display 3 、 Alarm with sound,tremble and colour logo by remote controller 4、 Remote control arming/disarming 5、 Engine immobilization 6 、 Alarm armed mode 7 、 Mute armed mode 8、 Anti-jamming 9 、 Auto re-arming 10 、 Anti-hijacking 11、 Code learning 12、 Emergency alarm 13 、 Warning for unlocked vehicle 14 、 Warning for disarmed vehicle 15、 Locating with sound and light 16、 Remote trunk release 17 、 Emergency override 18、 Automatic lock/unlock 19、 Trigger memory and report Technical Information: 1. Control box Voltage: 12V ± 2V Static current: <20mA(Emitter, LED included) Current (max): direction indicator: 15A×2 Siren: 5A Door lock: 10A Frequency: 433.92MHz Power: <10mW 2. LCD remote Voltage: 12V±2V Static current: 400uA Battery size: AAA Frequency: 433.92MHz Power: <10mW 3. Siren Volume: 105~110DB Power: 15W

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 SUBPART C EMI MEASUREMENT AND TEST REPORT For STEELMATE CO., LTD Guanghong, Lianhe, Beijiao, Xinshi Town, Baiyun District, Guangzhou 510425, China FCC ID: Q6W888A 2003-06-12 This Report Concerns: Original Report Equipment Type: Car Alarm System Test Engineer: Jerry Wang / Report No.: R0302284 Test Date: 2003-06-05 Reviewed By: Ling Zhang / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 STEELMATE CO., LTD FCC ID: Q6W888A Report # R0302284Rpt.DOC Page 2 of 11 FCC ID Per 15.231 Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 JUSTIFICATION.......................................................................................................................................................5 2.2 BLOCK DIAGRAM...................................................................................................................................................5 2.3 EQUIPMENT MODIFICATIONS.................................................................................................................................5 2.4 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 3 - SUMMARY OF TEST RESULTS..........................................................................................................................6 4 - AC LINE CONDUCTED EMISSIONS..................................................................................................................7 5 - RADIATED EMISSION DATA .............................................................................................................................8 5.1 EUT SETUP............................................................................................................................................................8 5.2 SPECTRUM ANALYZER SETUP................................................................................................................................8 5.3 TEST PROCEDURE..................................................................................................................................................8 5.4 CORRECTED AMPLITUDE & MARGIN CALCULATION.............................................................................................8 5.5 EQUIPMENT LIST....................................................................................................................................................8 5.5 TEST RESULTS.......................................................................................................................................................9 6 - 20DB BANDWIDTH..............................................................................................................................................10 6.1 REQUIREMENT.....................................................................................................................................................10 6.2 EQUIPMENT LIST..................................................................................................................................................10 6.3 TEST RESULT.......................................................................................................................................................10 7 - DEACTIVATION ..................................................................................................................................................11 7.1 REQUIREMENT.....................................................................................................................................................11 7.2 TEST EQUIPMENT.................................................................................................................................................11 7.3 TEST RESULT.......................................................................................................................................................11 STEELMATE CO., LTD FCC ID: Q6W888A Report # R0302284Rpt.DOC Page 3 of 11 FCC ID Per 15.231 Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The STEELMATE CO., LTD’s product, model number:888A or the "EUT" as referred to in this report is a transmitter of a car alarm system which is measured approximately 2.25”L x 1.32”W x 0.7”H. The EUT provides the following feat…
