Q6WBT5076TWO-WAY TRANSMITTER

BT5076A OPERATING INSTRUCTION FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Matching circuit Receiver amplifier Transmitter amplifier Filter circuit Filter circuit Modem Controller Display Speaker Crystal oscillate 10MHz Button Ant. 433.92MHz

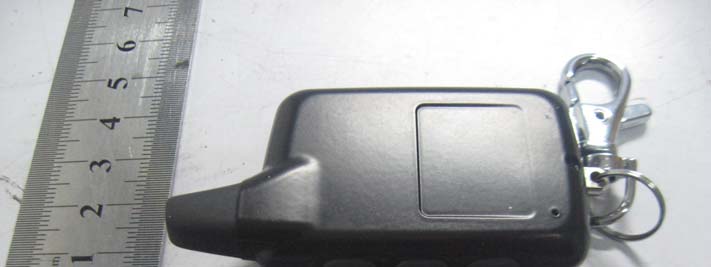

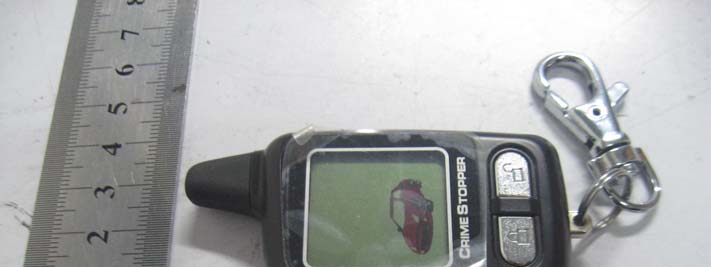

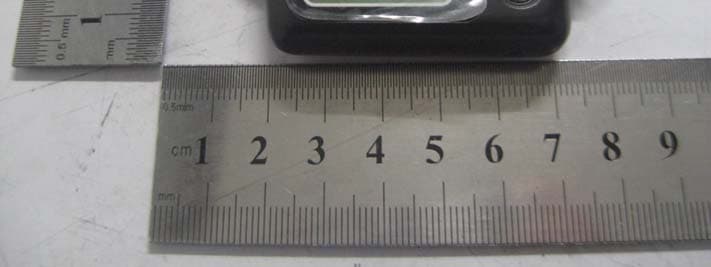

GUANGDONG STEELMATE SECURITY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

GUANGDONG STEELMATE SECURITY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: Q6WBT5076 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

GUANGDONG STEELMATE SECURITY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: Q6WBT5076 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

GUANGDONG STEELMATE SECURITY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 GUANGDONG STEELMATE SECURITY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I FCC PART 15.231 Solder Board-Component View 2 Solder Board-Component View 3 GUANGDONG STEELMATE SECURITY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I FCC PART 15.231 Solder Board-Component View 4 Solder Board-Component View 5

RF signal from antenna to matching circuit transfer to Receiver amplifier. Amplifier sent the signal to filter circuit, and filter transmitter signal to modem. Modem sent data to controller. Display and speaker and button are work with controller to input/ output information. The 10MHz crystal oscillator drivers the modem. Modem receive data from controller, and sent signal to filter circuit. The signal of the 433.92MHz amplify by transmitter amplifier to send to matching circuit and send by antenna.

APP.SIZE CHK. REV. DRAWN DATE NO: TITLE: BTR041A X1 10MHz C7 100P L6 47nH L7 100NH L4 47nH C4 100P Q2 H7D C14 100P R6 100K L9 100nH C1822P R1 470K C2 100P C3 100P R2 68K L3 1uH R3 1K C6 103 L8 NC Q11DA 1 RF1 2 GND 3 RF2 4 V2 5 RFCOM 6 V1 U2 HMC544 R4 10K R5 10K C127P C16 104 L1 22nH C5 100P D1RFP01 L11 100nH R8 1K C19 102 D2RFP01 C172.2P C11 104P L5 39nH C9 2.2P C12 100P L2 47nH 123456 CON1 C10 223 1 SDI 2 SCK 3 NSEL 4 SDO 5 NIRQ 6 FSK/DATA/NFFS 7 DCLK/CFFIT 8 CLK 9 XTL/REF 10 NRES 11 VSS 12 RF2 13 RF1 14 VDD 15 ARSSI 16 NINT/VDI U1 ST8886 C8 1.5P R7 10K C15 103 C13 NC 12345 CON2 ANT R9 47K L10 27P VCC VCC DATA TXEN RXEN TXEN VCC SDI SCKNSEL RSSI TXEN SDO NSEL SCK SDI VCC TXEN DATA RXEN SDONIRQ BT5076 DATEDRAWN REV.CHK. NO: TITLE: PAGEAPP. E B C Q1 L6 X1 32.768 S6 S4S3S1 R15 330R R14 330R R7 22R R6 330R R1 2R2 R2 330R E B C Q2L6 12345 123456 C0N1 S2 8888 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 -+ 21 BUZZ MOTR MO1 12345678910111213141516 48474645444342414039383736353433 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 U1 MSP430F413 C3 104 R3 10K C4 104 T3 T4 T5 T6 T7 R13 330K R16 330K R17 330K R1810R C5 105 C6 105 R20 10K C7 104 R1110K R1010K R810K R910K R1210K R1910K C1 104 C2 104 BATT1 DC1 R4 1M R5 1M C8 10uF/6V GND IN OUT U2 BL8503 BAT MOTO BAT BUZZER LED_WHT LED_RED RXENDATA TXEN 3V SDONSELSCKSDIRSSI KEY2 KEY1 KEY3 KEY4 KEY5 KEY6 3VRXENDATATXEN LED_RED LED_WHT 3V KEY1 KEY2 KEY3 KEY4 KEY5 KEY6 BUZZER MOTO P1.7 COM3COM2 COM1 COM0 SDI SCK NSEL COM0 COM1 COM2 COM3 P1.7 3V SDO SEG[0:10] SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 BAT +3V 4V BATT_DET

GUANGDONG STEELMATE SECUTIRY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I PAGE 1 OF 17 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR GUANGDONG STEELMATE SECUTIRY CO., LTD. Renan Street, Dongfu Road, Dongfeng Town, Zhongshan, 528425, China FCC ID: Q6WBT5076 Report Concerns: Original Report Equipment Type: Two-way Transmitter Model: BT5076A Report No.: STR10118024I Test Date: 2010-11-03 to 2010-11-08 Issue Date: 2010-11-25 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . GUANGDONG STEELMATE SECUTIRY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I PAGE 2 OF 17 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (B) RADIATED EMISSION .........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. §15.231(A) DEACTIVATION TESTING..............................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS...................................................…

Text truncated - open the document above for the full version.

GUANGDONG STEELMATE SECURITY CO., LTD. Model: BT5076A REPORT NO.: STR10118024I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
