Q77VSBBLADE SENDER

Beyond Broadband Network, Inc.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jul 22, 2003
Application Purpose: Original Equipment
Date of Application: Jul 22, 2003
Equipment Note: BLADE SENDER
Frequency Range: 2410.00000000 - 2470.00000000
Company: Beyond Broadband Network, Inc.
Country: Taiwan

Documents & Files

Select a file to view

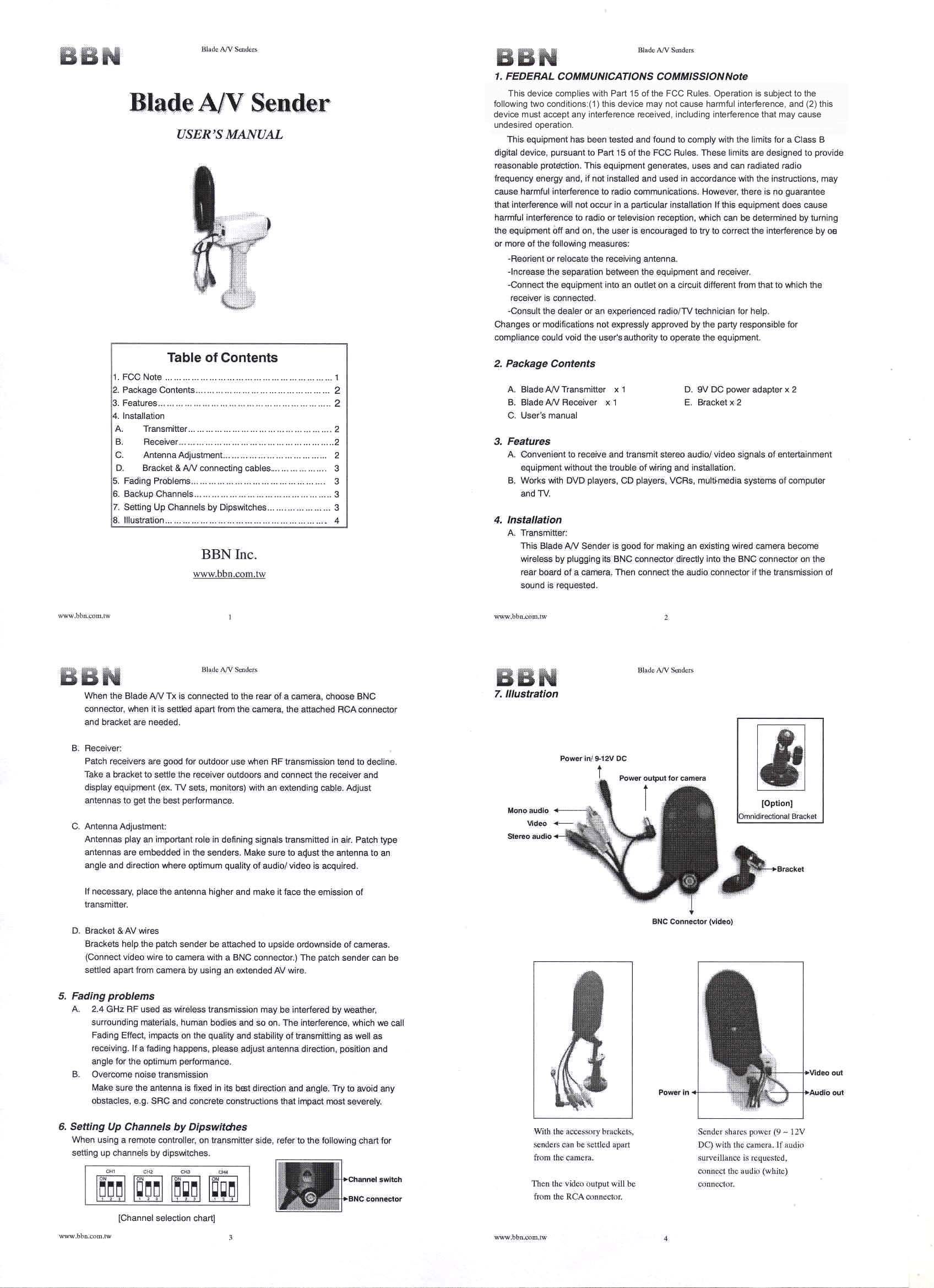

Users Manual

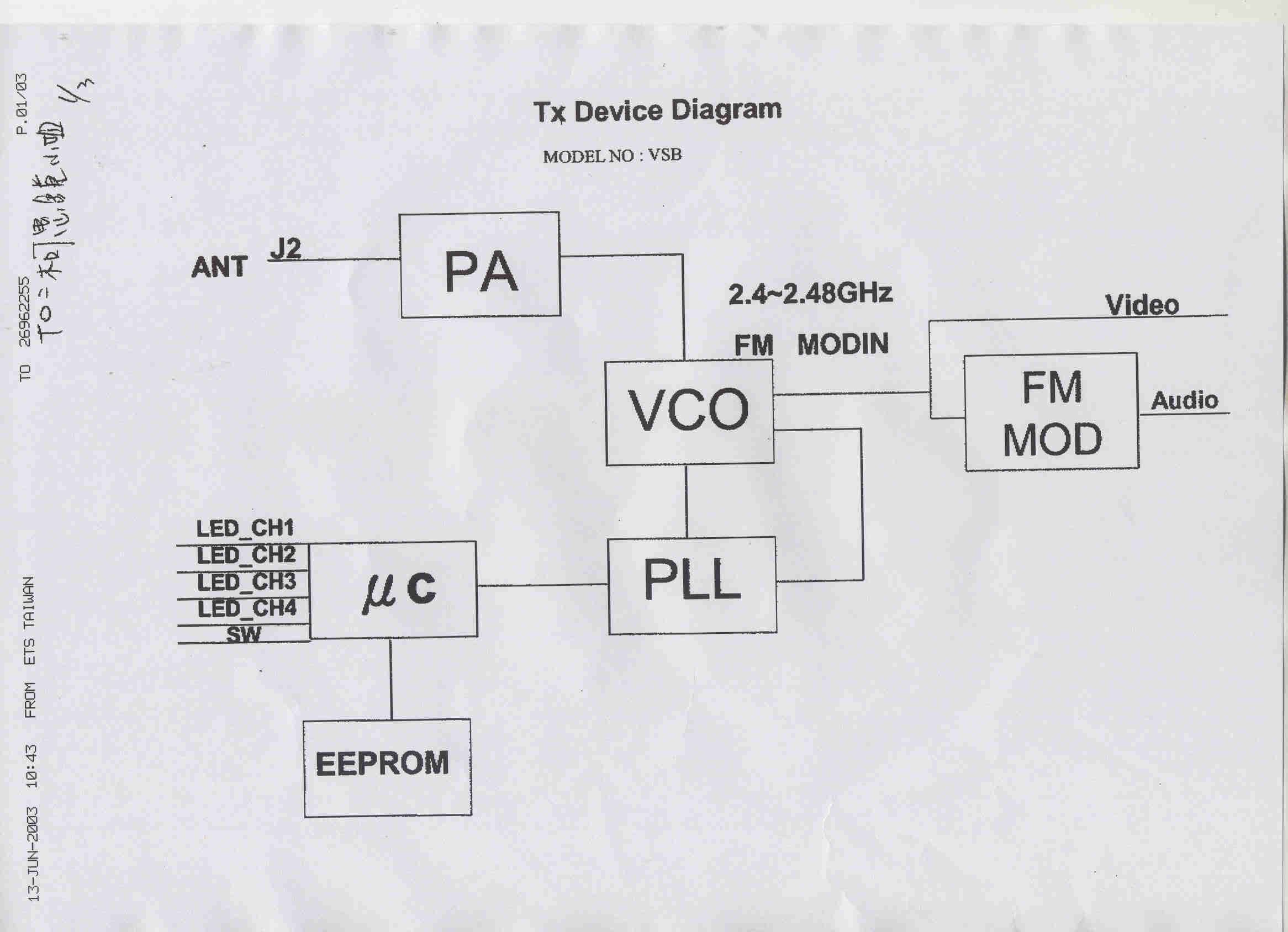

Block Diagram

↗

External Photos

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

FCC ID: Q77VSB FCC ID:Q77VSB MODEL:VSB

Internal Photos

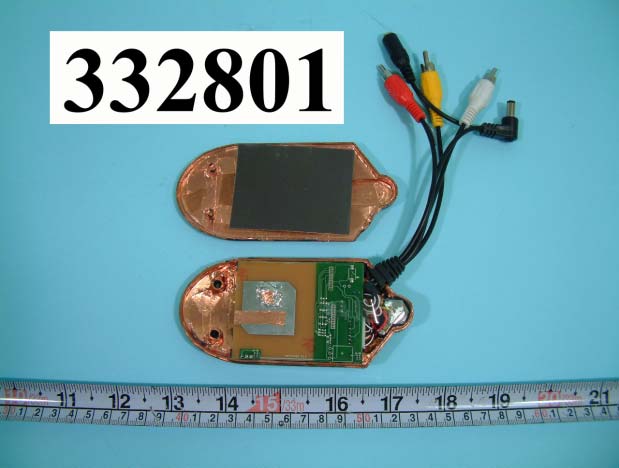

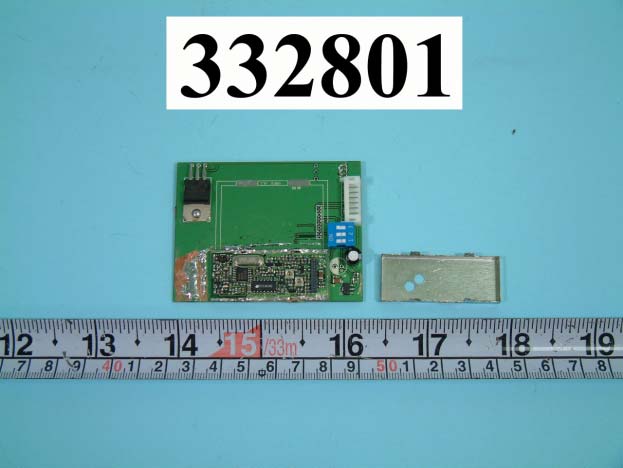

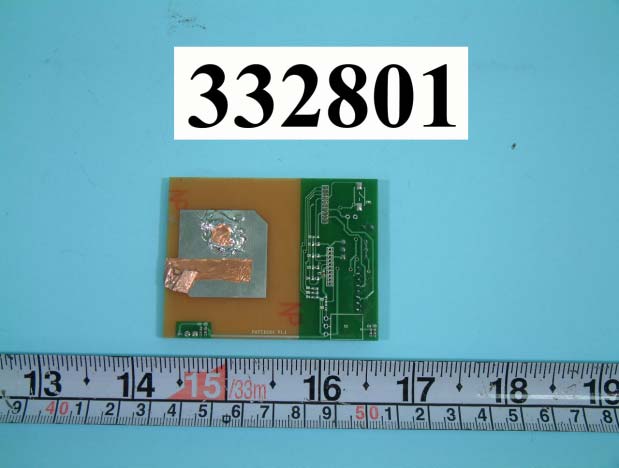

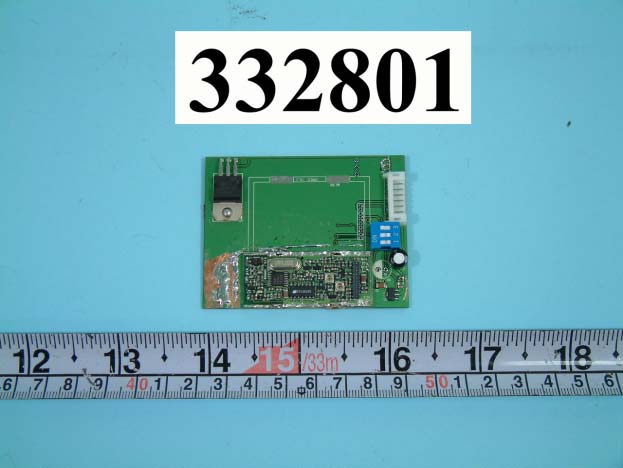

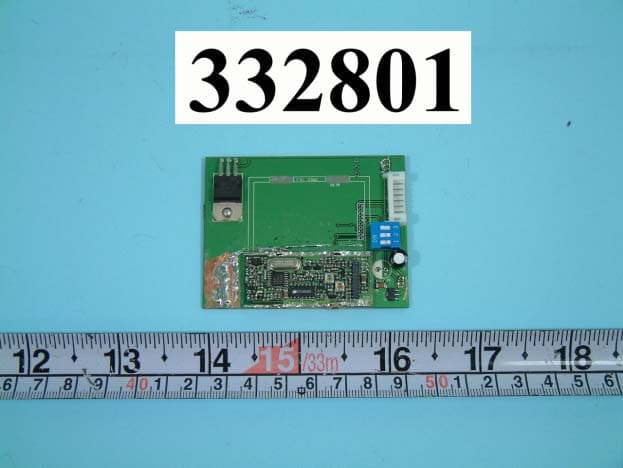

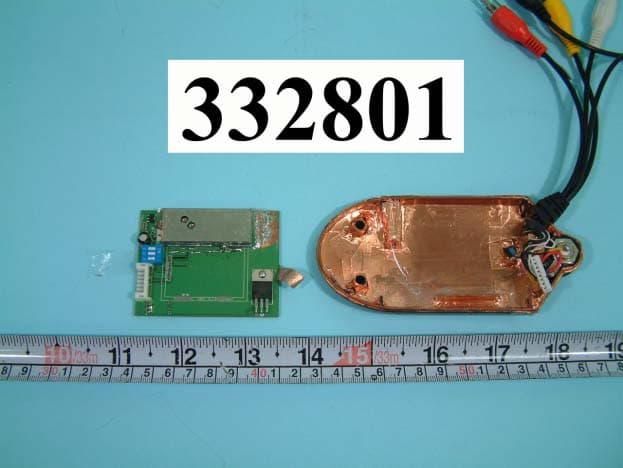

FCC ID: Q77VSB Number 1 MECHANICAL CONSTRUCTION 1 2 FCC ID: Q77VSB Number 2 MECHANICAL CONSTRUCTION FCC ID: Q77VSB Number 3 MECHANICAL CONSTRUCTION FCC ID: Q77VSB Number 4 FRONT SIDE OF MAIN BOARD FCC ID: Q77VSB Number 5 REAR SIDE OF MAIN BOARD 3

Operational Description

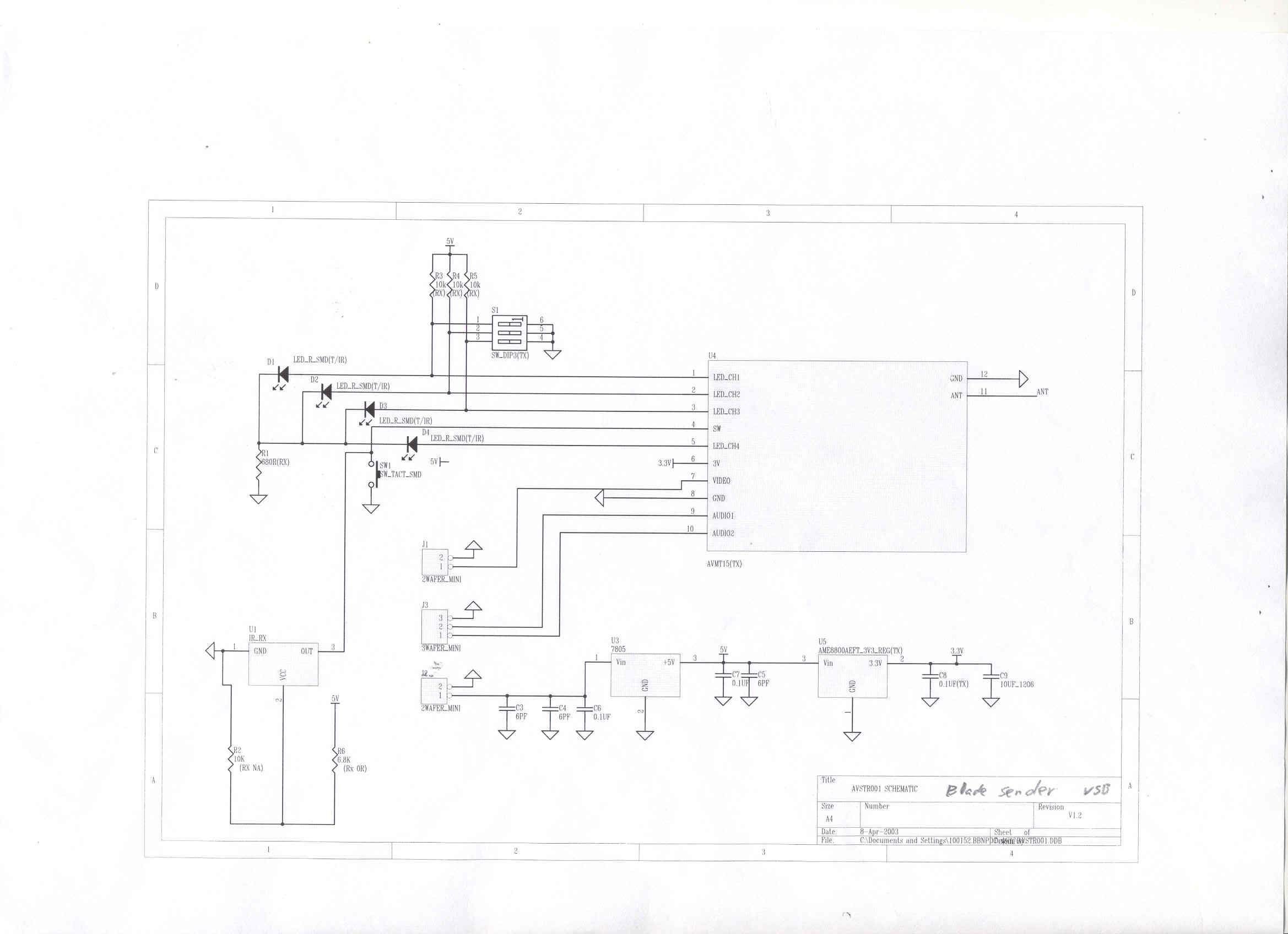

FCC ID: Q77VSB 2.4 GHz Mini Camera Operation Theorem: The product is intended to transmit four channels (2410, 2430, 2450, 2470 MHz) of audio and video signal in modulated 2.4 GHz FM style. Modulation and Transmitting module VMT10 is mainly employed, it consists one video input and one audio input according to below circuit diagram. The frequency selection could be set by DIP-SW1, and options shown below: Video input receives 1 Vp-p (PAL or NTSC) signal transmitted from CCD or CMOS cameras. Audio input receives audio signal from capacitor microphone amplification circuit consisting of Q1 and Q2. The product is energized by a 6 Vdc linear type power supply, converted voltage to 5 Vdc via regulator U2 (7805), than supplies CCD or CMOS camera and microphone amplification circuit. 5 Vdc is converted into 3.3 Vdc via regulator U3 (AME8800AEFT-3V3), than supplies VMT10.

Parts List/Tune Up Info

FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: I, hereby, declare that the following EMI suppression components on the EUT, FCC ID: Q77VSB, will be added or layout on the mass production products. 1. To add copper foil on inner side of EUT case. 2. To add copper foil on inner side of EUT case. 3. To add copper foil on main board. BEYOND BROADBAND NETWORK, INC. 7F-3, No. 186, Jian Yi Rd., Chung Ho City, Taipei County, Taiwan, R.O.C. Jem Huang / R&D Manager Date: Jun. 20, 2003
