Q78--K4505-ZHSPA+ USB Stick

1 Content Content 1 USB Modem Introduction............................................................... 3 1.1 Introduction.................................................................................. 3 1.2 Safety Warning and Notice......................................................... 3 1.3 RF Safety Information................................................................. 5 1.4 System Requirements................................................................. 7 1.5 Technical Specifications ............................................................ 8 2 Installation......................................................................................... 9 2.1 Unpacking.................................................................................... 9 2.2 Software Installation ................................................................... 9 2.2.1 Insert the SIM Card into the Modem .................................... 9 2.2.2 Connecting the Modem and computer ................................ 9 2.2.3 First Time Software Installation........................................ 10 2.3 Using your Modem .................................................................... 10 2.4 LED Indicator............................................................................. 11 2.5 Removing the Modem Safely .................................................... 11 2.6 Uninstalling the Software......................................................... 11 3 Functions & Operation................................................................. 12 3.1 Main Interface............................................................................ 12 3.2 Task Bar Icons........................................................................... 13 3.3 Connecting to the Internet......................................................... 14 3.4 Text Messages.......................................................................... 15 3.4.1 Read Text Messages........................................................ 16 3.4.2 Create New Message....................................................... 16 3.4.3 Text Message Interface Guide......................................... 17 2 Content 3.5 Contacts.................................................................................... 17 3.6 Home Page................................................................................ 18 3.7 Settings..................................................................................... 18 3.7.1 Connection Settings.......................................................... 18 3.7.2 Security Settings............................................................... 19 3.7.3 Network Settings.............................................................. 19 3.7.4 Message Settings............................................................. 19 3.7.5 Alert Settings..................................................................... 20 3.7.6 Check for Updates............................................................ 20 3.8 Help ............................................................................................ 20 4 FAQ & Answers.............................................................................. 21 5 Declaration of RoHS Compliance ............................................... 24 Thank you for choosing the K4505-Z USB modem. Please read this 3 1 USB Modem Introduction 1.1 Introduction manual carefully and keep it for future reference. The pictures, symbols and contents in this manual are for reference only. They are correct at the time of publication but might not be completely identical with your modem. We operate a policy of continuous development. We reserve the right to update the technical specifications in this document at any time without prior notice. The HSPA+ modem is a multi-mode 3G high speed modem suitable for GSM/GPRS/WCDMA/EDGE/HSDPA/HSPA+ networks. It uses the USB 2. 0 standard interface for easy connection to any laptop or desktop computer. It is compatible with 2G and 3G mobile networks, allowing connection with wireless data and SMS services to give you high speed data access wherever you are. 1.2 Safety Warning and Notice To the owner •Some electronic devices are susceptible to electromagnetic interference. The modem is a transmitting device and may cause interference to sensitive electronic equipment such as audio systems, vehicle systems and medical equipment. Please consult the manufacturer of the other device before using the modem. •Operating of a laptop or desktop computer with the modem may interfere with medical devices like hearing aids and pacemakers. Please keep the modem more than 20 centimetres away from such medical devices. Turn the modem off if necessary. Consult a physician USB Modem Introduction 4 USB Modem Introduction or the manufacturer of the medical device before using the modem near such devices. •Be aware of the regulations when using the modem at places such as oil warehouses or chemical factories, where there are explosive gases or explosive products being processed. Turn off your modem as instructed. •Don’t touch the antenna area unnecessarily while connected. This can affect your modem performance and reduce the signal quality. •Store the modem out of the reach of children. The modem may cause injury or get damaged. •The modem contains sensitive electronic circuitry. Do not expose the modem to any liquids, high temperatures or shock. •Only use original accessories or accessories that are authorized by the manufacturer. Using unauthorized accessories may affect your modem’s performance, damage your modem and violate related national regulations. •Avoid using the modem in areas that emit electromagnetic waves, or in enclosed metallic structures (eg. elevators). •The modem is not waterproof. Please keep it dry and store it in a cool, dry place. •Don’t use the modem immediately after a sudden temperature change (eg. from an air conditioned environment to high…

Text truncated - open the document above for the full version.

内部公开▲ 本文所有信息为中兴通讯股份有限公司内部信息，未经允许，不得外传 第1页，共1页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park, Nanshan District, Shenzhen, Guangdong, 518057, P.R.China Date: July 20, 2010 Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality request for FCC ID: Q78--K4505-Z To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, the applicant requests permanent confidential treatment of the following information accompanying this application: - Block Diagram - Schematics - Operational Description - BOM list/Tune-Up-Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely yours, Royce Wang ZTE CORPORATION Tel: 0755-26770345 Fax: 0755-26770347 E-Mail: [email protected]

内部公开 内部公开内部公开 内部公开▲ 本文中的所有信息归中兴通讯股份有限公司所有，未经允许，不得外传 第 1 / 1 页 ZTE CORPORATION ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China Date: Oct 12,2009 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 And American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: TMC(Telecommunication Metrology Center of MII) is authorized to act on our behalf, until otherwise notified, for applications to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pur suant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, Royce Wang ZTE CORPORATION Tel：0755-26770345 Fa x：0755-26770347 E- Mail：[email protected]

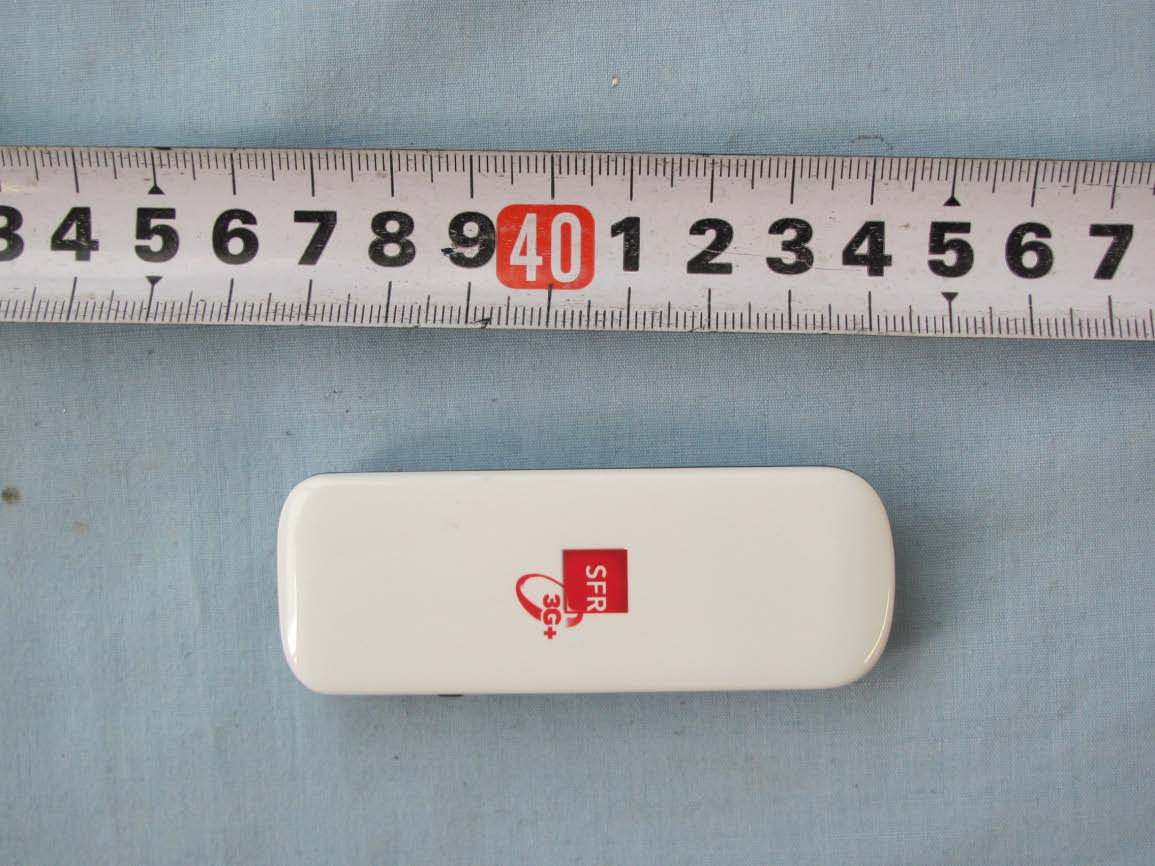

K4505-Z External Photo

K4505-Z Label Location: Label

K4505‐Z Internal photo

Report No.: RZA2010-0999 TESTING No. L2264 TEST REPORT Product Name HSPA+ USB Stick Model K4505-Z FCC ID Q78--K4505-Z Client ZTE CORPORATION TA Technology (Shanghai) Co., Ltd. GENERAL SUMMARY Product Name HSPA+ USB Stick Model K4505-Z FCC ID Q78--K4505-Z Report No. RZA2010-0999 Client ZTE CORPORATION Manufacturer ZTE CORPORATION Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. Supplement C Edition 01-01 to OET Bulletin 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radio frequency Emissions. KDB 447498 D02 (2009-11-13): SAR Measurement Procedures for USB Dongle Transmitters. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: July 7 th , 2010 Comment The test result only responds to the measured sample. Approved by Yang Weizhong Revised by Ling Minbao Performed by Xue Chaofeng TA Technology (Shanghai) Co., Ltd. Test Report Report No. RZA2010-0999 Page 3 of 114 TABLE OF CONTENT 1. General Information ........................................................................................................................ 5 1.1. Notes of the test report............................................................................................................ 5 1.2. Testing laboratory .................................................................................................................... 5 1.3. Applicant Information ............................................................................................................... 6 1.4. Manufacturer Information ......................................................................................................... 6 1.5. Information of EUT................................................................................................................... 7 1.6. The Maximum SAR 1g Vaules and Conducted Power of each tested band.............................. 8 1.7. Test Date ................................................................................................................................. 8 2. Operational Conditions during Test ................................................................................................. 9 2.1. General description of test procedures .................................................................................... 9 2.2. GSM Test Configuration ........................................................................................................... 9 2.3. WCDMA Test Configuration ................................................................................................... 10 2.4. HSDPA Test Configuration ..................................................................................................... 10 2.5. HSUPA Test Configuration ..................................................................................................... 12 2.6. Position of module in Portable devices .................................................................................. 14 2.7. Picture of host product ........................................................................................................... 15 3. SAR Measurements System Configuration ................................................................................... 16 3.1. SAR Measurement Set-up .....................................................................................................16 3.2. DASY4 E-field Probe System ................................................................................................ 17 3.2.1. EX3DV4 Probe Specification .......................................................................................... 17 3.2.2. E-field Probe Calibration ................................................................................................. 18 3.3. Other Test Equipment ............................................................................................................18 3.3.1. Device Holder for Transmitters ....................................................................................... 18 3.3.2. Phantom .........................................................................................................................19 3.4. Scanning procedure............................................................................................................... 19 3.5. Data Storage and Evaluation ................................................................................................. 21 3.5.1. Data Storage...................................................................................................................21 3.5.2. Data Evaluation by SEMCAD ......................................................................................... 21 3.6. System check......................................................................................................................... 24 3.7. Equivalent Tissues ................................................................................................................. 25 4. Laboratory Environment................................................................................................................ 25 5. Characteristics of the Test ............................................................................................................. 26 5.1. Applicable Limit Regulations .................................................................................................. 26 5.2. Applicable Measurement Standards...........................…

Text truncated - open the document above for the full version.

No.2010TAR270 Page1 of 14 ©Copyright. All rights reserved by TMC Beijing. TEST REPORT No. 2010TAR270 for ZTE CORPORATION HSPA+ USB Stick Type：K4505-Z With FCC ID: Q78--K4505-Z Hardware Version: P680A2-3.0.0 Software Version: BD_P680A2V1.0.0B09 Issued Date: 2010-07-07 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of TMC Beijing. Test Laboratory: DAR accreditation (DIN EN ISO/IEC 17025): No. DGA-PL-114/01-02 FCC 2.948 Listed: No.733176 IC O.A.T.S listed: No.6629A-1 TMC Beijing, Telecommunication Metrology Center of Ministry of Industry and Information Technology No. 52, Huayuan Bei Road, Haidian District, Beijing, P. R. China 100191 Tel:+86(0)10-62304633 , Fax:+86(0)10-62304633 Email:[email protected]. www.emcite.com No.2010TAR270 Page2 of 14 ©Copyright. All rights reserved by TMC Beijing. CONTENTS 1. TEST LABORATORY ............................................................................................................... 3 1.1. TESTING LOCATION ........................................................................................................... 3 1.2. TESTING ENVIRONMENT ................................................................................................... 3 1.3. PROJECT DATA ................................................................................................................... 3 1.4. SIGNATURE .......................................................................................................................... 3 2. CLIENT INFORMATION ........................................................................................................... 4 2.1. APPLICANT INFORMATION ................................................................................................ 4 2.2. MANUFACTURER INFORMATION ...................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 5 3.1. ABOUT EUT .......................................................................................................................... 5 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ................................... 5 4. REFERENCE DOCUMENTS .................................................................................................... 6 4.1. REFERENCE DOCUMENTS FOR TESTING....................................................................... 6 5. LABORATORY ENVIRONMENT .............................................................................................. 7 6. SUMMARY OF TEST RESULTS .............................................................................................. 8 7. TEST EQUIPMENTS UTILIZED ............................................................................................... 9 ANNEX A: MEASUREMENT RESULTS ....................................................................................... 10 No.2010TAR270 Page3 of 14 ©Copyright. All rights reserved by TMC Beijing. 1. Test Laboratory 1.1. Testing Location Company Name: TMC Beijing, Telecommunication Metrology Center of MIIT Address: No 52, Huayuan beilu, Haidian District, Beijing,P.R.China Postal Code: 100191 Telephone: 00861062304633 Fax: 00861062304793 1.2. Testing Environment Normal Temperature: 15-35°C Relative Humidity: 20-75% 1.3. Project data Testing Start Date: Aug 30th, 2009 Testing End Date: Sep 03th, 2009 1.4. Signature Zi Xiaogang (Prepared this test report) Sun Xiangqian (Reviewed this test report) Lu Bingsong Deputy Director of the laboratory (Approved this test report) No.2010TAR270 Page4 of 14 ©Copyright. All rights reserved by TMC Beijing. 2. Client Information 2.1. Applicant Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-21-68897541 Fax: +86-21-50801070 2.2. Manufacturer Information Company Name: ZTE CORPORATION Address /Post: ZTE Plaza, Keji Road South, Hi-Tech Industrial Park,Nanshan District,Shenzhen, Guangdong, 518057, P.R.China City: Shenzhen Postal Code: 518057 Country: China Telephone: +86-21-68897541 Fax: +86-21-50801070 No.2010TAR270 Page5 of 14 ©Copyright. All rights reserved by TMC Beijing. 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT Description HSPA+ USB Stick Model Name K4505-Z FCC ID Q78--K4505-Z Extreme vol. Limits 4.8VDC to 5.2VDC (nominal: 5.0VDC) Note: Components list, please refer to documents of the manufacturer; it is also included in the original test record of Telecommunication Metrology Center of MII of People’s Republic of China. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version N02 355987030006109 P680A2-3.0.0 BD_P680A2V1.0.0B09 *EUT ID: is used to identify the test sample in the lab internally. No.2010TAR270 Page6 of 14 ©Copyright. All rights reserved by TMC Beijing. 4. Reference Documents 4.1. Reference Documents for testing The following documents listed in this section are referred for testing. Reference Title Version FCC Part 15, Subpart B Radio frequency devices July 10, 2008 Edition ANSI C63.4 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 2003 No.2010TAR270 Page7 of 14 ©Copyright. All rights reserved by TMC Beijing. 5. LABORATORY ENVIRONMENT Semi-anechoic chamber (23 meters×17meters×10meters) did not exceed following limits along the EMC testing: Temperature Min. = 15 °C, Max. = 30 °C Relative humidity Min. = 30 %, Max. = 60 % Shielding effectiveness > 110 dB Electrical insulation > 10 k Ground system resistance < 0.5  Normalised site attenuation (NSA) < ±3.2 dB, 10 m distance, from 30 to 1000 MHz Uniformity of field strength Between 0 and 6 dB, from 80 …

Text truncated - open the document above for the full version.
