Q78-E1320Home Gateway

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

TCBAuthoritytoActasAgent Number:MS-0045317 Revision:0 Effectivedate:Oct8,2021 Page1of1 ThefollowingisasampleAgencyRequestletter,whichneedstobecompletedoncompany letterhead,signedbyanauthorizedApplicant/Agent,andsubmittedtoTÜVRheinland. AuthoritytoActasAgent Date:2022-09-05 TUVRheinlandofNorthAmerica,Inc. 1279QuarryLane.,Suite.A Pleasanton,CA94566 ToWhomItMayConcern: IappointTUVRheinland(Shenzhen)Co.,Ltd.toactasouragentinthepreparationofthisapplication forequipmentcertification.Icertifythatsubmitteddocumentsproperlydescribethedeviceorsystem forwhichequipmentcertificationissought.Ialsocertifythateachunitmanufactured,importedor marketed,asdefinedintheFCCorIndustryCanada’sregulationswillhaveaffixedtoitalabel identicaltothatsubmittedforapprovalwiththisapplication. Forinstanceswhereourauthorizedagentsignstheapplicationforcertificationonourbehalf,I acknowledgethatallresponsibilityforcomplyingwiththetermsandconditionsforCertification,as specifiedbyTUVRheinlandGroup,stillresideswith__ZTECorporation/ZTEPlaza,Hi-techPark, NanshanDistrict,Shenzhen,Guangdong,China. ForTCBapplications,Wecertifythatwearenotsubjecttodenialoffederalbenefits,thatincludes FCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988,21U.S.C.862.Further, noparty,asdefinedin47CFR1.2002(b),totheapplicationissubjecttodenialoffederalbenefits, thatincludesFCCbenefits. Thankyou, AgencyAgreementDate:2022 - 09 - 05 Agreementisvalidfor12monthsfromtheabovedate. By: _________________CaryKong__ (Signature)(Printname) ProductCertificationManager0755-26777740 (Title)(Telephone) Onbehalfof: ZTECorporation (CompanyName)

MS-0044715 Page 1 of 1 Revision 1 Date: 22 Aug 2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: Q78-E1320 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction ZTE Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: _______________________________________________ ________________________ (Signature/Title) (Print name) Tel: Email: CaryKong

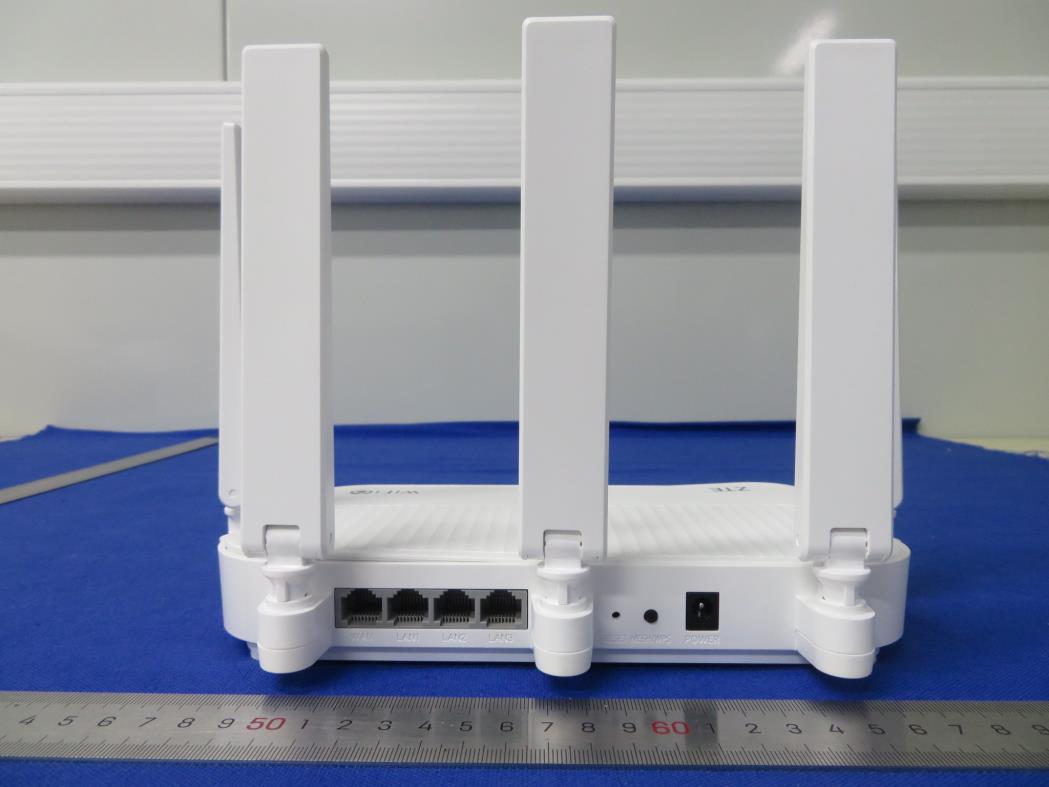

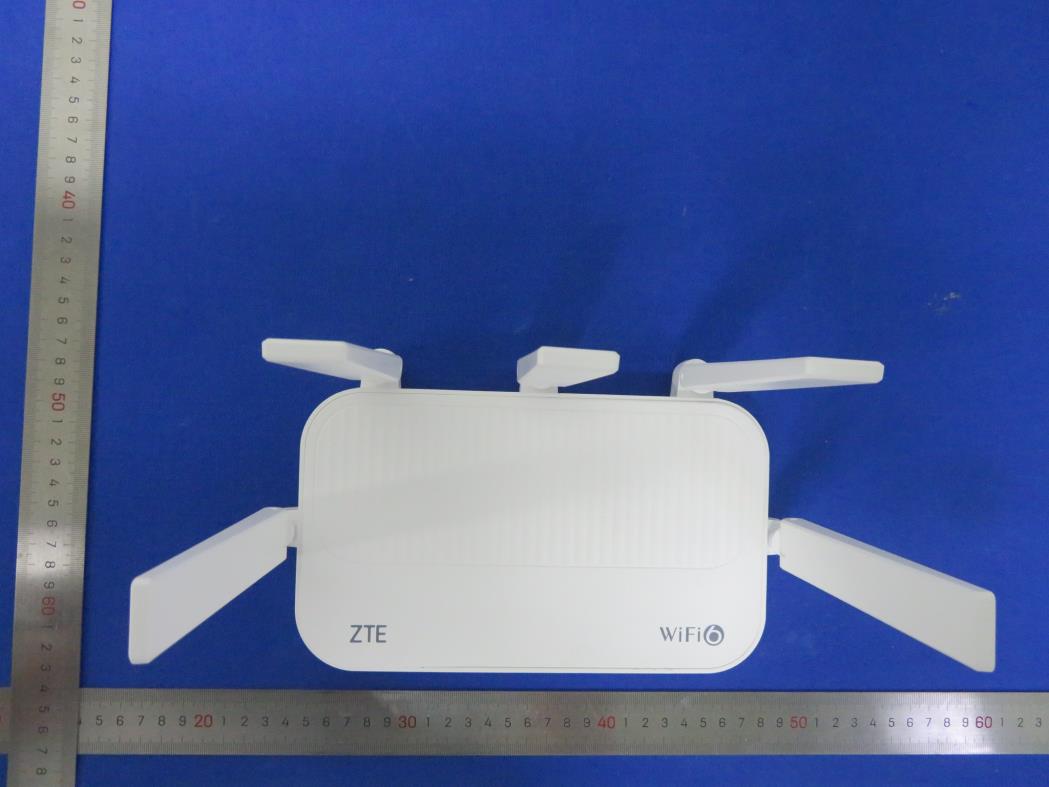

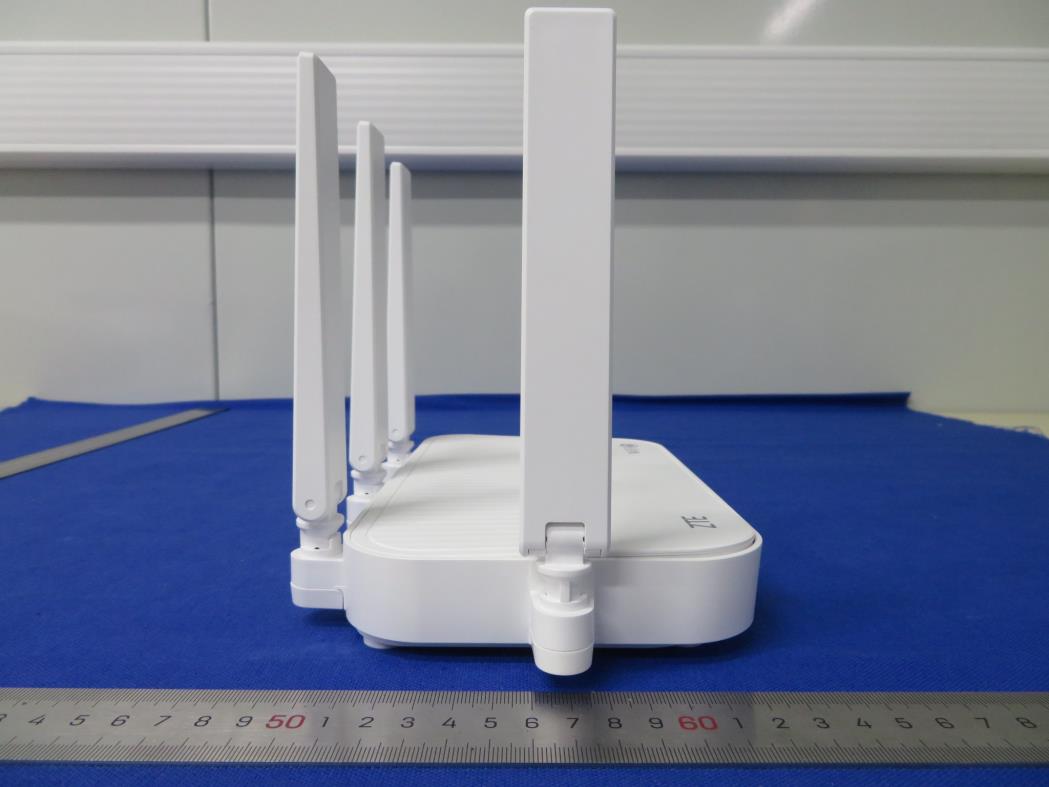

Prüfbericht - Produkte Test Report - Products E1320 External Photos CN22M62P 001~003 Page 1 of 3 View 1# View 2# Prüfbericht - Produkte Test Report - Products E1320 External Photos CN22M62P 001~003 Page 2 of 3 View 3# View 4# Prüfbericht - Produkte Test Report - Products E1320 External Photos CN22M62P 001~003 Page 3 of 3 View 5# View 6#

Prüfbericht - Produkte Test Report - Products E1320 Internal Photos CN22M62P 001~003 Page 1 of 5 View 1# View 2# Prüfbericht - Produkte Test Report - Products E1320 Internal Photos CN22M62P 001~003 Page 2 of 5 View 3# View 4# Prüfbericht - Produkte Test Report - Products E1320 Internal Photos CN22M62P 001~003 Page 3 of 5 View 5# View 6# Prüfbericht - Produkte Test Report - Products E1320 Internal Photos CN22M62P 001~003 Page 4 of 5 View 7# View 8# Prüfbericht - Produkte Test Report - Products E1320 Internal Photos CN22M62P 001~003 Page 5 of 5 View 9#

DATASHEET CustomerName：ZTE ProductModel：E1320 CustomerP/N ： Specifications ：5G外置单频天线，5dBi,1.37黑色双锡线， L=190mm AngeeiP/N：DP5050AX01-190B17U7S DatePrepared：2021.7.2 Revision：A0 Innovation Expert Smart NO.28,JinxingRd, JinfengTown,ZhangjiagangCity,Jiangsu,China Tel:+86-512-56990960 Fax:+86-512-56990970 Email:[email protected] Copyright©AngeeiLtdProprietaryandConfidentialDoc#2075-06-002 Innovation·Expert·Smart Contents 1.ProductDescription.............................................................................................................................................1 2.Features................................................................................................................................................................1 3.OverallPerformance............................................................................................................................................2 4.ProductCharacteristics........................................................................................................................................3 4.1VSWR .............................................................................................................................................................. 3 4.2RadiationPattern ........................................................................................................................................... 4 5.ProductDrawing..................................................................................................................................................5 6.ROHS................................................................................................................................................................5 7.CableDataSheet...................................................................................................................................................6 - VersionInformation VersionDateAuthorNote A0July2,2021RebeccaInitialDraft Copyright©AngeeiLtdProprietaryandConfidential 1 Doc#2075-06-002 Innovation·Expert·Smart 1. ProductDescription DP5050AX01-190B17U7Sproductisdesignedwithpatentedtechnology.DP5050AX01- 190B17U7Sisasinglebandantennawhichhasfeaturesofeasyintegration,canbedirectly connectedtotheproduct.Theconnectorcanbecustomizedaccordingtocustomer'srequest. ThisantennawasdesignedtoaccommodatemostWLANapplications,suchasaccesspoints, routers,andgateways. 2.Features TheDP5050AX01-190B17U7SAntennaisdefinedbyfollowingfeatures: IEEE802.11a/n/ac/axstandards [email protected],[email protected] [email protected],[email protected] [email protected],[email protected] HighEfficiency QuickIntegration Figure1:DP5050AX01-190B17U7SAntenna Copyright©AngeeiLtdProprietaryandConfidential 2 Doc#2075-06-002 Innovation·Expert·Smart 3.OverallPerformance CHARACTERISTICSSPEC StandardIEEE802.11a/n/ac/ax FrequencyRange5.15-5.85GHz PeakGain [email protected]，[email protected] [email protected]，[email protected] [email protected]，[email protected] VSWR<2 Efficiency 71.6%@5.18GHz，72.1%@5.32GHz 72.3%@5.5GHz，72.6%@5.6GHz 73.2%@5.7GHz，72.9%@5.785GHz PowerHandling30dBm FeedImpedance50ohms AntennaDimensions161.42*11.61mm InterfaceU.FLcompatibleconnector OperatingTemperature-30°Cto+75°C HumidityRange5%to95%non-condensing RFCableRF1.37 Copyright©AngeeiLtdProprietaryandConfidential 3 Doc#2075-06-002 Innovation·Expert·Smart 4.ProductCharacteristics MeasuringtheVSWR&radiationpatternofDP5050AS01-190B17U7Sinanon-interference environment. 4.1VSWR Figure2:DP5050AX01-190B17U7SVSWR Copyright©AngeeiLtdProprietaryandConfidential 4 Doc#2075-06-002 Innovation·Expert·Smart 4.2RadiationPattern Figure3:DP5050AX01-190B17U7SMeasurementAxes Figure4:DP5050AX01-190B17U7SRadiationPatternsin5.15-5.18GHz Copyright© AngeeiLtdProprietaryand Confidential 5 Doc#2075-06-002 Innovation·Expert·Smart 5. ProductDrawing 白色 3 5 白色 白色 2 4 6 白色 2 *F 11.31±0.1 1 1 1 *K 8.8±0.1 ABS ABS POM ABS 型号 PC 图号 2075-C04-002 1/1 DP5050AX01 L 页码 DP5050AX01-190B17U7S *L:1.68±0.05 版次 护套 B-B 比例 右塞子 1:1 铆钉 审核 左塞子 *A:9.35±0.03 *B:9.35±0.04 *C:9.35±0.04 校对 下固件 A 制图 RF线组件 A-A 成品名称 备注 C 视角 图号 B A0 数量 Davis 21.07.02 材质 1 Duke 21.07.02 型号 *I 11.61±0.5 B1 Hx.G 21.07.02 名称 *D 端子方向R0 批准 变更人 变更内容 *J 33.22±0.5 日期 *H 161.42±2 ECN N0. 白色 *E 190±2 技术要求： 1.表面光滑无污渍、弯曲、明显划痕、缩水等不良现 象； 2.频段：5.15-5.85GHz VSWR<2; 3.*A-*N为重点管控项。 黑色 2:1 1 1 *G 11.6±0.2 B1 序号 1 2 3 4 5 6 *N 1.8±0.1 *M 1.34-1.4 lead-free Pb Compliant RoHS Figure5:DP5050AX01-190B17U7SDimensions 6. ROHS DP5050AX01-190B17U7Santennais RoHScompliant. Copyright©AngeeiLtdProprietaryandConfidential 6 Doc#2075-06-002 Innovation·Expert·Smart 7.CableDataSheet ItemSpecification CabletypeRF1.37 Impedance50±3ohms Innerconductor MaterialTin-coatedcopper Conductornumbers7 Conductorsize0.102mm Outerdiameter0.306±0.02mm Dielectriclayer MaterialFEP ColorClear Diameter0.9±0.03mm Braid(shielding) MaterialTin-coatedcopper Makeup:total/O.D.Of everywire(mm) 5/0.05mm Coverage90%±5% Diameter1.13±0.05mm Outercover MaterialFEP ColorBlack Diameter1.37±0.05mm VSWRtesting<1.3@0~6GHz Cableloss(dB/1meter) 1GHz≤1.7 2GHz≤2.5 3GHz≤3.0 4GHz≤3.5 5GHz≤4.0 6GHz≤4.5 Operatingtemperature -55°C~+150°C Copyright©AngeeiLtdProprietaryandConfidential 7 Doc#2075-06-002 Innovation·Expert·Smart Note: Thecontentofthistechnicaldocumentissubjecttochangewithoutnotice.Pleasecontact Angeeiforfurtherinformation. InformationinthisdocumentisprovidedinconnectionwithAngeeiproducts.Nolicense, expressorimplied,toanyintellectualpropertyrightsisgrantedbythisdocument.Exceptas providedinAngeei’sTermsandConditionsofSaleforsuchproducts,Angeeiassumesno liabilitywhatsoever,andAngeeidisclaimsanyexpressorimpliedwarranty,relatingtosale and/oruseofAngeeiproductsincludingliabilityorwarrantiesrelatingtofitnessfora particularpurpose,merchantability,orinfringementofanypatent,copyrightorother intellectualpropertyright.Angeeimaymakechangestospecificationsandproduct descriptionsatanytime,withoutnotice.Forthemostcurrentproductinformation,pleasevisit: www.Angeei.com. Copyright©Angeei.All…

Text truncated - open the document above for the full version.

Safety Human Exposure 1.1 Radio Frequency Exposure Compliance 1.1.1 Electromagnetic Fields RESULT: Pass Test Specification Test item : Home Gateway Identification / Type No. : E1320 FCC ID : Q78-E1320 Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 FCC KDB Publication 865664 D02 v01r02  Product Classification This device defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at 20 cm is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons.  Radio Frequency Exposure Limit Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm²) 300-1,500 -- -- f/1500 1,500-100,000 -- -- 1.0  Radio Frequency Exposure Calculation Formula a) EUT RF Exposure Evaluation standalone operations(worse case) Mode *Max Time- average Power with Tune-up (Worst-case) (dBm) Directional Gain (dBi) Distance (cm) Power Density (mW/cm²) FCC Limit (mW/cm²) 2.4G Wi-Fi 19.00 8.0 20 0.100 1.0 5G Wi-Fi 25.70 9.8 20 0.706 1.0 Note: 1. *2.4GHz Band RF Output Power: Refer to CN22M62P 001 2. *5GHz Bands RF Output Power: Refer to CCN22M62P 002 b) Simultaneous transmission MPE: Per KDB 447498 D01, simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. Simultaneous transmission Scenarios No. Simultaneous transmission Scenarios 1 2.4GHz Wi-Fi + 5GHz Wi-Fi Simultaneous transmission Scenarios Sum for the MPE ratio Limit Verdict 2.4GHz Wi-Fi + 5GHz Wi-Fi 0.100/1+0.706/1=0.806 1.0 Compliance  Conclusion Therefore the maximum calculations result of above are meet the requirement of Radio Frequency Exposure (MPE) limit.

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN22M62P 002 Auftrags-Nr.: Order no.: 168381079 Seite 1 von 22 Page 1 of 22 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-05-15 Auftraggeber: Client: ZTE Corporation ZTE Plaza, Hi-Tech Park, Nanshan District, Shenzhen, Guangdong, P.R.China Prüfgegenstand: Test item: Home Gateway Bezeichnung / Typ-Nr.: Identification / Type no.: E1320 (Trademark: ZTE) Auftrags-Inhalt: Order content: Test Report Prüfgrundlage: Test specification: CFR47 FCC Part15: Subpart E Section 15.407 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 ANSI C63.10:2013 Wareneingangsdatum: Date of sample receipt: 2022-07-16 Please refer to Photo Document Prüfmuster-Nr.: Test sample no: A003294694-001~002 Prüfzeitraum: Testing period: 2022-07-16 - 2022-08-09 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: Signed by: Bell Hu genehmigt von: authorized by: Signed by: Lin Lin Datum: Date: 2022-08-30 Ausstellungsdatum: Issue date: 2022-08-30 Stellung / Position: Project Manager Stellung / Position: Reviewer Sonstiges / Other: FCC ID: Q78-E1320 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com jjj Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN22M62P 002 Seite 2 von 22 Page 2 of 22 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 FREQUENCY STABILITY RESULT: Pass 5.1.5 26DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.1.6 6DB BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.8 DYNAMIC FREQUENCY SELECTION (DFS) RESULT: Pass 5.1.9 CONDUCTED EMISSION ON AC MAINS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN22M62P 002 Seite 3 von 22 Page 3 of 22 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 4 2.1 TEST FACILITIES ................................................................................................................................. 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 6 2.4 CALIBRATION ..................................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 6 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 7 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 8 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES ................................................................................................ 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ......................................................................................... 9 4.2 TEST OPERATION AND TEST SOFTWARE .............................................................................................. 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 1 of 38 Appendix C: Test Results of DFS APPENDIX C: TEST RESULTS OF DFS ............................................................................................................................... 1 1.1 DFS DETECTION THRESHOLDS ...................................................................................................................................... 2 1.1.1 Test Result ..................................................................................................................................................... 2 1.1.2 Test Graphs ................................................................................................................................................... 3 1.2 CHANNEL AVAILABILITY CHECK TIME ........................................................................................................................... 12 1.2.1 Test Result ................................................................................................................................................... 12 1.2.2 Test Graphs ................................................................................................................................................. 13 1.3 CHANNEL MOVE TIME AND CHANNEL CLOSING TRANSMISSION TIME ................................................................................ 16 1.3.1 Test Result ................................................................................................................................................... 16 1.3.2 Test Graphs ................................................................................................................................................. 17 1.4 NON-OCCUPANCY PERIOD ........................................................................................................................................ 18 1.4.1 Test Graphs ................................................................................................................................................. 19 1.5 U-NII DETECTION BANDWIDTH .................................................................................................................................. 20 1.5.1 Test Result ................................................................................................................................................... 20 1.5.2 Test Graphs ................................................................................................................................................. 24 1.6 STATISTICAL PERFORMANCE CHECK ............................................................................................................................. 26 1.6.1 Test Result ................................................................................................................................................... 26 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 2 of 38 1.1 DFS Detection Thresholds 1.1.1 Test Result TestMode Frequency[dbm] Radar Type Result Verdict 11AC20SISO 5500 Type1 See test Graph PASS Type2 See test Graph PASS Type3 See test Graph PASS Type4 See test Graph PASS Type5 See test Graph PASS Type6 See test Graph PASS 11AC40SISO 5510 Type0 See test Graph PASS Type1 See test Graph PASS Type2 See test Graph PASS Type3 See test Graph PASS Type4 See test Graph PASS Type5 See test Graph PASS Type6 See test Graph PASS 11AC80SISO 5530 Type0 See test Graph PASS Type1 See test Graph PASS Type2 See test Graph PASS Type3 See test Graph PASS Type4 See test Graph PASS Type5 See test Graph PASS Type6 See test Graph PASS 11AC160SISO 5570 Type0 See test Graph PASS Type1 See test Graph PASS Type2 See test Graph PASS Type3 See test Graph PASS Type4 See test Graph PASS Type5 See test Graph PASS Type6 See test Graph PASS Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 3 of 38 1.1.2 Test Graphs 11AC20SISO_5500_Type1 11AC20SISO_5500_Type2 11AC20SISO_5500_Type3 11AC20SISO_5500_Type4 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 4 of 38 11AC20SISO_5500_Type5 11AC20SISO_5500_Type6 11AC40SISO_5510_Type0 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 5 of 38 11AC40SISO_5510_Type1 11AC40SISO_5510_Type2 11AC40SISO_5510_Type3 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 6 of 38 11AC40SISO_5510_Type4 11AC40SISO_5510_Type5 11AC40SISO_5510_Type6 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 7 of 38 11AC80SISO_5530_Type0 11AC80SISO_5530_Type1 11AC80SISO_5530_Type2 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 8 of 38 11AC80SISO_5530_Type3 11AC80SISO_5530_Type4 11AC80SISO_5530_Type5 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 9 of 38 11AC80SISO_5530_Type6 11AC160SISO_5570_Type0 11AC160SISO_5570_Type1 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 10 of 38 11AC160SISO_5570_Type2 11AC160SISO_5570_Type3 11AC160SISO_5570_Type4 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 11 of 38 11AC160SISO_5570_Type5 11AC160SISO_5570_Type6 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 12 of 38 1.2 Channel Availability Check Time 1.2.1 Test Result TestMode Frequency[MHz] Result Verdict 11AC160SISO 5570 See test Graph PASS Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 13 of 38 1.2.2 Test Graphs Initial Channel Availability Check Time 11AC160SISO_5570 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 14 of 38 Beginning of Channel Availability Check Time 11AC160SISO_5570 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 15 of 38 End of Channel Availability Check Time 11AC160SISO_5570 Prüfbericht - Produkte Test Report - Products Appendix C CN22M62P 002 Page 16 of 38 1.3 Channel Move T…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix B CN22M62P 002 Page 1 of 332 Appendix B: Test Results of 5GHz Wi-Fi APPENDIX B: TEST RESULTS OF 5GHZ WI-FI ................................................................................................................... 1 APPENDIX B.1: TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER .................................................................................... 2 APPENDIX B.2: TEST RESULTS OF CONDUCTED POWER SPECTRAL DENSITY ..................................................................................... 5 APPENDIX B.3: TEST RESULTS OF 26DB BANDWIDTH .............................................................................................................. 119 APPENDIX B.4: TEST RESULTS OF 99% BANDWIDTH ............................................................................................................... 154 APPENDIX B.5: TEST RESULTS OF 6DB BANDWIDTH ................................................................................................................ 190 APPENDIX B.6: TEST RESULTS OF RADIATED SPURIOUS EMISSIONS ........................................................................................... 198 30MHz - 1GHz (Worst case) ..................................................................................................................................... 198 Above 1GHz .............................................................................................................................................................. 200 APPENDIX B.7: TEST RESULTS OF CONDUCTED EMISSION ........................................................................................................ 331 Prüfbericht - Produkte Test Report - Products Appendix B CN22M62P 002 Page 2 of 332 Appendix B.1: Test Results of Maximum Conducted output power U-NII-1: 5150-5250MHz Test Mode Test Frequency (MHz) Measured Conduted Power [dBm] Limit[dBm] Verdict Ant1 Ant2 Ant3 MIMO 802.11A 5180 20.42 20.46 20.13 / 30.0 Pass 5200 20.64 20.43 21.24 / 30.0 Pass 5240 20.98 19.74 21.06 / 30.0 Pass 802.11N20 5180 18.10 18.11 19.09 23.23 26.2* Pass 5200 18.18 18.15 19.04 23.25 26.2* Pass 5240 18.02 18.73 19.11 23.41 26.2* Pass 802.11N40 5190 17.95 17.78 17.55 22.53 26.2* Pass 5230 20.48 19.78 21.33 25.35 26.2* Pass 802.11AC20 5180 18.14 18.09 18.88 23.08 26.2* Pass 5200 18.16 18.30 18.83 23.21 26.2* Pass 5240 18.71 18.01 19.00 23.36 26.2* Pass 802.11AC40 5190 17.80 17.92 17.59 22.54 26.2* Pass 5230 20.50 19.72 21.50 25.41 26.2* Pass 802.11AC80 5210 15.21 15.15 15.23 19.97 26.2* Pass 802.11AX20 5180 18.29 18.28 19.29 23.42 26.2* Pass 5200 18.31 18.49 19.28 23.49 26.2* Pass 5240 19.07 18.13 19.56 23.73 26.2* Pass 802.11AX40 5190 18.14 17.99 17.70 22.72 26.2* Pass 5230 20.77 20.12 21.51 25.61 26.2* Pass 802.11AX80 5210 15.85 15.55 15.45 20.39 26.2* Pass This device is an indoor access point. The WLAN 5GHz 802.11n/802.11ac/802.11ax support beamforming Function, and the directional gain is 9.8dBi for MIMO mode, thus the power limit should be reduced to 26.2dBm. Prüfbericht - Produkte Test Report - Products Appendix B CN22M62P 002 Page 3 of 332 U-NII-2A and U-NII-2C: 5250-5350MHz and 5470-5825MHz Test Mode Test Frequency (MHz) Measured Conduted Power [dBm] Limit[dBm] Verdict Ant1 Ant2 Ant3 MIMO 11A 5260 15.22 14.93 16.60 / 24.0 Pass 5280 14.96 15.35 16.74 / 24.0 Pass 5320 14.97 14.52 16.33 / 24.0 Pass 5500 15.33 16.12 16.29 / 24.0 Pass 5580 15.21 16.44 16.65 / 24.0 Pass 5700 14.63 15.17 15.59 / 24.0 Pass 5720 16.59 16.49 16.10 / 24.0 Pass 11N20 5260 11.74 11.78 13.20 17.07 20.2* Pass 5280 11.85 12.04 13.15 17.16 20.2* Pass 5320 11.41 11.25 12.86 16.67 20.2* Pass 5500 11.27 12.58 12.61 16.97 20.2* Pass 5580 11.65 12.61 12.61 17.08 20.2* Pass 5700 11.13 12.06 12.30 16.63 20.2* Pass 5720 11.30 11.67 12.39 16.58 20.…

Text truncated - open the document above for the full version.
